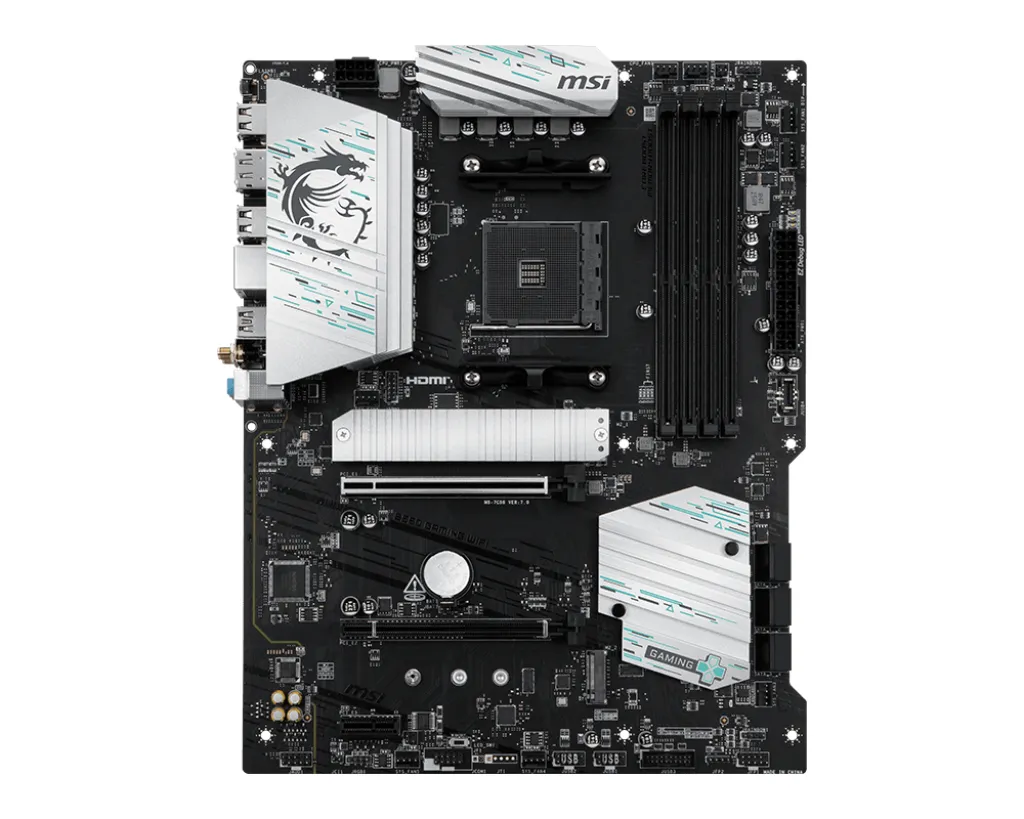

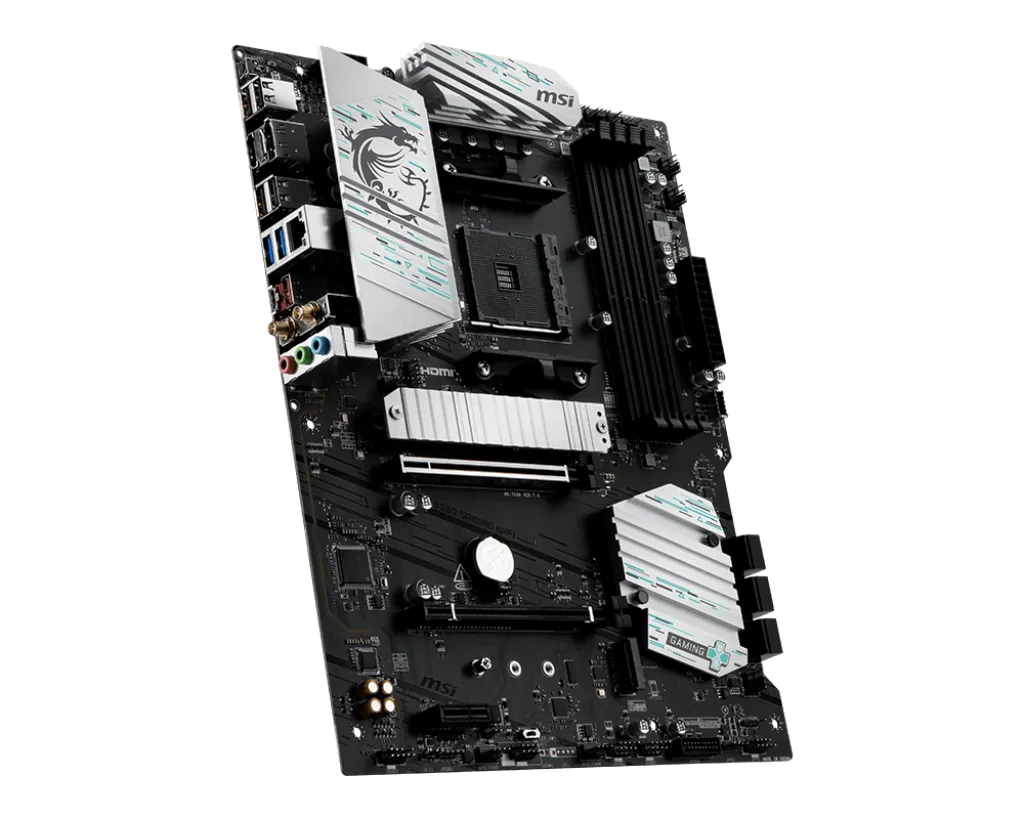

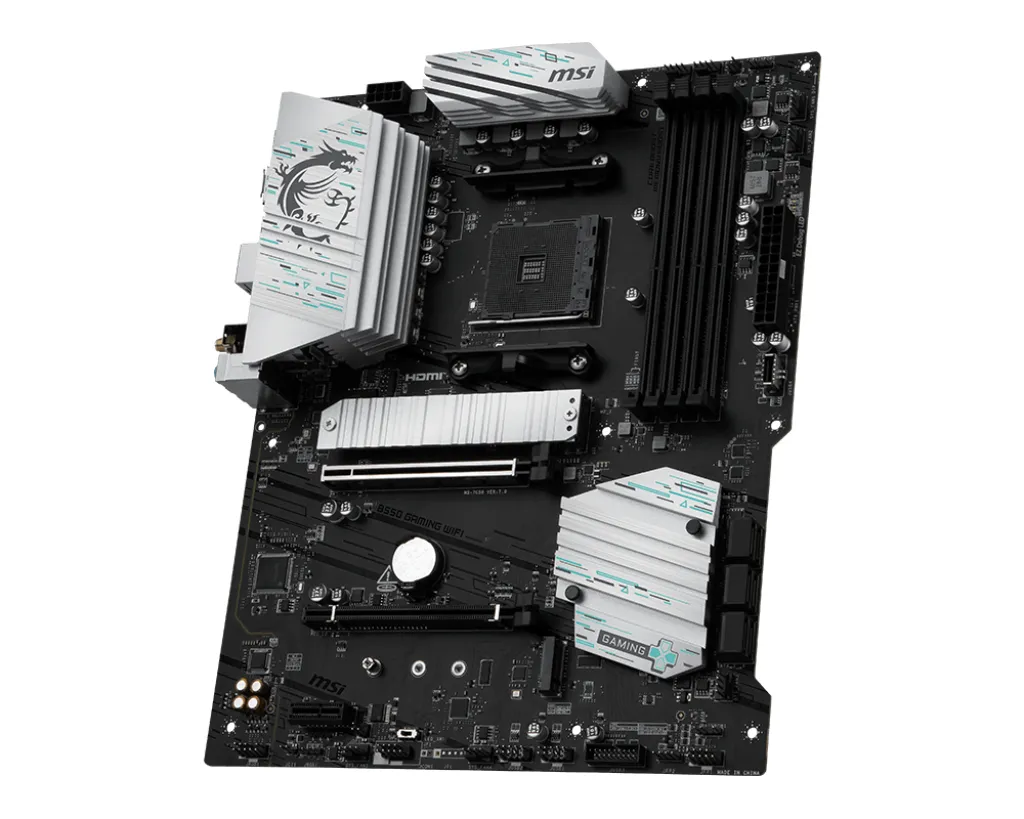

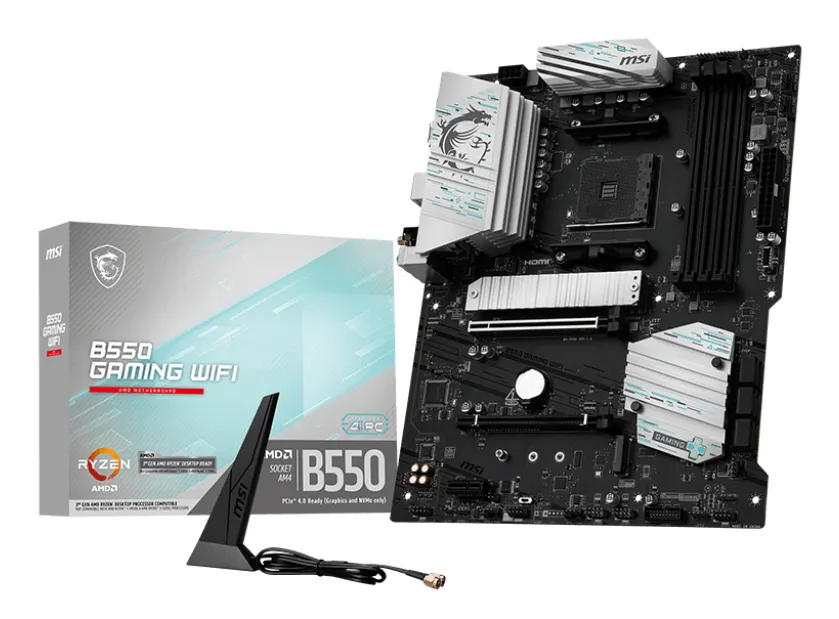

MSI B550 GAMING WIFI emaplaat AMD B550 Pesa AM4 ATX
AL1
AC
E1
Vajad toodet suuremas koguses või püsitellimust?
Võta ühendust meie klienditoega info[at]digipood.eu
Kuumakse al. 7.08 €. Taotle järelmaksu ostukorvis.
MSI B550 GAMING WIFI. Protsessori tootja: AMD, Protsessori pesa: Pesa AM4, Ühilduvad protsessoriseeriad: AMD Ryzen 3000 Series, AMD Ryzen 5000 Series, AMD Ryzen 7000 Series. Toetatud mälutüübid: DDR4-SDRAM, Maksimaalne sisemälu: 128 GB, Mälupesa tüüp: DIMM. Kõvaketta ühenduse tüüp: SATA III, M.2, Toetatud ketaste tüübid: HDD & SSD. Maksimaalne resolutsioon: 4096 x 2160 pikslit. USB-pistmiku tüüp: USB tüüp A, USB tüüp-C
.: Disain :.
- Emaplaadi kujutegur
- ATX
- Laius
- 304 mm
- Sügavus
- 243.84 mm
.: Mälu :.
- Maksimaalne sisemälu
- 128 GB
.: Võrgustumine :.
- Ethernet LAN
- Jah
- WiFi-standardid
- Wi-Fi 5 (802.11ac)
- Bluetooth
- Jah
- Bluetoothi versioon
- 5.0

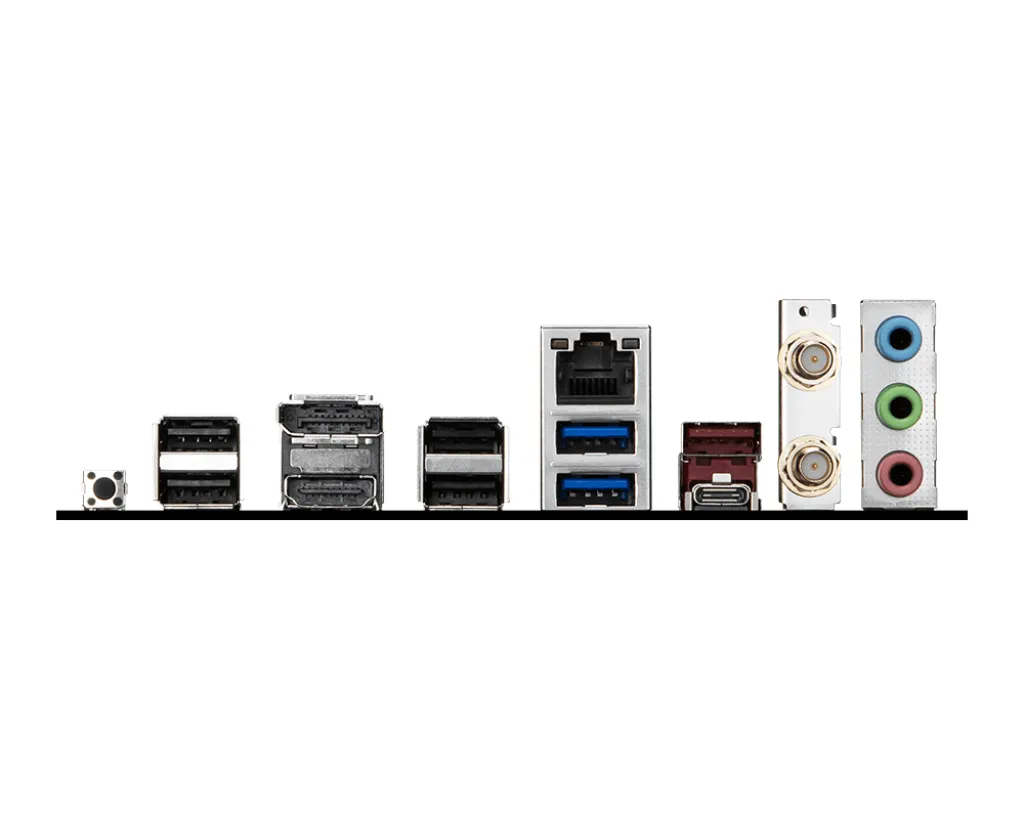

Tagapaneeli I/O pesad
- PS/2-portide kogus
- 1
- HDMI-portide arv
- 1
- USB 2.0 portide arv
- 4
Lisad
- Kaablid kaasa arvatud
- SATA
Muud näitajad
- Maximum number of SMP processors
- 1
- Unit Box Length
- 0.34
- Unit Box Height
- 0.085
- Supported memory clock speed (max)
- 2667 MHz
- PCI Express x16 (Gen 4.x) slots
- 1
- RGB LED pin header
- Jah
- System management BIOS (SMBIOS) version
- 2.8
- Processor manufacturer
- AMD
- Supported storage drive interfaces
- SATA III
- WiFi-AP antenna jack
- 2
- Unit Box Width
- 0.27
- PCI Express x1 (Gen 3.x) slots
- 2
- Supported storage drive types
- HDD & SSD
- Drivers included
- Jah
- Number of M.2 (M) slots
- 2
- ACPI version
- 6.0
- Clear CMOS jumper
- Jah
- PCI Express x16 (Gen 3.x) slots
- 1
- Number of SATA III connectors
- 6
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 1
- Front panel connector
- Jah
- USB 3.2 Gen 2 (3.1 Gen 2) connectors
- 1
- 12V power connector
- Jah
- PC health monitoring
- CPU/Fan/Temperature
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 2
- Total number of SATA connectors
- 6
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 1
- Audio chip
- Realtek ALC897
- Parallel processing technology support
- Not supported
- Top Wi-Fi standard
- Wi-Fi 5 (802.11ac)
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 2
- Harmonized System (HS) code
- 84733020
- Summary
- MSI B550 GAMING WIFI. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: SATA III, Supported storage drive types: HDD & SSD. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek 8111H, Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
- Unit Calculated Weight
- 1.75 kg
- Unit Calculated Volume
- 0.009957 cubm
- ECC сompatibility
- ECC & Non-ECC
- CnCode
- 84733020
- Front panel audio connector
- Jah
- Compatible processor series
- AMD Ryzen 3000 Series
- BIOS type
- UEFI AMI
- ATX Power connector (24-pin)
- Jah
- Memory slots type
- DIMM
- Motherboard chipset family
- AMD
- Number of chassis fan connectors
- 6
- Chassis intrusion connector
- Jah
- S/PDIF out port
- Jah
- Supported memory types
- DDR4-SDRAM
- CPU fan connector
- Jah
- Memory channels
- Dual-channel
- Kogus transpordikasti kohta
- 10
- 1st M.2 largest key size
- 22110
- 1st M.2 highest PCI Express generation
- 4.0
- 2nd M.2 largest key size
- 2280
- Component for
- PC
- 2nd M.2 highest PCI Express generation
- 3.0
- Tootja koduleht
- https://www.msi.com/Motherboard/B550-GAMING-WIFI
- Digital audio optical out
- 1
- DisplayPorts quantity
- 1
- Ethernet interface type
- Gigabit Ethernet
- Ethernet LAN (RJ-45) ports
- 1
- Motherboard chipset
- AMD B550
- Unbuffered memory
- Jah
- BIOS memory size
- 256 Mbit
- LAN controller
- Realtek 8111H
- Number of memory slots
- 4
- Processor Socket
- Socket AM4
- Supported memory clock speeds
- 2667/2800/2933/3000/3066/3200/3466/3600/3733/3866/4000/4133/4266/4400/4533/4600/4733/4800/4866 MHz
- USB 2.0 connectors
- 4
