Mainboard|GIGABYTE|AMD A520|SAM4|Micro-ATX|Memory DDR4|Memory slots 2|2xPCI-Express 3.0 1x|1xPCI-Express 3.0 16x|1xM.2|1x15pin D-sub|1xDVI-D|1xHDMI|2xAV-In|1xAV-out|2xUSB 2.0|4xUSB 3.2|1xPS/2|1xRJ45|A520MS2H1.3
58.80€
E1
E1
Tarneaeg: 2 - 4 tp
Pakipunkt alates 2.50 €
Alates 200 € tarne tasuta
14-päevane tagastusõigus
Shipping, parcel point from 2.50 EUR, free shipping over 200 EUR, 14-day returns
Vajad toodet suuremas koguses või püsitellimust?
Võta ühendust meie klienditoega info[at]digipood.eu
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
- Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
- Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs
- 4+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
- Ultra-Fast NVMe PCIe 3.0 x4 M.2 Connector
- GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
- HDMI, DVI-D, D-sub Ports for Multiple Display
- RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
- Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
- Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
- Anti-Sulfur Resistors Design
.: Disain :.
- Emaplaadi kujutegur
- Mikro ATX
- Kujutegur
- Mikro-ATX
- Laius
- 244 mm
- Sügavus
- 205 mm
.: Protsessor :.
- Protsessori pesa
- SAM4
.: Kiibistik ( Chipset ) :.
- Kiibistik ( Chipset)
- AMD A520
.: Mälu :.
- Sisemälu tüüp
- DDR4
- Taktsagedus
- 2133/2400/2666/2933/3200/3333/3600/4000/4400/4600/4866/5000/5100 MHz
- Mälupesad
- 2
- Maksimaalne sisemälu
- 64 GB
Graafikakaart
- Integreeritud graafikaadapter
- Depending on CPU
.: Audio :.
- Intregeeritud helikaart
- Realtek ALC887
- Audioväljundi kanalid
- 7.1 channels
.: Võrgustumine :.
- Ethernet LAN
- Realtek (Gigabit)
- WiFi
- Ei
Laienduspesad
- PCI Expressi x1 (Gen 3.x) pesad
- 2
- PCI Expressi x16 (Gen 3.x) pesad
- 1
Kõvaketta tugi
- SATA
- Jah
- M.2 (M) siinide arv
- 1
- RAID
- SATA 0, 1, 10
Sisemine I/O moodul
- TPM-ühenduspesa
- Header

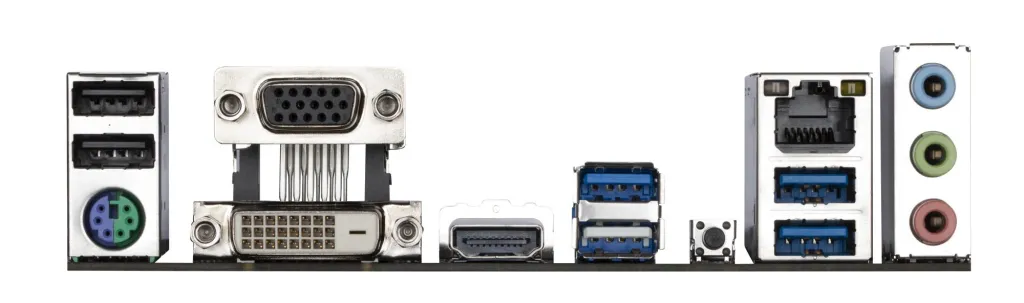

Tagapaneeli I/O pesad
- PS/2-portide kogus
- 1
- VGA (D-Sub) portide arv
- 1
- HDMI-portide arv
- 1
- USB 2.0 portide arv
- 2
- USB 2.0
- 2
- Ethernet LAN (RJ-45) pordid
- 1
.: Kaal ja mõõtmed :.
- Brutokaal
- 0.794 kg
- Netokaal
- 0.6 kg
.: Pakendi andmed :.
- Max kogus transpordipakendis
- 10
- Pakendi maht
- 0.00426 cubm
Muud näitajad
- Compatible processor series
- AMD Ryzen 3000 Series
- Supported processor sockets
- Pesa AM4
- BIOS type
- UEFI AMI
- ATX Power connector (24-pin)
- Jah
- Memory slots type
- DIMM
- Motherboard chipset family
- AMD
- Number of chassis fan connectors
- 2
- Supported memory types
- DDR4-SDRAM
- Memory channels
- Dual-channel
- CPU fan connector
- Jah
- Number of SATA III connectors
- 4
- PCI Express x16 (Gen 3.x) slots
- 1
- Clear CMOS jumper
- Jah
- Clear CMOS button
- Jah
- ACPI version
- 5.0
- Number of M.2 (M) slots
- 1
- Power fan connector
- Jah
- PCI Express x1 (Gen 3.x) slots
- 2
- Maximum number of SMP processors
- 1
- Supported storage drive interfaces
- M.2,PCI Express 3.0,SATA
- Processor manufacturer
- AMD
- System management BIOS (SMBIOS) version
- 2.7
- RGB LED pin header
- Jah
- USB 3.2
- 4
- DVI-D
- 1
- Unit Box Height
- 0.235
- Unit Box Length
- 0.265
- Unit Box Width
- 0.05
- CnKood
- 84733020
- Garantiiaeg
- 3 aasta(s)
- ECC сompatibility
- ECC & Non-ECC
- Üksuse kalkuleeritud maht
- 0.00426 cubm
- Üksuse kalkuleeritud kaal
- 0.794 kg
- Harmonized System (HS) code
- 84733020
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 4
- Products per shipping (inner) case
- 1 tk
- On-board graphics card
- Ei
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 1
- Desktop Management Interface (DMI) version
- 2.7
- Lithium weight per battery
- 0.07 g
- Kokkuvõte
- GIGABYTE A520M S2H Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, 4+3 Phases Pure Digital VRM, up to 5100MHz DDR4 (OC), PCIe 3.0 x4 M.2, GbE LAN, USB 3.2 Gen 1. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 3.0, SATA, RAID levels: 0, 1, 10. Ethernet interface type: Gigabit Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: AMD
- Tootja koduleht
- https://www.gigabyte.com/Motherboard/A520M-S2H-rev-10#kf
- Mudel
- A520M S2H 1.3
- Pakendi laius
- 265 mm
- Pakendi kõrgus
- 52 mm
- Component for
- PC
- Transpordipakendi kaal
- 7.94 kg
- Transpordipakendi kõrgus
- 26 cm
- Transpordipakendi laius
- 29 cm
- Transpordipakendi sügavus
- 56.5 cm
- Kogus transpordikasti kohta
- 10
- Akuelementide arv
- 1
- Akutehnoloogia
- Lithium-Manganese Dioxide (LiMnO2)
- Pakendi sügavus
- 235 mm
- Pakendi kaal
- 740 g
- HDCP
- Jah
- Kõrgus
- 35 mm
- DVI-D ports quantity
- 1
- Ethernet interface type
- Gigabit Ethernet
- Ethernet LAN (RJ-45) ports
- 1
- Päritoluriik
- China
- Toote värv
- Must
- Motherboard chipset
- AMD A520
- RAID support
- Jah
- VGA (D-Sub) ports quantity
- 1
- AV-In
- 2
- AV-out
- 1
- Batteries Included
- Jah
- Battery type
- CR2032
- Battery weight
- 3 g
- BIOS memory size
- 128 Mbit
- Maximum internal memory supported by processor
- 64 GB
- Number of memory slots
- 2
- Processor Socket
- Pesa AM4
- Raid Levels
- 0/1/10
- Supported memory clock speeds
- 2133/2400/2667/2933/3200/3333/3600/4000/4400/4600/4866/5000 MHz
- USB 2.0 connectors
- 2
