Mainboard|GIGABYTE|AMD B550|SAM4|ATX|Memory DDR4|Memory slots 4|4xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|2xM.2|1xHDMI|4xUSB 2.0|1xUSB 3.2 type B|2xUSB 3.2|1xUSB-C|1xRJ45|3xAudio port|B550EAGLE1.0
97.75€
E1
E1
Vajad toodet suuremas koguses või püsitellimust?
Võta ühendust meie klienditoega info[at]digipood.eu
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
- AMD Socket AM4: Supports AMD Ryzen 5000 / 4000 / 3000 Series Processors
- Digital twin 10+3+1 phases VRM solution
- Dual Channel DDR44*DIMMs with AMD EXPO Memory Module Support
- EZ-Latch: PCIe slots with Quick Release Design
- Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
- Ultra-Fast Storage: 2*M.2 slots, including PCIe 4.0 x1
- Efficient Thermal: VRM Thermal Armor Advanced
- Fast Networking: GbE LAN
- Extended Connectivity: HDMI, Displayport
- PCIe UD Slot: PCIe 4.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect
.: Disain :.
- Emaplaadi kujutegur
- ATX
- Kujutegur
- ATX
- Toiteallika tüüp
- ATX
- Laius
- 305 mm
- Sügavus
- 244 mm
.: Protsessor :.
- Protsessori pesa
- SAM4
.: Kiibistik ( Chipset ) :.
- Kiibistik ( Chipset)
- AMD B550
.: Mälu :.
- Sisemälu tüüp
- DDR4
- Taktsagedus
- 2133/2400/2667/2933/3200 MHz
- Mälupesad
- 4
- Maksimaalne sisemälu
- 128 GB
Graafikakaart
- Integreeritud graafikaadapter
- Depending on CPU
.: Audio :.
- Intregeeritud helikaart
- Jah
- Audioväljundi kanalid
- 3
.: Võrgustumine :.
- Ethernet LAN
- Gigabit
- WiFi
- Ei
Laienduspesad
- PCI Expressi x1 (Gen 3.x) pesad
- 4
Kõvaketta tugi
- SATA
- Jah
- M.2 (M) siinide arv
- 2
- RAID
- SATA 0, 1, 10; NVMe 0, 1, 10
Sisemine I/O moodul
- TPM-ühenduspesa
- Jah

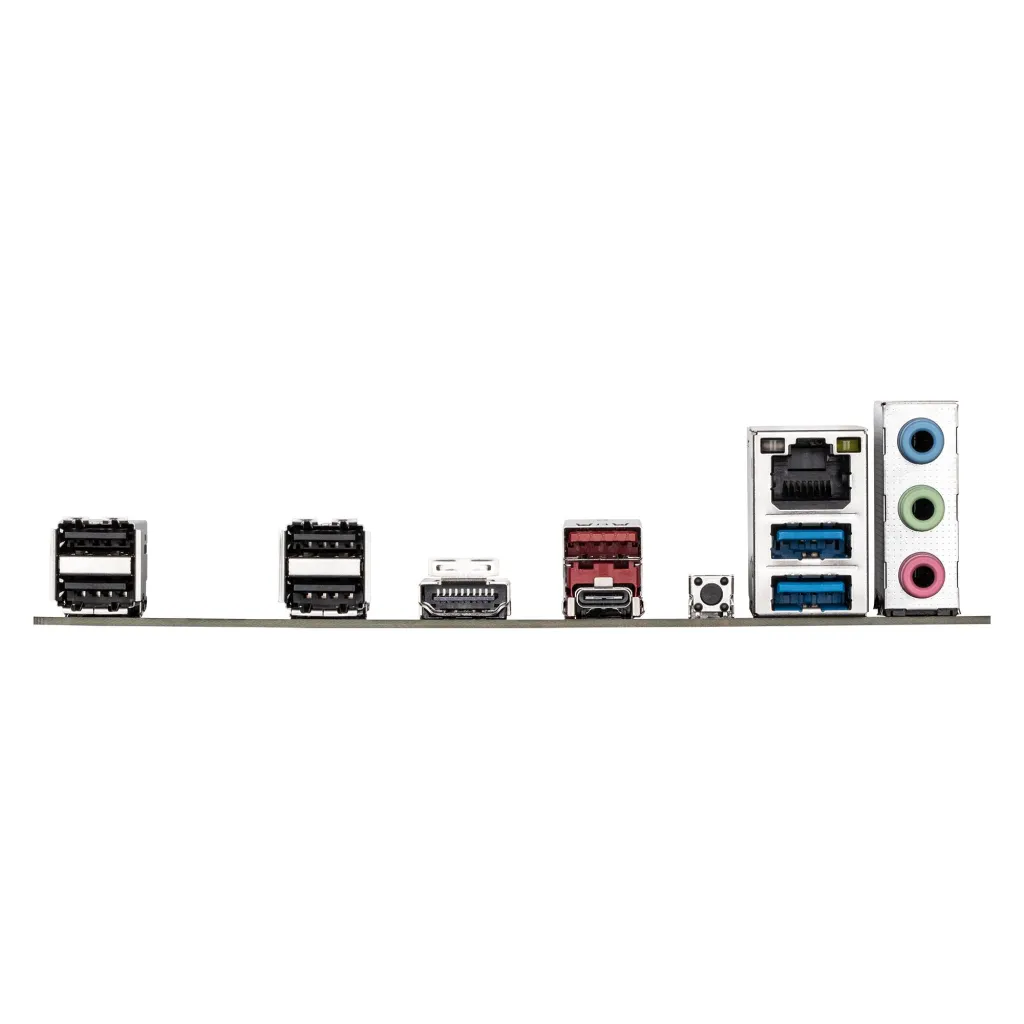

Tagapaneeli I/O pesad
- HDMI-portide arv
- 1
- USB 2.0 portide arv
- 4
- USB 2.0
- Jah
- Ethernet LAN (RJ-45) pordid
- 1
.: Kaal ja mõõtmed :.
- Brutokaal
- 1.47 kg
- Netokaal
- 0.7 kg
.: Pakendi andmed :.
- Max kogus transpordipakendis
- 8
- Pakendi maht
- 0.01011 cubm
Muud näitajad
- Compatible processor series
- AMD Ryzen 3000 Series/AMD Ryzen 4000 Series/AMD Ryzen 5000 Series
- Supported processor sockets
- Socket AM4
- BIOS type
- UEFI AMI
- ATX Power connector (24-pin)
- Jah
- EPS power connector (8-pin)
- Jah
- Memory slots type
- DIMM
- Motherboard chipset family
- AMD
- Number of chassis fan connectors
- 3
- Supported memory types
- DDR4-SDRAM
- Memory channels
- Dual-channel
- Front panel audio connector
- Jah
- CPU fan connector
- Jah
- Number of SATA III connectors
- 4
- Parallel processing technology support
- Not supported
- Clear CMOS jumper
- Jah
- ACPI version
- 5.0
- Number of M.2 (M) slots
- 2
- Line-in
- Jah
- Number of storage drives supported
- 6
- Supported storage drive types
- HDD & SSD
- PCI Express x1 (Gen 3.x) slots
- 4
- Supported storage drive interfaces
- M.2,PCI Express 4.0,SATA III
- Screws included
- Jah
- Processor manufacturer
- AMD
- System management BIOS (SMBIOS) version
- 2.7
- RGB LED pin header
- Jah
- USB 3.2
- Jah
- PCI-Express 4.0 16x
- 1
- PCI Express x16 (Gen 4.x) slots
- 1
- USB 3.2 type B
- 1
- Supported memory clock speed (max)
- 3200 MHz
- Unit Box Height
- 0.08
- Unit Box Length
- 0.335
- Unit Box Width
- 0.275
- CnCode
- 84733020
- ECC сompatibility
- ECC & Non-ECC
- Maximum internal memory per slot
- 32 GB
- Unit Calculated Volume
- 0.01011 cubm
- Unit Calculated Weight
- 1.47 kg
- Summary
- GIGABYTE B550 EAGLE Motherboard - AMD Ryzen 5000 G-Series CPUs, 10+3+1 Phases VRM, up to 3200MHz DDR4, 1xPCIe 4.0 + 1xPCIe 3.0 M.2, 1GbE LAN, USB 3.2 Gen 2. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 2
- Products per shipping (inner) case
- 1 pc(s)
- Audio chip
- Realtek ALC897
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
- 1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 1
- Number of HDDs supported
- 4
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 2
- PC health monitoring
- Fan/Temperature/Voltage/Water cooling
- Desktop Management Interface (DMI) version
- 2.7
- Front panel connector
- Jah
- Lithium weight per battery
- 0.07 g
- Garantiiaeg
- 3 year(s)
- Kogus transpordikasti kohta
- 8
- Toote värv
- Dark brown
- Number of CPU fan connectors
- 2
- Kaasas tarkvara
- Norton® Internet Security (OEM version) LAN bandwidth management software
- Number of EPS power connectors (8-pin)
- 1
- Number of water pump connectors
- 1
- Number of RGB LED pin headers
- 5
- 1st M.2 largest key size
- 22110
- 1st M.2 highest PCI Express generation
- 4.0
- 2nd M.2 largest key size
- 22110
- Component for
- PC
- 2nd M.2 highest PCI Express generation
- 3.0
- Akuelementide arv
- 1
- Akutehnoloogia
- Lithium-Manganese Dioxide (LiMnO2)
- Maksimaalne resolutsioon
- 4096 x 2160 pixels
- HDCP
- Jah
- Tootja koduleht
- https://www.gigabyte.com/
- Transpordipakendi kaal
- 11.75 kg
- Transpordipakendi kõrgus
- 38 cm
- Transpordipakendi laius
- 37 cm
- Transpordipakendi sügavus
- 57.5 cm
- Kõrgus
- 35 mm
- Toote kaal
- 1250 g
- Jahutuse tüüp
- Passive
- DirectX version
- 12.0
- Ethernet interface type
- Gigabit Ethernet
- Ethernet LAN (RJ-45) ports
- 1
- HDMI versioon
- 2.1
- Headphone outputs
- 1
- Microphone in
- Jah
- Motherboard chipset
- AMD B550
- RAID support
- Jah
- Unbuffered memory
- Jah
- Windows operating systems supported
- Windows 10 x64/Windows 11 x64
- Batteries Included
- Jah
- Battery type
- CR2032
- Battery weight
- 3 g
- BIOS memory size
- 128 Mbit
- LAN controller
- Realtek RTL8111H
- Mudel
- B550 EAGLE
- Number of memory slots
- 4
- Pakendi sügavus
- 270 mm
- Pakendi kõrgus
- 80 mm
- Pakendi kaal
- 1482.5 g
- Pakendi laius
- 335 mm
- Processor Socket
- Socket AM4
- Raid Levels
- 0/1/10
- Supported memory clock speeds
- 2133/2400/2667/2933/3200 MHz
- USB 2.0 connectors
- 2
- USB-C
- Jah
