Mainboard|MSI|AMD B550|Socket AM4|ATX|RAM DDR4-SDRAM|4xSlots|Wi-Fi Yes|Bluetooth Yes|2xNumber of M.2 (M) slots|B550GAMINGWIFI
127.56€
AL1
AL1
144.27€
AC
AC
135.26€
E1
E1
Tarneaeg: 2 - 4 tp
Pakipunkt alates 2.50 €
Alates 200 € tarne tasuta
14-päevane tagastusõigus
Shipping, parcel point from 2.50 EUR, free shipping over 200 EUR, 14-day returns
Vajad toodet suuremas koguses või püsitellimust?
Võta ühendust meie klienditoega info[at]digipood.eu
Kuumakse al. 8.24 €. Taotle järelmaksu ostukorvis.
The B550 GAMING WIFI is crafted to offer extensive connectivity, versatile tools, and Wi-Fi solution for gamers seeking a comprehensive experience. Featuring an 1G LAN, Wi-Fi and PCIe 4.0 solution, it is ready for 24/7 non-stop gaming optimized for AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, and 3000 Series processors.
Have trouble turning screws? MSI innovative EZ M.2 clip assist you install an M.2 SSD quickly and effortlessly.
One Finger for EZ GPU Installation
The enlarged PCI-E clip helps you swap or remove your devices easier. Keep the PCI-E slot stronger and safer.
Clear CMOS Button
Restore the BIOS to the default settings – helpful in 99% of the cases to successfully boot again.
10+2+1 Duet Rail POWER system
Unleash and sustain maximum performance with a flagship VRM design built with a total of 10 + 2 + 1 digital power phases. With a 8-pin power connector, B550 GAMING WIFI is ready for the challenge of heavy-loading tasks.
OPTIMIZED PCB SOLUTION
The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.
Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.
M.2 Shield Frozr
Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.
7W/mK Thermal Pad & Additional Choke Pad
High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are running at high speed.
Chipset Heatsink
The PCH heatsink is designed to reduce dust and noise and capable of maintaining high efficiency of heat dissipation.
FAST AND FUTURE-READY STORAGE
MSI Gaming series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI's premium network solution provides incredible data transfer speed for demanding users.
LIGHTNING GEN 4 PCI-E
MSI lightning Gen 4 PCI-E represents the bandwidth of a x16 interface to 64GB/s that has doubled compared to its previous generation.
REINFORCED,
HEAVY SOLDERED CONNECTIONS
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.
The Isolated Analogy Structure for Audio Connectors
To provide clear voice, MSI develops a unique structure – Isolated Analogy Structure. The external metal framework of the audio connectors is separated from the internal layout, which ensures the sound quality crisp.
Splash on some color and vibrant RGB lighting effects using Mystic Light utility of MSI Center, which has million colors and fancy LED effects. Enjoy the full control and creativity of your PC's lighting with one software.
Add more color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller.
Get more from a loaded BIOS designed for ease of use. Fine-tune the motherboard for gaming performance, efficiency, or overclocking world records!
MSI brand new MSI Center unifies a suite of MSI software utilities into a single centralized application. Take control of advanced motherboards features and unleash endless possibilities.
- Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, and 3000 Series processors
- Ultra Performance: 10+2+1 Phase Duet Rail Power System (55A DrMOS), 8-pin CPU power connector, Core Boost, Memory Boost, 4-layer PCB with 2oz thickened copper
- Supports DDR4 Memory, up to 4400(OC) MHz
- Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop experience
- Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2, Front USB Type-C
- High-speed Connectivity: Wi-Fi 5 Solution with 1G LAN - The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
- Audio Boost: Reward your ears with studio-grade sound quality for the most immersive gaming experience
.: Disain :.
- Komponent
- PC
- Emaplaadi kujutegur
- ATX
- Laius
- 304 mm
- Sügavus
- 243,8 mm
- PC tervise monitoorimine
- CPU, Ventilaator, Temperatuur
.: Protsessor :.
- Protsessori tootja
- AMD
- Ühilduvad protsessoriseeriad
- AMD Ryzen 3000 Series, AMD Ryzen 5000 Series, AMD Ryzen 7000 Series
- Protsessori pesa
- Pesa AM4
- Maksimaalne SMP-protsessorite arv
- 1
.: Kiibistik ( Chipset ) :.
- Emaplaadi kiibistik
- AMD
- Emaplaadi kiip
- AMD B550
.: Mälu :.
- Toetatud mälutüübid
- DDR4-SDRAM
- Mälupesa tüüp
- DIMM
- Toetatud mälu taktsagedused
- 2667,2800,2933,3000,3066,3200,3466,3600,3733,3866,4000,4133,4266,4400,4533,4600,4733,4800,4866 MHz
- Pesade arv
- 4
- Mälukanalid
- Kahe kanaliga
- Puhverdamata mälu
- Jah
- Maksimaalne sisemälu
- 128 GB
Graafikakaart
- Rööptöötlustehnoloogia tugi
- Ei ole toetatud
.: Audio :.
- Helikiip
- Realtek ALC897
- Audioväljundi kanalid
- 7.1 channels
.: Võrgustumine :.
- LAN-kontroller
- Realtek 8111H
- Ethernet LAN
- Jah
- Ethernet-liidese tüüp
- Gigabit Ethernet
- WiFi
- Jah
- WiFi-standardid
- Wi-Fi 5 (802.11Vahelduvvool)
- Bluetooth
- Jah
- Bluetoothi versioon
- 5.0
Laienduspesad
- PCI Expressi x1 (Gen 3.x) pesad
- 2
- PCI Expressi x16 (Gen 3.x) pesad
- 1
Kõvaketta tugi
- Kõvaketta ühenduse tüüp
- SATA III, M.2
- SATA II ühenduste arv
- 0
- SATA III ühenduste arv
- 6
- M.2 (M) siinide arv
- 2
Sisemine I/O moodul
- 12V ATX või EPS pistik
- Jah
- ATX-toitepistmik (24 kontakti)
- Jah
- CPU-ventilaatori pistmik
- Jah
- Kere ventilatsiooniühenduste arv
- 6
- USB 2.0 pistmikud
- 4
- Esipaneeli audiopistik
- Jah
- TPM-ühenduspesa
- Jah
- Keresse sissetungi pistmik
- Jah
- Esipaneeli konnektor
- Jah

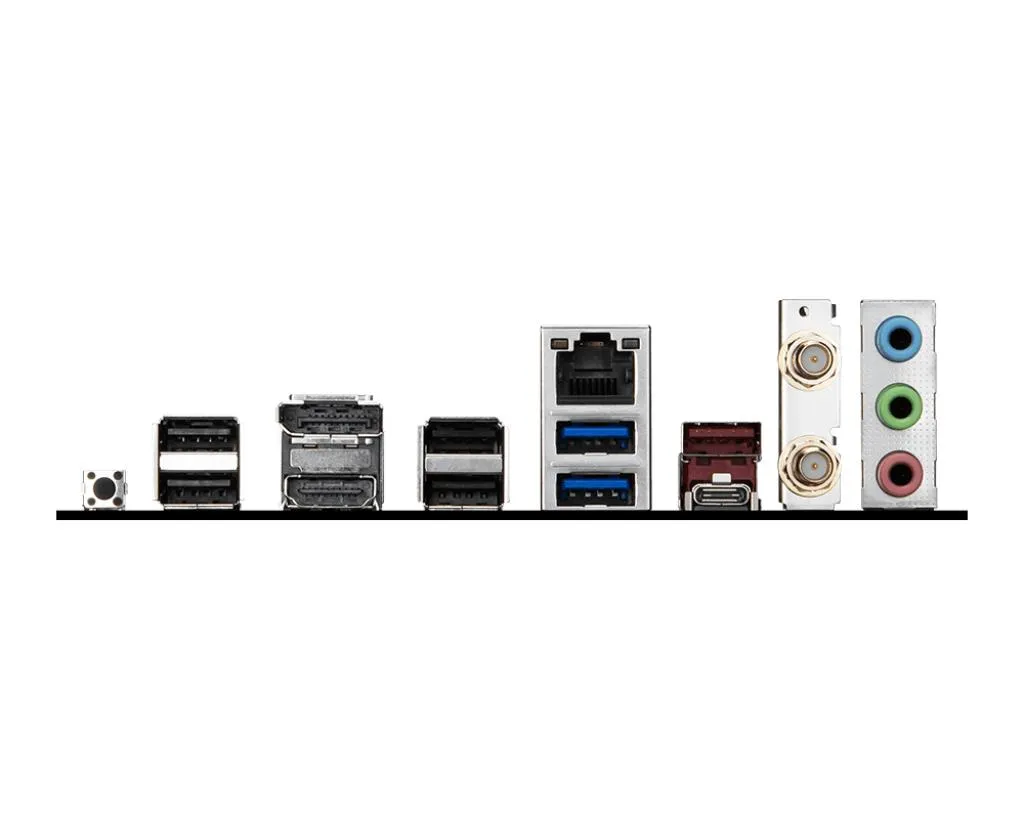

Tagapaneeli I/O pesad
- PS/2-portide kogus
- 1
- VGA (D-Sub) portide arv
- 0
- HDMI-portide arv
- 1
- DVI-D liideste arv
- 0
- S/PDIF-väljund
- Jah
- USB 2.0 portide arv
- 4
- Ethernet LAN (RJ-45) pordid
- 1
BIOS
- BIOS-i tüüp
- UEFI AMI
- System management BIOS (SMBIOS) versioon
- 2.8
- ACPI versioon
- 6.0
- BIOS-i mälu suurus
- 256 Mbit
- Kujutisesensori (CMOS) puhastamine
- Jah
Lisad
- Kaablid kaasa arvatud
- SATA
- Draiverid kaasa arvatud
- Jah
Muud näitajad
- Compatible processor series
- AMD Ryzen 3000 Series
- BIOS type
- UEFI AMI
- ATX Power connector (24-pin)
- Jah
- Memory slots type
- DIMM
- Motherboard chipset family
- AMD
- Number of chassis fan connectors
- 6
- Chassis intrusion connector
- Jah
- S/PDIF out port
- Jah
- Supported memory types
- DDR4-SDRAM
- Memory channels
- Dual-channel
- Front panel audio connector
- Jah
- CPU fan connector
- Jah
- Number of SATA III connectors
- 6
- PCI Express x16 (Gen 3.x) slots
- 1
- Parallel processing technology support
- Ei ole toetatud
- Clear CMOS jumper
- Jah
- ACPI version
- 6.0
- Number of M.2 (M) slots
- 2
- Drivers included
- Jah
- Supported storage drive types
- HDD & SSD
- PCI Express x1 (Gen 3.x) slots
- 2
- Maximum number of SMP processors
- 1
- WiFi-AP antenna jack
- 2
- Supported storage drive interfaces
- SATA III
- Processor manufacturer
- AMD
- System management BIOS (SMBIOS) version
- 2.8
- RGB LED pin header
- Jah
- DisplayPort arv
- 1
- RGB LED pin ots
- Jah
- USB 3.2 Gen 1 (3.1 Gen 1) A-tüüpi portide hulk
- 2
- USB 3.2 Gen 2 (3.1 Gen 2) C-tüüpi portide hulk
- 1
- USB 3.2 Gen 1 (3.1 Gen 1) pistmikud
- 3
- USB 3.2 Gen 1 (3.1 Gen 1) C-tüüpi portide hulk
- 0
- USB 3.2 Gen 2 (3.1 Gen 2) konnektorid
- 0
- PCI Express x16 (Gen 4.x) slots
- 1
- PCI Express x16 (Gen 4.x) pilud
- 1
- Supported memory clock speed (max)
- 2667 MHz
- Unit Box Height
- 0.085
- Unit Box Length
- 0.34
- Unit Box Width
- 0.27
- CnKood
- 84733020
- Toetatud mälu taktsageduse kiirus (maks)
- 2667 MHz
- ECC сompatibility
- ECC & Non-ECC
- ECC ühilduvus
- ECC ja mitte-ECC
- Üksuse kalkuleeritud maht
- 0.009957 cubm
- Üksuse kalkuleeritud kaal
- 1.75 kg
- Kokkuvõte
- MSI B550 GAMING WIFI. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: SATA III, Supported storage drive types: HDD & SSD. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek 8111H, Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
- Harmonized System (HS) code
- 84733020
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 2
- Top Wi-Fi standard
- Wi-Fi 5 (802.11Vahelduvvool)
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 1
- Audio chip
- Realtek ALC897
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 1
- Total number of SATA connectors
- 6
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 2
- PC health monitoring
- CPU/Fan/Temperature
- 12V power connector
- Jah
- USB 3.2 Gen 2 (3.1 Gen 2) connectors
- 1
- Front panel connector
- Jah
- Tootja koduleht
- https://www.msi.com/Motherboard/B550-GAMING-WIFI
- USB 3.2 Gen 2 (3.1 Gen 2) A-tüüpi portide hulk
- 1
- Harmonized System (HS) kood
- 84733020
- WiFi-AP antennipesa
- 2
- 1st M.2 largest key size
- 22110
- 1. M.2 suurim võtme suurus
- 22110
- 1st M.2 highest PCI Express generation
- 4.0
- 1. M.2 kõrgeima PCI Expressi põlvkonna M.2
- 4.0
- eSATA-portide arv
- 0
- 2nd M.2 largest key size
- 2280
- 2. M.2 suurim võtme suurus
- 2280
- Component for
- PC
- 2nd M.2 highest PCI Express generation
- 3.0
- 2. M.2 kõrgeima PCI Express põlvkonna M.2
- 3.0
- Paralleelsete ATA pistmike arv
- 0
- Kogus transpordikasti kohta
- 10
- Toetatud kõvaketaste arv
- 6
- Maksimaalne resolutsioon
- 4096 x 2160 pixels
- Toetatud ketaste tüübid
- HDD & SSD
- Toetatud ketaste arv
- 8
- Firewire (IEEE 1394) pordid
- 0
- Digitaalne video koaksiaalväljund
- 1
- Digital audio optical out
- 1
- DisplayPorts quantity
- 1
- SATA-ühenduste koguarv
- 6
- Ethernet interface type
- Gigabit Ethernet
- Ethernet LAN (RJ-45) ports
- 1
- USB-pistmiku tüüp
- USB tüüp A, USB tüüp-C
- Motherboard chipset
- AMD B550
- Unbuffered memory
- Jah
- BIOS memory size
- 256 Mbit
- LAN controller
- Realtek 8111H
- Number of memory slots
- 4
- Processor Socket
- Pesa AM4
- Supported memory clock speeds
- 2667/2800/2933/3000/3066/3200/3466/3600/3733/3866/4000/4133/4266/4400/4533/4600/4733/4800/4866 MHz
- USB 2.0 connectors
- 4
