Kuvame toote info vaid informatiivsel eesmärgil

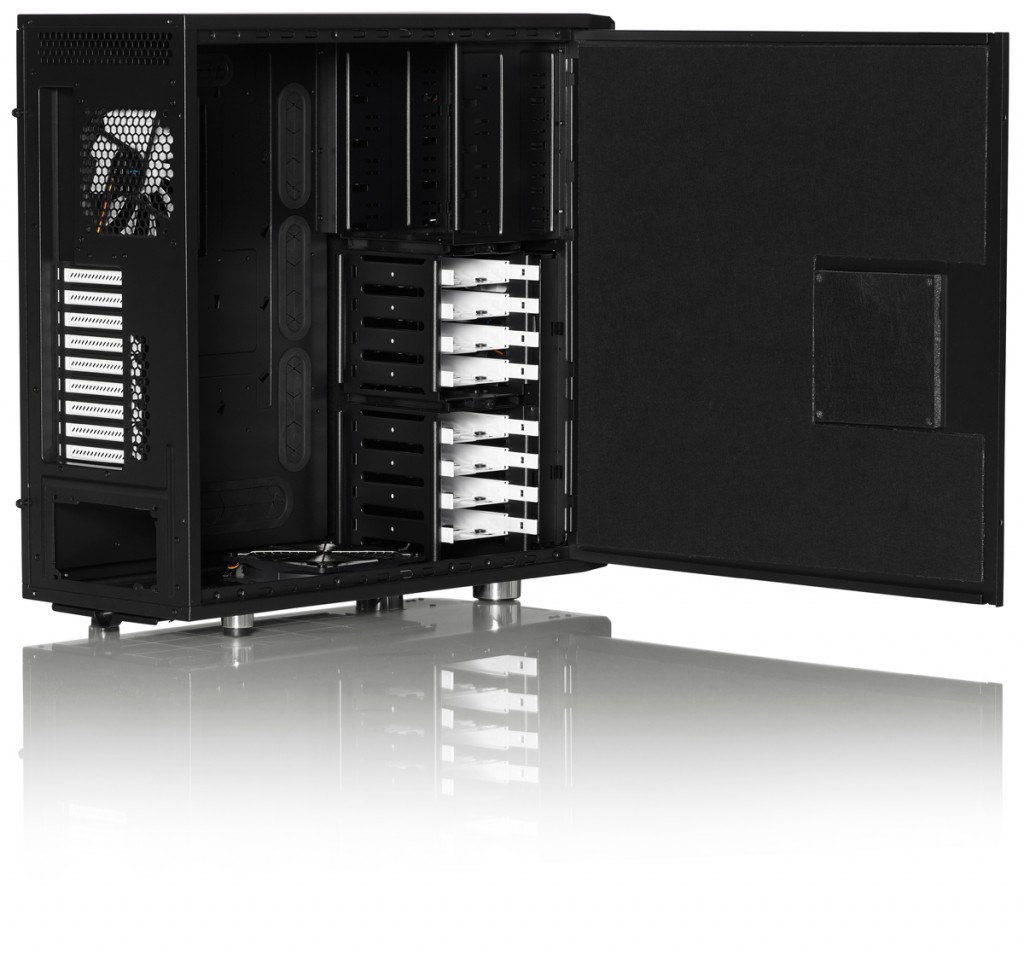

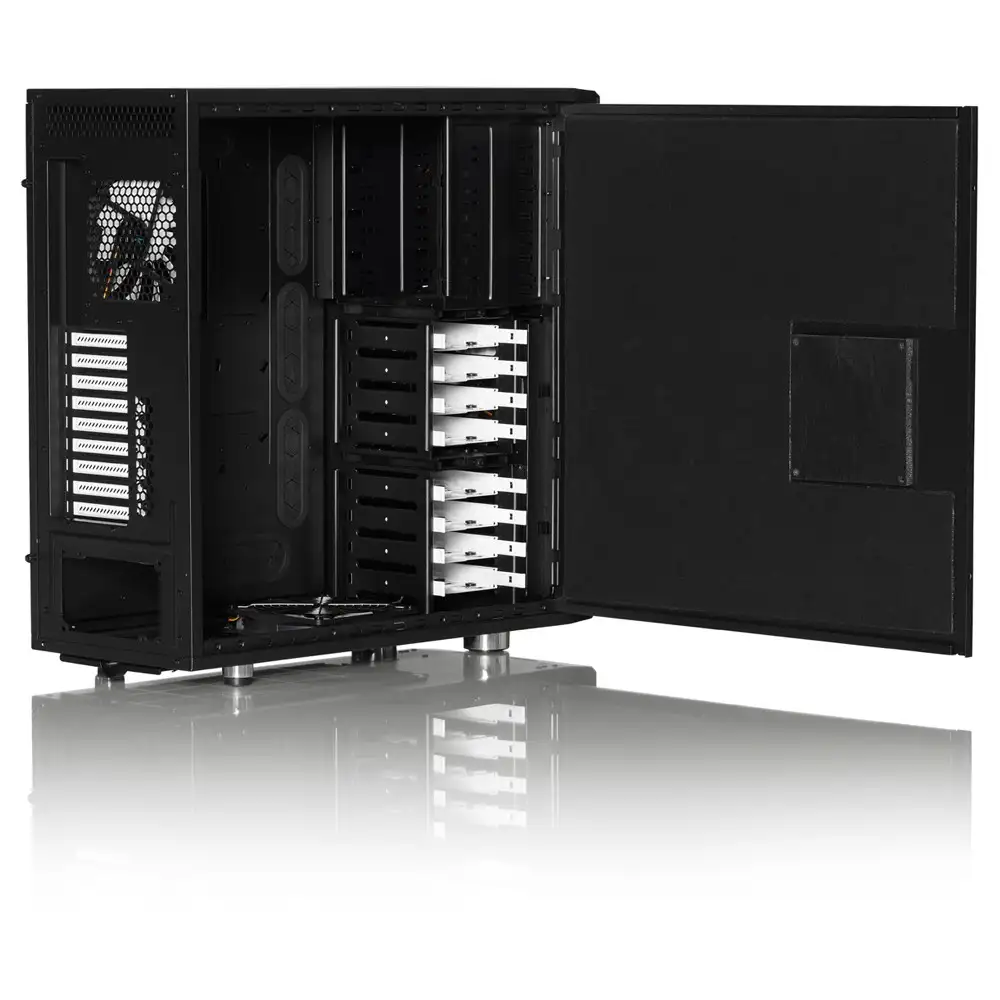

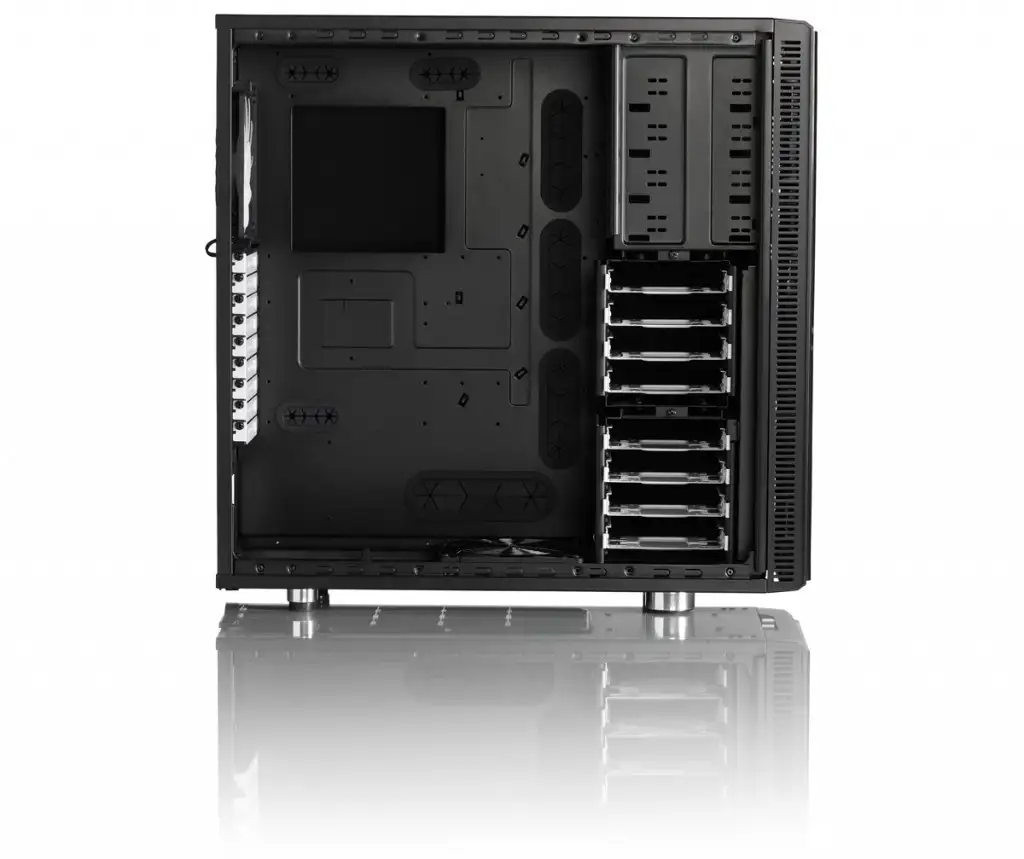

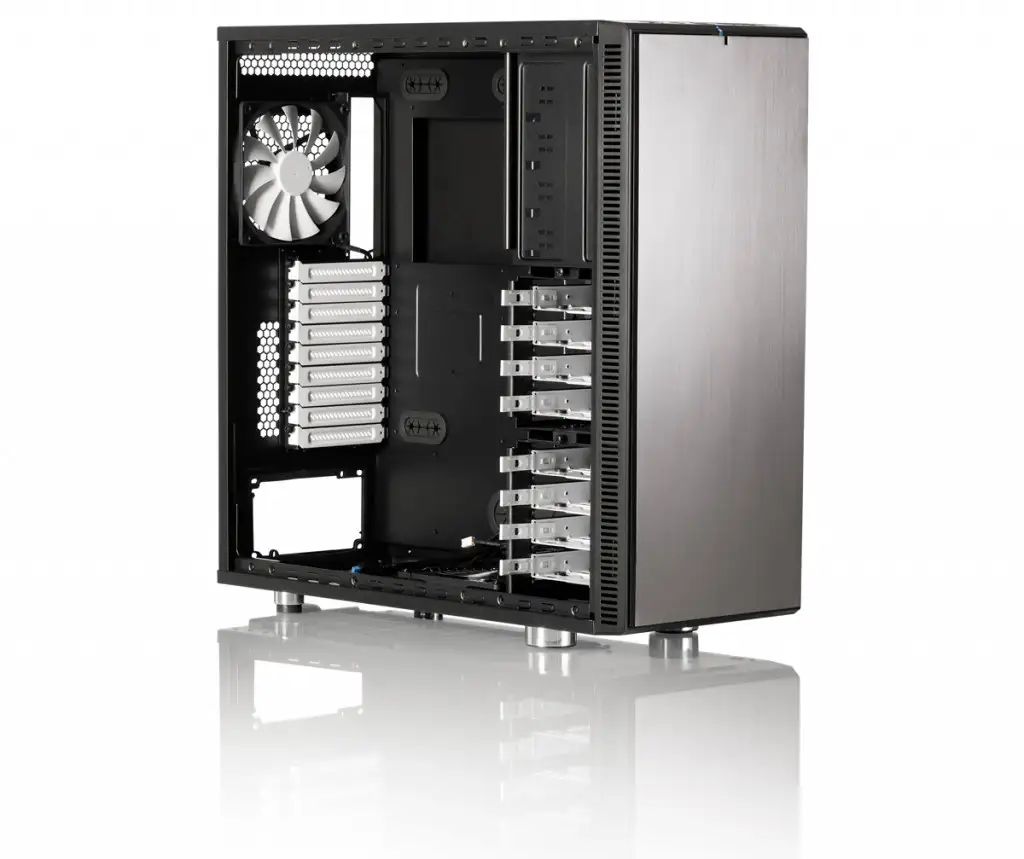

ATX, Micro ATX, mini-ITX, E-ATX and XL-ATX motherboard compatibility4 - 5.25" bays8 - 3.5" HDD trays - all compatible with SSDsA total of 9 expansion slots3 - ModuVent™ plates – two in the top and one in the side7 - Fan positions (3 fans included)Filtered fan slots in front and bottomCPU coolers up to 170 mm tall (when no fan is installed in the side panel)PSU compatibility: ATX PSUs up to 190 mm deep when using the bottom fan location; when not using this fan location longer PSUs (up to 345 mm deep) can be usedGraphics card compatibility: Graphics cards up to 330mm in length with the top HDD cage installed - With the top cage removed, graphics cards up to 480mm in length may be installed26 mm of space for cable routing behind the motherboard plateThick rubber grommets on all holes on the motherboard plate
Tootja | FRACTAL DESIGN |
Tootekood | FD-CA-DEF-XL-R2-TI |
EAN | 7350041081067 |
Google link | lisainfo |
Garantiiaeg | 24 kuud |
.: Üldised andmed :. | |
Seadme tüüp | PC |
.: Disain :. | |
Kujutegur | E-ATX |
Toote värv | Black |
3,5" lahtrite arv | 8 |
5,25" lahtrite arv | 4 |
Aknaga | Ei |
CPU jahuti maksimaalne kõrgus | 17 cm |
Emaplaadi toetatud kujutegurid | ATX, EATX, Mikro ATX, Mini-ITX, XL-ATX |
Graafikakaardi maksimaalne pikkus | 33 cm |
Laienduspesade arv | 9 |
LED-indikaatorid | HDD, Võimsus |
Sisseehitatud kõlar(id) | Ei |
Toiteploki maksimaalne pikkus | 19 cm |
Tolmuvastane filter | Jah |
Toote värv | Hall, Titaanium |
Tüüp | PC |
.: Mälu :. | |
Toetatud kõvakettasuurused | 3.5" |
.: Pesad & liidesed :. | |
USB 3.2 Gen 1 (3.1 Gen 1) A-tüüpi portide hulk | 2 |
Audiosisend | Jah |
Audioväljund | Jah |
USB 2.0 portide arv | 2 |
USB 3.0 (3.1 Gen 1) A-tüüpi portide hulk | 2 |
USB 2.0 portide arv | 2 |
USB 3.0 (3.1 Gen 1) A-tüüpi portide hulk | 2 |

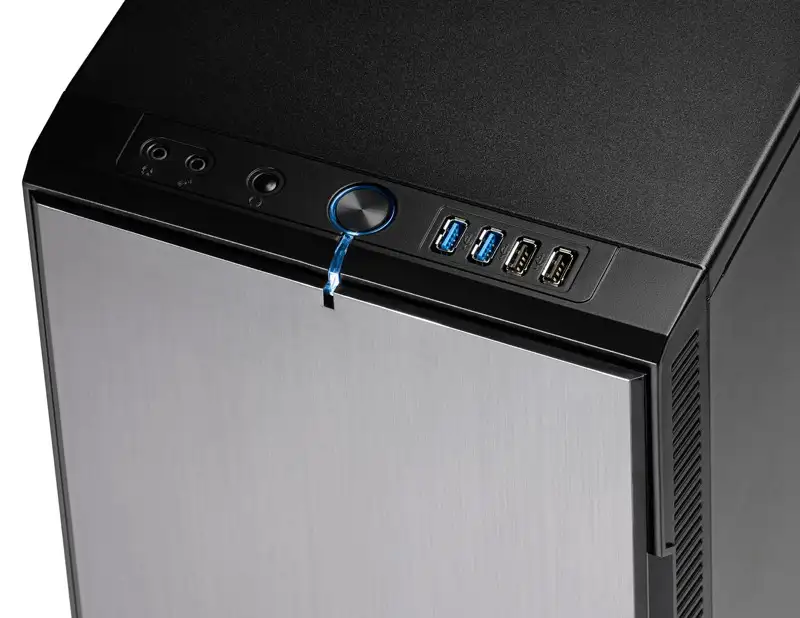

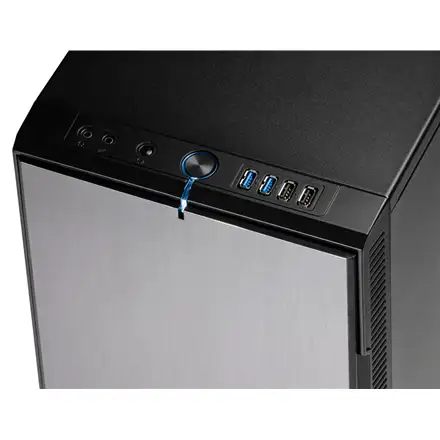

Liides | 2 - USB 3.0, 2 - USB 2.0Audio in/outPower button with LED (blue)Reset buttonFan controller (behind door) |
Jahutus | |
Installitud alumised ventilaatorid | 1x 140 mm |
Installitud tagaventilaatorid | 1x 140 mm |
Maksimaalne ülemiste ventilaatorite arv | 2 |
Toetatud ülemiste ventilaatorite läbimõõt | 120,140 mm |
Maksimaalne alumiste ventilaatorite arv | 1 |
Toetatud alumiste ventilaatorite läbimõõt | 120,140 mm |
Vedelikjahutus | Jah |
Toetatud eesmise radiaatori ventilaatori suurused | 240 mm |
Installitud esiventilaatorid | 1x 140 mm |
Toetatud tagumise radiaatori ventilaatori suurused | 120,140 mm |
Toetatud ülemise radiaatori ventilaatori suurused | 240,280 mm |
Toetatud esiventilaatorite läbimõõt | 120,140 mm |
Maksimaalne küljeventilaatorite arv | 1 |
Toetatud küljeventilaatorite läbimõõt | 120,140 mm |
Maksimaalne tagaventilaatorite arv | 1 |
Toetatud tagaventilaatorite läbimõõt | 120,140 mm |
.: Tehnilised andmed :. | |
Garantii | 24 |
Toide | |
Toiteploki asukoht | Põhi |
Kaasas toiteplokk | Ei |
Ergonoomika | |
Lähtestusnupp | Jah |
.: Kaal ja mõõtmed :. | |
Toote kaal | 16,5 kg |
Laius | 232 mm |
Laius | 23.2 cm |
Sügavus | 56 cm |
Kõrgus | 55.9 cm |
Mõõtmed (l x s x k) | 232 x 559 x 560mm |
Toote kaal | 16.4 kg |
Toote kaal | 16.4 oz |
Sügavus | 560 mm |
Kõrgus | 559 mm |
Mõõdud (l x s x k) | 232 x 559 x 560mm mm |
Brutokaal | 18.3 kg |
Brutokaal | 18.30 kg |
Netokaal | 16.586 |
.: Pakendi sisu :. | |
Juhend | Jah |
.: Pakendi andmed :. | |
Pakenditaara kaal | 2 kg |
Pakenditaara kaal | 2.00 kg |
Pakendi maht | 0.14 m³ |
Pakendi maht | 0.1403985 m³ |
Kogus pakendi kohta | 1.00 pc(s) |
Kogus pakendi kohta | 1 pc(s) |
Pakendi sügavus | 660 mm |
Pakendi sügavus | 660.00 mm |
Pakendi laius ( mm ) | 335 mm |
Pakendi laius ( mm ) | 335.00 mm |
Pakendi kõrgus ( mm ) | 635 mm |
Pakendi kõrgus ( mm ) | 635.00 mm |
Pakendi laius ( mm ) | 322 mm |
Pakendi kõrgus ( mm ) | 635 mm |
Pakendi kaal | 18,5 kg |
Pakendi pikkus ( mm ) | 660 mm |
Muud andmed | |
Power supply location | Bottom |
Reset button | Jah |
Number of 5.25" bays | 4 |
Side fans diameters supported | 140 mm |
Bottom fans installed | 1x 140 mm |
WEEE tax | Ei |
Plastic (No PET) | 27 g |
Plastic (No PET) | 27.00 g |
Box contents | Define XL R2 computer caseAccessory boxUser manual |
Built-in speaker(s) | Ei |
Cooling type | Front: 1 - 120/140mm fan (included is a hydraulic bearing 140mm Silent Series R2 fan, 1000 RPM speed); 1 - 120/140mm fan (not included)Rear: 1 - 120/140mm fan (included is a hydraulic bearing 140mm Silent Series R2 fan, 1000 RPM speed)Top: 2 - 120/140mm fans (not included) – positions also support 240/280mm slim radiatorsBottom: 1 - 120/140mm fan (included is a hydraulic bearing 140mm Silent Series R2 fan, 1000 RPM speed)Side: 1 - 120/140mm fan (not included)Fan controller: 1 - Integrated fan controller for up to 3 fans (included)Water cooling compatibility:Front – 240mm radiator when HDD cages are removed or repositionedTop – 240 and 280mm when using slim radiatorsBottom – 120mm radiatorsRear – 120 and 140mm radiators |
Front fans installed | 1x 140 mm |
LED indicators | HDD, Power |
Number of 3.5" bays | 8 |
Power supply included | Ei |
Rear fans installed | 1x 140 mm |
Side window | Ei |
Supported motherboard form factors | ATX, EATX, Micro-ATX |
Audio Input | Jah |
Audio Output | Jah |
Bottom fans diameters supported | 140 mm |
Cooling System | Front: 1 - 120/140mm fan (included is a hydraulic bearing 140mm Silent Series R2 fan, 1000 RPM speed); 1 - 120/140mm fan (not included) Rear: 1 - 120/140mm fan (included is a hydraulic bearing 140mm Silent Series R2 fan, 1000 RPM speed) Top: 2 - 120/140mm fans (not included) – positions also support 240/280mm slim radiators Bottom: 1 - 120/140mm fan (included is a hydraulic bearing 140mm Silent Series R2 fan, 1000 RPM speed) Side: 1 - 120/140mm fan (not included) Fan controller: 1 - Integrated fan controller for up to 3 fans (included) Water cooling compatibility: Front – 240mm radiator when HDD cages are removed or repositioned Top – 240 and 280mm when using slim radiators Bottom – 120mm radiators Rear – 120 and 140mm radiators |
Front fans diameters supported | 120,140 mm |
Rear fans diameters supported | 120,140 mm |
Supported hard disk drive sizes | 2.5,3.5 " |
Supported hard disk drive sizes | 2.5,3.5 mm |
Top fans diameters supported | 120,140 mm |
