Kuvame toote info vaid informatiivsel eesmärgil
| Tootja | ASUS |
| Tootekood | B150M-CSO |
| EAN | 2000000891286 |
| Google link | lisainfo |
| Garantiiaeg | 3 kuud |
| .: Üldised andmed :. | |
| Seadme tüüp | Motherboard |
| .: Üldised omadused :. | |
| Audioväljundi kanalid | 7.1 |
| Emaplaadi kujutegur | Micro ATX |
| .: Disain :. | |
| Kujutegur | uATX 24.4 cm x 22.6 cm |
| .: Protsessor :. | |
| Protsessori perekond | Intel |
| .: Mälu :. | |
| Component for | PC |
| Intel Extreme Memory Profile (XMP) | Jah |
| Sisemälu | 4 x DIMM, Max. 64GB, DDR4 2133 MHz Non-ECC, Un-buffered Memory.Supports Intel Extreme Memory Profile (XMP).Hyper DIMM support is subject to the physical characteristics of individual CPUs GB |
| Maksimaalne sisemälu | 64 GB |
| Mälupesad | 4 |
| .: Võrgustumine :. | |
| Ethernet LAN | Jah |
| .: Pesad & liidesed :. | |
| HDMI-portide arv | 1 |
| USB 2.0 portide arv | 2 |
| USB 3.0 (3.1 Gen 1) A-tüüpi portide hulk | 4 |
| .: Salvestusruum :. | |
| Salvestusmaht kokku | 6 x SATA 6Gb/s port(s), gray GB |
| Salvestusmaht kokku | 6 x SATA 6Gb/s port(s), gray GB |
| Sisemine I/O moodul | |
| TPM-ühenduspesa | Jah |
| .: Tehnilised andmed :. | |
| Garantii | 3 years warranty |
| Tagapaneeli I/O pesad | |
| PS/2-portide kogus | 2 |
| Graafikad | |
| Eraldiseisva graafika adapteri mudel | Integrated Graphics Processor Intel HD Graphics support. Multi-VGA output support: HDMI/DVI-D/RGB/DisplayPort ports.Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz.Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz.Supports RGB with max. resolution 1920 x 1200 @ 60 Hz.Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz. Maximum shared memory of 1024 MB.Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider.Supports up to 3 displays simultaneously |
| Muud funktsioonid | |
| I/O-pordid | 1 x PS/2 keyboard (purple),1 x PS/2 mouse (green),1 x DVI-D,1 x D-Sub,1 x DisplayPort,1 x HDMI,1 x LAN (RJ45) port(s),4 x USB 3.0 (blue),2 x USB 2.0,3 x Audio jack(s) |
| .: Kaal ja mõõtmed :. | |
| Laius | 22.6 cm |
| Kõrgus | 24.4 cm |
| Brutokaal | 0.92 kg |
| Netokaal | 0.70 |
| .: Pakendi andmed :. | |
| Kaablid kaasa arvatud | SATA |
| Pakendi tüüp | User's manual.I/O Shield.2 x SATA 6Gb/s cable(s).1 x Supporting DVD |
| Muud andmed | |
| Management protocols | WfM 2.0, DMI 3.0, WOL by PME, PXE |
| Number of SATA connectors | 6 |
| Number of COM connectors | 2 |
| Number of chassis fan connectors | 2 |
| Motherboard chipset family | Intel |
| Memory slots type | DIMM |
| ATX Power connector (24-pin) | Jah |
| Non-ECC | Jah |
| BIOS type | UEFI AMI |
| Supported memory types | DDR4-SDRAM |
| Resource CD | Drivers,ASUS Utilities,ASUS EZ Update,Anti-virus software (OEM version) |
| Compatible processor series | Celeron, Core i3, Co |
| Compatible operating systems | Windows 10 , 64bit.Windows 8.1 , 64bit.Windows 7 , 32bit/64bit |
| Intel Quick Sync Video Technology | Jah |
| Intel Turbo Boost Technology | 2.0 |
| Intel InTru 3D Technology | Jah |
| Intel Clear Video HD Technology | Jah |
| Intel Insider | Jah |
| Front panel audio connector | Jah |
| PCI Express x1 (Gen 3.x) slots | 1 |
| ACPI version | 5.0 |
| USB 3.0 (3.1 Gen 1) connectors | 2 |
| CPU fan connector | Jah |
| PCI Express x16 (Gen 3.x) slots | 2 |
| Number of EATX power connectors | 1 |
| DVI-D ports quantity | 1 |
| Ethernet interface type | Gigabit |
| Ethernet LAN (RJ-45) ports | 1 |
| Graphics adapter family | Intel |
| Graphics processor | Integrated Graphics Processor Intel HD Graphics support. Multi-VGA output support: HDMI/DVI-D/RGB/DisplayPort ports.Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz.Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz.Supports RGB with max. resolution 1920 x 1200 @ 60 Hz.Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz. Maximum shared memory of 1024 MB.Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider.Supports up to 3 displays simultaneously |
| Mac operating systems supported | Ei |
| Motherboard chipset | Intel B150 |
| Number of expansion slots | 1 x PCIe 3.0/2.0 x16 (x16 mode),1 x PCIe 3.0/2.0 x16 (max at x4 mode),1 x PCIe 3.0/2.0 x1,1 x PCI |
| PCI slots | 1 |

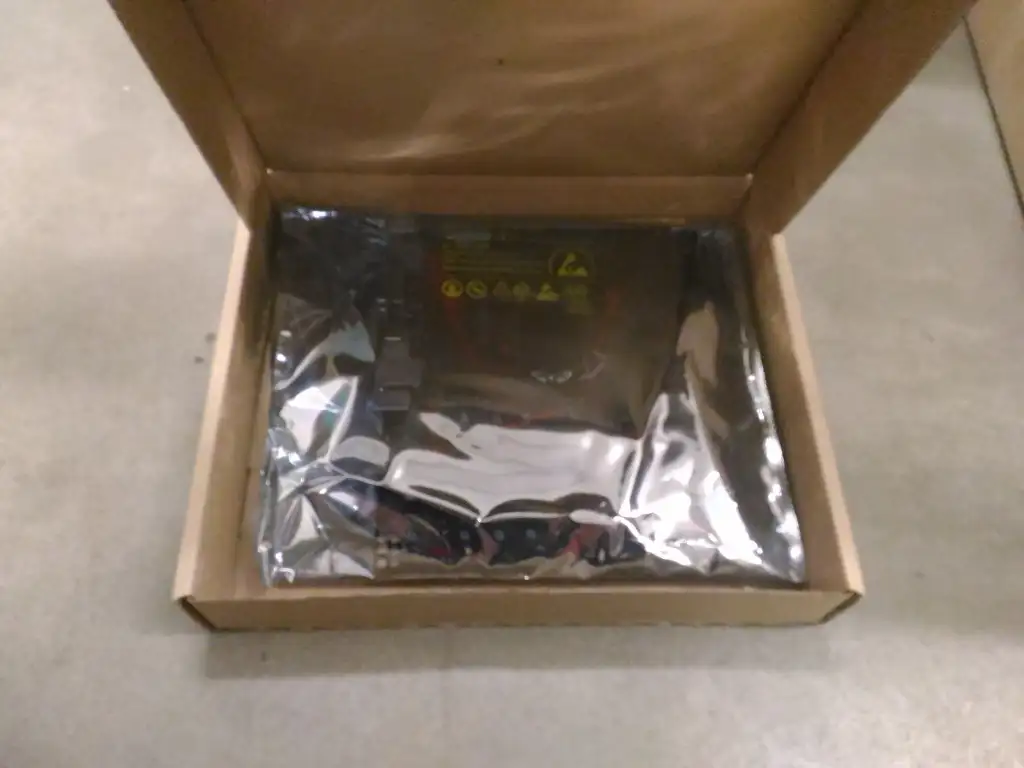

| Saleout | REFURBISHED WITHOUT ORIGINAL PACKAGING AND ACCESSORIES WITHOUT BACKPANEL |
| Supported hard disk drive interfaces | SATA |
| Unbuffered memory | Jah |
| VGA (D-Sub) ports quantity | 1 |
| Windows operating systems supported | Windows 10 Education |
| Audio system | Realtek ALC887 |
| BIOS memory size | 128 MB |
| Expansion slots | 1 x PCIe 3.0/2.0 x16 (x16 mode),1 x PCIe 3.0/2.0 x16 (max at x4 mode),1 x PCIe 3.0/2.0 x1,1 x PCI |
| LAN controller | Realtek 8111F |
| Maximum graphics adapter memory | 1024 MB |
| Processor Socket | LGA1151 |
| Special features | ASUS 5X Protection II:ASUS LANGuard - 2.5X higher surge tolerance,ASUS Overvoltage Protection - World-class circuit-protecting power design,ASUS DRAM Overcurrent Protection - Prevents damage from short circuits,ASUS Stainless-Steel Back I/O - 3X corrosion-resistance for greater durability,ASUS ESD Guards - Electrostatic discharge protection.ASUS Exclusive Features:AI Suite 3,Ai Charger, Anti-Surge,Mobo Connect.ASUS Quiet Thermal Solution:Stylish Fanless Design Heat-sink solution,ASUS Fan Xpert 2+.ASUS EZ DIY:ASUS CrashFree BIOS 3,ASUS EZ Flash 3,ASUS UEFI BIOS EZ Mode,Push Notice.ASUS Q-Design :ASUS Q-Slot,ASUS Q-DIMM.Media Streamer. |
| Supported memory clock speeds | 2133 MHz |
| USB 2.0 connectors | 4 |
