Kuvame toote info vaid informatiivsel eesmärgil
| Tootja | DJI |
| Tootekood | CP.ZM.000173.03 |
| EAN | 6958265121173 |
| Google link | lisainfo |
| Garantiiaeg | 12 kuud |
| .: Üldised andmed :. | |

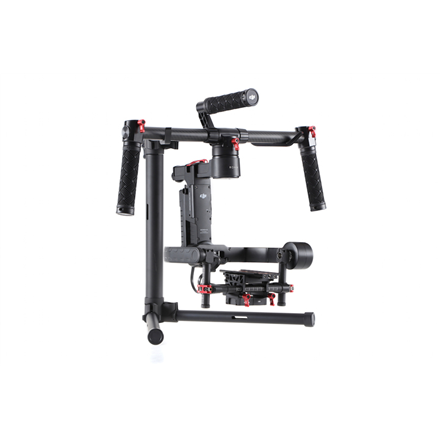

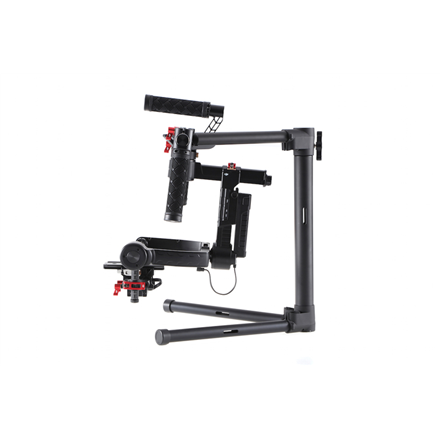

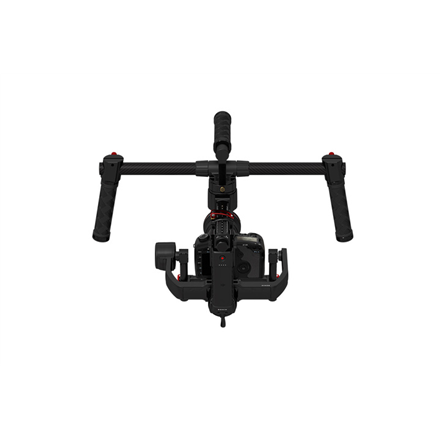

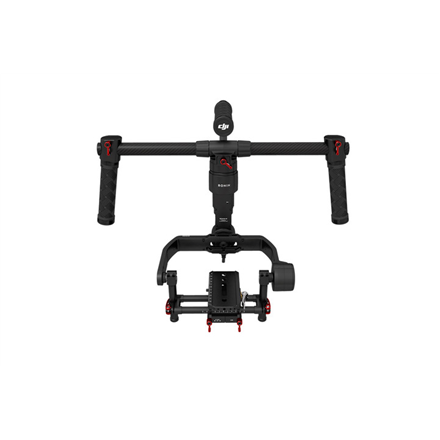

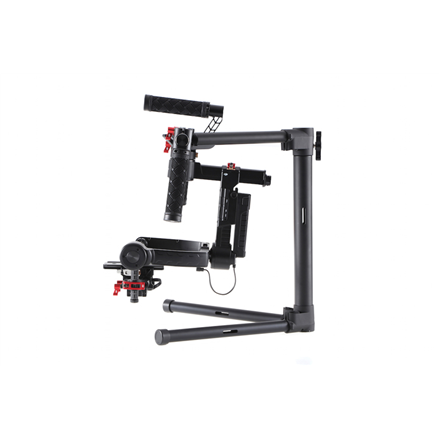

| Seadme tüüp | Handed camera stabilizer |
| Ühilduvad tooted | Support cameras up to 3.6 kg |
| .: Aku & Toiteallikas :. | |
| Aku tüüp | 4S Ronin-M |
| Võimsus ja energiatarve | |
| Sisseehitatud aku | Ei |
| .: Tehnilised andmed :. | |
| Garantii | 6 month(s) |
| .: Kaal ja mõõtmed :. | |
| Mõõtmed (l x s x k) | 500mm (W) x 210mm (D) x 420mm (H) |
| Toote kaal | 2.3 kg |
| Brutokaal | 6.12 kg |
| Netokaal | 5 kg |
| Netokaal | 5.00 kg |
| .: Pakendi andmed :. | |
| Pakenditaara kaal | 1.12 kg |
| Pakendi maht | 0.04430475 m³ |
| Pakendi maht | 0.04 m³ |
| Kogus pakendi kohta | 1 pc(s) |
| Kogus pakendi kohta | 1.00 pc(s) |
| Pakendi sügavus | 290.00 mm |
| Pakendi sügavus | 290 mm |
| Pakendi laius ( mm ) | 315.00 mm |
| Pakendi laius ( mm ) | 315 mm |
| Pakendi kõrgus ( mm ) | 485.00 mm |
| Pakendi kõrgus ( mm ) | 485 mm |
| Muud andmed | |
| Paper/Pasteboard | 2430.00 g |
| Technical features | GENERAL Built-In Functions Three Operation Modes -Underslung Mode -Upright Mode -Briefcase Mode Built-in, independent IMU module DJI Specialized Gimbal Drive Motors with Encoders Bluetooth Module USB Connection 2.4GHz Receiver Temperature Sensor DJI Advanced 32-Bit DSP Processor D-Bus Receiver Supported MECHANICAL & ELECTRICAL CHARACTERISTICS Working Current Static current: 300mA (@16V) Dynamic current: 600mA (@16V) Locked motor current: Max 10A (@16V) Run Time 3 hours Operating Temperature 5° F ~ 120° F (-15° C ~ 50° C) Weight 2.3kg (5.07lb) fully loaded with handlebar Gimbal Dimensions 500mm(W) x 210mm(D)x 420mm(H) PERIPHERAL Camera Tray Dimensions Maximum depth at center of mass on camera base plate: 120mm Maximum height measured from top of camera base plate: 195mm Maximum width: 160mm Accessory Power Connections 12V Regulated P-Tap x 2, USB 500mW x 1, DJI Lightbridge x 1 GCU Input Power 4S Ronin-M Battery Connections 2.4GHz Remote Controller, Bluetooth 4.0, USB 2.0 PC Assistant Software Requirements Windows XP SP3; Windows 7; Windows 8 (32 or 64 bit)；Mac OS X 10.9 or above Mobile Assistant Software Requirements Mobile Device: iOS 6.1 or above, Android 4.3 or above WORKING PERFORMANCE Load Weight (Reference Value) 8lb (3.6kg) Angular Vibration Range ± 0.02° Maximum Controlled Rotation Speed Pan axis: 90°/s Tilt axis: 100°/s Roll axis: 30°/s Mechanical Endpoint Range Pan axis: 360° Tilt axis: +105° to -190° Roll axis: ± 110° Controlled Rotation Range Pan axis control: 360° Tilt axis control: +105° /-190° Roll axis control: ± 25° |
| WEEE tax | Ei |
| Connections | 2.4GHz Remote Controller, Bluetooth 4.0, USB 2.0, 12V Regulated P-Tap x 2, USB 500mW x 1, DJI Lightbridge x 1 |
| Current | Static current: 300mA (@16V). Dynamic current: 600mA (@16V). Locked motor current: Max 10A (@16V) |
| Functions | Three Operation Modes: Underslung Mode, Upright Mode, Briefcase Mode. Built-in, independent IMU module. DJI Specialized Gimbal Drive Motors with Encoders. Bluetooth Module. USB Connection. 2.4GHz Receiver. Temperature Sensor. DJI Advanced 32-Bit DSP Processor. D-Bus Receiver Supported |
| Max load | 3.6 kg |
| Operating conditions | -15° C ~ 50° C |
| OS requirements | Windows XP SP3, Windows 7, Windows 8 (32 or 64 bit), Mac OS X 10.9 or above. iOS 6.1 or above, Android 4.3 or above |
| Other | Maximum depth at center of mass on camera base plate: 120mm. Maximum height measured from top of camera base plate: 195mm. Maximum width: 160mm. Angular Vibration Range ± 0.02° Maximum Controlled Rotation Speed Pan axis: 90°/s, Tilt axis: 100°/s, Roll axis: 30°/s. Mechanical Endpoint Range Pan axis: 360° Tilt axis: +105° to -190°, Roll axis: ± 110°. Controlled Rotation Range Pan axis control: 360°, Tilt axis control: +105° /-190°, Roll axis control: ± 25° |
