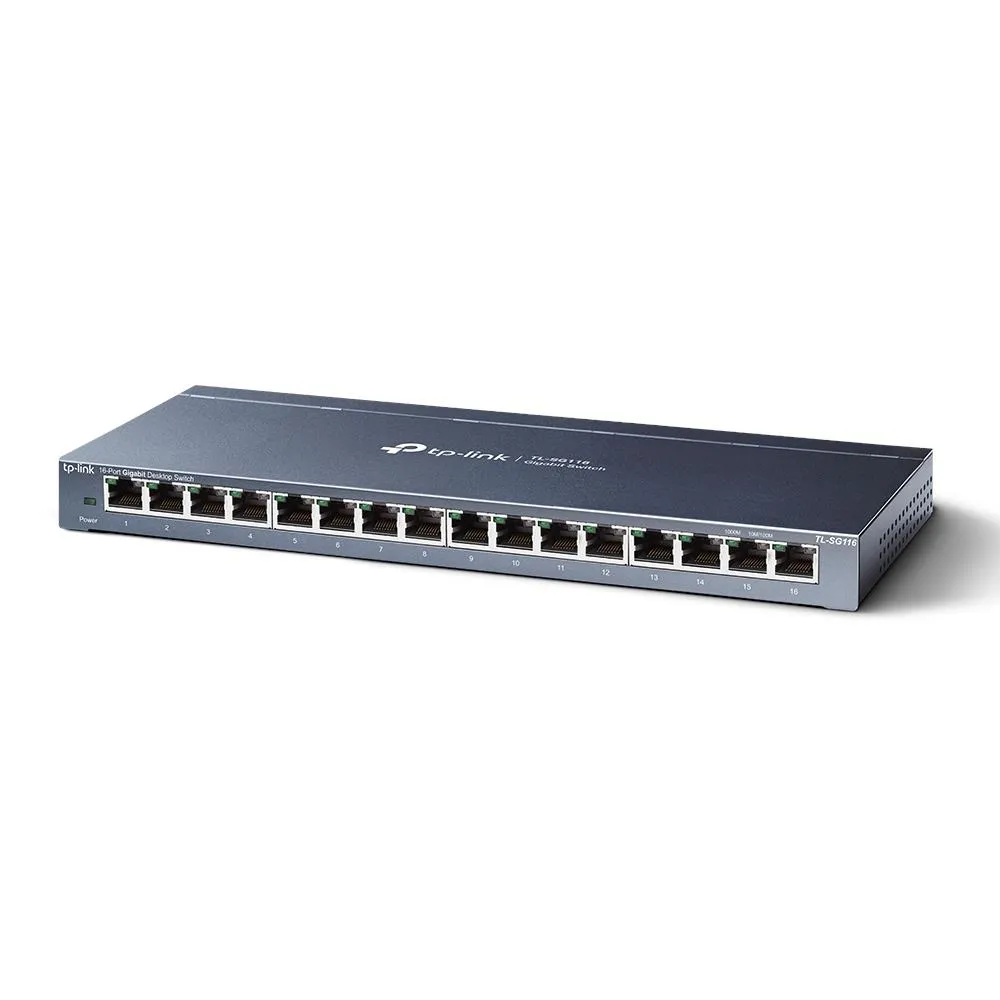

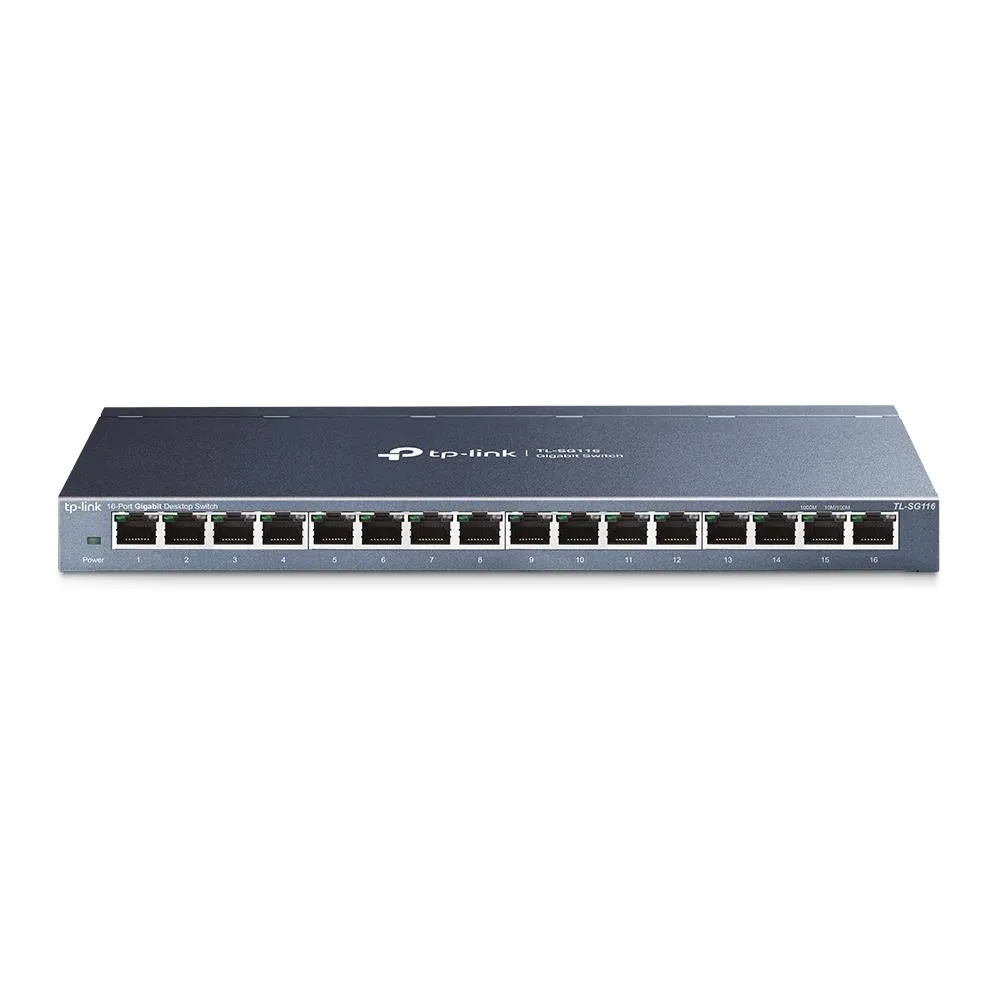

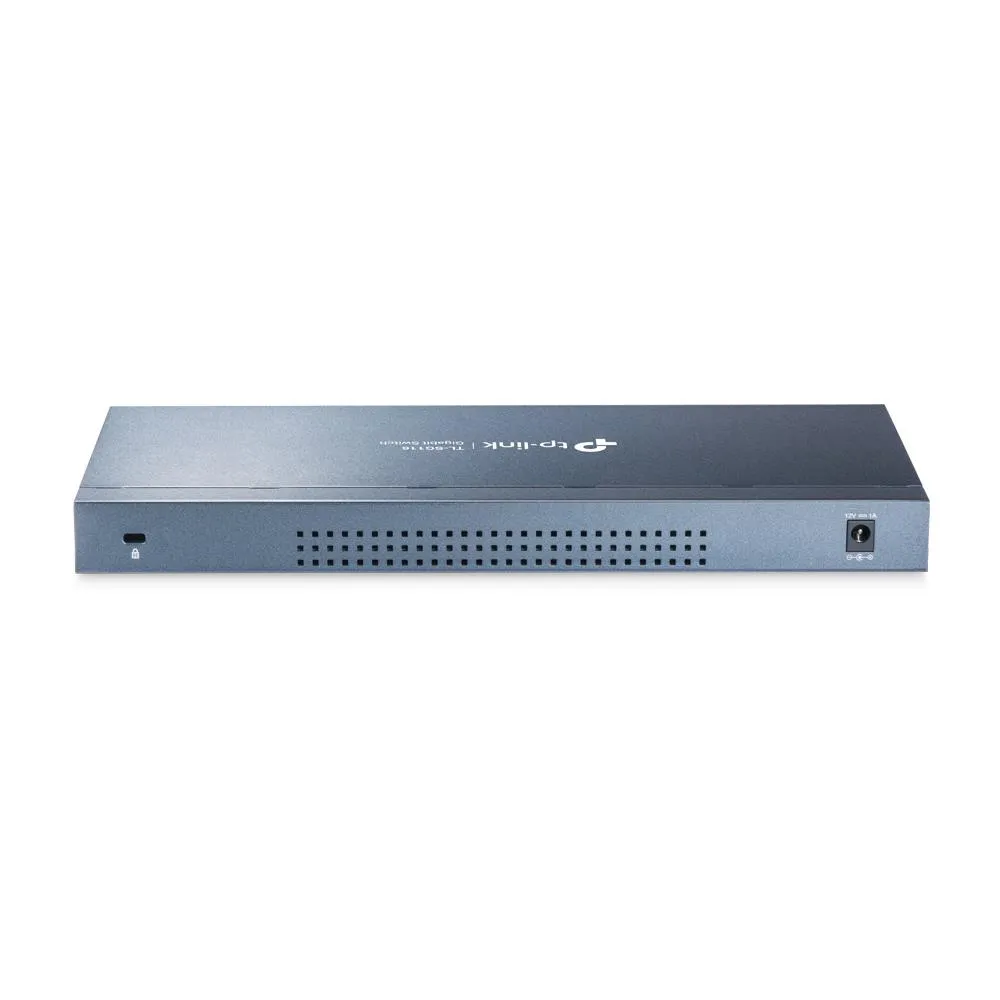

Switch|TP-LINK|Desktop/pedestal|16x10Base-T / 100Base-TX / 1000Base-T|TL-SG116
E1
AL1
Vajad toodet suuremas koguses või püsitellimust?
Võta ühendust meie klienditoega info[at]digipood.eu
What This Product Does
The TP-Link 16-Port 10/100/1000Mbps Desktop Switch provides you an easy way to make the transition to Gigabit Ethernet. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Plug and Play design, with no configuration required, makes the product easy to use. Moreover, TL-SG116 adopts lower power consumption design. With the innovative energy-efficient technology, the TL-SG116 can save power consumption, making it an eco-friendly solution for your home or office network.
Gigabit Switch
Featured with 16 10/100/1000Mbps ports, TL-SG116 greatly expands your network capacity, enabling instant large files transferring. So, power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.
Go Green With Your Ethernet
You now have the choice to go green when upgrading to a gigabit network! This new generation TL-SG116 16-Port 10/100/1000Mbps Desktop Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.
Traffic Optimization
802.1p and DSCP QoS enable smooth latency-sensitive traffic such as voice and video, and IGMP Snooping optimizes the Multicast data stream.
Easy to use
The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminate the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. Moreover, fanless design ensures quiet operation.
- 16 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
- Green Ethernet technology saves power consumption
- IEEE 802.3x flow control provides reliable data transfer
- Steel housing, desktop or wall-mounting design
- Support 802.1p/DSCP QoS and IGMP Snooping function
- Plug and play, with no configuration needed
.: Üldised andmed :.
- Tootja koduleht
- https://www.tp-link.com/us/products/details/cat-5685_TL-SG116.html
.: Üldised omadused :.
- Automaatne ühildumine
- Jah
- Paketi puhvermälu
- 4,1 MB
.: Disain :.
- Toote värv
- Black
- Korpuse materjal
- Metall
- LED-indikaatorid
- Jah
- Seinale kinnitatav
- Jah
- Toote värv
- Must
- LED-indikaatorid
- Jah
.: Võrgustumine :.
- Virtuaalse LANi elemendid
- Protocol-based VLAN, Tagged VLAN
- IGMP-jälgimine
- Jah
- Võrgustandardid
- IEEE 802.1p/IEEE 802.3/IEEE 802.3ab/IEEE 802.3u/IEEE 802.3x
- Kaablipikkuse tuvastus
- Jah
- Linkide koondamine
- Jah
- Kiiruse piiramine
- Jah
- Levindamise tormi kontroll
- Jah
- IGMP-jälgimine
- Jah
- Pordipeegeldus
- Jah
- Võrgustandardid
- IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
- Täisdupleks
- Jah
- Voo reguleerimise tugi
- Jah
- Auto MDI/MDI-X
- Jah
- 10G-tugi
- Ei
- VLAN-i tugi
- Jah
.: Pesad & liidesed :.
- Installitud SFP moodulite hulk
- 0
- Installitud SFP+ moodulite hulk
- 0
- Gigabitise Etherneti (vask) portide arv
- 16
- Etherneti vaskkaablite tehnoloogia
- 10BASE-T, 100BASE-TX, 1000BASE-T
- RJ-45 Etherneti ühenduse pesade arv
- 16
- RJ-45 Etherneti ühenduse pesade tüüp
- Gigabit Ethernet (10/100/1000)
Võimsus ja energiatarve
- Sisendpinge
- 12 V
- Sisendvool
- 1 A
- Power over Ethernet (PoE)
- Ei
- AC-sisendpinge
- 220 V
- AC-sisendsagedus
- 50 Hz
- Elektritarbimine (max)
- 9,3 W
Turvalisus
- Tsükli kaitse
- Jah
.: Tehnilised andmed :.
- Püstikmontaaž
- Ei
Andmeedastus
- Hiigelkaadrite
- 9000
- Edastamise kiirus
- 23,81 Mpps
- Jumbo frames
- 10000
- Ladusta-ja-edasta
- Jah
- VLAN-ide arv
- 32
- Ootejärjekordade arv
- 4
- MAC-aadresside tabel
- 8000 sisestust
- Lülitusvõime
- 32 Gbit/s
- Hiigelkaadrite tugi
- Jah
Juhtimisfunktsioonid
- Teenusekvaliteedi (QoS) tugi
- Jah
- Lüliti tüüp
- Mittejuhitav
- Teenusekvaliteedi (QoS) tugi
- Jah
Toide
- Kaasas toiteplokk
- Jah
Ethernet LAN-funktsioonid
- IEEE 802.1p
- Jah
- IEEE 802.3ab
- Jah
- IEEE 802.3i
- Jah
- IEEE 802.3u
- Jah
- IEEE 802.3x
- Jah
Funktsioonid
- Toetatud kaablitüübid
- Cat3, Cat4, Cat5, Cat5e, Cat6
Internet elektrivõrgu kaudu (PoE)
- Power over Ethernet tugi
- Ei
Logistika andmed
- Kogus transpordikasti kohta
- 10
- Harmonized System (HS) kood
- 85176990
Muud funktsioonid
- Alalisvoolu sisendpinge
- 9 V
Töötingimused
- Suhteline õhuniiskus (H-H) hoiustamisel
- 5 - 90 protsenti
- Hoiustamistemperatuur (T-T)
- -40 - 70 °C
- Soojuse hajumine
- 31,68 BTU/h
- Kasutamistemperatuur (T-T)
- 0 - 40 °C
- Suhteline õhuniiskus kasutamisel (H-H)
- 10 - 90 protsenti
- Suhteline õhuniiskus kasutamisel (H-H)
- 10 - 90 %
- Hoiustamistemperatuur (T-T)
- -40 - 70 °C
.: Pakendi sisu :.
- AC-adapter kaasa arvatud
- Jah
- Tarvikud kaasa arvatud
- Power Adapter, Installation Guide, Rubber Feet
- Kiirstardi juhend
- Jah
- Kiirpaigaldusjuhend
- Jah
.: Pakendi andmed :.
- Pakendi tüüp
- Box
- Kaablid kaasa arvatud
- Vahelduvvool
- Max kogus transpordipakendis
- 10
- Pakendi maht
- 0.005882 cubm
- Transpordipakendi kaal
- 1.35 kg
- Transpordipakendi kõrgus
- 38 cm
- Transpordipakendi laius
- 36 cm
- Transpordipakendi sügavus
- 43 cm
Tehnilised andmed
- Rack mounting
- Ei
- Gigabit Ethernet (copper) ports quantity
- 16
- Full duplex
- Jah
- Store-and-forward
- Jah
- Jumbo frames support
- Jah
- 10G support
- Ei
- Basic switching RJ-45 Ethernet ports quantity
- 16
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
- Flow control support
- Jah
- Copper ethernet cabling technology
- 1000BASE-T/100BASE-TX/10BASE-T
- Rubber feet
- Jah
- Unit Box Height
- 0.17
- Unit Box Length
- 0.41
- Unit Box Width
- 0.07
- CnCode
- 85176200
- Unit Calculated Volume
- 0.005801 cubm
- Product Net Weight
- 1.2 kg
- Unit Calculated Weight
- 1.38 kg
- Summary
- TP-Link 16-Port Gigabit Desktop Network Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 8000 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
- Harmonized System (HS) code
- 85176990
- Plug and Play
- Jah
- Power supply included
- Jah
- 10Base-T / 100Base-TX / 1000Base-T
- 16
- Auto-negotiation
- Jah
- Certification
- CE, FCC ,RoHS
- Desktop/pedestal
- Jah
- Forwarding rate
- 23.8 Mpps
- Heat dissipation
- 34.12 BTU/h
- Housing material
- Steel
- MAC address table
- 8000 entries
- Package depth
- 412 mm
- Package height
- 70 mm
- Package weight
- 1330 g
- Package width
- 170 mm
- Packet buffer memory
- 4.1 MB
- Power Source
- DC
- Primary port count
- 16
- Storage relative humidity (H-H)
- 5 - 90 %
- Switch type
- Unmanaged
- Switching capacity
- 32 Gbit/s
- Switching method
- Store-and-forward
Tehnilised andmed
- Laius
- 286 mm
- Netokaal
- 1.2 kg
- Brutokaal
- 1.45 kg
- Laius
- 286 mm
- Sügavus
- 111.7 mm
- Kõrgus
- 25.4 mm
- Mõõtmed (l x s x k)
- 286 x 112 x 25 mm
- Sügavus
- 111,7 mm
- Kõrgus
- 25,4 mm
