What This Product Does

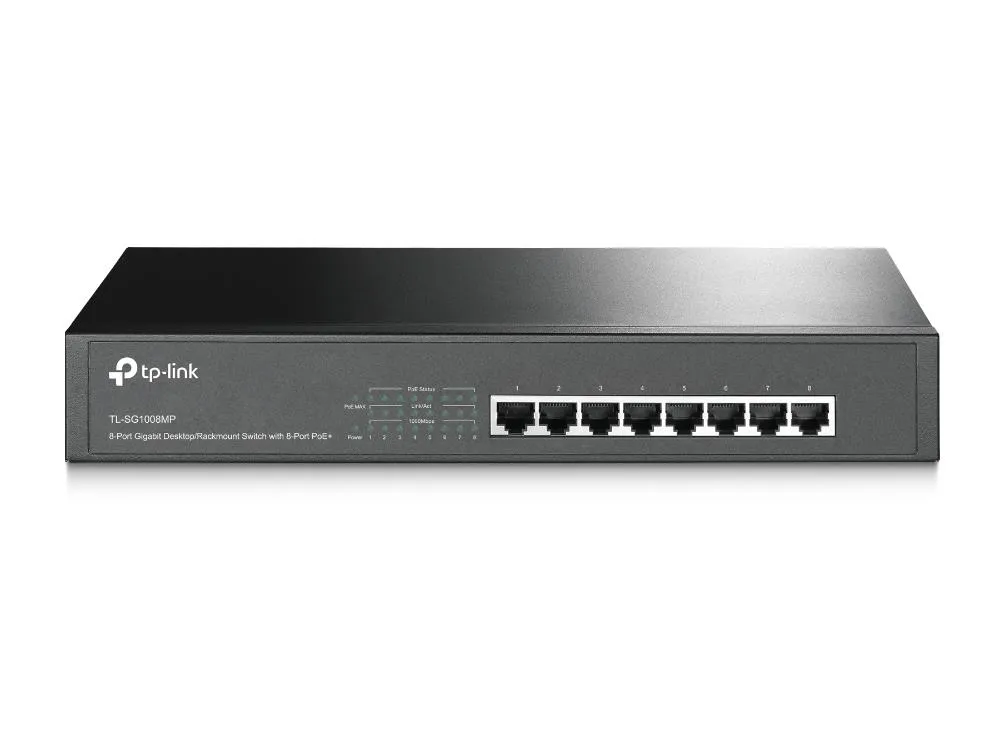

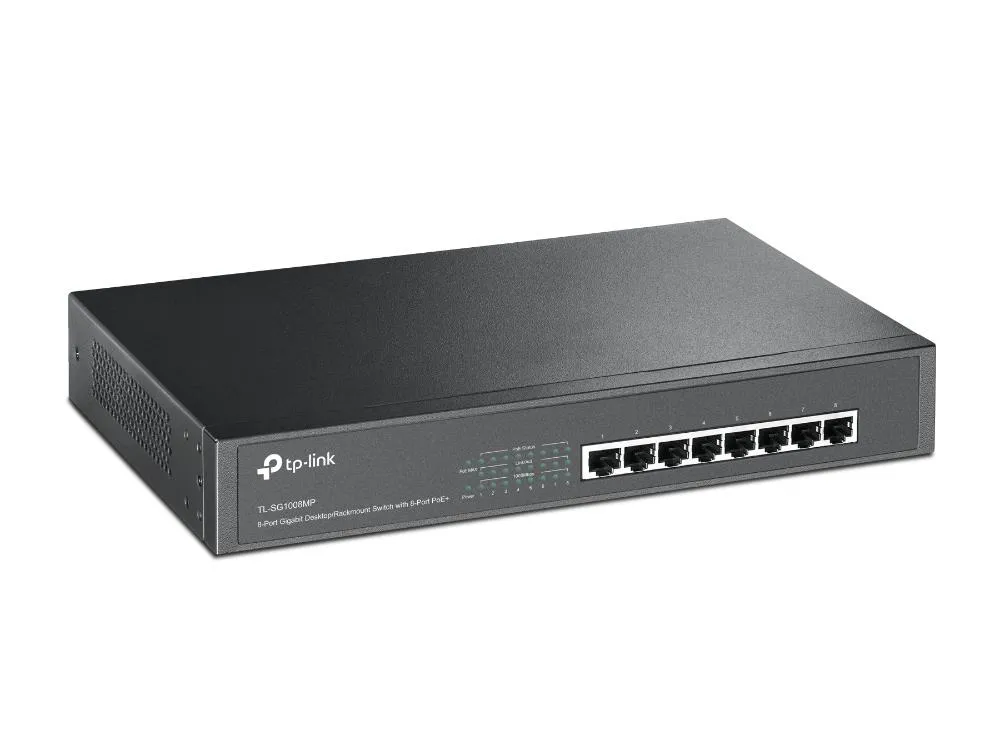

The TL-SG1008MP is an 8-Port Gigabit Desktop/Rack mountable Switch with all 8 ports supporting the IEEE 802.3af/at, PoE+ standard. It provides a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. With a total power budget of 126W, up to 30W per port, TL-SG1008MP can power more high-powered devices such as wireless Access Points (APs), IP Cameras or IP Phones. Moreover, with innovative energy-efficient technology, the TL-SG1008MP can save up to 75% of the power consumption, making it an eco-friendly solution for your business network.
How This Product Works
All 8 ports of TL-SG1008MP support Power over Ethernet (IEEE 802.3af/at, PoE+) standard which can automatically detect and supply power to any IEEE 802.3af/at compliant device(s). The electrical power is transmitted along with data in a single cable, allowing you to expand your network where there is no electrical outlet, and feed the devices such as wireless APs, cameras, and phones.
Prioritized Power Supply
Priority (port 1 > port 2 > port 3 > port 4 > port 5 > port 6 > port 7 > port 8): This function helps protect the system if the power becomes overloaded. For example, if port 1, 2, 4 and 7 are using 30W (maximum power per port is 30W, the system power is 120W in total), and there is an additional device inserted into Port 3 at 25W, the system will cut off the power on Port 7 to protect the switch being overload. This means Port 1, 2 and 4 will use 30W, and Port 3 will use 25W, with no power will be supplied on Port 7 as it has the lowest priority among the ports in use.
Easy To Use
TL-SG1008MP is easy to install and use. It requires no configuration or installation. With its Desktop/Rack mountable design, outstanding performance and quality, the TP-Link TL-SG1008MP 8-Port Gigabit Desktop/Rack mountable Switch with 8-Port PoE is a great choice for expanding your home or office network.
| Tootja | TP-LINK |
| Tootekood | TL-SG1008MP |
| EAN | 6935364086770 |
| Google link | lisainfo |
| Garantiiaeg | 36 kuud |
| .: Üldised andmed :. | |
| Tootja koduleht | https://www.tp-link.com/us/products/details/cat-42_TL-SG1008MP.html?utm_medium=select-local#overview |
| .: Üldised omadused :. | |
| Automaatne ühildumine | Jah |
| Paketi puhvermälu | 1,5 MB |
| .: Disain :. | |
| Toote värv | Black |
| Kujutegur | 1U |
| Keskmine tõrkeintervall (MTBF) | 1 h |
| Toote värv | Must |
| .: Toimimine :. | |
| Keskmine tõrkevälp (MTBF, Ethernet-toide) | 1 h |
| Automaatne kaupade klassifitseerimise jälgimise süsteem (CCATS) | 11 |
| Export Control Classification Number (ECCN) | 11 |
| .: Võrgustumine :. | |
| Half duplex | Jah |
| Võrgustandardid | IEEE 802.3af, IEEE 802.3at, IEEE 802.3x |
| Auto MDI/MDI-X | Jah |
| 10G-tugi | Ei |
| .: Pesad & liidesed :. | |
| Installitud SFP moodulite hulk | 0 |
| Installitud SFP+ moodulite hulk | 0 |
| RJ-45 Etherneti ühenduse pesade arv | 8 |
| RJ-45 Etherneti ühenduse pesade tüüp | Gigabit Ethernet (10/100/1000) |
| Võimsus ja energiatarve | |
| Power over Ethernet (PoE) | Jah |
| Sisendsagedus | 50/60 Hz |
| AC-sisendpinge | 100 - 240 V |
| AC-sisendsagedus | 50 - 60 Hz |
| Elektritarbimine (max) | 144,4 W |
| Võimsustarve (tüüpiline) | 140,1 W |
| Jahutus | |
| Ventilaatorite arv | 1 fan(s) |
| .: Tehnilised andmed :. | |
| Transpordikarbi netokaal | 1 g |
| Kaubaaluse kogukaal (õhk) | 1 g |
| Sustainability compliance | Jah |
| Kihte kaubaaluse kohta (õhk) | 1 tk |
| Compliance certificates | CE/Federal Communications Commission (FCC)/RoHS |
| Pappkastide arv aluse kohta (õhk) | 11 tk |
| Kihte kaubaaluse kohta (meri) | 1 tk |
| Kogus aluse kohta (õhk) | 1 tk |
| Kaubaaluse kõrgus (õhk) | 1 mm |
| Kihtide arv kaubaaluse kohta (õhk) | 1 tk |
| Kaubaaluse kogukaal (meri) | 1 g |
| Kihtide arv kaubaaluse kohta (meri) | 1 tk |
| Pappkastide arv aluse kohta (meri) | 1 tk |
| Kogus aluse kohta (meri) | 11 tk |
| Kaubaaluse kõrgus (meri) | 1 mm |
| Püstikmontaaž | Jah |
| Andmeedastus | |
| Jumbo frames | 16000 |
| Ladusta-ja-edasta | Jah |
| MAC-aadresside tabel | 4000 sisestust |
| Lülitusvõime | 16 Gbit/s |
| Juhtimisfunktsioonid | |
| Lüliti tüüp | Mittejuhitav |
| Toide | |
| Kaasas toiteplokk | Jah |
| Ethernet LAN-funktsioonid | |
| 10/100/1000M | 8 |
| Funktsioonid | |
| Vahelduvvoolu pinge | 100 - 240 V |
| Mudeli originaalnimi | TL-SG1008MP |
| Internet elektrivõrgu kaudu (PoE) | |
| Toide üle võrgu (PoE) pesade arv | 8 |
| Power over Ethernet tugi | Jah |
| Internet elektrivõrgu kaudu (PoE) pesade arv | 7 |
| Logistika andmed | |
| Transpordikarbi brutokaal | 1 g |
| Põhikaste (välimine) kaubaaluse kohta (õhk) | 11 tk |
| Põhikaste (välimised) kaubaaluse kihi kohta | 1 tk |
| Kogus transpordikasti kohta | 1 |
| Põhikaste (välimine) kaubaaluse kohta (meri) | 1 tk |
| Harmonized System (HS) kood | 85176990 |
| Tooteid kaubaaluse kohta (meri) | 11 tk |
| Kartongpakendite arv kihi kohta | 1 tk |
| Kaubaaluse brutolaius | 1 mm |
| Kaubaaluse brutopikkus | 1 mm |
| Tarnekasti (sisemine) brutokaal | 1 g |
| Tooteid tarnekasti (sisemine) kohta | 1 tk |
| Transpordikasti laius | 1 mm |
| Kaubaaluse laius | 1 mm |
| Transpordikasti pikkus | 1 mm |
| Transpordikasti kõrgus | 1 mm |
| Kaubaaluse pikkus | 1 mm |
| Kogus transpordikasti kohta | 1 tk |
| Transpordikasti kaal | 1 g |
| Töötingimused | |
| Suhteline õhuniiskus (H-H) hoiustamisel | 5 - 90 protsenti |
| Hoiustamistemperatuur (T-T) | -40 - 70 °C |
| Soojuse hajumine | 492,6 BTU/h |
| Kasutamistemperatuur (T-T) | 0 - 40 °C |
| Suhteline õhuniiskus kasutamisel (H-H) | 10 - 90 protsenti |
| Suhteline õhuniiskus kasutamisel (H-H) | 10 - 90 % |
| Hoiustamistemperatuur (T-T) | -40 - 70 °C |
| .: Pakendi sisu :. | |
| Püstiku paigaldamise komplekt | Jah |
| Tarvikud kaasa arvatud | Power Cord; Installation Guide; Rackmount Kit; Rubber Feet |
| .: Pakendi andmed :. | |
| Kasutusjuhend | Jah |
| Pakendi tüüp | Box |
| Kaablid kaasa arvatud | AC |
| Max kogus transpordipakendis | 1 |
| Pakendi maht | 0.0081 cubm |
| Transpordipakendi kaal | 2.31 kg |
| Transpordipakendi kõrgus | 25 cm |
| Transpordipakendi laius | 8 cm |
| Transpordipakendi sügavus | 40.5 cm |
| ◁ SERTIFIKAADID ▷ | |
| Sertifikaat | FCC, CE, RoHS |
| User guide | Jah |
| Rack mounting | Jah |
| Networking standards | IEEE 802.1p/IEEE 802.3/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3u/IEEE 802.3x |
| Gigabit Ethernet (copper) ports quantity | 8 |
| Full duplex | Jah |
| Store-and-forward | Jah |
| Jumbo frames support | Jah |
| 10G support | Ei |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Flow control support | Jah |
| Copper ethernet cabling technology | 1000BASE-T/100BASE-TX/10BASE-T |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Rack mount kit | Jah |
| Unit Box Height | 0.08 |
| Unit Box Length | 0.405 |
| Unit Box Width | 0.25 |
| CnCode | 85176200 |
| Unit Calculated Volume | 0.0081 cubm |
| Product Net Weight | 0.6 kg |
| Unit Calculated Weight | 2.23 kg |
| Summary | TP-Link TL-SG1008MP. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 4000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x. Power over Ethernet (PoE). Rack mounting, Form factor: 1U |
| Harmonized System (HS) code | 85176990 |
| Cable types supported | Cat3/Cat4/Cat5/Cat5e |
| MAC address auto-aging supported | Jah |
| MAC address auto-learning supported | Jah |
| LED indicators | Jah |
| Power supply included | Jah |
| Auto-negotiation | Jah |
| Desktop/pedestal | Jah |
| Forwarding rate | 11.904 Mpps |
| Heat dissipation | 592.15 BTU/h |
| Housing material | Metal |
| MAC address table | 4000 entries |
| Maximum cable length | 100 m |
| Package depth | 400 mm |
| Package height | 80 mm |
| Package weight | 2110 g |
| Package width | 250 mm |
| Packet buffer memory | 1.5 MB |
| PoE+ ports | 8 |
| Power Source | AC/PoE |
| Primary port count | 8 |
| Rack | Jah |
| Stackable | Ei |
| Storage relative humidity (H-H) | 5 - 90 % |
| Switch type | Unmanaged |
| Switching capacity | 16 Gbit/s |
| Switching method | Store-and-forward |
| Total Power over Ethernet (PoE) budget | 153 W |
| Minimaalsed süsteeminõuded | 1 |
| Laius | 294 mm |
| Netokaal | 0.6 kg |
| Brutokaal | 2.31 kg |
| Laius | 294 mm |
| Sügavus | 180 mm |
| Kõrgus | 44 mm |
| Mõõtmed (l x s x k) | 294 × 180 × 44 mm |
| Sügavus | 180 mm |
| Kõrgus | 44 mm |
