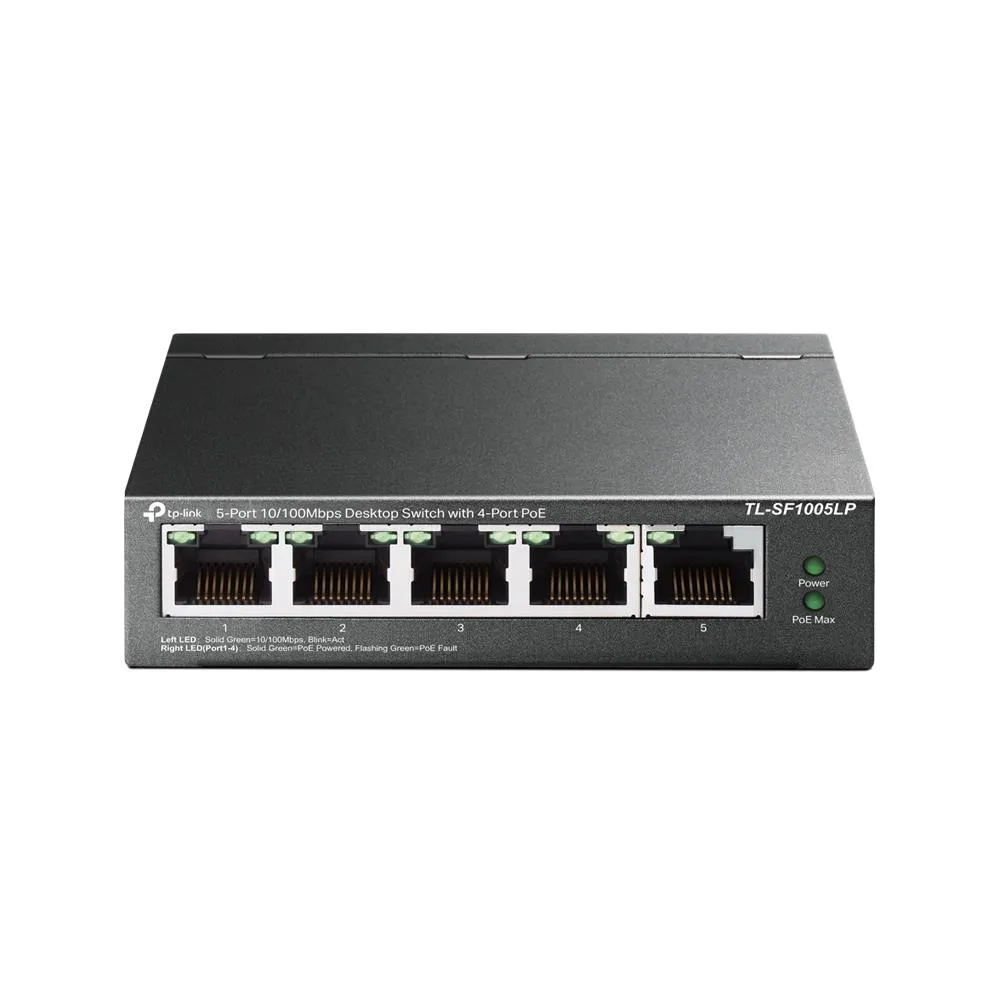

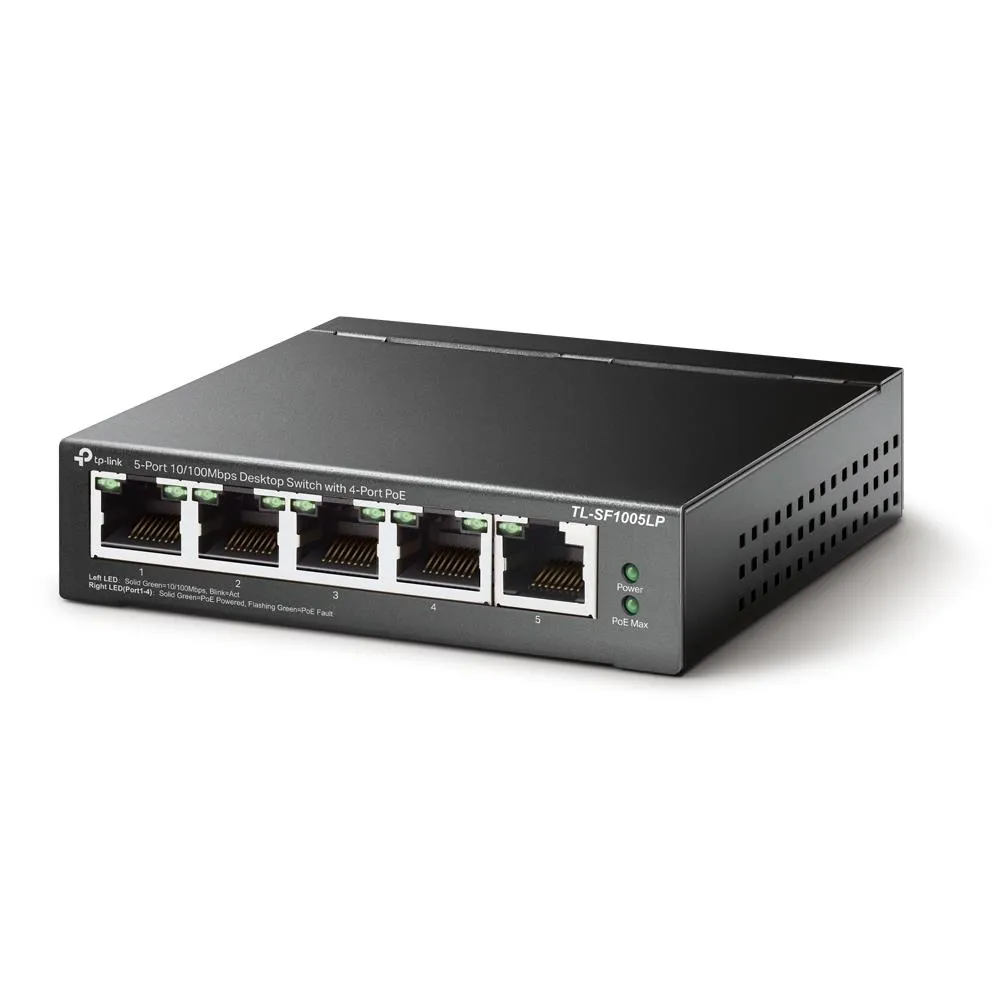

Professional Fast Ethernet Switch with 4 PoE Ports
Plug and Play, with PoE Transmission for Surveillance up to 250 m
TL-SF1005LP
Dedicated 4-Port PoE Switch (41 W Budget) for Numerous Applications
Compliance with the 802.3af PoE standard supports up to 15.4 W on each PoE port. The total 41 W PoE power budget* for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.
Ideal for IP Surveillance
—Up to 250 m Transmissions
With extend mode, the PoE transmission distance reaches up to 250 m**—perfect for IP Camera deployment in large areas.
The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.
Priority Video
Quality Guaranteed
Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1–2 when one-touch Priority Mode is on.
Intelligent Power Management
When total power consumption exceeds 41 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.
Durable Metal Casing
The interior components of TL-SF1005LP are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SF1005LP delivers switching performance you can depend on.
| Tootja | TP-LINK |
| Tootekood | TL-SF1005LP |
| EAN | 6935364052782 |
| Google link | lisainfo |
| Garantiiaeg | 36 kuud |
| .: Üldised andmed :. | |
| Tootja koduleht | https://www.tp-link.com/uk/business-networking/unmanaged-switch/tl-sf1005lp/#overview |
| .: Üldised omadused :. | |
| Automaatne ühildumine | Jah |
| .: Disain :. | |
| Toote värv | Black |
| LED-indikaatorid | Jah |
| Toote värv | Must |
| LED-indikaatorid | Jah |
| .: Toimimine :. | |
| Ilma ventilaatorita | Jah |
| .: Võrgustumine :. | |
| Half duplex | Jah |
| Pooldupleks | Jah |
| Võrgustandardid | IEEE 802.3af/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x |
| Automaatse MAC-aadressi aegumise tugi | Jah |
| Võrgustandardid | IEEE 802.3af, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Täisdupleks | Jah |
| Voo reguleerimise tugi | Jah |
| Auto MDI/MDI-X | Jah |
| 10G-tugi | Ei |
| .: Pesad & liidesed :. | |
| Installitud SFP moodulite hulk | 0 |
| Jaoturi liidesed | RJ-45 |
| Installitud SFP+ moodulite hulk | 0 |
| DC-pistik | Jah |
| Ethernet LAN (RJ-45) pordid | 5 |
| Etherneti vaskkaablite tehnoloogia | 10BASE-T, 100BASE-TX |
| RJ-45 Etherneti ühenduse pesade arv | 5 |
| RJ-45 Etherneti ühenduse pesade tüüp | Fast Ethernet (10/100) |
| Võimsus ja energiatarve | |
| Sisendpinge | 53.5 V |
| Sisendvool | 0.81 A |
| Power over Ethernet (PoE) | Jah |
| Sisendsagedus | 50 Hz |
| AC-sisendpinge | 220 V |
| AC-sisendsagedus | 50 Hz |
| Elektritarbimine (max) | 47 W |
| Toite tüüp | DC (alalisvool) |
| .: Tehnilised andmed :. | |
| Sustainability compliance | Jah |
| Jätkusuutlikkuse sertifikaadid | CE, Föderaalne kommunikatsioonikomisjon (FCC), RoHS |
| Jätkusuutlikkuse järgimine | Jah |
| Compliance certificates | CE/Federal Communications Commission (FCC)/RoHS |
| Vastavussertifikaadid | CE, Föderaalne kommunikatsioonikomisjon (FCC), RoHS |
| Püstikmontaaž | Ei |
| Andmeedastus | |
| Hiigelkaadrite | 2000 |
| Edastamise kiirus | 0,744 Mpps |
| Jumbo frames | 2000 |
| Ladusta-ja-edasta | Jah |
| MAC-aadresside tabel | 2000 sisestust |
| Lülitusvõime | 1 Gbit/s |
| Hiigelkaadrite tugi | Jah |
| Juhtimisfunktsioonid | |
| Lüliti tüüp | Mittejuhitav |
| Toide | |
| Kaasas toiteplokk | Jah |
| Toiteallikas | DC/PoE |
| Ethernet LAN-funktsioonid | |
| PoE ports | 4 |
| Funktsioonid | |
| Vahelduvvoolu pinge | 220 V |
| Toetatud kaablitüübid | Cat3, Cat4, Cat5, Cat5e |
| Mudeli originaalnimi | 5-Port 10/100Mbps Desktop Switch with 4-Port PoE |
| Internet elektrivõrgu kaudu (PoE) | |
| Toide üle võrgu (PoE) pesade arv | 4 |
| Toide üle võrgu (PoE) võimsusühikuid kokku | 41 W |
| Power over Ethernet tugi | Jah |
| Logistika andmed | |
| Kogus transpordikasti kohta | 12 |
| Harmonized System (HS) kood | 85176990 |
| Muud funktsioonid | |
| Alalisvoolu sisendpinge | 53.5 V |
| Andmeedastuskiirus | 1000 Mbit/s |
| Ethernet-liidese tüüp | Gigabit Ethernet |
| Kasutustemperatuur (T-T) | 32 - 104 °F |
| Maksimaalne kasutamistemperatuur | 40 °C |
| Portide hulk | 5 |
| Töötingimused | |
| Suhteline õhuniiskus (H-H) hoiustamisel | 5 - 90 protsenti |
| Hoiustamistemperatuur (T-T) | -40 - 70 °C |
| Soojuse hajumine | 160,27 BTU/h |
| Kasutamistemperatuur (T-T) | 0 - 40 °C |
| Suhteline õhuniiskus kasutamisel (H-H) | 10 - 90 protsenti |
| Suhteline õhuniiskus kasutamisel (H-H) | 10 - 90 % |
| Hoiustamistemperatuur (T-T) | -40 - 70 °C |
| .: Pakendi sisu :. | |
| AC-adapter kaasa arvatud | Jah |
| Tarvikud kaasa arvatud | TL-SF1005P; Power adapter; User manual |
| .: Pakendi andmed :. | |
| Kasutusjuhend | Jah |
| Pakendi sügavus | 196 mm |
| Pakendi laius ( mm ) | 131 mm |
| Pakendi kõrgus ( mm ) | 121 mm |
| Pakendi kaal | 740 g |
| User guide | Jah |
| Rack mounting | Ei |
| Full duplex | Jah |
| Store-and-forward | Jah |
| Jumbo frames support | Jah |
| 10G support | Ei |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Power over Ethernet (PoE) ports quantity | 4 |
| Flow control support | Jah |
| Copper ethernet cabling technology | 100BASE-TX/10BASE-T |
| Fanless | Jah |
| Unit Box Height | 0.13 |
| Unit Box Length | 0.2 |
| Unit Box Width | 0.125 |
| CnCode | 85176200 |
| Unit Calculated Volume | 0.003844 cubm |
| Product Net Weight | 0.6 kg |
| Unit Calculated Weight | 0.8 kg |
| Summary | TP-Link 5-Port 10/100Mbps Desktop Switch with 4-Port PoE. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 2000 entries, Switching capacity: 1 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. Power over Ethernet (PoE) |
| Harmonized System (HS) code | 85176990 |
| Long Description | TP-Link 5-Port 10/100Mbps Desktop Switch with 4-Port PoE. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 2000 entries, Switching capacity: 1 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. Power over Ethernet (PoE) |
| Bullet Points | <ul><li>5× 10/100 Mbps RJ45 ports</li><li>4× PoE ports transfer data and power on individual cables</li><li>Works with IEEE 802.3af compliant PDs</li><li>Up to 250 m data and power transmitting range under Extend Mode**</li><li>Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application</li><li>Supports PoE Power up to 41 W for all PoE ports*</li><li>Plug and play with no configuration required</li></ul> |
| Cable types supported | Cat3/Cat4/Cat5/Cat5e |
| MAC address auto-aging supported | Jah |
| Power supply included | Jah |
| 10Base-T / 100Base-TX | 5 |
| Auto-negotiation | Jah |
| Forwarding rate | 0.744 Mpps |
| Heat dissipation | 160.27 BTU/h |
| MAC address table | 2000 entries |
| Package depth | 196 mm |
| Package height | 121 mm |
| Package weight | 740 g |
| Package width | 131 mm |
| Power Source | DC/PoE |
| Primary port count | 5 |
| Storage relative humidity (H-H) | 5 - 90 % |
| Switch type | Unmanaged |
| Switching capacity | 1 Gbit/s |
| Total Power over Ethernet (PoE) budget | 41 W |
| Laius | 100 mm |
| Laius | 100 mm |
| Sügavus | 98 mm |
| Kõrgus | 25 mm |
| Mõõtmed (l x s x k) | 100 x 98 x 25 mm |
| Sügavus | 98 mm |
| Kõrgus | 25 mm |
