DURABLE. STABLE. RELIABLE.

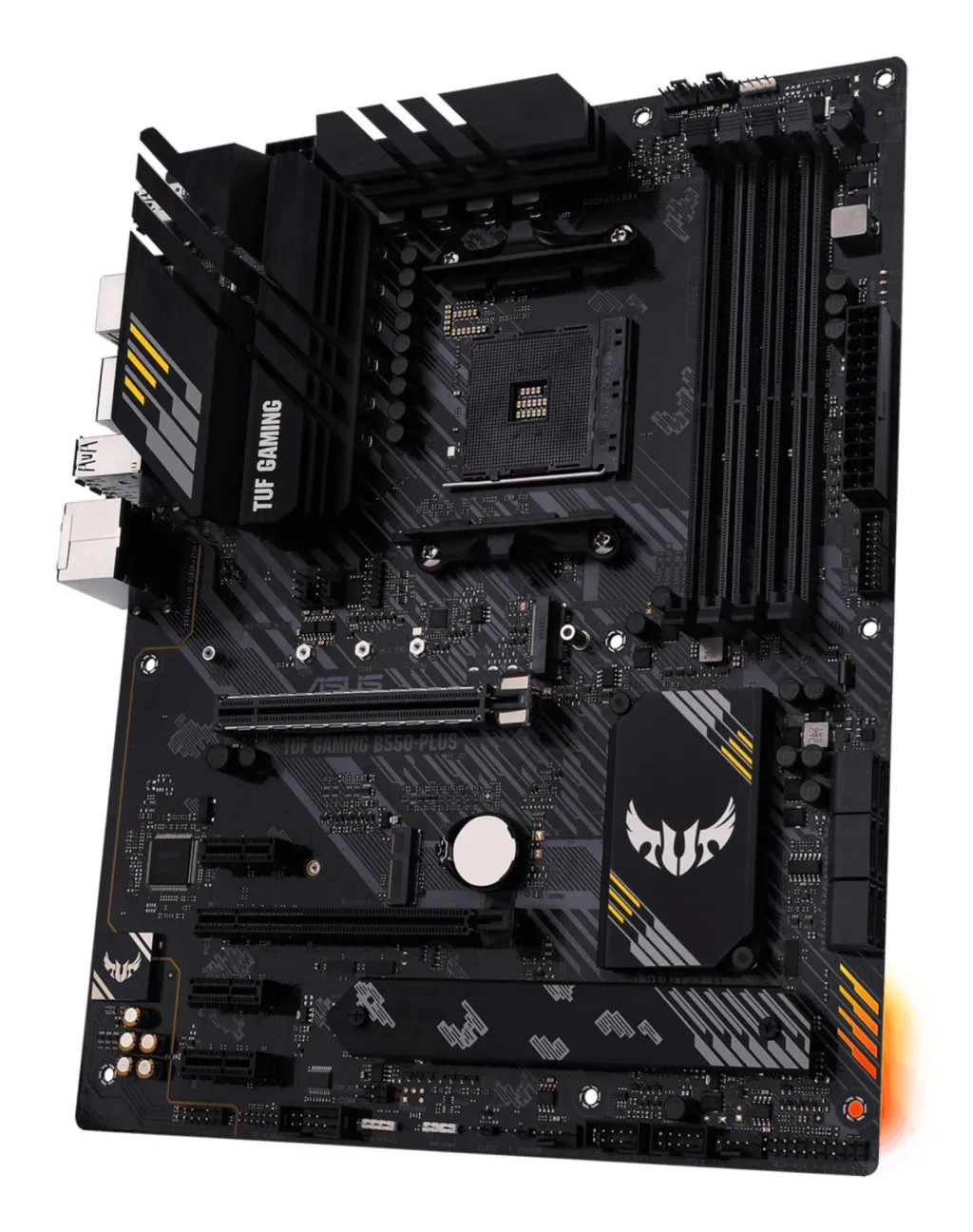

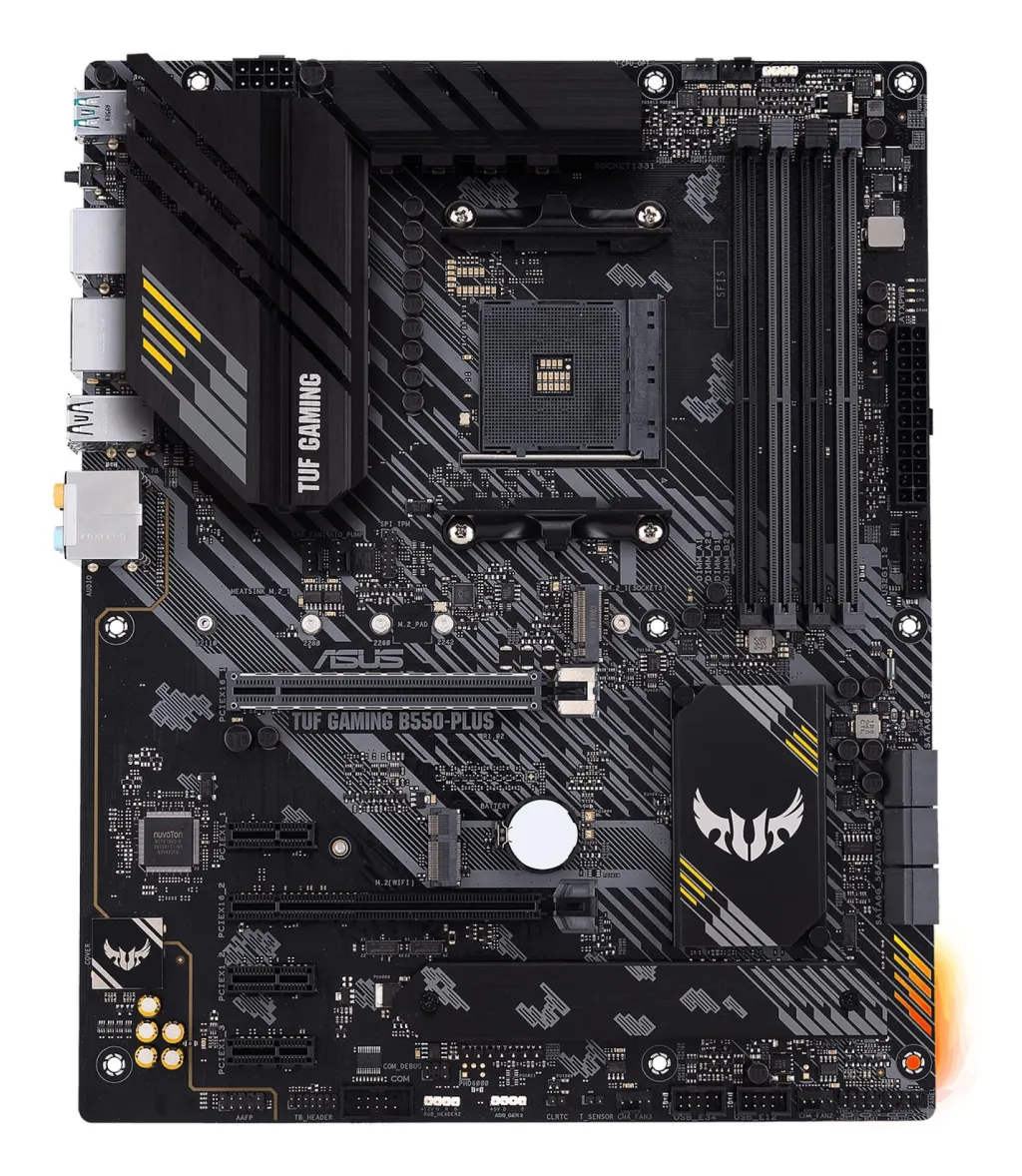

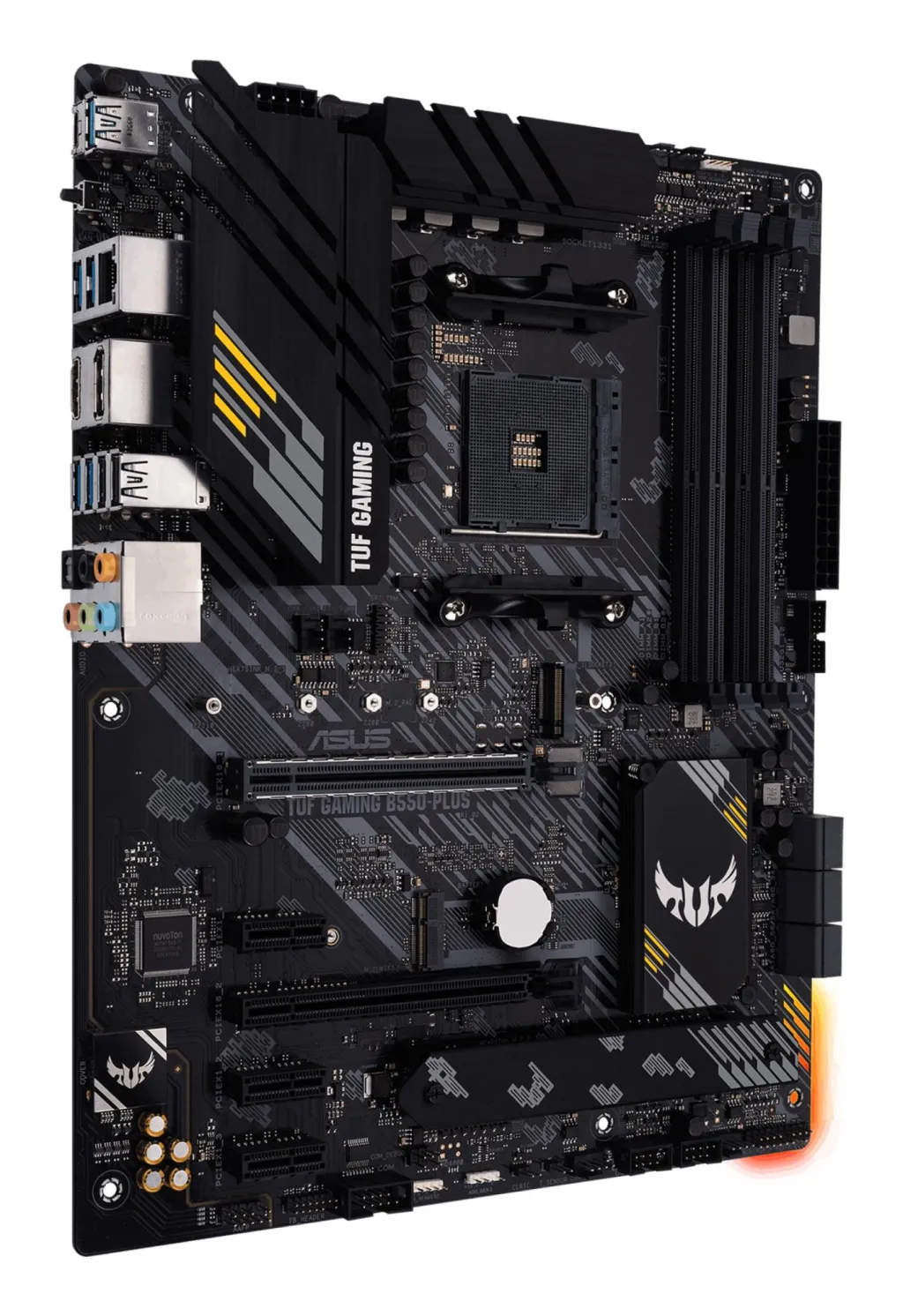

TUF Gaming B550M-Plus distills essential elements of the latest AMD platform and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive set of cooling options, this motherboard delivers rock-solid performance with unwavering gaming stability.
When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance — an ASUS collaboration with trusted industry partners that ensures easier building, best compatibility, and complementary aesthetics from components to case.
ROCK-SOLID PERFORMANCE
With upgraded power delivery and comprehensive cooling options to fuel the latest AMD Ryzen CPUs, plus support for faster memory and storage, TUF Gaming B550M-Plus is the perfect foundation for your next high-core-count battle rig.
DrMOS
The onboard VRM of TUF Gaming B550M-Plus utilizes 8+2 DrMOS power stages that combine high-side and low-side MOSFETs and driver into a single package, delivering the power and efficiency that 3rd Gen AMD Ryzen™ Processors demand.
EASY PC DIY
TUF Gaming motherboards are designed to be easy to set up and configure just the way you want — even for first-time builders. The TUF Gaming Alliance ecosystem makes selecting compatible parts easy, while Armoury Crate software offers full control of system settings via a single dashboard. TUF Gaming motherboards give you everything you need to build your dream gaming rig without adding complexity.
Build with confidence
TUF Gaming Alliance is a collaboration between ASUS and trusted PC-component brands to ensure compatibility with a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits and more. With more partnerships and components being added regularly, the TUF Gaming Alliance will continue to grow even stronger.
IMMERSIVE GAMING
TUF Gaming B550M-Plus provides a complete, high-performance gaming package with a long list of features to improve your experience, including ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS gaming, and onboard RGB lighting that syncs with attached accessories to help you create a personalized gaming atmosphere.
EXCLUSIVE 2.5 GIGABIT ETHERNET
2.5G on-board Ethernet kicks your LAN connection up a notch with an up to 2.5X bandwidth improvement. Using your existing LAN cable, you can take advantage this networking upgrade to experience smoother, lag-free gaming, immediately stream high-resolution videos and enjoy faster file transfers.
Turbo LAN
NETWORK-OPTIMIZATION SOFTWARE FOR CUSTOMIZABLE PACKET PRIORITIZATION
Turbo LAN is a network-optimization software for customizable packet prioritization. With cFosSpeed traffic-shaping technology, it allows you to configure application priority via an intuitive interface, and reduces network lag.
| Tootja | ASUS |
| Tootekood | TUFGAMINGB550-PLUS |
| EAN | 4718017749435 |
| Google link | lisainfo |
| Garantiiaeg | 36 kuud |
| .: Disain :. | |
| Komponent | Pealisvõre |
| Emaplaadi kujutegur | ATX |
| Kujutegur | ATX |
| Laius | 305 mm |
| Sügavus | 244 mm |
| Toetatud Windowsi operatsioonisüsteemid | Windows 10 x64 |
| .: Protsessor :. | |
| Protsessori tootja | AMD |
| Ühilduvad protsessoriseeriad | AMD Ryzen 3000 Series |
| Protsessori pesa | SAM4 |
| Maksimaalne SMP-protsessorite arv | 1 |
| .: Kiibistik ( Chipset ) :. | |
| Emaplaadi kiibistik | AMD |
| Kiibistik ( Chipset) | AMD B550 |
| Emaplaadi kiip | AMD B550 |
| .: Mälu :. | |
| Toetatud mälutüübid | DDR4-SDRAM |
| Sisemälu tüüp | DDR4 |
| Mälupesa tüüp | DIMM |
| Toetatud mälu taktsagedused | 2133,2400,2666,2800,3000,3200,3333,3466,3600,3733,3866,4000,4133,4266,4400,4600 MHz |
| Taktsagedus | 2133/2400/2666/2800/3000/3200/3333/3466/3600/3733/3866/4000/4133/4266/4400/4600/4800 MHz |
| Mälupesad | 4 |
| Mälukaardi pesade arv | 4 |
| Mälukanalid | Kahe kanaliga |
| Maksimaalne sisemälu | 128 GB |
| Graafikakaart | |
| Integreeritud graafikaadapter | Depending on CPU |
| Rööptöötlustehnoloogia tugi | 2-Way CrossFireX |
| .: Audio :. | |
| Helikiip | Realtek ALC S1200A |
| Intregeeritud helikaart | Jah |
| Audioväljundi kanalid | 5 |
| .: Võrgustumine :. | |
| LAN-kontroller | Realtek RTL8125B |
| Ethernet LAN | Gigabit |
| Ethernet-liidese tüüp | 2.5 Gigabit Ethernet |
| WiFi | Ei |
| Laienduspesad | |
| PCI Expressi x1 (Gen 3.x) pesad | 3 |
| PCI Expressi x16 (Gen 3.x) pesad | 1 |
| Kõvaketta tugi | |
| Kõvaketta ühenduse tüüp | M.2, SATA |
| SATA-ühenduste arv | 4 |
| SATA III ühenduste arv | 6 |
| SATA 3.0 | Jah |
| M.2 (M) siinide arv | 2 |
| RAID-tasemed | 0, 1, 10 |
| RAID | SATA 0, 1, 10 |
| Sisemine I/O moodul | |
| EPS-toitepistmik (8 kontakti) | Jah |
| ATX-toitepistmik (24 kontakti) | Jah |
| CPU-ventilaatori pistmik | Jah |
| Kere ventilatsiooniühenduste arv | 3 |
| USB 2.0 pistmikud | 2 |
| Esipaneeli audiopistik | Jah |
| TPM-ühenduspesa | Jah |

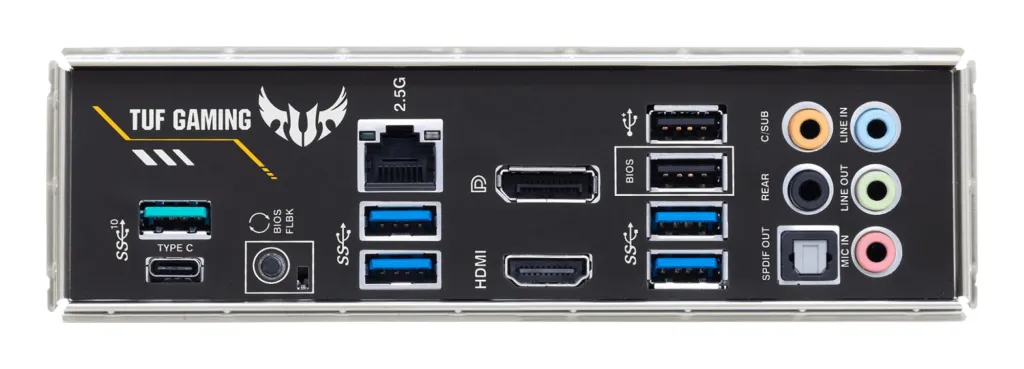

| Tagapaneeli I/O pesad | |
| PS/2-portide kogus | 1 |
| VGA (D-Sub) portide arv | 0 |
| HDMI-portide arv | 1 |
| DVI-D liideste arv | 0 |
| S/PDIF-väljund | Jah |
| USB 2.0 portide arv | 2 |
| USB 2.0 | Jah |
| Ethernet LAN (RJ-45) pordid | 1 |
| Serial | Jah |
| BIOS | |
| BIOS-i tüüp | UEFI AMI |
| BIOS-i mälu suurus | 256 Mbit |
| Kujutisesensori (CMOS) puhastamine | Jah |
| Lisad | |
| Kaablid kaasa arvatud | SATA |
| Draiverid kaasa arvatud | Jah |
| .: Kaal ja mõõtmed :. | |
| Brutokaal | 1.47 kg |
| Netokaal | 1.3 kg |
| .: Pakendi andmed :. | |
| Max kogus transpordipakendis | 1 |
| Pakendi maht | 0.006426 cubm |
| Muud näitajad | |
| Compatible processor series | AMD Ryzen 3000 Series |
| Supported processor sockets | Socket AM4 |
| BIOS type | UEFI AMI |
| ATX Power connector (24-pin) | Jah |
| EPS power connector (8-pin) | Jah |
| Memory slots type | DIMM |
| Motherboard chipset family | AMD |
| Number of chassis fan connectors | 3 |
| Number of SATA connectors | 4 |
| S/PDIF out port | Jah |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Dual-channel |
| Front panel audio connector | Jah |
| CPU fan connector | Jah |
| Number of SATA III connectors | 6 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| Parallel processing technology support | 2-Way CrossFireX |
| Clear CMOS jumper | Jah |
| Number of M.2 (M) slots | 2 |
| Drivers included | Jah |
| PCI Express x1 (Gen 3.x) slots | 3 |
| Maximum number of SMP processors | 1 |
| Supported storage drive interfaces | M.2,SATA |
| Processor manufacturer | AMD |
| DisplayPort arv | 1 |
| USB 3.2 | Jah |
| USB 3.2 Gen 1 (3.1 Gen 1) A-tüüpi portide hulk | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) C-tüüpi portide hulk | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) pistmikud | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) C-tüüpi portide hulk | 0 |
| PCI-Express 4.0 16x | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 4.x) pilud | 1 |
| Unit Box Height | 0.07 |
| Unit Box Length | 0.34 |
| Unit Box Width | 0.27 |
| CnCode | 84733020 |
| ECC сompatibility | ECC |
| ECC ühilduvus | ECC |
| Units per Shipping Box | 5 |
| Unit Calculated Volume | 0.007884 cubm |
| Product Net Weight | 1.3 kg |
| Unit Calculated Weight | 1.67 kg |
| Summary | ASUS TUF Gaming B550-PLUS. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA, RAID levels: 0, 1, 10. Parallel processing technology support: 2-Way CrossFireX. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125B |
| Harmonized System (HS) code | 84733020 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Audio chip | Realtek ALC S1200A |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) A-tüüpi portide hulk | 1 |
| Harmonized System (HS) kood | 84733020 |
| Component for | Nettop |
| Toote kaal | 945 g |
| Firewire (IEEE 1394) pordid | 0 |
| Tootja koduleht | https://www.asus.com/Motherboards/TUF-GAMING-B550-PLUS/overview/ |
| Transpordipakendi kaal | 1.471 kg |
| Transpordipakendi kõrgus | 7 cm |
| Transpordipakendi laius | 27 cm |
| Transpordipakendi sügavus | 34 cm |
| Kõrgus | 68 mm |

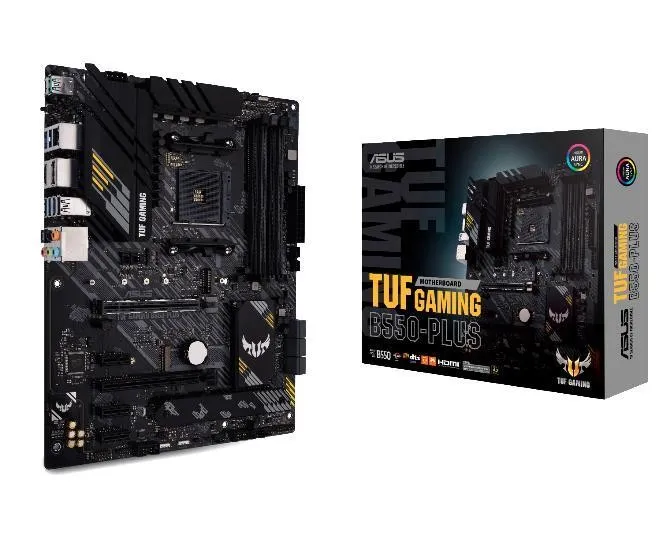

| Tarvikud kaasa arvatud | User's manual; I/O Shield; 2 x SATA 6Gb/s cable(s); Supporting DVD; TUF Gaming Sticker; TUF Certification card(s); M.2 SSD screw package(s); M.2 Rubber Package(s) |
| Kõrgus | 68 mm |
| Toote kaal | 945 g |
| DisplayPorts quantity | 1 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN (RJ-45) ports | 1 |
| Motherboard chipset | AMD B550 |
| Toetatud protsessoripesad | Pesa AM4 |
| Windows operating systems supported | Windows 10 x64 |
| BIOS memory size | 256 Mbit |
| DisplayPort | 1 |
| LAN controller | Realtek RTL8125B |
| Number of memory slots | 4 |
| Optical S/PDIF | 1 |
| Processor Socket | Socket AM4 |
| Raid Levels | 0/1/10 |
| Supported memory clock speeds | 2133/2400/2666/2800/3000/3200/3333/3466/3600/3733/3866/4000/4133/4266/4400/4600 MHz |
| USB 2.0 connectors | 2 |
| USB type C | 1 |
| USB-C | 1 |
