Professional 16-Port 10/100 Mbps + 2-Port Gigabit Rackmount Switch with 16-Port PoE+
Plug and Play, with PoE Transmission for Surveillance up to 250 m

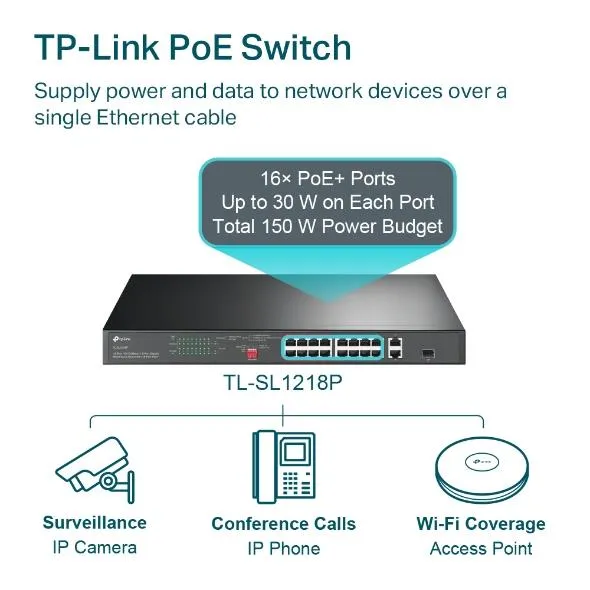

Dedicated 16-Port PoE+ Switch (150 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 150 W PoE power budget for the 16× PoE+ ports makes it has wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.

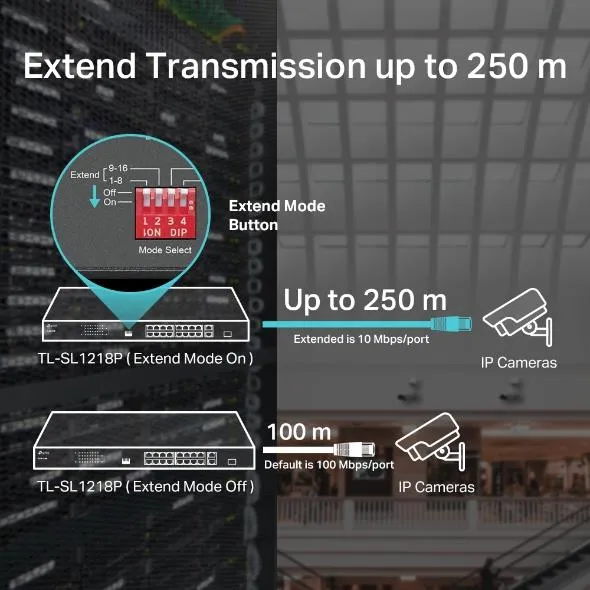

Ideal for IP Surveillance—Up to 250 m Transmission
With extend mode, the PoE transmission distance reaches up to 250 m—perfect for IP Camera deployment in large areas.
Ideal for IP Surveillance —Higher Performance and Security
Priority Mode and Isolation Mode make surveillance smoother and safer.

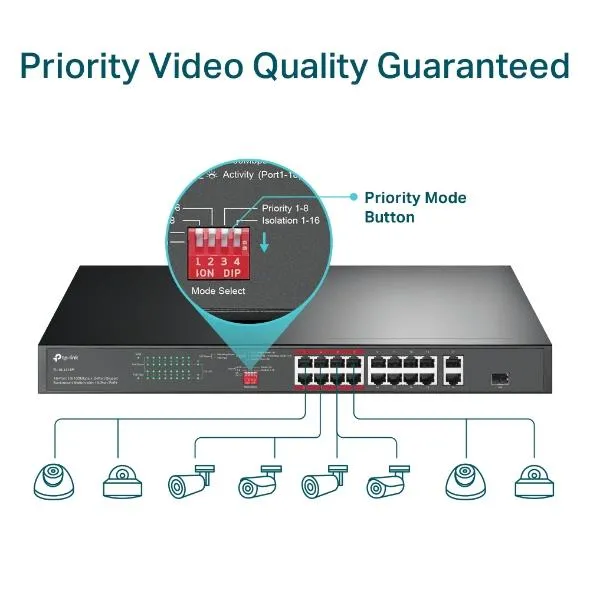

Priority Video Quality Guaranteed
Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1–8 when one-touch Priority Mode is on.
One-Click Traffic Separation for Ports 1-16
With one click, Isolation Mode easily divides traffic for ports 1–16 to avoid snooping and tampering. This enables the switch to isolate broadcast storm, improving LAN security and data transmission.
Smooth HD Video Monitoring
2× gigabit RJ45 ports and 1× combo gigabit SFP slot ensure smooth streaming even when 16× HD IP cameras work simultaneously.
Intelligent Power Management to Prevent Power Overload
When your total power consumption exceeds 150 W, Intelligent Power Management automatically cuts lower priority ports’ power to ensure high-priority ports’ power supply. This protects the device from power overload operation. It also automatically detects the required PoE power for your device and protects your non-PoE equipment from being damaged.

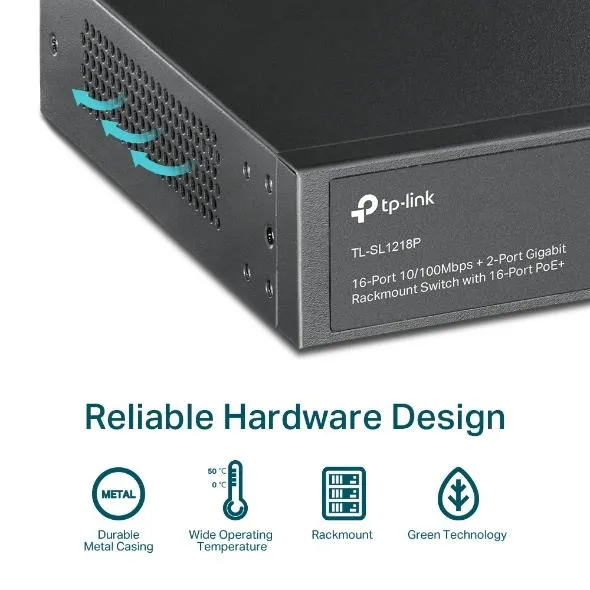

Wide Operating Temperature with Good Heat Dissipation
Durable metal casing and professional heat dissipation design ensure the wide operating temperature (0–50℃) with reliability.

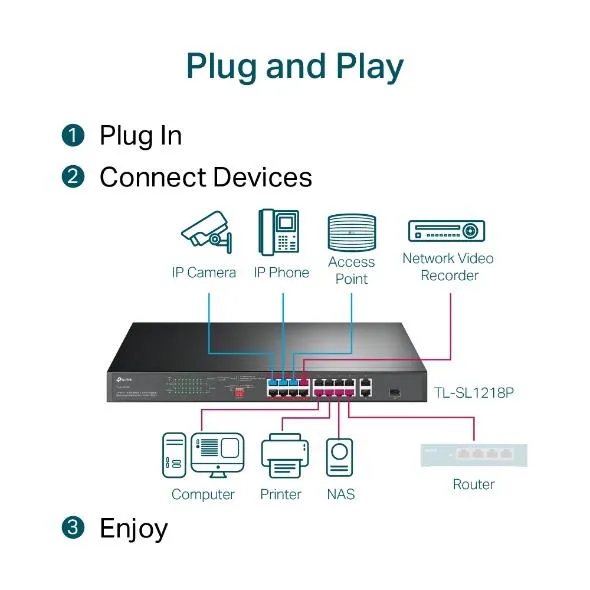

Multiple Application Scenarios
The TL-SL1218P is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices, such as PCs, printers, and IPTV.
| Tootja | TP-LINK |
| Tootekood | TL-SL1218P |
| EAN | 6935364052829 |
| Google link | lisainfo |
| Garantiiaeg | 36 kuud |
| .: Üldised andmed :. | |
| Tootja koduleht | https://www.tp-link.com/uk/business-networking/poe-switch/tl-sl1218p/ |
| .: Üldised omadused :. | |
| Automaatne ühildumine | Jah |
| Paketi puhvermälu | 4,1 MB |
| .: Disain :. | |
| Toote kuju | 1U |
| Toote värv | Black |
| Kujutegur | 1U |
| Korpuse materjal | Metall |
| LED-indikaatorid | Jah |
| Toote värv | Must |
| LED-indikaatorid | Jah |
| .: Võrgustumine :. | |
| Võrgustandardid | IEEE 802.3af/IEEE 802.3at/IEEE 802.3x |
| Automaatse MAC-aadressi aegumise tugi | Jah |
| Automaatse MAC-aadressi tuvastamise tugi | Jah |
| Võrgustandardid | IEEE 802.3af, IEEE 802.3at, IEEE 802.3x |
| Voo reguleerimise tugi | Jah |
| Auto MDI/MDI-X | Jah |
| 10G-tugi | Ei |
| .: Pesad & liidesed :. | |
| Installitud SFP moodulite hulk | 0 |
| Installitud SFP+ moodulite hulk | 0 |
| Gigabitise Etherneti (vask) portide arv | 2 |
| Kiire Etherneti (vask) pesade arv | 16 |
| Kombineeritud SFP-pesade arv | 1 |
| RJ-45 Etherneti ühenduse pesade arv | 18 |
| RJ-45 Etherneti ühenduse pesade tüüp | Gigabit Ethernet (10/100/1000) |
| Võimsus ja energiatarve | |
| Power over Ethernet (PoE) | Jah |
| Sisendsagedus | 50 - 60 Hz |
| AC-sisendpinge | 100 - 240 V |
| AC-sisendsagedus | 50 - 60 Hz |
| Elektritarbimine (max) | 172,8 W |
| Jahutus | |
| Ventilaatorite arv | 2 fan(s) |
| .: Tehnilised andmed :. | |
| Püstikmontaaž | Jah |
| Andmeedastus | |
| Hiigelkaadrite | 10000 |
| Edastamise kiirus | 5,36 Mpps |
| Jumbo frames | 10000 |
| Ladusta-ja-edasta | Jah |
| MAC-aadresside tabel | 8000 sisestust |
| Lülitusvõime | 7,2 Gbit/s |
| Hiigelkaadrite tugi | Jah |
| Juhtimisfunktsioonid | |
| Võrguliikluse klassifikatsioon | Jah |
| Lüliti tüüp | Mittejuhitav |
| Toide | |
| Kaasas toiteplokk | Jah |
| Toiteallikas | Vahelduvvool |
| Toiteallikas | External |
| Ethernet LAN-funktsioonid | |
| 10/100/1000M | 2 |
| IEEE 802.3af | Jah |
| IEEE 802.3at | Jah |
| Funktsioonid | |
| Vahelduvvoolu pinge | 100 - 240 V |
| Toetatud kaablitüübid | Cat3, Cat4, Cat5, Cat5e, Cat6 |
| Internet elektrivõrgu kaudu (PoE) | |
| Toide üle võrgu (PoE) pesade arv | 16 |
| Toide üle võrgu (PoE) võimsus pordi kohta | 30 W |
| Toide üle võrgu (PoE) võimsusühikuid kokku | 150 W |
| Power over Ethernet tugi | Jah |
| Logistika andmed | |
| Kogus transpordikasti kohta | 6 |
| Harmonized System (HS) kood | 85176990 |
| Töötingimused | |
| Suhteline õhuniiskus (H-H) hoiustamisel | 5 - 90 protsenti |
| Hoiustamistemperatuur (T-T) | -40 - 70 °C |
| Soojuse hajumine | 589,25 BTU/h |
| Kasutamistemperatuur (T-T) | 0 - 50 °C |
| Suhteline õhuniiskus kasutamisel (H-H) | 10 - 90 protsenti |
| Suhteline õhuniiskus kasutamisel (H-H) | 10 - 90 % |
| Hoiustamistemperatuur (T-T) | -40 - 70 °C |
| .: Pakendi sisu :. | |
| Tarvikud kaasa arvatud | • TL-SL1218P • Power Cable • Installation Guide • Two mounting brackets |
| Kiirstardi juhend | Jah |
| Kiirpaigaldusjuhend | Jah |
| .: Pakendi andmed :. | |
| Kaablid kaasa arvatud | AC |
| Pakendi sügavus | 528 mm |
| Pakendi laius ( mm ) | 250 mm |
| Pakendi kõrgus ( mm ) | 80 mm |
| Pakendi kaal | 2,8 kg |
| ◁ SERTIFIKAADID ▷ | |
| Sertifikaat | CE, FCC, RoHS |
| Rack mounting | Jah |
| Gigabit Ethernet (copper) ports quantity | 2 |
| Jumbo frames support | Jah |
| 10G support | Ei |
| Basic switching RJ-45 Ethernet ports quantity | 18 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Fast Ethernet (copper) ports quantity | 16 |
| Combo SFP ports quantity | 1 |
| Power over Ethernet plus (PoE+) ports quantity | 16 |
| Unit Box Height | 0.08 |
| Unit Box Length | 0.53 |
| Unit Box Width | 0.25 |
| Unit Calculated Volume | 0.01335 cubm |
| Product Net Weight | 2 kg |
| Unit Calculated Weight | 3.06 kg |
| Summary | TP-Link 16-Port 10/100 Mbps + 2-Port Gigabit Rackmount PoE Switch with 16-Port PoE+. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 18. MAC address table: 8000 entries, Switching capacity: 7.2 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3x. Power over Ethernet (PoE). Rack mounting, Form factor: 1U |
| Harmonized System (HS) code | 85176990 |
| Cable types supported | Cat3/Cat4/Cat5/Cat5e/Cat6 |
| Traffic classification | Jah |
| Power supply included | Jah |
| 10Base-T / 100Base-TX | 16 |
| Auto-negotiation | Jah |
| Certification | CE, FCC, RoHS |
| Combo 10/100/1000M-T/SFP | 1 |
| Desktop/pedestal | Jah |
| Forwarding rate | 5.36 Mpps |
| Heat dissipation | 589.25 BTU/h |
| Housing material | Metal |
| MAC address table | 8000 entries |
| Package depth | 528 mm |
| Package height | 80 mm |
| Package weight | 2800 g |
| Package width | 250 mm |
| Packet buffer memory | 4.1 MB |
| PoE+ ports | 16 |
| Power over Ethernet (PoE) power per port | 30 W |
| Power Source | AC |
| Primary port count | 16 |
| Storage relative humidity (H-H) | 5 - 90 % |
| Switch type | Unmanaged |
| Switching capacity | 7.2 Gbit/s |
| Switching method | Store-and-forward |
| Total Power over Ethernet (PoE) budget | 150 W |
| Laius | 440 mm |
| Laius | 440 mm |
| Sügavus | 180 mm |
| Kõrgus | 44 mm |
| Mõõtmed (l x s x k) | 440 × 180 × 44 mm |
| Sügavus | 180 mm |
| Kõrgus | 44 mm |
