Access Point|TP-LINK|Omada|1200 Mbps|IEEE 802.11a|IEEE 802.11 b/g|IEEE 802.11n|IEEE 802.11ac|EAP235-WALL
E1
Vajad toodet suuremas koguses või püsitellimust?
Võta ühendust meie klienditoega info[at]digipood.eu

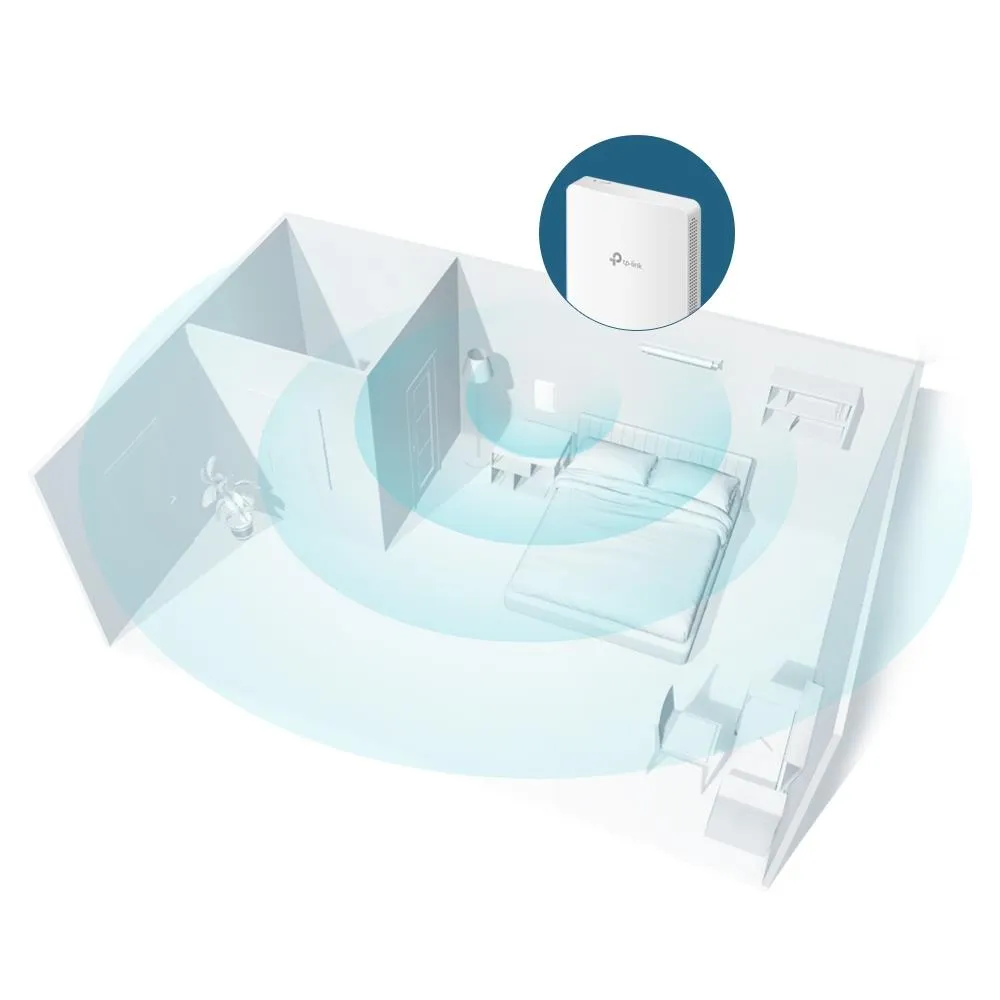

Dedicated Complete, Private Wi-Fi Network in Each Room
An EAP in each room allows guests to enjoy their own private Wi-Fi network that’s fast, delivering a strong signal, and providing corner to corner coverage.
MU-MIMO + Dual-Band: Connect Faster and More
802.11ac wave 2 MU-MIMO technology enables multiple users to access the Internet simultaneously, which largely boosts up your network speed of up to 1,200 Mbps. Capable of transmitting in both 2.4 GHz and 5 GHz wireless band, it provides greater compatibility to connect varieties of devices.
Absolute Thinnest, Inconspicuous Design
The thinnest wall plate AP available—only 15 mm—featuring a sleek, minimalist appearance. Designed to blend in with the décor of hotel rooms, hospitals, offices and school dormitories, to deliver powerful Wi-Fi without clashing with the room.
Effortless Deployment with PoE Powered
With 802.3af/802.3at Power over Ethernet supported there’s no need to install additional wiring in the building. Simply plug in existing Ethernet cables and you’re ready to go.
Quick, Simplified Installation
EAP235-Wall is easy to install, so extra cost, time, or professional knowledge are completely unnecessary.

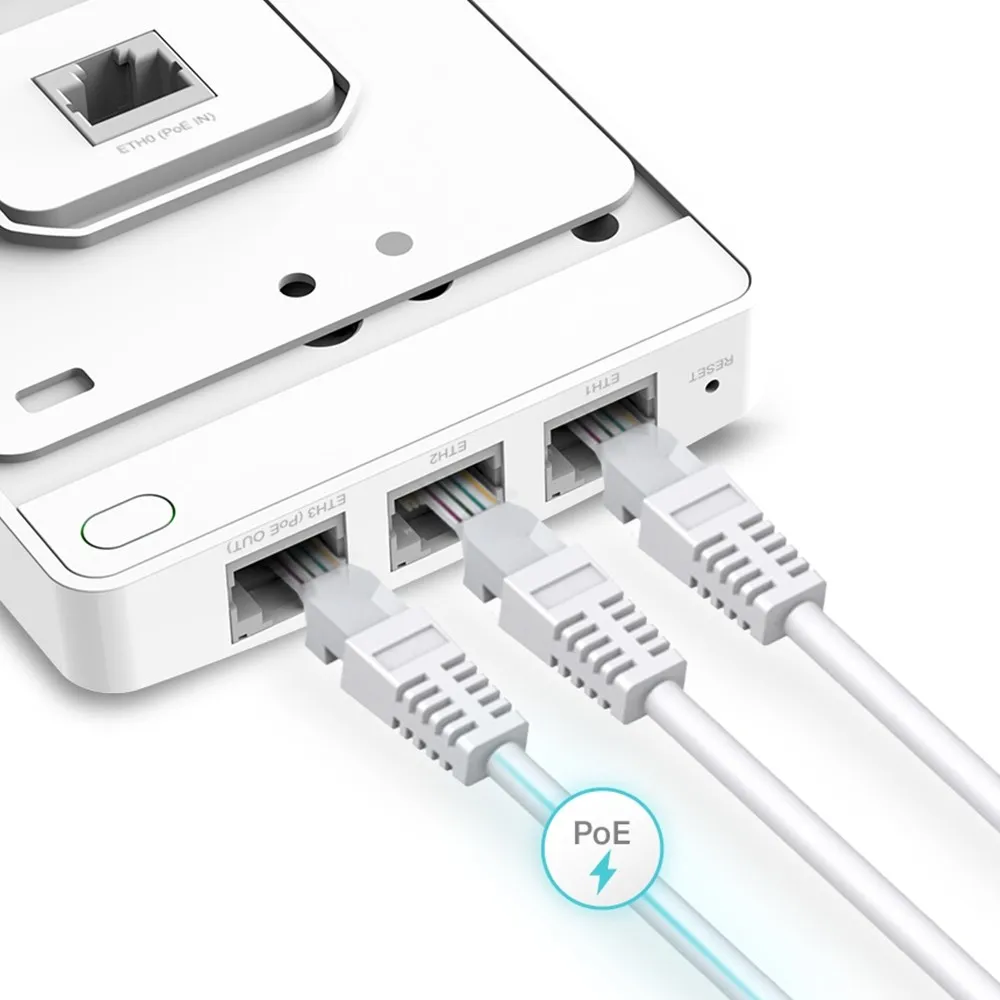

Full Gigabit Ports to Bridge Network
Equipped with four Gigabit data ports (1 uplink + 3 downlink), one downlink port offering PoE pass-through, to connect multiple devices to your gigabit network. Wired devices like VoIP phones can be powered with no need for extra electrical cables.
Cloud Centralized Management Anytime, Anywhere
Omada Cloud Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.
Easy Management with the Omada App
Follow configuration instructions on the Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.
- Elegant Appearance: 15 mm ultra slimmest and conspicuous design blends into hotel rooms, hospital, offices, dormitories and any other environments
- Easy Installation and PoE-enabled: Easy-mount construction allows effortless installation into standard EU/US wall junction box and PoE compatibility helps for flexible deployment
- Interface: 4 Gigabit Ethernet ports for bridging (1*uplink + 3*downlink), with one downlink port supporting PoE pass-through to provide power for wired device
- High Capacity: Dual-Band 802.11ac Wave 2 with 2x2 MU-MIMO provides wireless speeds of up to 1,200 Mbps and great compatibility to connect varieties of devices
- Cloud management and Omada app supported for ultra-convenience and easy management
- Enterprise class Wi-Fi security helps to decrease network security threats
- Secure guest network along with Facebook Wi-Fi/SMS authentication options and wireless security technology
.: Üldised andmed :.
- Seadme tüüp
- Wireless Access Point
- Tootja koduleht
- https://www.tp-link.com/en/business-networking/wall-plate-ap/eap235-wall/
.: Üldised omadused :.
- Juhtmevaba isolatsioon
- Jah
- 2,4 GHz
- Jah
- 5 GHz
- Jah
- Automaatne kanalivalik
- Jah
- Logiserver
- Jah
- Sagedusriba
- 2.4 - 5 GHz
- Wi-Fi multimeedia (WMM)/(WME)
- Jah
.: Disain :.
- Transmitting power (CE)
- 20 - 23 dBm
- Saatja võimsus (CE)
- 20 - 23 dbm
- Toote värv
- White
- Transmitting power (FCC)
- 21 dBm
- Saatja võimsus (FCC)
- 21 dbm
- Toote värv
- White
- Kaabliluku pesa
- Jah
- LED-indikaatorid
- LAN, Võimsus, Staatus, WAN, WLAN
- Paigutus
- Sein
- Toote värv
- Valge
- LED-indikaatorid
- LAN/Power/Status/WAN/WLAN
.: Toimimine :.
- Band Steering
- Jah
- MIMO tüüp
- Multi User MIMO
- Remote Authentication Dial-In User Service (RADIUS)
- Jah
- MIMO
- Jah
.: Võrgustumine :.
- Virtuaalse LANi elemendid
- Port-based VLAN, VLAN mapping
- Võrgustandardid
- IEEE 802.11a/IEEE 802.11ac/IEEE 802.11b/IEEE 802.11g/IEEE 802.11n/IEEE 802.1x/IEEE 802.3af/IEEE 802.3at
- VLAN-i tugi
- Jah
- Kiiruse piiramine
- Jah
- IGMP-jälgimine
- Jah
- Võrgustandardid
- IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
- Täisdupleks
- Jah
- Voo reguleerimise tugi
- Jah
- Auto MDI/MDI-X
- Jah
- Ethernet LAN-i andmeedastuskiirused
- 10,100,1000 Mbit/s
- Kaabeldustehnoloogia
- 10/100/1000Base-T(X)
- VLAN-i tugi
- Jah
- Ethernet LAN-i andmeedastuskiirused
- 10/100/1000 Mbit/s
.: Pesad & liidesed :.
- Andmete edastamise maksimaalne määr
- 1167 Mbit/s
- WAN-ühendus
- Ethernet (RJ-45)
- Ethernet LAN (RJ-45) pordid
- 4
.: Tarkvara :.
- Automaatne kanalite otsing
- Jah
Võimsus ja energiatarve
- Power over Ethernet (PoE)
- Jah
- Võimsustarve (tüüpiline)
- 24.4 W
Turvalisus
- Service Set Identifier (SSID) features
- Multiple SSIDs
- Service Set Identifier (SSID) elemendid
- Multiple SSIDs
- Turvaalgoritmid
- 128-bit WEP/152-bit WEP/64-bit WEP/802.1x RADIUS/HTTPS/SNMP/SNMPv3/SSH/WPA/WPA2/WPA2-Enterprise/WPA2-PSK/WPA-Enterprise/WPA-PSK
- IP-aadresside filtreerimine
- Jah
- Pääsuloend (ACL)
- Jah
- MAC-aadresside filtreerimine
- Jah
- SSID-tugede arv
- 16
- Turvaalgoritmid
- 64-bit WEP, 128-bit WEP, 152-bit WEP, 802.1x RADIUS, HTTPS, SNMP, SNMPv3, SSH, WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA2-Enterprise, WPA2-PSK
Antenn
- Antenna features
- Integrated antenna
- Antenni elemendid
- Integreeritud antenn
- Antennivõimenduse tase (maksimaalne)
- 4 dBi
- Antenni tüüp
- Sisemodem
- Antennide arv
- 2
- Antennide arv
- 2
- Antenni tüüp
- Internal
Juhtmevaba LAN-i omadused
- IEEE 802.11 b/g
- Jah
- IEEE 802.11a
- Jah
- IEEE 802.11ac
- Jah
- IEEE 802.11n
- Jah
Protokollid
- DHCP-klient
- Jah
- DHCP-server
- Jah
.: Tehnilised andmed :.
- Sustainability compliance
- Jah
- Jätkusuutlikkuse sertifikaadid
- CE, Föderaalne kommunikatsioonikomisjon (FCC), RoHS
- Jätkusuutlikkuse järgimine
- Jah
- Compliance certificates
- CE/Federal Communications Commission (FCC)/RoHS
- Vastavussertifikaadid
- CE, Föderaalne kommunikatsioonikomisjon (FCC), RoHS
Juhtimisfunktsioonid
- Teenusekvaliteedi (QoS) tugi
- Jah
- Veebipõhine haldus
- Jah
- Universaalne Plug and Play (UPnP)
- Jah
- Teenusekvaliteedi (QoS) tugi
- Jah
- Veebipõhine haldus
- Jah
- Universaalne Plug and Play (UPnP)
- Jah
Toide
- Toitenõuded
- 802.3af/802.3at PoE
Ergonoomika
- Lähtestusnupp
- Jah
- Lähtestusnupp
- Jah
Funktsioonid
- Maximum data transfer rate (2.4 GHz)
- 300 Mbit/s
- Virtual LAN features
- Port-based VLAN/VLAN mapping
- Maksimaalne andmeedastuskiirus (5 GHz)
- 867 Mbit/s
- Maksimaalne andmeedastuskiirus (2.4 GHz)
- 300 Mbit/s
- BeamForming
- Jah
- 6 GHz
- Ei
- Wi-Fi multimeedia (WMM)/(WME)
- Jah
- Maximum data transfer rate (5 GHz)
- 867 Mbit/s
- Mudeli originaalnimi
- EAP235-Wall
Internet elektrivõrgu kaudu (PoE)
- Power over Ethernet (PoE) type supported
- Active PoE/Passive PoE
- Toide üle võrgu (PoE) toetatud tüüp
- Active PoE, Passive PoE
- Power over Ethernet tugi
- Jah
Logistika andmed
- Kogus transpordikasti kohta
- 1
- Harmonized System (HS) kood
- 85176990
Muud funktsioonid
- Andmeedastuskiirus
- 1200 Mbps
.: Toetatud operatsioonisüsteemid :.
- Ühilduvad operatsioonisüsteemid
- Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
Töötingimused
- Suhteline õhuniiskus (H-H) hoiustamisel
- 5 - 90 protsenti
- Hoiustamistemperatuur (T-T)
- -40 - 70 °C
- Kasutamistemperatuur (T-T)
- 0 - 40 °C
- Suhteline õhuniiskus kasutamisel (H-H)
- 10 - 90 protsenti
- Suhteline õhuniiskus kasutamisel (H-H)
- 10 - 90 %
- Hoiustamistemperatuur (T-T)
- -40 - 70 °C
.: Pakendi sisu :.
- Paigalduskomplekt
- Jah
- Kogus pakis
- 1 tk
- Kaasnevate toodete arv
- 1 tk
- Paigalduskomplekt
- Jah
- Kiirstardi juhend
- Jah
- Kiirpaigaldusjuhend
- Jah
.: Pakendi andmed :.
- Pakendi tüüp
- Box
- Pakendi sügavus
- 184 mm
- Pakendi laius ( mm )
- 117 mm
- Pakendi kõrgus ( mm )
- 33 mm
- Pakendi kaal
- 300 g
- Pakendi sügavus
- 184 mm
- Pakendi kõrgus
- 33 mm
- Pakendi kaal
- 300 g
- Pakendi laius
- 117 mm
Tehnilised andmed
- Compatible operating systems
- Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
- Cabling technology
- 10/100/1000Base-T(X)
- Quantity per pack
- 1 pc(s)
- 2.4 GHz
- Jah
- MAC address filtering
- Jah
- Access Control List (ACL)
- Jah
- Rate limiting
- Jah
- Series
- Omada
- Unit Box Height
- 0.034
- Unit Box Length
- 0.185
- Unit Box Width
- 0.117
- Unit Calculated Volume
- 0.0007359 cubm
- Unit Calculated Weight
- 0.35 kg
- Summary
- TP-Link Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point. 2.4 GHz, 5 GHz, Maximum data transfer rate: 1167 Mbit/s. Security algorithms: 64-bit WEP, 128-bit WEP, 152-bit WEP, 802.1x RADIUS, HTTPS, SNMP, SNMPv3, SSH, WPA,.... Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: White
- Harmonized System (HS) code
- 85176990
- MIMO type
- Multi User MIMO
- Wi-Fi Multimedia (WMM)/(WME)
- Jah
- Wireless isolation
- Jah
- Automatic channel selection
- Jah
- Number of SSID supported
- 16
- Syslog
- Jah
- Automatic channel scanning
- Jah
- Cable lock slot
- Jah
- Ethernet LAN (RJ-45) ports
- 4
- Placement
- Wall
- Antenna gain level (max)
- 4 dBi
- Frequency Band
- 2.4 - 5 GHz
- Maximum data transfer rate
- 1167 Mbit/s
- Storage relative humidity (H-H)
- 5 - 90 %
Tehnilised andmed
- Netokaal
- 0.32 kg
- Laius
- 143 mm
- Laius
- 143 mm
- Sügavus
- 86 mm
- Kõrgus
- 20 mm
- Mõõtmed (l x s x k)
- 143 × 86 × 20 mm
- Sügavus
- 86 mm
- Kõrgus
- 20 mm
