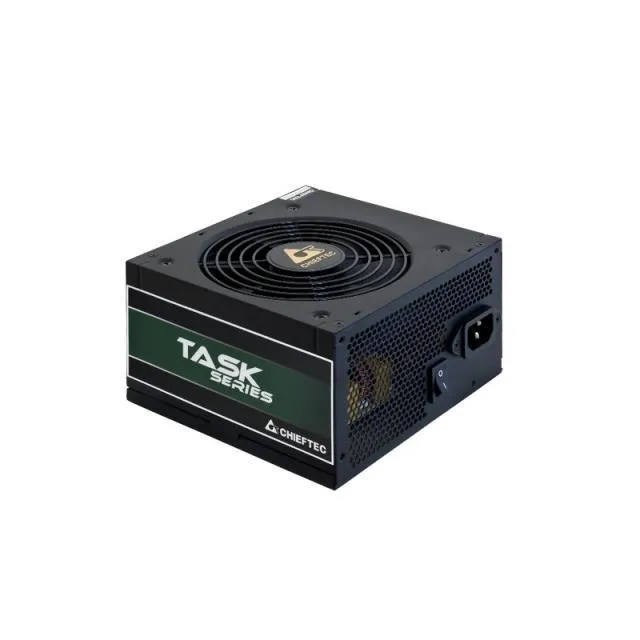

Power Supply|CHIEFTEC|700 Watts|Efficiency 80 PLUS BRONZE|PFC Active|TPS-700S
54.96€
E1
Vajad toodet suuremas koguses või püsitellimust?
Võta ühendust meie klienditoega info[at]digipood.eu
TPS-700S
The CHIEFTEC Task Series PSU’s are true to their name, and take on any task they are required for without any trouble. With certified 80PLUS Bronze efficiency and all modern protection and safety features, the PSU can be trusted to deliver power efficiently and reliably. With cable lengths extended to 650mm for motherboard and CPU, these power supplies will also serve excellently for builds inside larger cases.
- 80PLUS Bronze certified efficiency
- 650mm long cables for maximum case compatibility
- All modern protection and safety features included
.: Üldised andmed :.
- Tootja koduleht
- https://www.chieftec.eu/products-detail/180/TASK_SERIES/248/TPS-700S
.: Disain :.
- Toote värv
- Black
.: Toimimine :.
- Power supply unit (PSU) form factor
- ATX
Võimsus ja energiatarve
- Sisendvool
- 10 A
- Sisendsagedus
- 47 - 63 Hz
- PFC (Võimsusteguri korrigeerimine) tüüp
- Active
Jahutus
- Ventilaatorite arv
- 1 fan(s)
.: Tehnilised andmed :.
- Compliance certificates
- RoHS
Funktsioonid
- Vahelduvvoolu pinge
- 100 - 240 V
Logistika andmed
- Kogus transpordikasti kohta
- 4
.: Pakendi andmed :.
- Pakendi tüüp
- Box
- Max kogus transpordipakendis
- 1
- Pakendi maht
- 0.0045649 cubm
- Transpordipakendi kaal
- 2.07 kg
- Transpordipakendi kõrgus
- 18.5 cm
- Transpordipakendi laius
- 10.5 cm
- Transpordipakendi sügavus
- 23.5 cm
- Pakendi kaal
- 2150 g
Tehnilised andmed
- EPS cable length
- 650 mm
- Unit Box Height
- 0.185
- Unit Box Length
- 0.235
- Unit Box Width
- 0.105
- CnCode
- 85044095
- Unit Calculated Volume
- 0.006169 cubm
- Unit Calculated Weight
- 4.31 kg
- Summary
- Chieftec Task TPS-700S. Total power: 700 W, AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 65 cm, SATA power cable length: 150,500 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Fan diameter: 12 cm, Number of fans: 1 fan(s). Compliance certificates: RoHS, Certification: ErP, CE, CB, EAC, TUV
- Harmonized System (HS) code
- 84733020
- EPS power connector (4+4 pin)
- Jah
- Motherboard power cable length
- 650 mm
- Peripheral (Molex) power cable length
- 150/500 mm
- SATA power cable length
- 150/500 mm
- PCI Express power cable length
- 500 mm
- ATX power connector (20+4 pin)
- Jah
- Motherboard power connector
- 20+4 pin ATX
- Number of SATA power connectors
- 6
- PCI Express power connectors (6+2 pin)
- 2
- Peripheral (Molex) power connectors (4-pin)
- 3
- Power Factor Correction (PFC) type
- Active
- Power protection features
- Over voltage/Overheating/Overload/Short circuit/Under voltage
- Purpose
- PC
- Supported motherboard form factors
- ATX
- 80 PLUS Certification
- 80 PLUS Bronze
- Cabling Type
- Non-Modular
- Certification
- ErP, CE, CB, EAC, TUV
- Combined power (+12V)
- 648 W
- Combined power (+5Vsb)
- 12.5 W
- Combined power (-12V)
- 3.6 W
- Cooling System
- 12cm fan
- Efficiency
- 80 PLUS BRONZE
- Fan Diameter
- 120 mm
- Max output current (+12V)
- 54 A
- Max output current (+3.3V)
- 19 A
- Max output current (+5V)
- 17 A
- Max output current (+5Vsb)
- 2.5 A
- Max output current (-12V)
- 0.3 A
- Power factor
- 0.9
- PSU
- ATX 2.3
- PSU Output Power
- 700 Watts
- Total power
- 700 W
Tehnilised andmed
- Netokaal
- 1.57 kg
- Netokaal
- 1.57 kg
- Brutokaal
- 2.07 kg
- Laius
- 150 mm
- Sügavus
- 140 mm
- Kõrgus
- 87 mm
- Mõõtmed (l x s x k)
- 140 mm x 150 mm x 87 mm
- Toote kaal
- 1740 g
