What This Product Does

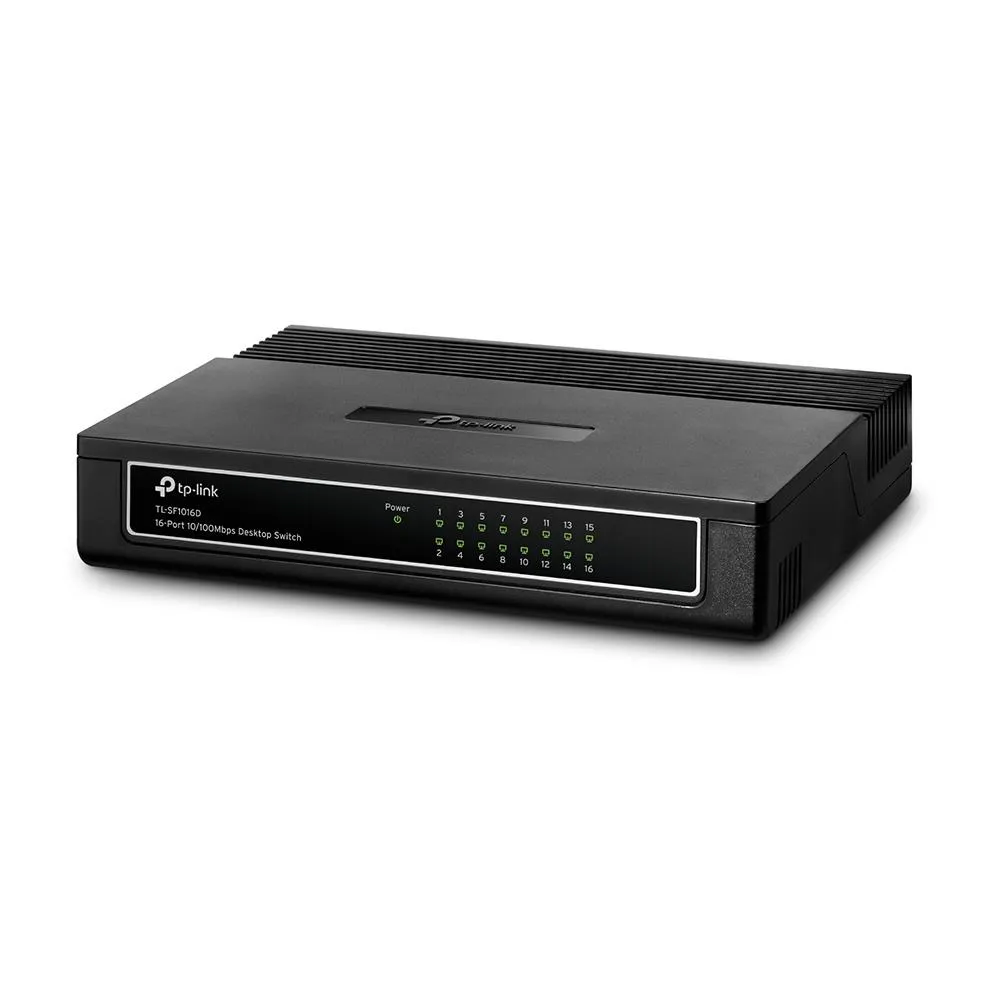

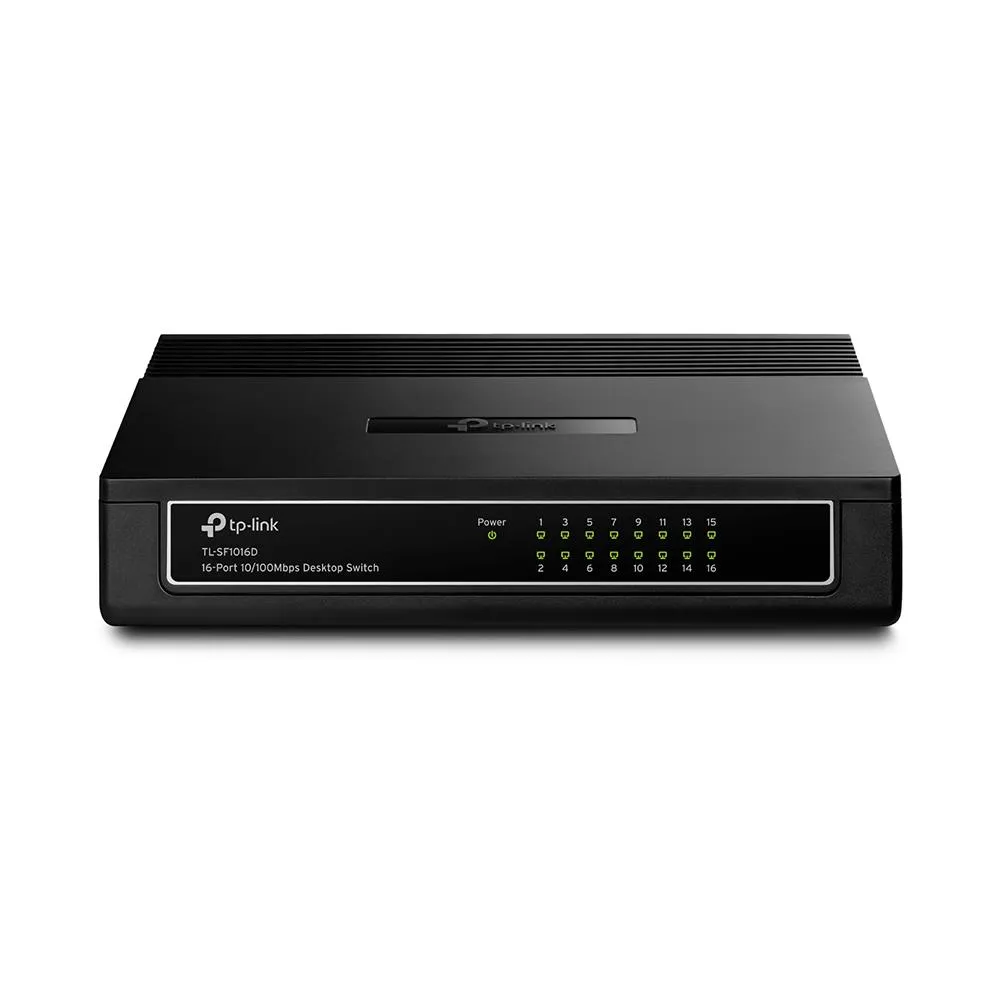

The TL-SF1016D Fast Ethernet Switch is designed for SOHO (Small Office/Home Office) or workgroup users. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1016D can save the power consumption and 70% of the packaging material can be recycled, making it an eco-friendly solution for your business network.
High Performance

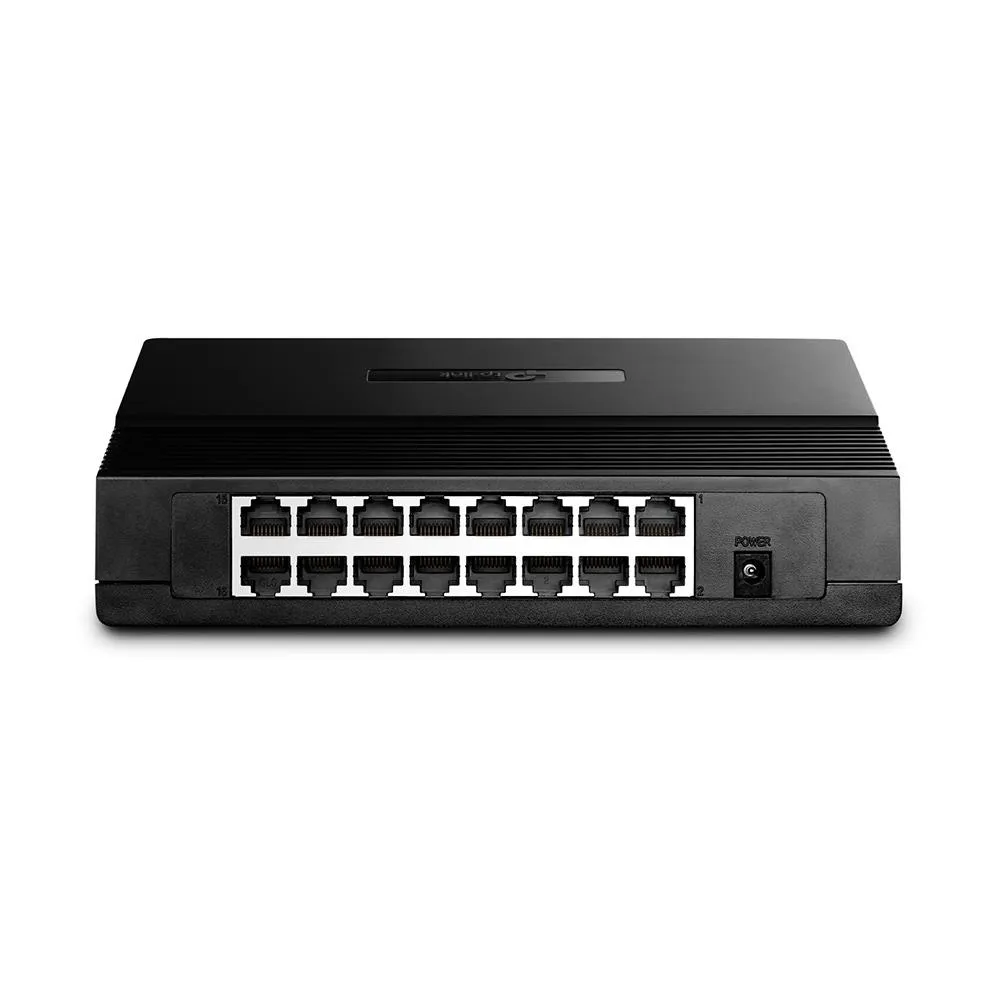

TL-SF1016D Fast Ethernet Switch provides 16 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports. Featuring non-blocking switching architecture, TL-SF1016D forwards and filters packets at full wire-speed for maximum throughput. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1016D work reliably.
TP-LINK Green Technology
This new generation TL-SF1016D Fast Ethernet Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.
It also complies with the EU’S RoHS, prohibiting the use of certain hazardous materials. Besides, 70% of the packaging material can be recycled.
Easy to Use
The auto features of this switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100 Mbps) and intelligently adjusts for compatibility and optimal performance.
| Tootja | TP-LINK |
| Tootekood | TL-SF1016D |
| EAN | 6935364020293 |
| Google link | lisainfo |
| Garantiiaeg | 36 kuud |
| .: Üldised andmed :. | |
| Tootja koduleht | https://www.tp-link.com/uk/business-networking/unmanaged-switch/tl-sf1016d/ |
| .: Üldised omadused :. | |
| Paketi puhvermälu | 2 MB |
| .: Disain :. | |
| Toote värv | Black |
| LED-indikaatorid | Jah |
| Toote värv | Must |
| LED-indikaatorid | Jah |
| .: Võrgustumine :. | |
| Half duplex | Jah |
| Võrgustandardid | IEEE 802.3u/IEEE 802.3x |
| Võrgustandardid | IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Auto MDI/MDI-X | Jah |
| 10G-tugi | Ei |
| Ethernet LAN-i andmeedastuskiirused | 10,100 Mbit/s |
| .: Pesad & liidesed :. | |
| Installitud SFP moodulite hulk | 0 |
| Installitud SFP+ moodulite hulk | 0 |
| RJ-45 Etherneti ühenduse pesade arv | 16 |
| RJ-45 Etherneti ühenduse pesade tüüp | Fast Ethernet (10/100) |
| Võimsus ja energiatarve | |
| Sisendvool | 0.6 A |
| Power over Ethernet (PoE) | Ei |
| AC-sisendpinge | 100 - 240 V |
| AC-sisendsagedus | 50 - 60 Hz |
| Võimsustarve (tüüpiline) | 2,23 W |
| .: Võimsus :. | |
| Toitepistmik | Alaldi sisendi pesa |
| .: Tehnilised andmed :. | |
| Compliance certificates | CE/Federal Communications Commission (FCC)/RoHS |
| Sustainability compliance | Jah |
| Püstikmontaaž | Jah |
| Andmeedastus | |
| Läbilaskvus | 2,38 Mpps |
| MAC-aadresside tabel | 8000 sisestust |
| Lülitusvõime | 3,2 Gbit/s |
| Funktsioonid | |
| Mudeli originaalnimi | 16-Port 10/100Mbps Desktop Switch |
| Internet elektrivõrgu kaudu (PoE) | |
| Power over Ethernet tugi | Ei |
| Logistika andmed | |
| Kogus transpordikasti kohta | 1 |
| Harmonized System (HS) kood | 85176990 |
| Töötingimused | |
| Suhteline õhuniiskus (H-H) hoiustamisel | 5 - 90 protsenti |
| Hoiustamistemperatuur (T-T) | -40 - 70 °C |
| Kasutamistemperatuur (T-T) | 0 - 40 °C |
| Suhteline õhuniiskus kasutamisel (H-H) | 10 - 90 protsenti |
| Suhteline õhuniiskus kasutamisel (H-H) | 10 - 90 % |
| Hoiustamistemperatuur (T-T) | -40 - 70 °C |
| .: Pakendi sisu :. | |
| AC-adapter kaasa arvatud | Jah |
| Tarvikud kaasa arvatud | Power Adapter; User Guide |
| .: Pakendi andmed :. | |
| Pakendi tüüp | Box |
| Max kogus transpordipakendis | 20 |
| Pakendi maht | 0.00227 cubm |
| Transpordipakendi kaal | 16.4 kg |
| Transpordipakendi kõrgus | 37 cm |
| Transpordipakendi laius | 59 cm |
| Transpordipakendi sügavus | 48 cm |
| ◁ SERTIFIKAADID ▷ | |
| Sertifikaat | FCC, CE, RoHS |
| Unit Calculated Weight | 0.6 kg |
| Product Net Weight | 0.42 kg |
| Summary | TP-Link 16-Port 10/100Mbps Desktop Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 2000 entries, Switching capacity: 3.2 Gbit/s. Networking standards: IEEE 802.3u, IEEE 802.3x. DC input voltage: 9 V. Power connector: DC-in jack. Wall mountable, Rack mounting |
| Unit Calculated Volume | 0.004327 cubm |
| Unit Box Width | 0.225 |
| Unit Box Length | 0.287 |
| Unit Box Height | 0.067 |
| Fanless | Jah |
| Copper ethernet cabling technology | 100BASE-TX/10BASE-T |
| DC input voltage | 9 V |
| Full duplex | Jah |
| MAC address auto-learning supported | Jah |
| Wall mountable | Jah |
| Rack mounting | Jah |
| User guide | Jah |
| Store-and-forward | Jah |
| 10G support | Ei |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Flow control support | Jah |
| Fast Ethernet (copper) ports quantity | 16 |
| Minimum system requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista, Windows 7, MAC OS, NetWare, UNIX, Linux |
| Power supply included | Jah |
| 10Base-T / 100Base-TX | 16 |
| Auto-negotiation | Jah |
| Heat dissipation | 11.01 BTU/h |
| MAC address table | 2000 entries |
| Package depth | 285 mm |
| Package height | 68 mm |
| Package weight | 674 g |
| Package width | 223 mm |
| Power Connector | DC-in jack |
| Power Source | DC |
| Primary port count | 16 |
| Stackable | Ei |
| Storage relative humidity (H-H) | 5 - 90 % |
| Switch type | Unmanaged |
| Switching capacity | 3.2 Gbit/s |
| Switching method | Store-and-forward |
| Laius | 294 mm |
| Netokaal | 0.42 kg |
| Brutokaal | 0.82 kg |
| Laius | 200 mm |
| Sügavus | 142 mm |
| Kõrgus | 40 mm |
| Sügavus | 180 mm |
| Kõrgus | 44 mm |
