What This Product Does

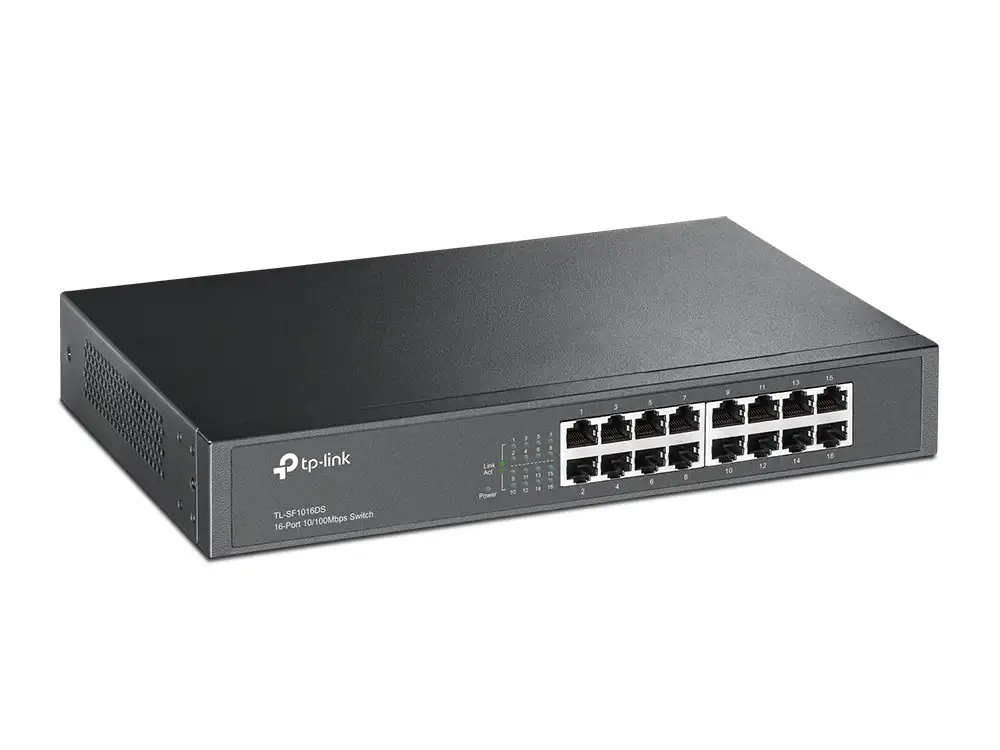

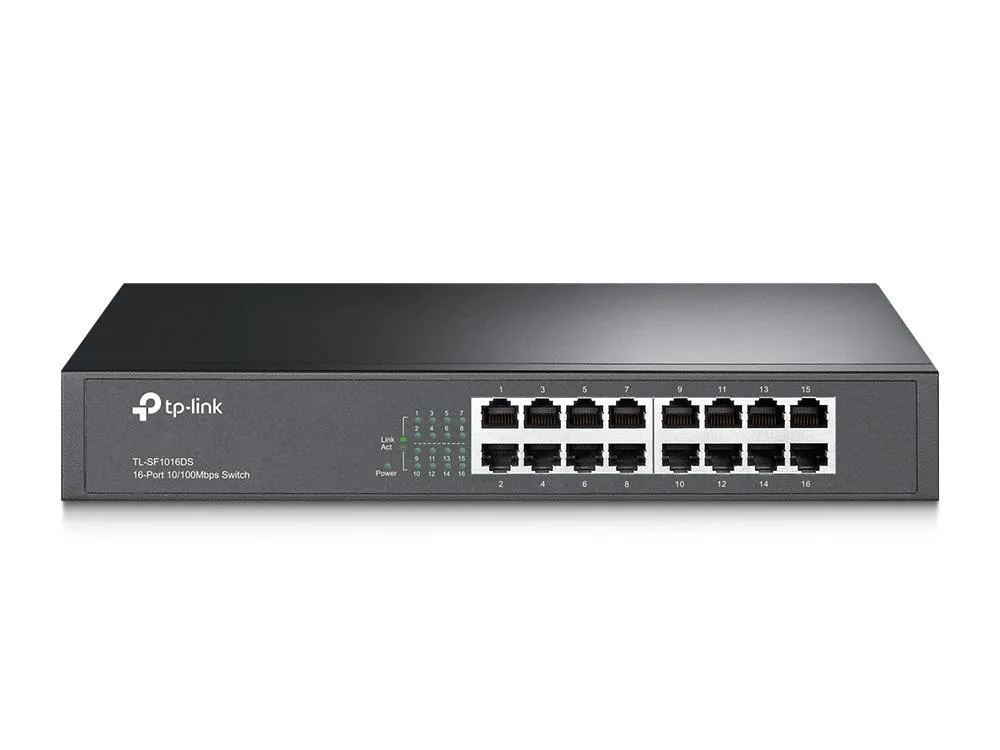

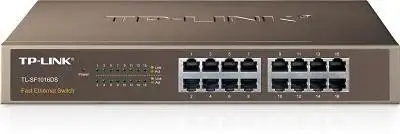

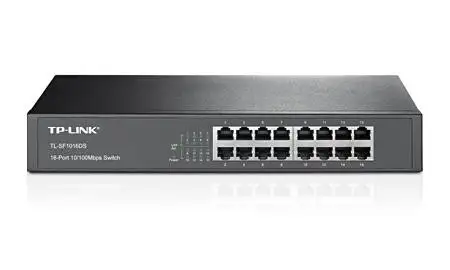

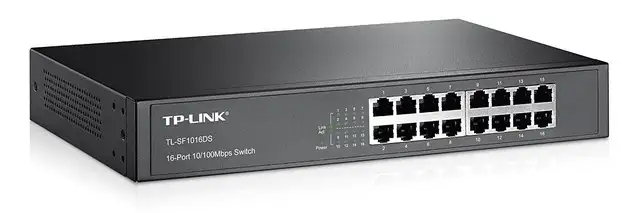

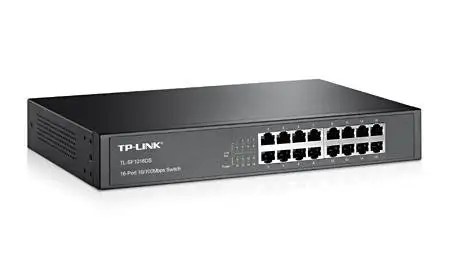

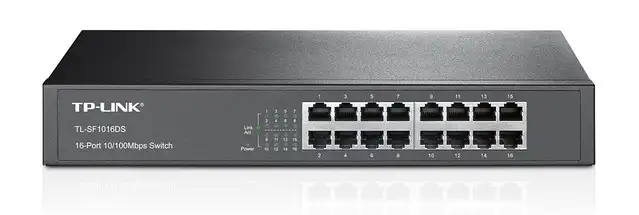

The TL-SF1016DS Fast Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1016DS can save up to 25%* of the power consumption and 70% of the packaging material can be recycled, making it an eco-friendly solution for your business network.
High Performance
The rack-mount size metal case design combined with a safety certified internal power supply make the Switch the most robust product which is very cost-effective for a less than 16 user environment. Featuring non-blocking switching architecture, TL-SF1016DS forwards and filters packets at full wire-speed for maximum throughput. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1016DS work reliably.
TP-LINK Green Technology
This new generation The TL-SF1016DS Fast Ethernet Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network. It also complies with the EU'S RoHS, prohibiting the use of certain hazardous materials. Besides, 70% of the packaging material can be recycled.
Easy to Use
The auto features of this fast ethernet switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.
| Tootja | TP-LINK |
| Tootekood | TL-SF1016DS |
| EAN | 6935364020880 |
| Google link | lisainfo |
| Garantiiaeg | 36 kuud |
| .: Üldised andmed :. | |
| Tootja koduleht | https://uk.tp-link.com/products/details/?model=TL-SF1016DS#over |
| .: Üldised omadused :. | |
| Automaatne ühildumine | Jah |
| Paketi puhvermälu | 2 MB |
| Virnastatav | Ei |
| .: Disain :. | |
| Toote kuju | 1U |
| Korpuse materjal | Metall |
| LED-indikaatorid | Jah |
| Lisaventilaatorite võimalus | Jah |
| Toote värv | Must |
| .: Toimimine :. | |
| Ilma ventilaatorita | Jah |
| .: Võrgustumine :. | |
| Half duplex | Jah |
| WiFi | Ei |
| Võrgustandardid | IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Voo reguleerimise tugi | Jah |
| Auto MDI/MDI-X | Jah |
| 10G-tugi | Ei |
| Ethernet LAN-i andmeedastuskiirused | 10,100 Mbit/s |
| .: Pesad & liidesed :. | |
| Installitud SFP moodulite hulk | 0 |
| Installitud SFP+ moodulite hulk | 0 |
| Etherneti vaskkaablite tehnoloogia | 10BASE-T, 100BASE-T |
| Kiire Etherneti (vask) pesade arv | 16 |
| RJ-45 Etherneti ühenduse pesade arv | 16 |
| RJ-45 Etherneti ühenduse pesade tüüp | Fast Ethernet (10/100) |
| Võimsus ja energiatarve | |
| Sisendsagedus | 50 - 60 Hz |

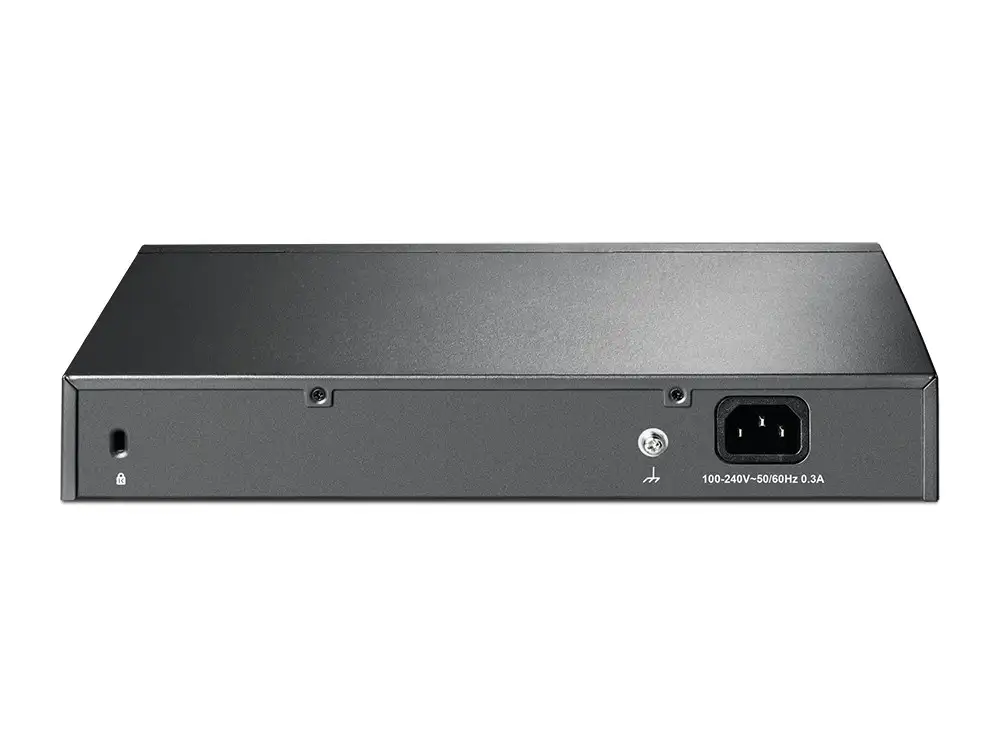

| AC-sisendpinge | 100 - 240 V |
| AC-sisendsagedus | 50/60 Hz |
| Elektritarbimine (max) | 2,06 W |
| Võimsustarve (tüüpiline) | 2,23 W |
| Turvalisus | |
| Staatilise pordi turvalisus | Jah |
| .: Võimsus :. | |
| Toitepistmik | Alaldi sisendi pesa |
| Jahutus | |
| Ventilaatorite arv | 0 ventilaator(id) |
| .: Tehnilised andmed :. | |
| Jätkusuutlikkuse sertifikaadid | CE, Föderaalne kommunikatsioonikomisjon (FCC), RoHS |
| Jätkusuutlikkuse järgimine | Jah |
| Vastavussertifikaadid | CE, Föderaalne kommunikatsioonikomisjon (FCC), RoHS |
| Kummijalad | Jah |
| Püstikmontaaž | Jah |
| Andmeedastus | |
| Jumbo frames | 2000 |
| Ladusta-ja-edasta | Jah |
| Läbilaskvus | 2,38 Mpps |
| MAC-aadresside tabel | 8000 sisestust |
| Lülitusvõime | 3,2 Gbit/s |
| Juhtimisfunktsioonid | |
| Lüliti kiht | L2 |
| Lüliti tüüp | Mittejuhitav |
| Toide | |
| Kaasas toiteplokk | Jah |
| Toiteallikas | Vahelduvvool |
| AC (toide) sisend | Jah |
| Ethernet LAN-funktsioonid | |
| IEEE 802.3 | Jah |
| IEEE 802.3u | Jah |
| IEEE 802.3x | Jah |
| Funktsioonid | |
| Vahelduvvoolu pinge | 100 - 240 V |
| Toetatud kaablitüübid | Cat3, Cat4, Cat5, Cat5e |
| Internet elektrivõrgu kaudu (PoE) | |
| Power over Ethernet tugi | Ei |
| Muud funktsioonid | |
| Toetatud võrguprotokollid | TCP/IP |
| Töötingimused | |
| Suhteline õhuniiskus (H-H) hoiustamisel | 5 - 90 protsenti |
| Hoiustamistemperatuur (T-T) | -40 - 70 °C |
| Soojuse hajumine | 7,03 BTU/h |
| Kasutamistemperatuur (T-T) | 0 - 40 °C |
| Suhteline õhuniiskus kasutamisel (H-H) | 10 - 90 protsenti |
| .: Kaal ja mõõtmed :. | |
| Laius | 294 mm |
| Netokaal | 1.24 kg |
| Brutokaal | 2.13 kg |
| Brutokaal | 2.125 kg |
| Laius | 294 mm |
| Sügavus | 180 mm |
| Kõrgus | 44 mm |
| Sügavus | 180 mm |
| Kõrgus | 44 mm |
| Mõõdud (l x s x k) | 294 x 180 x 44 mm |
| .: Pakendi sisu :. | |
| Püstiku paigaldamise komplekt | Jah |
| AC-adapter kaasa arvatud | Jah |
| .: Pakendi andmed :. | |
| Kasutusjuhend | Jah |
| Kaablid kaasa arvatud | Vahelduvvool |
| Pakendi sügavus | 400 mm |
| Pakendi laius ( mm ) | 250 mm |
| Pakendi kõrgus ( mm ) | 80 mm |
| Pakendi kaal | 1,95 kg |
| Max kogus transpordipakendis | 8 |
| Pakendi maht | 0.009971 cubm |
| Pakendi maht | 0.0096915 cubm |
| Transpordipakendi kaal | 17 kg |
| Transpordipakendi kõrgus | 35.5 cm |
| Transpordipakendi kõrgus | 35 cm |
| Transpordipakendi laius | 43 cm |
| Transpordipakendi laius | 42 cm |
| Transpordipakendi sügavus | 52 cm |
| Transpordipakendi sügavus | 53 cm |
| ◁ SERTIFIKAADID ▷ | |
| Sertifikaat | FCC, RoHS |
| Muud andmed | |
| Supported network protocols | CSMA/CD, TCP/IP |
| Rack mounting | Jah |
| MAC address filtering | Jah |
| Networking standards | IEEE 802.3i/IEEE 802.3u/IEEE 802.3x |
| Supported data transfer rates | 10/100 Mbps |
| Full duplex | Jah |
| Store-and-forward | Jah |
| Jumbo frames support | Jah |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Power requirements | 100 - 240VAC, 50/60Hz |
| Flow control support | Jah |
| Copper ethernet cabling technology | 100BASE-TX/10BASE-T |
| Unit Box Height | 0.08 |
| Unit Box Length | 0.405 |
| Unit Box Width | 0.25 |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.0081 cubm |
| Product Net Weight | 1.24 kg |
| Unit Calculated Weight | 1.91 kg |
| Summary | TP-Link 16-Port 10/100Mbps Desktop/Rackmount Network Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 8000 entries, Switching capacity: 3.2 Gbit/s. Networking standards: IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. Rack mounting |
| Product colour | Black |
| Harmonized System (HS) code | 85176990 |
| LED indicators | Link/Power |
| Power supply included | Jah |
| 10Base-T / 100Base-TX | 16 |
| Activity | Jah |
| Auto-negotiation | Jah |
| Certification | FCC, CE, RoHS |
| Connectivity Technology | Wired |
| Forwarding rate | 2.38 Mpps |
| Heat dissipation | 2.06 BTU/h |
| Link | Jah |
| MAC address table | 8000 entries |
| Maximum data transfer rate | 0.1 Gbit/s |
| Operating relative humidity (H-H) | 10 - 90 % |
| Package depth | 250 mm |
| Package height | 80 mm |
| Package width | 400 mm |
| Packet buffer memory | 2 MB |
| Power Source | AC |
| Primary port count | 16 |
| Storage relative humidity (H-H) | 5 - 90 % |
| Storage temperature (T-T) | -40 - 70 °C |
| Switch type | Unmanaged |
| Switching capacity | 3.2 Gbit/s |
| Switching method | Store-and-forward |
