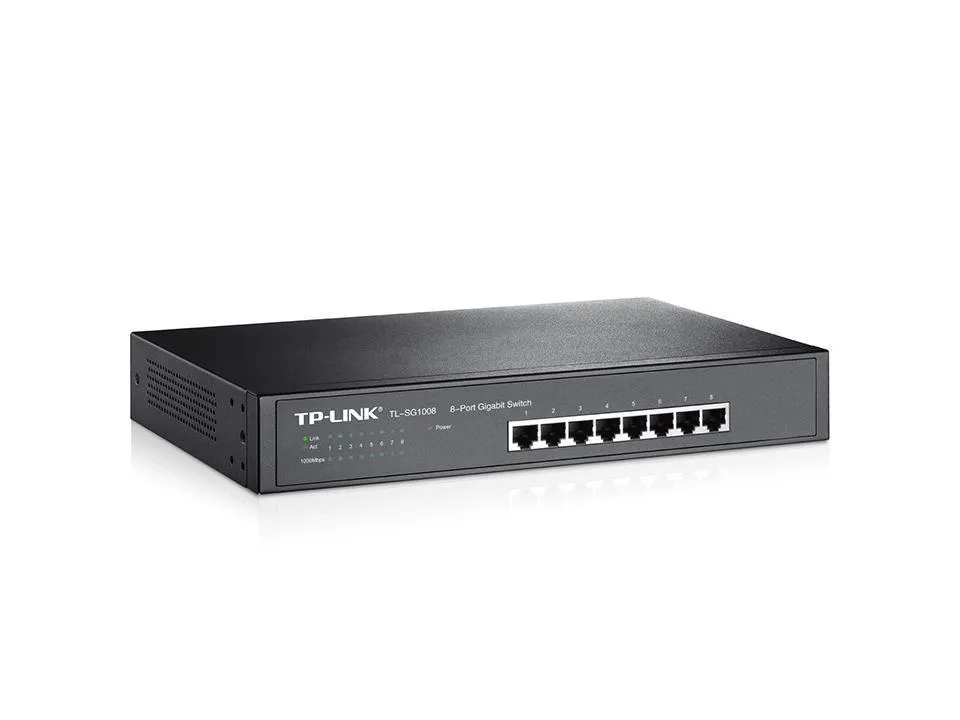

Switch|TP-LINK|Rack|8x10Base-T / 100Base-TX / 1000Base-T|TL-SG1008
AL1
Toote on läbimüüdud kuid võimalik tellida, tellimiseks võta ühendust meie klienditoega info[at]digipood.eu
What This Product Does
The TL-SG1008 8-Port Gigabit desktop/rack-mount switch provides an easy way to make the transition to Gigabit Ethernet. All 8 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1008 can save the power consumption, making it an eco-friendly solution for your business network.
TP-LINK Green Technology
This new generation The 8-Port Gigabit Desktop/Rackmount Switch TL-SG1008 features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network. It also complies with the EU'S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled.
High Performance
The TL-SG1008 features non-blocking wire-speed architecture with a 16Gbps switching capacity for maximum data throughput. An 4K MAC address table provides scalability for even the largest networks. It also supports 802.3x Flow Control for full-duplex mode, and back pressure flow control for half-duplex mode alleviates traffic congestion and ensures reliable data transmission.
Ease to Use
The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports. Auto-negotiation on each port senses the link speed of a network device (either 10, 100 or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. Compact size shell make it ideal for desktops with limited space while it is also rackmountable, convenient and safe. Dynamic LED lights provide real-time work status display and basic fault diagnosis. TL-SG1008 features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network. It also complies with the EU'S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled.
- 8 10/100/1000Mbps RJ45 ports
- Supports MAC address auto-learning and auto-aging and auto MDI/MDIX
- Standard 13-inch rackmount steel case
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic
.: Üldised andmed :.
- Tootja koduleht
- https://www.tp-link.com/uk/service-provider/unmanaged-switch/tl-sg1008/
.: Disain :.
- Toote värv
- Black
- Kujutegur
- 1U
- LED-indikaatorid
- Jah
- Toote värv
- Must
- LED-indikaatorid
- Jah
.: Võrgustumine :.
- Võrgustandardid
- IEEE 802.1p/IEEE 802.3/IEEE 802.3ab/IEEE 802.3u/IEEE 802.3x
- Võrgustandardid
- IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
- Täisdupleks
- Jah
- Voo reguleerimise tugi
- Jah
- Auto MDI/MDI-X
- Jah
- 10G-tugi
- Ei
.: Pesad & liidesed :.
- Installitud SFP moodulite hulk
- 0
- Installitud SFP+ moodulite hulk
- 0
- Etherneti vaskkaablite tehnoloogia
- 10BASE-T, 100BASE-TX, 1000BASE-T
- RJ-45 Etherneti ühenduse pesade arv
- 8
- RJ-45 Etherneti ühenduse pesade tüüp
- Gigabit Ethernet (10/100/1000)
Võimsus ja energiatarve
- Power over Ethernet (PoE)
- Ei
- Sisendsagedus
- 50 - 60 Hz
- AC-sisendpinge
- 100 - 240 V
- AC-sisendsagedus
- 50 - 60 Hz
- Võimsustarve (tüüpiline)
- 4.3 W
.: Tehnilised andmed :.
- Püstikmontaaž
- Jah
Andmeedastus
- Hiigelkaadrite
- 16000
- Jumbo frames
- 16000
- Ladusta-ja-edasta
- Jah
- MAC-aadresside tabel
- 4000 sisestust
- Lülitusvõime
- 16 Gbit/s
- Hiigelkaadrite tugi
- Jah
Juhtimisfunktsioonid
- Lüliti tüüp
- Mittejuhitav
Toide
- Kaasas toiteplokk
- Jah
Ethernet LAN-funktsioonid
- IEEE 802.3
- Jah
Funktsioonid
- Vahelduvvoolu pinge
- 100 - 240 V
Internet elektrivõrgu kaudu (PoE)
- Power over Ethernet tugi
- Ei
Logistika andmed
- Kogus transpordikasti kohta
- 8
Muud funktsioonid
- Toetatud võrguprotokollid
- CSMA/CD, TCP/IP
Töötingimused
- Suhteline õhuniiskus (H-H) hoiustamisel
- 5 - 90 protsenti
- Hoiustamistemperatuur (T-T)
- -40 - 70 °C
- Soojuse hajumine
- 14,67 BTU/h
- Kasutamistemperatuur (T-T)
- 32 - 104 °F
- Suhteline õhuniiskus kasutamisel (H-H)
- 10 - 90 protsenti
- Suhteline õhuniiskus kasutamisel (H-H)
- 10 - 90 %
- Hoiustamistemperatuur (T-T)
- -40 - 70 °C
.: Pakendi sisu :.
- Kiirstardi juhend
- Jah
- Kiirpaigaldusjuhend
- Jah
.: Pakendi andmed :.
- Pakendi tüüp
- Box
- Kaablid kaasa arvatud
- AC
- Max kogus transpordipakendis
- 8
- Pakendi maht
- 0.01026 cubm
- Transpordipakendi kaal
- 18.55 kg
- Transpordipakendi kõrgus
- 36 cm
- Transpordipakendi laius
- 42 cm
- Transpordipakendi sügavus
- 51.5 cm
Tehnilised andmed
- Supported network protocols
- CSMA/CD, TCP/IP
- Networking features
- Gigabit Ethernet
- Rack mounting
- Jah
- Supported data transfer rates
- 10/100/1000 Mbps
- Full duplex
- Jah
- Store-and-forward
- Jah
- Jumbo frames support
- Jah
- 10G support
- Ei
- Basic switching RJ-45 Ethernet ports quantity
- 8
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
- Connectivity LEDs
- Y
- Flow control support
- Jah
- Copper ethernet cabling technology
- 1000BASE-T/100BASE-TX/10BASE-T
- Unit Box Height
- 0.08
- Unit Box Length
- 0.4
- Unit Box Width
- 0.25
- Unit Calculated Volume
- 0.01026 cubm
- Product Net Weight
- 1.44 kg
- Unit Calculated Weight
- 2.06 kg
- Summary
- TP-Link 8-Port Gigabit Desktop/Rackmount Network Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 4000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x. Rack mounting, Form factor: 1U
- Harmonized System (HS) code
- 85176990
- Dimensions (W x D x H) (imperial)
- 9.8 x 6.2 x 1.7 "
- Power supply included
- Jah
- 10Base-T / 100Base-TX / 1000Base-T
- 8
- Auto-negotiation
- Jah
- Bandwidth
- 16 Gbit/s
- Cable distance
- 100m at Cat.5
- Certification
- FCC, CE, RoHS
- Connectivity Technology
- Wired
- Full-duplex
- Jah
- Heat dissipation
- 14.67 BTU/h
- Input frequency
- 50 - 60 Hz
- MAC address table
- 4000 entries
- Maximum data transfer rate
- 1 Gbit/s
- Package depth
- 250 mm
- Package height
- 80 mm
- Package weight
- 1700 g
- Package width
- 400 mm
- Power Source
- AC
- Rack
- Jah
- Storage relative humidity (H-H)
- 5 - 90 %
- Switch type
- Unmanaged
- Switching capacity
- 16 Gbit/s
Tehnilised andmed
- Laius
- 294 mm
- Netokaal
- 1.44 kg
- Brutokaal
- 2.32 kg
- Laius
- 294 mm
- Sügavus
- 180 mm
- Kõrgus
- 44 mm
- Sügavus
- 180 mm
- Kõrgus
- 44 mm
- Mõõdud (l x s x k)
- 294 x 180 x 44 mm
