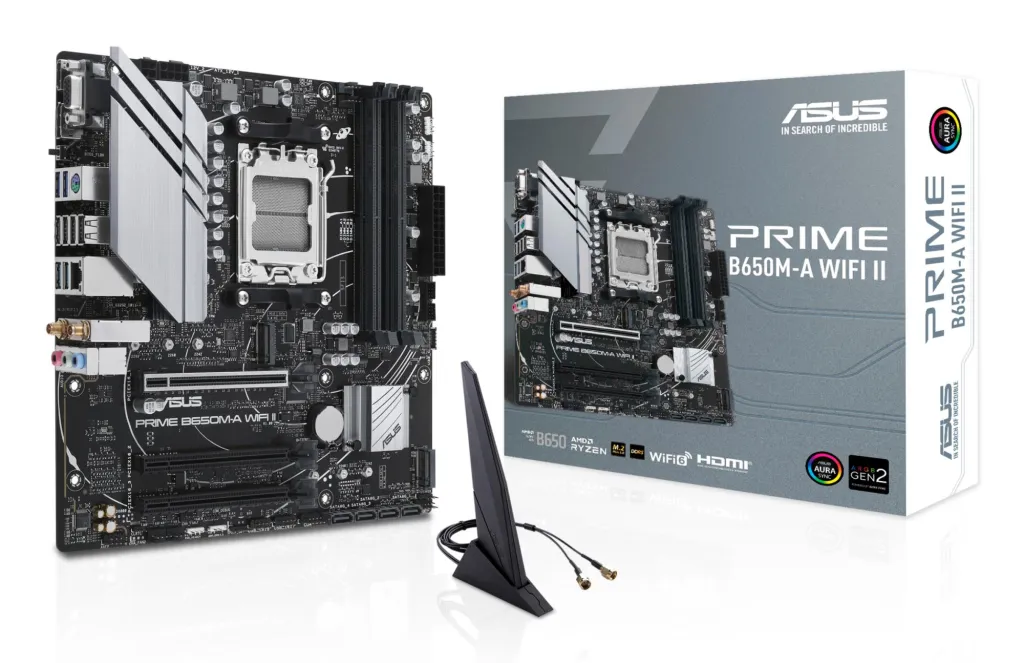

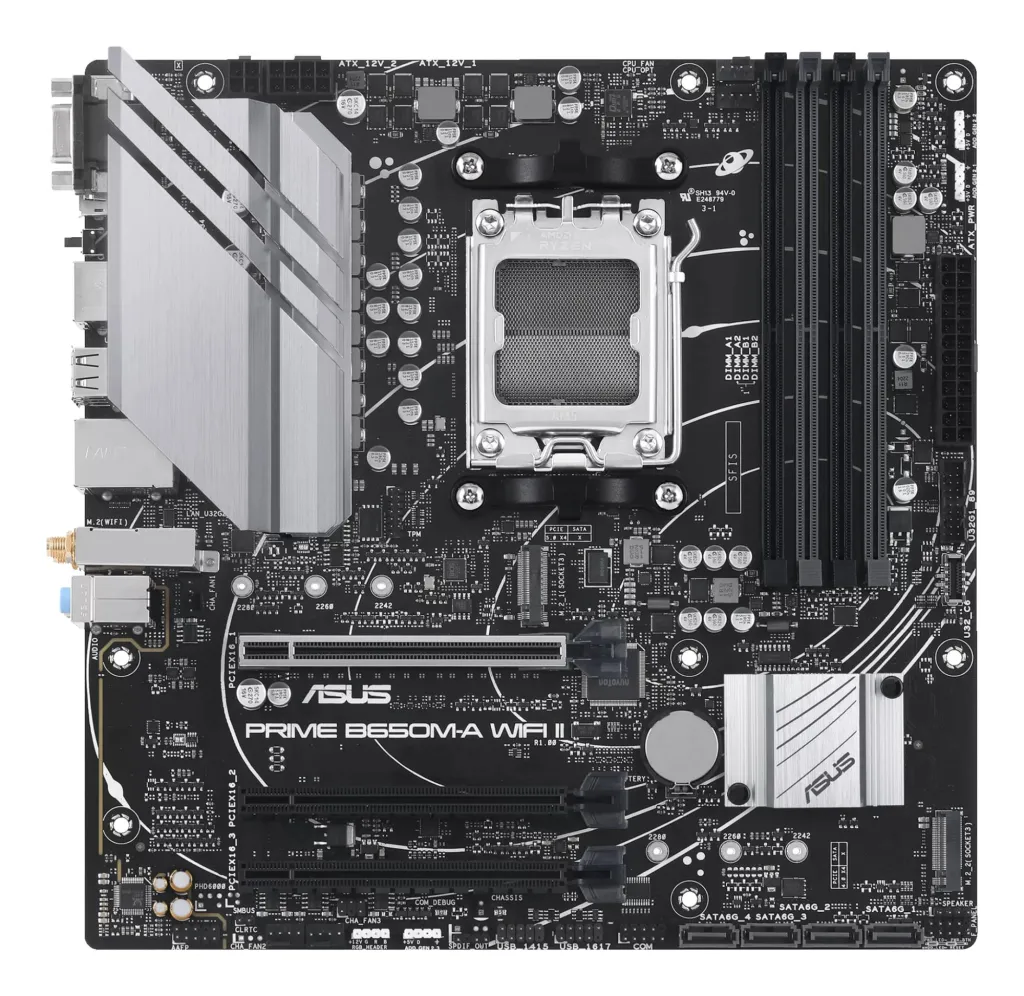

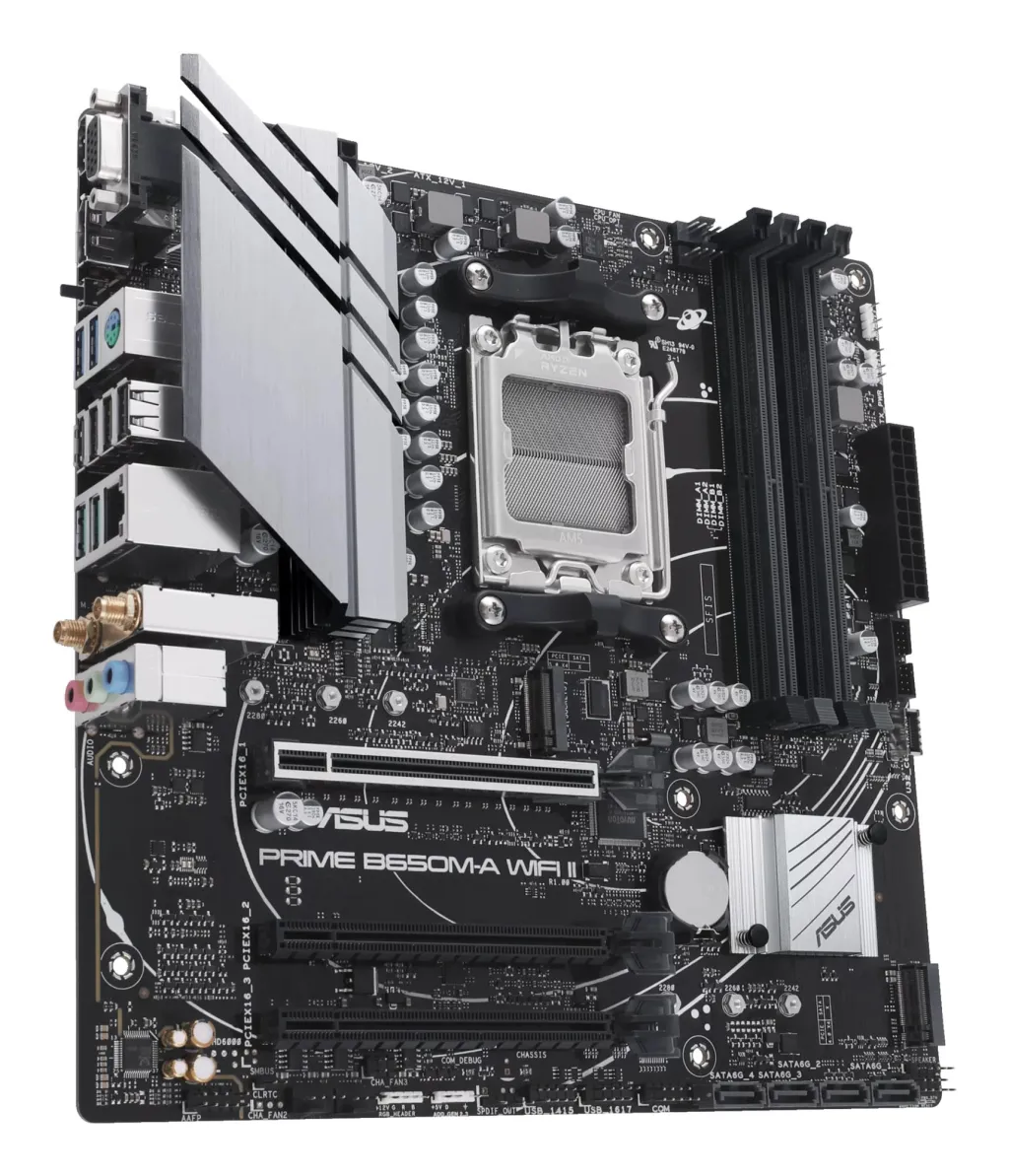

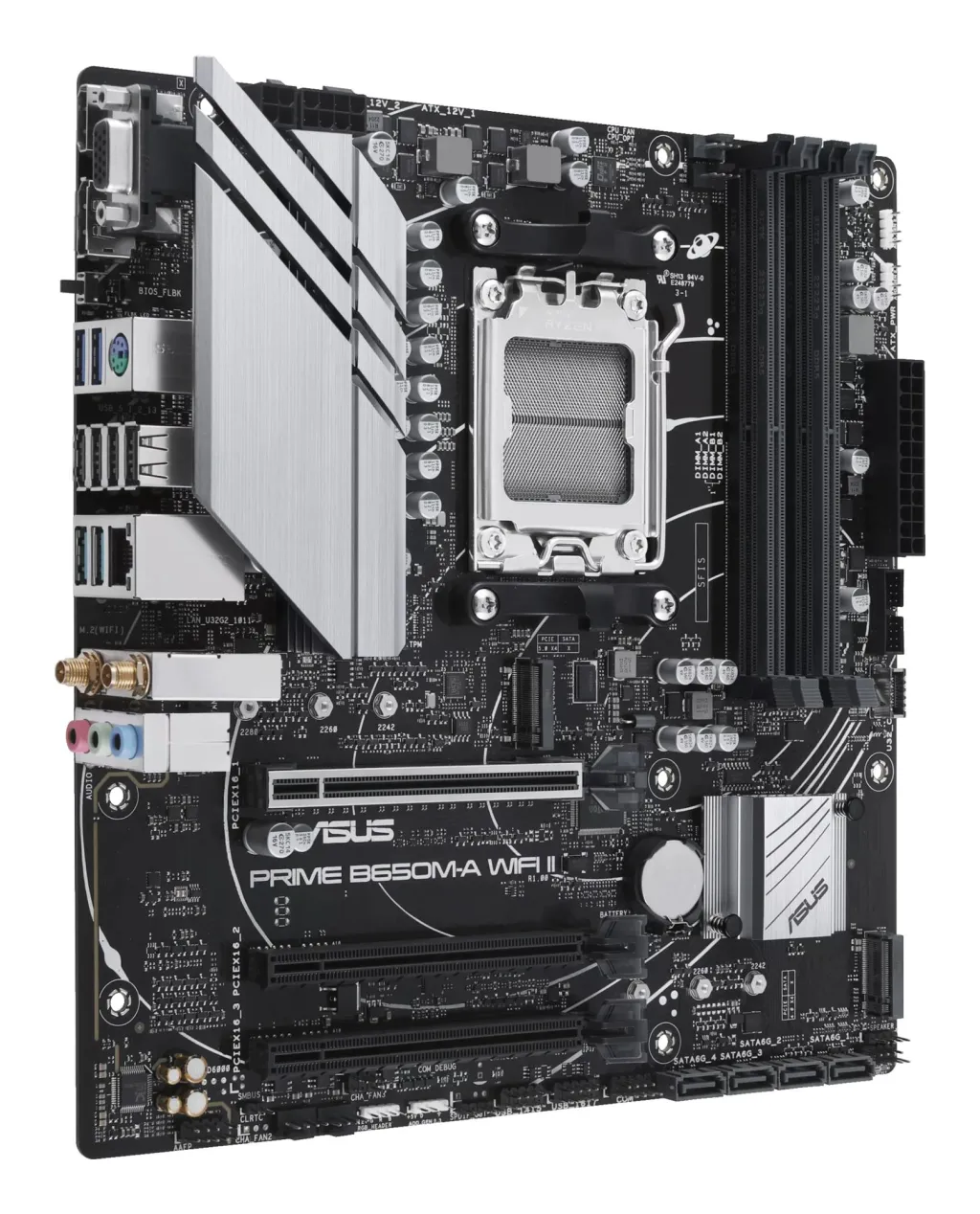

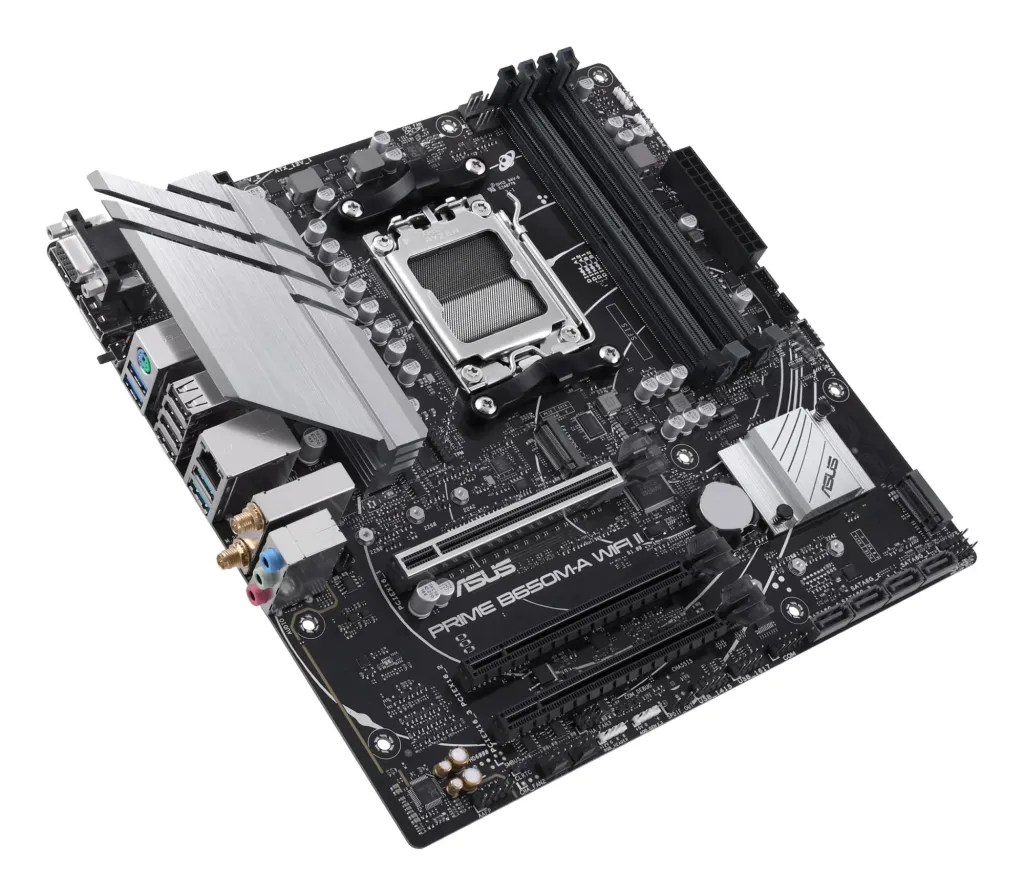

B650M-A WIFI II
ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen 7000-series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B650M-A WIFI II provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.
CPU Performance Boost
AMD Precision Boost Overdrive(PBO) pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning the PBO parameters, AMD’s algorithm can leverage the motherboard’s robust power solution to ramp up performance even higher.
All-Around Energy Efficiency
The Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.
Flexible Cooling Controls
ASUS Fan Xpert 2+ software provides comprehensive control over fans. An Auto-Tuning mode intelligently configures all parameters with a single click. There’s also an Extreme Quiet mode that reduces chassis fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans can also be controlled via the UEFI BIOS.
Precise Digital Power Control
The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.
UEFI BIOS
The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.
Advanced Tuning for Serious Tweakers
An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.
Quick and Simple Setup
EZ mode displays vital settings and stats and also offers guided wizards, drag-and-drop functionality, and one-click application of important settings — all to help you get your rig up and running in no time
Intuitive Graphical Fan Control
Fine-tune individual fan settings simply by dragging a curve with the mouse.
Aura On/Off Mode (Stealth)
Easily enable or disable Aura RGB lighting or every onboard LED, for a subdued aesthetic touch.
COOLING
PRIME B650 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.
VRM Heatsink and Thermal Pad
VRM heatsink and thermal pads improve heat transfer from the MOSFETs and chokes for better cooling performance.
Six-Layer PCB Design
Multiple PCB layers optimize heat management for critical components, providing more headroom to push CPUs beyond stock speeds.
Stack Cool 3+
2-ounce copper layers draw heat away from critical components to keep them at their optimal operating temperatures and provide more headroom to push CPUs beyond stock speeds.
Cooler by Design
Prime B650 series features comprehensive cooling controls that are configurable via Fan Xpert 2+ software or via the UEFI BIOS.
Multiple Temperature Sources
Each header can dynamically reference three thermal sensors. Fan Xpert 2+ allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.
Smart Protection
A dedicated integrated circuit protects each fan header from overheating and overcurrent
4-Pin PWM/DC Fan
Each onboard header supports auto-detection of PWM or DC fans.
PERFORMANCE
The PRIME B650 series is built to handle the high core counts and bandwidth demands of AMD processors. ASUS B650 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible data transfer options
DDR5 Performance Enhancement
Comprehensive memory tuning options are the cornerstone of PRIME motherboards. With the PRIME B650M-A WIFI II, you can extract all of the potential out of your DDR5 modules, whether they're from an extreme-speed kit or an entry-level set that would otherwise be locked.
For entry-level modules without EXPO™ memory support, we’ve got you covered. Click here to learn more about AEMP. arrow.
For those who want to fly past stock DDR5 speeds, the PRIME B650M-A WIFI II is primed and ready for enthusiast-grade kits courtesy of vast AMD Extended Profiles for Overclocking (EXPO™) support. Seasoned veterans can further tweak performance via the extensive array of settings in the UEFI
| Tootja | ASUS |
| Tootekood | PRIMEB650M-AWIFIII |
| EAN | 4711387034934 |
| Google link | lisainfo |
| Garantiiaeg | 36 kuud |
| .: Disain :. | |
| Emaplaadi kujutegur | micro ATX |
| Kujutegur | Micro-ATX |
| Laius | 244 mm |
| Sügavus | 244 mm |
| .: Kiibistik ( Chipset ) :. | |
| Kiibistik ( Chipset) | AMD B650 |
| .: Mälu :. | |
| Sisemälu tüüp | DDR5 |
| Taktsagedus | 4800/5000/5200/5400/5600/5800/6000/6200/6400 MHz |
| Mälupesad | 4 |
| Maksimaalne sisemälu | 128 GB |
| Graafikakaart | |
| Integreeritud graafikaadapter | Depending on CPU |
| .: Audio :. | |
| Intregeeritud helikaart | Jah |
| Audioväljundi kanalid | 3 |
| .: Võrgustumine :. | |
| Ethernet LAN | 2.5 Gigabit |
| WiFi | Jah |
| WiFi-standardid | 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax) |
| Bluetooth | Jah |
| Bluetoothi versioon | 5.2 |
| Kõvaketta tugi | |
| SATA | Jah |
| M.2 (M) siinide arv | 2 |
| RAID | SATA 0, 1, 10 |
| Sisemine I/O moodul | |
| TPM-ühenduspesa | Header |

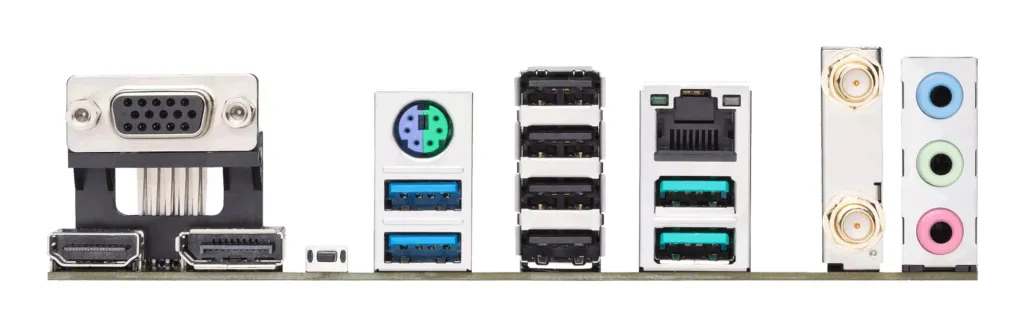

| Tagapaneeli I/O pesad | |
| PS/2-portide kogus | 1 |
| VGA (D-Sub) portide arv | 1 |
| HDMI-portide arv | 1 |
| USB 2.0 portide arv | 4 |
| USB 2.0 | Jah |
| Ethernet LAN (RJ-45) pordid | 1 |

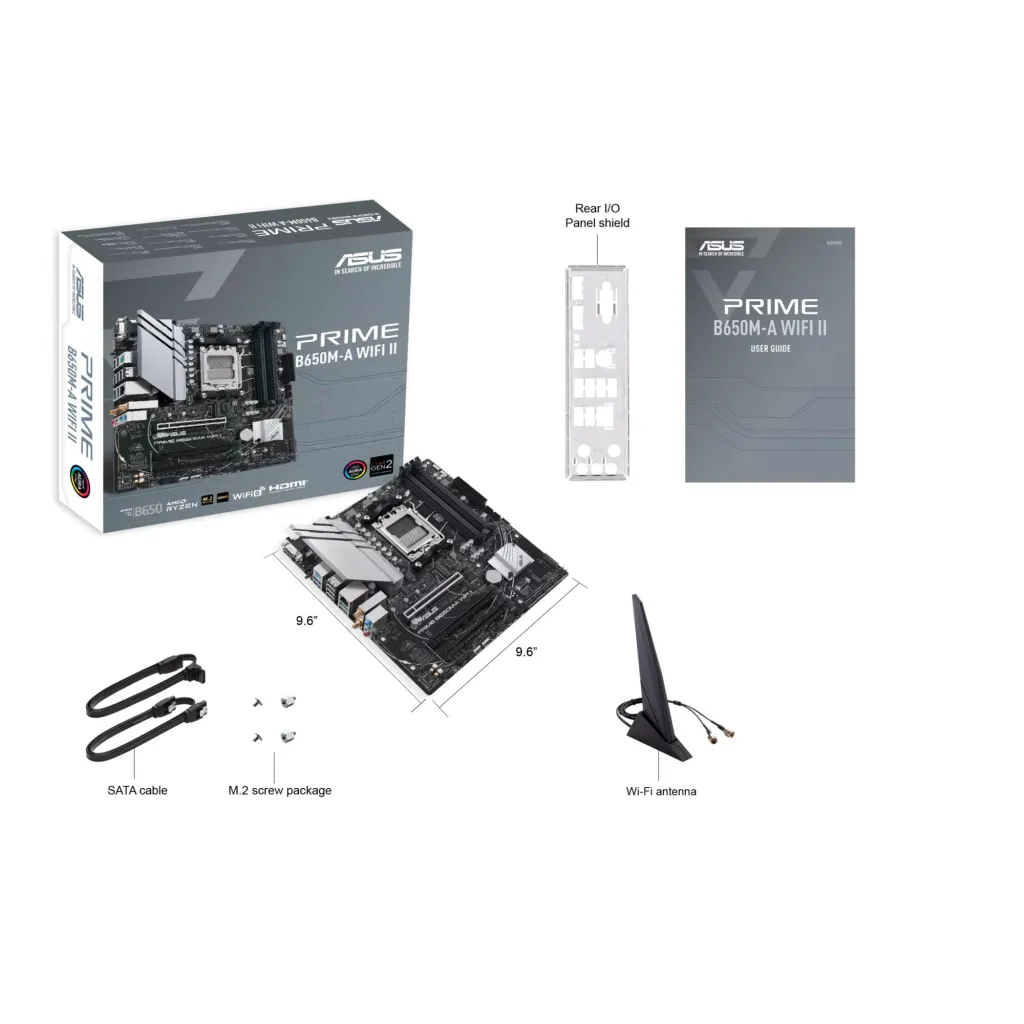

| Lisad | |
| Kaablid kaasa arvatud | SATA |
| .: Kaal ja mõõtmed :. | |
| Brutokaal | 1.41 kg |
| Netokaal | 0.9 kg |
| .: Pakendi andmed :. | |
| Max kogus transpordipakendis | 1 |
| Pakendi maht | 0.005488 cubm |
| Muud näitajad | |
| Compatible processor series | AMD Ryzen™ 7 |
| BIOS type | UEFI AMI |
| ATX Power connector (24-pin) | Jah |
| EPS power connector (8-pin) | Jah |
| Memory slots type | DIMM |
| Motherboard chipset family | AMD |
| Number of chassis fan connectors | 3 |
| Number of COM connectors | 1 |
| Number of SATA connectors | 4 |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| S/PDIF out connector | Jah |
| CPU fan connector | Jah |
| Clear CMOS button | Jah |
| Line-in | Jah |
| Number of storage drives supported | 2 |
| Supported storage drive types | HDD & SSD |
| Power fan connector | Jah |
| Supported storage drive interfaces | M.2,PCI Express 4.0,PCI Express 5.0,SATA |
| Processor manufacturer | AMD |
| RGB LED pin header | Jah |
| USB 3.2 | Jah |
| PCI-Express 4.0 16x | 3 |
| PCI Express x16 (Gen 4.x) slots | 3 |
| Unit Box Height | 0.07 |
| Unit Box Length | 0.28 |
| Unit Box Width | 0.28 |
| CnCode | 84733020 |
| ECC сompatibility | ECC & Non-ECC |
| Units per Shipping Box | 10 |
| Unit Calculated Volume | 0.006401 cubm |
| Product Net Weight | 0.9 kg |
| Unit Calculated Weight | 1.52 kg |
| Summary | ASUS PRIME B650M-A WIFI II. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen™ 7. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, PCI Express 5.0, SATA, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. USB connector type: USB Type-A. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6 (802.11ax), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Total number of SATA connectors | 4 |
| Number of HDDs supported | 4 |
| Graphics output | 1 x DisplayPort**<br />1 x VGA port<br />1 x HDMI<sup>®</sup> port***<br />* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.<br />** Supports max. 8K@60Hz as specified in DisplayPort 1.4.<br />*** Supports 4K@60 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| 12V power connector | Jah |
| Audio connector | Jah |
| Front panel connector | Jah |
| Kaasas tarkvara | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving AI Suite 3 - TurboV EVO - DIGI+ VRM - PC Cleaner ASUS CPU-Z MyASUS Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree |
| Component for | PC |
| Tootja koduleht | https://www.asus.com/motherboards-components/motherboards/prime/prime-b650m-a-wifi-ii/ |
| Transpordipakendi kaal | 1.408 kg |
| Transpordipakendi kõrgus | 7 cm |
| Transpordipakendi laius | 28 cm |
| Transpordipakendi sügavus | 28 cm |
| DisplayPorts quantity | 1 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Jah |
| Motherboard chipset | AMD B650 |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| Power source type | ATX |
| RAID support | Jah |
| Unbuffered memory | Jah |
| USB connector type | USB Type-A |
| VGA (D-Sub) ports quantity | 1 |
| Windows operating systems supported | Windows 10/Windows 11 |
| Audio Output | <strong>Realtek 7.1 Surround Sound High Definition Audio CODEC*</strong><br />- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking<br />- Supports up to 24-Bit/192 kHz playback<br /><strong>Audio Features</strong><br />- Audio Shielding |
| BIOS memory size | 256 Mbit |
| DisplayPort | 1 |
| Mudel | PRIME B650M-A WIFI II |
| Number of memory slots | 4 |
| Processor Socket | Socket AM5 |
| Raid Levels | 0/1/10 |
| Special features | <strong>Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*<br />AMD Ryzen<sup>T</sup> 7000 Series Desktop Processors</strong><br />M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)<br /><strong>AMD B650 Chipset</strong><br />M.2_2 sl |
| Supported memory clock speeds | 4800/5000/5200/5400/5600/5800/6000/6200/6400 MHz |
| USB 2.0 connectors | 2 |
