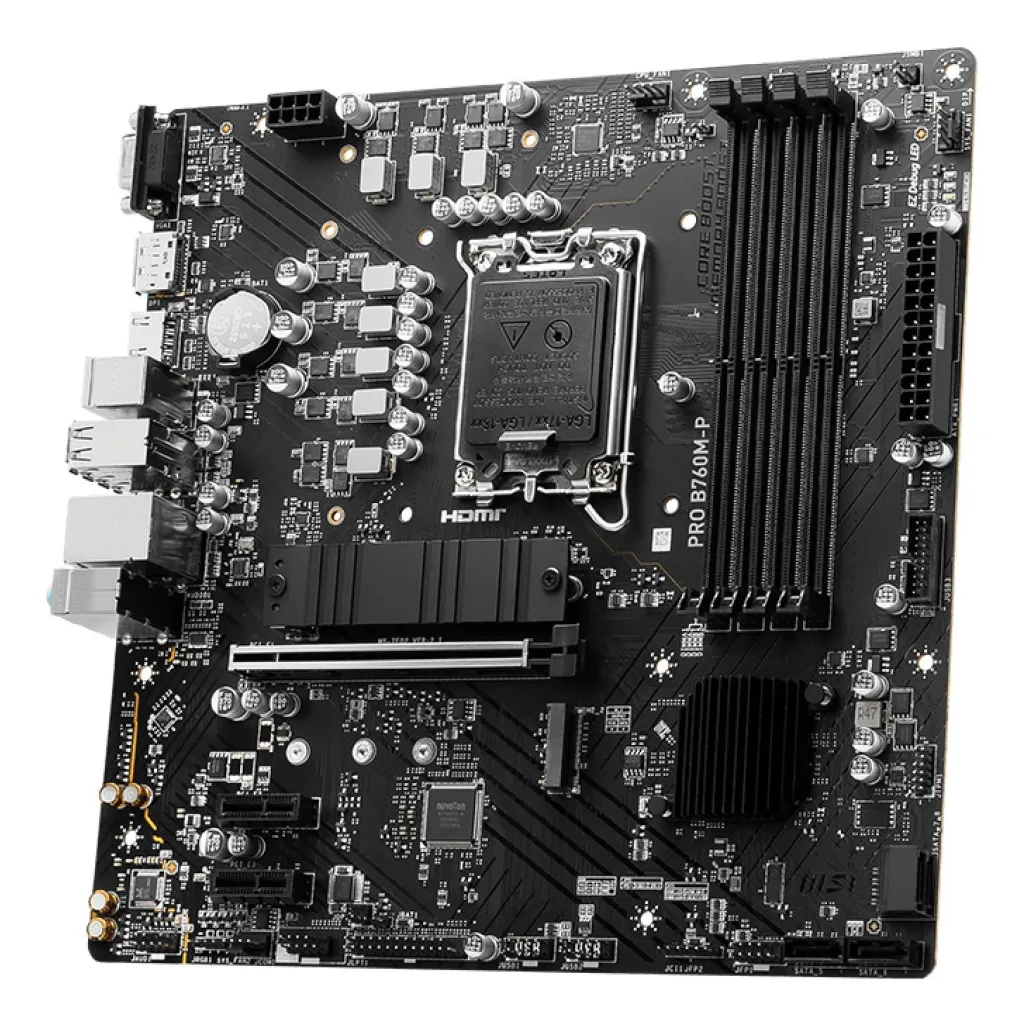

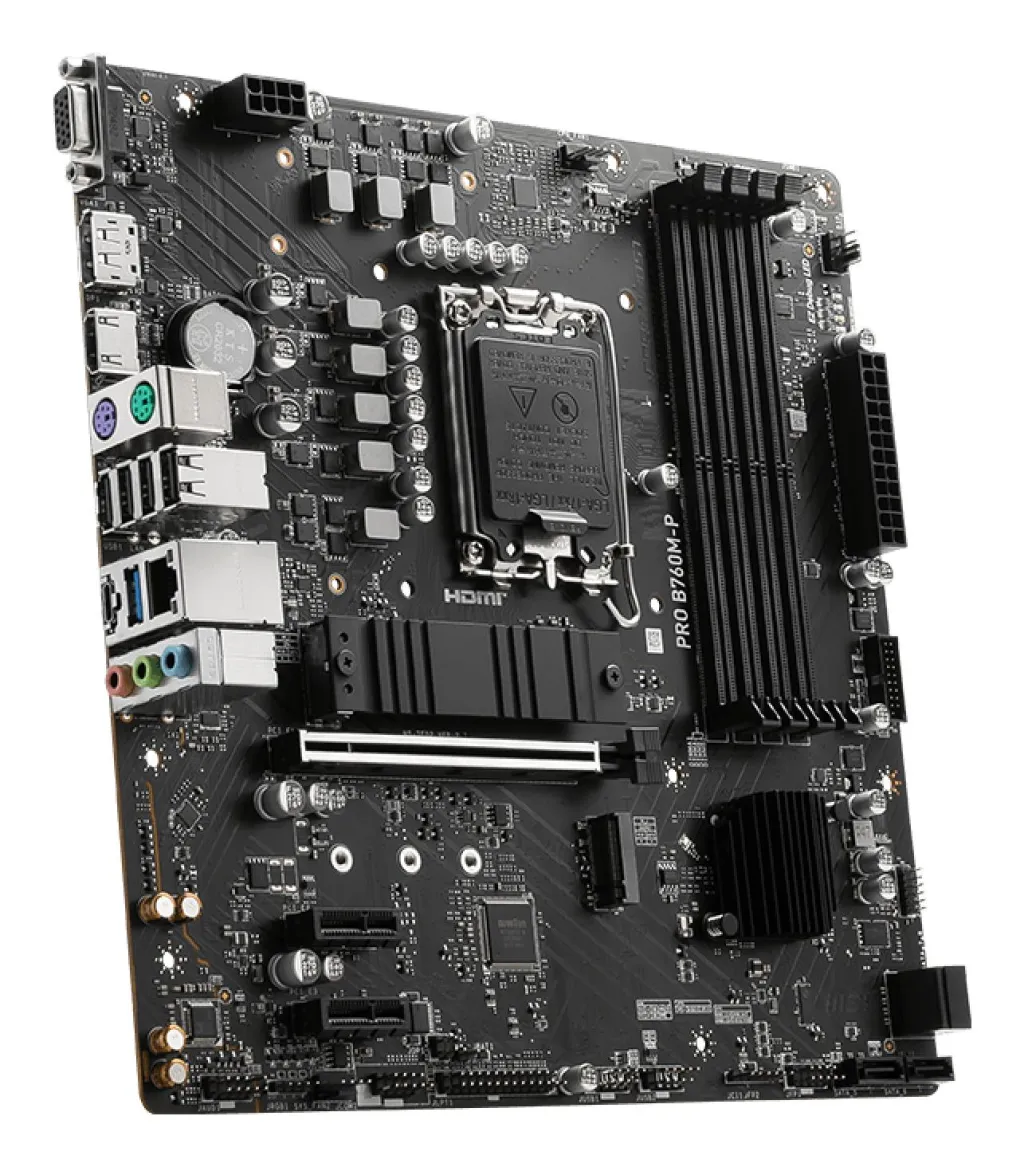

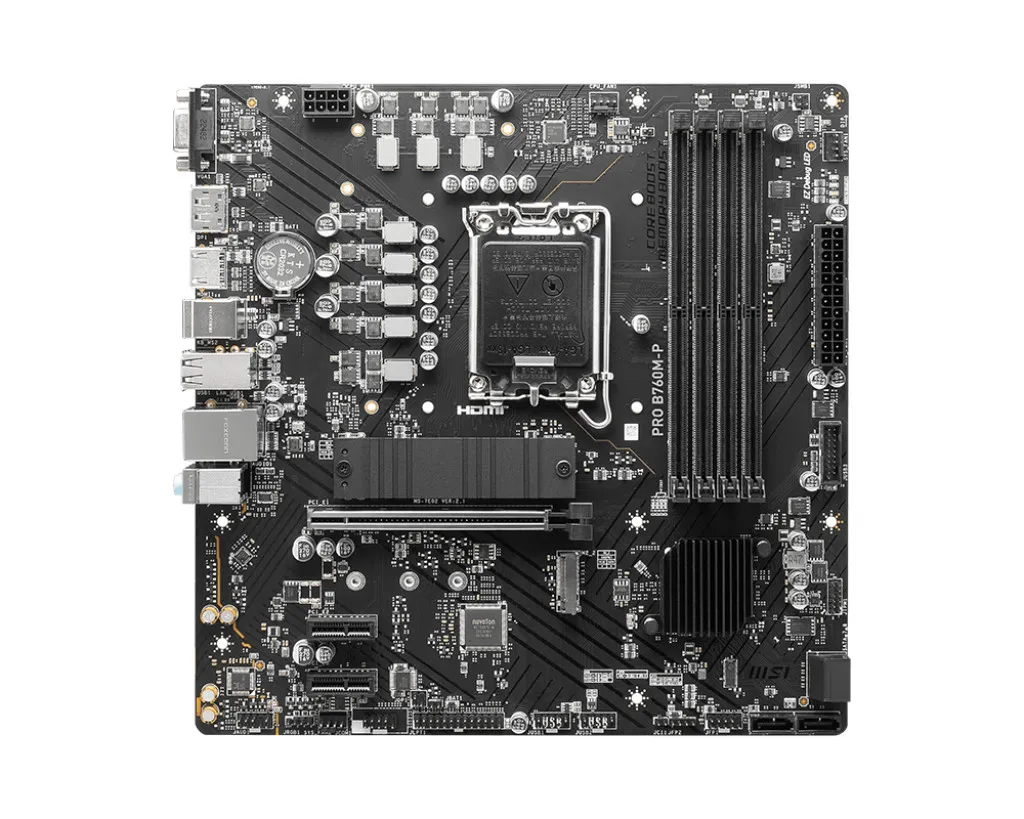

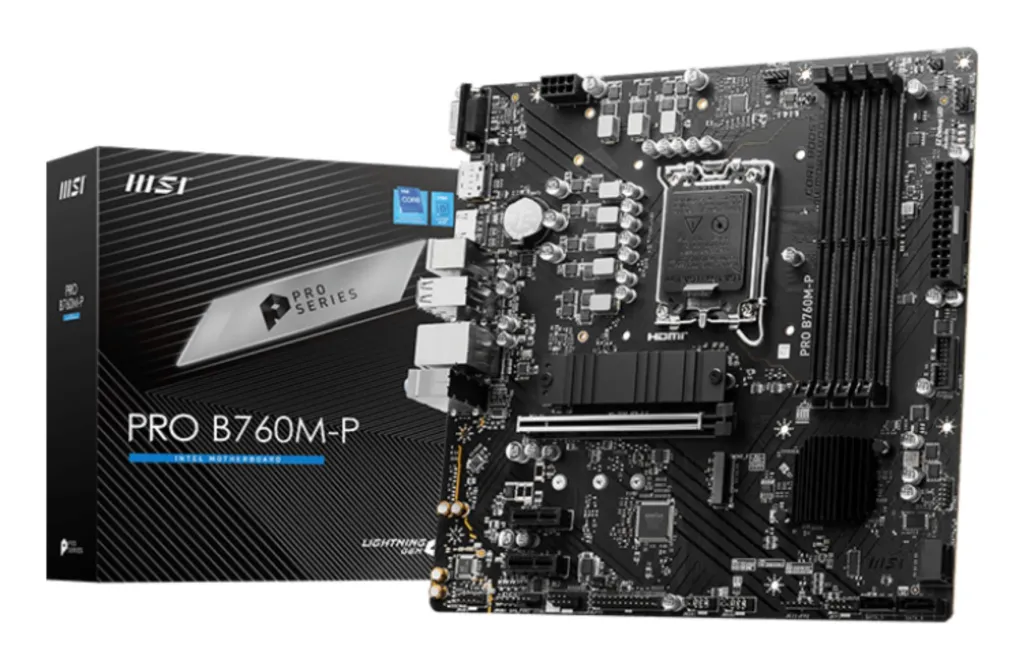

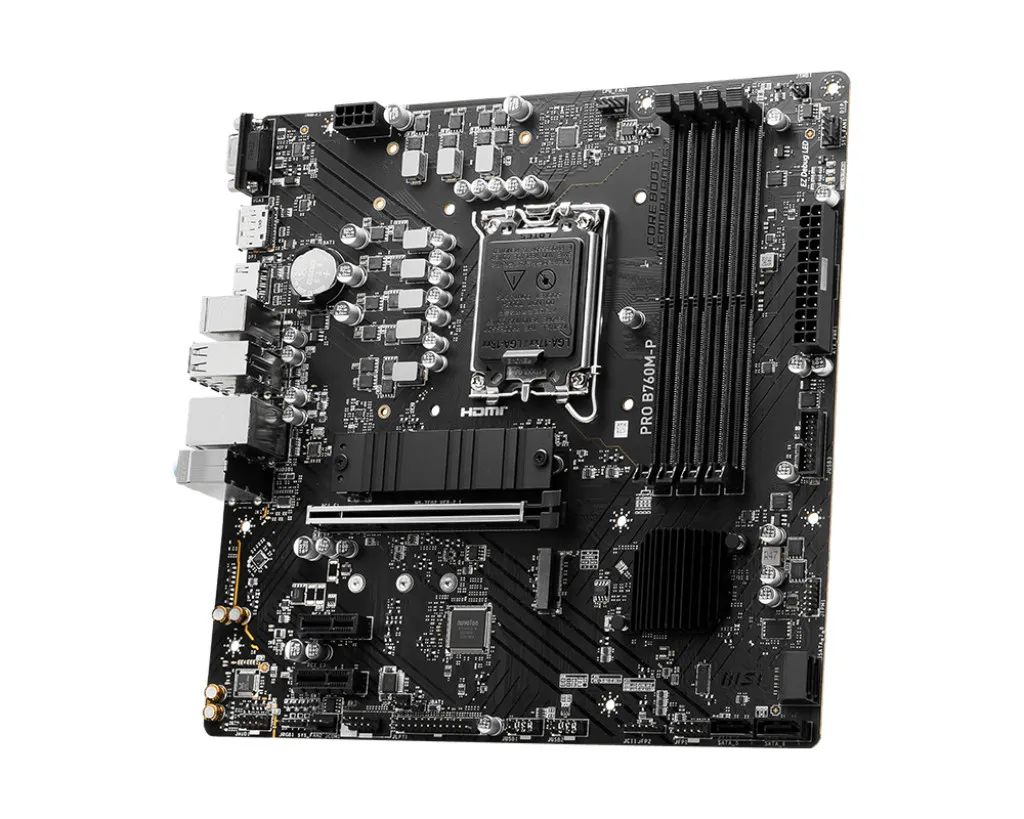

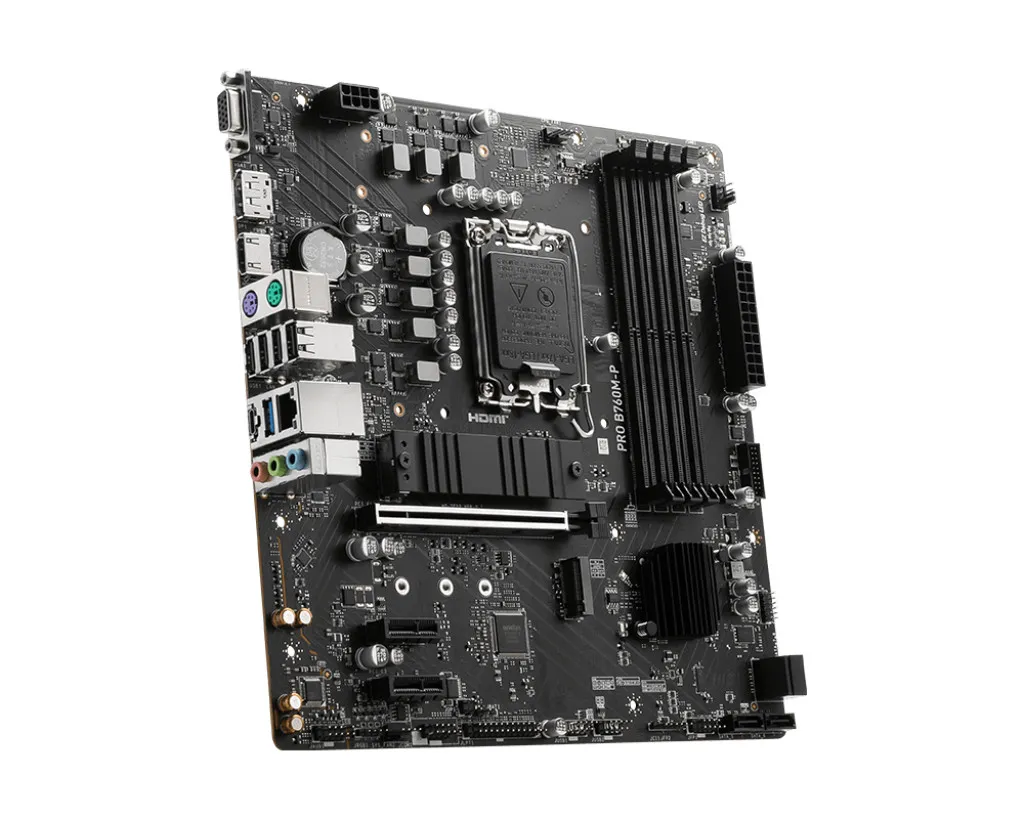

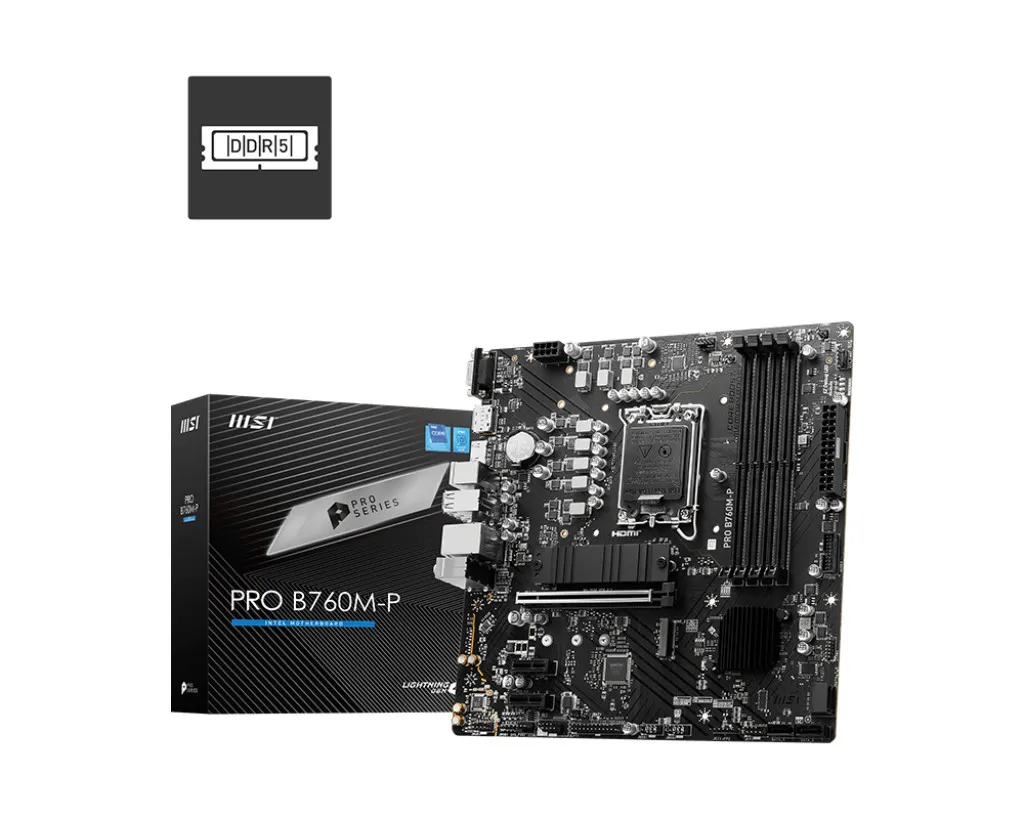

Mainboard|MSI|Intel B760 Express|LGA1700|Micro-ATX|Memory DDR5|Memory slots 4|2xPCI-Express 1x|1xPCI-Express 16x|2xM.2|1x15pin D-sub|1xHDMI|1xDisplayPort|4xUSB 2.0|1xUSB 3.2|1xUSB-C|2xPS/2|1xRJ45|3xAudio port|PROB760M-P
E1
Vajad toodet suuremas koguses või püsitellimust?
Võta ühendust meie klienditoega info[at]digipood.eu
Kuumakse al. 6.52 €. Taotle järelmaksu ostukorvis.

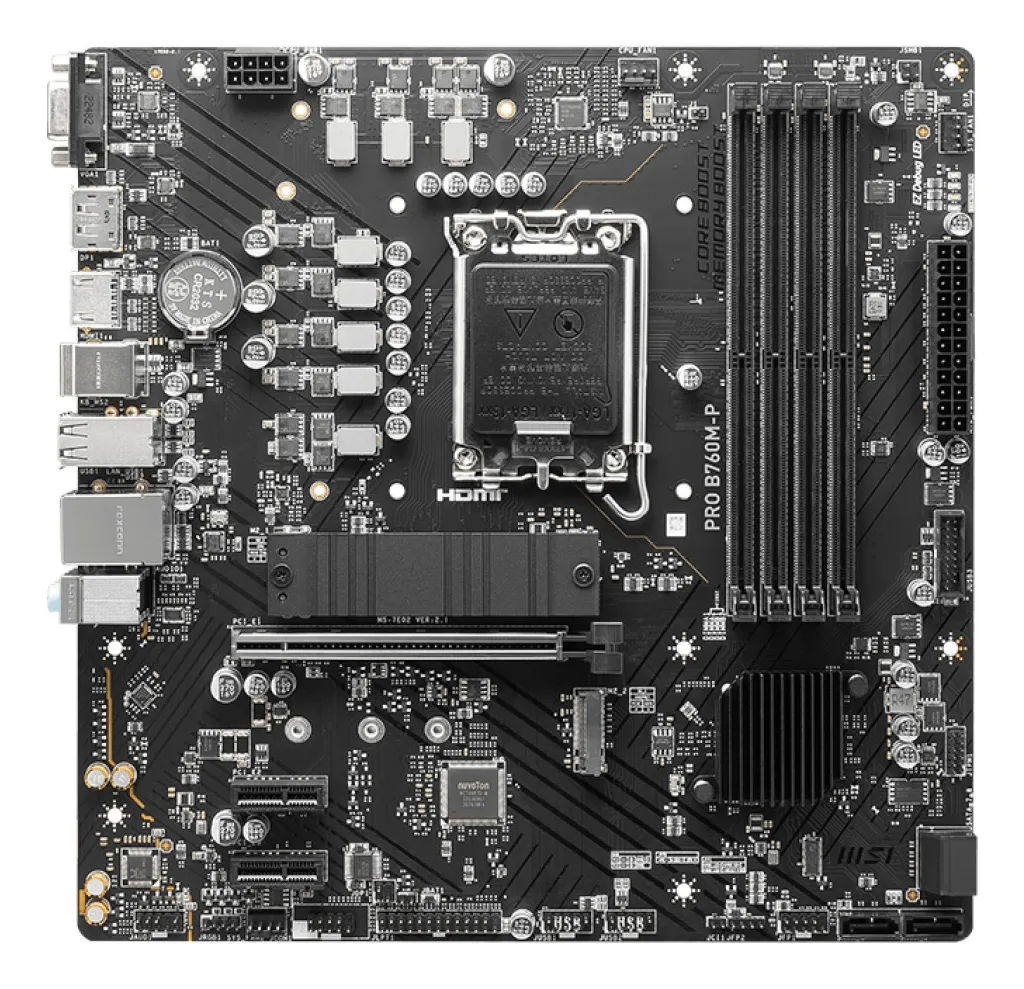

PRO B760M-P is designed with tons of flexible tools with DDR5 memory version.
BUSINESS ELEGANCE
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.
CORE BOOST
Core Boost technology combines MSI's premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.
Diy Friendly
Cooling Overview
msi PRO B760M-P cooling overview mobile
M.2 Shield Frozr
Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.
Chipset Heatsink
The chipset heatsink is designed to reduce dust and noise and also capable of maintaining high efficiency of PCH.
CORE BOOST
Core Boost technology combines MSI's premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.
LIGHTNING GEN 4 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 64GB/s.
REINFORCED, HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.
Diy Friendly
Once connected to the internet, MSI Driver Utility Installer will detect and present suitable drivers and utilities automatically, you can download and install with just a few clicks.
LATEST DDR5 MEMORY WITH SMT SLOT
A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, MSI PRO Series motherboards are ready to deliver the world class memory performance.
Bios & software
MSI brand new MSI Center unifies a suite of MSI software utilities into a single centralized application. Take control of advanced motherboards features and unleash endless possibilities.
- Supports 12th/13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
- Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC)
- Core Boost : With premium layout and digital power design to support more cores and provide better performance
- Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
- Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
- AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
- Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength
.: Disain :.
- Komponent
- PC
- Emaplaadi kujutegur
- micro ATX
- Kujutegur
- Micro-ATX
- Toiteallika tüüp
- ATX
- Laius
- 243.84 mm
- Sügavus
- 243,8 mm
- Toetatud Windowsi operatsioonisüsteemid
- Windows 10 x64, Windows 11 x64
.: Protsessor :.
- Protsessori tootja
- Intel
- Ühilduvad protsessoriseeriad
- Intel® Celeron®, Intel® Pentium® Gold
- Protsessori pesa
- LGA1700
.: Kiibistik ( Chipset ) :.
- Emaplaadi kiibistik
- Intel
- Kiibistik ( Chipset)
- Intel B760 Express
- Emaplaadi kiip
- Intel B760
.: Mälu :.
- Toetatud mälutüübid
- DDR5-SDRAM
- Sisemälu tüüp
- DDR5
- Mitte-ECC
- Jah
- Toetatud mälu taktsagedused
- 4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800 MHz
- Taktsagedus
- 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800 MHz
- Mälupesad
- 4
- Mälukaardi pesade arv
- 4
- Puhverdamata mälu
- Jah
- Maksimaalne sisemälu
- 192 GB
Graafikakaart
- Integreeritud graafikaadapter
- Depending on CPU
.: Audio :.
- Helikiip
- Realtek ALC897
- Intregeeritud helikaart
- Realtek ALC897
- Audioväljundi kanalid
- 3
.: Võrgustumine :.
- LAN-kontroller
- Realtek RTL8111H
- Ethernet LAN
- Realtek RTL8111H (Gigabit)
- Ethernet-liidese tüüp
- Gigabit Ethernet
- WiFi
- Ei
Laienduspesad
- PCI Expressi x1 pesad
- 2
- PCI Expressi x16 pesad
- 1
Kõvaketta tugi
- Kõvaketta ühenduse tüüp
- SATA III
- SATA
- Jah
- SATA III ühenduste arv
- 4
- M.2 (M) siinide arv
- 2
- RAID-tugi
- Jah
- RAID-tasemed
- 0, 1, 5, 10
- RAID
- SATA 0, 1, 5, 10
Sisemine I/O moodul
- ATX-toitepistmik (24 kontakti)
- Jah
- CPU-ventilaatori pistmik
- Jah
- USB 2.0 pistmikud
- 4
- Esipaneeli audiopistik
- Jah
- TPM-ühenduspesa
- Header
- Keresse sissetungi pistmik
- Jah
- Esipaneeli konnektor
- Jah

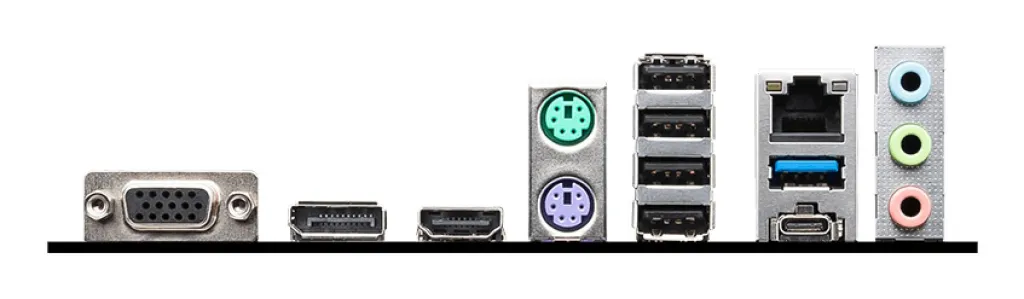

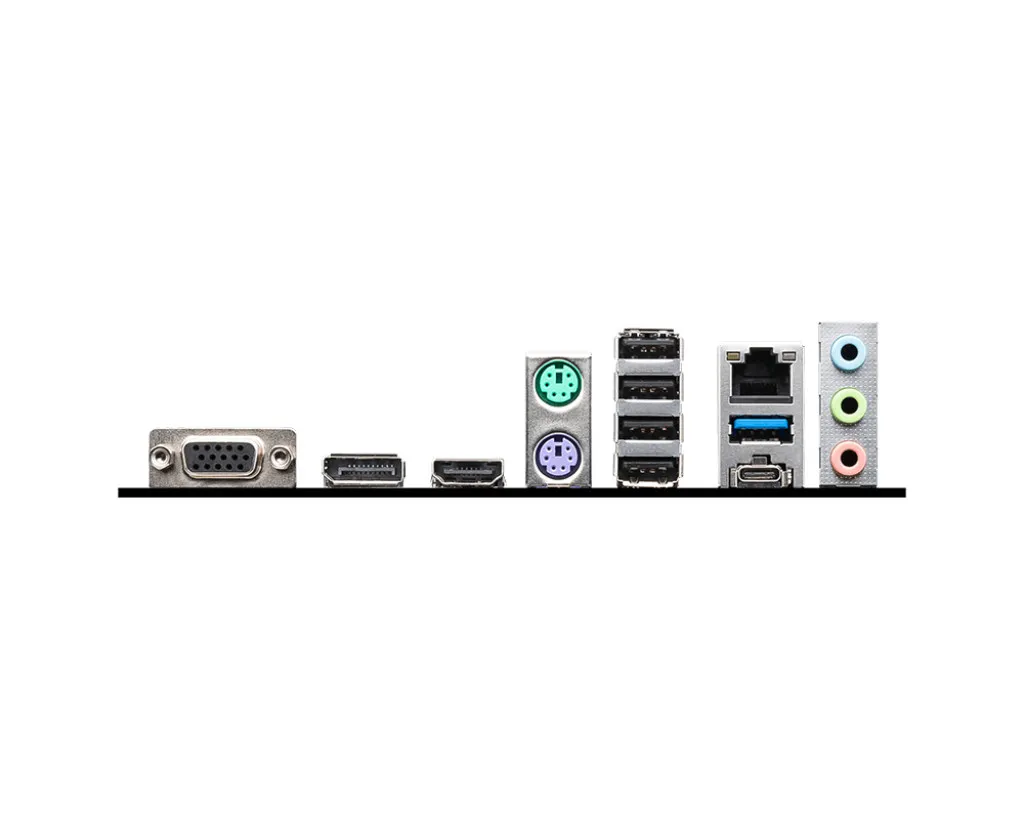

Tagapaneeli I/O pesad
- PS/2-portide kogus
- 2
- VGA (D-Sub) portide arv
- 1
- HDMI-portide arv
- 1
- Kõrvaklapiväljundite arv
- 1
- Mikrofonisisend
- Jah
- USB 2.0 portide arv
- 4
- USB 2.0
- Jah
- Ethernet LAN (RJ-45) pordid
- 1
BIOS
- BIOS-i tüüp
- UEFI AMI
- System management BIOS (SMBIOS) versioon
- 3.5
- ACPI versioon
- 6.4
- BIOS-i mälu suurus
- 256 Mbit
- Kujutisesensori (CMOS) puhastamine
- Jah
Lisad
- Kaablid kaasa arvatud
- SATA
.: Kaal ja mõõtmed :.
- Brutokaal
- 0.9 kg
- Netokaal
- 0.72 kg
.: Pakendi andmed :.
- Max kogus transpordipakendis
- 1
- Pakendi maht
- 0.00462 cubm
Muud n?itajad
- Compatible processor series
- Intel® Celeron®/Intel® Pentium® Gold
- Supported processor sockets
- LGA 1700
- BIOS type
- UEFI AMI
- ATX Power connector (24-pin)
- Jah
- Motherboard chipset family
- Intel
- Number of COM connectors
- 1
- Chassis intrusion connector
- Jah
- Supported memory types
- DDR5-SDRAM
- Front panel audio connector
- Jah
- CPU fan connector
- Jah
- Number of SATA III connectors
- 4
- Clear CMOS jumper
- Jah
- ACPI version
- 6.4
- Line-in
- Jah
- Number of storage drives supported
- 6
- Supported storage drive types
- HDD & SSD
- Supported storage drive interfaces
- SATA III
- Processor manufacturer
- Intel
- System management BIOS (SMBIOS) version
- 3.5
- RGB LED pin header
- Jah
- DisplayPort arv
- 1
- DisplayPort versioon
- 1.4
- RGB LED pin ots
- Jah
- USB 3.2
- Jah
- USB 3.2 Gen 1 (3.1 Gen 1) A-tüüpi portide hulk
- 1
- USB 3.2 Gen 2 (3.1 Gen 2) C-tüüpi portide hulk
- 1
- USB 3.2 Gen 1 (3.1 Gen 1) pistmikud
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) C-tüüpi portide hulk
- 0
- USB 3.2 Gen 2 (3.1 Gen 2) konnektorid
- 0
- PCI Express x16 (Gen 4.x) slots
- 1
- PCI Express x16 (Gen 4.x) pilud
- 1
- Unit Box Height
- 0.056
- Unit Box Length
- 0.3
- Unit Box Width
- 0.275
- CnCode
- 84733020
- PCI Express x1 (Gen 4.x) pesad
- 2
- ECC сompatibility
- Non-ECC
- ECC ühilduvus
- Mitte-ECC
- Unit Calculated Volume
- 0.005452 cubm
- Product Net Weight
- 0.72 kg
- Unit Calculated Weight
- 1 kg
- Summary
- MSI PRO B760M-P. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, ECC сompatibility: Non-ECC. Supported storage drive interfaces: SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 1
- Audio chip
- Realtek ALC897
- Number of HDDs supported
- 4
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 2
- Front panel connector
- Jah
- PCI Express x1 (Gen 4.x) slots
- 2
- DisplayPort versioon
- 1.4
- Kogus transpordikasti kohta
- 10
- USB 3.2 Gen 2 (3.1 Gen 2) A-tüüpi portide hulk
- 0
- Component for
- PC
- COM-pistmike arv
- 1
- Paralleelpistmik
- Jah
- Toetatud kõvaketaste arv
- 4
- Toetatud ketaste tüübid
- HDD & SSD
- Toetatud ketaste arv
- 6
- Tootja koduleht
- https://www.msi.com/Motherboard/PRO-B760M-P/Specification
- Transpordipakendi kaal
- 0.9 kg
- Transpordipakendi kõrgus
- 5.6 cm
- Transpordipakendi laius
- 27.5 cm
- Transpordipakendi sügavus
- 30 cm
- HDMI-versioon
- 1.4
- DisplayPorts quantity
- 1
- Sisendkanal
- Jah
- Ethernet interface type
- Gigabit Ethernet
- Ethernet LAN (RJ-45) ports
- 1
- HDMI versioon
- 1.4
- Headphone outputs
- 1
- Microphone in
- Jah
- Motherboard chipset
- Intel B760
- RAID support
- Jah
- Toetatud protsessoripesad
- LGA 1700
- Unbuffered memory
- Jah
- VGA (D-Sub) ports quantity
- 1
- Windows operating systems supported
- Windows 10 x64/Windows 11 x64
- BIOS memory size
- 256 Mbit
- DisplayPort
- 1
- LAN controller
- Realtek RTL8111H
- Mudel
- PRO B760M-P
- Number of memory slots
- 4
- Parallel connector
- Jah
- Processor Socket
- LGA 1700
- Raid Levels
- 0/1/10/5
- Supported memory clock speeds
- 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800 MHz
- USB 2.0 connectors
- 4
- USB-C
- 1
