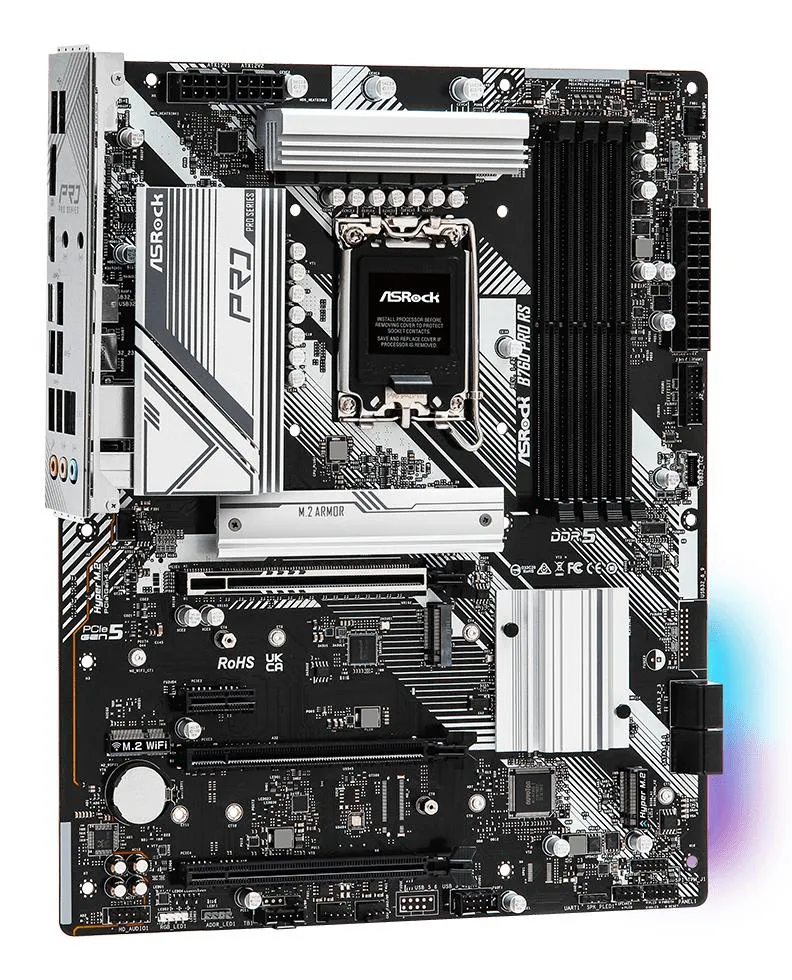

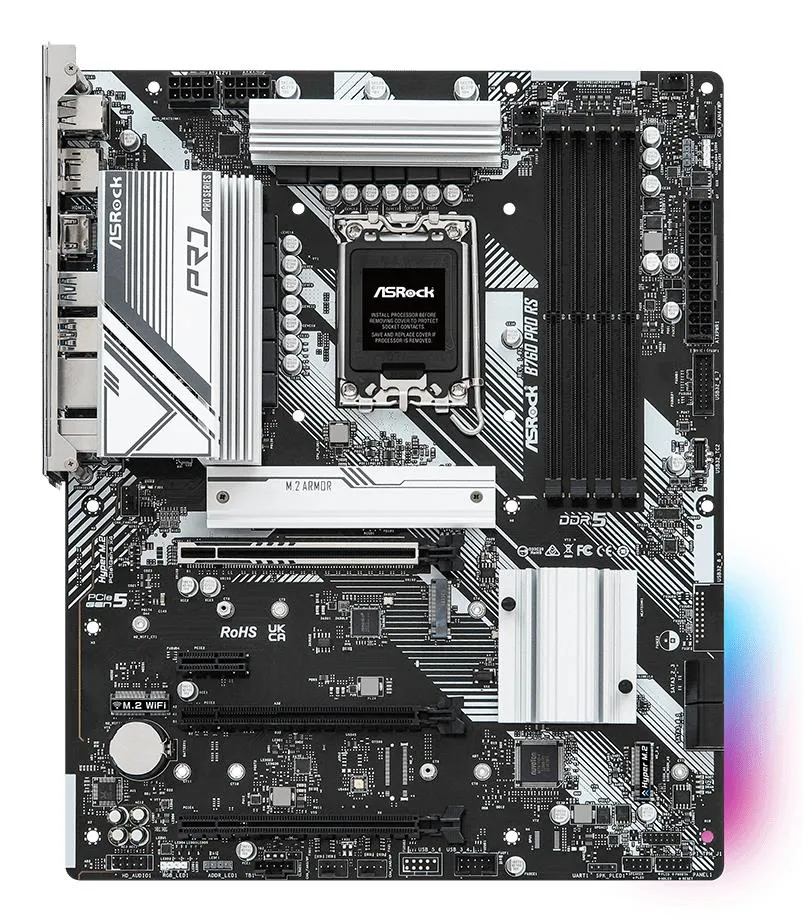

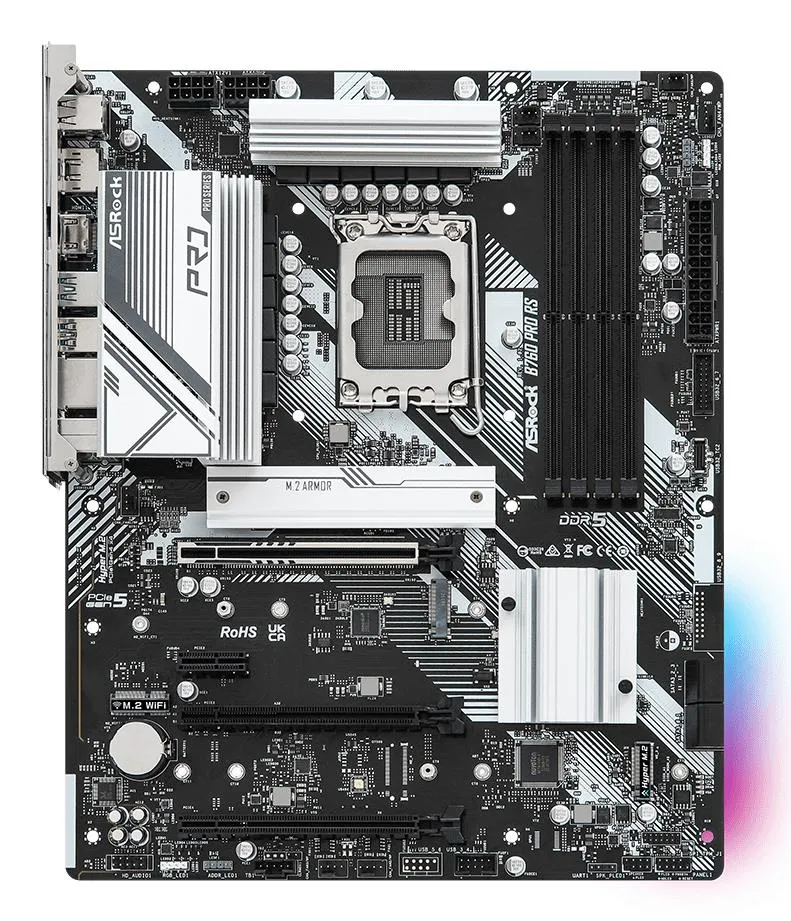

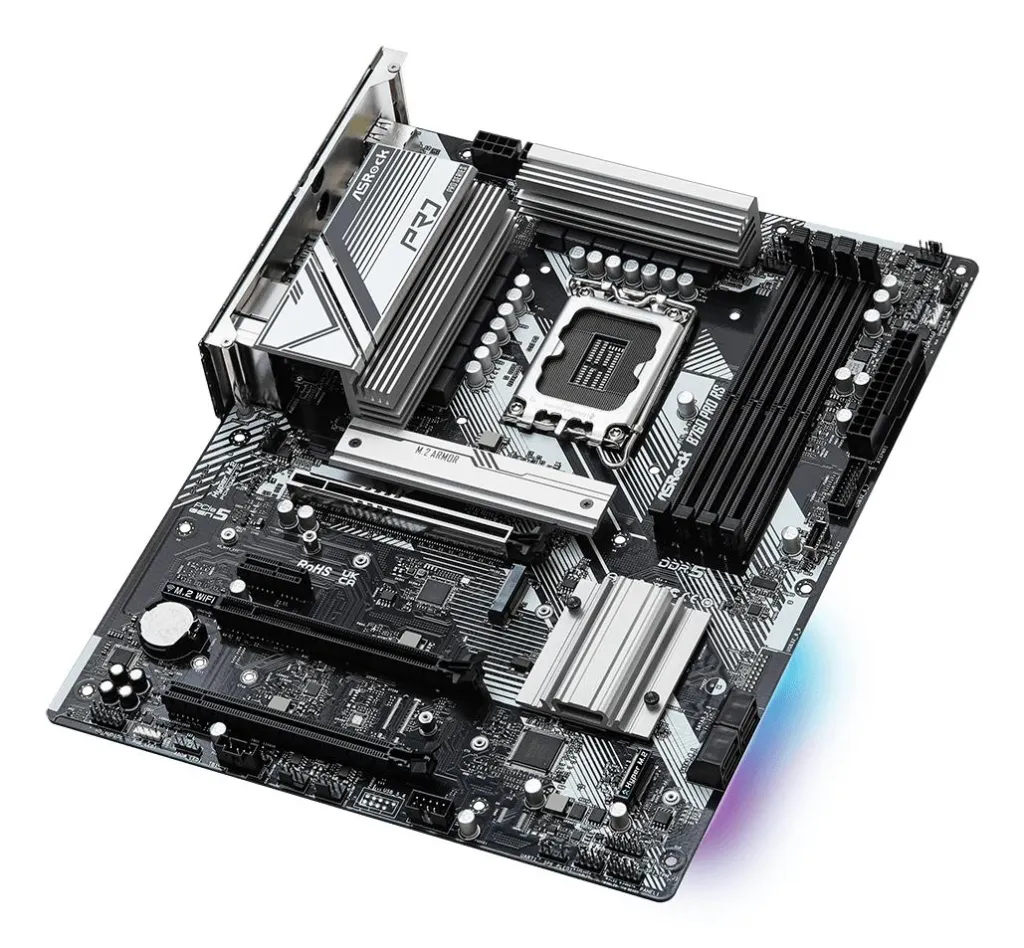

Modern and futuristic, with the attractive specifications and perfect balance, the Race Sport (RS) Edition is the evolution of the most popular PRO series motherboard.
Its unique path takes aim at mainstream DIYers that drives an undeniable performance and trustable computing experience without a pricey upgrade.
RaceSport edition, your all-rounder motherboard that fulfills every task and light-loading gaming – with style and speed!
Optimized VRM Design
Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.
Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.
The 6 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus, it's able to support the latest memory modules with most extreme memory performance!
DDR5 XMP & EXPO Support
Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. This motherboards is built with low-loss materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel® XMP/AMD EXPO™ capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.
DDR5 Memory with Protection Circuit
Due to the unique electrical architecture of DDR5 DIMM, there’s a high risk of damaging the memory module if AC power isn’t disconnected properly during removal or installation. To prevent this, ASRock has implemented a trouble free protection circuit on every DDR5 motherboard, lowers the risk of damaging your memory module.
PCIe 5.0 + Surface-Mount Tech
Compares to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximize stability under high speed, a key breakthrough to fully support the lighting speed of the latest PCIe 5.0 standard.
The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high end graphic cards.
Reinforced Steel Slot
[PCIe 5.0 Version]
The reinforced steel slot is capable of supporting PCI Express 5.0 standard. The various benefits include:
✔ Extra anchor points
✔ Stronger latch
✔ Ensure signal stability
✔ Make sure heavy graphics cards to be well-installed.
Nahimic Audio
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.
The Powerful algorithms to ensure the best noise-free conversation, giving a constant vocal level no matter the distance from your mic. The Nahimic audio engine dynamically clear the sound and remove interference noise and lower the voice variation. Result is a better comprehension and less fatigue.
●Static Noise Suppression
●Echo Cancellation
●Lateral Sound Cancellation
●Voice Stabilizer
●Sound Tracker
The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.
●Works on any devices!
Enjoy the vibrant and high-quality Surround Sound on all your favorite audio devices: Jack, USB, Bluetooth, HDMI, S/PDIF. Nahimic is compatible with all of your favorite audio tools and ensures the best sound with any of them. Nahimic measure and improve to optimize our technology and offer you the best experience.
POLYCHROME RGB
In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
High Speed M.2 Solution(PCIe Gen4 x4)
Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.
Dragon 2.5 Gb/s LAN
The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.

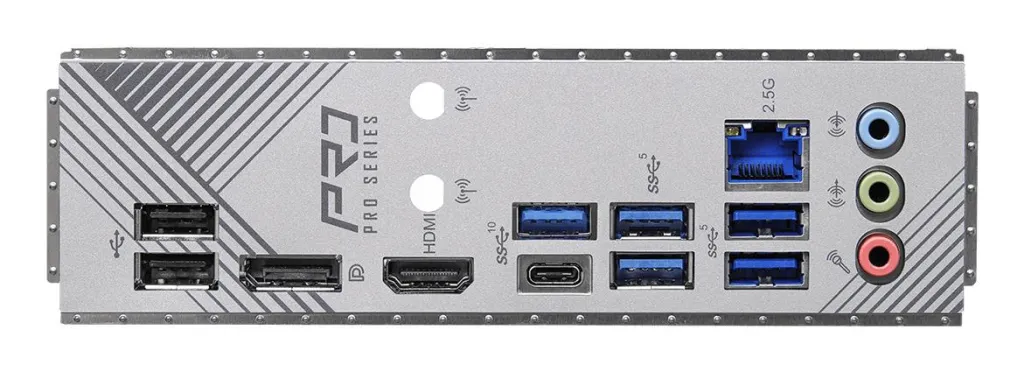

Dual USB 3.2 Gen2 (Type-A + Type-C)
This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen2 ports built on the rear i/o for supporting next generation USB 3.2 Gen2 devices and to deliver up to 10 Gbps data transfer rates.
Front USB 3.2 Gen2 Type-C
Front USB 3.2 Gen2 Type-C header delivers up to 10 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.
Built in eDP Signal Connector
Supports ASRock 13.3” Side Panel kit
An eDP signal connector is built with ASRock selected motherboards and supports two functions simultaneously - power and transmission of digital display signal. The connector reserves the room for upgrading with ASRock’s exclusive 13.3” Side Panel Kit.. The ideal 13.3" Side Panel size will be perfectly matched standard form factor chassis and users can easily build a LCD display inside the PC, adding a sub-screen for monitoring PC status, or watching videos, doing streaming or working personalized tasks. This whole new concept of customization enables new possibilities for personalizing designs - doubles productivity or entertainment.
EZ Setting
Optical drive or driver DVD is no longer needed! ASRock motherboard already has its Ethernet driver prepacked in BIOS ROM, once finish installing the operation system, simply follow the instructions and allow ADI to download and install all necessary drivers automatically!
Step1: Install Auto Driver Installer
Step2: ADI will automatically download and install all necessary drivers.
Step3: Done!
ASRock strives offer only the cutting edge technology with the most user-friendly design. The pre-installed IO Shield design makes motherboard to be well-installed in the chassis precisely for preventing any interferences and speed up the set-up process.
| Tootja | ASROCK |
| Tootekood | B760PRORS |
| EAN | 4710483942044 |
| Google link | lisainfo |
| Garantiiaeg | 36 kuud |
| .: Disain :. | |
| Emaplaadi kujutegur | ATX |
| Kujutegur | ATX |
| Laius | 305 mm |
| Sügavus | 244 mm |
| .: Protsessor :. | |
| Protsessori pesa | LGA1700 |
| .: Kiibistik ( Chipset ) :. | |
| Kiibistik ( Chipset) | Intel B760 Express |
| .: Mälu :. | |
| Sisemälu tüüp | DDR5 |
| Taktsagedus | 4800/5600/6000/7200 MHz |
| Mälupesad | 4 |
| Maksimaalne sisemälu | 128 GB |
| Graafikakaart | |
| Integreeritud graafikaadapter | Depending on CPU |
| .: Audio :. | |
| Intregeeritud helikaart | Realtek ALC897 |
| Audioväljundi kanalid | 3 |
| .: Võrgustumine :. | |
| Ethernet LAN | 2.5 Gigabit |
| WiFi | Ei |
| Laienduspesad | |
| PCI Expressi x1 (Gen 3.x) pesad | 1 |
| PCI Expressi x16 (Gen 3.x) pesad | 1 |
| Kõvaketta tugi | |
| SATA | Jah |
| M.2 (M) siinide arv | 3 |
| RAID | SATA 0, 1, 5, 10 |
| Sisemine I/O moodul | |
| TPM-ühenduspesa | Header |
| Tagapaneeli I/O pesad | |
| HDMI-portide arv | 1 |
| USB 2.0 portide arv | 4 |
| USB 2.0 | Jah |
| Ethernet LAN (RJ-45) pordid | 1 |
| .: Kaal ja mõõtmed :. | |
| Brutokaal | 1.58 kg |
| Netokaal | 1.2 kg |
| .: Pakendi andmed :. | |
| Max kogus transpordipakendis | 1 |
| Pakendi maht | 0.008235 cubm |
| Muud näitajad | |
| DisplayPort version | 1.4 |
| Number of displays supported | 1 |
| Compatible processor series | Intel® Core™ i3/Intel® Core™ i5/Intel® Core™ i7/Intel® Core™ i9 |
| Supported processor sockets | LGA 1700 |
| BIOS type | UEFI AMI |
| ATX Power connector (24-pin) | Jah |
| Memory slots type | DIMM |
| Motherboard chipset family | Intel |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Front panel audio connector | Jah |
| S/PDIF out connector | Jah |
| CPU fan connector | Jah |
| Number of SATA III connectors | 4 |
| Line-in | Jah |
| Supported storage drive types | SSD |
| Discrete graphics support | Jah |
| Thunderbolt headers | 1 |
| Power fan connector | Jah |
| WiFi-AP antenna jack | 2 |
| Supported storage drive interfaces | M.2,PCI Express 4.0,SATA III |
| Processor manufacturer | Intel |
| RGB LED pin header | Jah |
| USB 3.2 | Jah |
| PCI-Express 4.0 16x | 1 |
| Sustainability certificates | ErP |
| PCI-Express 5.0 16x | 1 |
| Supported memory clock speed (max) | 7200 MHz |
| Unit Box Height | 0.075 |
| Unit Box Length | 0.36 |
| Unit Box Width | 0.305 |
| CnCode | 84733020 |
| Compliance certificates | CE/Federal Communications Commission (FCC) |
| ECC сompatibility | Non-ECC |
| Units per Shipping Box | 5 |
| Unit Calculated Volume | 0.009402 cubm |
| Product Net Weight | 1.2 kg |
| Unit Calculated Weight | 1.84 kg |
| Summary | Asrock B760 PRO RS. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III, Supported storage drive types: SSD, RAID levels: 0, 1, 5, 10. Graphics card family: Intel, On-board graphics card model: Intel Iris Xe Graphics. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125-BG |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| On-board graphics card | Jah |
| On-board graphics card model | Intel Iris Xe Graphics |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| Audio chip | Realtek ALC897 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| Graphics card family | Intel |
| Number of HDDs supported | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 6 |
| 12V power connector | Jah |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 3 |
| Audio connector | Jah |
| Front panel connector | Jah |
| Rack-Friendly board | Jah |
| Component for | PC |
| HDCP | Jah |
| Tootja koduleht | https://www.asrock.com/mb/Intel/B760%20Pro%20RS/#Specification |
| Transpordipakendi kaal | 1.58 kg |
| Transpordipakendi kõrgus | 7.5 cm |
| Transpordipakendi laius | 30.5 cm |
| Transpordipakendi sügavus | 36 cm |
| Tarvikud kaasa arvatud | - 1 x User Manual - 2 x SATA Data Cables - 4 x Screws for M.2 Sockets - 1 x Standoff for M.2 Socket |
| DisplayPorts quantity | 1 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN (RJ-45) ports | 1 |
| Microphone in | Jah |
| Motherboard chipset | Intel B760 |
| Power source type | ATX |
| RAID support | Jah |
| Windows operating systems supported | Windows 10 x64/Windows 11 x64 |
| BIOS memory size | 128 Mbit |
| DisplayPort | 1 |
| LAN controller | Realtek RTL8125-BG |
| Mudel | B760 Pro RS |
| Number of memory slots | 4 |
| Processor Socket | LGA 1700 |
| Raid Levels | 0/1/10/5 |
| Supported memory clock speeds | 3600/4000/4400/4800/5600/6000/7200 MHz |
| USB 2.0 connectors | 4 |
| USB-C | 1 |
