Superior Wi-Fi Coverage for Outdoor Environments
Excellent Hardware Designs
With the special design of its antenna, appearance, power options and installation methods, EAP113-Outdoor can perfectly fit for different scenarios both indoors and outdoors.
Detachable Antennas

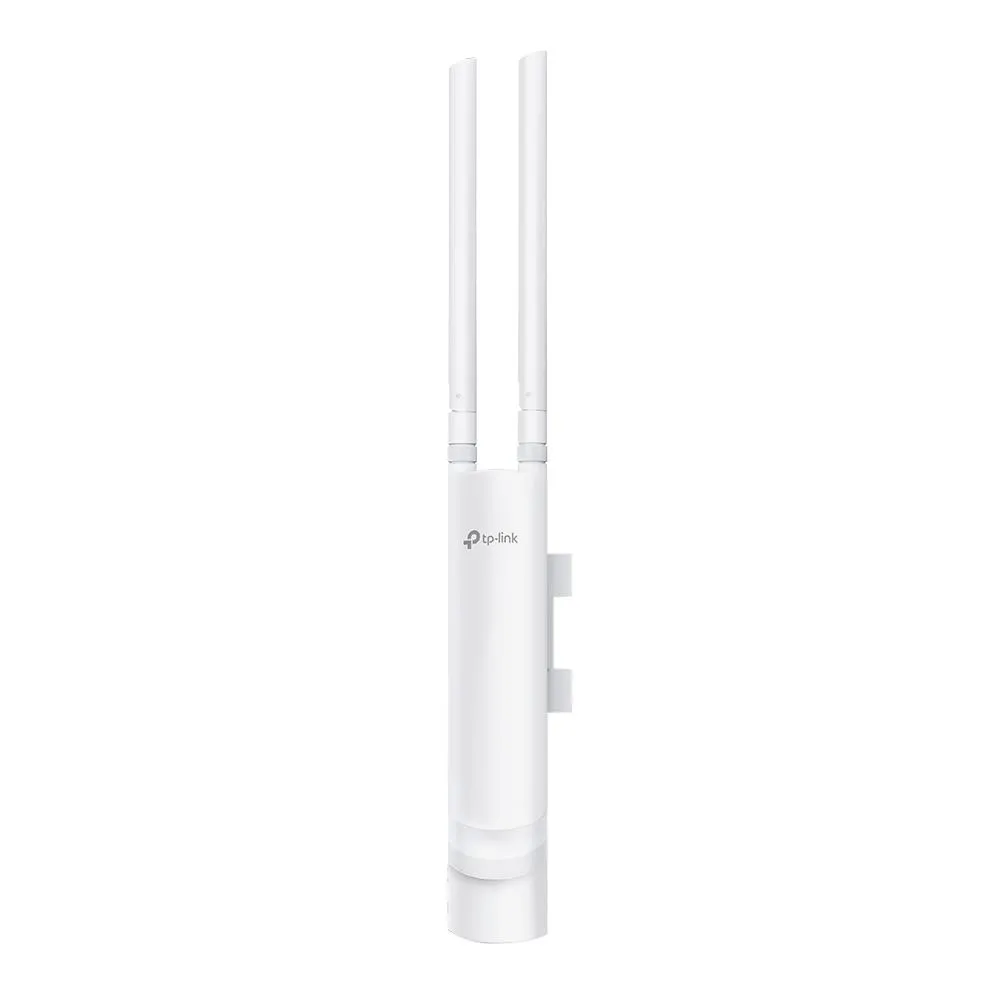

EAP113-Outdoor is designed with 2 Omni-directional detachable antennas, which means other antennas can also be attached for your specific demands.
Delicate Appearance Even Better for Indoor Applications

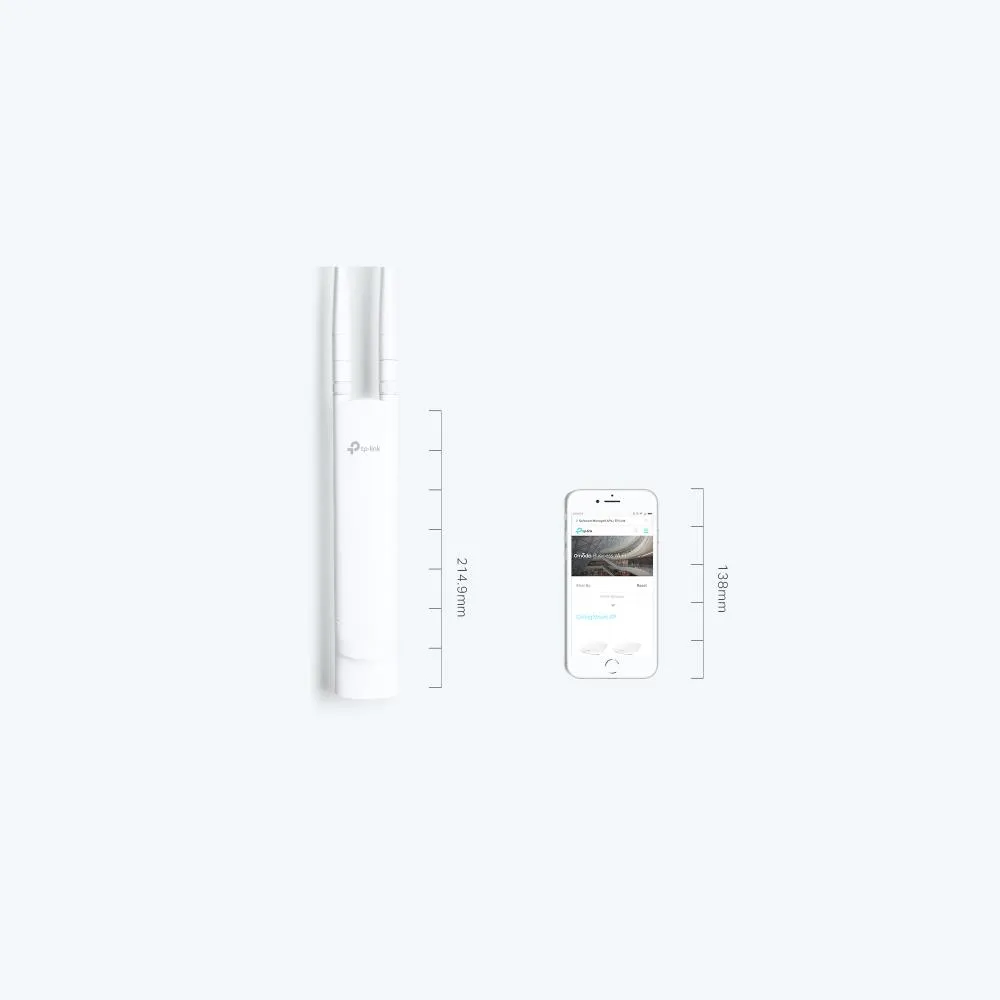

EAP113-Outdoor is just similar to a cellphone, with dimension: 8.5 × 1.8 × 1.5 in (214.9 × 46 × 37.7 mm)
Supports Passive PoE for Easy Outdoor Set up
EAP113-Outdoor supports both 802.3af PoE and 48V Passive PoE power supply, can be either powered by a PoE switch or a PoE adapter.
Flexible Deployment

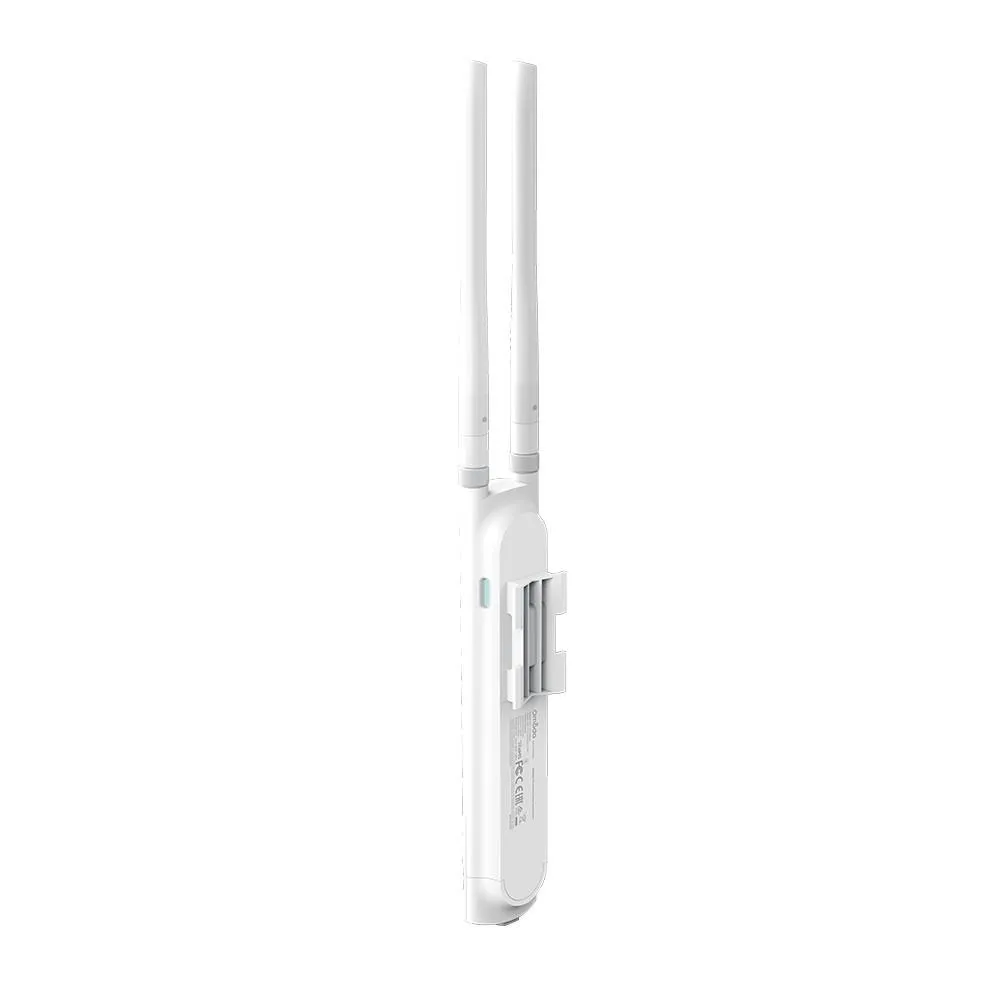

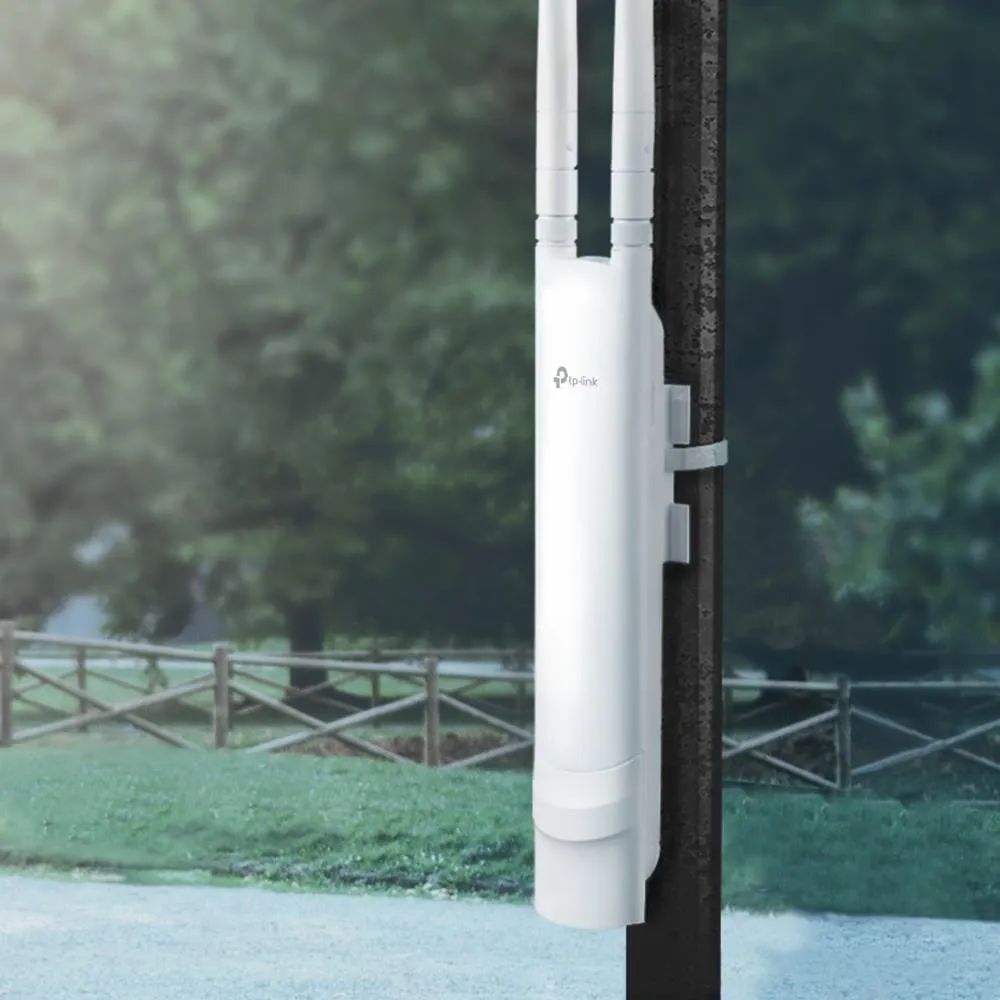

EAP113-Outdoor can be easily installed to a pole or on a wall with the mounting kits provided.

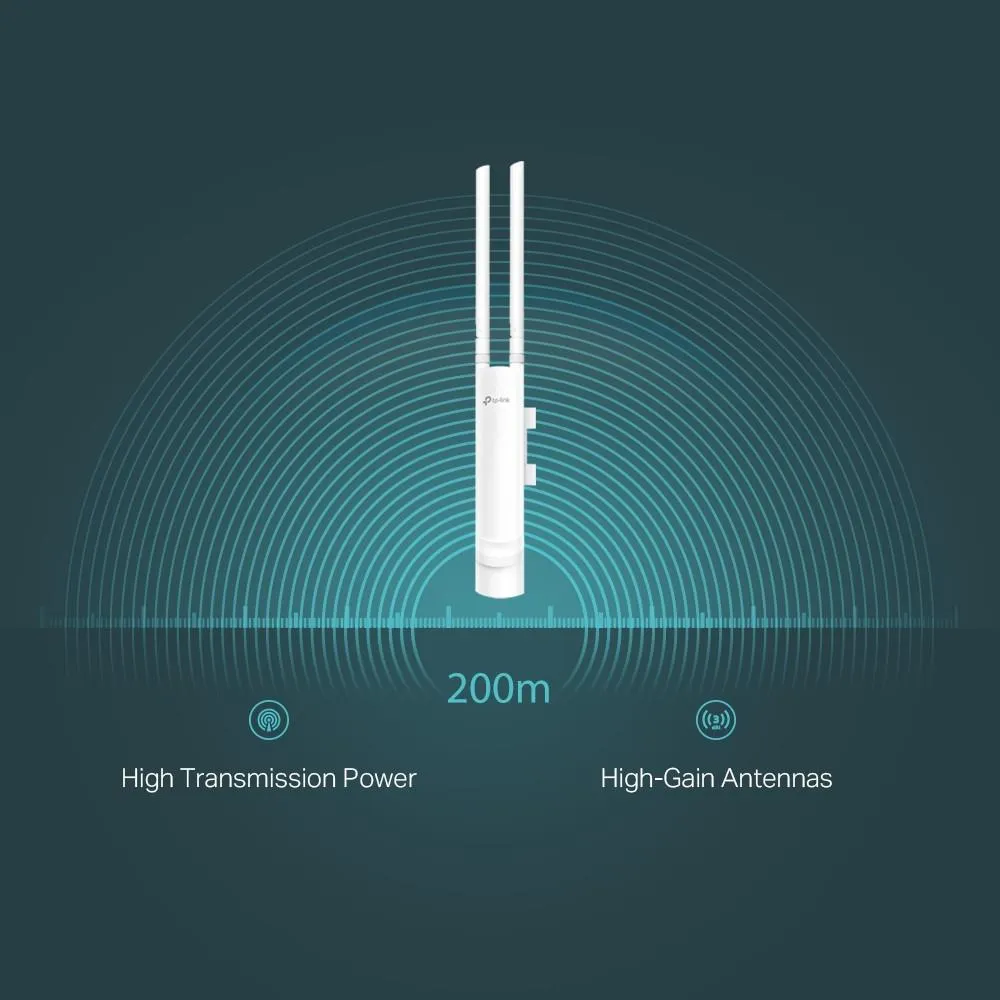

Wi-Fi That Goes the Distance
With high transmission power and two high-gain omnidirectional antennas,
EAP113-Outdoor provides stable wireless coverage at a range of up to 200 meters* in outdoor settings.
Specially Designed Weatherproof Enclosure for Outdoor Environment
Rated as IP65 during Ingress Protection testing, a resilient weatherproof enclosure protects the access points against the harsh outdoor condition.
Seamless Integrated into Omada SDN Platform
The Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches, and routers to provide 100% centralized cloud management and create a highly scalable network—all controlled from a single interface.
Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.
Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.
Protection against lightning and electro-static discharge may be achieved through proper product setup, grounding and cable shielding. Refer to the instruction manual and consult an IT professional to assist with setting up this product.
Captive Portal and Cloud Access require the use of Omada SDN controllers.
The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.
| Tootja | TP-LINK |
| Tootekood | EAP113-OUTDOOR |
| EAN | 4895252503494 |
| Google link | lisainfo |
| Garantiiaeg | 36 kuud |
| .: Üldised andmed :. | |
| Seadme tüüp | Wireless Access Point |
| Tootja koduleht | www.tp-link.com |
| .: Üldised omadused :. | |
| Juhtmevaba isolatsioon | Jah |
| 2,4 GHz | Jah |
| 5 GHz | Ei |
| Logiserver | Jah |
| Rahvusvahelise kaitse (IP) kood | IP65 |
| Turvaalgoritmid | 64-bit WEP, 128-bit WEP, 152-bit WEP, HTTPS, SNMP, SNMPv2, SSH, WPA, WPA-PSK, WPA2-Enterprise, WPA2-PSK |
| Wi-Fi multimeedia (WMM)/(WME) | Jah |
| .: Disain :. | |
| Transmitting power (CE) | 20 dBm |
| Saatja võimsus (CE) | 20 dbm |
| Transmitting power (FCC) | 22 dBm |
| Saatja võimsus (FCC) | 22 dbm |
| Paigutus | Post, Sein |
| Toote värv | Valge |
| .: Võrgustumine :. | |
| Virtuaalse LANi elemendid | VLAN mapping |
| Kiiruse piiramine | Jah |
| Võrgustandardid | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| .: Pesad & liidesed :. | |
| Andmete edastamise maksimaalne määr | 300 Mbit/s |
| Ethernet LAN (RJ-45) pordid | 1 |
| USB 2.0 portide arv | 0 |
| Võimsus ja energiatarve | |
| DC-pingevahemik | 48 V |
| Power over Ethernet (PoE) | Jah |
| Võimsustarve (tüüpiline) | 4.11 W |
| Turvalisus | |
| Service Set Identifier (SSID) features | Multiple SSIDs |
| Service Set Identifier (SSID) elemendid | Multiple SSIDs |
| Pääsuloend (ACL) | Jah |
| MAC-aadresside filtreerimine | Jah |
| SSID-tugede arv | 8 |
| Antenn | |
| Antenna features | Detachable antenna |
| Antenna direction type | Omni-directional |
| Antenni elemendid | Eemaldatav antenn |
| Antenni suuna tüüp | Mitmesuunaline |
| Antennivõimenduse tase (maksimaalne) | 3 dBi |
| Antenni tüüp | Väline |
| Antennide arv | 2 |
| Antenni tüüp | External |
| Antennide arv | 3 |
| Juhtmevaba LAN-i omadused | |
| IEEE 802.11b | Jah |
| IEEE 802.11g | Jah |
| IEEE 802.11n | Jah |
| Wi-Fi laineala | 2.4 GHz |
| WiFi andmeedastuskiirused | 300 Mbps |
| .: Tehnilised andmed :. | |
| Sustainability compliance | Jah |
| Jätkusuutlikkuse sertifikaadid | CE, Föderaalne kommunikatsioonikomisjon (FCC), RoHS |
| Jätkusuutlikkuse järgimine | Jah |
| Compliance certificates | CE/Federal Communications Commission (FCC)/RoHS |
| Vastavussertifikaadid | CE, Föderaalne kommunikatsioonikomisjon (FCC), RoHS |
| Juhtimisfunktsioonid | |
| Teenusekvaliteedi (QoS) tugi | Jah |
| Ergonoomika | |
| Lähtestusnupp | Jah |
| Funktsioonid | |
| Virtual LAN features | VLAN mapping |
| 6 GHz | Ei |
| Wi-Fi multimeedia (WMM)/(WME) | Jah |
| Mudeli originaalnimi | EAP113-OUTDOOR |
| Internet elektrivõrgu kaudu (PoE) | |
| Power over Ethernet (PoE) type supported | Passive PoE |
| Toide üle võrgu (PoE) toetatud tüüp | Passive PoE |
| Power over Ethernet tugi | Jah |
| Töötingimused | |
| Suhteline õhuniiskus (H-H) hoiustamisel | 5 - 90 protsenti |
| Hoiustamistemperatuur (T-T) | -40 - 70 °C |
| Kasutamistemperatuur (T-T) | -30 - 65 °C |
| Suhteline õhuniiskus kasutamisel (H-H) | 10 - 90 protsenti |
| .: Kaal ja mõõtmed :. | |
| Laius | 214,9 mm |
| Netokaal | 0.4 kg |
| Brutokaal | 0.5 kg |
| Laius | 214.9 mm |
| Sügavus | 46 mm |
| Kõrgus | 37.7 mm |
| Mõõtmed (l x s x k) | 214.9 × 46 × 37.7 mm |
| Sügavus | 46 mm |
| Kõrgus | 37,7 mm |
| .: Pakendi sisu :. | |
| Kogus pakis | 1 tk |
| Kaasnevate toodete arv | 1 tk |
| Kaasas antenn | Jah |
| Paigalduskomplekt | Jah |
| Tarvikud kaasa arvatud | • Mounting Kits • Waterproof Rubber Insert • Waterproof Antennas • Installation Guide |
| .: Pakendi andmed :. | |
| Max kogus transpordipakendis | 20 |
| Pakendi maht | 0.004557 cubm |
| Transpordipakendi kaal | 10 kg |
| Transpordipakendi kõrgus | 31 cm |
| Transpordipakendi laius | 52.5 cm |
| Transpordipakendi sügavus | 56 cm |
| ◁ SERTIFIKAADID ▷ | |
| Sertifikaat | CE, FCC, RoHS |
| Muud andmed | |
| Security algorithms | 128-bit WEP/152-bit WEP/64-bit WEP/HTTPS/SNMP/SNMPv2/SSH/WPA/WPA2-Enterprise/WPA2-PSK/WPA-PSK |
| Reset button | Jah |
| Quantity per pack | 1 pc(s) |
| Mounting kit | Jah |
| 2.4 GHz | Jah |
| MAC address filtering | Jah |
| Quality of Service (QoS) support | Jah |
| Networking standards | IEEE 802.11b/IEEE 802.11g/IEEE 802.11n |
| Access Control List (ACL) | Jah |
| PoE adapter included | Ei |
| Antenna included | Jah |
| Rate limiting | Jah |
| Unit Box Height | 0.1 |
| Unit Box Length | 0.275 |
| Unit Box Width | 0.142 |
| Units per Shipping Box | 20 |
| Unit Calculated Volume | 0.004557 cubm |
| Product Net Weight | 0.4 kg |
| Unit Calculated Weight | 0.5 kg |
| Summary | TP-Link EAP113-Outdoor. 2.4 GHz, Maximum data transfer rate: 300 Mbit/s. Security algorithms: 64-bit WEP, 128-bit WEP, 152-bit WEP, HTTPS, SNMP, SNMPv2, SSH, WPA, WPA-PSK, WPA2-Enterprise,.... Power over Ethernet (PoE). Product colour: White |
| Product colour | White |
| Wi-Fi Multimedia (WMM)/(WME) | Jah |
| Wireless isolation | Jah |
| Number of SSID supported | 8 |
| Syslog | Jah |
| DC voltage range | 48 V |
| Antennas quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| International Protection (IP) code | IP65 |
| Placement | Pole,Wall |
| Antenna gain level (max) | 3 dBi |
| Certification | CE, FCC, RoHS |
| Maximum data transfer rate | 300 Mbit/s |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature range | -30–65 ℃ |
| Storage relative humidity (H-H) | 5 - 90 % |
| Storage temperature (T-T) | -40 - 70 °C |
