+1+1 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.
DDR5 XMP & EXPO Support
Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. This motherboards is built with high quality components, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel® XMP/AMD EXPO™ capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.
POLYCHROME RGB
This motherboard features onboard RGB headers and addressable RGB headers that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects
High Speed M.2 Solution(PCIe Gen4 x4)
Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.
Dragon 2.5 Gb/s LAN
The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.
M.2 (KEY E) For WiFi
Besides the onboard LAN port, users may also choose wireless connections by M.2 (Key E) slot.
USB 3.2 Gen1 Type-C
USB 3.2 Gen1 Type-C delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the rear panel of computer case.
3 Graphics Outputs
Complete with all three types of most used connectors! Packed with a D-Sub + DisplayPort + HDMI combo.
Auto Driver Installer
No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
step1: Install Auto Driver Installer
step2: Update drivers needed
step3: Done!
| Tootja | ASROCK |
| Tootekood | B760M-HDV/M.2 |
| EAN | 4710483943485 |
| Google link | lisainfo |
| Garantiiaeg | 36 kuud |
| .: Disain :. | |
| Emaplaadi kujutegur | micro ATX |
| Kujutegur | Micro-ATX |
| Laius | 244 mm |
| Sügavus | 201 mm |
| .: Protsessor :. | |
| Protsessori pesa | LGA1700 |
| .: Kiibistik ( Chipset ) :. | |
| Kiibistik ( Chipset) | Intel B760 Express |
| .: Mälu :. | |
| Sisemälu tüüp | DDR5 |
| Taktsagedus | 7200 MHz |
| Mälupesad | 2 |
| Maksimaalne sisemälu | 96 GB |
| Graafikakaart | |
| Integreeritud graafikaadapter | Depending on CPU |
| .: Audio :. | |
| Intregeeritud helikaart | Realtek ALC897 |
| Audioväljundi kanalid | 7.1 channels |
| Sisseehitatud mikrofon | 1 |
| .: Võrgustumine :. | |
| Ethernet LAN | 2.5 Gigabit |
| WiFi | Ei |
| Laienduspesad | |
| PCI Expressi x1 (Gen 3.x) pesad | 2 |
| Kõvaketta tugi | |
| SATA 3.0 | Jah |
| M.2 (M) siinide arv | 1 |
| RAID | SATA 0, 1, 5, 10 |
| Sisemine I/O moodul | |
| TPM-ühenduspesa | Jah |

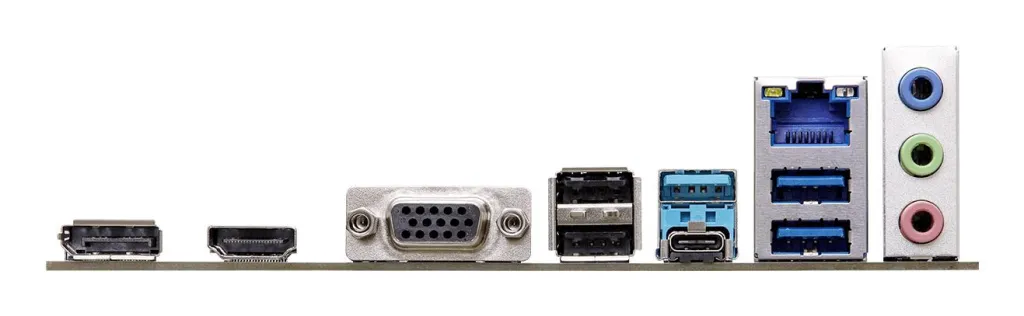

| Tagapaneeli I/O pesad | |
| VGA (D-Sub) portide arv | 1 |
| HDMI-portide arv | 1 |
| USB 2.0 portide arv | 2 |
| USB 2.0 | Jah |
| Ethernet LAN (RJ-45) pordid | 1 |
| Lisad | |
| Kaablid kaasa arvatud | SATA |
| .: Kaal ja mõõtmed :. | |
| Brutokaal | 0.927 kg |
| Netokaal | 0.5 kg |
| .: Pakendi andmed :. | |
| Max kogus transpordipakendis | 20 |
| Pakendi maht | 0.004511 cubm |
| Muud näitajad | |
| Line-in | Jah |
| Units per Shipping Box | 20 |
| CnCode | 84733020 |
| Unit Box Width | 0.24 |
| Unit Box Length | 0.277 |
| Unit Box Height | 0.06 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI-Express 4.0 16x | 1 |
| USB 3.2 | Jah |
| RGB LED pin header | Jah |
| Processor manufacturer | Intel |
| Screws included | Jah |
| Supported storage drive interfaces | M.2,SATA III |
| PCI Express x1 (Gen 3.x) slots | 2 |
| ECC сompatibility | Non-ECC |
| Number of M.2 (M) slots | 1 |
| Parallel processing technology support | Not supported |
| Number of SATA III connectors | 4 |
| CPU fan connector | Jah |
| Front panel audio connector | Jah |
| Memory channels | Dual-channel |
| Supported memory types | DDR5-SDRAM |
| Motherboard chipset family | Intel |
| Memory slots type | DIMM |
| ATX Power connector (24-pin) | Jah |
| BIOS type | EFI AMI |
| Compatible processor series | Intel Core i3 12th Gen/Intel Core i3 13th Gen/Intel Core i5 12th Gen/Intel Core i5 13th Gen/Intel Core i7 12th Gen/Intel Core i7 13th Gen/Intel Core i9 12th Gen/Intel Core i9 13th Gen/Intel Core i9 14th Gen |
| DisplayPort version | 1.4 |
| Unit Calculated Weight | 0.927 kg |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Audio chip | Realtek ALC897 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Summary | Asrock B760M-HDV/M.2. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen,.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 96 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Dragon RTL8125BG. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel |
| Unit Calculated Volume | 0.004511 cubm |
| Product Net Weight | 0.5 kg |
| Component for | PC |
| Tootja koduleht | https://asrock.com/MB/Intel/B760M-HDVM.2/index.asp#Overview |
| Transpordipakendi kaal | 18.55 kg |
| Transpordipakendi kõrgus | 51 cm |
| Transpordipakendi laius | 29 cm |
| Transpordipakendi sügavus | 61 cm |
| Tarvikud kaasa arvatud | 1 x User Manual; 1 x I/O Shield; 2 x SATA Data Cables; 3 x Screws for M.2 Sockets |
| DisplayPorts quantity | 1 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN (RJ-45) ports | 1 |
| Microphone in | Jah |
| Motherboard chipset | Intel B760 |
| RAID support | Jah |
| Unbuffered memory | Jah |
| VGA (D-Sub) ports quantity | 1 |
| Windows operating systems supported | Windows 10 x64/Windows 11 x64 |
| AV-In | 1 |
| AV-out | 1 |
| BIOS memory size | 128 Mbit |
| DisplayPort | 1 |
| LAN controller | Dragon RTL8125BG |
| Mudel | B760M-HDV/M.2 |
| Number of memory slots | 2 |
| Processor Socket | LGA 1700 |
| Raid Levels | 0/1/10/5 |
| USB 2.0 connectors | 2 |
| USB-C | 1 |
