MONITOR ACC DESK MOUNT 17-49"/DS70PLUS-450BL1 NEOMOUNTS
E1
AC
Vajad toodet suuremas koguses või püsitellimust?
Võta ühendust meie klienditoega info[at]digipood.eu
Kuumakse al. 7.67 €. Taotle järelmaksu ostukorvis.

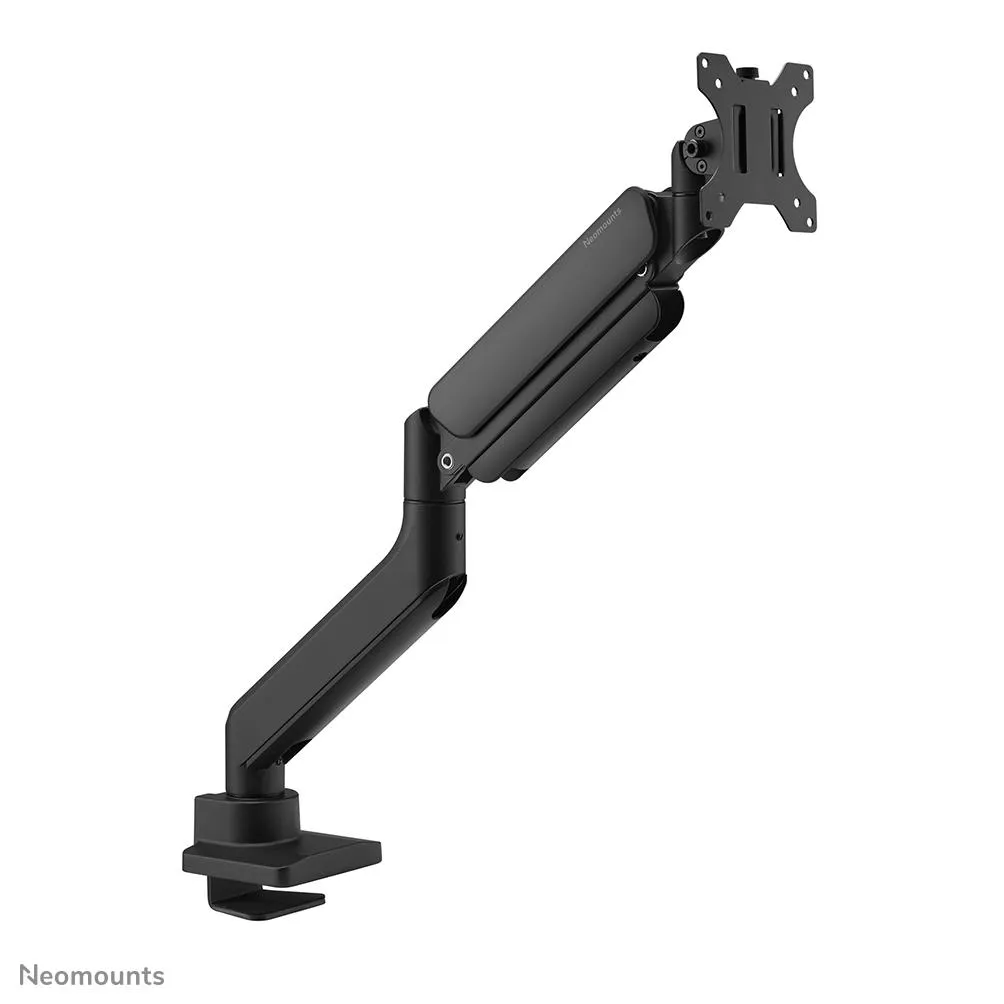

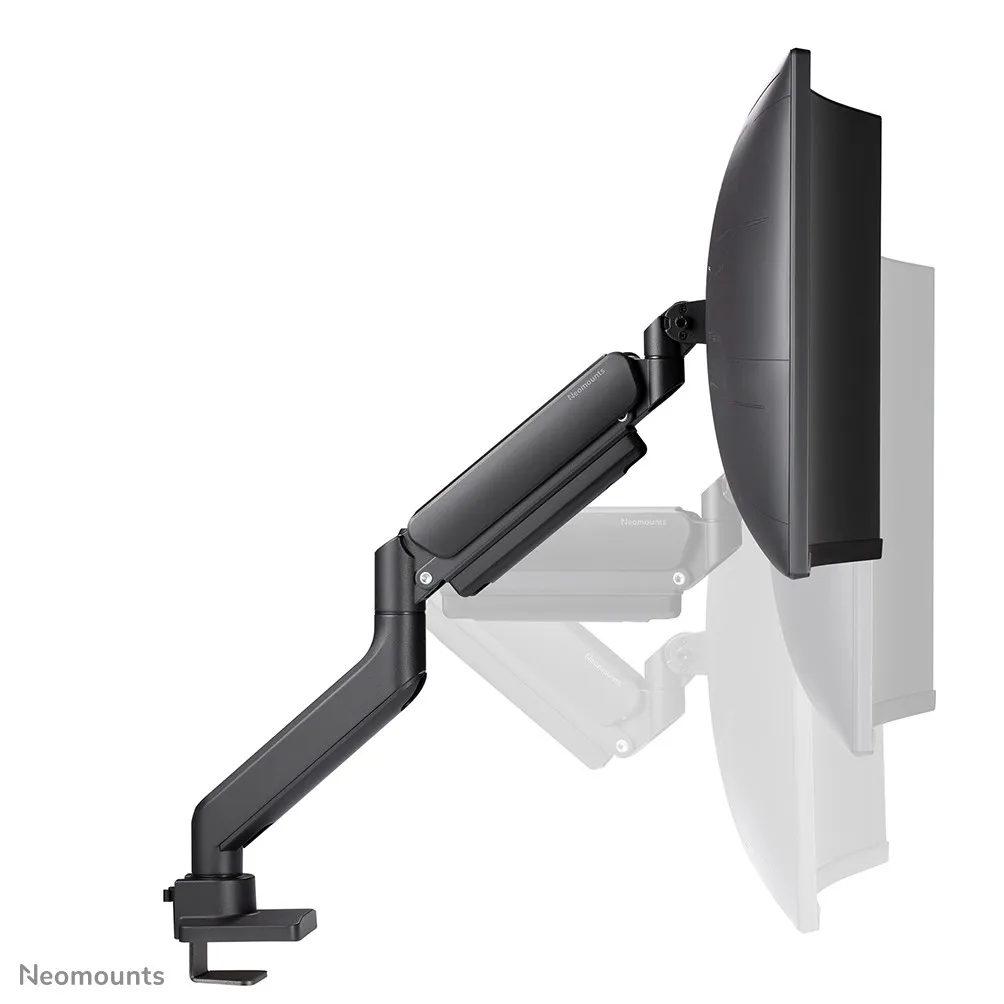

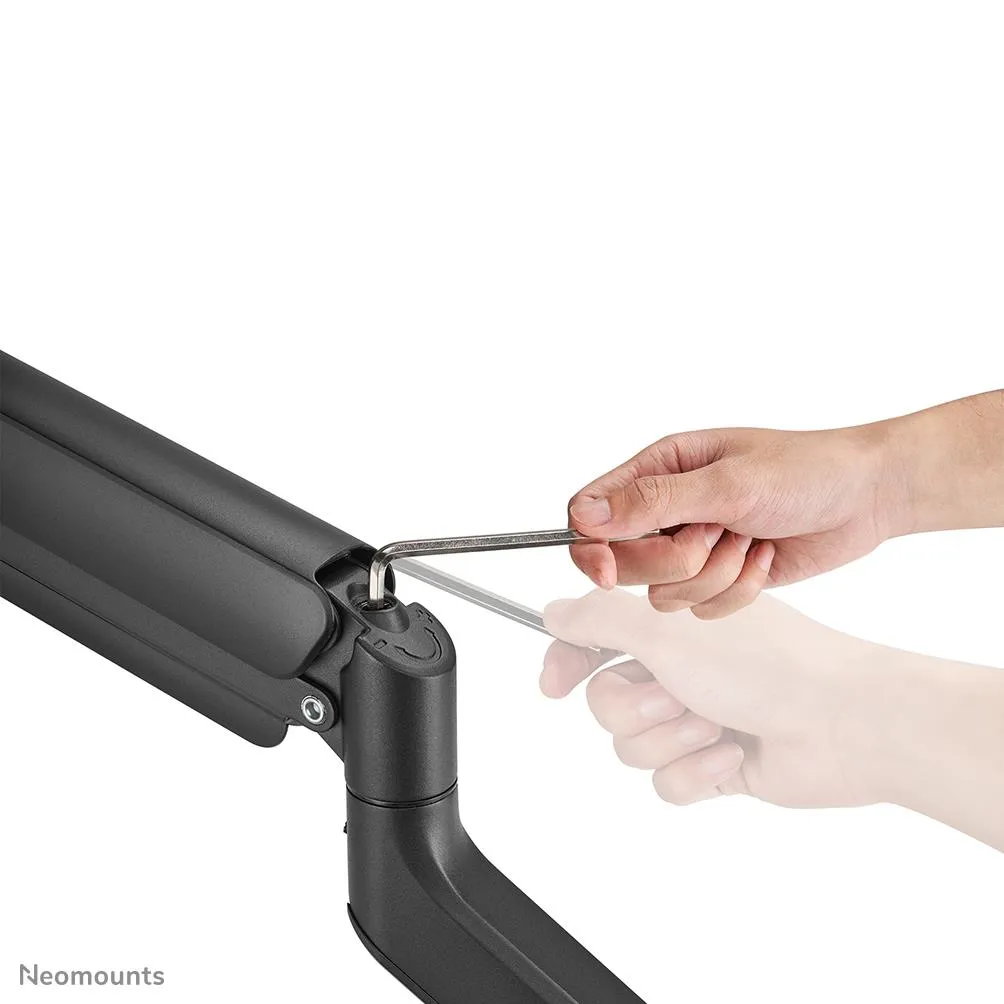

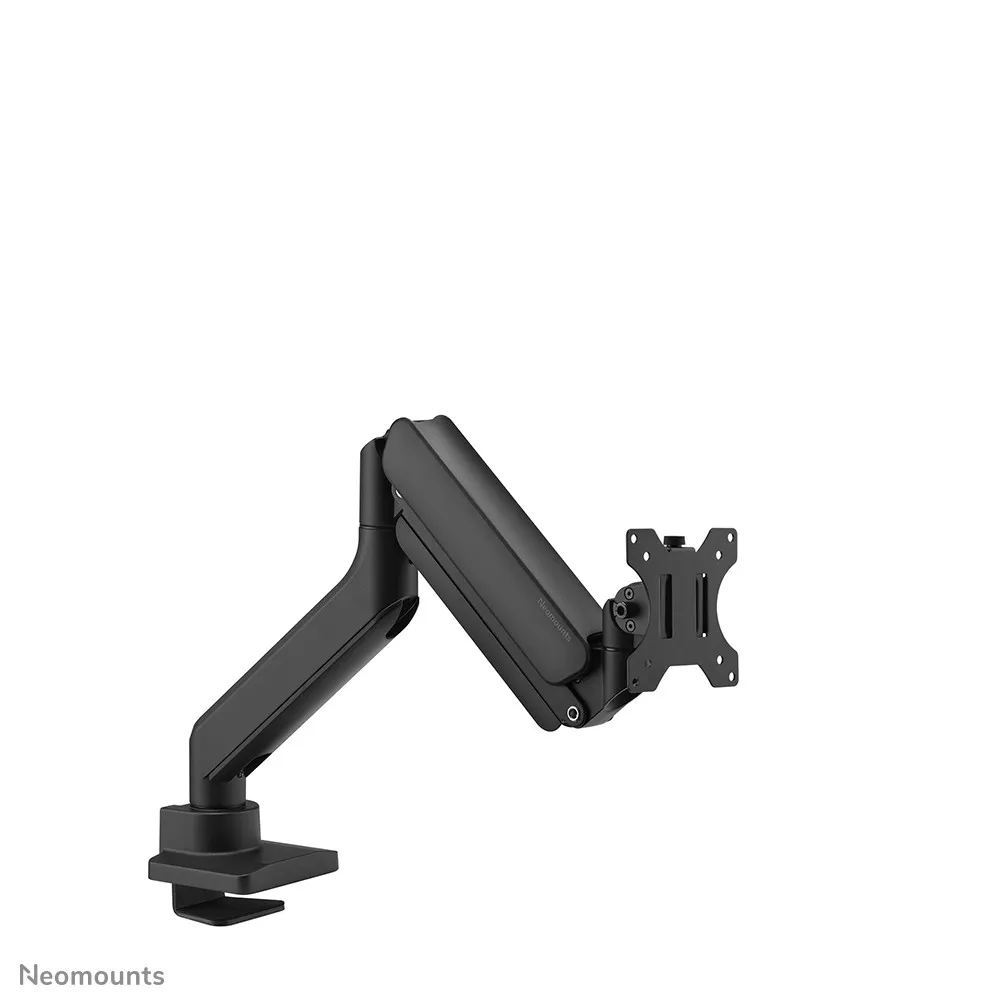

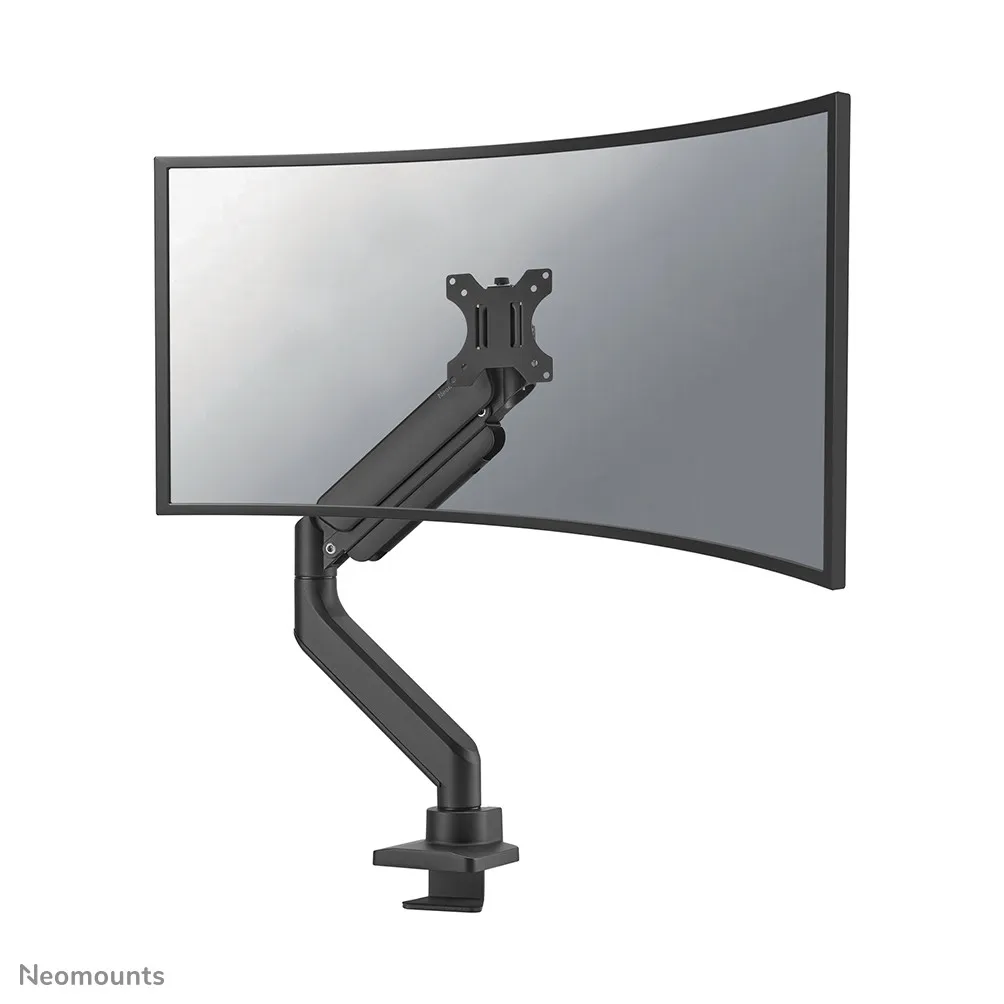

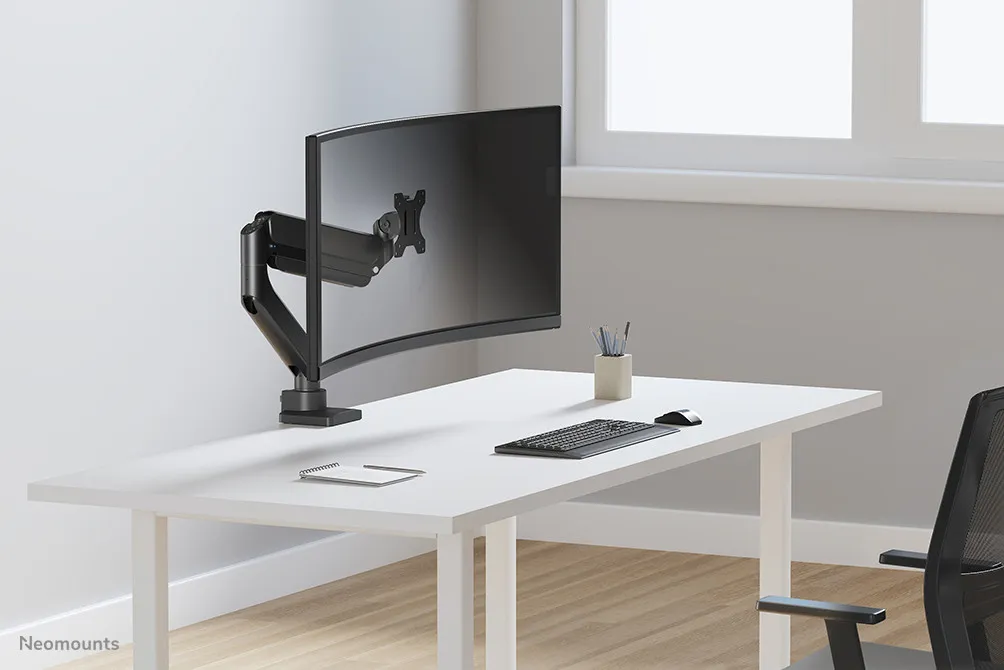

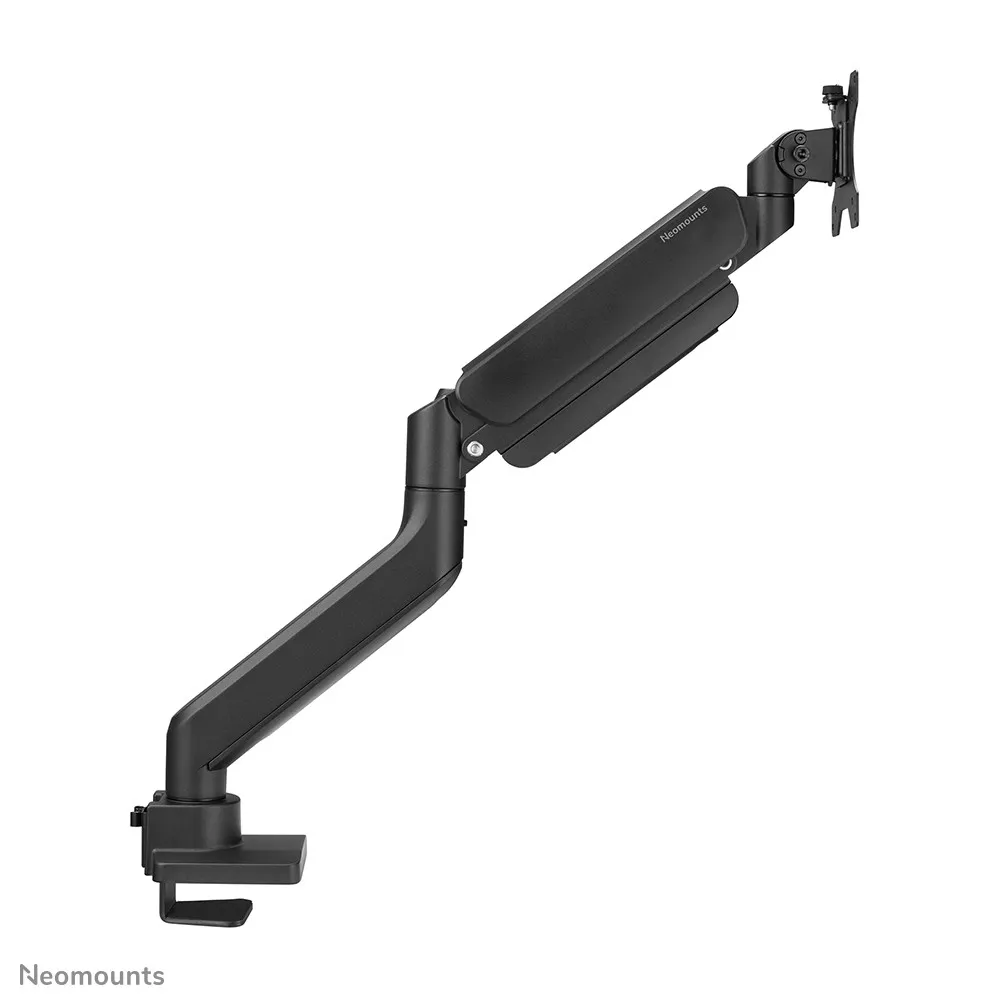

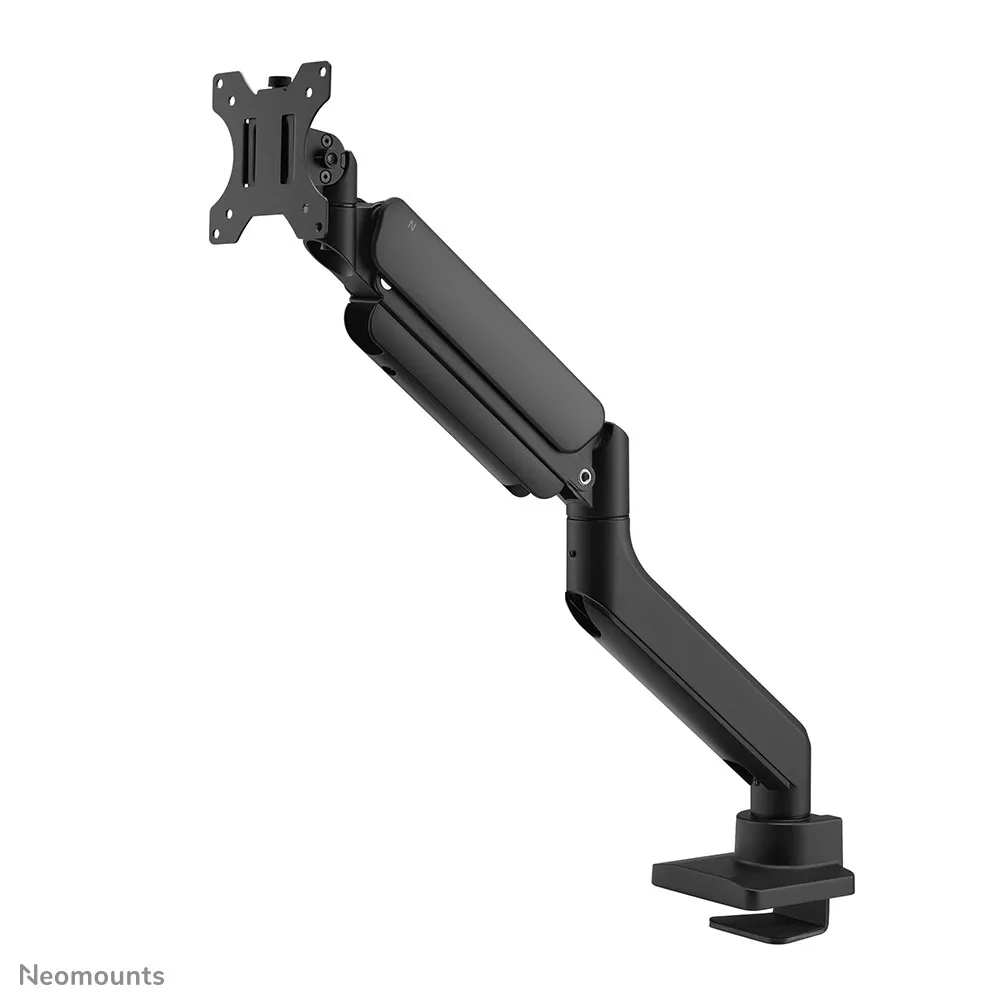

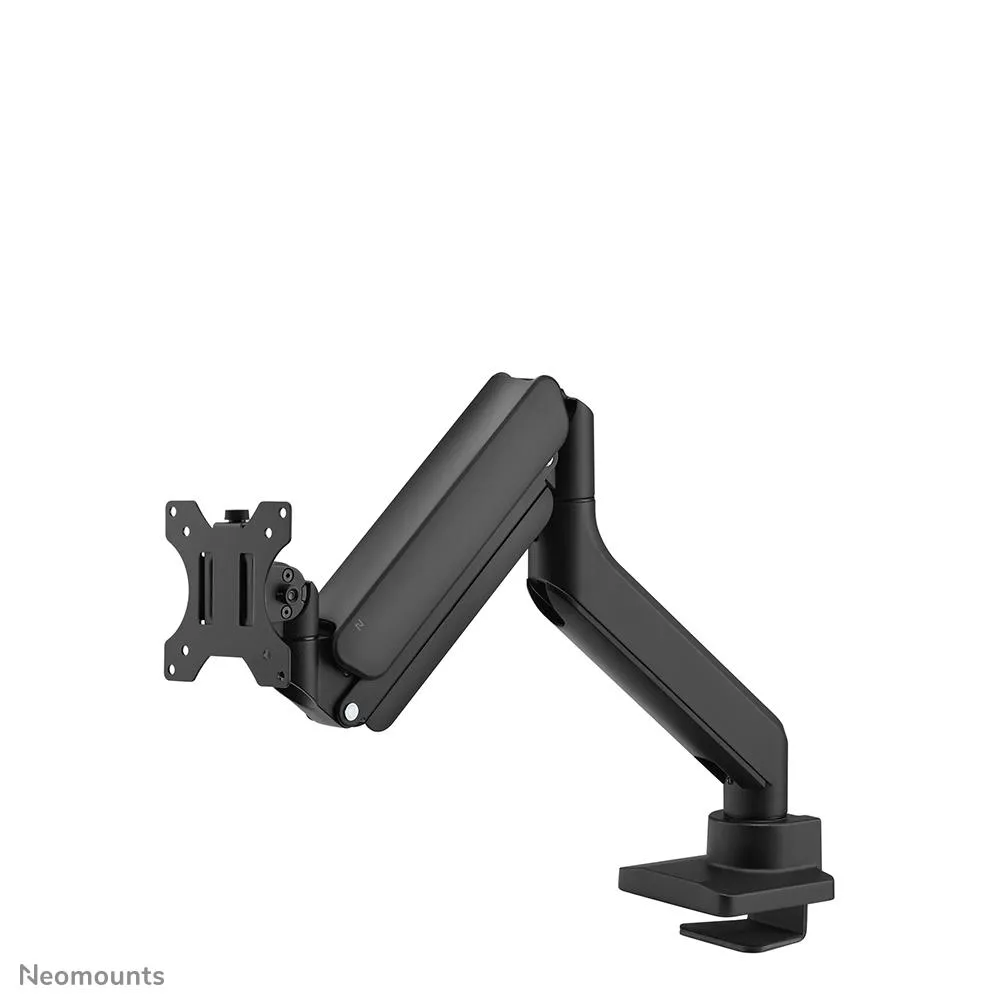

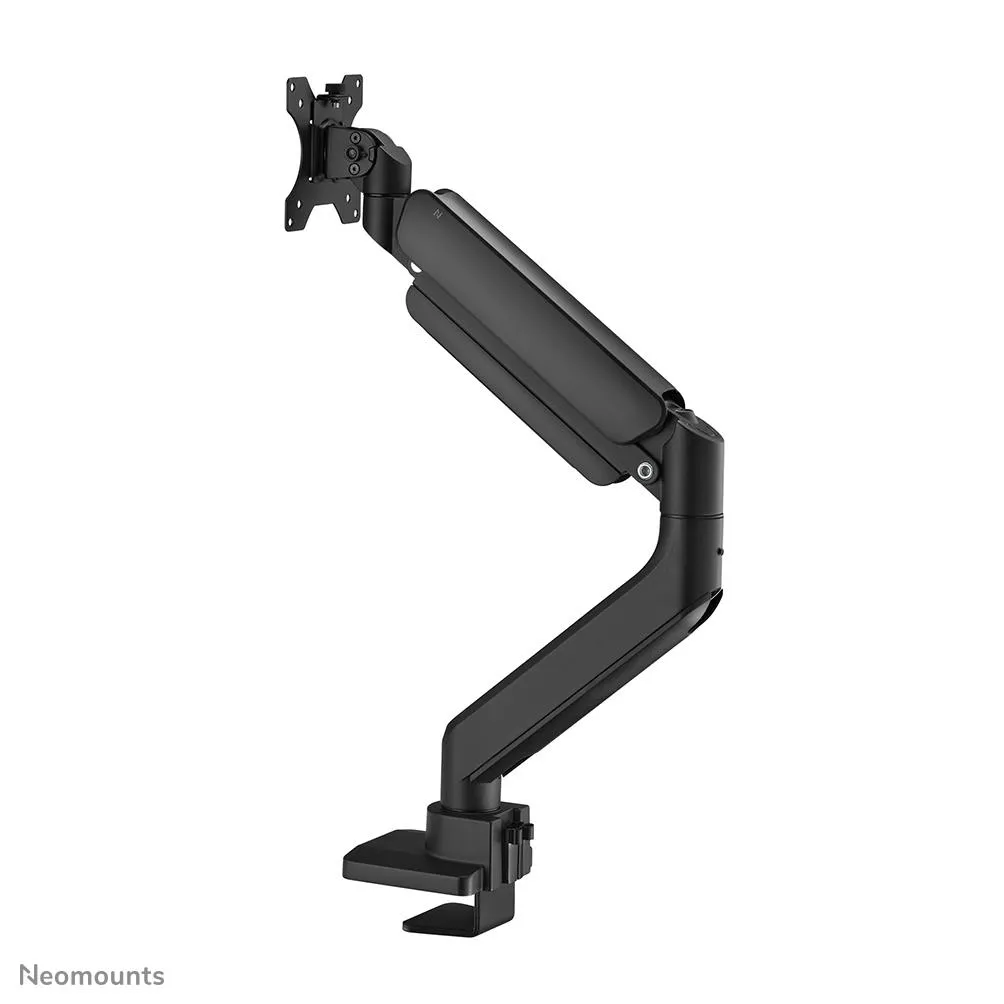

The Neomounts DS70PLUS-450BL1 NEXT Core is a full motion desk mount for curved ultra-wide screens up to 49". The mount features a strengthened head specifically designed for curved ultra-wide screens and to support a higher maximum weight up to 18 kg (curved 14 kg). The versatile tilt (90°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the screen. Additionally, the mount has gas spring height adjustment (26,1-55 cm) and depth adjustment (5,4-49,7 cm), to create the perfect working position.

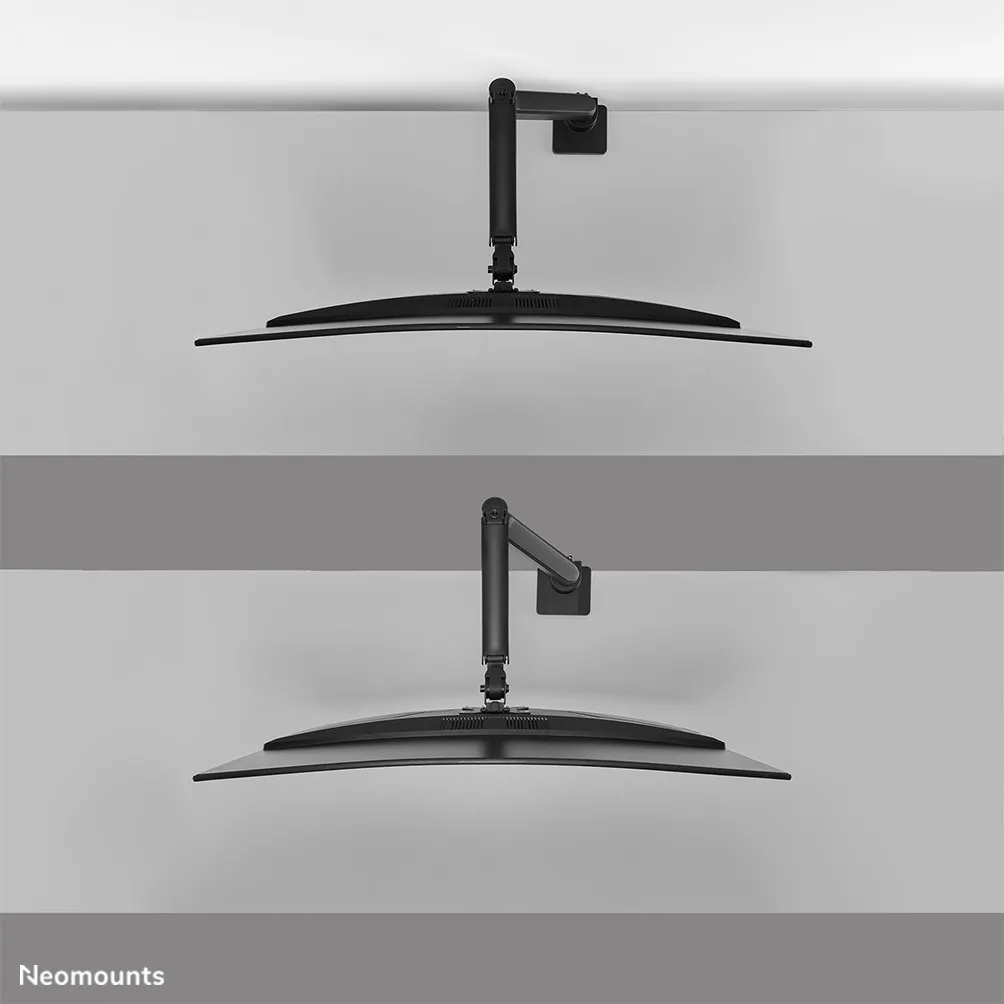

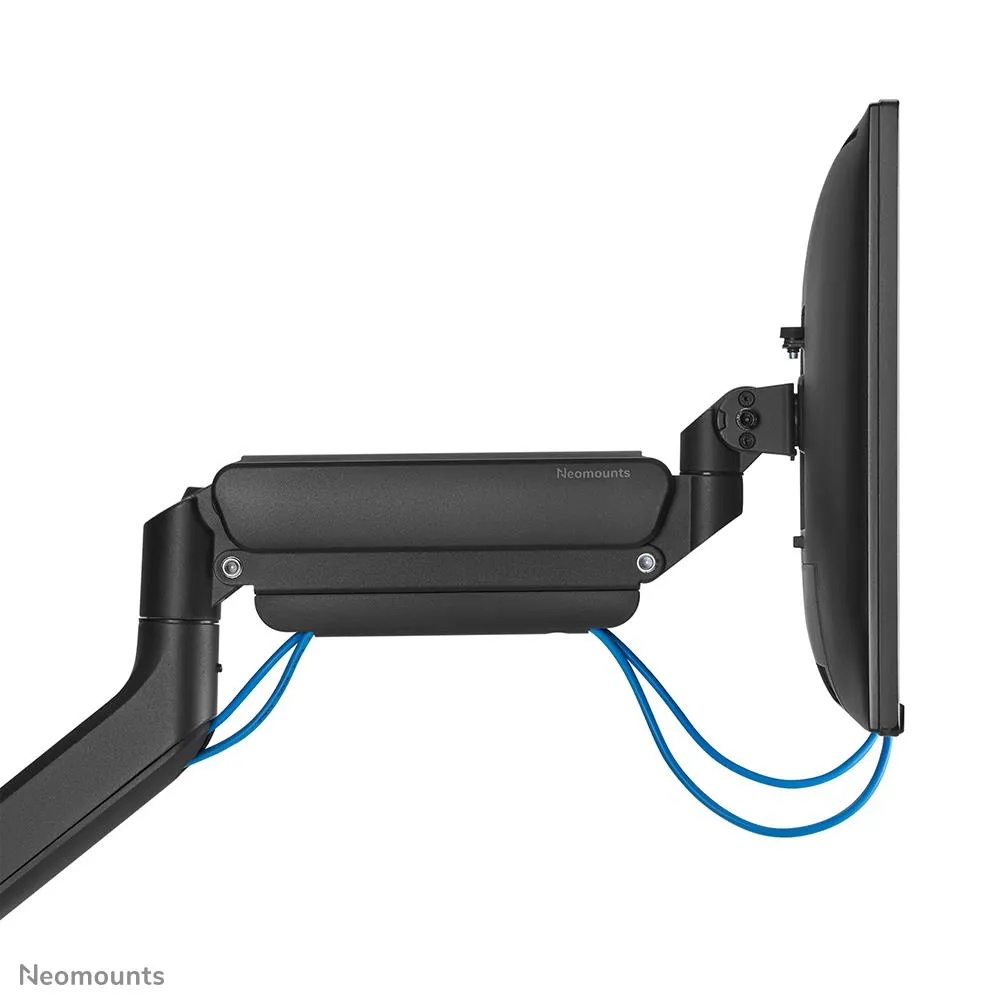

The DS70PLUS-450BL1 NEXT Core features the nifty 180° stop mechanism, that allows you to safely adjust the mount even when it's placed close to a wall or separation panel without making contact with the wall. The smart cable management system ensures orderly routing of the cables.

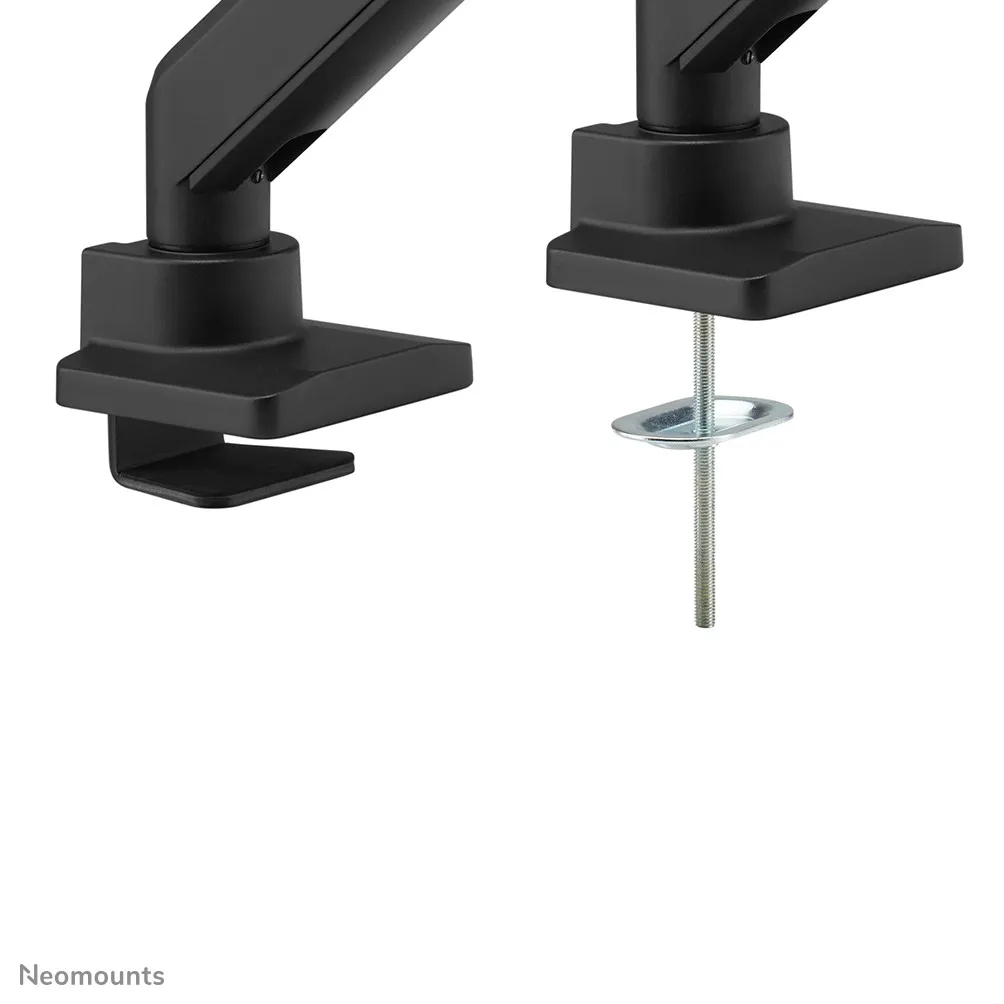

The DS70PLUS-450BL1 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. For non-standard hole patterns, Neomounts has various VESA optional adapter plates available. The desk mount is equipped with an Quick-release VESA system and comes with both a topfix clamp and grommet for quick and easy installation.

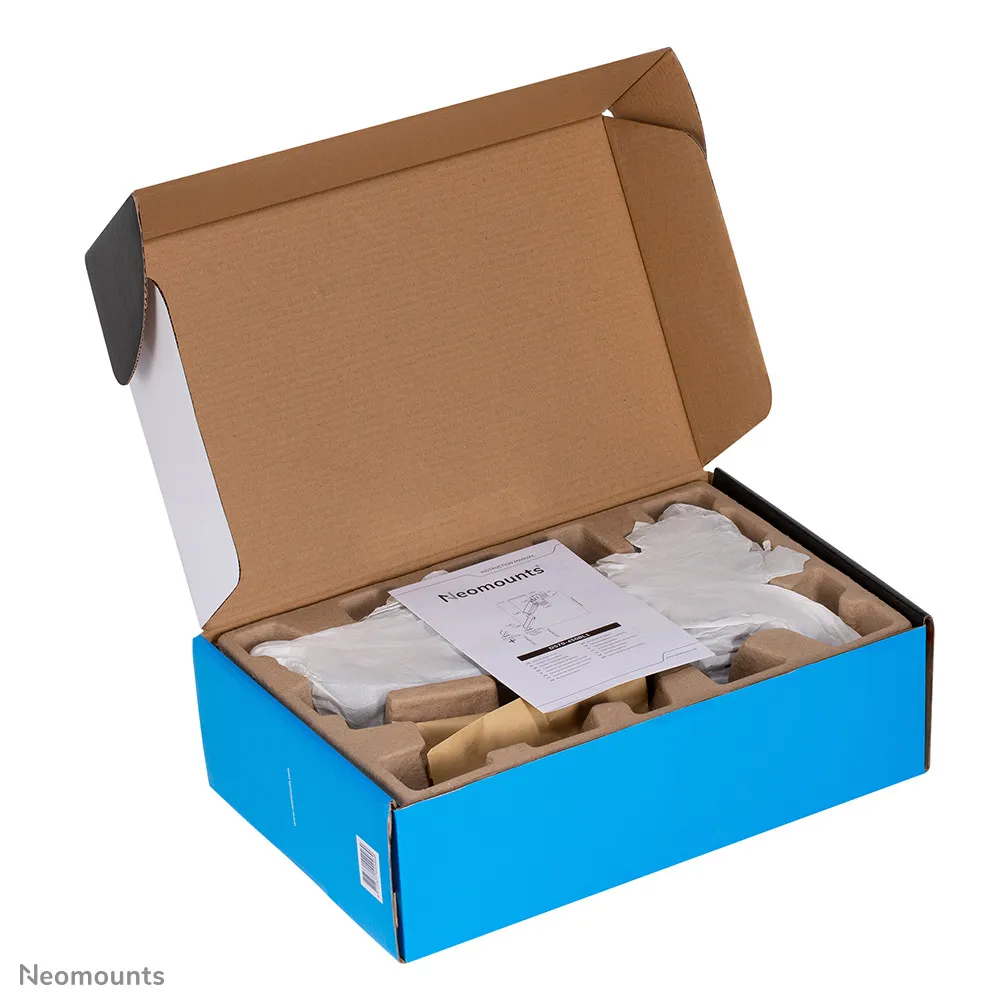

The packaging of the NEXT Core is 100% plastic free and entirely made from cardboard and paper.
For wall installation, the AWL75-450BL wall adapter is optionally available.
.: Üldised andmed :.
- Tootja koduleht
- https://www.neomounts.com/default.asp?pageid=44&artdetail=DS70PLUS-450BL1
.: Üldised omadused :.
- Toetatud ekraanide arv
- 1
.: Disain :.
- Toote värv
- Black
- Toote värv
- Black
- Kinnituse tüüp
- Laud
- Korpuse materjal
- Teras
- Maksimaalne kaal (mahutavus)
- 18 kg
- Paigaldus
- Klamber/kaitsekrae
- Toote värv
- Must
Paigaldamine
- Kaugus seinast (minimaalne)
- 10,8 cm
- Lauaplaadi paksus (min)
- 1 cm
- Lauaplaadi paksus (max)
- 4,5 cm
- Maksimaalne kandevõime (kumer-/ülilaia ekraani kohta)
- 14 kg
- Paigaldussüsteemi ühilduvus (min)
- 75 x 75 mm
- Paigaldussüsteemi ühilduvus (max)
- 100 x 100 mm

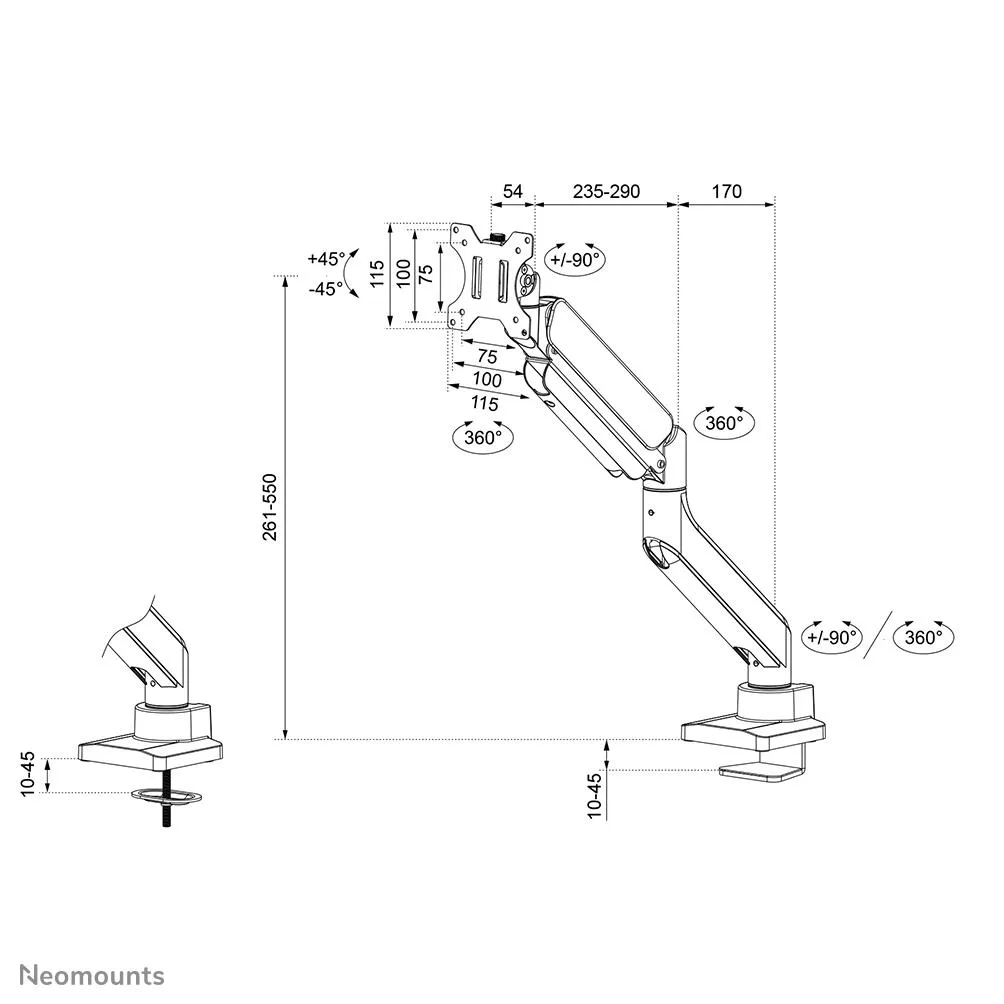

Ergonoomika
- Angle of rotation
- 360 °
- Rotatsiooni nurk
- 360°
- Sühavuse reguleerimisvahemik
- 54 - 511 mm
- Kõrguse reguleerimise tüüp
- Gaasvedru
- Width adjustment
- 920 mm
- Laiuse reguleerimise ulatus
- 0 - 920 mm
- Pööratav
- Jah
- Kõrguse reguleerimise ulatus
- 261 - 555 mm
- Pööratavus
- Jah
- Pöördenurga ulatus
- -90 - 90°
- Kõrguse reguleerimine
- Jah
- Kaugus seinast (maksimaalne)
- 56,8 cm
- Juhtmehaldus
- Jah
- VESA-paigaldusliidesed
- 75 x 75,100 x 100 mm
- Kalde reguleerimine
- Jah
- Kaldenurk
- -45 - 45°
Funktsioonid
- Ekraani maksimaalne suurus
- 124,5 cm (49")
Logistika andmed
- Tooteid kaubaaluse kohta (euroalus)
- 64 tk
- Kogus transpordikasti kohta
- 4
- Põhikasti (välimise) laius
- 460 mm
- Harmonized System (HS) kood
- 7326909890
- Põhikasti (välimine) pikkus
- 275 mm
- Põhikasti (välimise) kõrgus
- 580 mm
- Põhikasti (välimine) brutokaal
- 20,5 kg
- Tooteid põhikasti (välimine) kohta
- 4 tk
- Peamise pakendi netokaal
- 16 kg
Muud funktsioonid
- Ekraani minimaalne suurus
- 43,2 cm (17")
- Depth adjustment range
- 54 - 511 mm
- Minimaalne kaal
- 1 kg
- Pakendi netokaal
- 5,1 kg
- Päritoluriik
- Hiina
- Reguleeritav sügavus
- Jah
.: Pakendi sisu :.
- Kogus pakis
- 1 tk
.: Pakendi andmed :.
- Pakendi tüüp
- Box
- Pakendi sügavus
- 127 mm
- Pakendi laius ( mm )
- 280 mm
- Pakendi kõrgus ( mm )
- 445 mm
- Pakendi kaal
- 5,1 kg
Tehnilised andmed
- Mounting
- Clamp/Grommet
- Tilt adjustment
- Jah
- Number of displays supported
- 1
- Cable management
- Jah
- Swivelling
- Jah
- Rotating
- Jah
- Quantity per pack
- 1 pc(s)
- Distance to the wall (max)
- 568 mm
- Height adjustment range
- 261 - 555 mm
- Fits screens sized
- 17-49"
- Number of screens
- 1
- Maximum Weight Capacity
- 18 kg
- Unit Box Height
- 0.29
- Unit Box Length
- 0.45
- Unit Box Width
- 0.13
- CnCode
- 83021000
- Unit Calculated Volume
- 0.01834 cubm
- Product Net Weight
- 4.6 kg
- Unit Calculated Weight
- 5.05 kg
- Summary
- Neomounts DS70PLUS-450BL1 Monitor arm 17-49" - gas spring - Topfix - 180°-stop. Mounting: Clamp/Grommet, Maximum weight capacity: 18 kg, Minimum screen size: 43.2 cm (17"), Maximum screen size: 124.5 cm (49"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Swivel angle range: -90 - 90°, Tilt angle range: -45 - 45°. Product colour: Black
- Harmonized System (HS) code
- 7326909890
- Tilt angle range
- -45 - 45 °
- Master (outer) case gross weight
- 20500 g
- Master (outer) case height
- 580 mm
- Master (outer) case length
- 275 mm
- Master (outer) case width
- 460 mm
- Products per master (outer) case
- 4 pc(s)
- Panel mounting interface
- 100 x 100/75 x 75 mm
- Products per pallet (EU)
- 64 pc(s)
- Master (outer) case net weight
- 16000 g
- Maximum screen size
- 49 "
- Maximum VESA mount
- 100 x 100 mm
- Minimum screen size
- 17 "
- Minimum VESA mount
- 75 x 75 mm
- Desk thickness (max)
- 45 mm
- Desk thickness (min)
- 10 mm
- Maximum weight capacity (per display)
- 18 kg
- Height adjustment type
- Gas spring
- Package net weight
- 5100 g
- Width adjustment range
- 0 - 920 mm
- Minimum weight
- 1 kg
- Maximum weight capacity (per curved/ultra-wide display)
- 14 kg
- Country of origin
- China
- Mounting type
- Desk
- 100 mm x 100 mm
- Jah
- 75 mm x 75 mm
- Jah
- Adjustable Depth
- Jah
- Distance to the wall (min)
- 108 mm
- Distance to wall
- 56.8 cm
- Height adjustment
- Jah
- Housing material
- Steel
- Max. weight
- 18 kg
- Package depth
- 127 mm
- Package height
- 445 mm
- Package weight
- 5100 g
- Package width
- 280 mm
- Pivot angle
- -180 - 180 °
- Swivel angle range
- -90 - 90 °
Tehnilised andmed
- Toote kaal
- 3,98 kg
- Laius
- 120 mm
- Laius
- 120 mm
- Sügavus
- 568 mm
- Kõrgus
- 653 mm
- Sügavus
- 568 mm
- Kõrgus
- 653 mm
- Toote kaal
- 3980 g
