Sharp images
Featuring a stereographic lens and Sharpdome 360, this panoramic camera delivers greater sharpness at the edges of the image. With a 6 MP sensor, it offers excellent image quality and a complete 180° or 360° overview, around the clock regardless of the light conditions. Plus, Lightfinder ensures lifelike colors in low light. With day/night functionality and built-in IR illumination with individually controllable LEDs, it delivers clear, reflection-free footage and excellent image quality even in low light or complete darkness. Furthermore, AXIS M4317-PLVE supports digital PTZ views as well as dewarped views such as panorama, quad, corner, and corridor.
Deep learning on the edge
This high-performance camera includes a deep learning processing unit (DLPU) enabling improved processing and storage capabilities. Plus, you can collect and analyze even more data than before—on the edge. Additionally, it delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities in live or recorded video. Thanks to AXIS Object Analytics, it’s possible to detect and classify humans, vehicles, and types of vehicles—all tailored to specific needs. Furthermore, with support for ACAP version 4, you can add value to your system with tailor-made applications based on deep learning on the edge.
Secure and easy

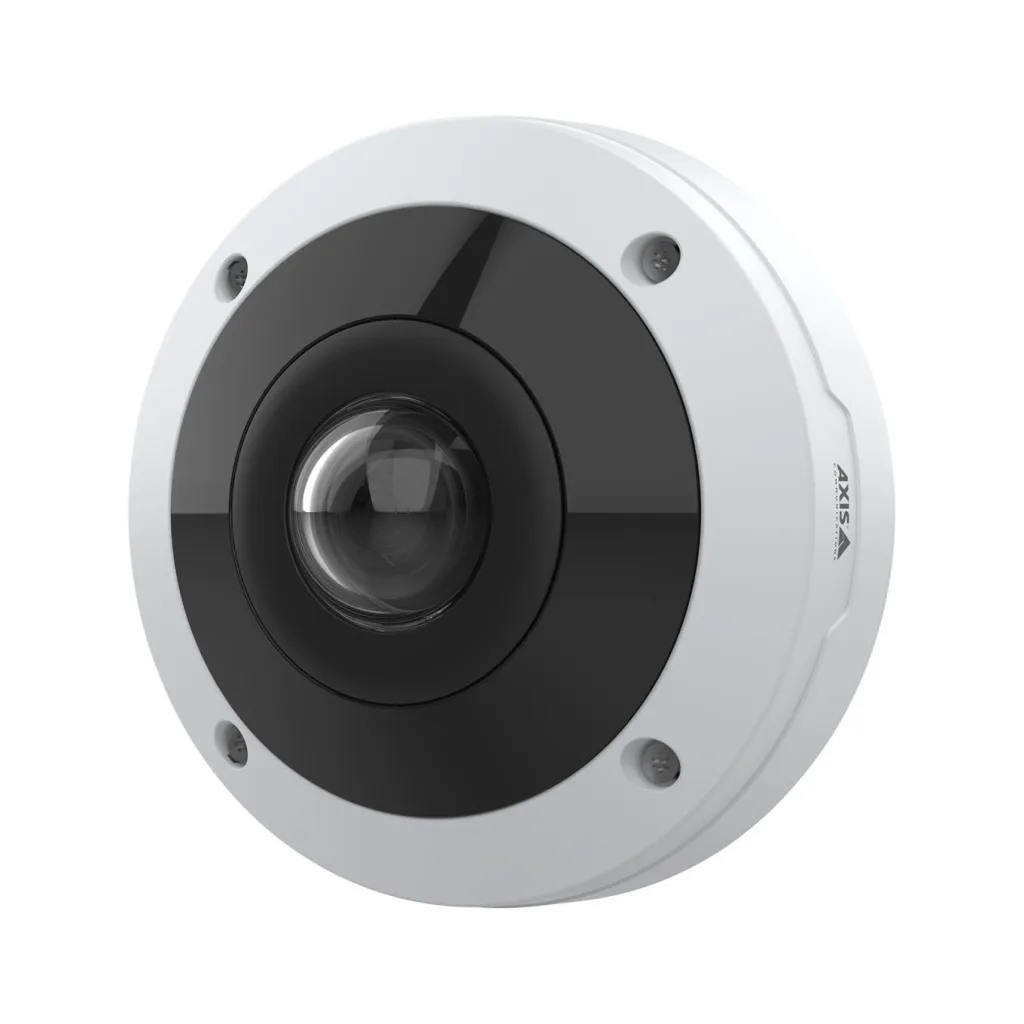

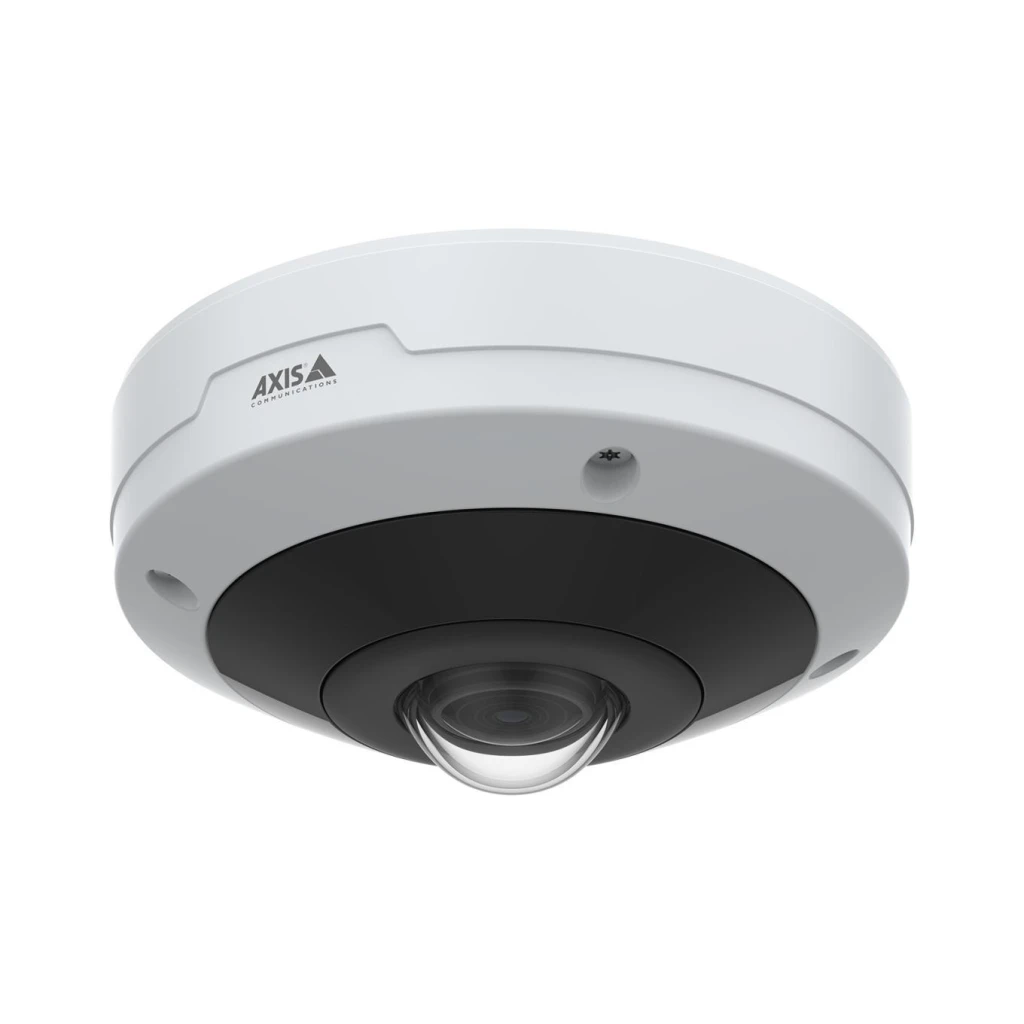

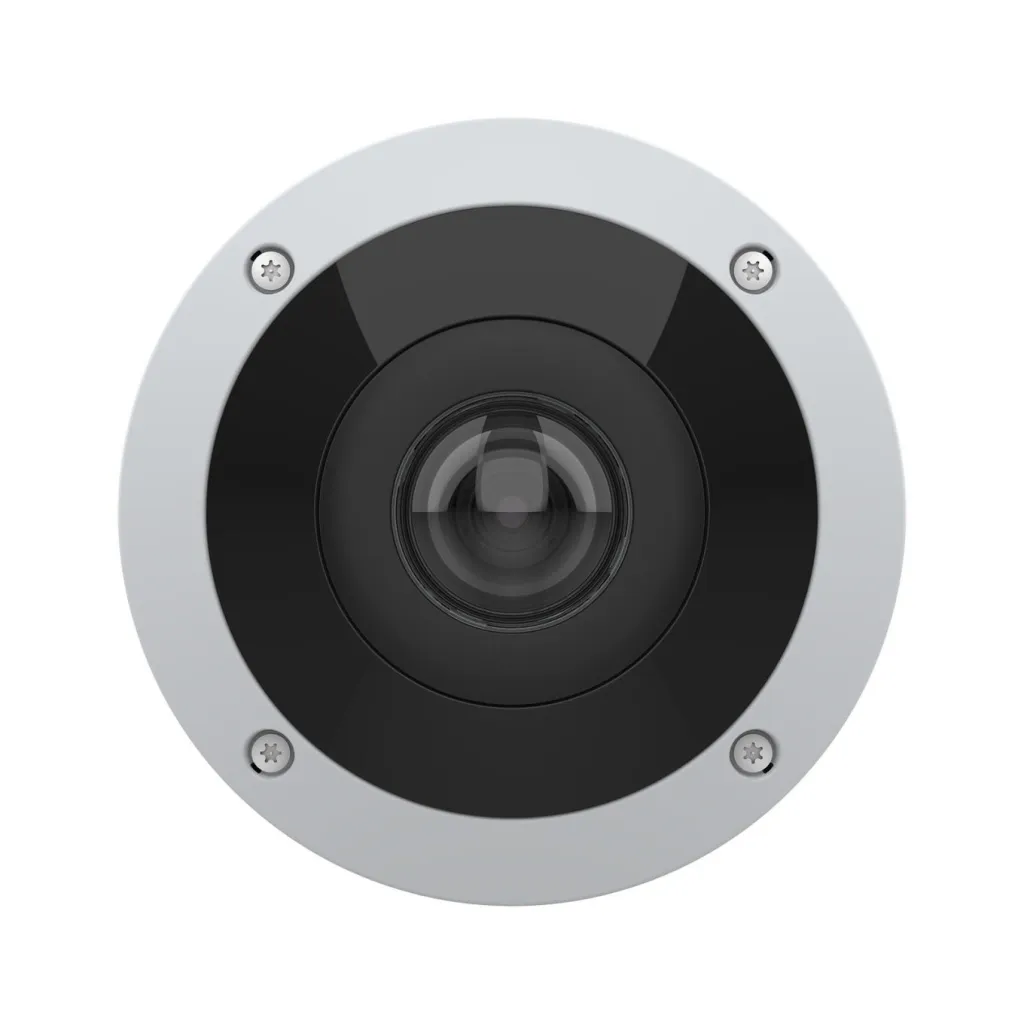

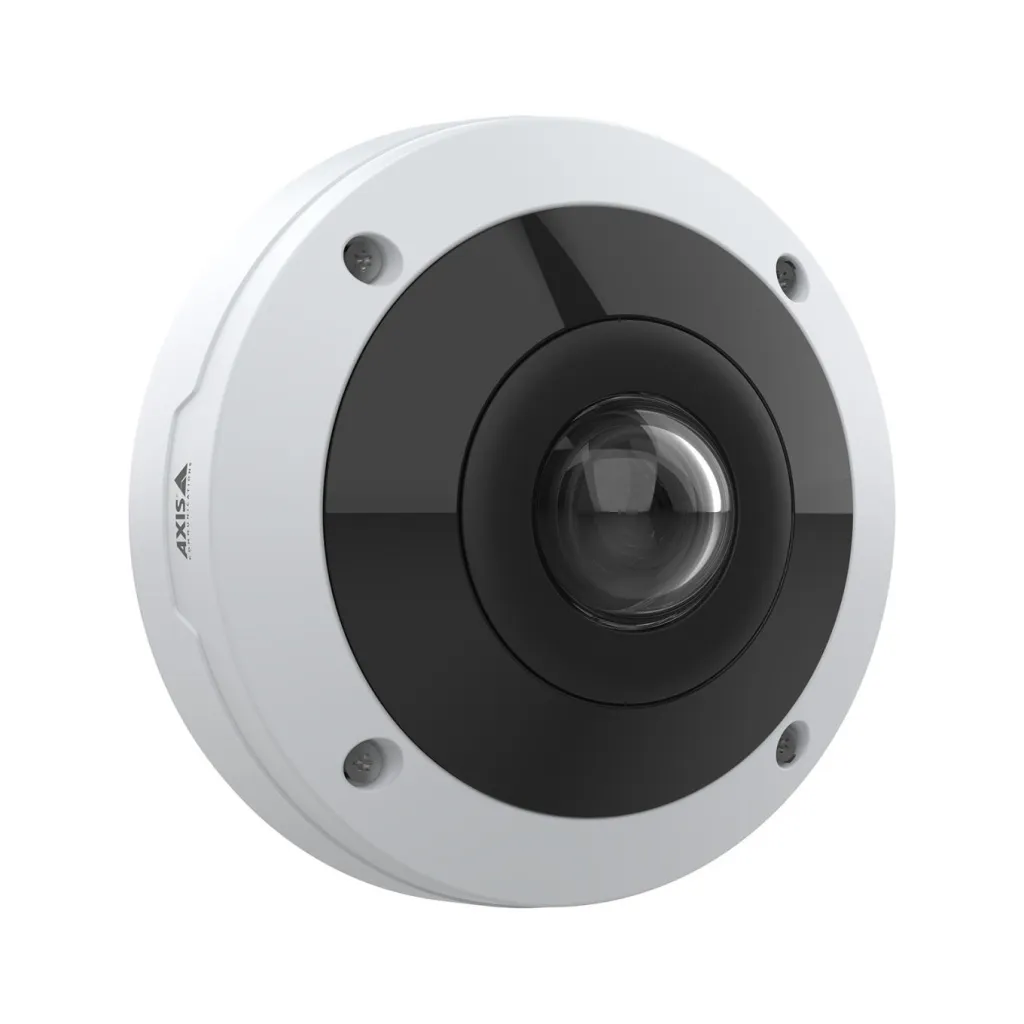

Built on ARTPEC-8, AXIS M4317-PLVE offers built-in cybersecurity features to help prevent unauthorized access and safeguard your system. For instance, Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis devices on your network. This discreet, compact mini dome blends seamlessly into any environment. It’s delivered factory-focused for ease of installation. And, with digital roll functionality you can remotely adjust the rotation of the camera overview– no need to do it manually on each camera. Furthermore, Axis Zipstream with H.264/H.265 significantly reduces bandwidth and storage requirements.
| Tootja | AXIS |
| Tootekood | 02510-001 |
| EAN | 7331021078741 |
| Google link | lisainfo |
| Garantiiaeg | 36 kuud |
| .: Üldised andmed :. | |
| Seadme tüüp | IP security camera |
| Tootja koduleht | https://www.axis.com/products/axis-m4317-plve |
| .: Disain :. | |
| Kujutegur | Dome |
| Toote värv | White |
| .: Mälu :. | |
| Ühilduvad mälukaardid | MicroSD (TransFlash)/MicroSDHC/MicroSDXC |
| Paigaldatud operatiivmälu | 2048 MB |
| .: Kaamera :. | |
| Lens viewing angle, vertical | 182 ° |
| .: Võrgustumine :. | |
| Ethernet LAN | Jah |
| .: Pesad & liidesed :. | |
| Ethernet LAN (RJ-45) pordid | 1 |
| Võimsus ja energiatarve | |
| Võimsustarve (tüüpiline) | 5.7 W |
| .: Tehnilised andmed :. | |
| Doesn't contain | PVC/BFR |
| Compliance certificates | RoHS |
| Objektiivi süsteem | |
| Lens viewing angle, horizontal | 182 ° |
| Toide | |
| Toitenõuded | Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3 Typical 5.7 W, max 12.95 W |
| Voolutarve | 5.7 Watts |
| Töötingimused | |
| Kasutamistemperatuur (T-T) | -40 - 50 °C |
| .: Kaal ja mõõtmed :. | |
| Netokaal | 0.86 kg |
| Brutokaal | 1.05 kg |
| Laius | 149 mm |
| Sügavus | 149 mm |
| Kõrgus | 70 mm |
| Mõõtmed (l x s x k) | H: 70 mm ø 149 mm |
| Toote kaal | 860 g |
| .: Pakendi sisu :. | |
| Tarvikud kaasa arvatud | installation guide, terminal block connector, connector guard, cable gaskets, cable hole lid, owner authentication key |
| .: Pakendi andmed :. | |
| Kasutusjuhend | Jah |
| Max kogus transpordipakendis | 1 |
| Pakendi maht | 0.002887 cubm |
| Transpordipakendi kaal | 1.05 kg |
| Transpordipakendi kõrgus | 10 cm |
| Transpordipakendi laius | 16.5 cm |
| Transpordipakendi sügavus | 17.5 cm |
| Muud andmed | |
| Password protection | Jah |
| Security algorithms | 256-bit AES-XTS/EAP-TLS/TLS |
| Placement supported | Indoor |
| Supported network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, DHCPv4/v6, SSH, L |
| Number of cameras | 1 |
| Quality of Service (QoS) support | Jah |
| Networking standards | IEEE 802.3af/IEEE 802.3at |
| IP address filtering | Jah |
| Night vision | Jah |
| Image quality adjustment | Brightness/Contrast/Saturation/Sharpness |
| Progressive scan | Jah |
| Active tampering alarm | Jah |
| Wide Dynamic Range (WDR) | Jah |
| Video motion detection | Jah |
| LED type | IR |
| Alert notification type | |
| Number of languages | 20 |
| HTTPS encryption | Jah |
| Infra-red wavelength | 850 nm |
| Unit Box Height | 0.1 |
| Unit Box Length | 0.175 |
| Unit Box Width | 0.165 |
| CnCode | 85258900 |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.002887 cubm |
| Product Net Weight | 0.86 kg |
| Unit Calculated Weight | 1.05 kg |
| Summary | Axis M4317-PLVE. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.03 lx, Lens viewing angle, horizontal: 182°, Lens viewing angle, vertical: 182°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"). Fixed focal length: 2.2 mm |
| Product colour | Black/White |
| IK code | IK10 |
| Noise reduction technology | 2D noise reduction,3D noise reduction |
| Number of sensors | 1 |
| Number of lenses | 1 |
| Digest authentication | Jah |
| Human and vehicle targets classification | Jah |
| Behavior analysis | Line crossing detection |
| Infrared (IR) cut-off filter | Jah |
| Streaming method | Multicast |
| Bit rate control | Variable Bit Rate (VBR) |
| Fixed focus | Jah |
| Text caption overlay | Jah |
| Privacy protection | Jah |
| PTZ control | Jah |
| PTZ modes | Digital PTZ/Preset point |
| Pixel counter | Jah |
| Day/night mode | Jah |
| Ethernet interface type | Fast Ethernet |
| International Protection (IP) code | IP66 |
| Languages support | Czech/Dutch/English/Finnish/French/German/Italian/Japanese/Korean/Polish/Portuguese/Russian/Simplified Chinese/Spanish/Swedish/Thai/Traditional Chinese/Turkish/Vietnamese |
| LED indicators | Jah |
| Mounting type | Ceiling/wall |
| Noise reduction | Jah |
| Power source type | PoE |
| Sensor type | CMOS |
| Supported graphics resolutions | 1920 x 1440/256 x 144/2560 x 1440/2560 x 1920/384 x 288 |
| Audio system | 2-way |
| Camera design | Dome |
| Camera shutter speed | 1/33500 - 0.2 s |
| Certification | CSA, UL/cUL, BIS, UKCA, CE, KC 55035, EN 55032 Class A, EN 50121-4, EN 61000-6-1, EN 61000-6-2, EN 61547 Australia/New Zealand: RCM AS/NZS CISPR 32 Class A Canada: ICES-3(A)/NMB-3(A) Japan: VCCI Class A Korea: KS C 9835, KS C 9832 Class A USA: FCC Part 1 |
| Connectivity Technology | Wired |
| Electronic Shutter Speed | 1/33500 s to 0.2 s |
| Fixed focal length | 2.2 mm |
| Flash Memory | 8192 MB |
| Focal Length | 1.1 |
| Frame Rate | 60 fps |
| Housing material | Aluminium/Polycarbonate (PC) |
| MicroSD Card Slot | 1 |
| Min. Illumination | 0.03 Lux |
| Minimum Illumination | 0.03 lx |
| Network Camera Type | HDTV/Megapixel |
| Night vision distance | 20 m |
| Operating relative humidity (H-H) | 10 - 100 % |
| Operating temperature range | -40 °C to 50 °C |
| Optical sensor size | 1/1.8 " |
| Pixel Resolution | 6 Mega Pixel |
| Power Options | PoE |
| Resolution | 6 Mega Pixel |
| Sensor size | 1/1.8” progressive scan RGB CMOS |
| Storage relative humidity (H-H) | 5 - 95 % |
| Storage temperature (T-T) | -40 - 65 °C |
| Terminal block | 1 |
| Total megapixels | 6 MP |
| Video streaming | Jah |
