Switch|TP-LINK|TL-SG1006PP|Desktop/pedestal|6x10Base-T / 100Base-TX / 1000Base-T|PoE+ ports 4|TL-SG1006PP
E1
Vajad toodet suuremas koguses või püsitellimust?
Võta ühendust meie klienditoega info[at]digipood.eu
TL-SG1006PP is an unmanaged switch with 6 Gigabit ports that requires no configuration and provides
4 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE
802.3af/at/bt compliant Powered Devices (PDs) at port 1 and IEEE 802.3af/at compliant Powered
Devices (PDs) at port 2-4. In this situation, the electrical power is transmitted along with data in one
single cable allowing you to expand your network to where there are no power lines or outlets, where
you wish to fix devices such as APs, IP Cameras or IP Phones, etc

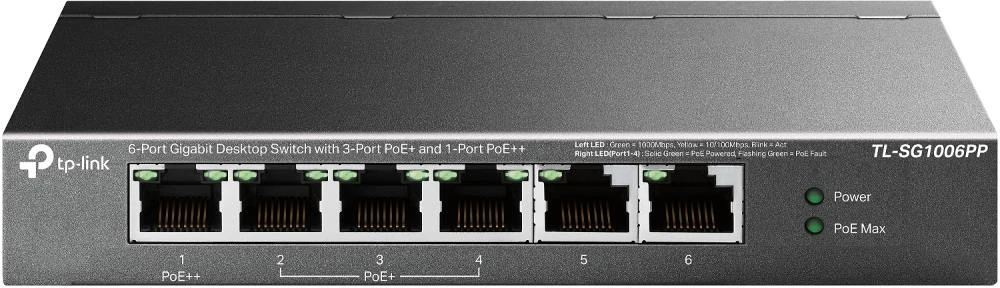

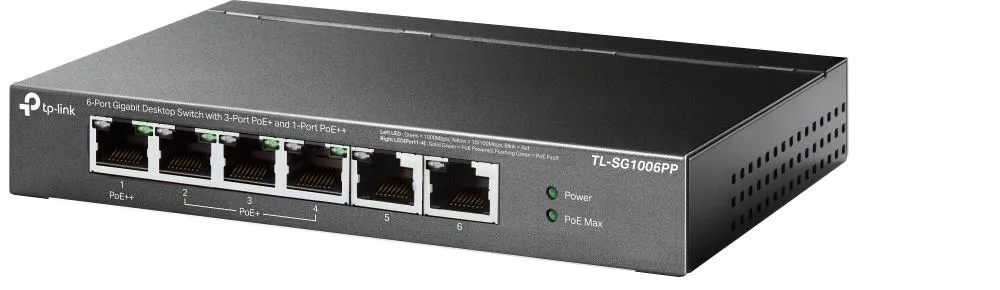

- 6× 10/100/1000 Mbps RJ45 ports

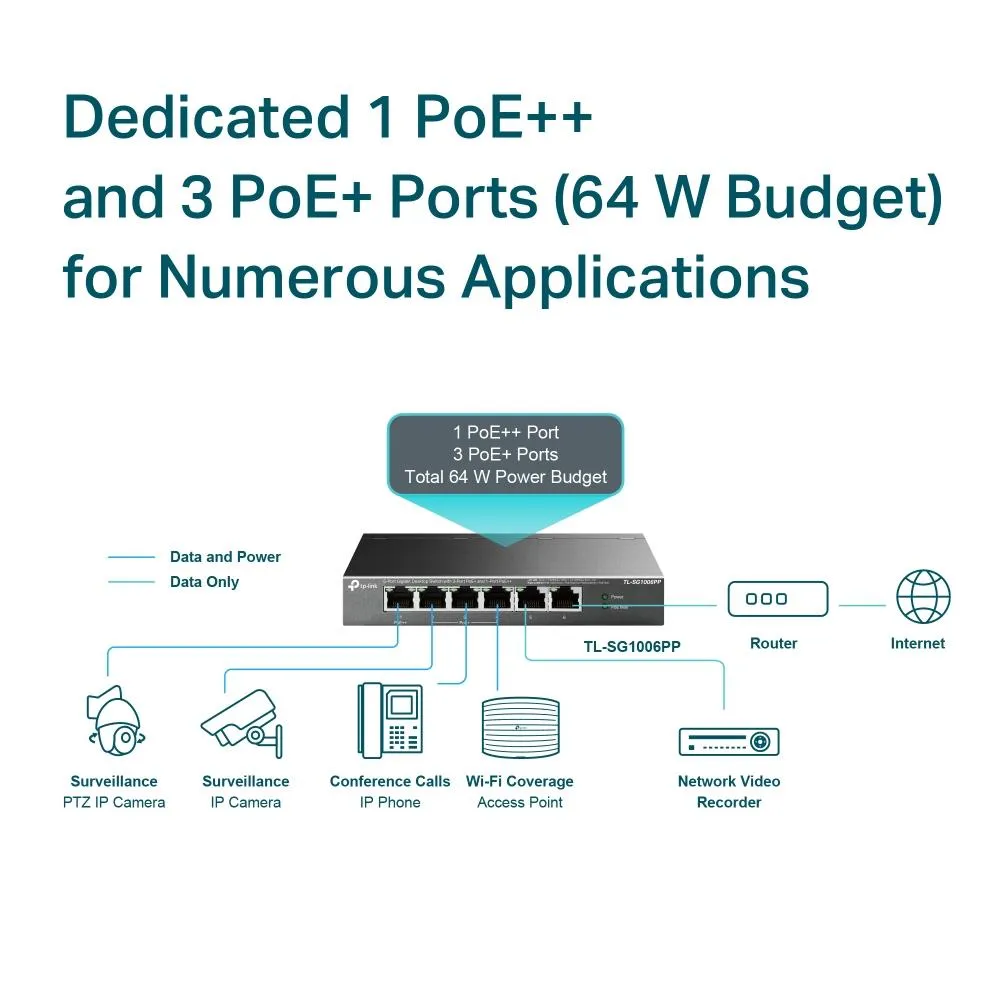

- With one PoE++ port and three PoE+ ports, transfers data and power on one single cable
- Works with IEEE 802.3af/at/bt compliant PDs
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic
- Supports PoE Power up to 30 W for each PoE+ port and 60W for PoE++ port
- Supports PoE Power up to 64 W for all PoE ports*

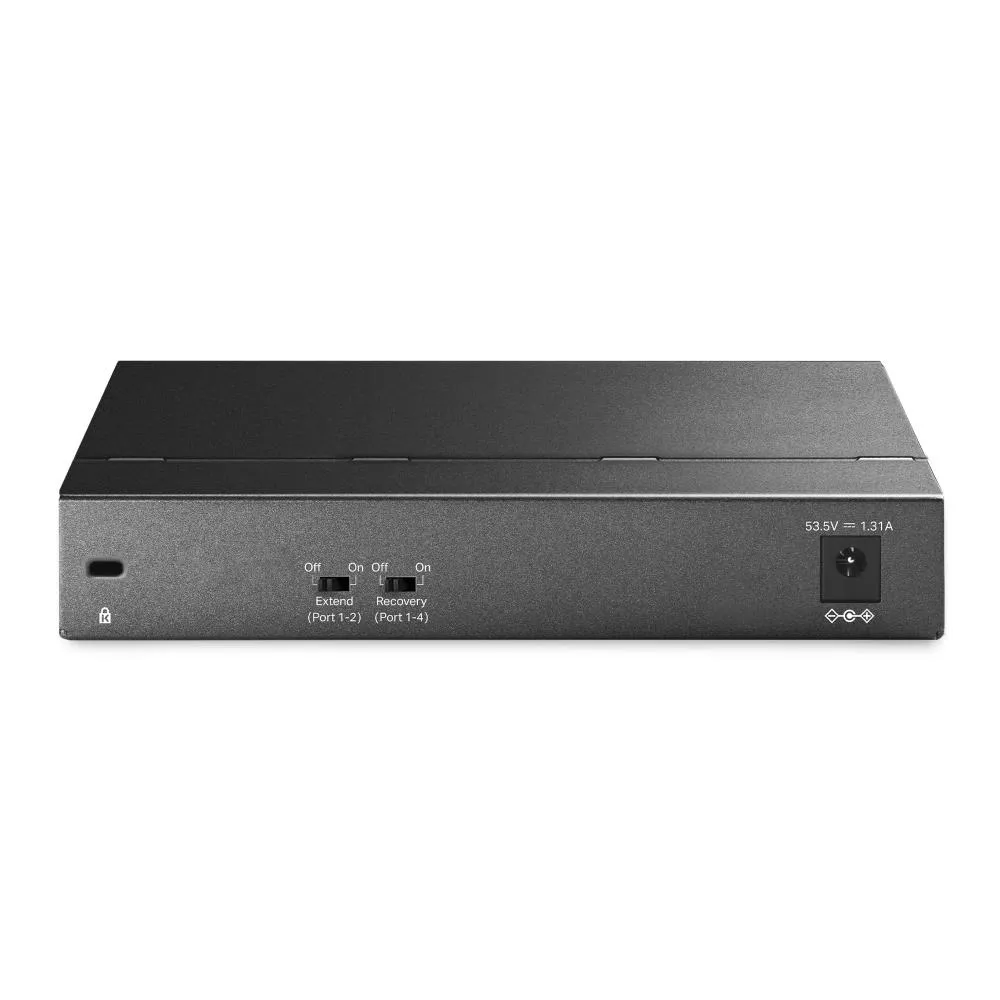

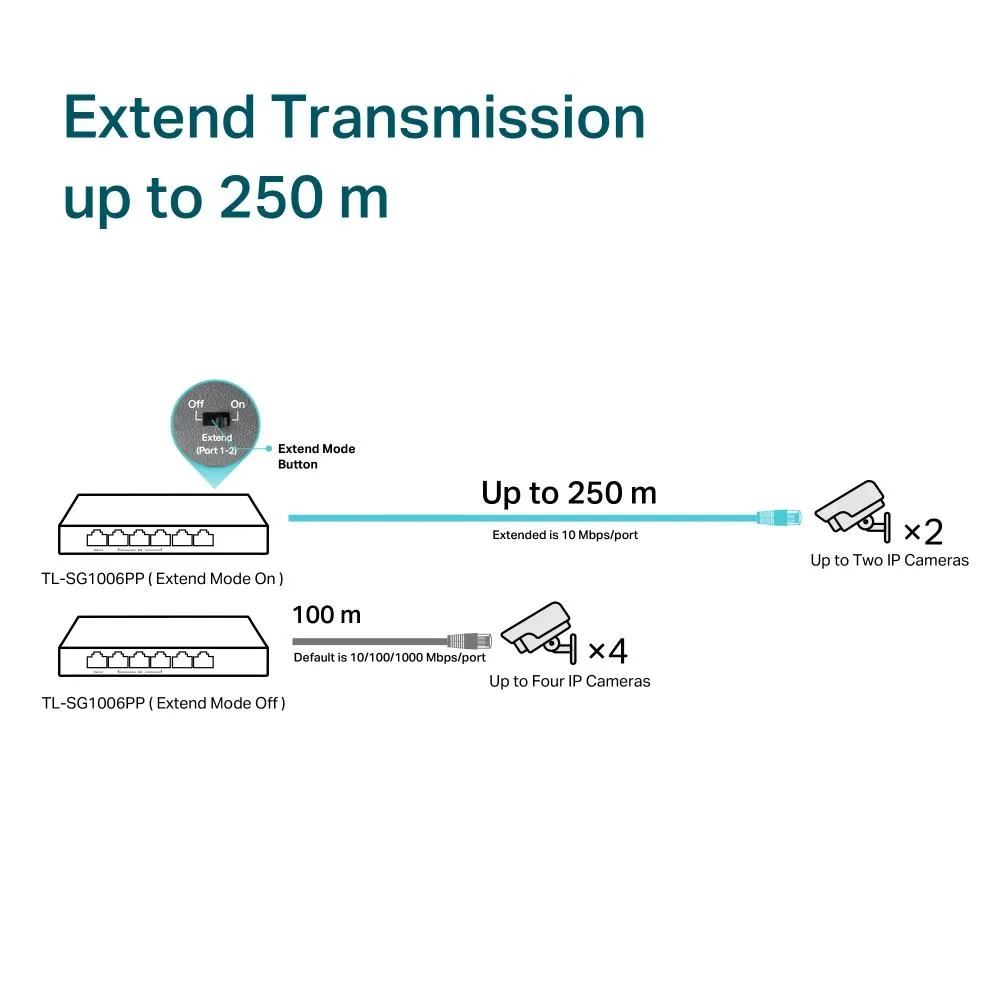

- Up to 250m data and power transmitting range under Extend Mode**

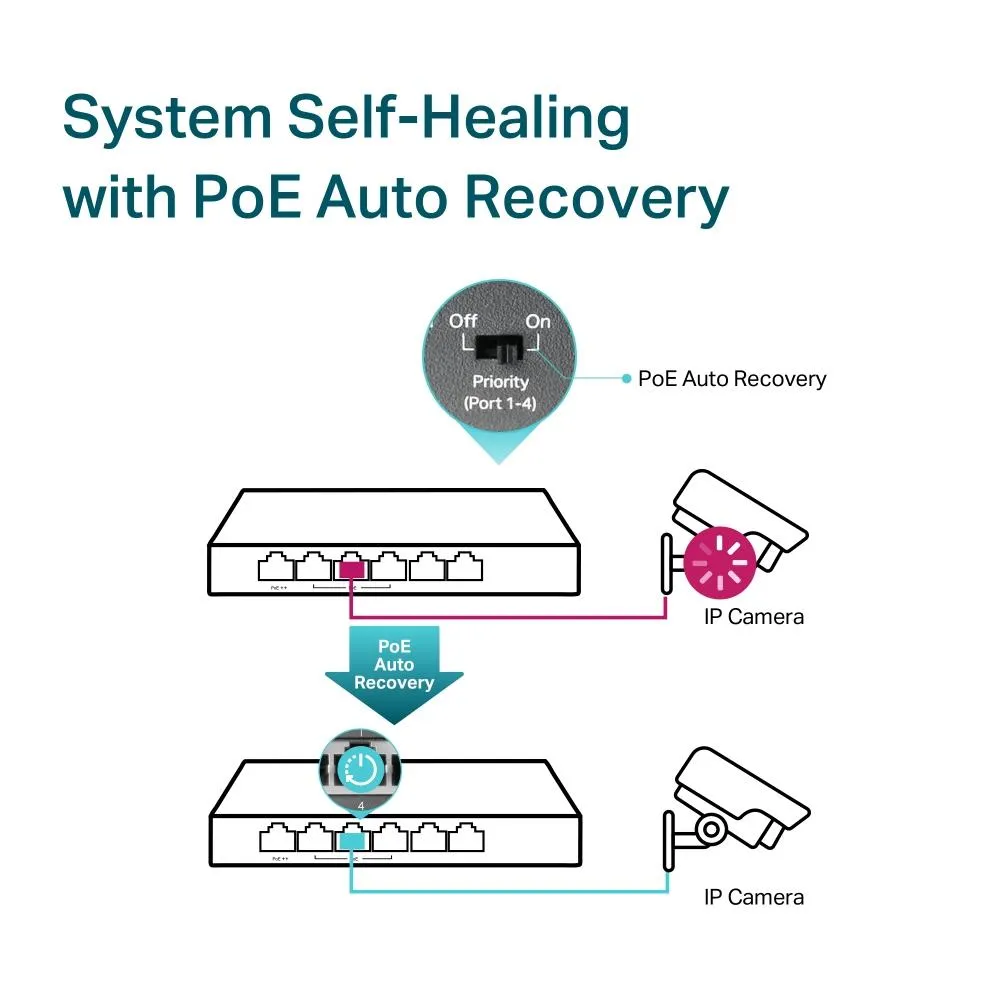

- PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices

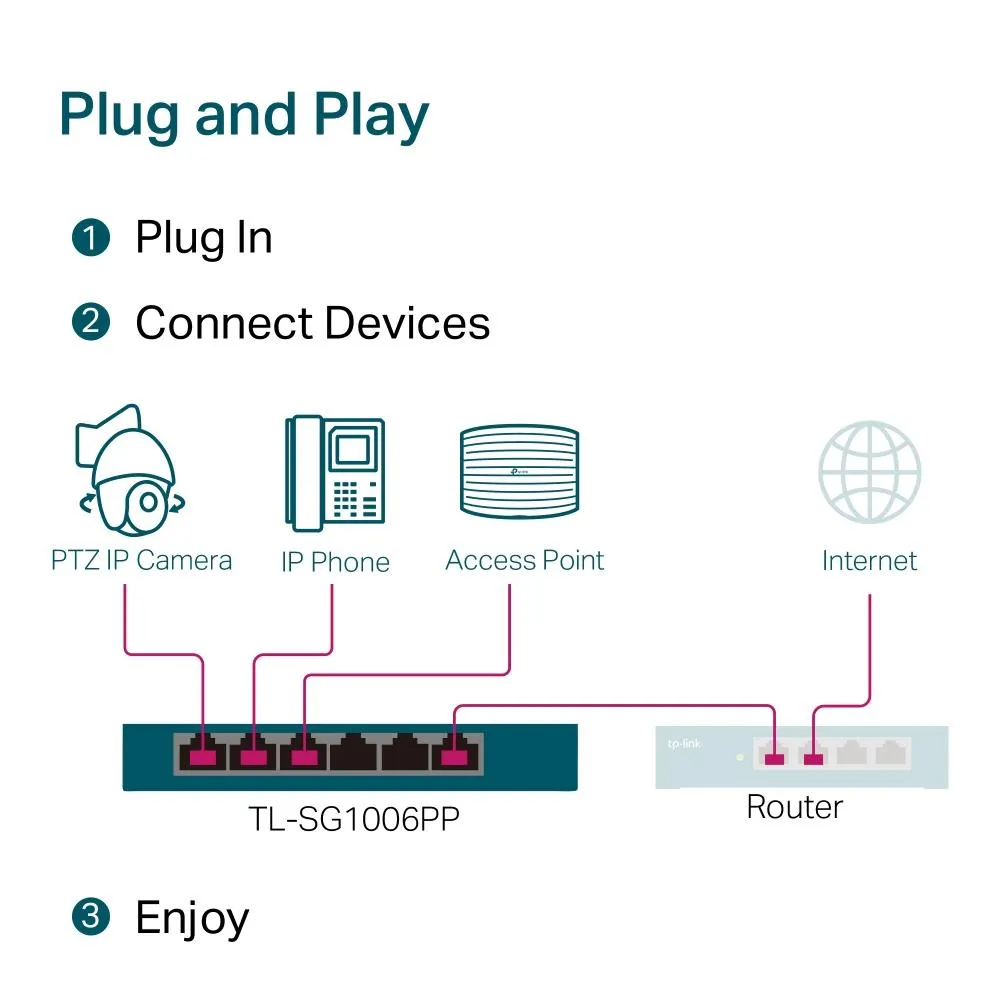

- Plug and Play, no configuration and installation required
*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.
**The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.
.: Üldised andmed :.
- Tootja koduleht
- https://www.tp-link.com/uk/business-networking/unmanaged-switch/tl-sg1006pp/
.: Üldised omadused :.
- Automaatne ühildumine
- Jah
- Virnastatav
- Jah
.: Disain :.
- Toote värv
- Grey
- LED-indikaatorid
- Jah
- Toote värv
- Hall
- LED-indikaatorid
- Jah
.: Toimimine :.
- Ilma ventilaatorita
- Jah
.: Võrgustumine :.
- IGMP-jälgimine
- Jah
- Võrgustandardid
- IEEE 802.1p/IEEE 802.3af/IEEE 802.3at/IEEE 802.3bt/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x
- Automaatse MAC-aadressi aegumise tugi
- Jah
- Automaatse MAC-aadressi tuvastamise tugi
- Jah
- IGMP-jälgimine
- Jah
- Võrgustandardid
- IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
- Voo reguleerimise tugi
- Jah
- Auto MDI/MDI-X
- Jah
- 10G-tugi
- Ei
- Ethernet LAN-i andmeedastuskiirused
- 10,100,1000 Mbit/s
- Ethernet LAN-i andmeedastuskiirused
- 10,100,1000 Mbit/s
.: Pesad & liidesed :.
- Installitud SFP moodulite hulk
- 0
- Installitud SFP+ moodulite hulk
- 0
- Etherneti vaskkaablite tehnoloogia
- 10BASE-T, 100BASE-TX, 1000BASE-T
- RJ-45 Etherneti ühenduse pesade arv
- 6
- RJ-45 Etherneti ühenduse pesade tüüp
- Gigabit Ethernet (10/100/1000)
Võimsus ja energiatarve
- Sisendvool
- 1.31 A
- Power over Ethernet (PoE)
- Jah
- Elektritarbimine (max)
- 71,46 W
- Võimsustarve (tüüpiline)
- 4.75 W
.: Tehnilised andmed :.
- Püstikmontaaž
- Jah
Andmeedastus
- Edastamise kiirus
- 8,928 Mpps
- Ladusta-ja-edasta
- Jah
- MAC-aadresside tabel
- 4000 sisestust
- Lülitusvõime
- 12 Gbit/s
Juhtimisfunktsioonid
- Teenusekvaliteedi (QoS) tugi
- Jah
- Lüliti tüüp
- Mittejuhitav
- Teenusekvaliteedi (QoS) tugi
- Jah
Toide
- Kaasas toiteplokk
- Jah
- Toiteallikas
- DC/PoE
- Toiteallikas
- External
- Toiteallikas
- DC/PoE
Funktsioonid
- Toetatud kaablitüübid
- Cat3, Cat4, Cat5, Cat5e, Cat6
- Mudeli originaalnimi
- 6-Port Gigabit Desktop Switch with 3-Port PoE+ and 1-Port PoE++
Internet elektrivõrgu kaudu (PoE)
- Toide üle võrgu (PoE) pesade arv
- 4
- Toide üle võrgu (PoE) võimsusühikuid kokku
- 64 W
- Power over Ethernet tugi
- Jah
Logistika andmed
- Kogus transpordikasti kohta
- 1
Muud funktsioonid
- Alalisvoolu sisendpinge
- 53.5 V
Töötingimused
- Suhteline õhuniiskus (H-H) hoiustamisel
- 5 - 90 protsenti
- Hoiustamistemperatuur (T-T)
- -40 - 70 °C
- Soojuse hajumine
- 16,2 BTU/h
- Kasutamistemperatuur (T-T)
- 0 - 40 °C
- Suhteline õhuniiskus kasutamisel (H-H)
- 10 - 90 protsenti
- Suhteline õhuniiskus kasutamisel (H-H)
- 10 - 90 %
- Hoiustamistemperatuur (T-T)
- -40 - 70 °C
.: Pakendi sisu :.
- Kiirstardi juhend
- Jah
- Kiirpaigaldusjuhend
- Jah
.: Pakendi andmed :.
- Pakendi tüüp
- Box
◁ SERTIFIKAADID ▷
- Sertifikaat
- FCC, CE, RoHS
Tehnilised andmed
- Rack mounting
- Jah
- Store-and-forward
- Jah
- 10G support
- Ei
- Basic switching RJ-45 Ethernet ports quantity
- 6
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
- Power over Ethernet (PoE) ports quantity
- 4
- Flow control support
- Jah
- DC input voltage
- 53.5 V
- Copper ethernet cabling technology
- 1000BASE-T/100BASE-TX/10BASE-T
- Fanless
- Jah
- Unit Box Height
- 0.13
- Unit Box Length
- 0.195
- Unit Box Width
- 0.12
- CnCode
- 85176200
- Unit Calculated Volume
- 0.003042 cubm
- Unit Calculated Weight
- 0.88 kg
- Summary
- TP-Link 6-Port Gigabit Desktop Switch with 3-Port PoE+ and 1-Port PoE++. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 6. MAC address table: 4000 entries, Switching capacity: 12 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. DC input voltage: 53.5 V. Power over Ethernet (PoE). Rack mounting
- Cable types supported
- Cat3/Cat4/Cat5/Cat5e/Cat6
- MAC address auto-aging supported
- Jah
- MAC address auto-learning supported
- Jah
- Power supply included
- Jah
- 10Base-T / 100Base-TX / 1000Base-T
- 6
- Auto-negotiation
- Jah
- Certification
- FCC, CE, RoHS
- Desktop/pedestal
- Jah
- Forwarding rate
- 8.928 Mpps
- Heat dissipation
- 16.2 BTU/h
- MAC address table
- 4000 entries
- PoE+ ports
- 4
- Primary port count
- 6
- Stackable
- Jah
- Storage relative humidity (H-H)
- 5 - 90 %
- Switch type
- Unmanaged
- Switching capacity
- 12 Gbit/s
- Switching method
- Store-and-forward
- Total Power over Ethernet (PoE) budget
- 64 W
Tehnilised andmed
- Netokaal
- 0.6 kg
- Laius
- 158 mm
- Laius
- 158 mm
- Sügavus
- 101 mm
- Kõrgus
- 25 mm
- Mõõtmed (l x s x k)
- 158x101x25 mm
- Sügavus
- 101 mm
- Kõrgus
- 25 mm
