Switch|TP-LINK|TL-SG1005P-PD|Desktop/pedestal|5x10Base-T / 100Base-TX / 1000Base-T|PoE+ ports 5|TL-SG1005P-PD
E1
Vajad toodet suuremas koguses või püsitellimust?
Võta ühendust meie klienditoega info[at]digipood.eu
- Ports: 5× 10 Mbps/100 Mbps/1 Gbps RJ45 ports
- 1-Port Gigabit PoE++ In and 4-Port PoE+ Out: Supports up to 66 W / 47 W / 21 W/ 9 W PoE budget output when powered by 802.3bt Type 4, 802.3bt Type 3, 802.3at, and 802.3af PoE standard, respectively.*
- Long-Range PoE+: With Extend Mode**, PoE transmission distance reaches up to 250 m, perfect for surveillance camera deployment in large areas.
- PoE Auto Recovery: It guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices.

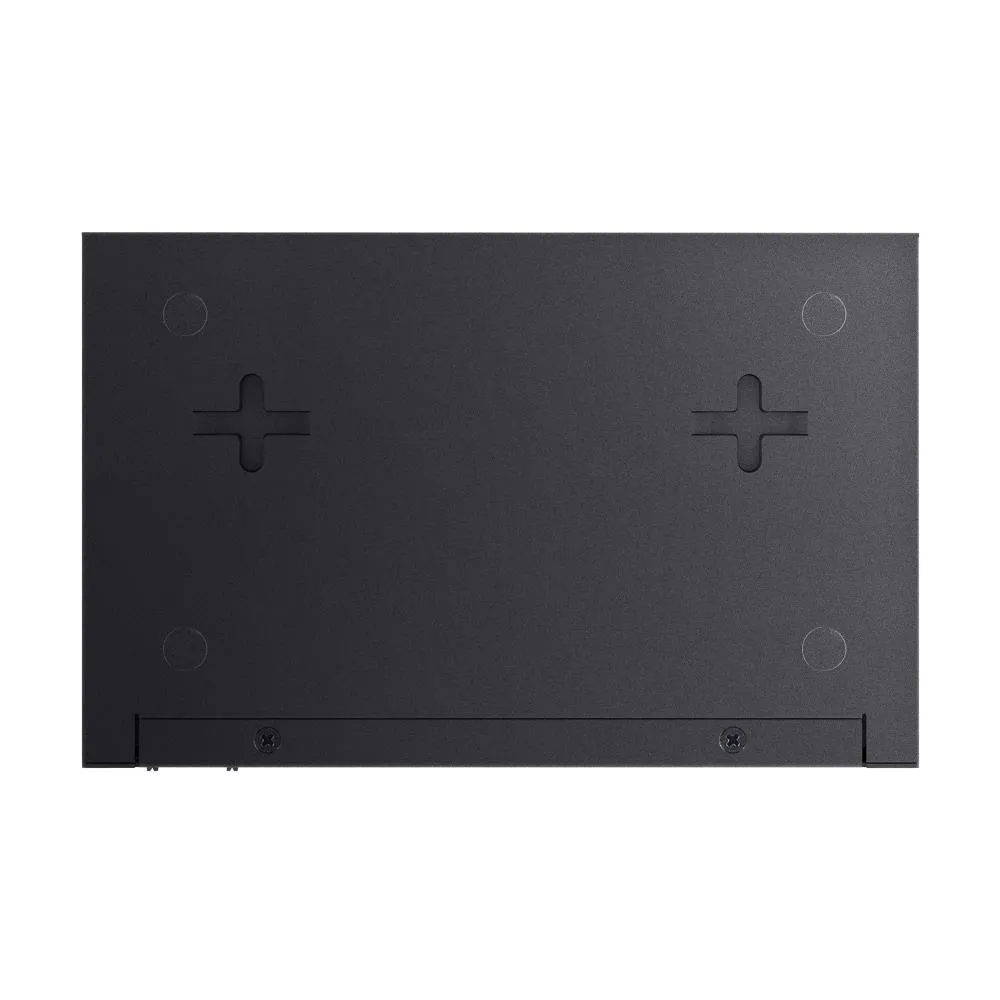

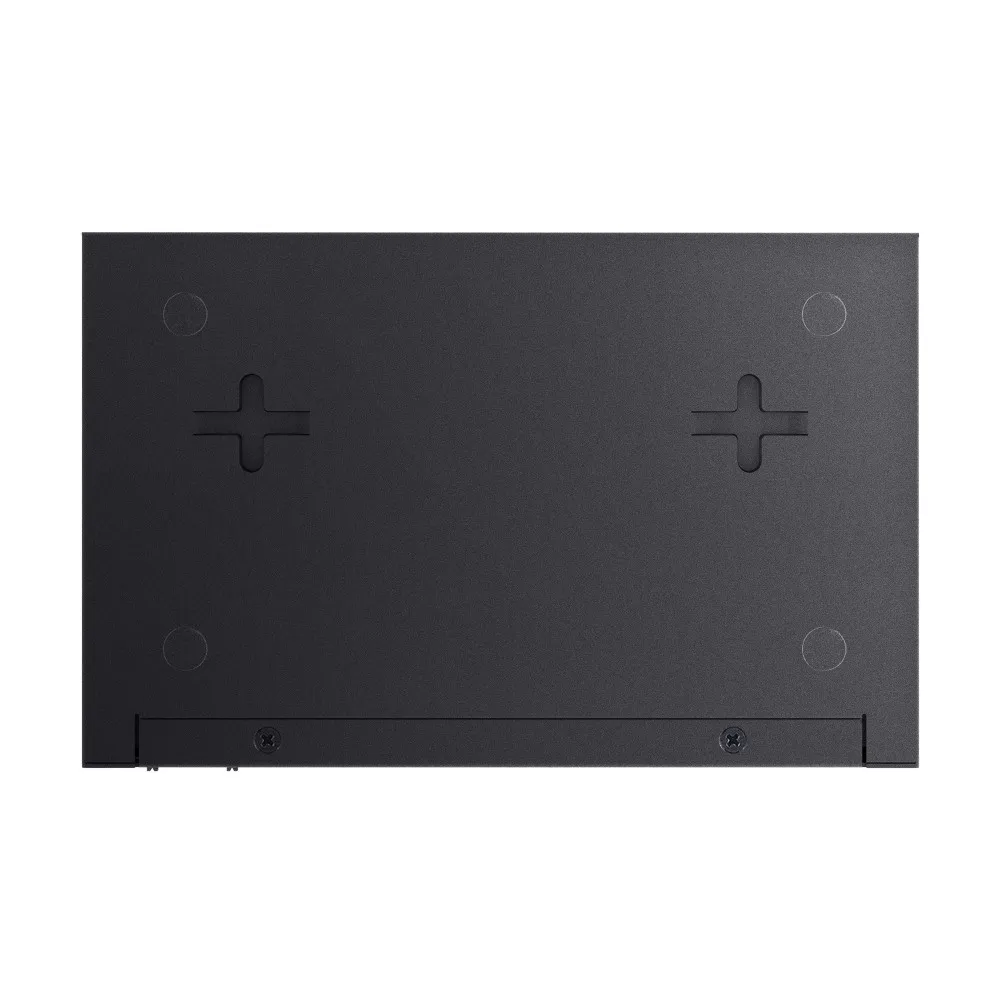

- Metal Casing: Durable metal casing and desktop/wall-mounting design are well-suited for different environments.
- Silent Operation: Industry-leading fanless design ensures silent operation, ideal for any home or business.
- Plug and Play: No configuration and installation required.
- Power Supply: The product only supports PoE power supply, not AC or DC power supply.
Ideal for Mains-Free Environments
Powered by a PoE++ switch or PoE++ injector, no additional DC adapter is required.
- Scenarios without mains power
- Powered by PoE++/PoE+/PoE
Power over Ethernet, Flexible Network Deployment
Supports up to 66W/47W/21W/9W PoE budget output when powered by 802.3bt Type 4 (90 W), 802.3bt Type 3 (60 W), 802.3at, and 802.3af PoE, respectively.* The PoE-PD switch automatically detects the required PoE power for your devices and protects your non-PoE equipment from being damaged.
- Access Point
- IP Phone
- IP Camera
- 4K Video
- Network Video Recorder
- Computer
Instantaneous Multi-mode Toggles, Ideal for IP Surveillance
- Extend Mode. Up to 250m Transmissions. With extend mode, the PoE transmission distance reaches up to 250 m** —perfect for IP Camera deployment in large areas.
- Recovery Mode. PoE Auto Recovery. Recovery mode helps automatically detect and reboot PD devices, such as cameras and APs, when they fall offline or go unresponsive—all without needing manual monitoring and restarts.
- Powered by PoE++/PoE+/PoE
- Up to 66 W PoE Budget*
- Long-Range PoE+ (250 m**)
- PoE Auto Recovery
- Plug and Play
- Multicast Optimization
- Silent Operation
- Durable Metal Casing
.: Üldised andmed :.
- Tootja koduleht
- https://www.tp-link.com/eg/business-networking/omada-switch-unmanaged/tl-sg1005p-pd/#highlights
.: Üldised omadused :.
- Automaatne ühildumine
- Jah
.: Disain :.
- Toote värv
- Black
- LED-indikaatorid
- Jah
- Seinale kinnitatav
- Jah
- Toote värv
- Must
- LED-indikaatorid
- Jah
.: Toimimine :.
- Ilma ventilaatorita
- Jah
.: Võrgustumine :.
- IGMP-jälgimine
- Jah
- Võrgustandardid
- IEEE 802.1p/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3bt/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x
- Automaatse MAC-aadressi aegumise tugi
- Jah
- Automaatse MAC-aadressi tuvastamise tugi
- Jah
- IGMP-jälgimine
- Jah
- Võrgustandardid
- IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
- Voo reguleerimise tugi
- Jah
- Auto MDI/MDI-X
- Jah
- 10G-tugi
- Jah
.: Pesad & liidesed :.
- Installitud SFP moodulite hulk
- 0
- Installitud SFP+ moodulite hulk
- 0
- Etherneti vaskkaablite tehnoloogia
- 10BASE-T, 100BASE-TX, 1000BASE-T
- RJ-45 Etherneti ühenduse pesade arv
- 5
- RJ-45 Etherneti ühenduse pesade tüüp
- Gigabit Ethernet (10/100/1000)
Võimsus ja energiatarve
- Power over Ethernet (PoE)
- Jah
- Elektritarbimine (max)
- 68,59 W
Jahutus
- Ventilaatorite arv
- 0 ventilaator(id)
Andmeedastus
- Edastamise kiirus
- 7,44 Mpps
- Ladusta-ja-edasta
- Jah
- MAC-aadresside tabel
- 2000 sisestust
- Lülitusvõime
- 10 Gbit/s
Juhtimisfunktsioonid
- Teenusekvaliteedi (QoS) tugi
- Jah
- Teenusekvaliteedi (QoS) tugi
- Jah
Toide
- Kaasas toiteplokk
- Ei
- Toiteallikas
- Internet elektrivõrgu kaudu (PoE)
Funktsioonid
- Toetatud kaablitüübid
- Cat3, Cat4, Cat5, Cat5e, Cat6
- Mudeli originaalnimi
- TL-SG1005P-PD
Internet elektrivõrgu kaudu (PoE)
- Toide üle võrgu (PoE) pesade arv
- 5
- Toide üle võrgu (PoE) võimsusühikuid kokku
- 66 W
- Power over Ethernet tugi
- Jah
Logistika andmed
- Kogus transpordikasti kohta
- 1
Töötingimused
- Suhteline õhuniiskus (H-H) hoiustamisel
- 5 - 90 protsenti
- Hoiustamistemperatuur (T-T)
- -40 - 70 °C
- Soojuse hajumine
- 233,206 BTU/h
- Kasutamistemperatuur (T-T)
- -30 - 70 °C
- Suhteline õhuniiskus kasutamisel (H-H)
- 10 - 90 protsenti
- Suhteline õhuniiskus kasutamisel (H-H)
- 10 - 90 %
- Hoiustamistemperatuur (T-T)
- -40 - 70 °C
.: Pakendi andmed :.
- Kasutusjuhend
- Jah
- Pakendi tüüp
- Box
- Max kogus transpordipakendis
- 1
- Pakendi maht
- 0.001267 cubm
- Transpordipakendi kaal
- 0.5 kg
- Transpordipakendi kõrgus
- 5 cm
- Transpordipakendi laius
- 13 cm
- Transpordipakendi sügavus
- 19.5 cm
◁ SERTIFIKAADID ▷
- Sertifikaat
- CE, FCC, RoHS
Tehnilised andmed
- Fanless
- Jah
- MAC address auto-aging supported
- Jah
- Cable types supported
- Cat3/Cat4/Cat5/Cat5e/Cat6
- MAC address auto-learning supported
- Jah
- Summary
- TP-Link TL-SG1005P-PD. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u,.... Power over Ethernet (PoE). Wall mountable
- Unit Calculated Weight
- 0.5 kg
- Product Net Weight
- 0.3 kg
- Unit Calculated Volume
- 0.001267 cubm
- CnCode
- 85176200
- Unit Box Width
- 0.13
- Unit Box Length
- 0.195
- Unit Box Height
- 0.05
- User guide
- Jah
- Wall mountable
- Jah
- Copper ethernet cabling technology
- 1000BASE-T/100BASE-TX/10BASE-T
- Flow control support
- Jah
- Power over Ethernet (PoE) ports quantity
- 5
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
- Basic switching RJ-45 Ethernet ports quantity
- 5
- 10G support
- Jah
- Store-and-forward
- Jah
- Power supply included
- Ei
- 10Base-T / 100Base-TX / 1000Base-T
- 5
- Auto-negotiation
- Jah
- Certification
- CE, FCC, RoHS
- Desktop/pedestal
- Jah
- Forwarding rate
- 7.44 Mpps
- Heat dissipation
- 233.206 BTU/h
- MAC address table
- 2000 entries
- PoE+ ports
- 5
- Power Source
- PoE
- Primary port count
- 5
- Storage relative humidity (H-H)
- 5 - 90 %
- Switching capacity
- 10 Gbit/s
- Total Power over Ethernet (PoE) budget
- 66 W
Tehnilised andmed
- Laius
- 158 mm
- Netokaal
- 0.3 kg
- Brutokaal
- 0.5 kg
- Laius
- 158 mm
- Sügavus
- 101 mm
- Kõrgus
- 25 mm
- Mõõtmed (l x s x k)
- 158 × 101 × 25 mm
- Sügavus
- 101 mm
- Kõrgus
- 25 mm
