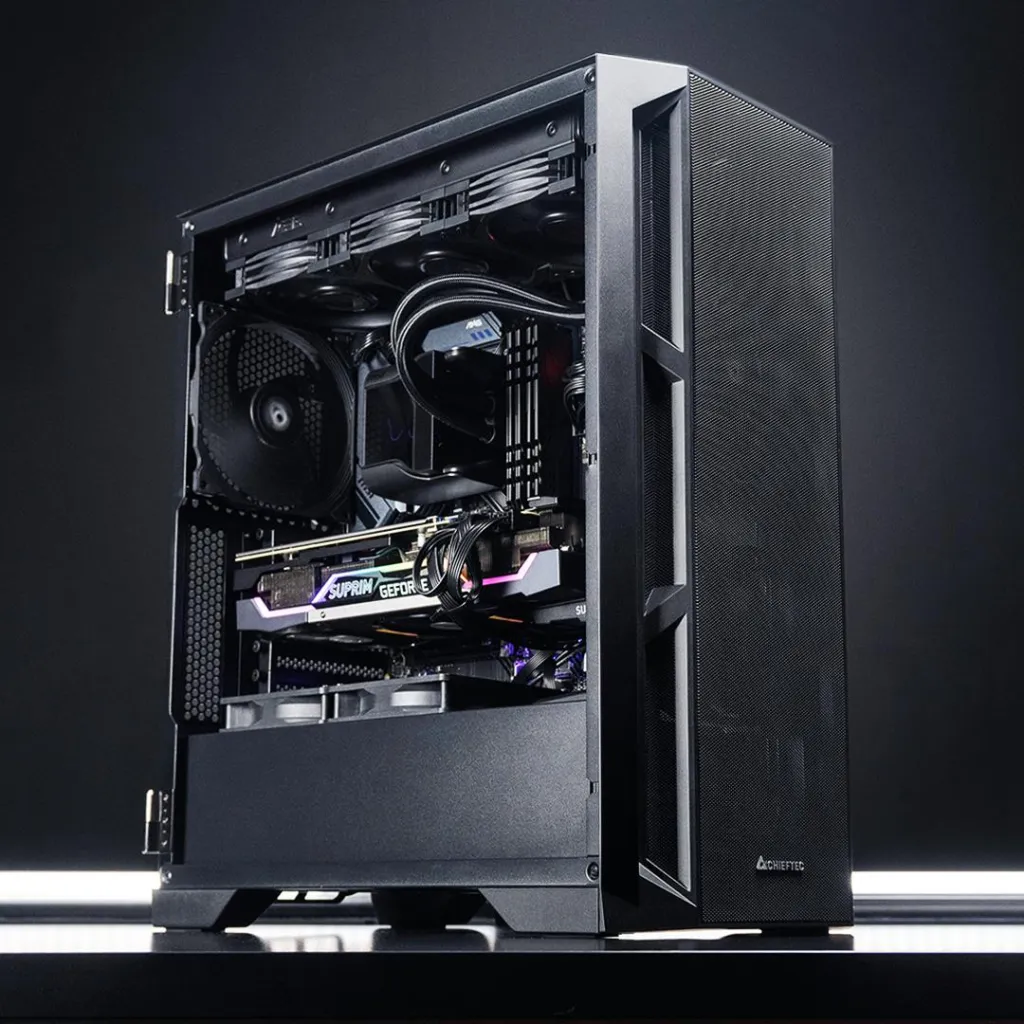

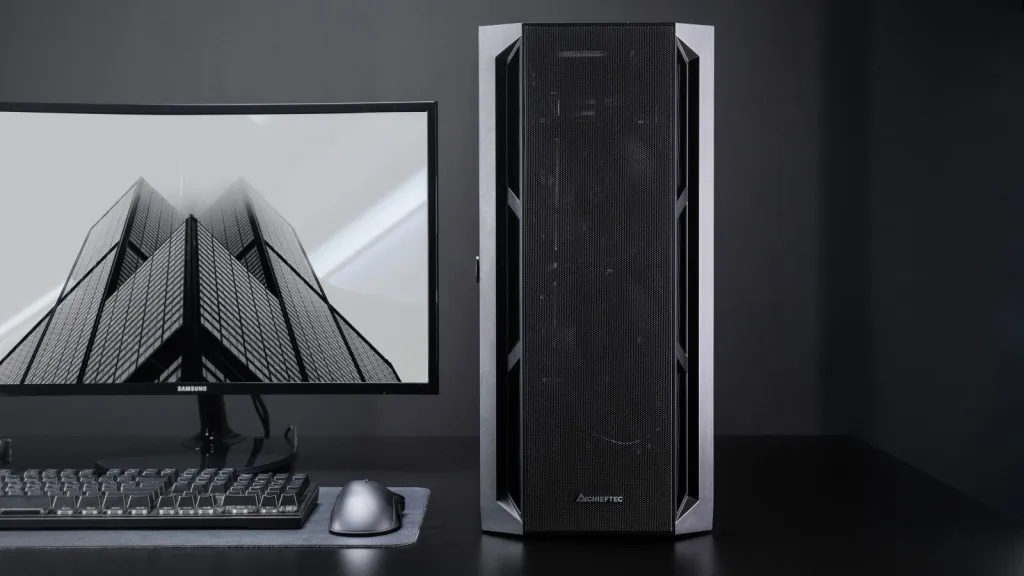

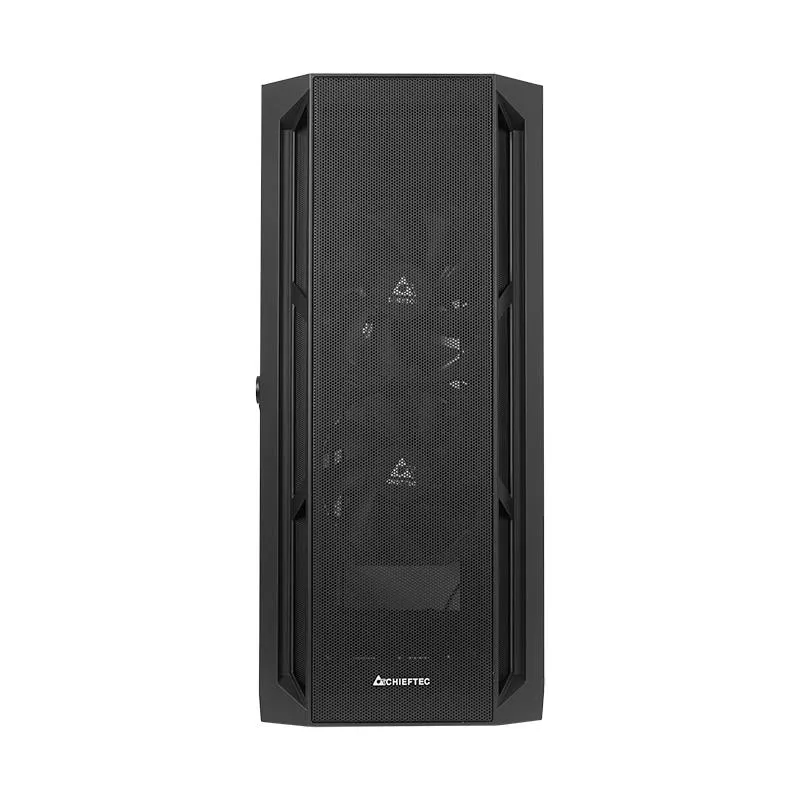

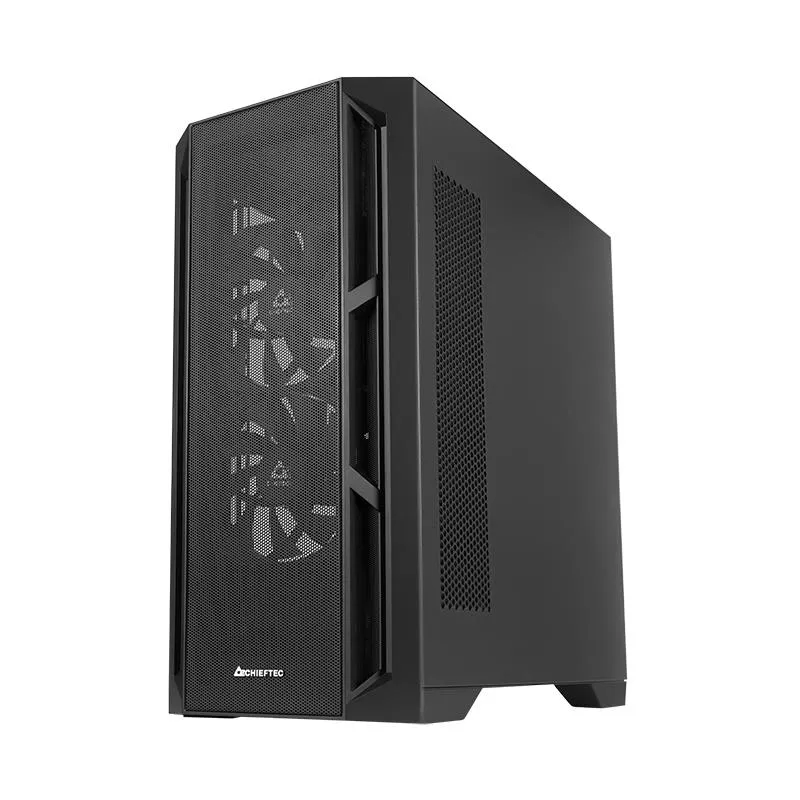

The CHIEFTEC APEX AIR presents an E-ATX chassis with a large mesh front panel and three pre-installed 140mm PWM fans that, in combination, are designed to enable high-airflow systems while maintaining low noise.

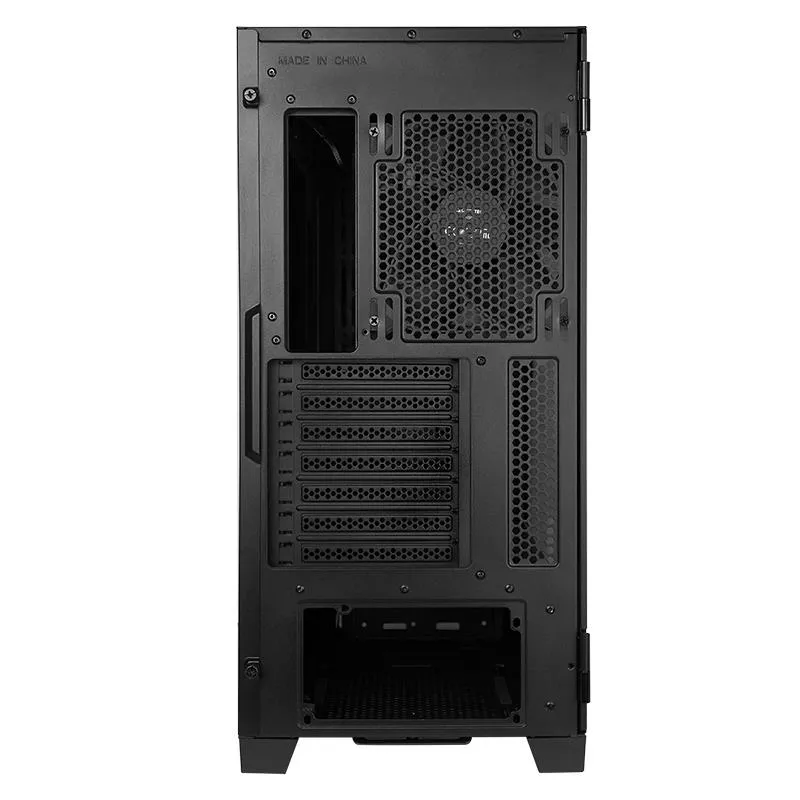

APEX AIR‘s 3x 140mm PWM fans are configured with 2 pre-installed in the front and 1 pre-installed in the rear, which creates a smooth airflow path from the front intake to rear exhaust.
The case is generous with space, offering support for GPU‘s up to 400 mm in length, CPU coolers up to 175mm in height and radiator support up to 360mm on the top, as well as up to 420mm in the front.
CHIEFTEC APEX AIR is ready to bring more airflow and better cooling to modern gaming systems.
| Tootja | CHIEFTEC |
| Tootekood | GA-01B-M-OP |
| EAN | 0753263078537 |
| Google link | lisainfo |
| Garantiiaeg | 24 kuud |
| .: Üldised andmed :. | |
| Seadme tüüp | PC |
| Tootja koduleht | https://www.chieftec.eu/products-detail/570/GA-01B-M-OP |
| .: Üldised omadused :. | |
| Impulsi-laiuse modulatsiooni (PWM) tugi | Jah |
| Sobilik | Mängimine |
| .: Disain :. | |
| RGB-juhtnupp | Jah |
| Toote kuju | Midi Tower |
| Täiskõrgusel laienduspesad | 7 |
| Kujutegur | Midi Tower |
| Tempered glass panel(s) | Jah |
| Toonitud klaaspaneel(id) | Jah |
| Toote värv | Black |
| 2,5" salvede arv | 2 |
| 3,5" lahtrite arv | 2 |
| 5,25" lahtrite arv | 0 |
| Aknaga | Jah |
| CPU jahuti maksimaalne kõrgus | 17,5 cm |
| Emaplaadi toetatud kujutegurid | ATX, EATX, Mikro ATX, Mini-ITX |
| Graafikakaardi maksimaalne pikkus | 40 cm |
| Laienduspesade arv | 7 |
| Materjali paksus | 0,6 mm |
| Sisemiste 3,5" salvede arv | 2 |
| Toiteploki maksimaalne pikkus | 22 cm |

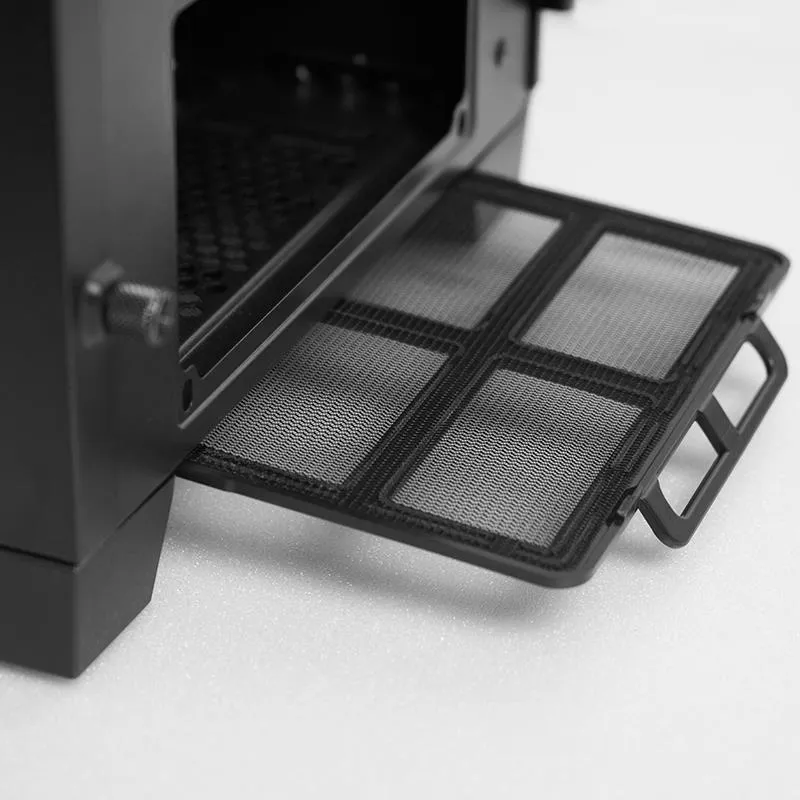

| Tolmuvastane filter | Jah |
| Toote värv | Must |
| Tüüp | PC |
| Valgustus | Ei |
| .: Mälu :. | |
| Toetatud ketaste arv | 5 |
| Toetatud kõvakettasuurused | 2.5,3.5" |

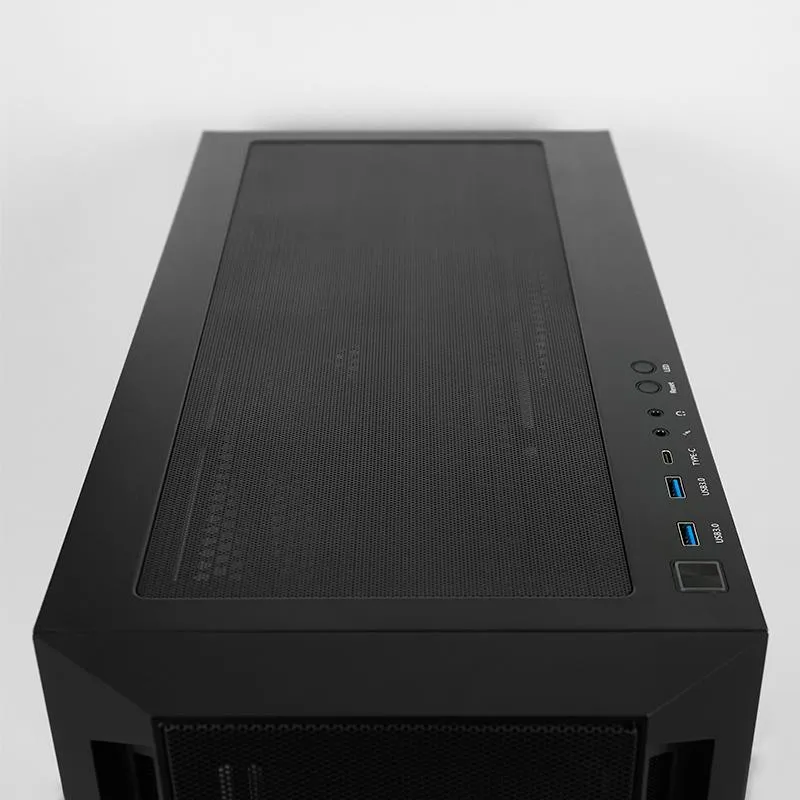

| .: Pesad & liidesed :. | |
| USB Type-C ports quantity | 1 |
| USB C-tüüpi portide arv | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) A-tüüpi portide hulk | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) C-tüüpi portide hulk | 1 |
| Audiosisend | Jah |
| Audioväljund | Jah |
| USB 2.0 portide arv | 0 |
| USB 3.0 | 2 |
| Audioväljund | 1 |
| Jahutus | |
| Eesmised radiaatorid, erinevad suurused saadaval | 240,280,360,420 mm |
| Külgmised radiaatorid, erinevad suurused | 240 mm |
| Ülemised radiaatorid, erinevad suurused saadaval | 240,280,360 mm |
| Installitud ülemised ventilaatorid | 3x 120 mm, 2x 140 mm |
| Installitud tagaventilaatorid | 1x 140 mm |
| Maksimaalne ülemiste ventilaatorite arv | 3 |
| Maksimaalne alumiste ventilaatorite arv | 2 |
| Toetatud alumiste ventilaatorite läbimõõt | 120 mm |
| Vedelikjahutus | Jah |
| Installitud esiventilaatorid | 2x 140 mm |
| Maksimaalne esiventilaatorite arv | 3 |
| Toetatud esiventilaatorite läbimõõt | 120,140 mm |
| Maksimaalne küljeventilaatorite arv | 2 |
| Toetatud küljeventilaatorite läbimõõt | 120 mm |
| Maksimaalne tagaventilaatorite arv | 1 |
| Toetatud tagaventilaatorite läbimõõt | 120,140 mm |
| Tagapaneeli I/O pesad | |
| USB 3.2 Gen 2 (3.1 Gen 2) A-tüüpi portide hulk | 0 |
| Toide | |
| Toiteploki asukoht | Põhi |
| Toiteallika kate | Jah |
| Kaasas toiteplokk | Ei |
| Ergonoomika | |
| On/off nupp | Jah |

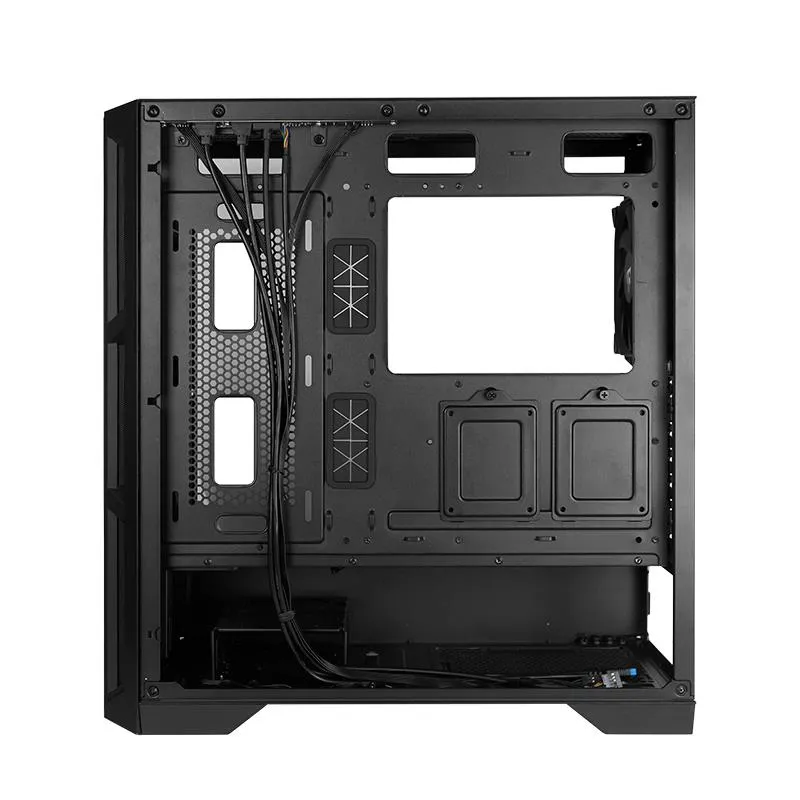

| Juhtmehaldus | Jah |
| Lähtestusnupp | Jah |
| Funktsioonid | |
| Mudeli originaalnimi | APEX AIR |
| .: Kaal ja mõõtmed :. | |
| Toote kaal | 7,3 kg |
| Laius | 230 mm |
| Laius | 230 mm |
| Sügavus | 465 mm |
| Kõrgus | 495 mm |
| Mõõtmed (l x s x k) | 465 x 230 x 495 mm |
| Sügavus | 465 mm |
| Kõrgus | 495 mm |
| Toote kaal | 7300 g |
| .: Pakendi sisu :. | |
| Tarvikud kaasa arvatud | Set of screws, instruction manual Front: 2x 140mm PWM fans pre-installed Rear: 1x 140mm PWM fan pre-installed |
| .: Pakendi andmed :. | |
| Pakendi kaal | 8,75 kg |
| Muud andmed | |
| Top fans installed | 3x 120 mm, 2x 140 mm |
| Cable management | Jah |
| Power supply location | Bottom |
| Suitable for | Gaming |
| Reset button | Jah |
| Liquid cooling capability | Jah |
| Side fans diameters supported | 120 mm |
| Number of storage drives supported | 5 |
| Maximum PSU length | 220 mm |
| Material thickness | 0.6 mm |
| Anti-dust filter | Jah |
| Unit Box Height | 0.535 |
| Unit Box Length | 0.555 |
| Unit Box Width | 0.295 |
| CnCode | 84733080 |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.08759 cubm |
| Product Net Weight | 7.3 kg |
| Unit Calculated Weight | 8.6 kg |
| Summary | Chieftec APEX AIR GA-01B-M-OP ATX. Form factor: Midi Tower, Type: PC, Product colour: Black. Power supply location: Bottom. Front fans installed: 2x 140 mm, Front fans diameters supported: 120,140 mm, Side fans diameters supported: 120 mm. Supported HDD sizes: 2.5,3.5". Width: 230 mm, Depth: 465 mm, Height: 495 mm |
| Product colour | Black |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| On/off button | Jah |
| Number of front fans supported (max) | 3 |
| Number of rear fans supported (max) | 1 |
| Supported HDD sizes | 2.5/3.5 " |
| Full-Height expansion slots | 7 |
| Number of top fans supported (max) | 3 |
| RGB control button | Jah |
| Number of bottom fans supported (max) | 2 |
| Power supply shroud | Jah |
| Number of side fans supported (max) | 2 |
| Pulse-width modulation (PWM) support | Jah |
| Side radiator sizes supported | 240 mm |
| Front fans installed | 2x 140 mm |
| Illumination | Ei |
| Maximum graphics card length | 400 mm |
| Number of 2.5" bays | 2 |
| Number of 3.5" bays | 2 |
| Number of expansion slots | 7 |
| Number of internal 3.5" bays | 2 |
| Power supply included | Ei |
| Rear fans installed | 1x 140 mm |
| Side window | Jah |
| Supported motherboard form factors | ATX/EATX/micro ATX/Mini-ITX |
| 2.5" Internal | 3 |
| 3.5" Internal | 2 |
| ATX | Jah |
| Audio Input | Jah |
| Audio Output | Jah |
| Bottom fans diameters supported | 120 mm |
| Case Type | MidiTower |
| Front fans diameters supported | 120/140 mm |
| Front radiator sizes supported | 240/280/360/420 mm |
| Material | SPCC |
| Maximum CPU cooler height | 175 mm |
| MicroATX | Jah |
| MiniITX | Jah |
| Package weight | 8750 g |
| PSU | Not included |
| Rear fans diameters supported | 120/140 mm |
| Top radiator sizes supported | 240/280/360 mm |
| USB-C | 1 |
