Mainboard|ASUS|AMD B650|SAM5|ATX|Memory DDR5|Memory slots 4|1xPCI-Express 3.0 1x|2xPCI-Express 3.0 16x|1xPCI-Express 4.0 16x|3xM.2|1xHDMI|1xDisplayPort|3xUSB 2.0|4xUSB 3.2|1xUSB-C|1xRJ45|5xAudio port|TUFGAMINGB650-EWIFI
E1
Vajad toodet suuremas koguses või püsitellimust?
Võta ühendust meie klienditoega info[at]digipood.eu
Kuumakse al. 7.98 €. Taotle järelmaksu ostukorvis.

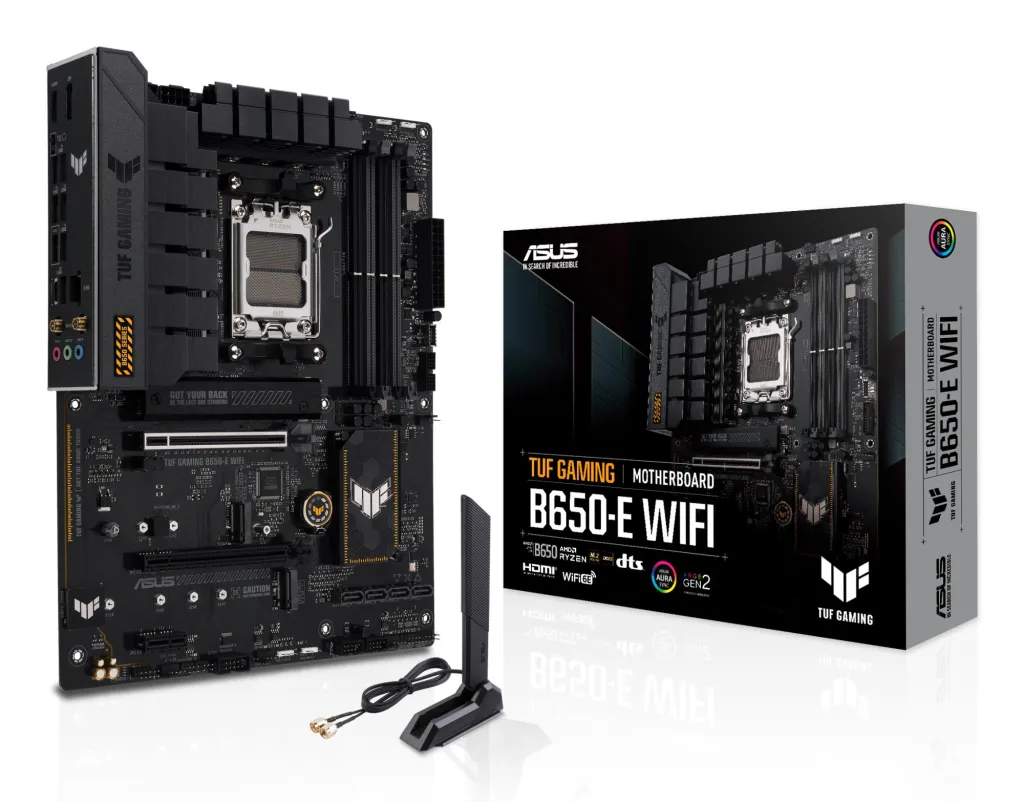

B650-E WIFI

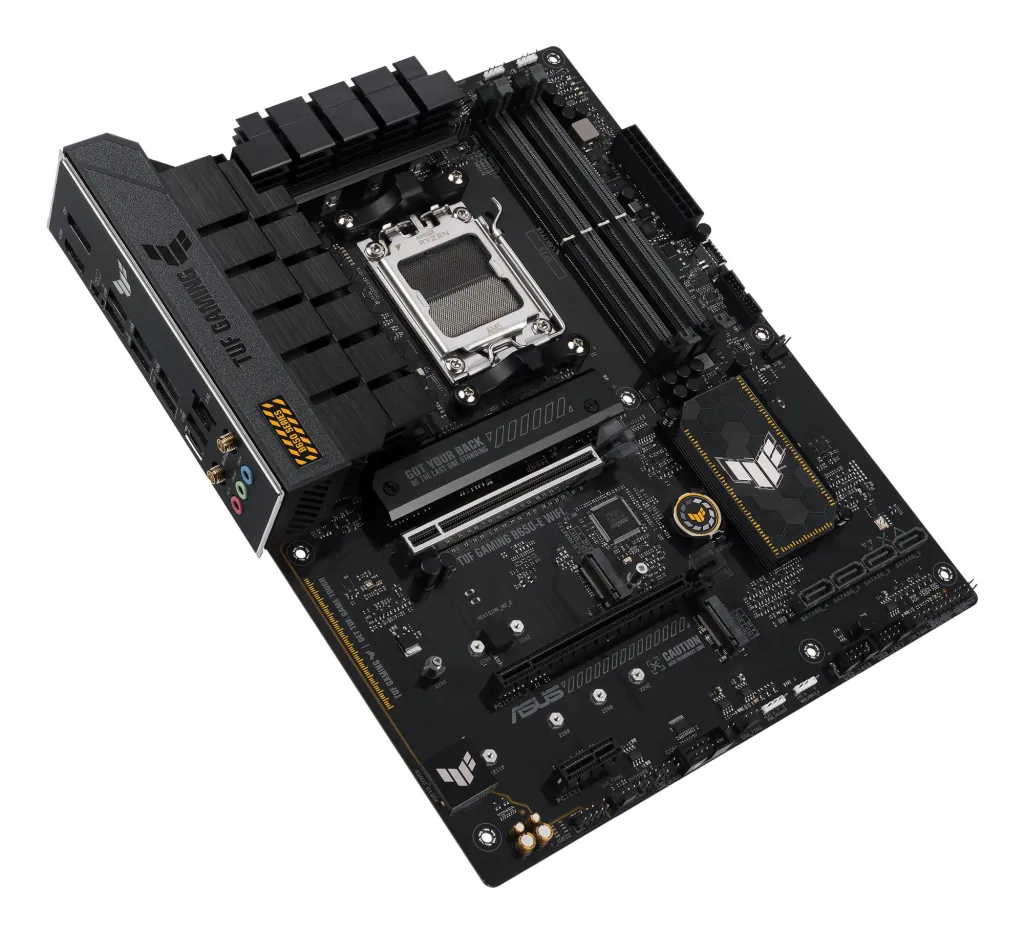

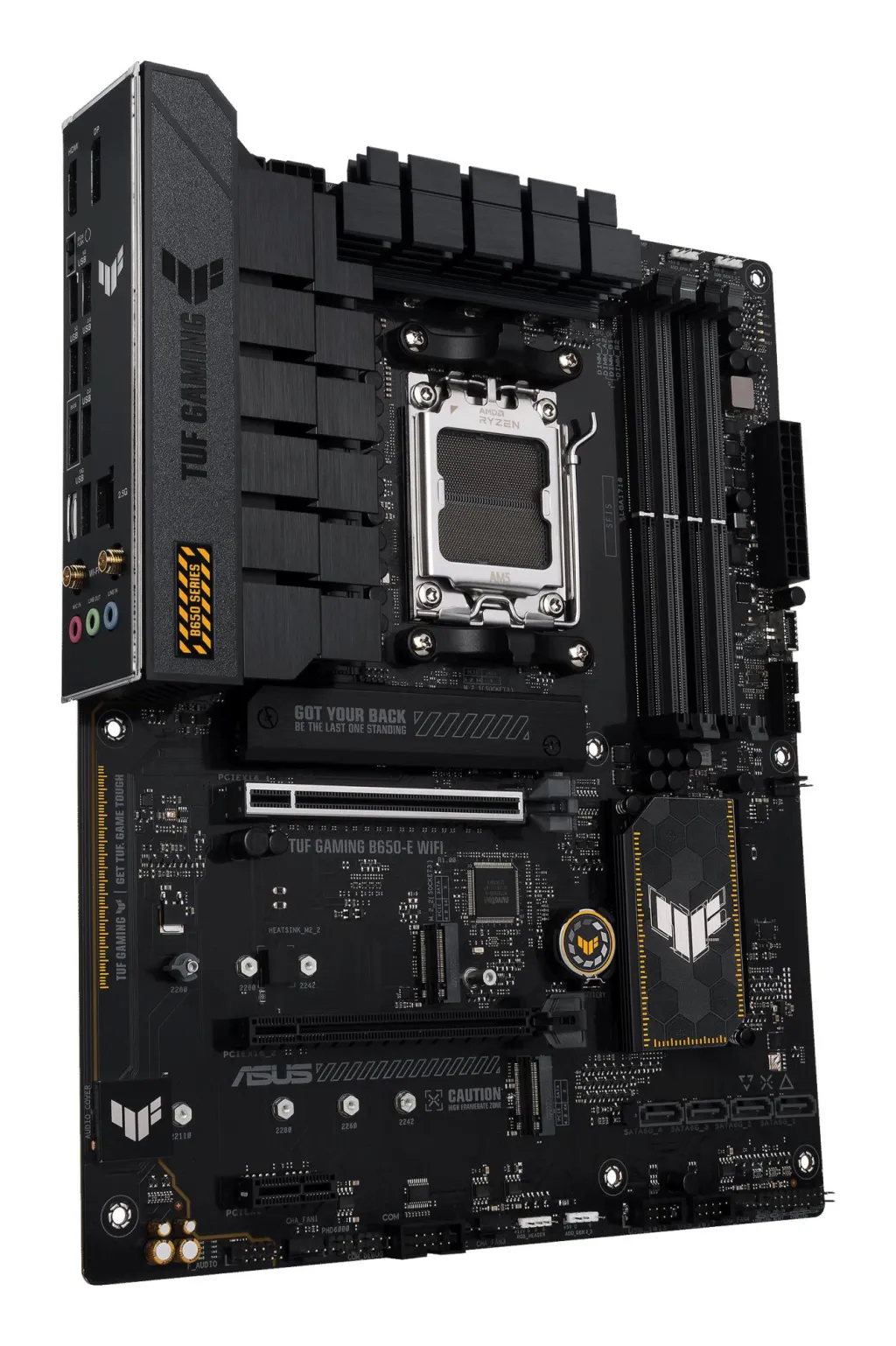

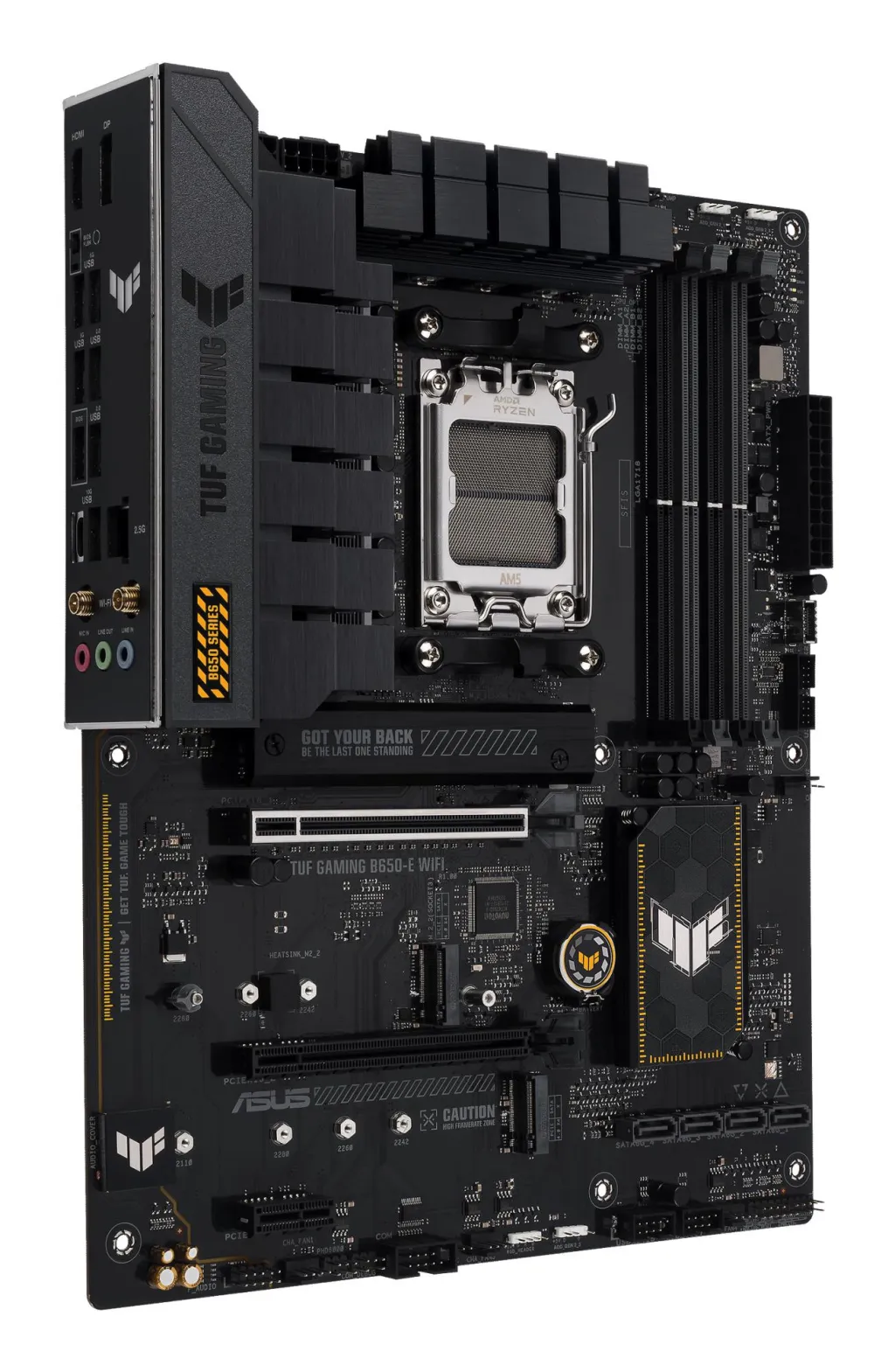

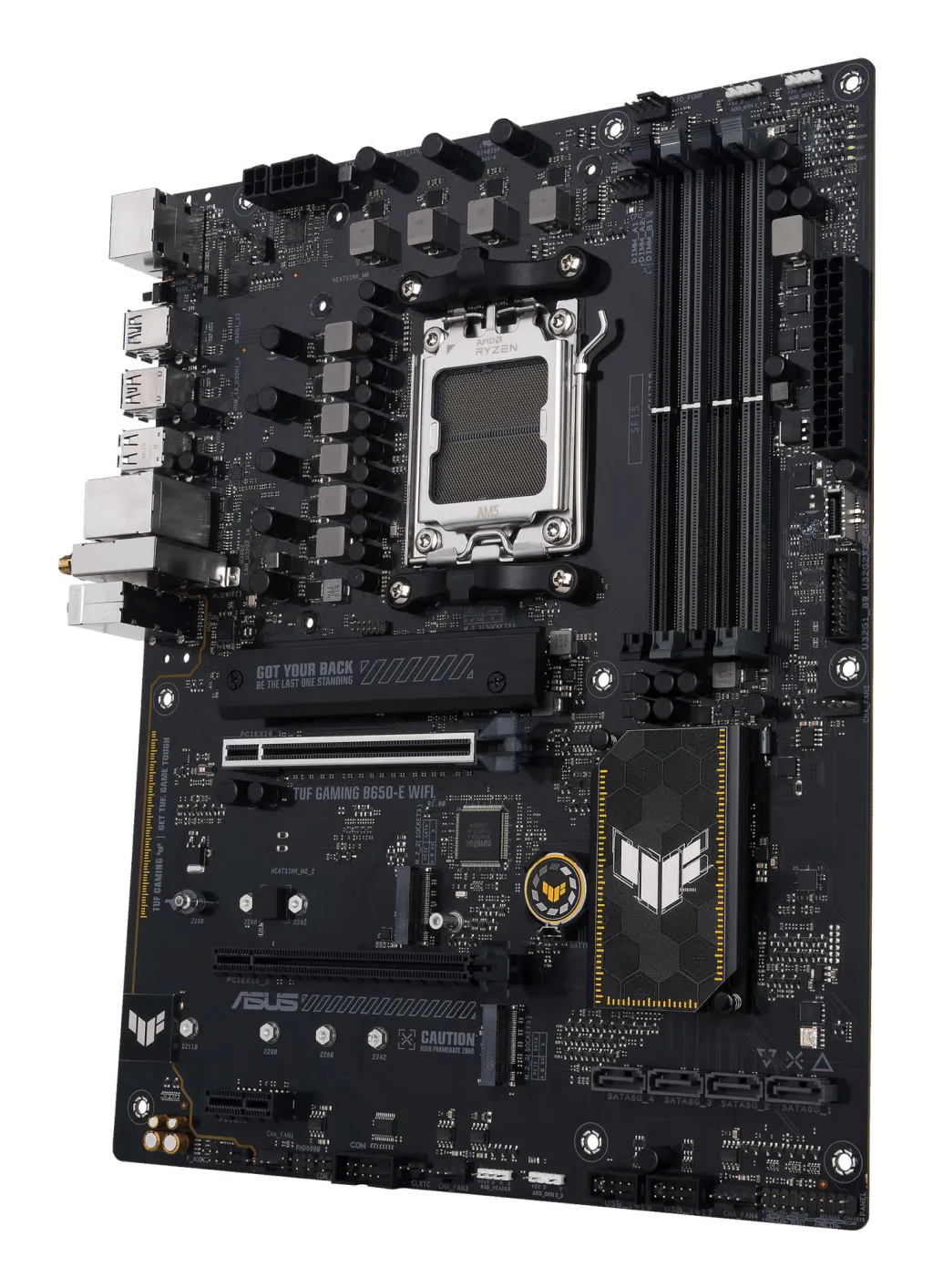

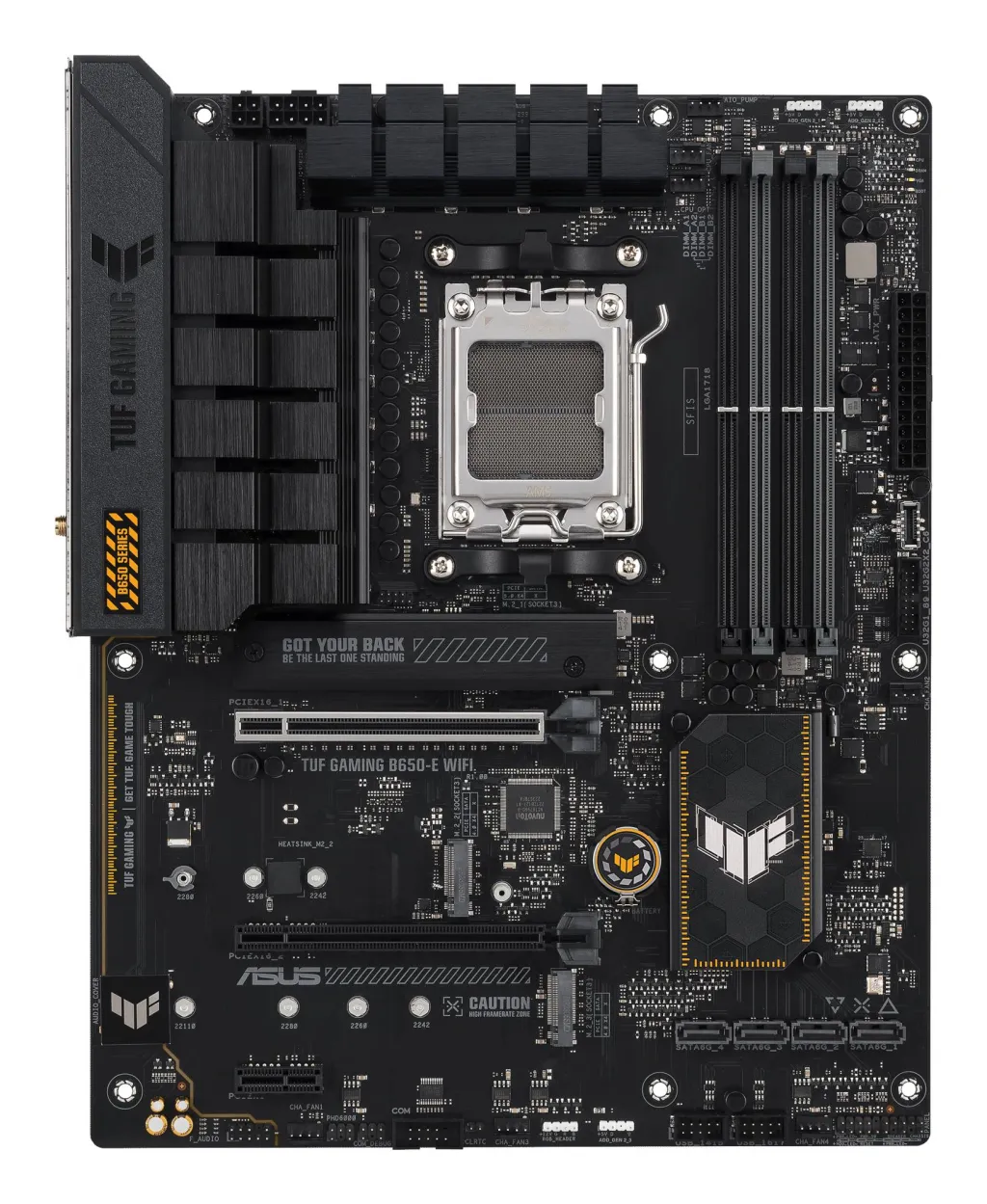

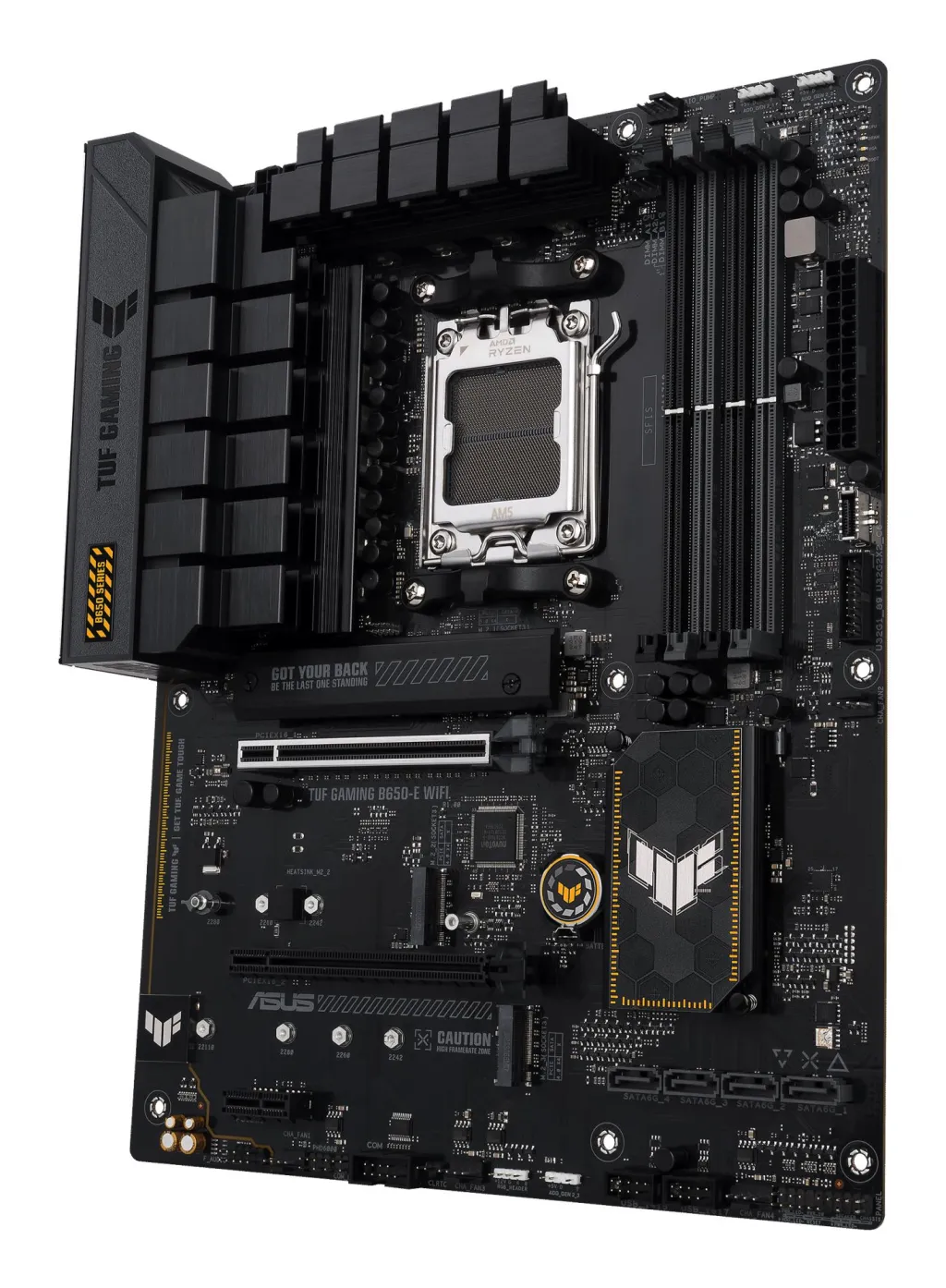

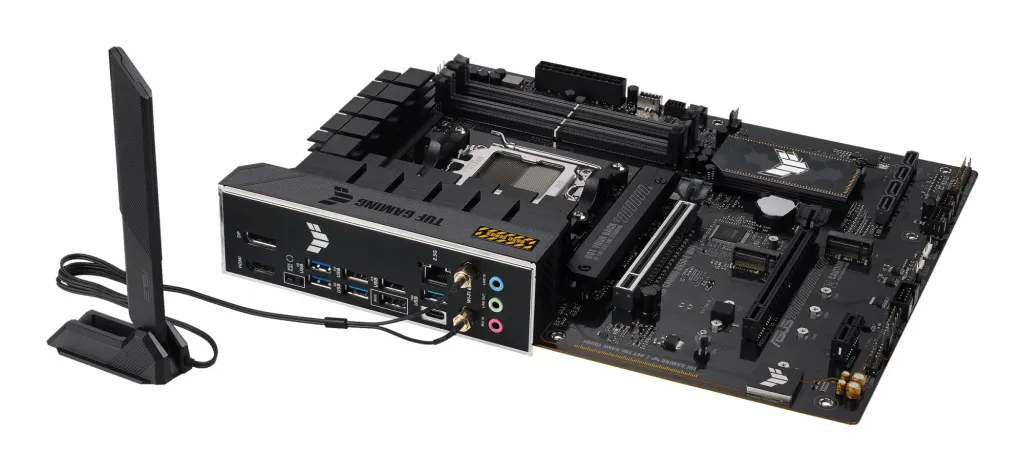

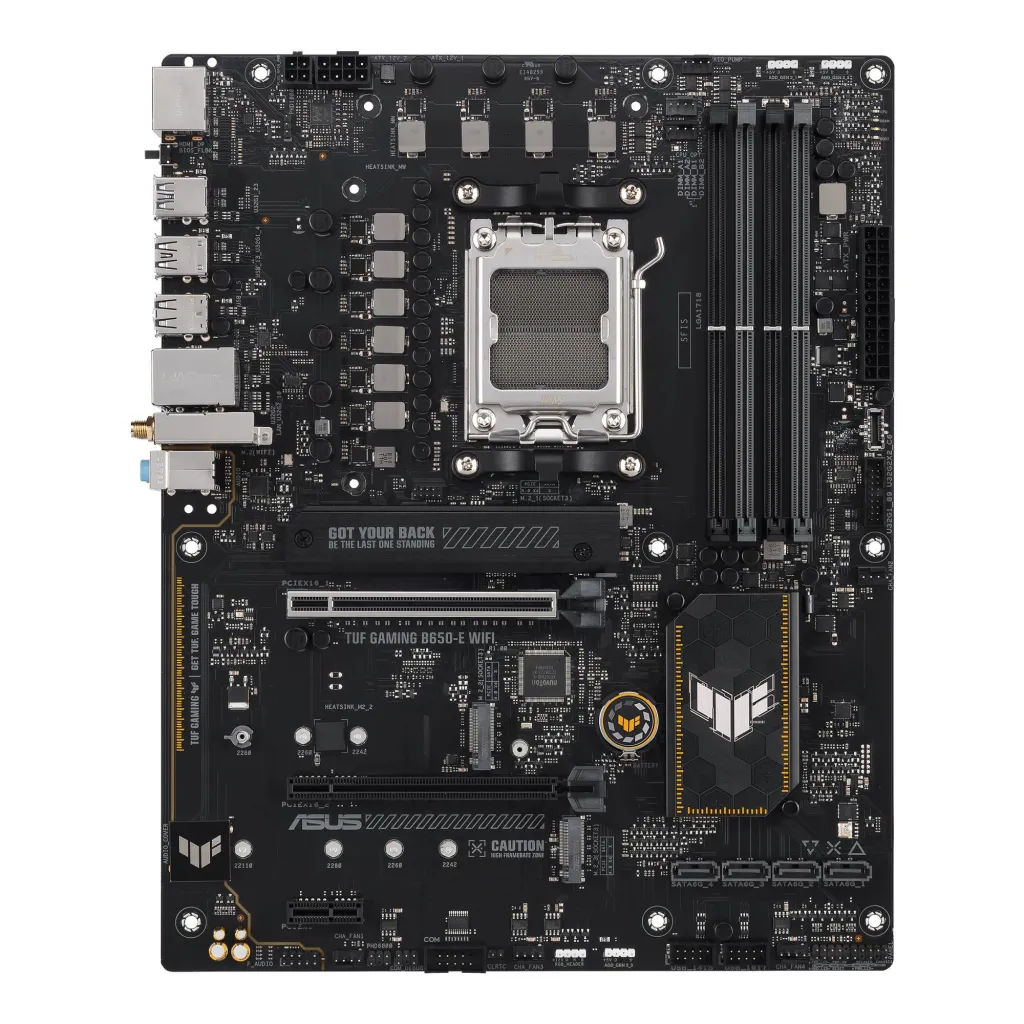

ASUS TUF GAMING B650-E WIFI takes all the essential elements of the latest AM5 Socket for AMD Ryzen™ Desktop Processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates rugged off-black and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series.
INTELLIGENT CONTROL
Comprehensive controls form the foundation of the ASUS TUF GAMING series. The TUF GAMING B650 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.
CPU Performance Boost
AMD Precision Boost Overdrive(PBO) pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning the PBO parameters, AMD‘s algorithm can leverage the motherboard’s robust power solution to ramp up performance even higher.
ROCK-SOLID PERFORMANCE
With upgraded power delivery and comprehensive cooling options to fuel AMD's latest CPUs, plus support for faster memory and storage, TUF GAMING B650 motherboards are the perfect foundation for your next high-core-count AMD battle rig.
Teamed Power Stages
8(60A)+2(60A) power stages are each rated to handle 60 amperes, combining high-side and low-side MOSFETS and drivers into a single package to deliver power, efficiency and stable performance for all compatible AMD processors.
.: Disain :.
- Emaplaadi kujutegur
- ATX
- Kujutegur
- ATX
- Laius
- 305 mm
- Sügavus
- 244 mm
.: Protsessor :.
- Protsessori pesa
- SAM5
.: Kiibistik ( Chipset ) :.
- Kiibistik ( Chipset)
- AMD B650
.: Mälu :.
- Sisemälu tüüp
- DDR5
- Taktsagedus
- 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200/7600/7800/8000 MHz
- Mälupesad
- 4
- Maksimaalne sisemälu
- 192 GB
Graafikakaart
- Integreeritud graafikaadapter
- Depending on CPU
.: Audio :.
- Audioväljundi kanalid
- 5
.: Võrgustumine :.
- Ethernet LAN
- 2.5 Gigabit
- WiFi
- Jah
- WiFi-standardid
- 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)
- Bluetooth
- Jah
- Bluetoothi versioon
- 5.3
Laienduspesad
- PCI Expressi x1 (Gen 3.x) pesad
- 1
- PCI Expressi x16 (Gen 3.x) pesad
- 2
Kõvaketta tugi
- SATA
- Jah
- M.2 (M) siinide arv
- 3
- RAID
- SATA 0, 1, 10; PCIe 0, 1, 10

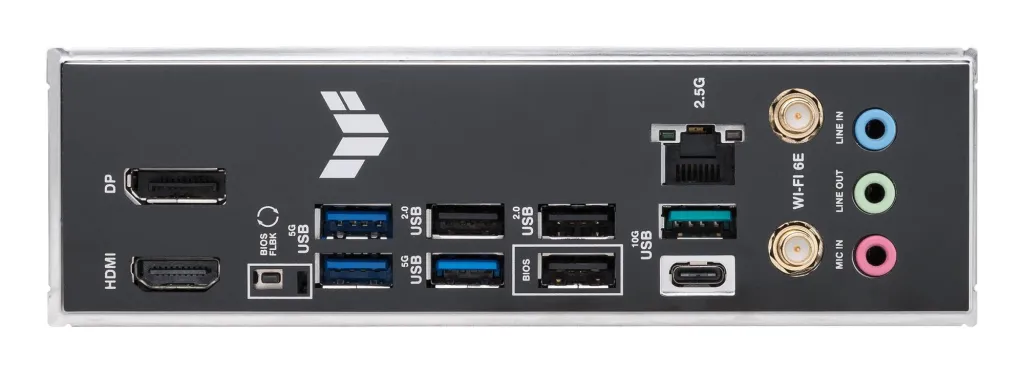

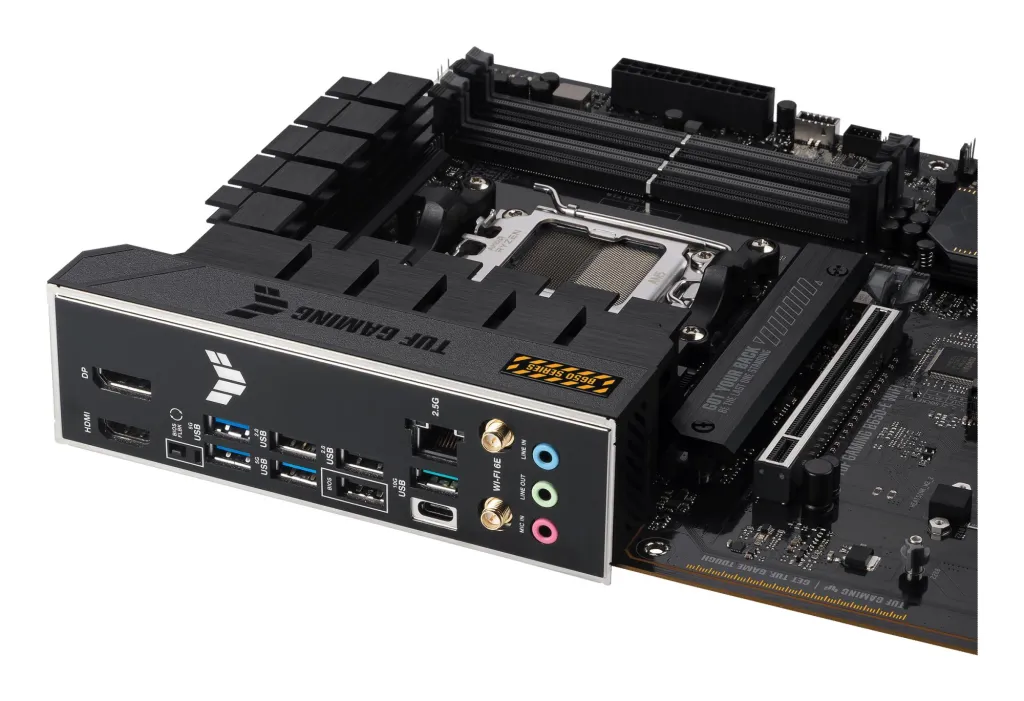

Tagapaneeli I/O pesad
- HDMI-portide arv
- 1
- USB 2.0 portide arv
- 3
- USB 2.0
- Jah
- Ethernet LAN (RJ-45) pordid
- 1
- Serial
- Jah
.: Kaal ja mõõtmed :.
- Brutokaal
- 1.94 kg
- Netokaal
- 0.8 kg
.: Pakendi andmed :.
- Max kogus transpordipakendis
- 5
- Pakendi maht
- 0.008103 cubm
Muud näitajad
- Supported processor sockets
- Socket AM5
- BIOS type
- UEFI AMI
- ATX Power connector (24-pin)
- Jah
- EPS power connector (8-pin)
- Jah
- Memory slots type
- DIMM
- Motherboard chipset family
- AMD
- Number of chassis fan connectors
- 4
- Number of COM connectors
- 1
- Supported memory types
- DDR5-SDRAM
- Memory channels
- Dual-channel
- Front panel audio connector
- Jah
- CPU fan connector
- Jah
- Number of SATA III connectors
- 4
- Parallel processing technology support
- Not supported
- Number of M.2 (M) slots
- 3
- Number of storage drives supported
- 7
- Supported storage drive types
- HDD & SSD
- WiFi-AP antenna jack
- 1
- Supported storage drive interfaces
- M.2,SATA III
- Processor manufacturer
- AMD
- RGB LED pin header
- Jah
- USB 3.2
- Jah
- PCI-Express 4.0 16x
- 1
- PCI Express x16 (Gen 4.x) slots
- 3
- Supported memory clock speed (max)
- 8000 MHz
- Unit Box Height
- 0.07
- Unit Box Length
- 0.355
- Unit Box Width
- 0.275
- CnCode
- 84733020
- ECC сompatibility
- ECC & Non-ECC
- Unit Calculated Volume
- 0.008103 cubm
- Unit Calculated Weight
- 1.94 kg
- Summary
- ASUS TUF GAMING B650-E WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Supported processor sockets: Socket AM5. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6E (802.11ax), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E.... Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 3
- On-board graphics card
- Ei
- Top Wi-Fi standard
- Wi-Fi 6E (802.11ax)
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 1
- Number of HDDs supported
- 4
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 1
- 12V power connector
- Jah
- PCI Express x1 (Gen 4.x) slots
- 1
- USB 3.2 Gen 2x2 connectors
- 1
- Kogus transpordikasti kohta
- 5
- Toote värv
- Black
- Component for
- PC
- Tootja koduleht
- https://www.asus.com/motherboards-components/motherboards/tuf-gaming/tuf-gaming-b650-e-wifi/
- Transpordipakendi kaal
- 9.7 kg
- Transpordipakendi kõrgus
- 30 cm
- Transpordipakendi laius
- 36.5 cm
- Transpordipakendi sügavus
- 37 cm
- DisplayPorts quantity
- 1
- Ethernet interface type
- 2.5 Gigabit Ethernet
- Ethernet LAN (RJ-45) ports
- 1
- Microphone in
- Jah
- Motherboard chipset
- AMD B650
- Peripheral (Molex) power connectors (4-pin)
- 1
- RAID support
- Jah
- Unbuffered memory
- Jah
- Windows operating systems supported
- Windows 10 x64/Windows 11
- BIOS memory size
- 256 Mbit
- DisplayPort
- 1
- Mudel
- TUF GAMING B650-E WIFI
- Number of memory slots
- 4
- Pakendi sügavus
- 273 mm
- Pakendi kõrgus
- 68 mm
- Pakendi kaal
- 1362 g
- Pakendi laius
- 338 mm
- Processor Socket
- Socket AM5
- Raid Levels
- 0/1/10
- Supported memory clock speeds
- 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200/7600/7800/8000 MHz
- USB 2.0 connectors
- 2
- USB-C
- Jah
