Kuvame toote info vaid informatiivsel eesmärgil
| Tootja | ASUS |
| Tootekood | H81M-KSO |
| EAN | 2000000543567 |
| Google link | lisainfo |
| Garantiiaeg | 3 kuud |
| .: Disain :. | |
| Emaplaadi kujutegur | Micro ATX |
| Kujutegur | uATX Form Factor 22.6 cm x 17.5 cm |
| Laius | 22.6 cm |
| Sügavus | 17.5 cm |
| .: Kiibistik ( Chipset ) :. | |
| Kiibistik ( Chipset) | Intel® H81 |
| .: Mälu :. | |
| Maksimaalne sisemälu | 16 GB |
| .: Audio :. | |
| Audioväljundi kanalid | 7.1 |
| .: Võrgustumine :. | |
| Ethernet LAN | Realtek® 8111G, 1 x Gigabit LAN Controller(s) |
| Sisemine I/O moodul | |
| TPM-ühenduspesa | Jah |
| Tagapaneeli I/O pesad | |
| PS/2-portide kogus | 2 |
| HDMI-portide arv | 1 |
| USB 2.0 portide arv | 2 |
| USB 3.0 (3.1 Gen 1) A-tüüpi portide hulk | 2 |
| Lisad | |
| Kaablid kaasa arvatud | SATA |
| .: Kaal ja mõõtmed :. | |
| Brutokaal | 0.72 kg |
| Netokaal | 0.6 kg |
| .: Pakendi andmed :. | |
| Pakendi maht | 0.0028375 m³ |
| Muud näitajad | |
| Intel Clear Video HD Technology | Jah |
| Compatible operating systems | Windows® 8 Windows® 7 |
| PCI Express x16 slots | 1 |
| Compatible processor series | Intel® Socket 1150 for 4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors Supports Intel® 22 nm CPUSupports Intel® Turbo Boost Technology 2.0 |
| Resource CD | DriversASUS UtilitiesEZ Update Anti-Virus Software (OEM Version) |
| Management protocols | WfM 2.0, DMI 2.0, WOL by PME, PXE |
| BIOS type | 64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information |
| Non-ECC | Jah |
| PCI Express x16 (Gen 2.x) slots | 1 |
| ATX Power connector (24-pin) | Jah |
| Memory slots type | DIMM |
| Motherboard chipset family | Intel |
| Number of chassis fan connectors | 1 |
| Number of SATA connectors | 4 |
| PCI Express x1 (Gen 2.x) slots | 2 |
| S/PDIF out port | Jah |
| Supported memory types | DDR3-SDRAM |
| Memory channels | Dual |
| Front panel audio connector | Jah |
| S/PDIF out connector | Jah |
| USB 3.0 (3.1 Gen 1) connectors | 1 |
| CPU fan connector | Jah |
| Number of EATX power connectors | 1 |
| Number of SATA III connectors | 4 |
| PCI Express x16 (Gen 3.x) slots | 2 |
| Parallel processing technology support | Ei |
| Clear CMOS jumper | Jah |
| ACPI version | 5.0a |
| Tare weight master carton | 2 kg |
| Gross depth master carton | 520 mm |
| Gross width master carton | 280 mm |
| Gross height master carton | 260 mm |
| Net weight master carton | 6 kg |
| Pakenditaara kaal | 0.12 kg |
| Kogus pakendi kohta | 1 pc(s) |
| Pakendi sügavus | 250 mm |
| Pakendi laius ( mm ) | 227 mm |
| Pakendi kõrgus ( mm ) | 50 mm |
| Component for | PC |
| Tarvikud kaasa arvatud | User's manualI/O Shield2 x SATA 6Gb/s cable(s) |
| .: Audio :. | Realtek® ALC887 8-Channel High Definition Audio CODEC |
| Sisemine mälumaht | 2 x SATA 6Gb/s port(s), yellow 2 x SATA 3Gb/s port(s), dark brown Supports Intel® Rapid Start Technology, Intel® Smart Connect Technology |
| Sisemälu | 2 x DIMM, Max. 16GB, DDR3 1600/1333/1066 MHz Non-ECC, Un-buffered Memory |

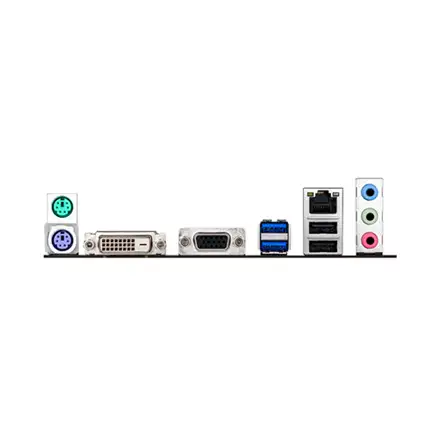

| I/O-pordid | Back I/O Ports 1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x DVI 1 x D-Sub 1 x LAN (RJ45) port(s) 2 x USB 3.0 (blue) 2 x USB 2.0 3 x Audio jack(s) Internal I/O 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 2 x SATA 6Gb/s connector(s) 2 x SATA 3Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x Chassis Fan connector(s) (1 x 4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Internal speaker connector(s) 1 x Clear CMOS jumper(s) |
| BIOS | 64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information |
| DisplayPorts quantity | 1 |
| DVI-D ports quantity | 1 |
| USB port | Intel® H81 chipset : 2 x USB 3.0/2.0 port(s) (2 at back panel, blue)Intel® H81 chipset : 6 x USB 2.0 port(s) (2 at back panel, black, 4 at mid-board) |
| Ethernet interface type | Gigabit |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Jah |
| Motherboard chipset | Intel® H81 |
| Number of expansion slots | 1 x PCIe x16 2 x PCIe 2.0 x1 |
| On-board graphics adapter | Jah |
| PCI slots | 2 |
| Protsessori perekond | Intel |
| Mudeli number | H81M-K |
| Saleout | REFURBISHED. USED. BACK PANEL INCLUDED, WITHOUT ORIGINAL PACKAGING AND ACCESSORIES. |
| Supported hard disk drive interfaces | SATA |
| Unbuffered memory | Jah |
| USB versioon | Intel® H81 chipset : 2 x USB 3.0/2.0 port(s) (2 at back panel, blue)Intel® H81 chipset : 6 x USB 2.0 port(s) (2 at back panel, black, 4 at mid-board) |
| VGA (D-Sub) ports quantity | 1 |
| Windows operating systems supported | Jah |
| Audio system | Realtek® ALC887 8-Channel High Definition Audio CODEC |
| BIOS memory size | 64 MB |
| CPU support | Intel® Socket 1150 for 4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors Supports Intel® 22 nm CPU Supports Intel® Turbo Boost Technology 2.0 |
| Expansion slots | 1 x PCIe x16 2 x PCIe 2.0 x1 |
| Flash Memory | 64 MB |
| Sisemälu | 2 x DIMM, Max. 16GB, DDR3 1600/1333/1066 MHz Non-ECC, Un-buffered Memory GB |
| LAN | Realtek® 8111G, 1 x Gigabit LAN Controller(s) |
| LAN controller | Realtek 8111G |
| Managebility | WfM 2.0, DMI 2.0, WOL by PME, PXE |
| Maximum graphics adapter memory | 1024 MB |
| Maksimaalne resolutsioon | 1920 x 1200 pixels |
| Other | USED, REFURBISHED, WITHOUT ACCESSORIES, CABLE, ORIGINAL PACKAGING |
| Üldised näitajad | USED, REFURBISHED, WITHOUT ACCESSORIES, CABLE, ORIGINAL PACKAGING |
| Processor Socket | Socket H3 (LGA 1150) |
| Raid Levels | 0, 1, 5, 10 |
| Salvestusmaht kokku | 2 x SATA 6Gb/s port(s), yellow2 x SATA 3Gb/s port(s), dark brownSupports Intel® Rapid Start Technology, Intel® Smart Connect Technology GB |
| Support OS | Windows® 8 Windows® 7 |
| Supported memory clock speeds | 1066,1333,1600 MHz |
| Salvestusmaht kokku | 2 x SATA 6Gb/s port(s), yellow2 x SATA 3Gb/s port(s), dark brownSupports Intel® Rapid Start Technology, Intel® Smart Connect Technology GB |
| USB | Intel® H81 chipset : 2 x USB 3.0/2.0 port(s) (2 at back panel, blue) Intel® H81 chipset : 6 x USB 2.0 port(s) (2 at back panel, black, 4 at mid-board) |
| USB 2.0 connectors | 4 |
| Garantii | 3 month(s) |
