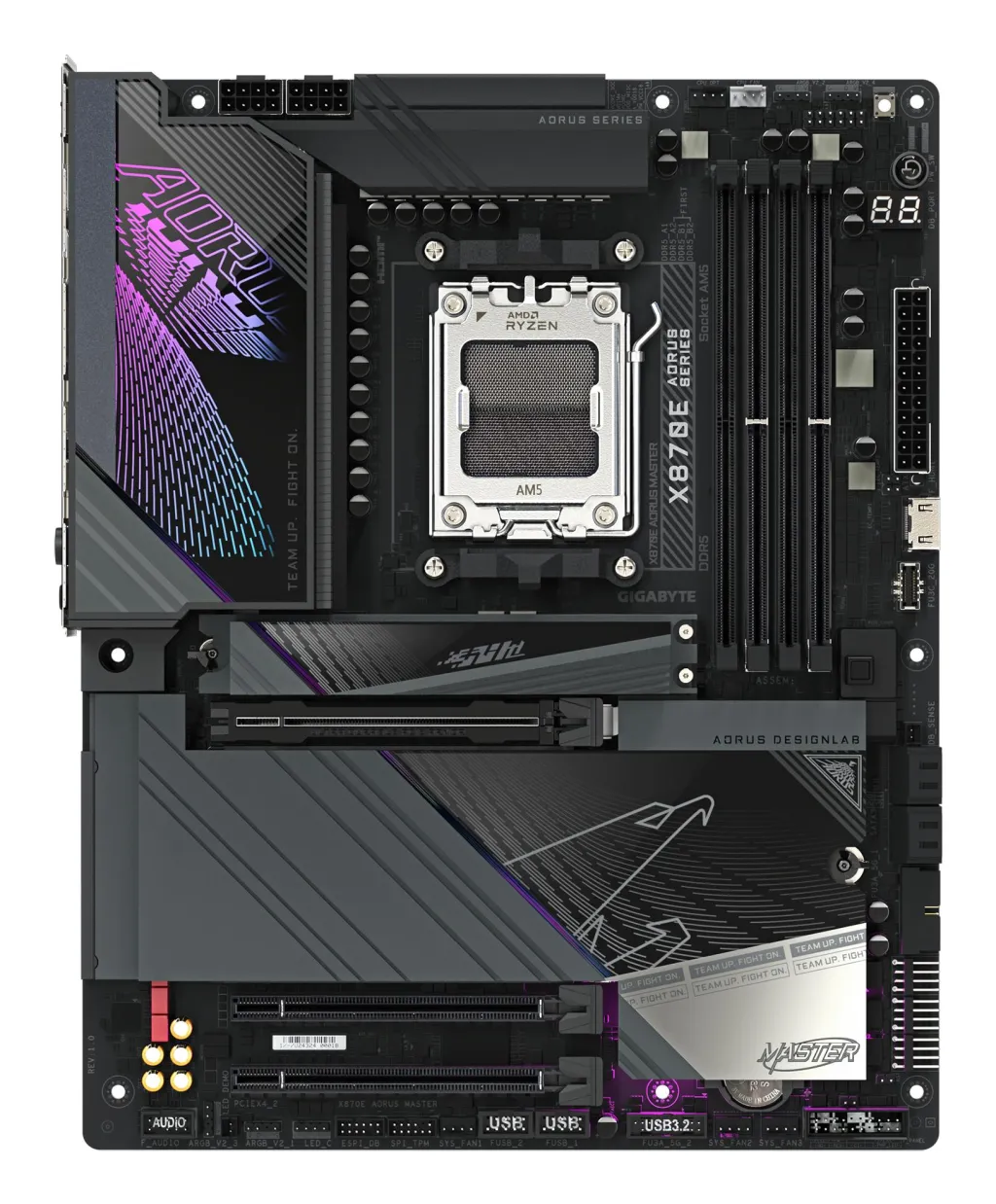

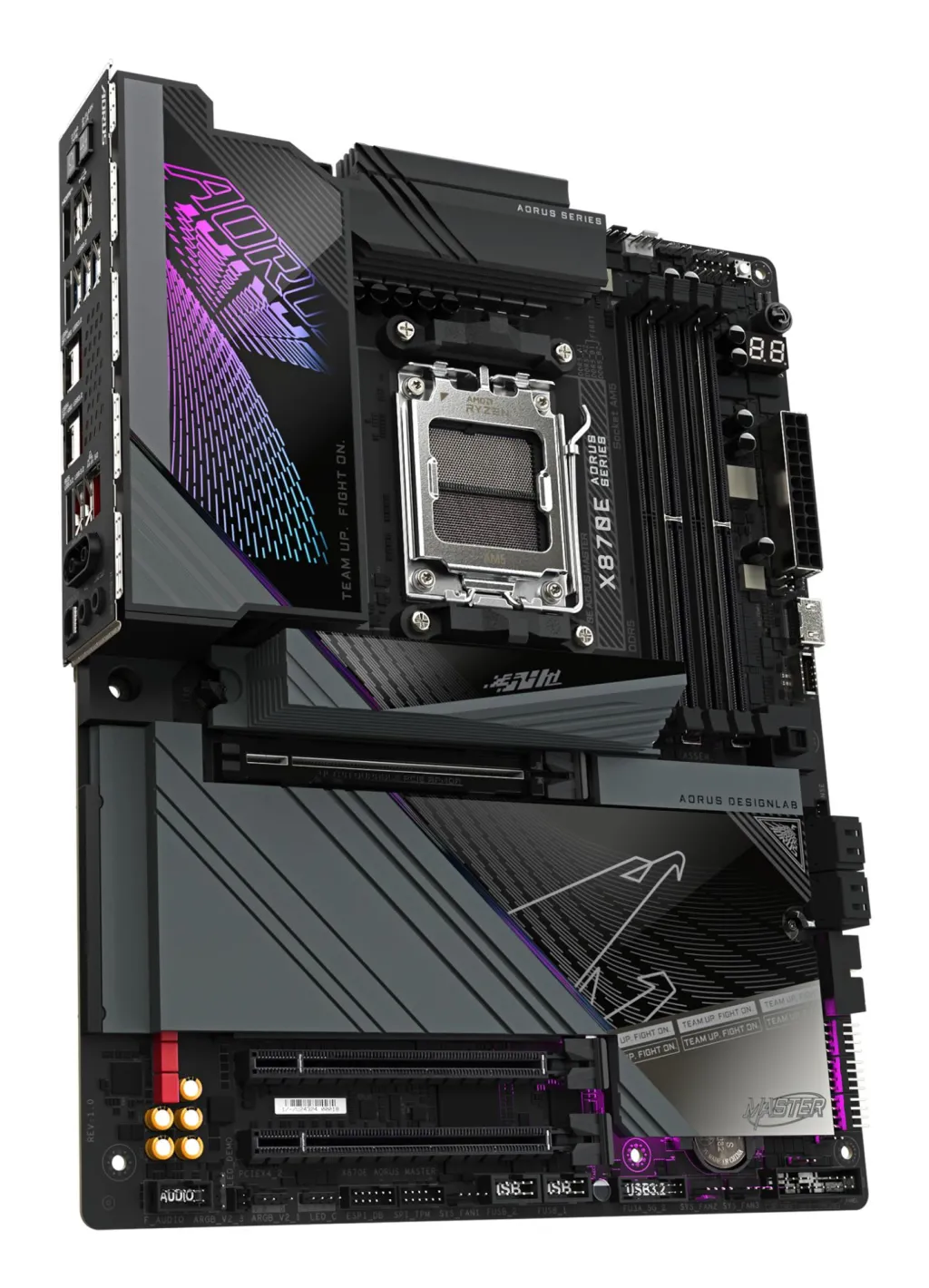

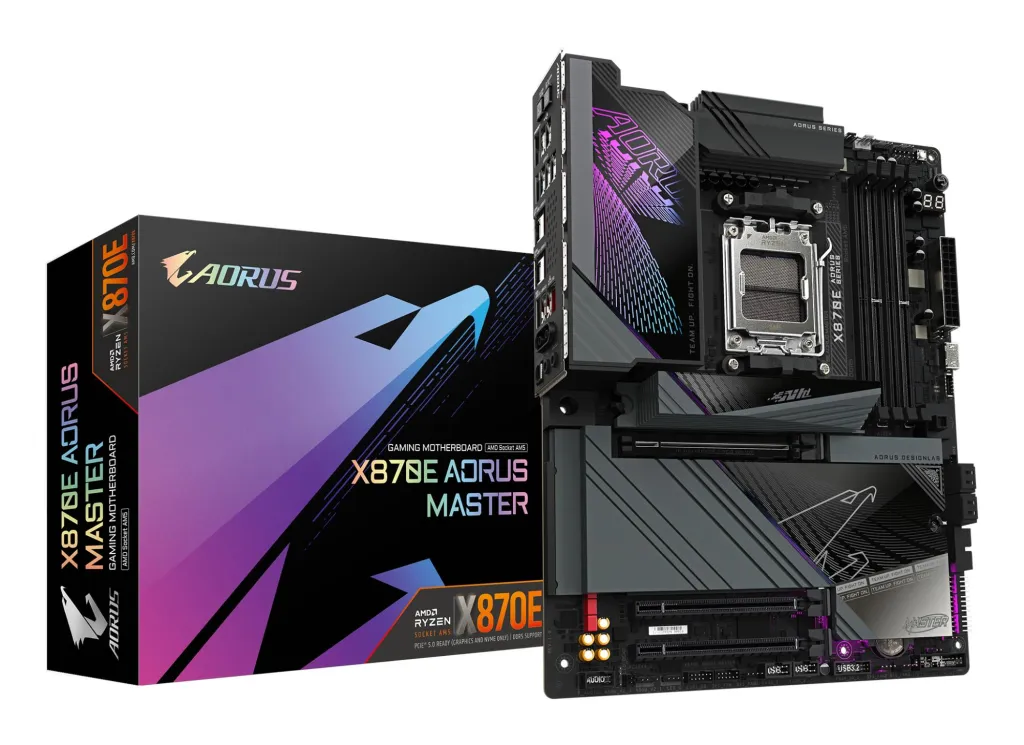

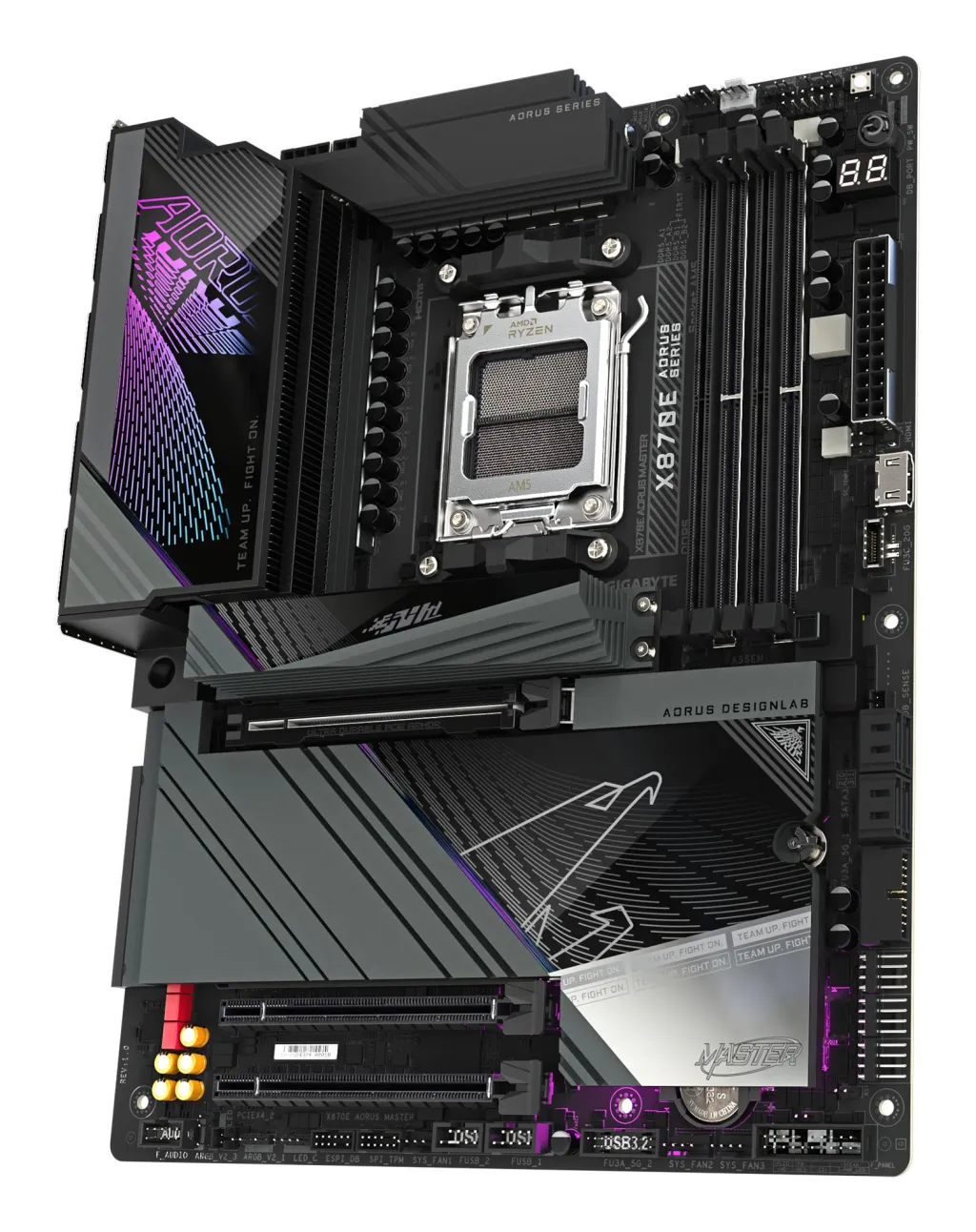

Mainboard|GIGABYTE|AMD X870E|SAM5|ATX|Memory DDR5|Memory slots 4|1xPCI-Express 3.0 4x|1xPCI-Express 4.0 4x |1xPCI-Express 5.0 16x|4xM.2|1xHDMI|2xUSB 2.0|8xUSB 3.2|2xUSB-C|1xOptical S/PDIF|1xRJ45|2xAudio port|X870EAORUSMASTER
493.02€
E1
E1
Vajad toodet suuremas koguses või püsitellimust?
Võta ühendust meie klienditoega info[at]digipood.eu
Kuumakse al. 16.86 €. Taotle järelmaksu ostukorvis.
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
- AMD Socket AM5: Supports AMD Ryzen 9000 Series, 8000 Series, 7000 Series Processors
- Twin 16+2+2 Phases Digital VRM with 110A Smart Power Stage
- Dual Channel DDR5：4*DIMMs with AMD EXPO & Intel XMP Memory Module Support
- PCIe Gen5 x16 with PCIe UD Slot X & EZ-Latch Plus
- M.2 Gen5 with EZ-Latch Plus
- Efficient Overall Thermal: Fully Covered MOSFET Heatsinks
- Extended Connectivity: HDMI, Sensor Panel Link ( Front HDMI), 2*USB-C DP
- Fast Networking: 5GbE LAN & Wi-Fi 7 with WIFI EZ-Plug & Directional Antenna
Tootja
GIGABYTE
Tootekood
X870EAORUSMASTER
EAN
4719331864354
Google link
lisainfo
Garantiiaeg
36 kuud
.: Disain :.
- Emaplaadi kujutegur
- ATX
- Kujutegur
- ATX
- Laius
- 305 mm
- Sügavus
- 244 mm
.: Protsessor :.
- Protsessori pesa
- SAM5
.: Kiibistik ( Chipset ) :.
- Kiibistik ( Chipset)
- AMD X870E
.: Mälu :.
- Sisemälu tüüp
- DDR5
- Taktsagedus
- 4400/4800/5200/5600/6000/6200/6400/6600/6666/6800/7000/7200/7600/7800/8000/8200/8400/8600 MHz
- Mälupesad
- 4
- Maksimaalne sisemälu
- 256 GB
Graafikakaart
- Integreeritud graafikaadapter
- Depending on CPU
.: Audio :.
- Intregeeritud helikaart
- Realtek ALC1220
- Audioväljundi kanalid
- 2
.: Võrgustumine :.
- Ethernet LAN
- 5 Gigabit
- WiFi
- Jah
- WiFi-standardid
- Wi-Fi 7 (802.11be)
- Bluetooth
- Jah
- Bluetoothi versioon
- 5.3
Kõvaketta tugi
- SATA
- Jah
- M.2 (M) siinide arv
- 4
- RAID
- SATA 0, 1, 10; NVMe 0, 1, 5, 10
Sisemine I/O moodul
- TPM-ühenduspesa
- Header

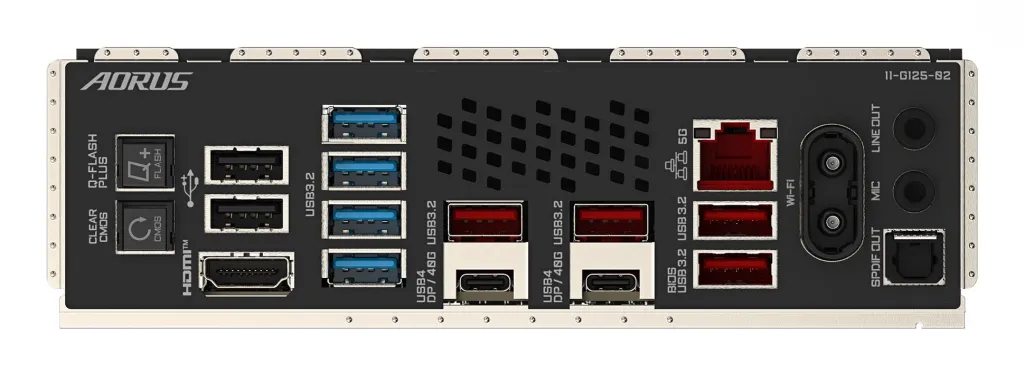

Tagapaneeli I/O pesad
- HDMI-portide arv
- 1
- USB 2.0 portide arv
- 2
- USB 2.0
- Jah
- Ethernet LAN (RJ-45) pordid
- 1
.: Kaal ja mõõtmed :.
- Brutokaal
- 3 kg
- Netokaal
- 2.3 kg
.: Pakendi andmed :.
- Max kogus transpordipakendis
- 4
- Pakendi maht
- 0.01203 cubm
Muud näitajad
- Compatible processor series
- AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
- Supported processor sockets
- Socket AM5
- BIOS type
- UEFI AMI
- ATX Power connector (24-pin)
- Jah
- EPS power connector (8-pin)
- Jah
- Memory slots type
- DIMM
- Motherboard chipset family
- AMD
- Number of chassis fan connectors
- 6
- S/PDIF out port
- Jah
- Supported memory types
- DDR5-SDRAM
- Memory channels
- Dual-channel
- Front panel audio connector
- Jah
- CPU fan connector
- Jah
- Number of SATA III connectors
- 4
- PCI Express x16 (Gen 3.x) slots
- 1
- Parallel processing technology support
- Not supported
- Clear CMOS jumper
- Jah
- Clear CMOS button
- Jah
- ACPI version
- 5.0
- Number of M.2 (M) slots
- 4
- Line-in
- Jah
- Number of storage drives supported
- 8
- Supported storage drive types
- HDD & SSD
- Supported memory module capacities
- 12GB/1GB/24GB/2GB/32GB/4GB/8GB
- WiFi-AP antenna jack
- 2
- Supported storage drive interfaces
- M.2,SATA III
- Screws included
- Jah
- Processor manufacturer
- AMD
- Antenna included
- Jah
- System management BIOS (SMBIOS) version
- 2.7
- RGB LED pin header
- Jah
- USB 3.2
- Jah
- PCI Express x16 (Gen 4.x) slots
- 1
- PCI-Express 4.0 4x
- 1
- PCI Express x16 (Gen 5.x) slots
- 1
- PCI-Express 5.0 16x
- 1
- Supported memory clock speed (max)
- 8600 MHz
- Unit Box Height
- 0.08
- Unit Box Length
- 0.35
- Unit Box Width
- 0.295
- CnCode
- 84733020
- ECC сompatibility
- ECC & Non-ECC
- Maximum internal memory per slot
- 64 GB
- Unit Calculated Volume
- 0.01203 cubm
- Unit Calculated Weight
- 3 kg
- Summary
- GIGABYTE X870E AORUS MASTER Motherboard - Supports AMD Ryzen 9000 CPUs, 16+2+2 Phases Digital VRM, up to 8600MHz DDR5 (OC), 3xPCIe 5.0 + 1xPCIe 4.0, Wi-Fi 7, 5GbE LAN, USB 4. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Ethernet interface type: 5 Gigabit Ethernet, LAN controller: Realtek RTL8126, Top Wi-Fi standard: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 4
- Products per shipping (inner) case
- 1 pc(s)
- On-board graphics card
- Ei
- Top Wi-Fi standard
- Wi-Fi 7 (802.11be)
- WLAN controller model
- Qualcomm QCNCM865
- Audio chip
- Realtek ALC1220
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 4
- Number of HDDs supported
- 4
- USB4 Gen 2x2 ports quantity
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 2
- PC health monitoring
- Fan/Temperature/Voltage
- Desktop Management Interface (DMI) version
- 2.7
- Front panel connector
- Jah
- Lithium weight per battery
- 0.07 g
- USB 3.2 Gen 2x2 connectors
- 1
- PCI Express x4 slots
- 2
- DisplayPort versioon
- 1.4
- Garantiiaeg
- 3 year(s)
- Kogus transpordikasti kohta
- 4
- Toote värv
- Black
- Number of CPU fan connectors
- 2
- Number of EPS power connectors (8-pin)
- 2
- Number of water pump connectors
- 2
- Number of RGB LED pin headers
- 5
- 1st M.2 largest key size
- 25110
- 1st M.2 highest PCI Express generation
- 5.0
- 2nd M.2 largest key size
- 22110
- Component for
- PC
- 2nd M.2 highest PCI Express generation
- 5.0
- 3rd M.2 largest key size
- 22110
- 3rd M.2 highest PCI Express generation
- 5.0
- 4th M.2 largest key size
- 22110
- 4th M.2 highest PCI Express generation
- 4.0
- Akuelementide arv
- 1
- Akutehnoloogia
- Lithium-Manganese Dioxide (LiMnO2)
- Tootja koduleht
- https://www.gigabyte.com/
- Transpordipakendi kaal
- 12 kg
- Transpordipakendi kõrgus
- 40.5 cm
- Transpordipakendi laius
- 33 cm
- Transpordipakendi sügavus
- 36 cm
- Kõrgus
- 35 mm
- Toote kaal
- 2540 g
- Päritoluriik
- China
- DirectX version
- 12.0
- Ethernet interface type
- 5 Gigabit Ethernet
- Ethernet LAN (RJ-45) ports
- 1
- HDMI versioon
- 2.1
- Headphone outputs
- 1
- Motherboard chipset
- AMD X870
- RAID support
- Jah
- Unbuffered memory
- Jah
- Windows operating systems supported
- Windows 11 x64
- Batteries Included
- Jah
- Battery type
- CR2032
- Battery weight
- 3 g
- BIOS memory size
- 256 Mbit
- LAN controller
- Realtek RTL8126
- Maximum internal memory supported by processor
- 256 GB
- Mudel
- X870E AORUS MASTER
- Number of memory slots
- 4
- Optical S/PDIF
- 1
- Pakendi sügavus
- 294 mm
- Pakendi kõrgus
- 80 mm
- Pakendi kaal
- 2970 g
- Pakendi laius
- 345 mm
- PCI Expressi x4 (Gen 3.x) pesad
- 1
- Processor Socket
- Socket AM5
- Raid Levels
- 0/1/10
- Supported memory clock speeds
- 4400/4800/5200/5600/6000/6200/6400/6600/6666/6800/7000/7200/7600/7800/8200/8400/8600 MHz
- USB 2.0 connectors
- 2
- USB-C
- Jah
