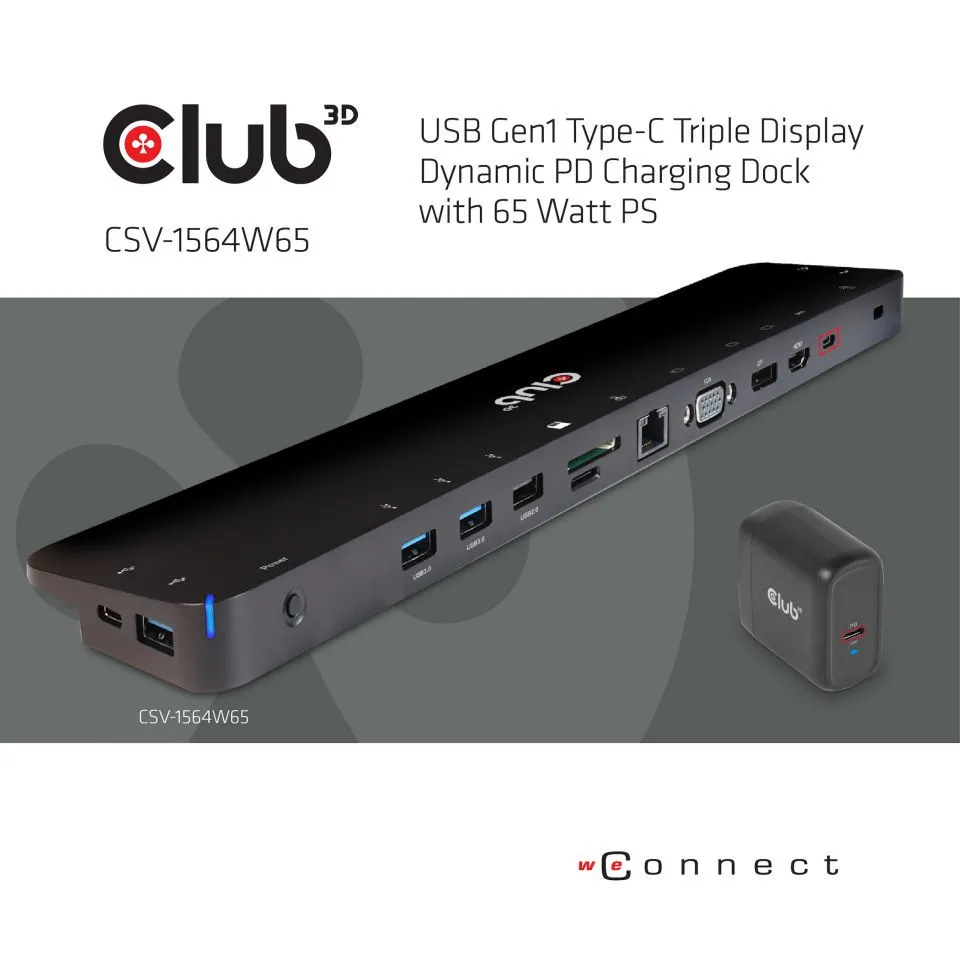

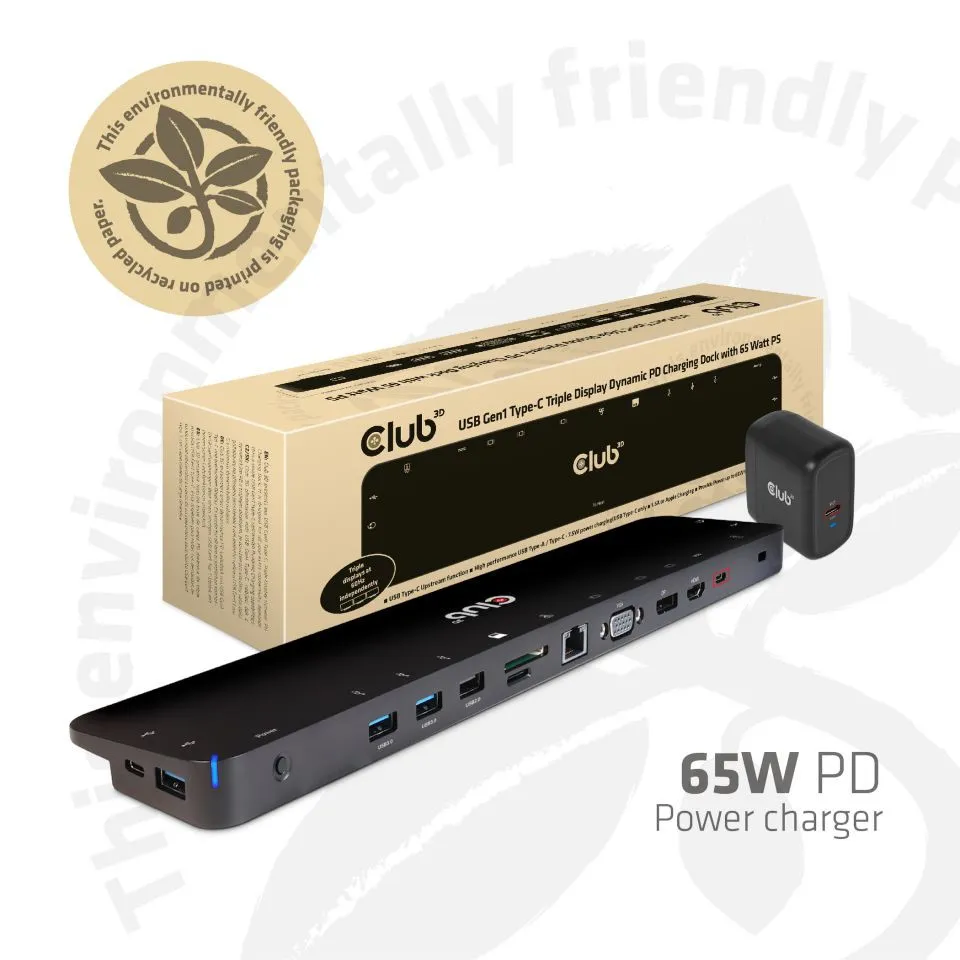

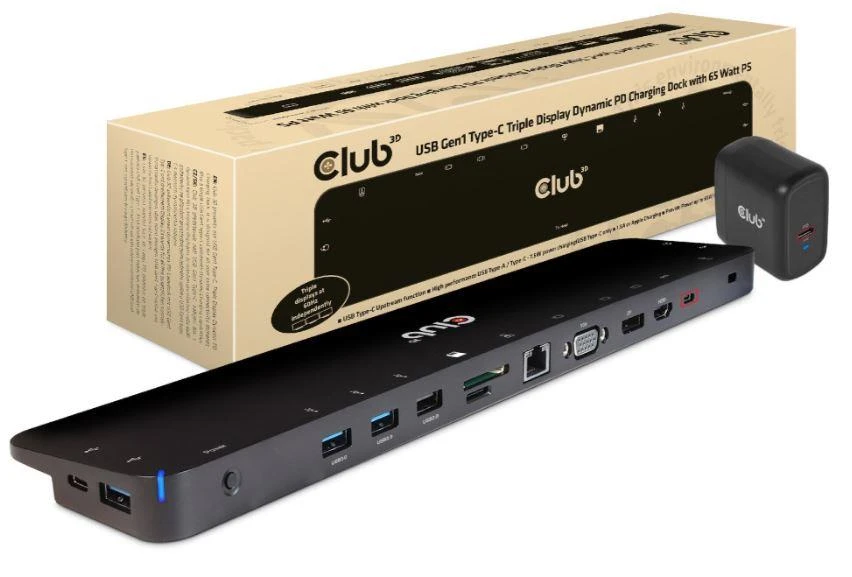

USB Gen1 Type-C Triple Display Dynamic PD Charging Dock with 65 Watt PS

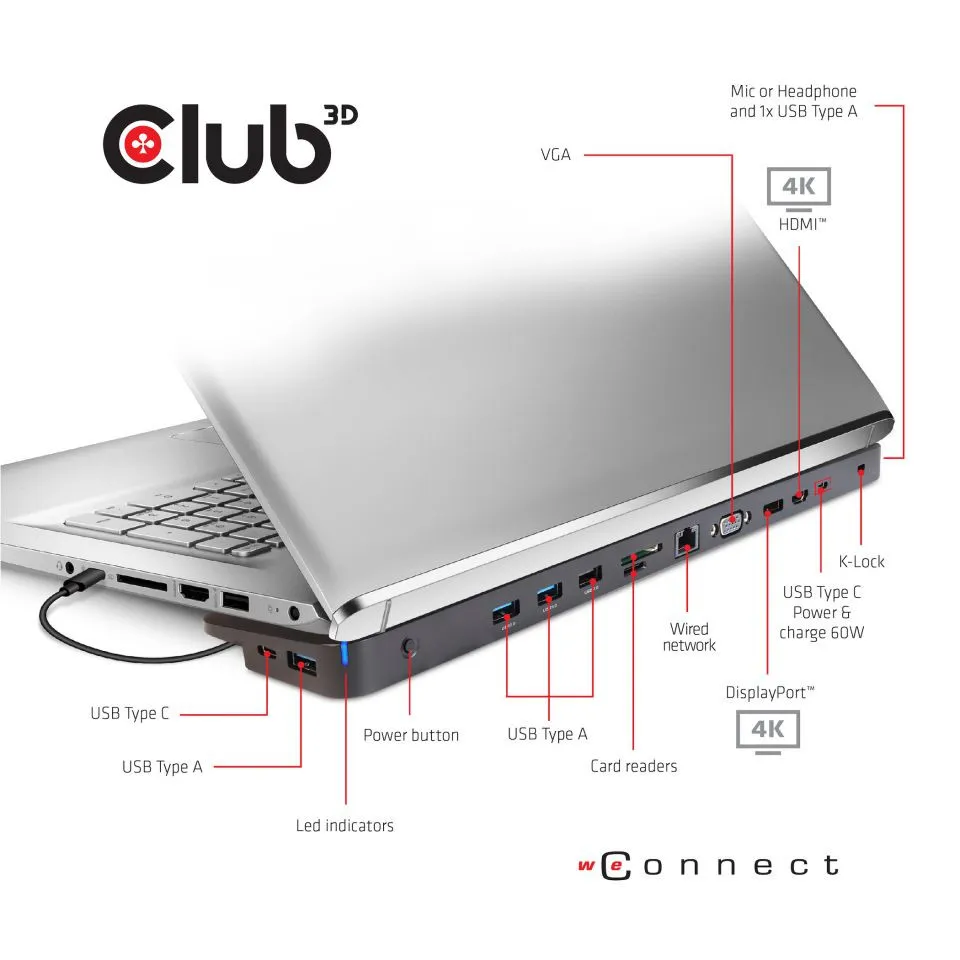

The Club 3D CSV-1564W65 USB Gen1 Type-C Triple Display Dynamic PD Charging Dock is an integrated solution combining Video, Data, Power, Ethernet and Audio especially for frequent travelers. The Three different Video ports (HDMI™, DisplayPort™, VGA) allow you to enjoy 3 different images or videos on 3 different displays simultaneously under MST mode. The USB Type-A ports and USB Type-C data port allow you to connect multiple USB devices to the host. The USB Type-C charging port allows you to provide power for this Dock and can charge the host PC at the same time by connecting a PD power Adapter, no need to carry your notebooks' power supply. So in general the user is traveling lighter. The Micro SD and SD/MMC ports allow you to read the information in the memory card onto the host. The 3.5mm audio port allows enjoying the music of the host via a headset. Besides, with the Gigabit Ethernet port, you can enjoy high speed Ethernet on the host. It supports all DP Alt mode supported hosts (PC, laptop, mobile phone, etc.), Dynamic Current Detection and Power Distribution, the product no longer intercepts the fixed power from the external PD Power Supply, but intercepts it according to the actual power consumed by itself, so that the PC can be dynamically charged more power. For Video Signal the source device needs to support DisplayPort™ Alt Mode.
Features:
• Supports DP Alt Mode and PD 3.0
• Supports max. 5Gbps data transmission on the USB Gen1 Type-C ports
• One USB Gen1 Type-C Data port
• One USB Gen1 Type-C port supports PD charging with max 100W (20V/5A) Bundled with 65W Power Supply (for notebooks with current consumption up to 65W)

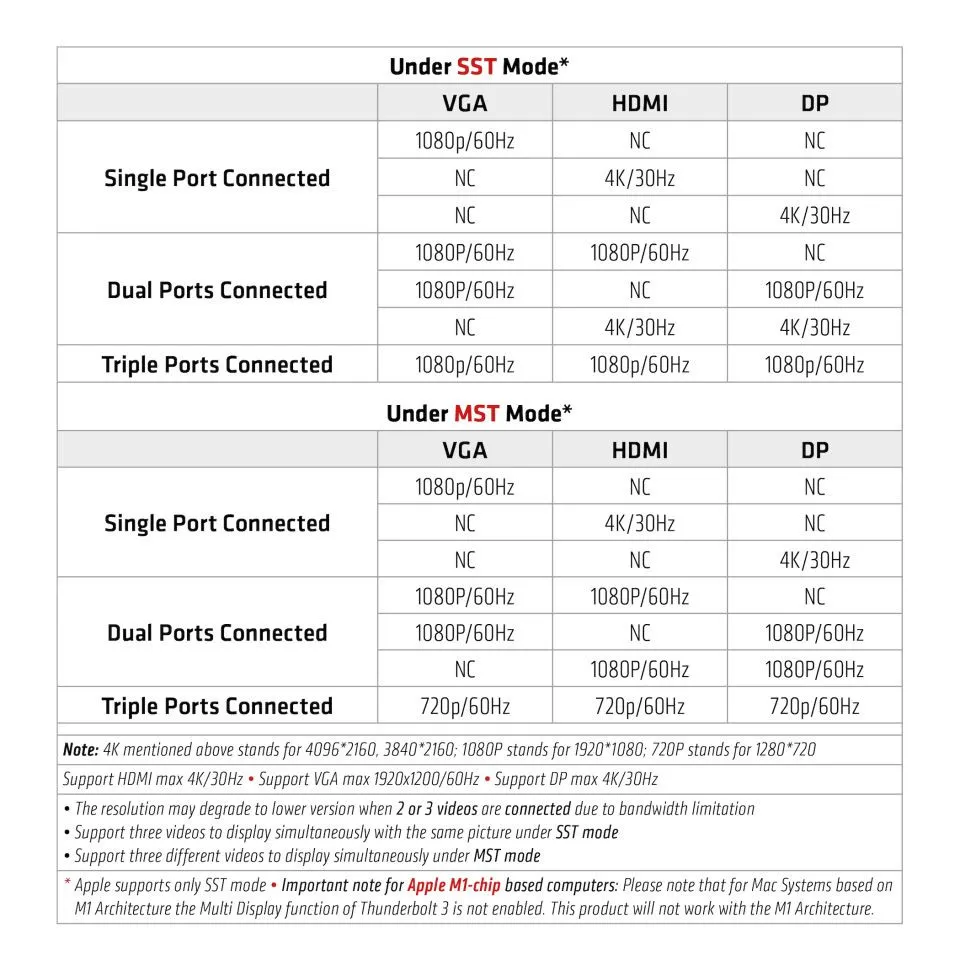

• HDMI™ max. 4K 30 Hz
• DP™ max. 4K 30 Hz
• VGA max. 1920x1200 60Hz
| Tootja | CLUB3D |
| Tootekood | CSV-1564W65 |
| EAN | 8719214472108 |
| Google link | lisainfo |
| Garantiiaeg | 24 kuud |
| .: Disain :. | |
| Toote värv | Must |
| .: Kaal ja mõõtmed :. | |
| Kõrgus | 20 mm |
| Sügavus | 75 mm |
| Laius | 350 mm |
| Toote kaal | 616 g |
| .: Pakendi sisu :. | |
| Kaablid kaasa arvatud | USB tüüp-C |
| Muud näitajad | |
| Unit Calculated Weight | 0.56 kg |
| Toitepistmik | USB tüüp-C |
| DisplayPort arv | 1 |
| USB power delivery | Jah |
| USB 3.2 | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) A-tüüpi portide hulk | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) C-tüüpi portide hulk | 2 |
| Unit Box Height | 0.075 |
| Unit Box Length | 0.37 |
| Unit Box Width | 0.11 |
| Units per Shipping Box | 1 |
| Product Net Weight | 0.372 kg |
| Unit Calculated Volume | 0.003053 cubm |
| Toetatud Windowsi operatsioonisüsteemid | Jah |
| PowerShare | Jah |
| Toiteallikas | 100 W |
| Toetatud Maci operatsioonisüsteemid | Jah |
| Toiteallika tüüp | Vahelduvvool |
| HD tüüp | 4K Ultra HD |
| Maksimaalne digitaalresolutsioon | 4096 x 2160 pikslit |
| Võrgustandardid | IEEE 802.3 |
| Ethernet LAN | Jah |
| Integreeritud kaardilugeja | Jah |
| Ethernet LAN-i andmeedastuskiirused | 1000 Mbit/s |
| Kogus pakis | 1 tk |
| Ühilduvad mälukaardid | MicroSD (TransFlash) |
| AC-adapter kaasa arvatud | Jah |
| Tootja koduleht | www.club-3d.com/en/detail/2576/usb_gen1_type_c_triple_display_dynamic_pd_charging_dock_with_65_watt_ps/ |

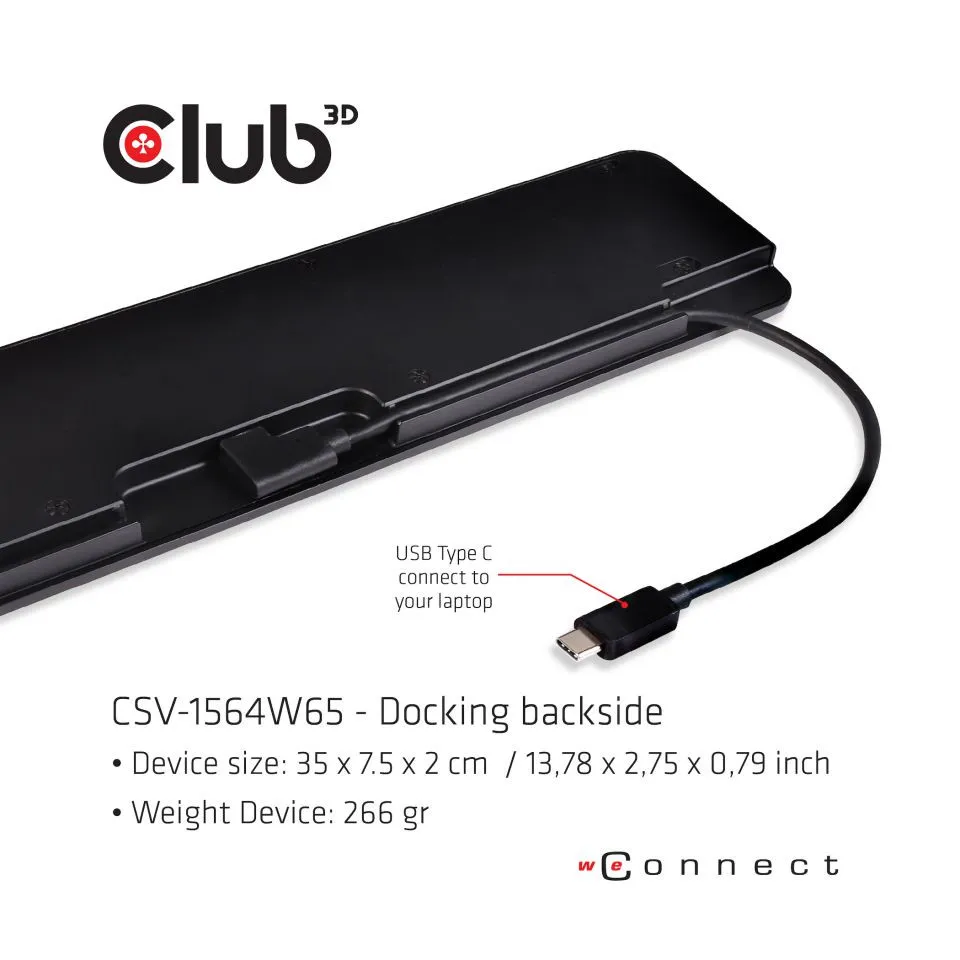

| Mõõtmed (l x s x k) | 35 x 7.5 x 2 cm |

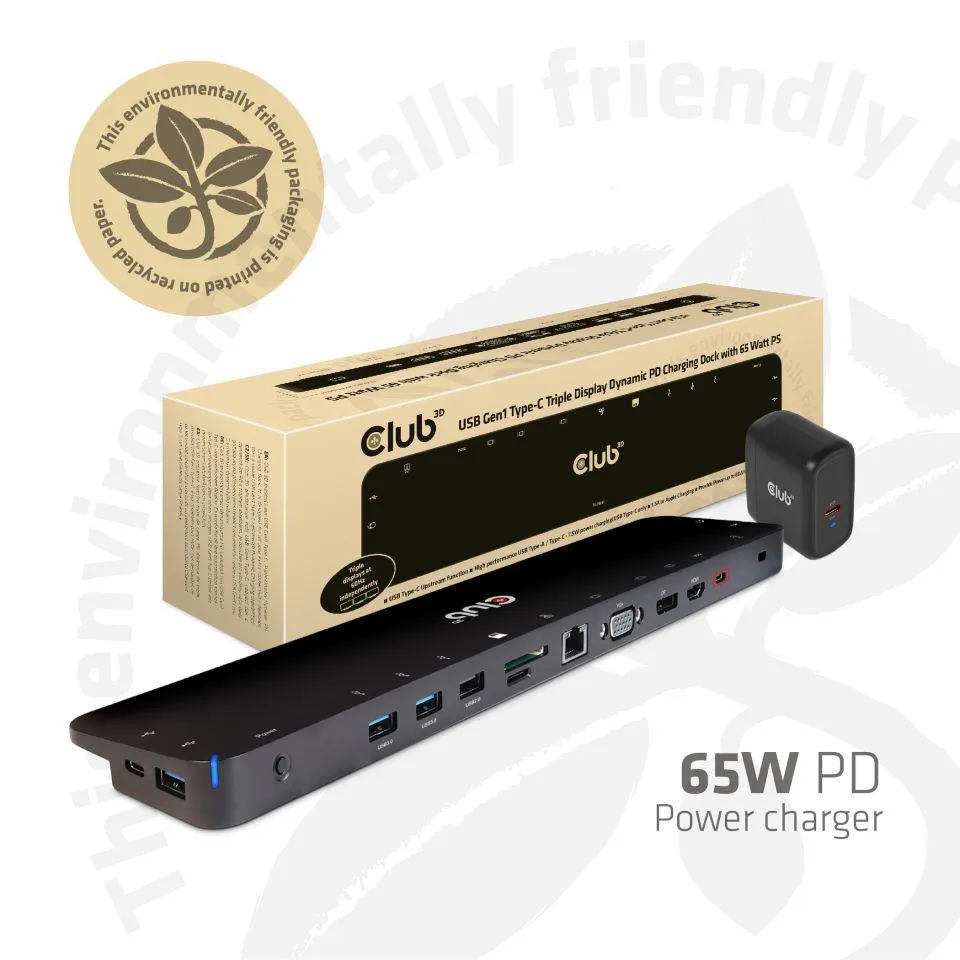

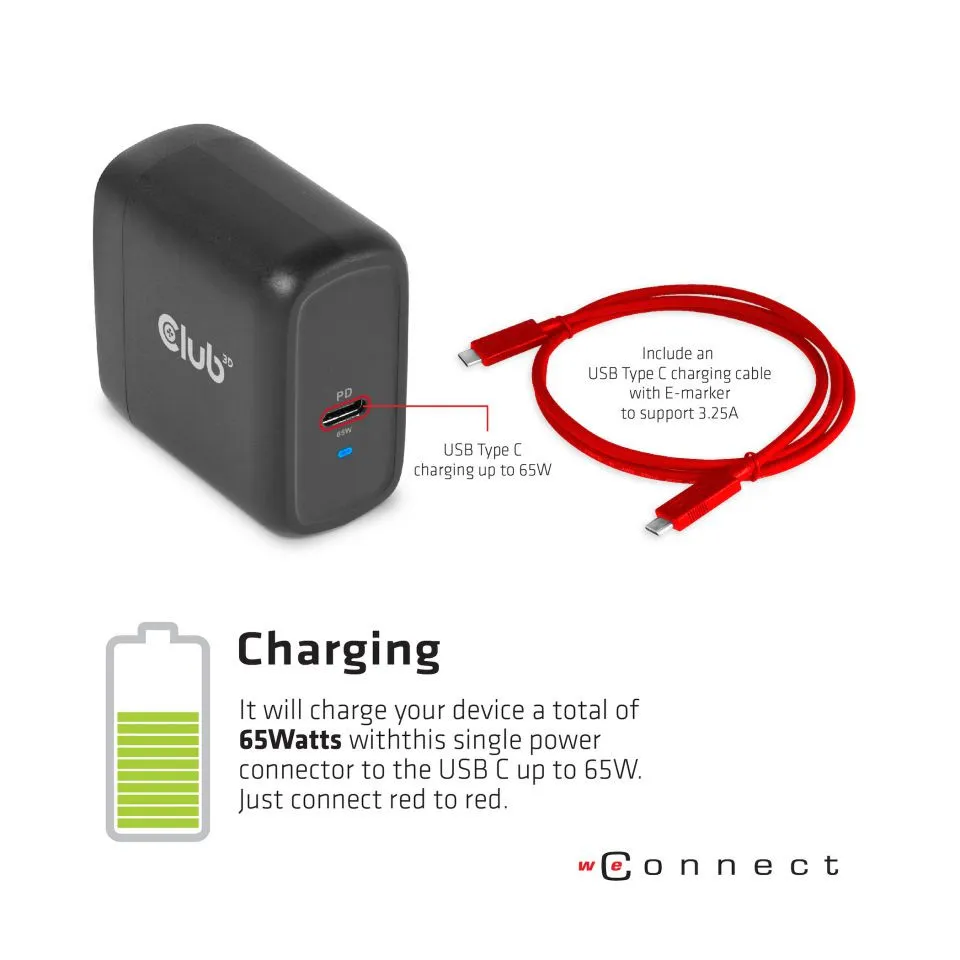

| Tarvikud kaasa arvatud | • PowerSupply Input:100-110/240VAC, Output: up to 65W, Various Power plugs depending on Country (Specify on order); • 2x USB Type-C cable: 1x connection to Host 27cm / 10.63", 1x RED cable USB type-C for charging to PowerSupply 1 m / 3.28 ft; • Quick Install Guide. |
| Hostiliides | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| Ethernet LAN (RJ-45) pordid | 1 |
| Etherneti vaskkaablite tehnoloogia | 1000BASE-TX |
| HDMI-portide arv | 1 |
| HDMI-portide arv | 1 |
| Kombineeritud kõrvaklappide/mikrofoni pesa | Jah |
| Kõrvaklapiväljundite arv | 0 |
| Kõrvaklappide ühenduvus | 3,5 mm |
| Mikrofonisisend | Ei |
| Ühenduvustehnoloogia | Dokkimine |
| USB 2.0 portide arv | 2 |
| VGA (D-Sub) portide arv | 1 |
| Maksimaalne värskendussagedus | 60 Hz |
| VGA (D-Sub) portide arv | 1 |
| Kaabli pikkus | 1 m |
| DisplayPort | 1 |
| Headphones jack | 1 |
| MicroSD Card Slot | 1 |
| Mudel | CSV-1564W65 |
| Mudeli originaalnimi | USB Gen1 Type-C Triple Display Dynamic PD Charging Dock with 65 Watt PS |
| Ethernet LAN (RJ-45) pordid | 1 |
| SD Card Slot | 1 |
| USB 2.0 | 2 |
| USB-C | 3 |
