Overview

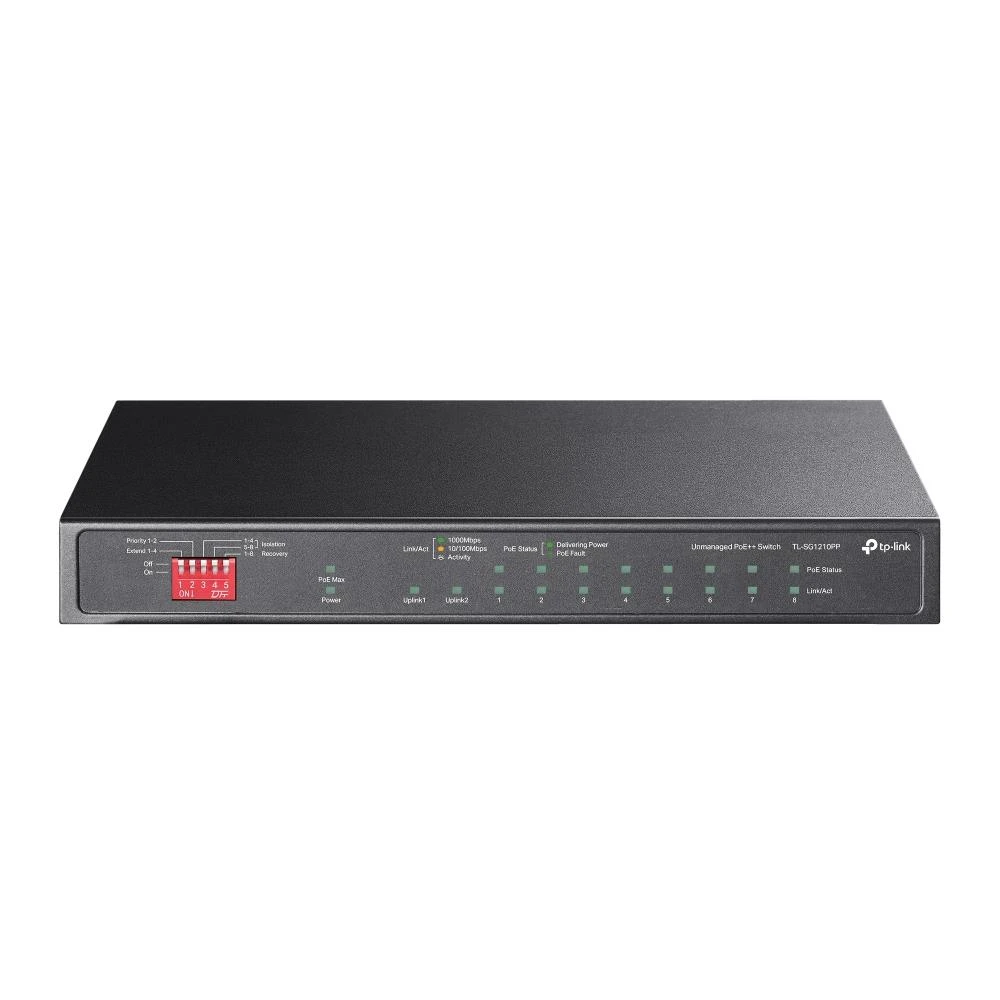

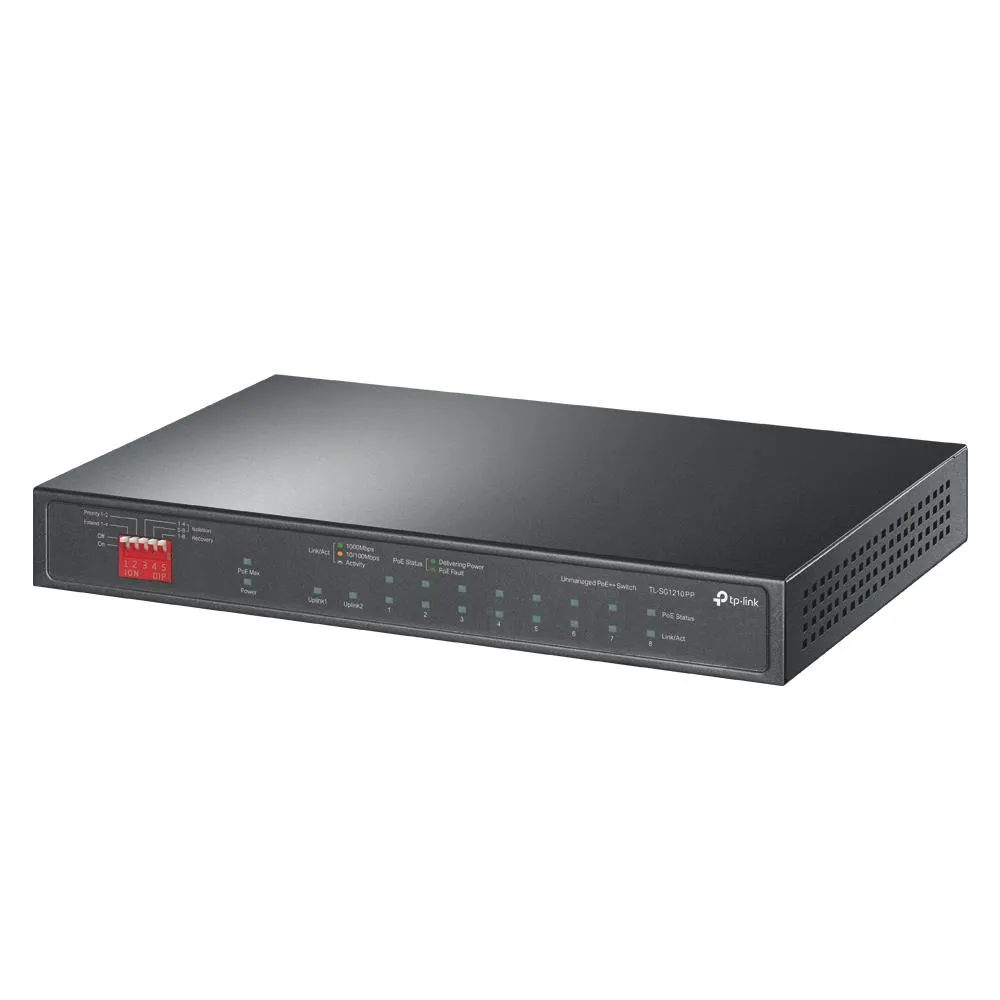

TL-SG1210PP is an unmanaged switch with 10 Gigabit ports that requires no configuration and provides 8 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE 802.3af/at/bt compliant Powered Devices (PDs) at port 1-2 and IEEE 802.3af/at compliant Powered Devices (PDs) at port 3-8. In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.
Power Over Ethernet

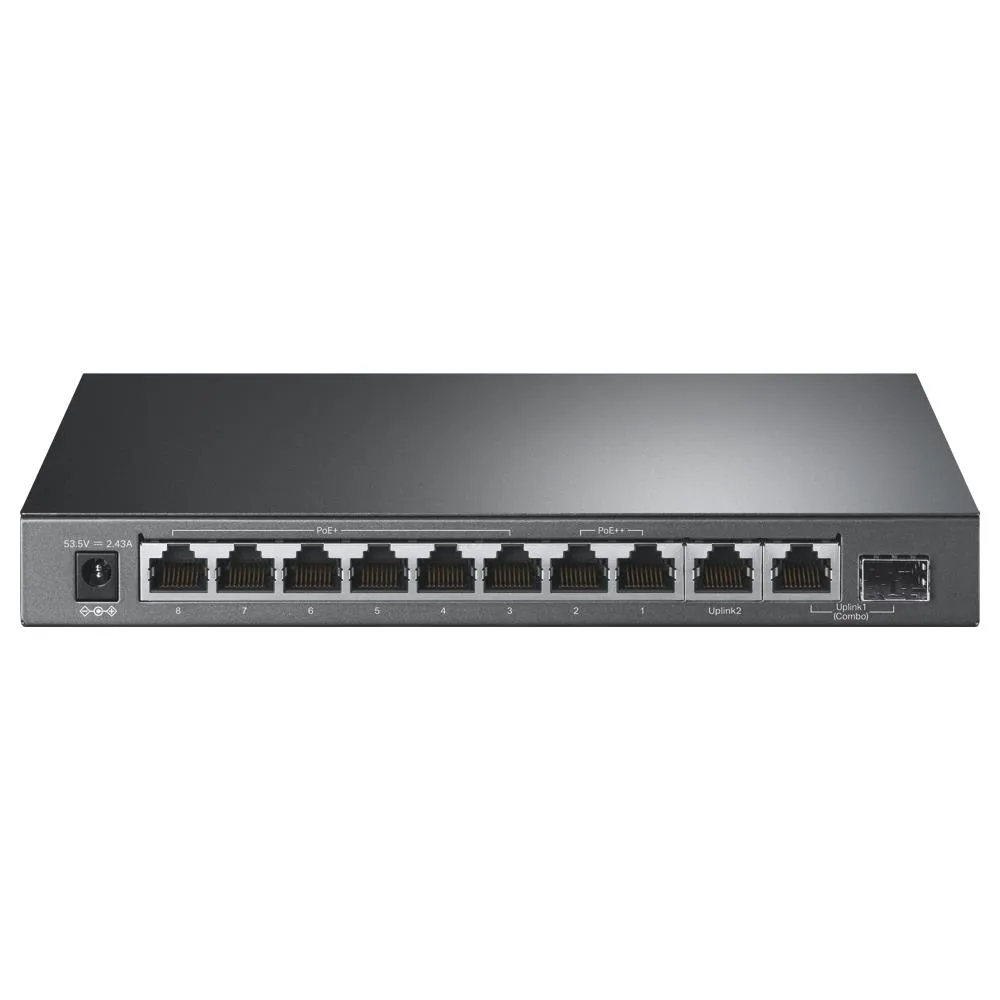

8 RJ45 ports (port 1 to port 8) of the switch support Power over Ethernet (PoE) function. They can automatically detect and supply power with those IEEE 802.3af/at/bt compliant Powered Devices (PDs) at port 1-2 and IEEE 802.3af/at compliant Powered Devices (PDs) at port 3-8.
Overload Arrangement
TL-SG1210PP has the priority function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is ≥ 123 W*, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port.
Intelligent Power Management
Priority (port 1 > port 2 ……> port 8): This function will help protect the system when the system power is overloaded. For example, port 3, 4, 5 and 6 is using 25 W respectively (maximum power per port is 30 W); the system power is 100 W in total. If there is an additional PD inserted to port 1 with 35 W, and then the system will cut off the power of port 6 because of the overloaded power, this means port 3, 4 and 5 will use 25 W respectively and port 1 will use 35 W, no power will be supplied to port 6.
Highlight Performance
• Up to 250 m PoE power supply and data transmission under Extend Mode** for port 1-4.
• Priority Mode ensures high priority of ports 1–2 to guarantee the quality of the sensitive applications
• Isolation Mode allows one-click client traffic separation for higher security and performance
• With PoE Auto Recovery, the switch will constantly detect the data transmission with PoE-powered devices (PD) for port 1-8. When the switch finds that a PD stops sending data packets to the switch for a long period, the switch will reboot it automatically.
TL-SG1210PP is easy to install and use. It requires no configuration and installation. With desktop and wall mountable design, outstanding performance and quality, the TP-Link 10-Port Gigabit Desktop Switch with 8-Port PoE+ and 2-Port PoE++ TL-SG1210PP is a great selection for expanding your network.
| Tootja | TP-LINK |
| Tootekood | TL-SG1210PP |
| EAN | 4895252500349 |
| Google link | lisainfo |
| Garantiiaeg | 36 kuud |
| .: Üldised andmed :. | |
| Tootja koduleht | https://www.tp-link.com/uk/business-networking/poe-switch/tl-sg1210pp/ |
| .: Üldised omadused :. | |
| Automaatne ühildumine | Jah |
| .: Disain :. | |
| Toote värv | Black |
| Korpuse materjal | Teras |
| LED-indikaatorid | Jah |
| Toote värv | Must |
| LED-indikaatorid | Jah |
| .: Toimimine :. | |
| Ilma ventilaatorita | Jah |
| .: Võrgustumine :. | |
| IGMP-jälgimine | Jah |
| Võrgustandardid | IEEE 802.3af/IEEE 802.3at/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z |
| Automaatse MAC-aadressi aegumise tugi | Jah |
| Automaatse MAC-aadressi tuvastamise tugi | Jah |
| IGMP-jälgimine | Jah |
| Võrgustandardid | IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Voo reguleerimise tugi | Jah |
| Auto MDI/MDI-X | Jah |
| 10G-tugi | Ei |
| .: Pesad & liidesed :. | |
| Installitud SFP moodulite hulk | 0 |
| Installitud SFP+ moodulite hulk | 0 |
| Gigabitise Etherneti (vask) portide arv | 10 |
| Etherneti vaskkaablite tehnoloogia | 10BASE-T, 100BASE-TX |
| Kombineeritud SFP-pesade arv | 1 |
| RJ-45 Etherneti ühenduse pesade arv | 10 |
| RJ-45 Etherneti ühenduse pesade tüüp | Gigabit Ethernet (10/100/1000) |
| Võimsus ja energiatarve | |
| Sisendpinge | 53.5 V |
| Sisendvool | 2.43 A |
| Power over Ethernet (PoE) | Jah |
| Sisendsagedus | 50 Hz |
| AC-sisendpinge | 90 - 220 V |
| AC-sisendsagedus | 50 Hz |
| Elektritarbimine (max) | 144,1 W |
| Toiteallikate arv | 1 |
| .: Tehnilised andmed :. | |
| Püstikmontaaž | Ei |
| Andmeedastus | |
| Edastamise kiirus | 14,88 Mpps |
| Ladusta-ja-edasta | Jah |
| MAC-aadresside tabel | 4000 sisestust |
| Lülitusvõime | 20 Gbit/s |
| Juhtimisfunktsioonid | |
| Teenusekvaliteedi (QoS) tugi | Jah |
| Lüliti tüüp | Mittejuhitav |
| Teenusekvaliteedi (QoS) tugi | Jah |
| Toide | |
| Kaasas toiteplokk | Jah |
| Toiteallikas | DC/PoE |
| Toiteallikas | External |
| Ethernet LAN-funktsioonid | |
| IEEE 802.1p | Jah |
| IEEE 802.3af | Jah |
| IEEE 802.3at | Jah |
| Funktsioonid | |
| Vahelduvvoolu pinge | 90 - 220 V |
| Toetatud kaablitüübid | Cat3, Cat4, Cat5, Cat5e |
| Mudeli originaalnimi | TL-SG1210PP |
| Internet elektrivõrgu kaudu (PoE) | |
| Toide üle võrgu (PoE) pesade arv | 2 |
| Etherneti toitega 4PPoE (PoE++) portide kogus | 6 |
| Toide üle võrgu (PoE) võimsusühikuid kokku | 123 W |
| Power over Ethernet tugi | Jah |
| Logistika andmed | |
| Kogus transpordikasti kohta | 1 |
| Harmonized System (HS) kood | 85176990 |
| Töötingimused | |
| Suhteline õhuniiskus (H-H) hoiustamisel | 5 - 90 protsenti |
| Hoiustamistemperatuur (T-T) | -40 - 70 °C |
| Soojuse hajumine | 482,17 BTU/h |
| Kasutamistemperatuur (T-T) | 0 - 40 °C |
| Suhteline õhuniiskus kasutamisel (H-H) | 10 - 90 protsenti |
| Suhteline õhuniiskus kasutamisel (H-H) | 10 - 90 % |
| Hoiustamistemperatuur (T-T) | -40 - 70 °C |
| .: Pakendi andmed :. | |
| Kasutusjuhend | Jah |
| Pakendi tüüp | Box |
| Kaablid kaasa arvatud | AC |
| ◁ SERTIFIKAADID ▷ | |
| Sertifikaat | FCC, CE, RoHS |
| User guide | Jah |
| Rack mounting | Ei |
| Gigabit Ethernet (copper) ports quantity | 10 |
| Store-and-forward | Jah |
| 10G support | Ei |
| Basic switching RJ-45 Ethernet ports quantity | 10 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Flow control support | Jah |
| Combo SFP ports quantity | 1 |
| Copper ethernet cabling technology | 100BASE-TX/10BASE-T |
| Fanless | Jah |
| Power over Ethernet plus (PoE+) ports quantity | 2 |
| Unit Box Height | 0.24 |
| Unit Box Length | 0.32 |
| Unit Box Width | 0.07 |
| CnCode | 85176200 |
| Unit Calculated Volume | 0.005376 cubm |
| Product Net Weight | 1.2 kg |
| Unit Calculated Weight | 1.63 kg |
| Summary | TP-Link 10-Port Gigabit Desktop Switch with 6-Port PoE+ and 2-Port PoE++. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 10. MAC address table: 4000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z. Power over Ethernet (PoE) |
| Harmonized System (HS) code | 85176990 |
| Cable types supported | Cat3/Cat4/Cat5/Cat5e |
| MAC address auto-aging supported | Jah |
| MAC address auto-learning supported | Jah |
| Power over Ethernet 4PPoE (PoE++) ports quantity | 6 |
| Power supply included | Jah |
| 10/100/1000BASE-T/SFP combo | 1 |
| 10Base-T / 100Base-TX / 1000Base-T | 9 |
| Auto-negotiation | Jah |
| Certification | FCC, CE, RoHS |
| Forwarding rate | 14.88 Mpps |
| Heat dissipation | 482.17 BTU/h |
| Housing material | Steel |
| MAC address table | 4000 entries |
| PoE+ ports | 6 |
| Power Source | DC/PoE |
| Storage relative humidity (H-H) | 5 - 90 % |
| Switch type | Unmanaged |
| Switching capacity | 20 Gbit/s |
| Total Power over Ethernet (PoE) budget | 123 W |
| Laius | 209 mm |
| Laius | 209 mm |
| Sügavus | 126 mm |
| Kõrgus | 26 mm |
| Mõõtmed (l x s x k) | 209 x 126 x 26 mm |
| Sügavus | 126 mm |
| Kõrgus | 26 mm |
