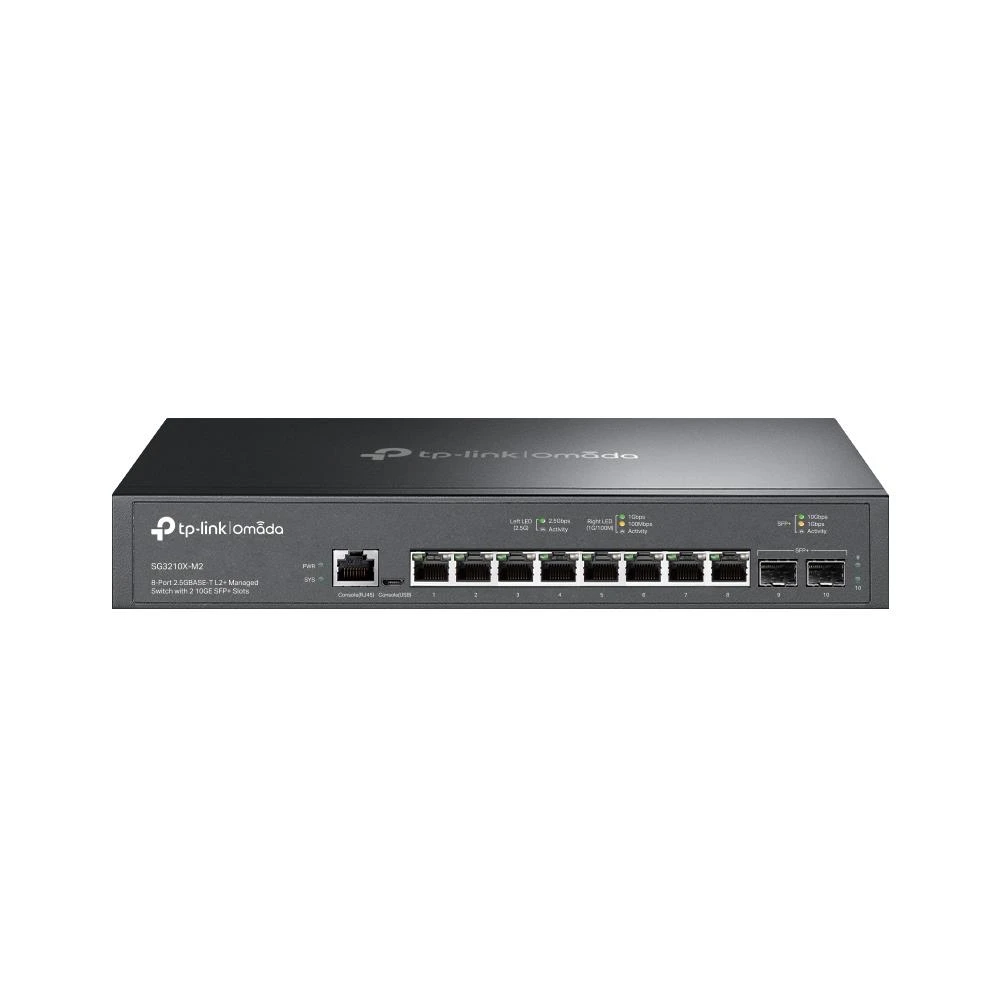

Ultrafast 2.5G Managed Switch with 10G Uplink for Futuristic Network
SG3210X-M2
10G Lightning-Fast
Uplink Connection
2× 10 Gbps SFP+ Slots for High-Bandwidth Connectivity
2.5G Ports
for WiFi 7/6E/6
8× 2.5 Gbps Ports Uplock the Full Potential of WiFi 7/6E/6 APs
Centralized Cloud
Management
SDN Solutions Integration for a Highly Efficient Network
Advanced L2+
Features
Static Routing, IGMP Snooping, 802.1Q VLAN and More
Enterprise Switch
with 10G Uplink
2× 10 Gbps SFP+ slots provide non-blocking switching performance and ultra-low latency, so reliable and lightning-fast connections to server and other switches are easily built.
Unlock the Highest Performance of 2.5G Multi-Gig Bandwidth and Devices
8× 2.5-Gigabit ports unlock the highest performance of your Multi-Gig bandwidth and devices. Auto-negotiation speed connections sense the link speeds and intelligently adjust for compatibility and optimal performance for all your devices, including desktop, 4K video, 2.5G Wi-Fi 7/6E/6 APs, 2.5G NAS, 2.5G PCIe adapter, gaming console, VR gaming, and more.
Software Defined Networking (SDN) with Cloud Access
Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.
Secure Networking
Security features include IP-MAC-Port-VID Binding, Port Security, Storm Control and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports or VLAN ID. Users’ network access can be controlled via 802.1X authentication, which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided.
Enterprise Level Features
A complete lineup of L2+ features are supported, including 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to only the appropriate subscribers, cutting out unnecessary traffic, while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Static Routing is a simple way of segmenting the network and internally routs traffic through the switch for improved efficiency.
Advanced QoS
Voice and video traffic can be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more. With QoS (Quality of Service), voice and video services remain smooth, even when bandwidth is in short supply.
ISP Features
QinQ, L2PT PPPoE ID Insertion and IGMP authentication features are provided, developed with service providers in mind. 802.3ah OAM and Device Link Detection Protocol (DLDP) offer easy monitoring and troubleshooting of Ethernet links.
IPv6 Support
IPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery and IPv6 Neighbor Discover guarantee your network is ready for the Next Generation Network (NGN) without upgrading your hardware.
| Tootja | TP-LINK |
| Tootekood | SG3210X-M2 |
| EAN | 4897098689523 |
| Google link | lisainfo |
| Garantiiaeg | 36 kuud |
| .: Üldised andmed :. | |
| Tootja koduleht | https://www.tp-link.com/uk/business-networking/managed-switch/sg3210x-m2/ |
| .: Üldised omadused :. | |
| Paketi puhvermälu | 12 MB |
| .: Disain :. | |
| Toote kuju | 1U |
| Toote värv | Black |
| Kujutegur | 1U |
| LED-indikaatorid | Jah |
| Toote värv | Must |
| LED-indikaatorid | Jah |
| .: Toimimine :. | |
| Ilma ventilaatorita | Jah |
| Asukoha seadete konfigureerimine (CLI) | Jah |
| .: Võrgustumine :. | |
| GARP VLAN Registration Protocol (GVRP) | Jah |
| Virtuaalse LANi elemendid | MAC address-based VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN |
| IGMP-jälgimine | Jah |
| Võrgustandardid | IEEE 802.1D/IEEE 802.1s/IEEE 802.1w |
| VLAN-i tugi | Jah |
| HOL-blokeerimine | Jah |
| IP-marsruutimine | Jah |
| Linkide koondamine | Jah |
| Genereeriva puu protokoll | Jah |
| Kiiruse piiramine | Jah |
| Levindamise tormi kontroll | Jah |
| IGMP-jälgimine | Jah |
| Pordipeegeldus | Jah |
| Võrgustandardid | IEEE 802.1D, IEEE 802.1s, IEEE 802.1w |
| Voo reguleerimise tugi | Jah |
| 10G-tugi | Jah |
| Ethernet LAN-i andmeedastuskiirused | 100,1000,2500 Mbit/s |
| VLAN-i tugi | Jah |
| Ethernet LAN-i andmeedastuskiirused | 100,1000,2500 Mbit/s |
| .: Pesad & liidesed :. | |
| 2.5G Ethernet (copper) ports quantity | 8 |
| 2,5G Etherneti (vask) portide arv | 8 |
| Installitud SFP moodulite hulk | 0 |
| Installitud SFP+ moodulite hulk | 0 |
| Konsooli port | RJ-45/micro-USB |
| RJ-45 Etherneti ühenduse pesade arv | 8 |
| RJ-45 Etherneti ühenduse pesade tüüp | 2.5G Ethernet (100/1000/2500) |
| SFP+ mooduli pesade arv | 2 |
| Võimsus ja energiatarve | |
| Sisendsagedus | 50/60 Hz |
| AC-sisendpinge | 100 - 240 V |
| AC-sisendsagedus | 50/60 Hz |
| Võimsustarve (tüüpiline) | 15 W |
| Turvalisus | |
| DHCP features | DHCP client/DHCP relay/DHCP server/DHCP snooping/DHCPv6 client/DHCPv6 snooping |
| DHCP elemendid | DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping |
| Turvaalgoritmid | HTTPS/SSH/SSH-2/SSL/TLS |
| BPDU filtreerimine/kaitse | Jah |
| Tsükli kaitse | Jah |
| IP-MAC pordi sidumine | Jah |
| Autentimine | MAC-põhine autentimine, Pordipõhine autentimine |
| Autentimise tüüp | AAA, TACACS+ |
| Queue scheduling algorithms | SP/Weighted Round Robin (WRR)/WRR+SP |
| Staatilise pordi turvalisus | Jah |
| Pääsuloend (ACL) | Jah |
| Salasõna kaitse | Jah |
| SSH/SSL tugi | Jah |
| MAC-aadresside filtreerimine | Jah |
| Turvaalgoritmid | HTTPS, SSH, SSH-2, SSL/TLS |
| .: Võimsus :. | |
| Toitepistmik | Vahelduvvoolu sisendpesa |
| Jahutus | |
| Ventilaatorite arv | 2 fan(s) |
| Protokollid | |
| Haldusprotokollid | SNMPv1/v2c/v3, SNTP |
| .: Tehnilised andmed :. | |
| Püstikmontaaž | Jah |
| Andmeedastus | |
| Hiigelkaadrite | 9000 |
| Edastamise kiirus | 59,52 Mpps |
| Static route | Jah |
| Staatiline ruutimine | Jah |
| Multicast listener discovery (MLD) snooping | Y |
| Multicast listener discovery (MLD) snoopimine | Y |
| IP-liideste arv | 16 |
| Jumbo frames | 9000 |
| VLAN-ide arv | 4000 |
| Staatiliste marsruutide arv | 48 |
| MAC-aadresside tabel | 16000 sisestust |
| Lülitusvõime | 80 Gbit/s |
| Hiigelkaadrite tugi | Jah |
| Juhtimisfunktsioonid | |
| APR-i ülevaatus | Jah |
| Pilvepõhine haldus | Jah |
| Teenusekvaliteedi (QoS) tugi | Jah |
| Veebipõhine haldus | Jah |
| Võrguliikluse klassifikatsioon | Jah |
| Lüliti kiht | L2+ |
| Lüliti tüüp | Juhitav |
| MIB-tugi | RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213 |
| Teenusekvaliteedi (QoS) tugi | Jah |
| Veebipõhine haldus | Jah |
| Multiedastuse tugi | Jah |
| Süsteemisündmuste logi | Jah |
| Toide | |
| Kaasas toiteplokk | Jah |
| Toiteallikas | Vahelduvvool |
| Funktsioonid | |
| Virtual LAN features | MAC address-based VLAN/Port-based VLAN/Private VLAN/Protocol-based VLAN/Tagged VLAN/Voice VLAN |
| Vahelduvvoolu pinge | 100 - 240 V |
| Mudeli originaalnimi | Omada 8-Port 2.5G L2+ Managed Switch |
| Logistika andmed | |
| Kogus transpordikasti kohta | 1 |
| Harmonized System (HS) kood | 85176990 |
| Töötingimused | |
| Suhteline õhuniiskus (H-H) hoiustamisel | 5 - 90 protsenti |
| Hoiustamistemperatuur (T-T) | -40 - 70 °C |
| Soojuse hajumine | 51,18 BTU/h |
| Kasutamistemperatuur (T-T) | 0 - 50 °C |
| Suhteline õhuniiskus kasutamisel (H-H) | 10 - 90 protsenti |
| Suhteline õhuniiskus kasutamisel (H-H) | 10 - 90 % |
| Hoiustamistemperatuur (T-T) | -40 - 70 °C |
| .: Pakendi sisu :. | |
| Kiirstardi juhend | Jah |
| Kiirpaigaldusjuhend | Jah |
| .: Pakendi andmed :. | |
| Pakendi tüüp | Box |
| Kaablid kaasa arvatud | AC |
| Pakendi sügavus | 250 mm |
| Pakendi laius ( mm ) | 528 mm |
| Pakendi kõrgus ( mm ) | 80 mm |
| Pakendi kaal | 2,84 kg |
| ◁ SERTIFIKAADID ▷ | |
| Sertifikaat | CE, FCC, RoHS |
| Password protection | Jah |
| Management protocols | SNMPv1/v2c/v3, SNTP |
| Rack mounting | Jah |
| MAC address filtering | Jah |
| System event log | Jah |
| Switch layer | L2+ |
| Jumbo frames support | Jah |
| Access Control List (ACL) | Jah |
| Port mirroring | Jah |
| Broadcast storm control | Jah |
| IP routing | Jah |
| 10G support | Jah |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| Flow control support | Jah |
| Console port | RJ-45/Micro-USB |
| Multicast support | Jah |
| Number of VLANs | 4000 |
| SSH/SSL support | Jah |
| Spanning tree protocol | Jah |
| Link aggregation | Jah |
| Fanless | Jah |
| Rate limiting | Jah |
| Head-of-line (HOL) blocking | Jah |
| MIB support | RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213 |
| Number of static routes | 48 |
| ARP inspection | Jah |
| Series | Omada |
| SFP+ module slots quantity | 2 |
| 2.5GbE | 8 |
| Unit Box Height | 0.082 |
| Unit Box Length | 0.405 |
| Unit Box Width | 0.25 |
| CnCode | 85176200 |
| Unit Calculated Volume | 0.008303 cubm |
| Product Net Weight | 1.8 kg |
| Unit Calculated Weight | 2.1 kg |
| Summary | TP-Link Omada 8-Port 2.5G L2+ Managed Switch. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 8, Console port: RJ-45/micro-USB. MAC address table: 16000 entries, Switching capacity: 80 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1s, IEEE 802.1w. Power connector: AC-in jack. Rack mounting, Form factor: 1U |
| Harmonized System (HS) code | 85176990 |
| Cloud-managed | Jah |
| Traffic classification | Jah |
| Loop protection | Jah |
| IP-MAC-Port binding | Jah |
| Authentication | MAC-based authentication,Port-based authentication |
| Authentication type | AAA,TACACS+ |
| BPDU filtering/protection | Jah |
| Number of IP interfaces | 16 |
| Configuring Location Settings (CLI) | Jah |
| Power supply included | Jah |
| Static port security | Jah |
| Certification | CE, FCC, RoHS |
| Console | 1 |
| Desktop/pedestal | Jah |
| Forwarding rate | 59.52 Mpps |
| Heat dissipation | 51.18 BTU/h |
| MAC address table | 16000 entries |
| Micro-USB | 1 |
| Package depth | 250 mm |
| Package height | 80 mm |
| Package weight | 2840 g |
| Package width | 528 mm |
| Packet buffer memory | 12 MB |
| Power Connector | AC-in jack |
| Power Source | AC |
| Primary port count | 8 |
| Rack | Jah |
| SFP+ | 2 |
| Storage relative humidity (H-H) | 5 - 90 % |
| Switch type | Managed |
| Switching capacity | 80 Gbit/s |
| Laius | 294 mm |
| Laius | 294 mm |
| Sügavus | 180 mm |
| Kõrgus | 44 mm |
| Mõõtmed (l x s x k) | 294 × 180 × 44 mm |
| Sügavus | 180 mm |
| Kõrgus | 44 mm |
