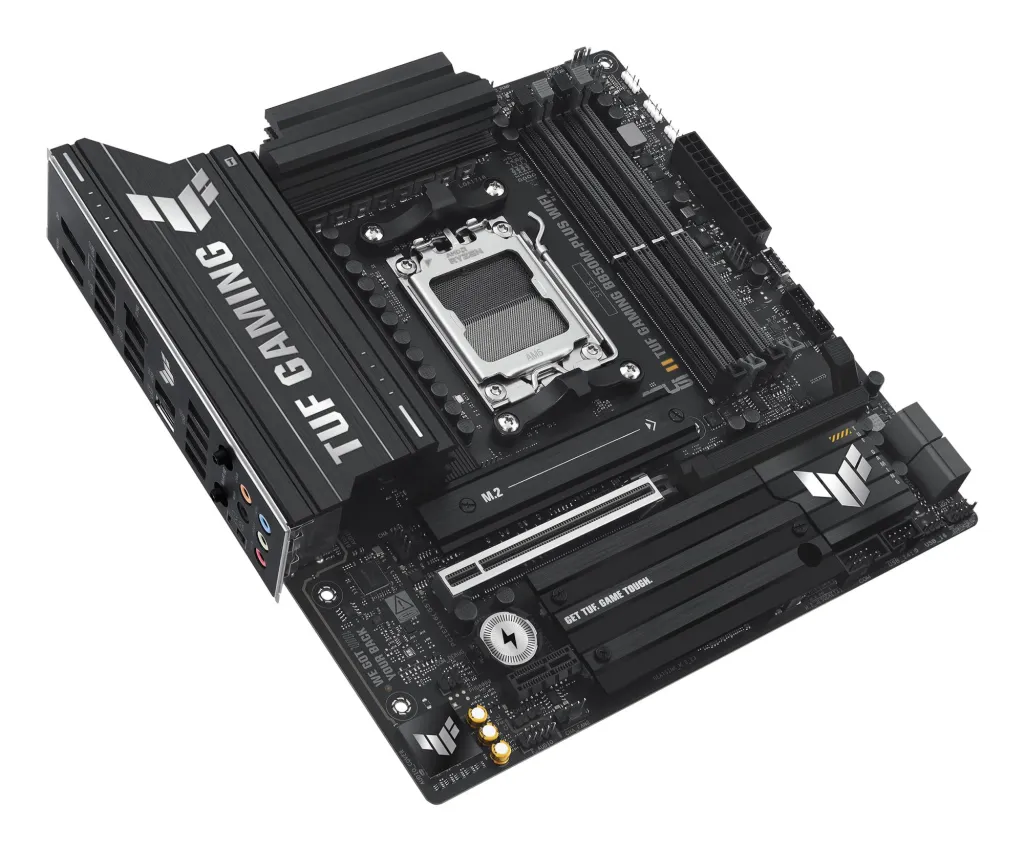

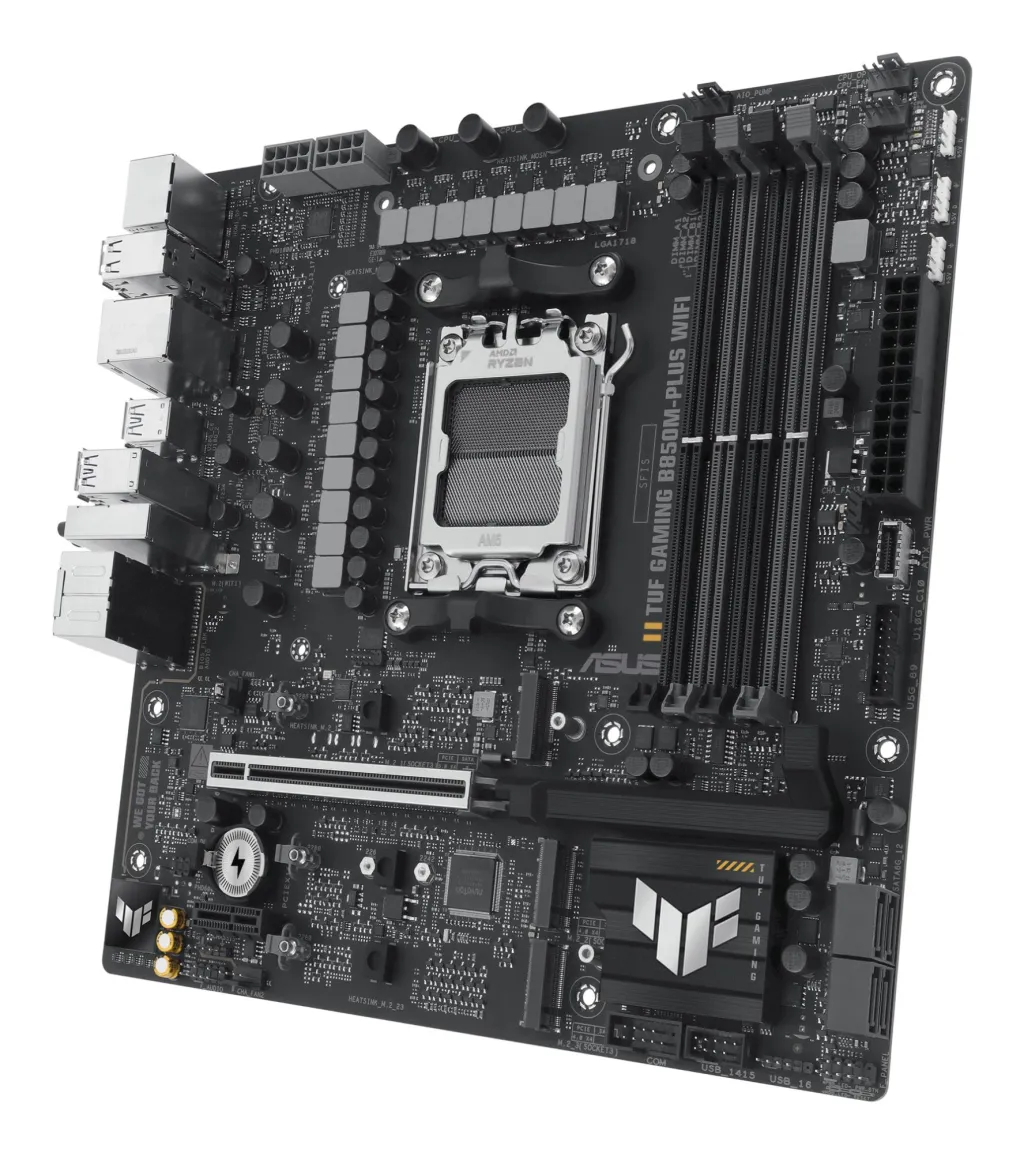

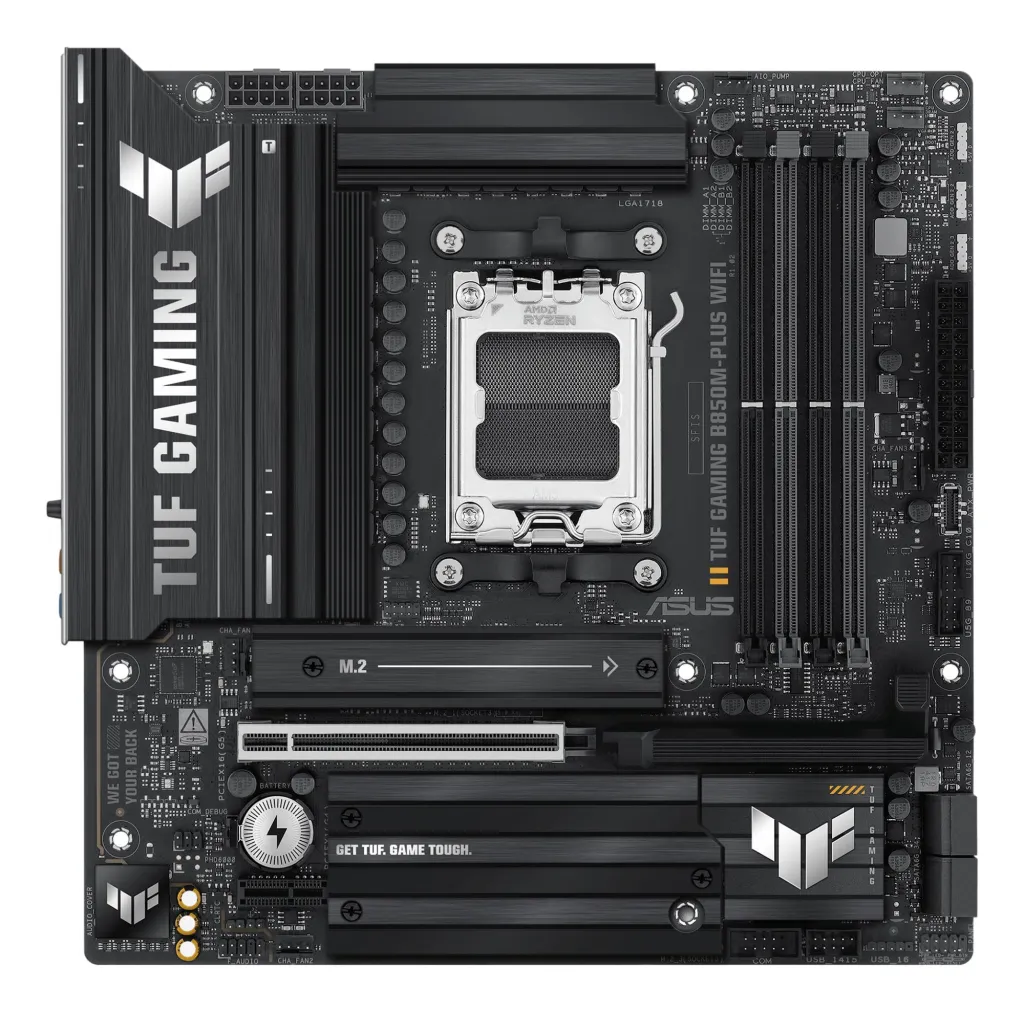

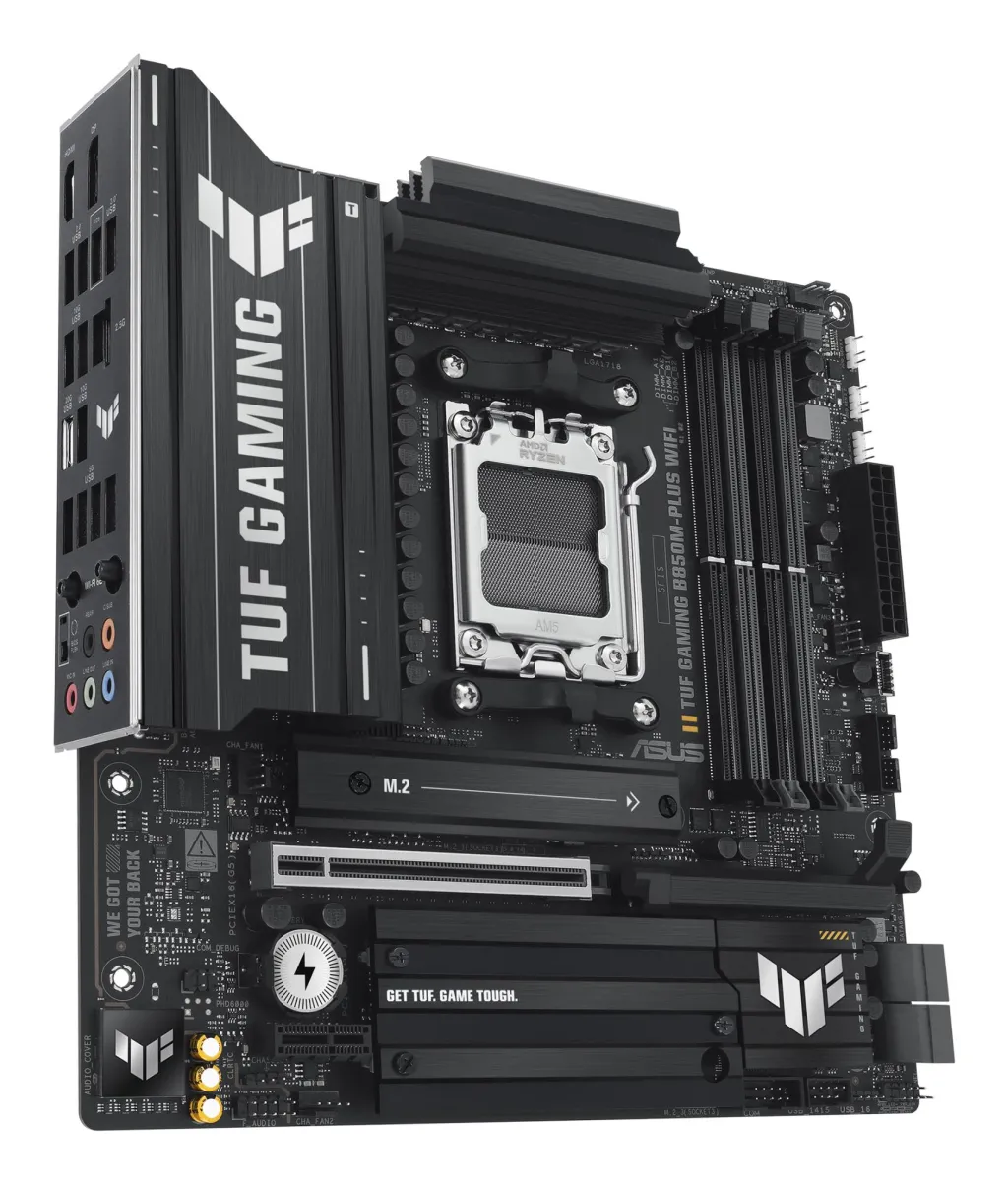

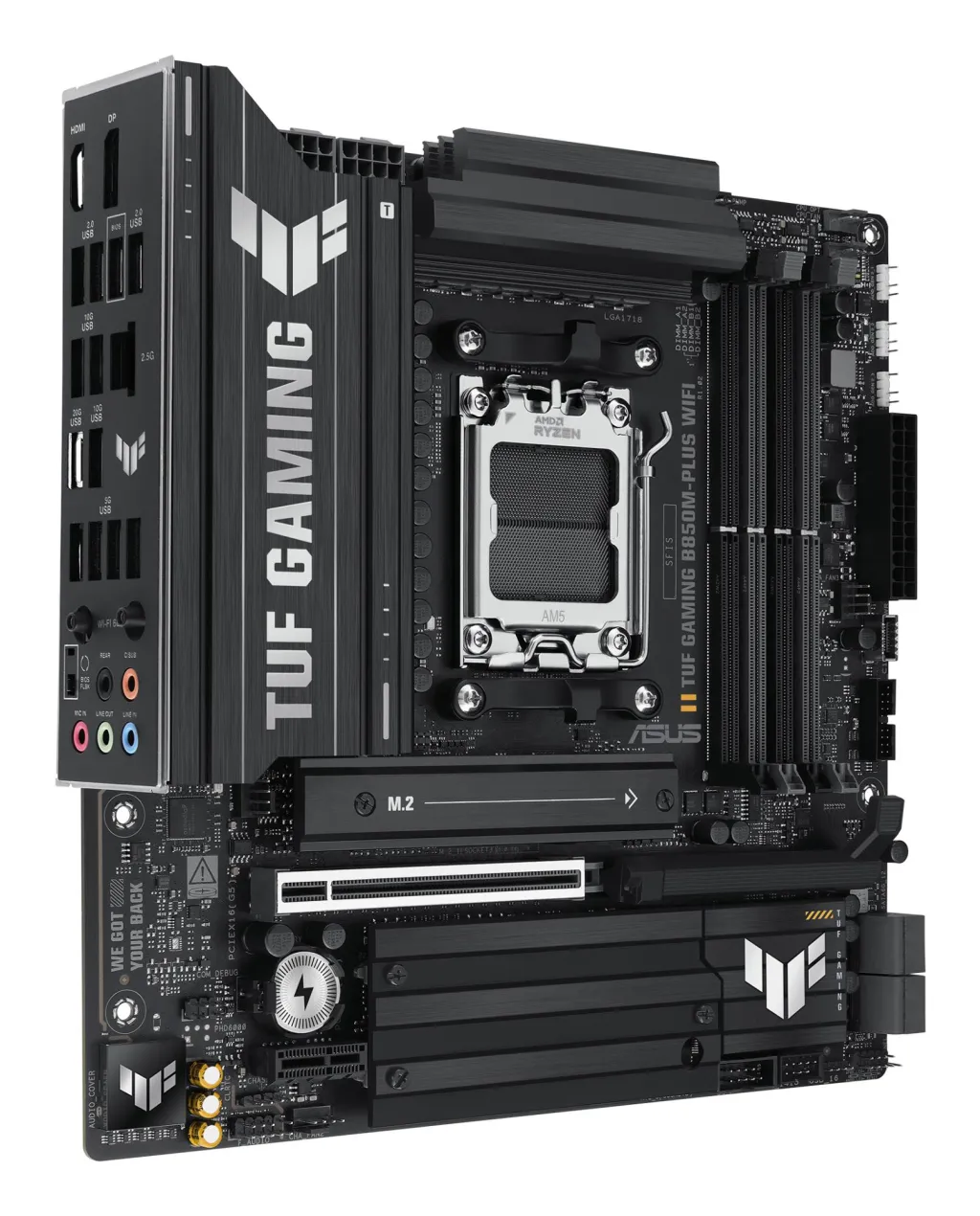

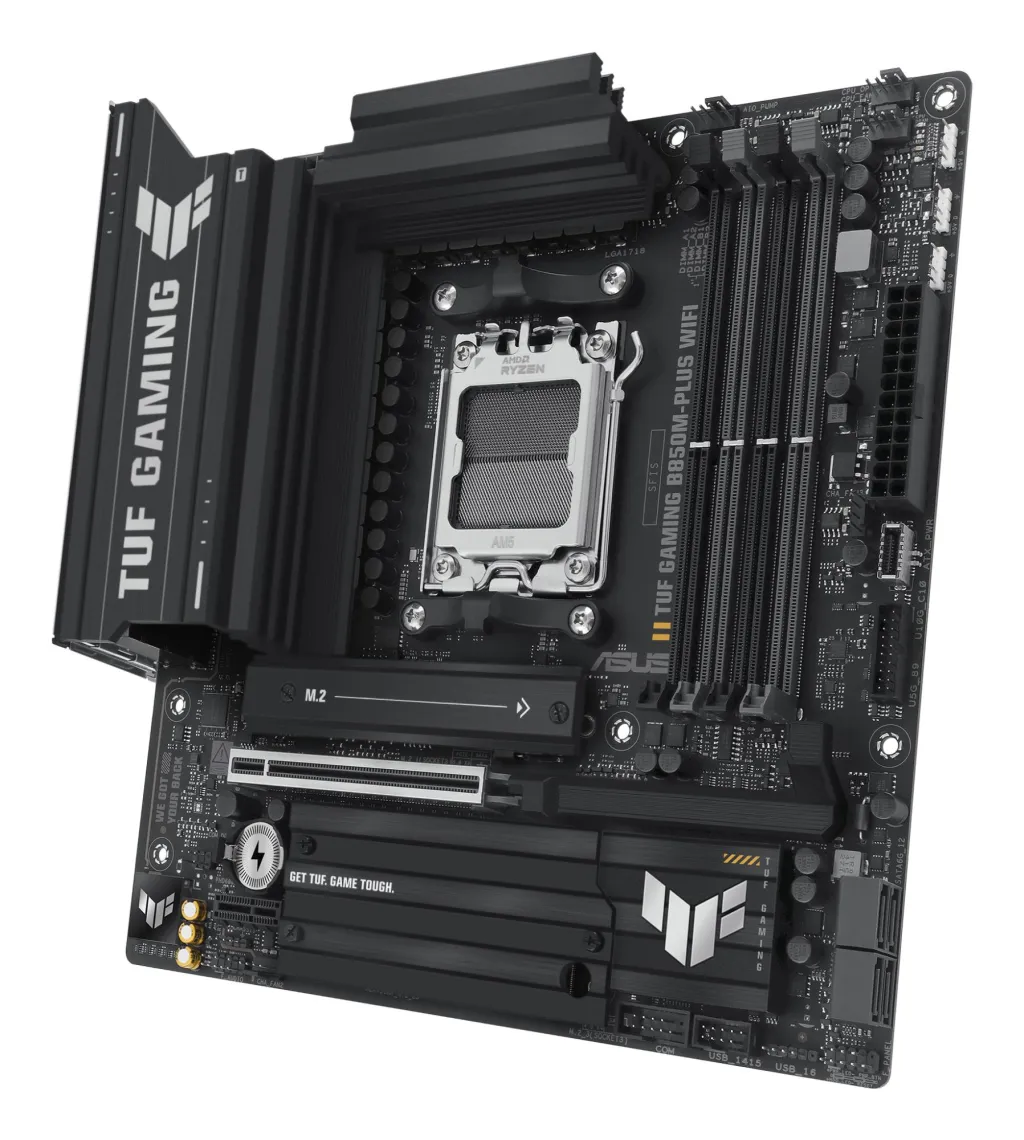

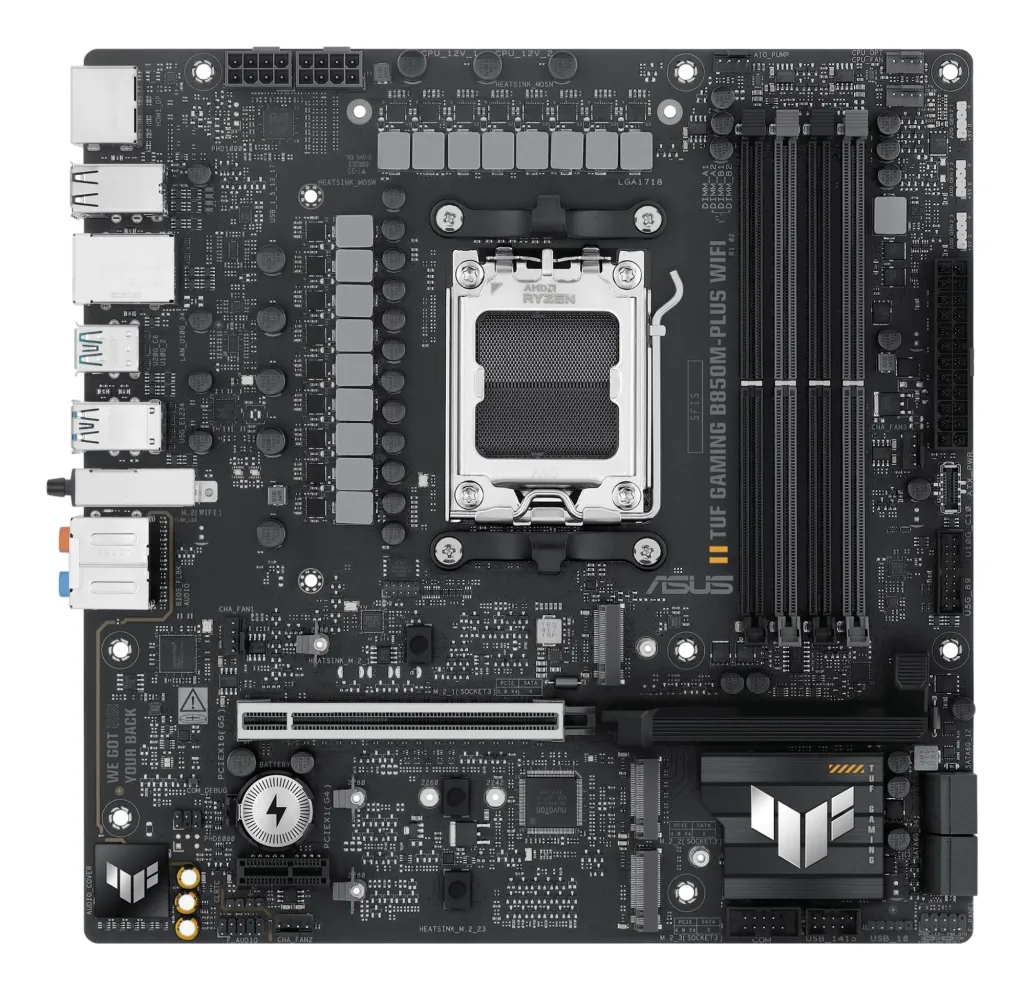

TUF GAMING
B850M-PLUS WIFI
ASUS TUF GAMING B850M-PLUS WIFI takes all the essential elements of the latest AMD Ryzen™ processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.
| Tootja | ASUS |
| Tootekood | TUF GAMING B850M-PLUS WIFI |
| EAN | 4711387764916 |
| Google link | lisainfo |
| Garantiiaeg | 36 kuud |
| .: Disain :. | |
| Emaplaadi kujutegur | micro ATX |
| Kujutegur | Micro-ATX |
| Laius | 244 mm |
| Sügavus | 244 mm |
| .: Protsessor :. | |
| Protsessori pesa | SAM5 |
| .: Kiibistik ( Chipset ) :. | |
| Kiibistik ( Chipset) | AMD B850 |
| .: Mälu :. | |
| Sisemälu tüüp | DDR5 |
| Taktsagedus | 8000 MHz |
| Mälupesad | 4 |
| Maksimaalne sisemälu | 192 GB |
| Graafikakaart | |
| Integreeritud graafikaadapter | Depending on CPU |
| .: Audio :. | |
| Intregeeritud helikaart | Realtek ALC1220P |
| Audioväljundi kanalid | 5 |
| .: Võrgustumine :. | |
| Ethernet LAN | 2.5 Gigabit |
| WiFi | Jah |
| WiFi-standardid | Wi-Fi 6E (802.11ax) |
| Bluetooth | Jah |
| Bluetoothi versioon | 5.3 |
| Kõvaketta tugi | |
| SATA | Jah |
| M.2 (M) siinide arv | 3 |
| RAID | SATA 0, 1, 5, 10 |

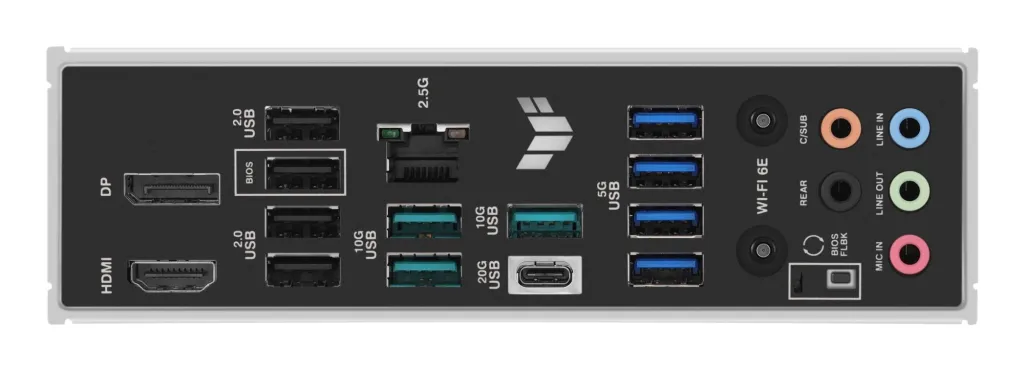

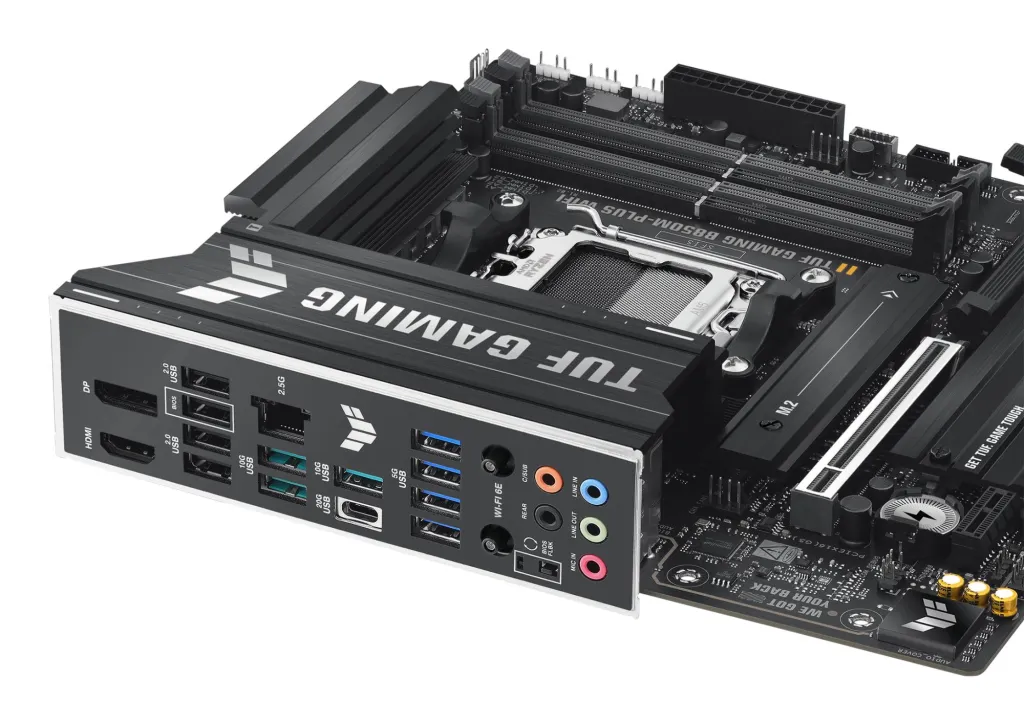

| Tagapaneeli I/O pesad | |
| HDMI-portide arv | 1 |
| USB 2.0 portide arv | 4 |
| USB 2.0 | Jah |
| Ethernet LAN (RJ-45) pordid | 1 |
| Lisad | |
| Kaablid kaasa arvatud | SATA |
| .: Kaal ja mõõtmed :. | |
| Brutokaal | 1.84 kg |
| Netokaal | 1 kg |
| .: Pakendi andmed :. | |
| Max kogus transpordipakendis | 10 |
| Pakendi maht | 0.006251 cubm |
| Muud näitajad | |
| Compatible processor series | AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series |
| Supported processor sockets | Socket AM5 |
| BIOS type | UEFI AMI |
| ATX Power connector (24-pin) | Jah |
| Memory slots type | DIMM |
| Motherboard chipset family | AMD |
| Number of chassis fan connectors | 3 |
| Number of COM connectors | 1 |
| Chassis intrusion connector | Jah |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Front panel audio connector | Jah |
| S/PDIF out connector | Jah |
| CPU fan connector | Jah |
| Number of SATA III connectors | 4 |
| Parallel processing technology support | Not supported |
| Number of M.2 (M) slots | 3 |
| Number of storage drives supported | 7 |
| Supported storage drive types | HDD & SSD |
| WiFi-AP antenna jack | 1 |
| Supported storage drive interfaces | M.2,SATA III |
| Screws included | Jah |
| Processor manufacturer | AMD |

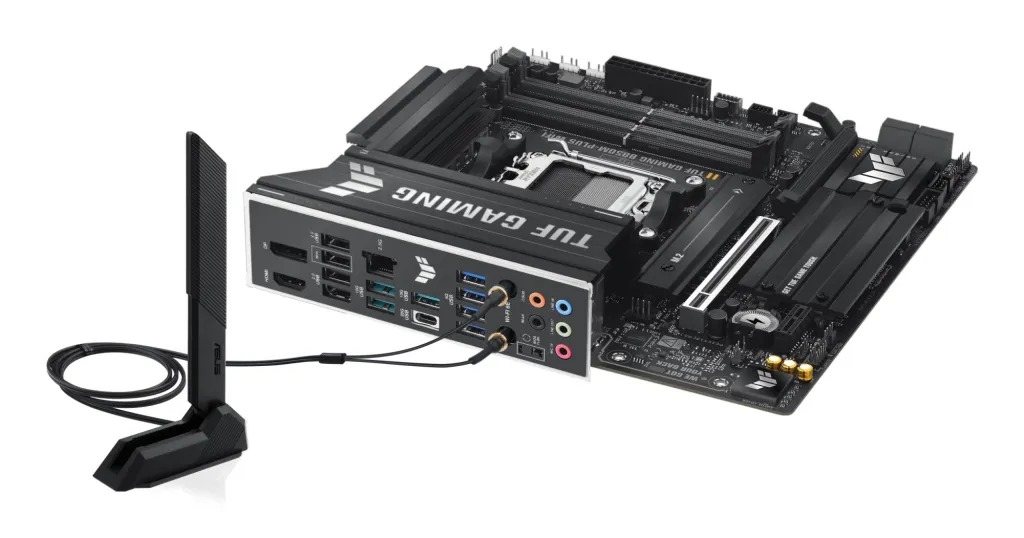

| Antenna included | Jah |
| PCI-Express 4.0 16x | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI-Express 4.0 1x | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| PCI-Express 5.0 16x | 1 |
| Unit Box Height | 0.275 |
| Unit Box Length | 0.277 |
| Unit Box Width | 0.069 |
| CnCode | 84733020 |
| ECC сompatibility | ECC & Non-ECC |
| Units per Shipping Box | 10 |
| Unit Calculated Volume | 0.006251 cubm |
| Product Net Weight | 1 kg |
| Unit Calculated Weight | 1.84 kg |
| Summary | ASUS TUF GAMING B850M-PLUS WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6E (802.11ax), Wi-Fi standards: Wi-Fi 6E (802.11ax). Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: AMD |
| Product colour | Black |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| On-board graphics card | Ei |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Audio chip | Realtek ALC1220P |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Number of HDDs supported | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| 12V power connector | Jah |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Front panel connector | Jah |
| PCI Express x1 (Gen 4.x) slots | 1 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 2280 |
| Component for | PC |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 3rd M.2 largest key size | 2280 |
| 3rd M.2 highest PCI Express generation | 4.0 |
| Tootja koduleht | https://www.asus.com/motherboards-components/motherboards/tuf-gaming/tuf-gaming-b850m-plus-wifi/ |
| Transpordipakendi kaal | 18.35 kg |
| Transpordipakendi kõrgus | 29.8 cm |
| Transpordipakendi laius | 36.8 cm |
| Transpordipakendi sügavus | 57 cm |

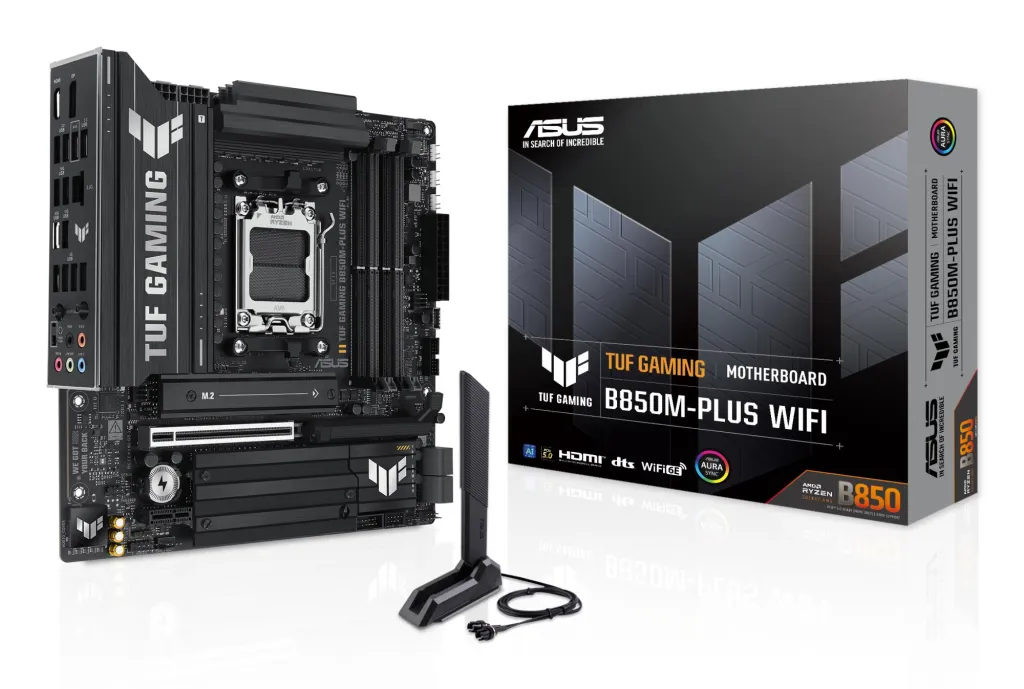

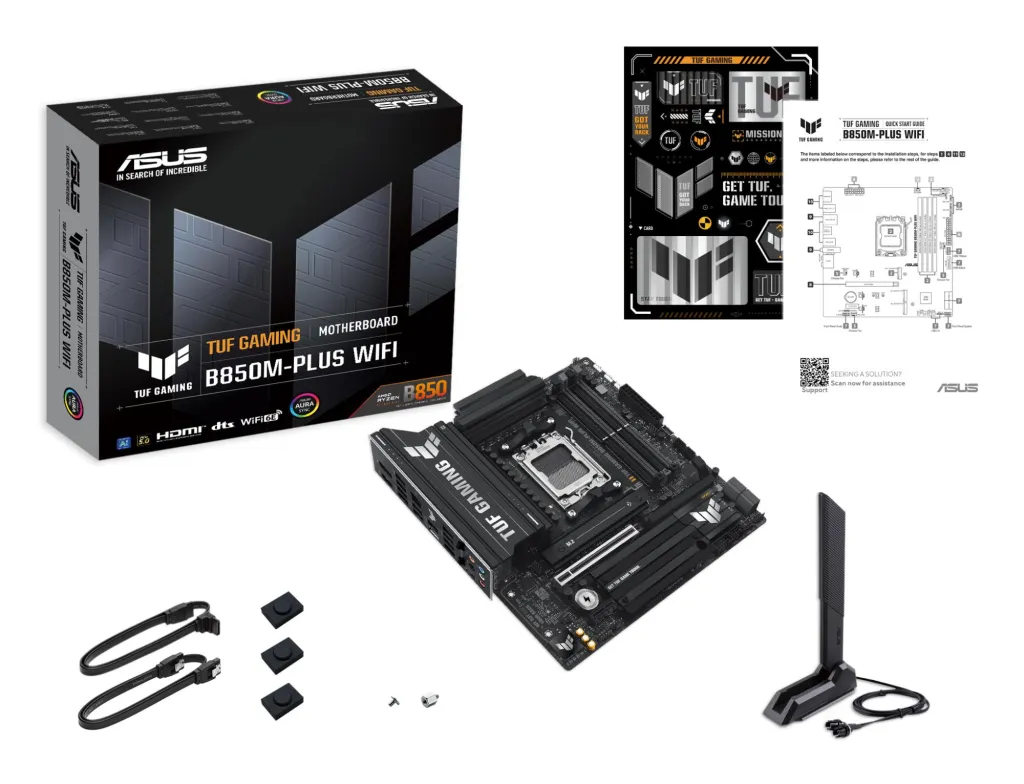

| Tarvikud kaasa arvatud | Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS WiFi Q-Antenna 1 x TUF GAMING sticker 2 x M.2 rubber packages 1 x Screw package for M.2 SSD Documentation 1 x Quick start guide |
| Toote kaal | 1200 g |
| DisplayPorts quantity | 1 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN (RJ-45) ports | 1 |
| Motherboard chipset | AMD B850 |
| RAID support | Jah |
| Unbuffered memory | Jah |
| Windows operating systems supported | Windows 10 x64/Windows 11 |
| BIOS memory size | 256 Mbit |
| DisplayPort | 1 |
| Mudel | TUF GAMING B850M-PLUS WIFI |
| Number of memory slots | 4 |
| Package depth | 275 mm |
| Package height | 67.5 mm |
| Package weight | 1681 g |
| Package width | 275 mm |
| Processor Socket | Socket AM5 |
| Raid Levels | 0/1/10/5 |
| USB 2.0 connectors | 2 |
| USB-C | Jah |
