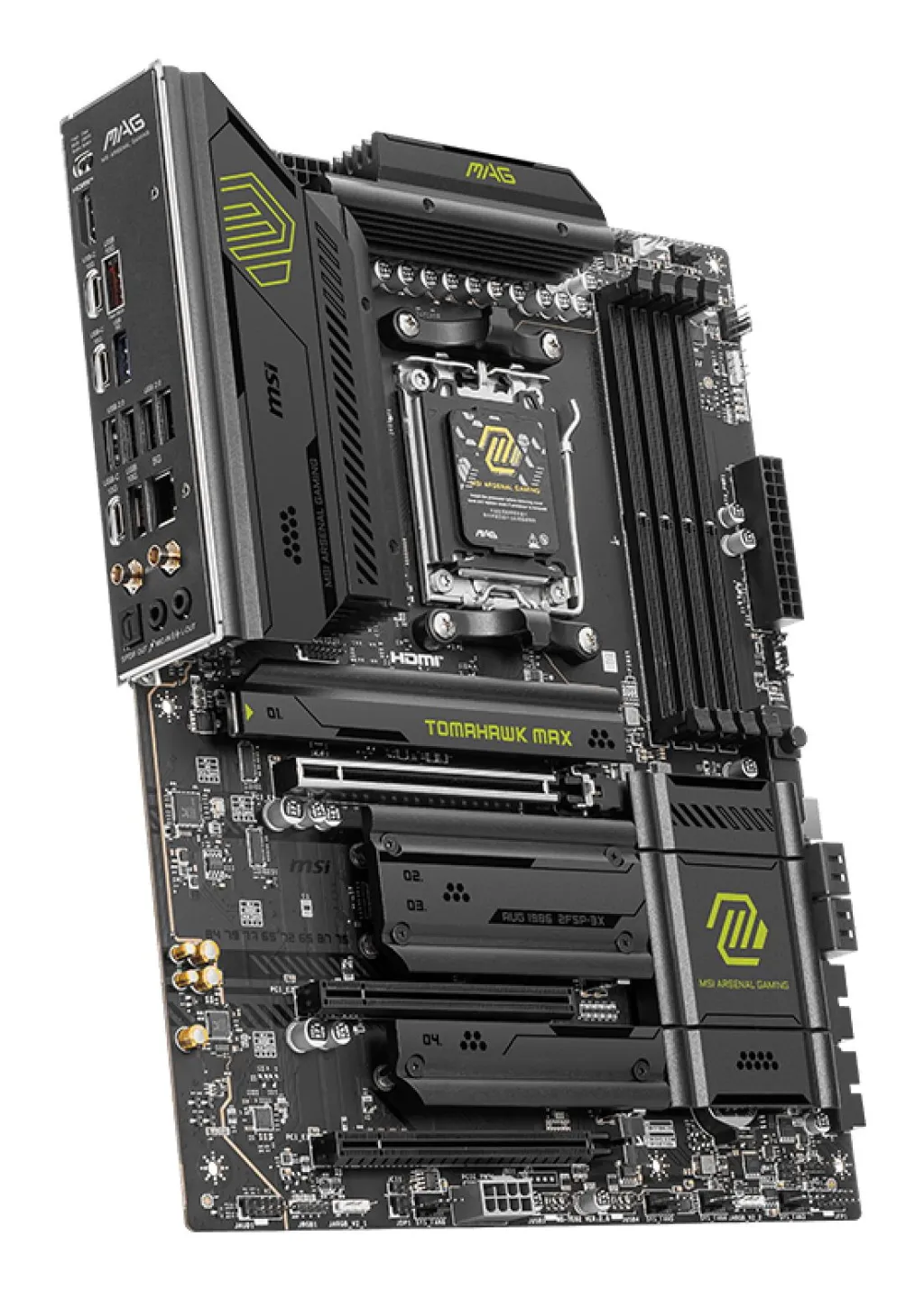

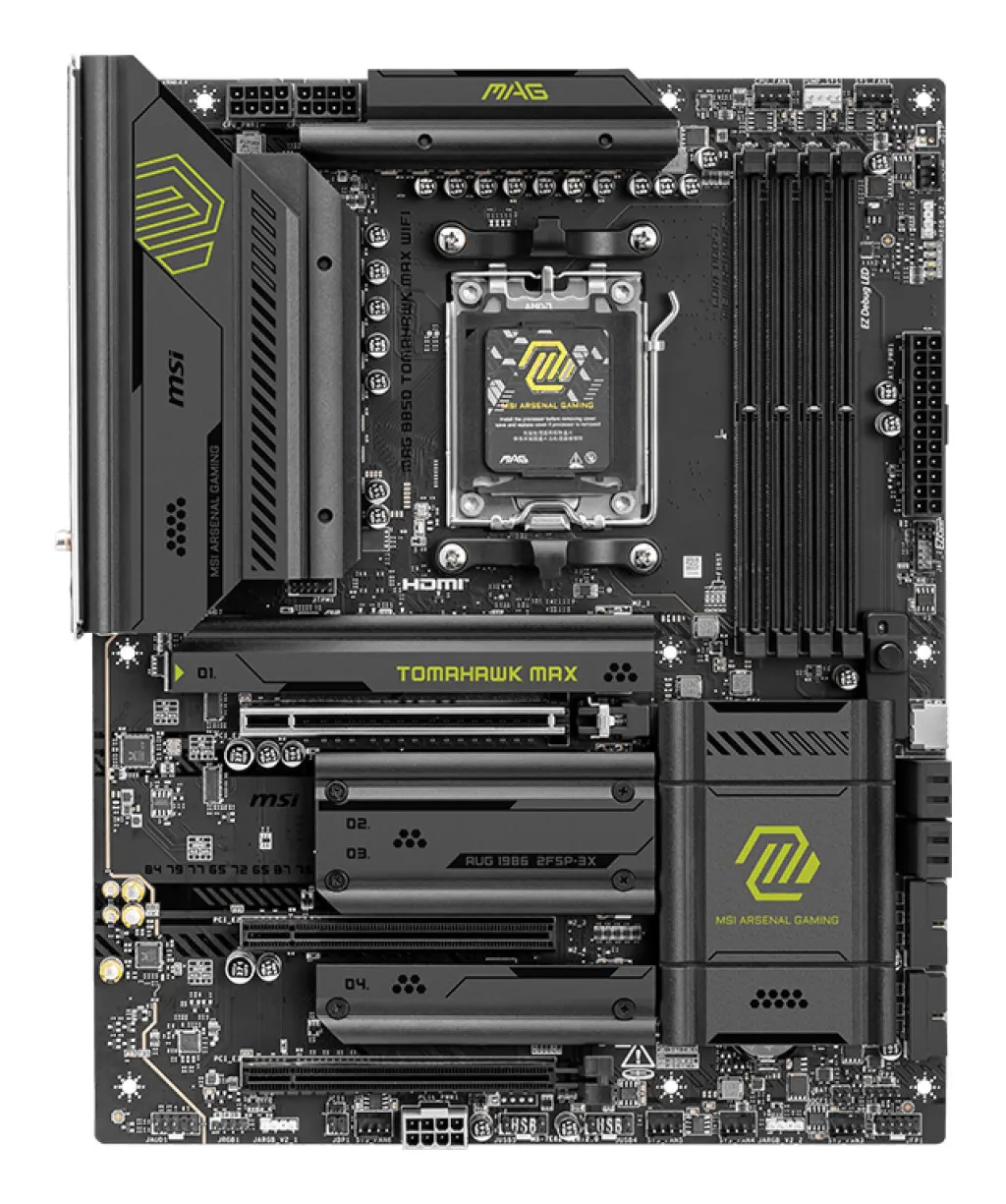

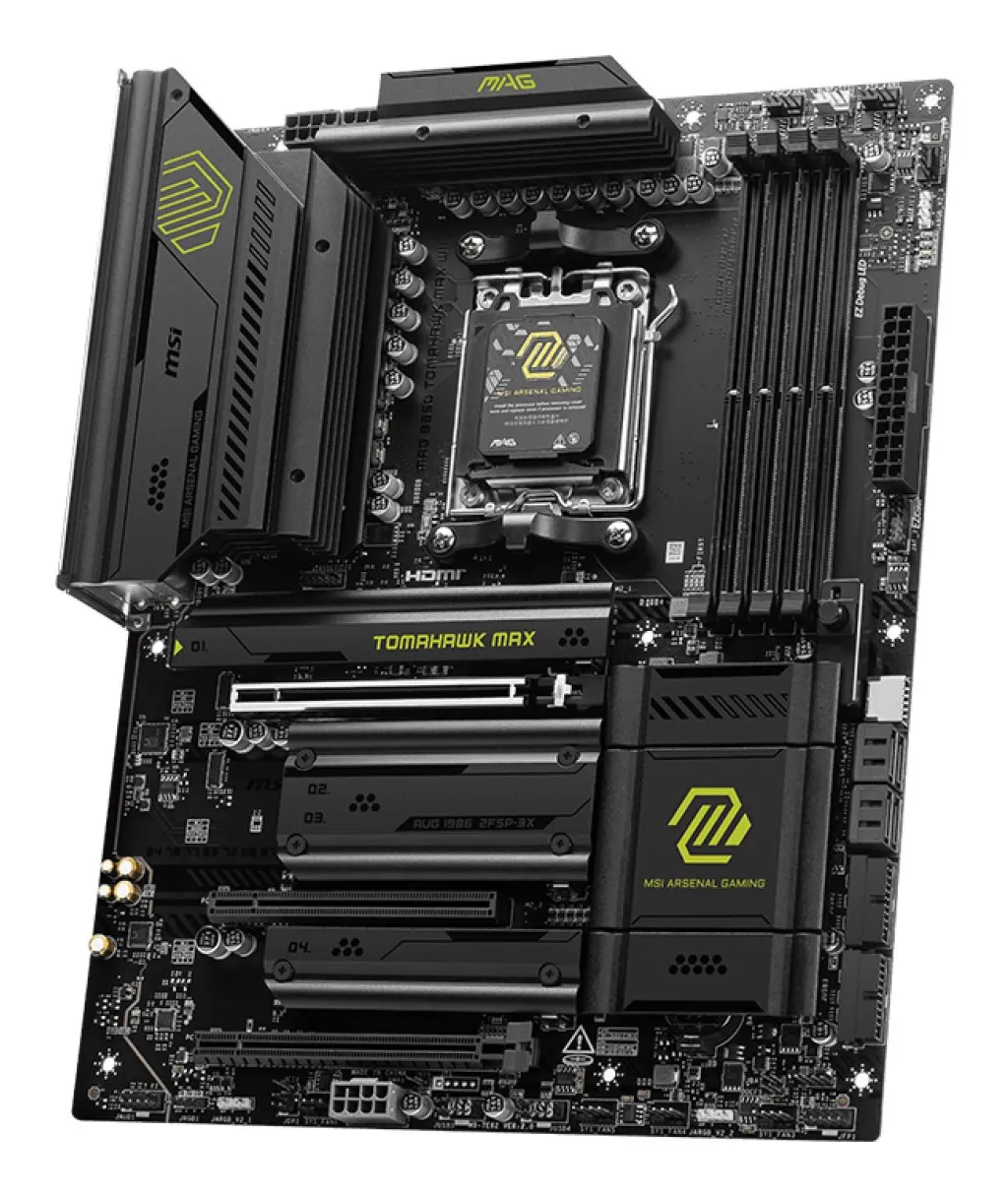

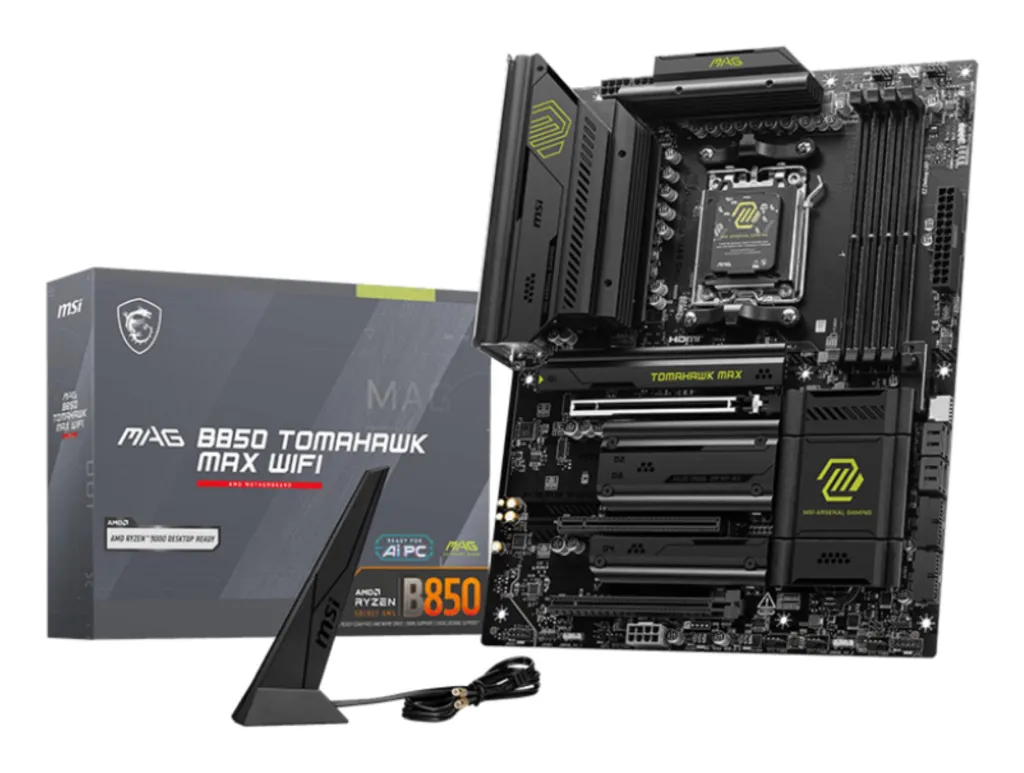

MSI B850 Tomahawk MAX wifi
MAG B850 TOMAHAWK MAX WIFI is designed for gamers with a stable, durable and DIY friendly foundation for their PC builds. Coming up with true Wi-Fi 7 solution, 5G LAN, USB 20Gbps, PCIe 5.0 solutions, Supplemental PCIe Power, and exclusive EZ DIY features, it's ready for the battlefield of AMD Ryzen™ 9000 series processors.
MSI's mainstream MAG series epitomizes stability and durability and is built to withstand the most intense gaming sessions. The entire lineup features robust construction with metallic-like hardness and excellent heat dissipation, ensuring stability for all critical gaming components.
MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.
14+2+1 Duet Rail Power System
Unleash and sustain maximum performance with a flagship VRM design built with a total of 14+2+1 digital power phases. Combining dual power connectors and 80A Smart Power Stage, MAG B850 TOMAHAWK MAX WIFI is ready for the challenge of high-end processors.
OPTIMIZED PCB SOLUTION
The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.
Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.
M.2 Shield Frozr
Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.
Heavy Plated VRM Heatsink
The VRM heatsink covers the upper MOS and helps dissipate the heat.
7W/mK Thermal Pad & Additional Choke Pad
High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are runnging at high speed.
Enlarged Chipset Heatsink
The enlarged heatsink is designed to reduce dust and noise and capable of maintaining high efficiency of heat dissipation.
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI's premium network solution provides incredible data transfer speed for demanding users.
| Tootja | MSI |
| Tootekood | MAG B850 TOMAHAWK MAX WIFI |
| EAN | 4711377290623 |
| Google link | lisainfo |
| Garantiiaeg | 36 kuud |
| .: Disain :. | |
| Emaplaadi kujutegur | ATX |
| Kujutegur | ATX |
| Laius | 243.84 mm |
| Sügavus | 304.8 mm |
| .: Protsessor :. | |
| Protsessori pesa | SAM5 |
| .: Kiibistik ( Chipset ) :. | |
| Kiibistik ( Chipset) | AMD B850 |
| .: Mälu :. | |
| Sisemälu tüüp | DDR5 |
| Taktsagedus | 4800/4866/4933/5000/5066/5100/5133/5200/5300/5333/5400/5500/5600/5800/6000/6200/6400/6600/6666/6800/7000/7200/7400/7467/7500/7600/7800/7900/7950/8000/8200/8266/8400 MHz |
| Mälupesad | 4 |
| Maksimaalne sisemälu | 256 GB |
| Graafikakaart | |
| Integreeritud graafikaadapter | Depending on CPU |
| .: Audio :. | |
| Intregeeritud helikaart | Jah |
| Audioväljundi kanalid | 7.1 channels |
| .: Võrgustumine :. | |
| Ethernet LAN | 5 Gigabit |
| WiFi | Jah |
| WiFi-standardid | 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be) |
| Bluetooth | Jah |
| Bluetoothi versioon | 5.4 |
| Laienduspesad | |
| PCI Expressi x16 pesad | 3 |
| Kõvaketta tugi | |
| SATA | Jah |
| SATA 3.0 | Jah |
| M.2 (M) siinide arv | 4 |
| RAID | SATA 0, 1, 10 |
| Sisemine I/O moodul | |
| TPM-ühenduspesa | Header |

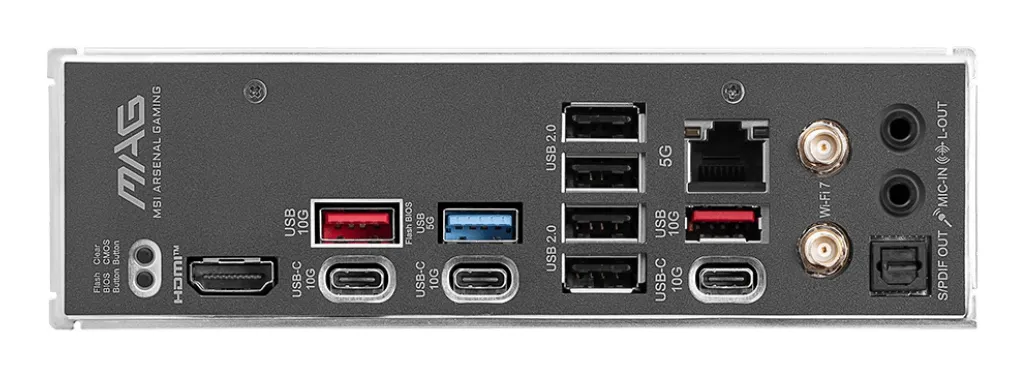

| Tagapaneeli I/O pesad | |
| HDMI-portide arv | 1 |
| Audioväljund | 1 |
| Audio sisend | 1 |
| USB 2.0 portide arv | 4 |
| USB 2.0 | Jah |
| Ethernet LAN (RJ-45) pordid | 1 |
| .: Kaal ja mõõtmed :. | |
| Brutokaal | 2.05 kg |
| Netokaal | 1.5 kg |
| .: Pakendi andmed :. | |
| Max kogus transpordipakendis | 1 |
| Pakendi maht | 0.006641 cubm |
| Muud näitajad | |
| Compatible processor series | AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series |
| Supported processor sockets | Socket AM5 |
| Memory slots type | DIMM |
| Motherboard chipset family | AMD |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| CPU fan connector | Jah |
| Number of SATA III connectors | 4 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| Number of M.2 (M) slots | 4 |
| Number of storage drives supported | 8 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2,Micro SATA III |
| Processor manufacturer | AMD |
| RGB LED pin header | Jah |
| USB 3.2 | Jah |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Supported memory clock speed (max) | 8400 MHz |
| Unit Box Height | 0.275 |
| Unit Box Length | 0.345 |
| Unit Box Width | 0.07 |
| CnCode | 84733020 |
| ECC сompatibility | Non-ECC |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.006641 cubm |
| Product Net Weight | 1.5 kg |
| Unit Calculated Weight | 2.05 kg |
| Summary | MSI MAG B850 TOMAHAWK MAX WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, Micro SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Ethernet interface type: 5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E.... Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD |
| Product colour | White |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| On-board graphics card | Ei |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 3 |
| Audio chip | Realtek ALC4080 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Total number of SATA connectors | 4 |
| Number of HDDs supported | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Number of CPU fan connectors | 6 |
| Number of water pump connectors | 1 |
| Number of RGB LED pin headers | 3 |
| 1st M.2 largest key size | 22110 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 2280 |
| Component for | PC |
| 2nd M.2 highest PCI Express generation | 5.0 |
| 3rd M.2 largest key size | 2280 |
| 3rd M.2 highest PCI Express generation | 4.0 |
| 4th M.2 largest key size | 2280 |
| 4th M.2 highest PCI Express generation | 4.0 |
| Tootja koduleht | https://www.msi.com/Motherboard/MAG-B850-TOMAHAWK-MAX-WIFI |
| Transpordipakendi kaal | 2.054 kg |
| Transpordipakendi kõrgus | 27.5 cm |
| Transpordipakendi laius | 7 cm |
| Transpordipakendi sügavus | 34.5 cm |
| USB 3.0 | 1 |
| Ethernet interface type | 5 Gigabit Ethernet |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI version | 2.1 |
| Motherboard chipset | AMD B850 |
| RAID support | Jah |
| Windows operating systems supported | Windows 11 x64 |
| Maximum internal memory supported by processor | 256 GB |
| Mudel | MAG B850 TOMAHAWK MAX WIFI |
| Number of memory slots | 4 |
| Processor Socket | Socket AM5 |
| Raid Levels | 0/1/10 |
| Supported memory clock speeds | 4800/5600/8400 MHz |
| USB 2.0 connectors | 4 |
| USB-C | Jah |
