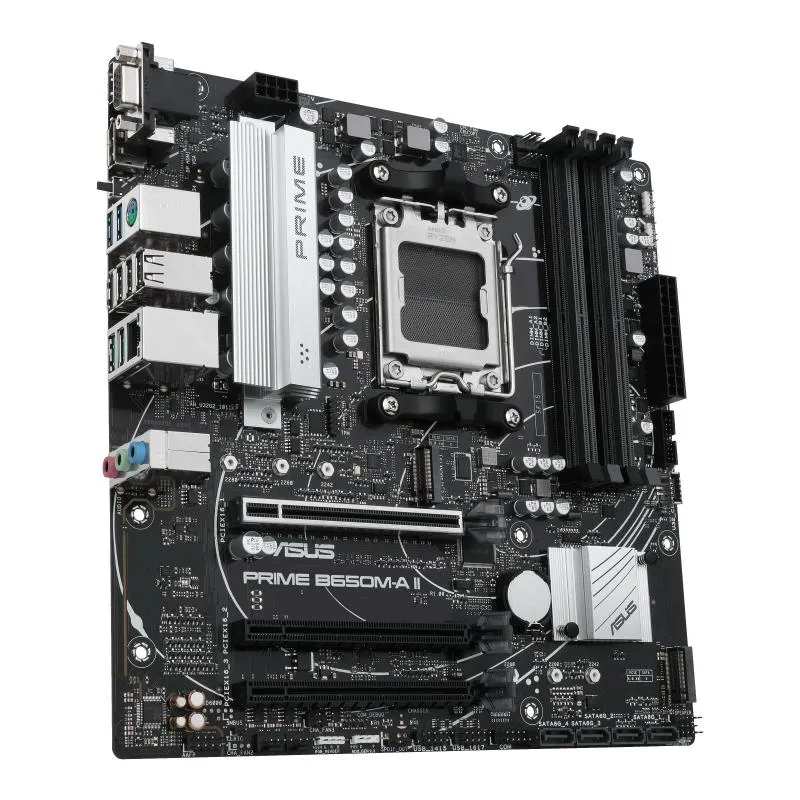

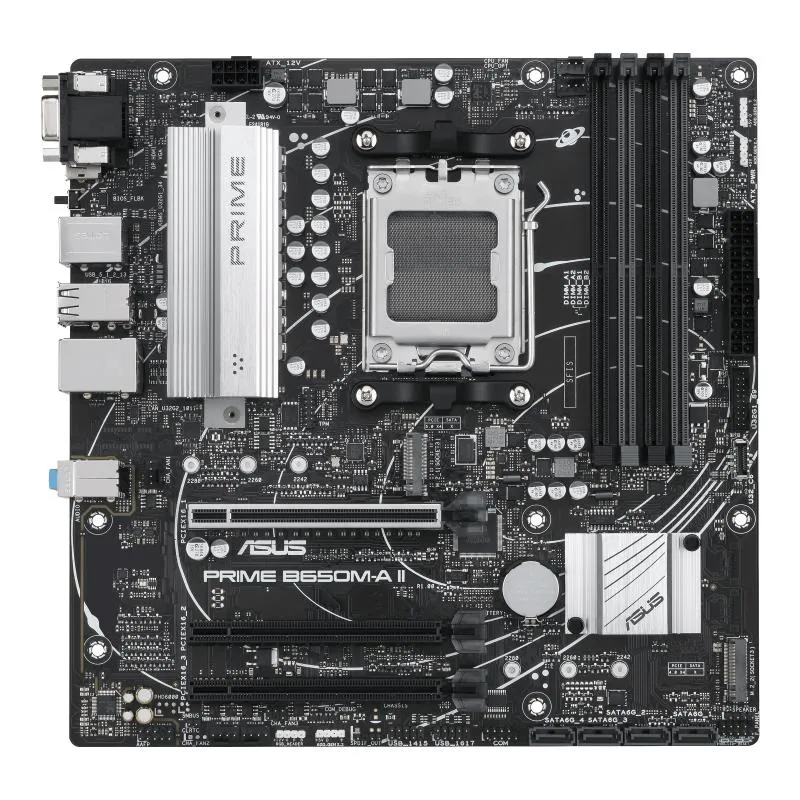

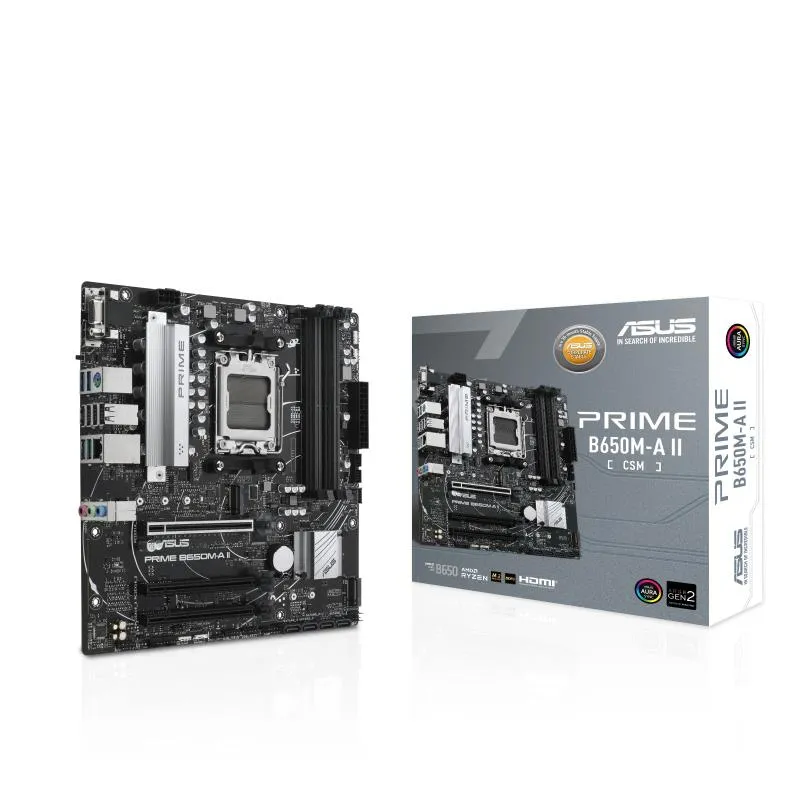

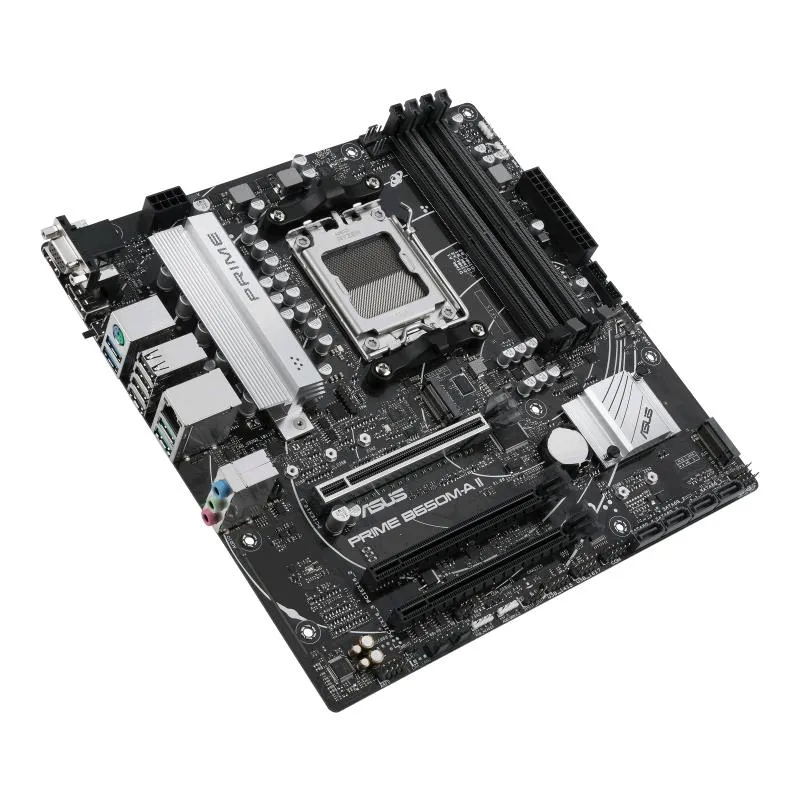

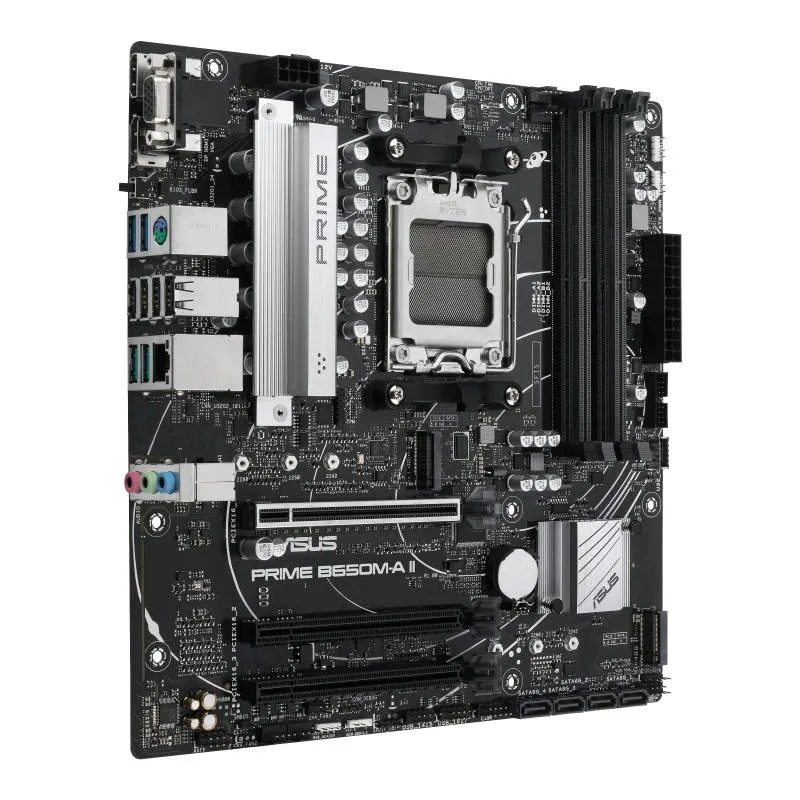

B650M-A II-CSM
ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen 7000-series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B650M-A II-CSM provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.
FLEXIBILITY
Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME B650 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.
CPU Performance Boost
AMD Precision Boost Overdrive(PBO) pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning the PBO parameters, AMD‘s algorithm can leverage the motherboard’s robust power solution to ramp up performance even higher.
COOLING
PRIME B650 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.
VRM Heatsink and Thermal Pad
VRM heatsink and thermal pads improve heat transfer from the MOSFETs and chokes for better cooling performance.
Cooler by Design
Prime B650 series features comprehensive cooling controls that are configurable via Fan Xpert 2+ software or via the UEFI BIOS.
Multiple Temperature Sources
Each header can dynamically reference three thermal sensors. Fan Xpert 2+ allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.
4-Pin PWM/DC Fan
Each onboard header supports auto-detection of PWM or DC fans.
PERFORMANCE
The PRIME B650 series is built to handle the high core counts and bandwidth demands of AMD processors. ASUS B650 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible data transfer options.
DDR5 Performance Enhancement
Comprehensive memory tuning options are the cornerstone of PRIME motherboards. With the PRIME B650M-A AX II, you can extract all of the potential out of your DDR5 modules, whether they're from an extreme-speed kit or an entry-level set that would otherwise be locked.
For those who want to fly past stock DDR5 speeds, the PRIME B650M-A AX II is primed and ready for enthusiast-grade kits courtesy of vast AMD Extended Profiles for Overclocking (EXPO™) support. Seasoned veterans can further tweak performance via the extensive array of settings in the UEFI.
Outstanding Audio
Combined onboard features deliver elevated audio
Intelligent design and premium hardware create audio quality unlike anything you’ve ever experienced.
THIS CHANGES EVERYTHING.
FROM THIS NEW PLATFORM, YOU CAN SEE THE FUTURE
Build your next rig with an AMD Ryzen™ 7000 Series processor and PRIME B650M-A AX II to experience advanced performance. With up to 16 “Zen 4” cores and 32 threads, boost clocks of up to 5.7GHz, and 80MB cache, the AMD Ryzen™ 7000 Series keeps you ahead of the game.1
You’ll also gain access to new features for gamers with AMD Socket AM5, from the speed of DDR5 memory to the increased bandwidth of PCIe® 5.0. AMD Ryzen™ 7000 Series processors and AMD socket AM5 motherboards are unlocked for overclocking to personalize your experience. Gain even more performance when you overclock your DDR5 memory with AMD EXPO™ technology.2
| Tootja | ASUS |
| Tootekood | PRIME B650M-A II-CSM |
| EAN | 4711387025543 |
| Google link | lisainfo |
| Garantiiaeg | 36 kuud |
| .: Disain :. | |
| Emaplaadi kujutegur | micro ATX |
| Kujutegur | Micro-ATX |
| Laius | 244 mm |
| Sügavus | 244 mm |
| .: Protsessor :. | |
| Protsessori pesa | SAM5 |
| .: Kiibistik ( Chipset ) :. | |
| Kiibistik ( Chipset) | AMD B650 |
| .: Mälu :. | |
| Sisemälu tüüp | DDR5 |
| Taktsagedus | 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200/7600 MHz |
| Mälupesad | 4 |
| Maksimaalne sisemälu | 128 GB |
| Graafikakaart | |
| Integreeritud graafikaadapter | Depending on CPU |
| .: Audio :. | |
| Intregeeritud helikaart | Jah |
| Audioväljundi kanalid | 3 |
| .: Võrgustumine :. | |
| Ethernet LAN | 2.5 Gigabit |
| WiFi | Ei |
| Kõvaketta tugi | |
| SATA | Jah |
| M.2 (M) siinide arv | 2 |
| RAID | SATA 0, 1, 10; PCIe 0, 1, 10 |
| Sisemine I/O moodul | |
| TPM-ühenduspesa | Header |

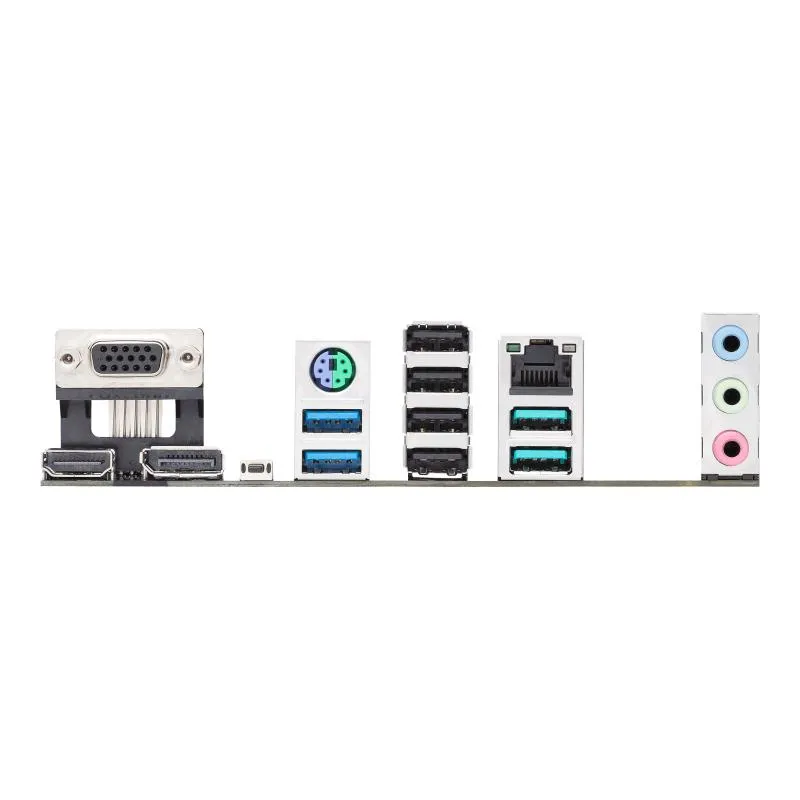

| Tagapaneeli I/O pesad | |
| PS/2-portide kogus | 1 |
| HDMI-portide arv | 1 |
| USB 2.0 portide arv | 4 |
| USB 2.0 | Jah |
| Ethernet LAN (RJ-45) pordid | 1 |
| Lisad | |
| Kaablid kaasa arvatud | SATA |
| .: Kaal ja mõõtmed :. | |
| Brutokaal | 1.35 kg |
| Netokaal | 0.7 kg |
| .: Pakendi andmed :. | |
| Max kogus transpordipakendis | 10 |
| Pakendi maht | 0.006187 cubm |
| Muud näitajad | |
| Compatible processor series | AMD Ryzen 7000 Series |
| Supported processor sockets | Socket AM5 |
| BIOS type | UEFI AMI |
| ATX Power connector (24-pin) | Jah |
| Memory slots type | DIMM |
| Motherboard chipset family | AMD |
| Number of chassis fan connectors | 3 |
| Number of COM connectors | 1 |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Front panel audio connector | Jah |
| CPU fan connector | Jah |
| Number of SATA III connectors | 4 |
| PCI Express x16 (Gen 3.x) slots | 3 |
| Parallel processing technology support | Not supported |
| Clear CMOS button | Jah |
| Number of M.2 (M) slots | 2 |
| Line-in | Jah |
| Number of storage drives supported | 6 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2,SATA III |
| Processor manufacturer | AMD |
| RGB LED pin header | Jah |
| VGA | 1 |
| USB 3.2 | Jah |
| PCI-Express 4.0 16x | 2 |
| Supported memory clock speed (max) | 6400 MHz |
| Unit Box Height | 0.07 |
| Unit Box Length | 0.28 |
| Unit Box Width | 0.275 |
| CnCode | 84733020 |
| ECC сompatibility | ECC & Non-ECC |
| Units per Shipping Box | 10 |
| Unit Calculated Volume | 0.006187 cubm |
| Product Net Weight | 0.7 kg |
| Unit Calculated Weight | 1.35 kg |
| Summary | ASUS PRIME B650M-A II-CSM. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD. Ethernet interface type: 2.5 Gigabit Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: AMD |
| Product colour | Black |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| On-board graphics card | Ei |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Number of HDDs supported | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| 12V power connector | Jah |
| Audio connector | Jah |
| Front panel connector | Jah |
| Component for | PC |
| Tootja koduleht | https://www.asus.com/motherboards-components/motherboards/csm/prime-b650m-a-ii-csm/ |
| Transpordipakendi kaal | 13.5 kg |
| Transpordipakendi kõrgus | 30 cm |
| Transpordipakendi laius | 36.5 cm |
| Transpordipakendi sügavus | 56.5 cm |
| Tarvikud kaasa arvatud | Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x Screw Package for M.2 SSD Documentation 1 x ACC Express Activation Key Card 1 x User guide |
| DisplayPorts quantity | 1 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Jah |
| Motherboard chipset | AMD B650 |
| RAID support | Jah |
| Unbuffered memory | Jah |
| Windows operating systems supported | Windows 10 x64/Windows 11 |
| BIOS memory size | 256 Mbit |
| DisplayPort | 1 |
| Mudel | PRIME B650M-A II-CSM |
| Number of memory slots | 4 |
| Processor Socket | Socket AM5 |
| Supported memory clock speeds | 4800/5000/5200/5400/5600/5800/6000/6200/6400 MHz |
| USB 2.0 connectors | 2 |
