The multi-port USB-C 10Gbps AXAGON HMC-5G2 SPEEDSTER hub 5in1 expands your laptop, computer or phone with five ports. Via the double-sided USB-C connector, you can quickly and easily connect a monitor and three USB devices to the computer at the same time. You also get the possibility to supply laptop using Power Delivery technology at the same time. The port replicator will thus provide you with a simple and compact 5-in-1 docking station not only for Windows laptops but also for Apple laptops such as MacBook Air or MacBook Pro.

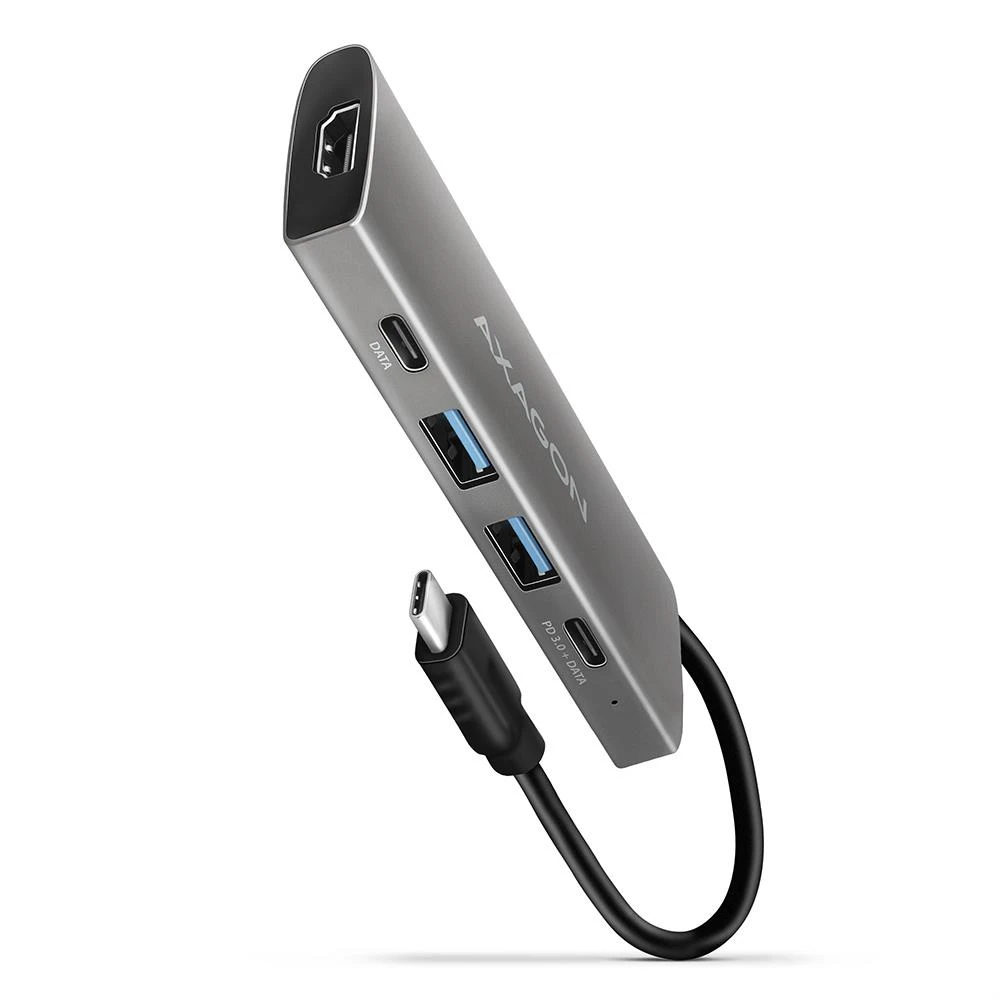

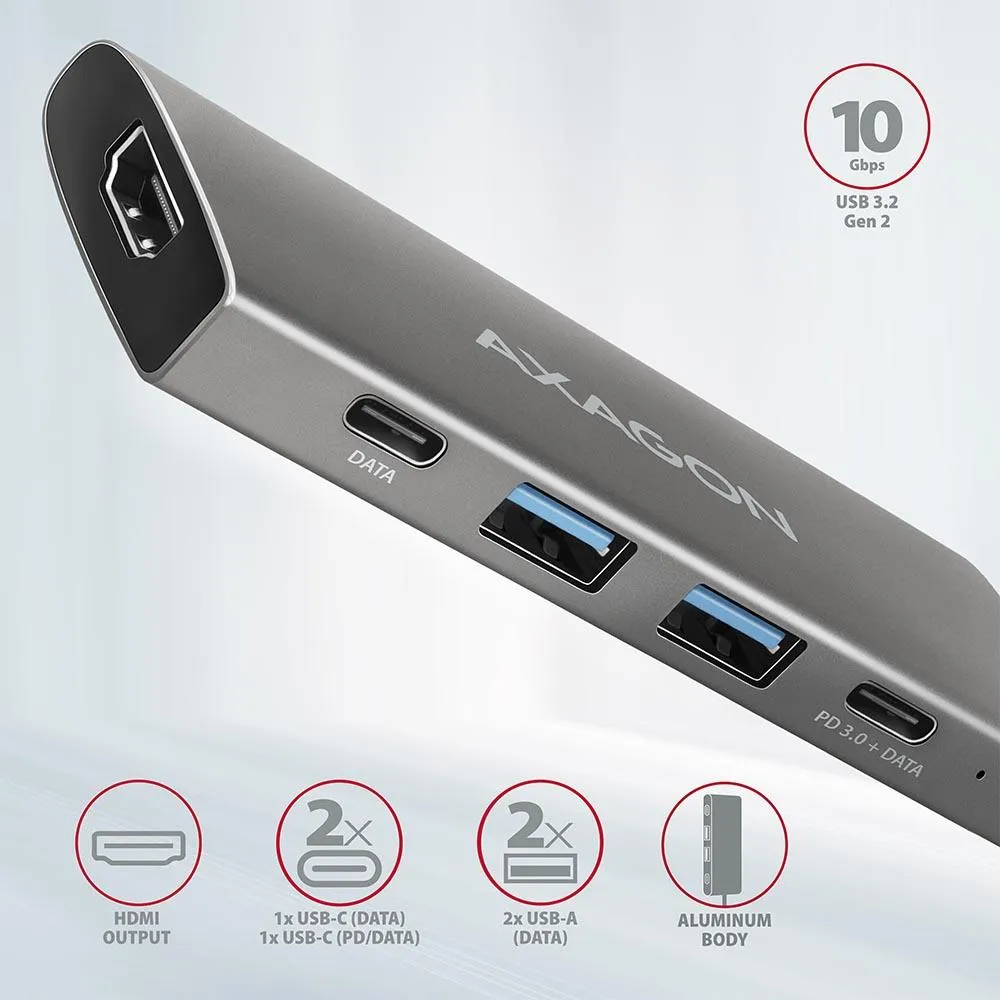

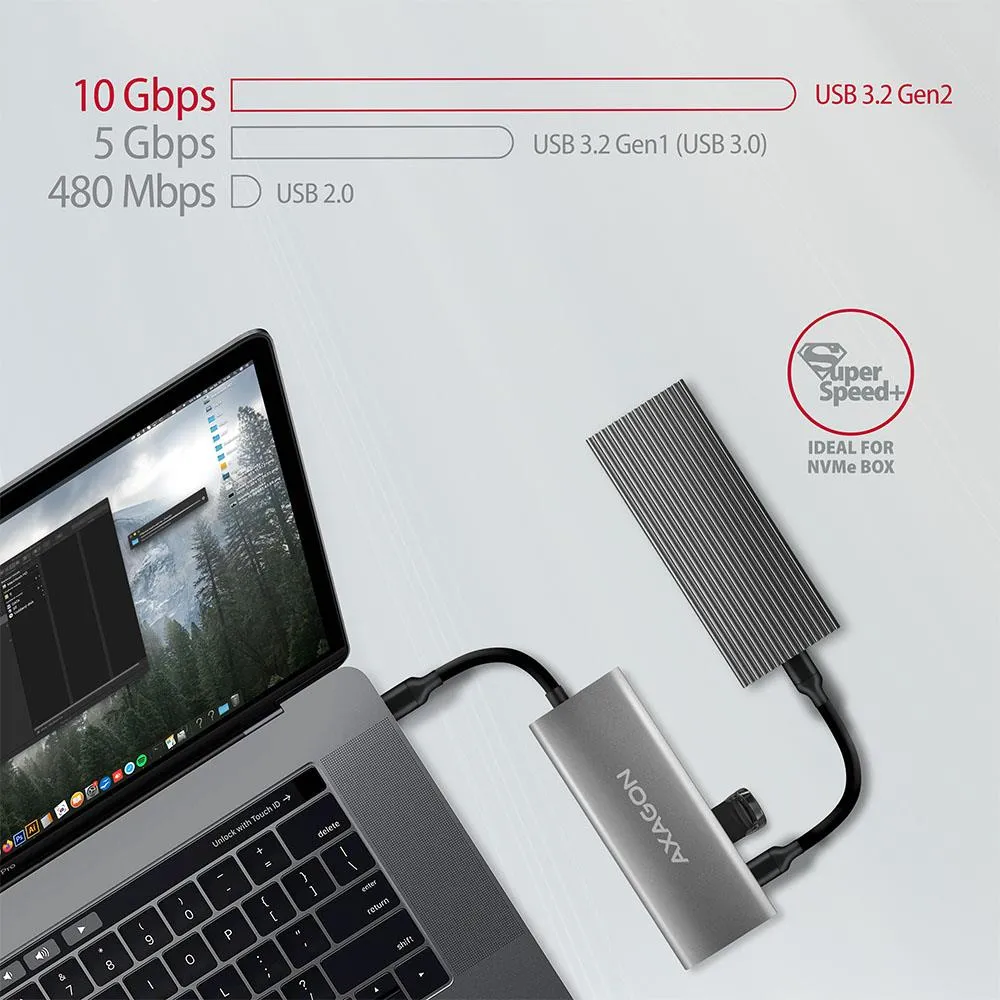

The USB hub offers a total of four 10Gbps USB outputs - two with standard USB-A connectors and two with USB-C. With the advanced USB 3.2 Gen 2 standard, you can connect high-speed devices such as NVMe M.2 external drives to all outputs at up to 2x the speed of 10 Gb/s compared to standard Gen 1 hubs with only 5 Gbps. The multi-port hub can permanently connect several external drives simultaneously and also allows charging of laptops, phones and tablets with up to 3A current. From the hub, you can easily charge e.g. Android smartphone, Apple iPhone, Apple iPad etc.
One of the USB-C ports is a combination port and can be used for either data transfer or charging phones and laptops using Power Delivery 3.0 technology with up to 100W of power. Connect a suitable USB-C Power Delivery charger into the hub and connect the hub to a laptop that supports Power Delivery. This saves one USB-C port.

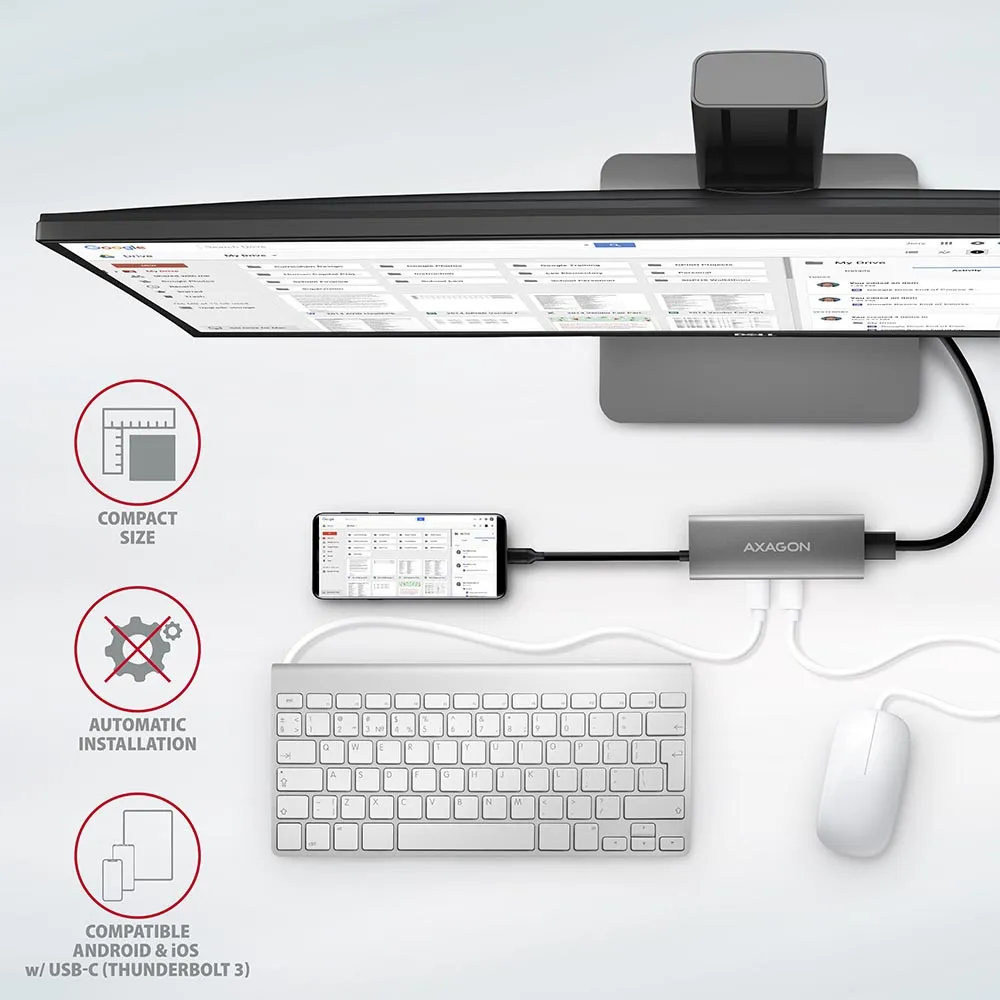

HDMI output provides high quality image up to 4K/60Hz Ultra HD resolution and supports multi-channel audio transmission. High frequencies at popular gaming resolutions of 2K/120Hz or FullHD/120Hz are also supported. Thanks to HDR (high dynamic range) support, you can enjoy a significantly expanded range of colours and contrasts. For video outputs to work properly, the laptop must have a USB-C port with DisplayPort Alternate Mode (DP Alt Mode) support or a Thunderbolt 3 port, 4 and above.
The compact and slim aluminium body not only looks great, but also provides mechanical durability and passive cooling. You will also be pleased with the finely textured surface, which does not leave fingerprints.
USB-C hub is an ideal accessory for laptops without USB-A connectors and video output. You can use your current USB peripherals without having to purchase new ones. Thanks to the Plug and Play and Hot Plug functions, connecting the hub itself is very simple without complicated installation, and peripherals can also be easily connected and disconnected while the computer is running. The hub does not afraid of connection to phones with a USB-C connector. For example, you can connect a flash drive, keyboard, mouse, display, TV or projector to the phone.

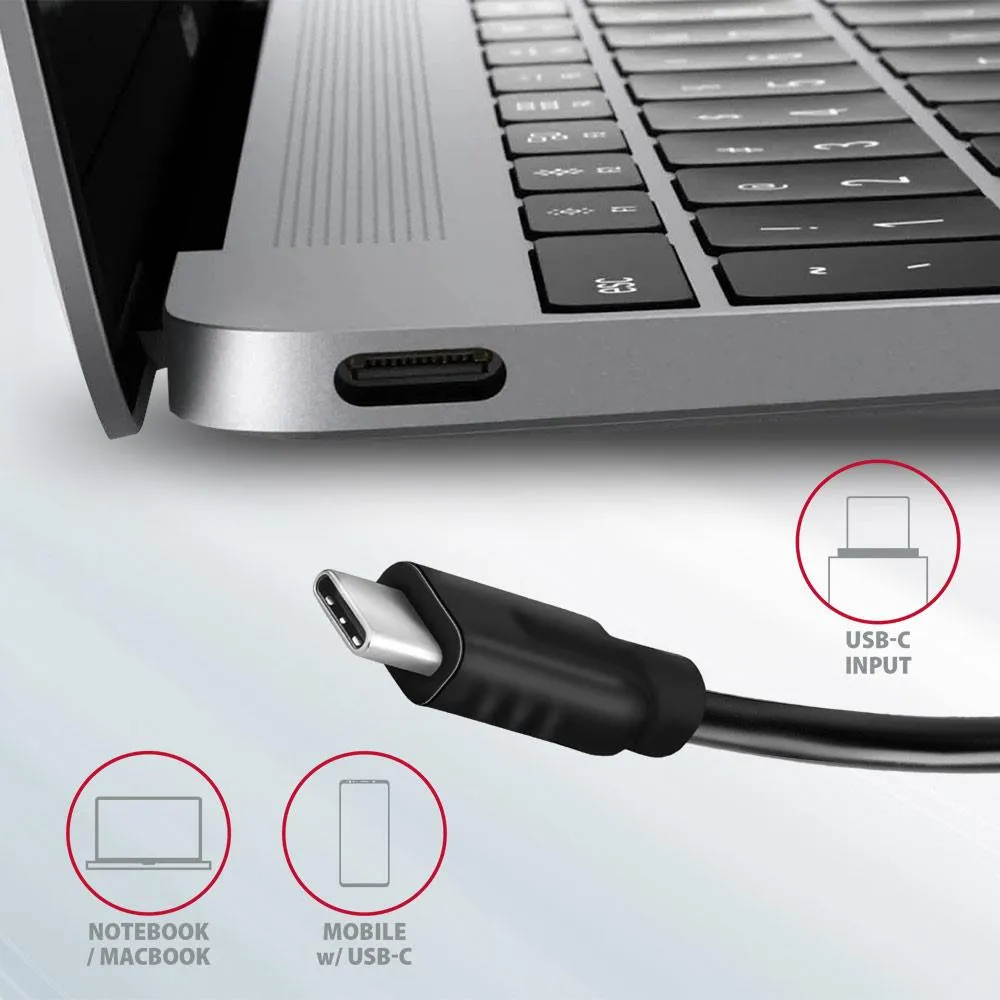

Input (connection to laptop):
• USB 10Gbps (USB 3.2 Gen 2), connector USB-C male.
• Compatible with USB 3.2 Gen 1, USB4 a Thunderbolt 3/4.
Input (power supply):
• USB Power Delivery 3.0 100W, USB-C female connector.
• Charging of the notebook from the power adapter via USB-C hub.
• PD power must be supported by both the laptop (phone) and the wall charger.
USB outputs:
• 2x USB 10Gbps port, USB-A female connector.
• 1x USB 10Gbps port, USB-C female connector.
• 1x USB 10Gbps port for data transfer or Power Delivery charging, USB-C female connector.
• USB-C hub can handle the connection of several external drives at the same time.
• Fast charging of mobile devices with up to 3A current in the USB-C ports of the hub.
HDMI output:
• 1x HDMI A port, HDMI A female connector.
• 4K resolution 4096 x 2160 at up to 60Hz.
• 2K / WQHD resolution 2560 x 1440 at up to 120Hz.
• FHD resolution 1920 x 1080 at up to 120Hz.
• Support for the above max. supported resolutions and frequencies requires connection to a computer with DisplayPort version 1.4.
• For the video output function, the hub must be connected to a USB-C port supporting DisplayPort Alternate Mode (DP Alt Mode) or to a USB-C port supporting Thunderbolt 3/4. A suitable OS is also required. The video output function will not be available without these requirements.
• HDR support (High dynamic range, 10-bit support) - realistic reproduction of light and dark details.
HPD (Hot-Plug-Detect) support.
• TMDS (Transition Minimized Differential Signalling) support.
• HDCP 1.4 (High-bandwidth Digital Content Protection) full support.
• Support for up to 2-channel LPCM audio.
• Support for 2-channel audio sampling rate up to 48kHz and up to 24-bit audio - depends on source and end device, i.e. laptop/phone and TV/monitor/AV receiver.
Other features:
• Possibility to connect your device while running thanks to the Hot Plug support.
• Full Plug and Play support.
• Sleep mode support.
• Power via USB bus - USB bus power or from PD wall charger.
• Heavy-duty aluminium body for better hub cooling.
• The blue LED indicates the connection of the hub to the computer with a steady glow, or the connection to the Power Delivery charger with a brighter glow.
• The high-quality shielded cable ensures high communication speed and minimal undesirable interference.
• Dimensions: 105 x 45 x 12 mm.
• Weight 60 g (incl. cable).
• USB cable length 13 cm.
Supported operating systems:
• Microsoft Windows 10 / 11, macOS, iPadOS, iOS, Linux, Chrome OS and Android.
Compatibility depends on used OS and support from device manufacturer.
• DisplayPort Alternate Mode (DP Alt Mode) is only supported in updated OS and also depends on support from device (notebook, phone) manufacturer.
• Graphics card drivers may also affect the correct operation of the product. We recommend downloading the latest version of drivers.
Notes:
• 4K/60Hz resolution and Power Delivery 3.0 100W supports hub revision 2.0.

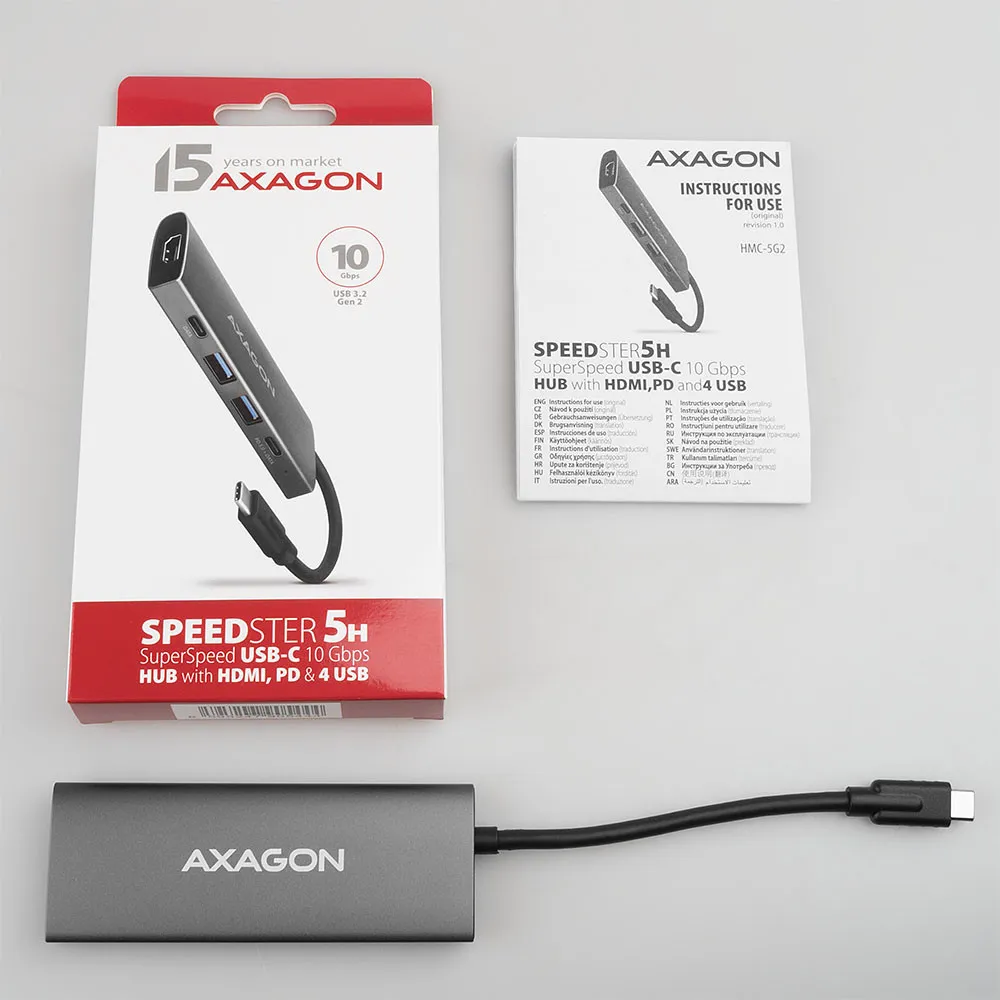

Package contains:
• USB-C hub with fixed 13cm long cable,
• multilingual manual CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / SK / SWE / TR / UA / BG / CN / ARA,

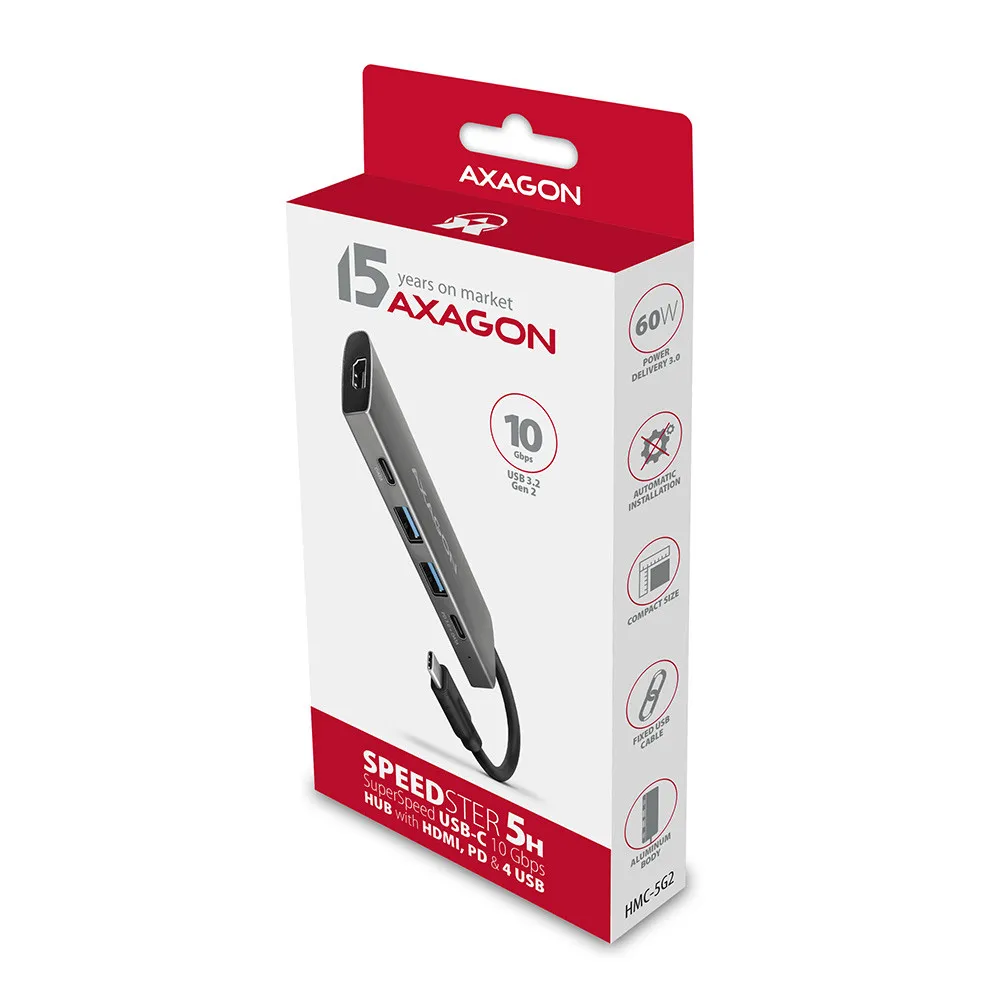

• packed in a cardboard box.
| Tootja | AXAGON |
| Tootekood | HMC-5G2 |
| EAN | 8595247905444 |
| Google link | lisainfo |
| Garantiiaeg | 24 kuud |
| .: Disain :. | |
| Toote värv | Hall |
| Ühilduvus tootega | |
| Seadme tüüp | USB Hub |
| Sisendi tüüp | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| .: Kaal ja mõõtmed :. | |
| Kõrgus | 105 mm |
| Sügavus | 12 mm |
| Laius | 40 mm |
| Toote kaal | 60 g |
| .: Pakendi sisu :. | |
| Kaablid kaasa arvatud | USB Type-C |
| Muud näitajad | |
| Toetatud Windowsi operatsioonisüsteemid | Windows 10, Windows 11, Windows 7, Windows 8, Windows 8.1 |
| Linux operating systems supported | Jah |
| Other operating systems supported | Jah |
| Server operating systems supported | Jah |
| Number of displays supported | 1 |
| Quantity per pack | 1 pc(s) |
| Overload protection | Jah |
| Hot-Plug support | Jah |
| Hub interfaces | HDMI/USB 3.1 (3.1 Gen 2) Type-C/USB 3.2 Gen 2 (3.1 Gen 2) Type-A |
| Toitepistmik | USB tüüp-C |
| Sisseehitatud ventilaator | Ei |
| HDCP versioon | 1.4 |
| USB cable length | 0.13 m |
| USB power delivery | Jah |
| USB Power Delivery revision | 3.0 |
| USB 3.2 | 2 |
| USB Power Delivery up to | 100 W |
| USB 3.2 Gen 2 (3.1 Gen 2) C-tüüpi portide hulk | 2 |
| USB Power Delivery kuni | 100 W |
| USB Power Delivery kontroll | 3.0 |
| Wireless Charging | Ei |
| Unit Box Height | 0.19 |
| Unit Box Length | 0.025 |
| Unit Box Width | 0.095 |
| CnCode | 85176200 |
| Warranty period | 2 year(s) |
| Compliance certificates | CE/RoHS |
| Vastavussertifikaadid | RoHS |
| Unit Calculated Volume | 0.0004512 cubm |
| Product Net Weight | 0.06 kg |
| Unit Calculated Weight | 0.1 kg |
| Summary | Axagon HMC-5G2 USB 10Gbps hub, 2x USB-A, 2x USB-C, HDMI 4k/60Hz, PD 100W, USB-C cable. Connectivity technology: Wired, Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C, USB Power Delivery up to: 100 W. Product colour: Grey, Data transfer rate: 10 Gbit/s, HD type: 4K Ultra HD. Power source type: USB, Power connector: USB Type-C, Power supply type: USB. Width: 40 mm, Depth: 12 mm, Height: 105 mm. Quantity per pack: 1 pc(s), Package width: 95 mm, Package depth: 20 mm |
| HDCP version | 1.4 |
| High Dynamic Range (HDR) supported | Jah |
| USB Power Delivery (USB PD) | Jah |
| USB Type-C DisplayPort Alternate Mode | Jah |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Kogus transpordikasti kohta | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) A-tüüpi portide hulk | 2 |
| PowerShare toega USB-portide arv | 1 |
| USB C-tüüpi DisplayPort vahelduvrežiim | Jah |
| Sertifikaat | CE |
| Toetatud Linuxi operatsioonisüsteemid | Jah |
| Toetatud Maci operatsioonisüsteemid | Jah |
| Toetatud mobiilsed operatsioonisüsteemid | Jah |
| Toetatud serverioperatsioonisüsteemid | Jah |
| Muud toetatud operatsioonisüsteemid | Android, ChromeOS |
| Hot-Plug tugi | Jah |
| Juhend | Jah |
| Kasutusjuhend | Jah |
| Toiteallika tüüp | USB |
| HD tüüp | 4K Ultra HD |
| Sisseehitatud mikrofon | Ei |
| Pakendi sügavus | 20 mm |
| Maksimaalne digitaalresolutsioon | 4096 x 2160 pikslit |
| Pakendi laius ( mm ) | 95 mm |
| Pakendi kõrgus ( mm ) | 190 mm |
| Jaoturi liidesed | HDMI, USB 3.1 (3.1 Gen 2) Type-C, USB 3.2 Gen 2 (3.1 Gen 2) Type-A |
| Pakendi kaal | 95 g |
| Ethernet LAN | Ei |
| Integreeritud kaardilugeja | Ei |
| HDCP | Jah |
| Kogus pakis | 1 tk |
| Built-in speaker(s) | Ei |
| Charging function | Jah |
| Tootja koduleht | https://www.axagon.eu/en/produkty/hmc-5g2 |
| Mõõtmed (l x s x k) | 105 x 40 x 12 mm |
| Hostiliides | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| Combo headphone/mic port | Ei |
| USB-kaabli pikkus | 0,13 m |
| HDMI-portide arv | 1 |
| Toite tüüp | USB |
| HDMI-portide arv | 1 |
| Kaabli pikkus | 0,13 m |
| Country of origin | China |
| Kombineeritud kõrvaklappide/mikrofoni pesa | Ei |
| Väljundvool | 3 A |
| DC-pistik | Ei |
| Mikrofonisisend | Ei |
| Ühenduvustehnoloogia | Juhtmega ühendatud |
| Brändiühilduvus | Universal |
| Korpuse materjal | Alumiinium |
| LED-indikaatorid | Jah |
| Päritoluriik | Hiina |
| Kaabli tüüp | Round cable |
| Isehäälestuv | Jah |
| Sisseehitatud kõlar(id) | Ei |
| LED-indikaatorid | Jah |
| Mac operating systems supported | Jah |
| Laadimise funktsioon | Jah |
| Microphone in | Ei |
| Mobile operating systems supported | Jah |
| Maksimaalne värskendussagedus | 120 Hz |
| Ülekoormuskaitse | Jah |
| Plug and Play | Jah |
| Toiteallika tüüp | USB |
| Toetatud ekraanide arv | 1 |
| Toitevoolu tüüp | USB |
| Windows operating systems supported | Jah |
| Built-in fan | Ei |
| Built-in microphone | Ei |
| Kaabli pikkus | 0.13 m |
| Kaabli tüüp | Round cable |
| Certification | CE, RoHS |
| Connectivity Technology | Wired |
| Andmeedastuskiirus | 10 Gbit/s |
| Housing material | Aluminium |
| Maximum digital resolution | 4096 x 2160 pixels |
| Mudel | HMC-5G2 |
| Output current | 3 A |
| Package depth | 20 mm |
| Package height | 190 mm |
| Package weight | 95 g |
| Package width | 95 mm |
| Power Connector | USB Type-C |
| USB-C | 2 |
