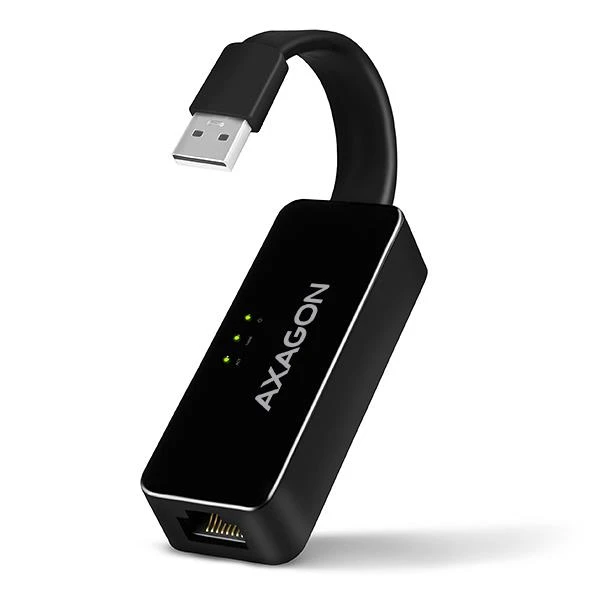

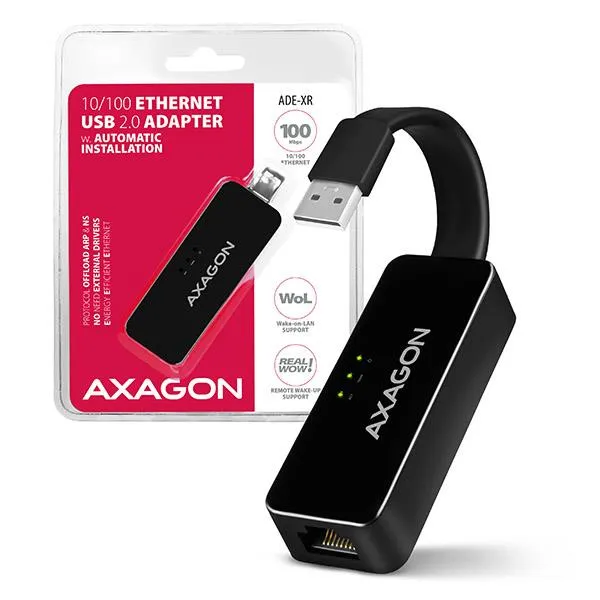

The compact AXAGON ADE-XR adapter easily converts USB 2.0 port to Fast Ethernet 10/100Mbit port.
The network card offers a wide compatibility and also full range of features like IPv4/IPv6 checksum engine to reduce CPU loading, crossover detection and auto-correction, TCP large send offload, various modes of the Wake-on-LAN feature or advanced Power Management features.
In modern operating systems like Windows 8.1 and above, the USB adapter allows easy automatic installation without need for an Internet connection.
The USB Ethernet adapter easily extends your computer by the missing RJ-45 network connector, adds another network card or replaces the original broken network connection.
The support for all current versions of Windows, Mac OS X, Linux allows it to be used for any desktop computer, laptop or ultrabook. This adapter with a suitable reduction* also allows the internet connection via an Ethernet cable for some Android phones and tablets.
Input:
• USB 2.0 interface, backward compatible with USB 1.1.
• Supports transmission rates 480 / 12 / 1.5 Mbit/s (high / full / low speed).

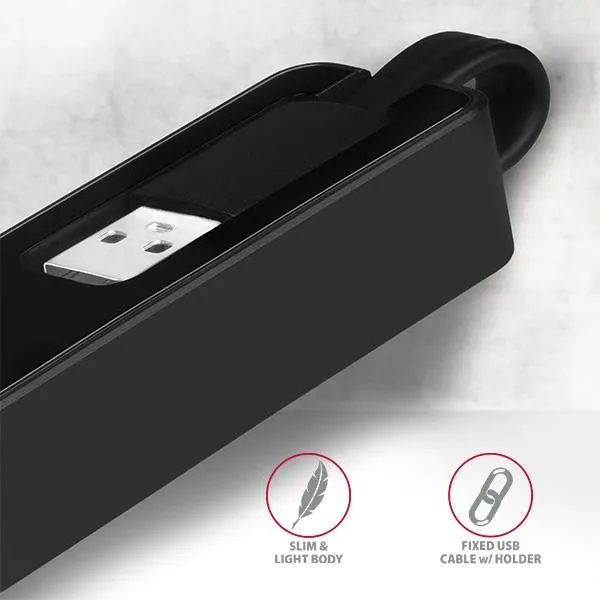

• USB 2.0 connector type A male on 5 cm long permanently attached cable.
Output:

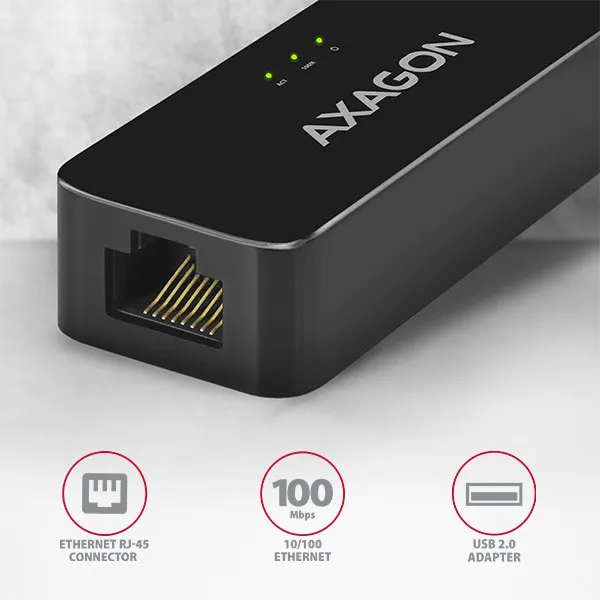

• Ethernet interface with RJ-45 connector for UTP or STP cable connection.
• Supported transmission rates for the Ethernet interface 10/100 Mb/s.
• Supported IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX specifications.
• 10/100 Mb/s auto-detection.
• Supports Microsoft NDIS5, NDIS6 Checksum Offload (IPv4, IPv6, TCP, UDP) to reduce processor load.
• Supports Segmentation Task-offload (Large send v1 a Large send v2).
• Supports full-duplex transmissions with IEEE 802.3x flow control.
• Supports IEEE 802.1P Layer 2 priority encoding.
• Supports IEEE 802.1Q VLAN tagging.
• Supports IEEE 802.3az-2010 (EEE) Energy Efficient Ethernet - reduce power consumption at rest.
• Supports Auto MDI/MDIX - crossover detection and auto-correction eliminate the need for crossover cables.
• Supports hardware Cyclic Redundancy Check (CRC) to detect transmission errors.
• Supports Pair Swap/Polarity/Skew Correction.
Other features:
• Full Plug and Play and Hot Plug support.
• Supports CDC-ECM – to automatically install drivers across different OS.

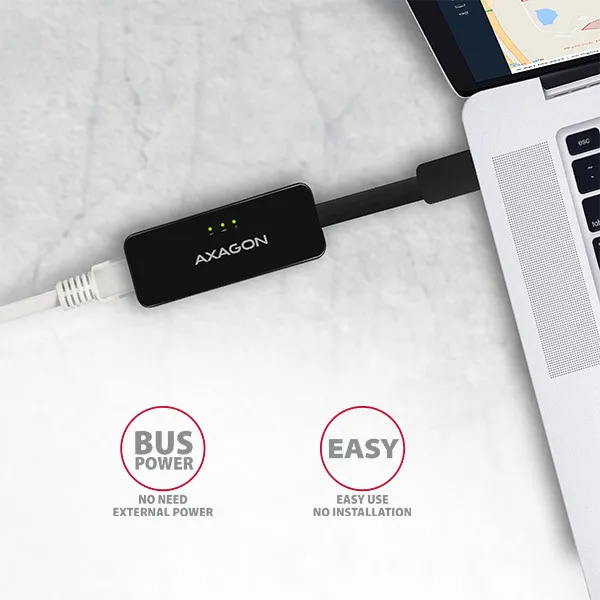

• Adapter power supply via USB (bus power) - no auxiliary power supply required.

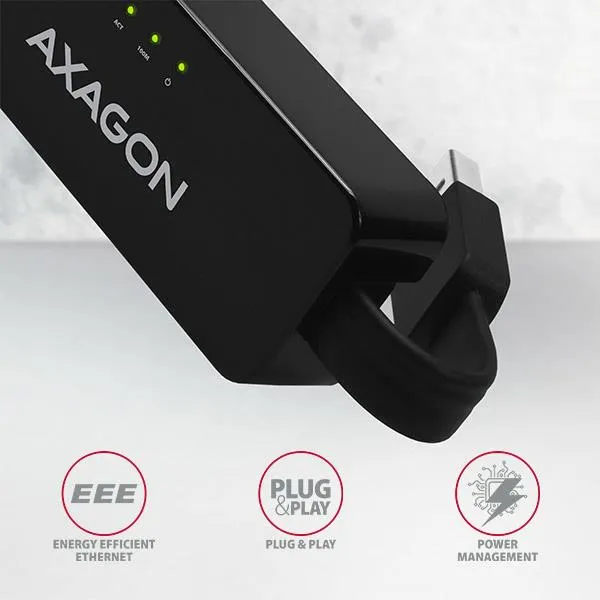

• 3x LED for indicating network activity. 100Mbit link and transmission mode and connecting the adapter to USB.
• Dimensions 72 x 27 x 16.5 mm, USB cable length 5 cm, weight incl. USB cable 23 g.
• The Realtek RTL8152 chipset is used.
Supports Wake-on-LAN feature in different modes:
• Supports sleep mode and remote wake up via AMD Magic packet, Microsoft Wakeup Frame, Microsoft Wake Packet Detection and also Link Change wake-up.
• Supports ECMA-393 proxZzzy® standard for sleeping hosts to manage the network connection of sleeping guests using proxy servers.

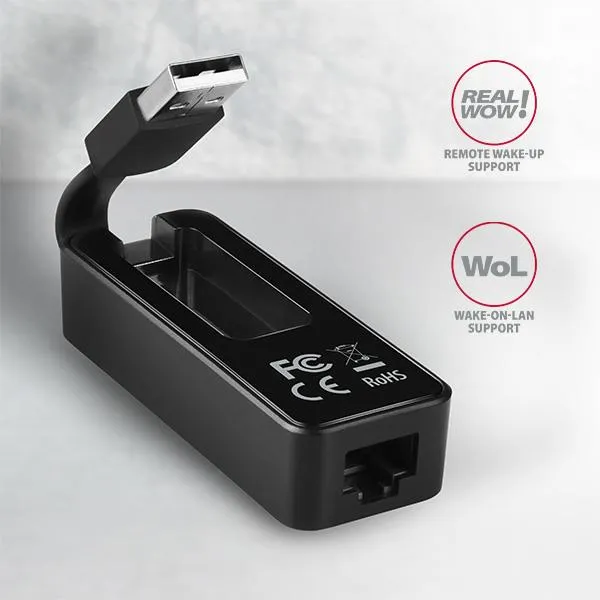

• RealWoW! technology support allows remote wake up over the Internet.
Advanced Power Management features:
The adapter supports advanced power management to reduce losses during standby or light traffic on the network. It further supports advanced power saving when the Ethernet cable has been disconnected.
• Supports Advanced Configuration Power management Interface (ACPI).
• Supports Power Management offload (ARP & NS).
• Supports Microsoft Always On Always Connected (AOAC).
• Supports Intel Converged Platform Power Management (CPPM).
• Supports Link Power Management (LPM).
• Supports Operating System-directed Power Management (OSPM).
Supported operating systems:
• MS Windows XP / Vista / 7 / 8 / 8.1 / 10 and later, Windows Server 2003 / 2008 / 2012 / 2016 and later (supported are all 32- and 64-bit versions of OS Windows), Mac OS X 10.6 and higher, Linux kernel 2.6.x and above, Android most versions.
WARNING - check with the Android device manufacturer if the Ethernet connection is supported.

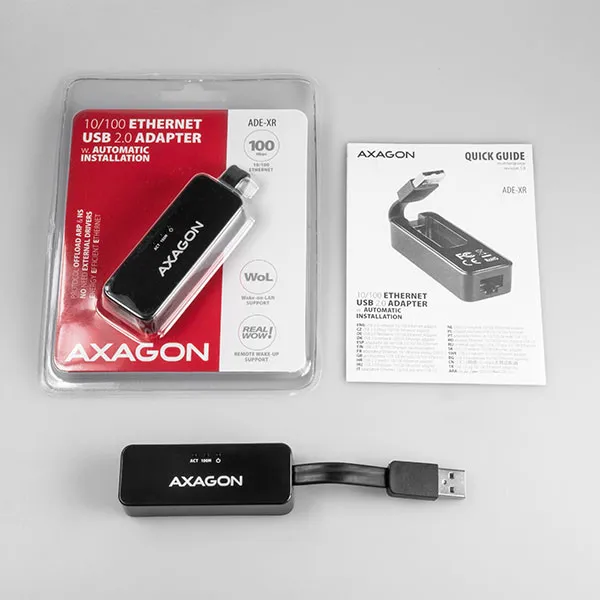

Package contains:
• USB - Ethernet adapter with a 5 cm long permanently attached cable,

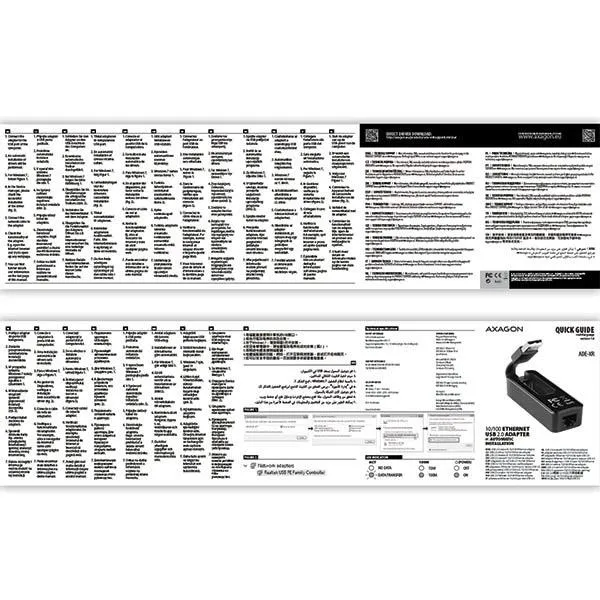

• printed installation guide in CZ/DE/DK/ENG/ESP/FIN/FR/GR
| Tootja | AXAGON |
| Tootekood | ADE-XR |
| EAN | 8595247904430 |
| Google link | lisainfo |
| Garantiiaeg | 24 kuud |
| .: Üldised andmed :. | |
| Seadme tüüp | Adapter |
| Tootja koduleht | https://www.axagon.eu/en/produkty/ade-xr |
| .: Üldised omadused :. | |
| Isehäälestuv | Jah |
| Kiibikomplekt | Realtek RTL8152 |
| VLAN-i tugi | Jah |
| .: Disain :. | |
| Komponent | PC/sülearvuti |
| Korpuse materjal | Plast |
| LED-indikaatorid | Jah |
| Toote värv | Must |
| .: Mälu :. | |
| Component for | PC/Laptop |
| .: Võrgustumine :. | |
| Wake-on-LAN valmidus | Jah |
| Võrgustandardid | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Täisdupleks | Jah |
| Ethernet LAN | Jah |
| Ethernet LAN-i andmeedastuskiirused | 10,100 Mbit/s |
| Kaabeldustehnoloogia | 10/100BaseT(X) |
| .: Pesad & liidesed :. | |
| Andmete edastamise maksimaalne määr | 100 Mbit/s |
| Hostiliides | USB |
| Ethernet LAN (RJ-45) pordid | 1 |
| Kaabli pikkus | 0,05 m |
| Liides | Ethernet |
| Ühenduvustehnoloogia | Juhtmega ühendatud |
| USB versioon | 2.0 |
| Kaabli pikkus | 0.05 m |
| Liides | Ethernet |
| Ethernet LAN (RJ-45) pordid | 1 |
| Võimsus ja energiatarve | |
| Toide USB kaudu | Jah |
| .: Tehnilised andmed :. | |
| Warranty period | 2 year(s) |
| Compliance certificates | CE/RoHS |
| Vastavussertifikaadid | RoHS |
| Ethernet LAN-funktsioonid | |
| IEEE 802.3 | Jah |
| IEEE 802.3u | Jah |
| Funktsioonid | |
| Mudeli originaalnimi | ADE-XR USB 2.0 fast ethernet |
| Muud funktsioonid | |
| Andmeedastuskiirus | 0,1 Gbit/s |
| Ethernet-liidese tüüp | Kiire Ethernet |
| Päritoluriik | Hiina |
| Andmeedastuskiirus | 0.1 Gbit/s |
| Nupud | |
| Sisendi tüüp | USB |
| .: Toetatud operatsioonisüsteemid :. | |
| Toetatud Windowsi operatsioonisüsteemid | Jah |
| Windows 10 | Jah |
| Windows 7 | Jah |
| Windows 8 | Jah |
| Windows Vista | Jah |
| Windows XP | Jah |
| Toetatud Linuxi operatsioonisüsteemid | Jah |
| Toetatud Maci operatsioonisüsteemid | Jah |
| Ühilduvad operatsioonisüsteemid | MS Windows XP / Vista / 7 / 8 / 8.1 / 10 and later, Windows Server 2003 / 2008 / 2012 / 2016 and later (supported are all 32- and 64-bit versions of OS Windows), Mac OS X 10.6 and higher, Linux kernel 2.6.x and above, Android most versions. |
| Toetatud serverioperatsioonisüsteemid | Jah |
| .: Kaal ja mõõtmed :. | |
| Toote kaal | 23 g |
| Laius | 72 mm |
| Laius | 72 mm |
| Sügavus | 16.5 mm |
| Kõrgus | 27 mm |
| Sügavus | 16,5 mm |
| Kõrgus | 27 mm |
| Toote kaal | 23 g |
| .: Pakendi sisu :. | |
| Juhend | Jah |
| .: Pakendi andmed :. | |
| Kasutusjuhend | Jah |
| Kaablid kaasa arvatud | USB |
| Pakendi sügavus | 72 mm |
| Pakendi laius ( mm ) | 120 mm |
| Pakendi kõrgus ( mm ) | 24 mm |
| Pakendi kaal | 44 g |
| ◁ SERTIFIKAADID ▷ | |
| Sertifikaat | CE |
| Muud andmed | |
| Compatible operating systems | MS Windows XP / Vista / 7 / 8 / 8.1 / 10 and later, Windows Server 2003 / 2008 / 2012 / 2016 and later (supported are all 32- and 64-bit versions of OS Windows), Mac OS X 10.6 and higher, Linux kernel 2.6.x and above, Android most versions. |
| Linux operating systems supported | Jah |
| Server operating systems supported | Jah |
| Cabling technology | 10/100BaseT(X) |
| Networking standards | IEEE 802.1p/IEEE 802.1Q/IEEE 802.3/IEEE 802.3az/IEEE 802.3u/IEEE 802.3x |
| Full duplex | Jah |
| VLAN support | Jah |
| Wake-on-LAN ready | Jah |
| Unit Box Height | 0.12 |
| Unit Box Length | 0.02 |
| Unit Box Width | 0.07 |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.000168/0.00021 cubm |
| Product Net Weight | 0.023 kg |
| Unit Calculated Weight | 0.04 kg |
| Summary | Axagon ADE-XR USB 2.0 fast ethernet. Connectivity technology: Wired, Host interface: USB, Interface: Ethernet. Maximum data transfer rate: 100 Mbit/s. USB powered. Product colour: Black |
| Product colour | Black |
| Country of origin | China |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN (RJ-45) ports | 1 |
| Internal | Ei |
| LED indicators | Jah |
| Mac operating systems supported | Jah |
| Plug and Play | Jah |
| Windows operating systems supported | Jah |
| Certification | CE, RoHS |
| Connectivity Technology | Wired |
| Ethernet LAN data rates | 10/100 Mbit/s |
| Housing material | Plastic |
| Linux | Jah |
| MacOS | Jah |
| Maximum data transfer rate | 100 Mbit/s |
| Package depth | 72 mm |
| Package height | 24 mm |
| Package weight | 44 g |
| Package width | 120 mm |
| USB 2.0 | 1 |
