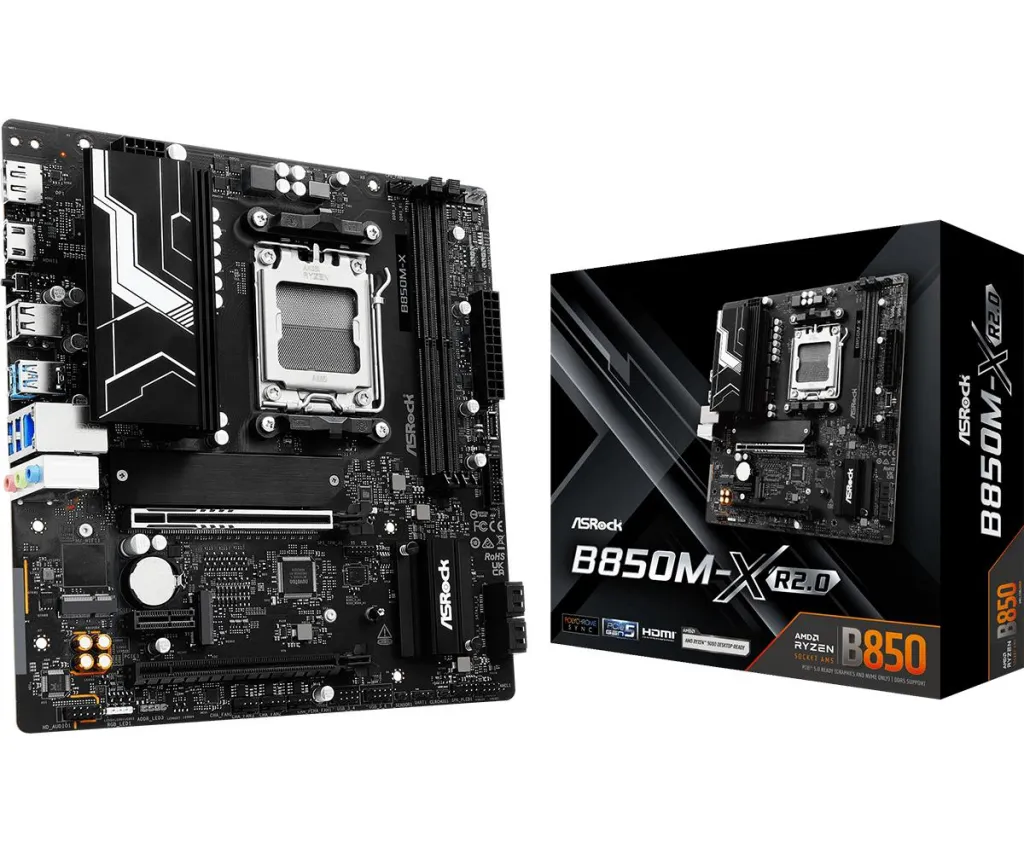

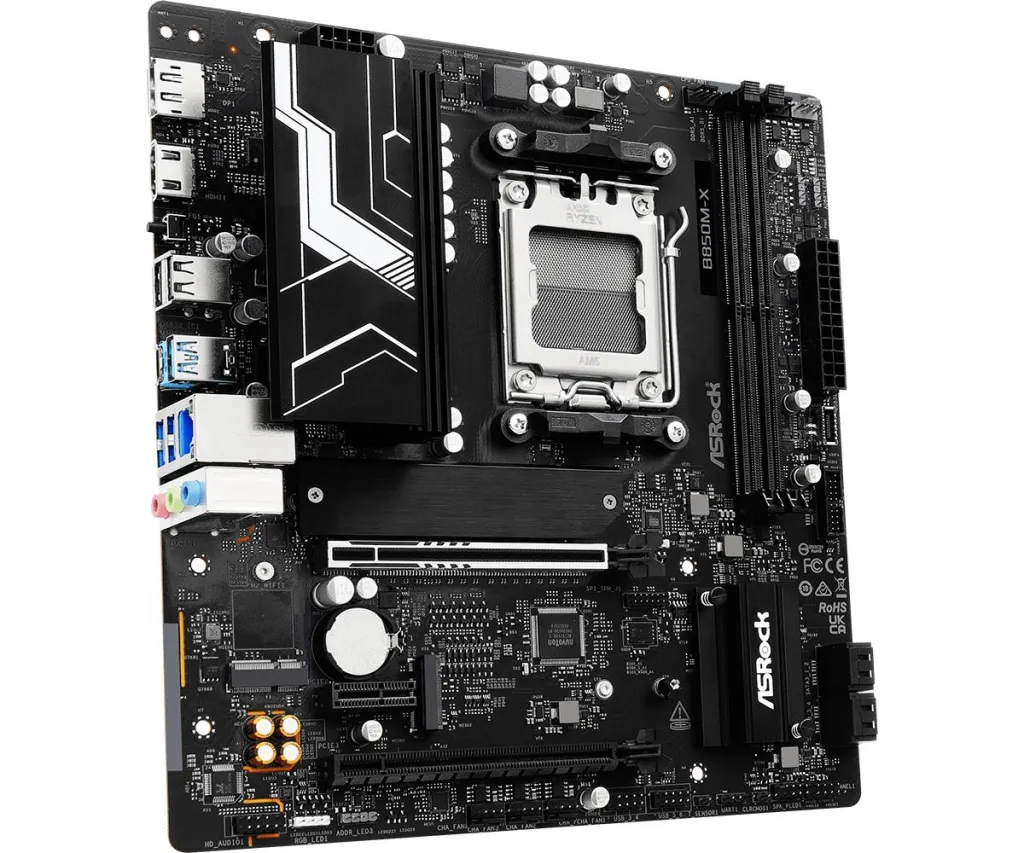

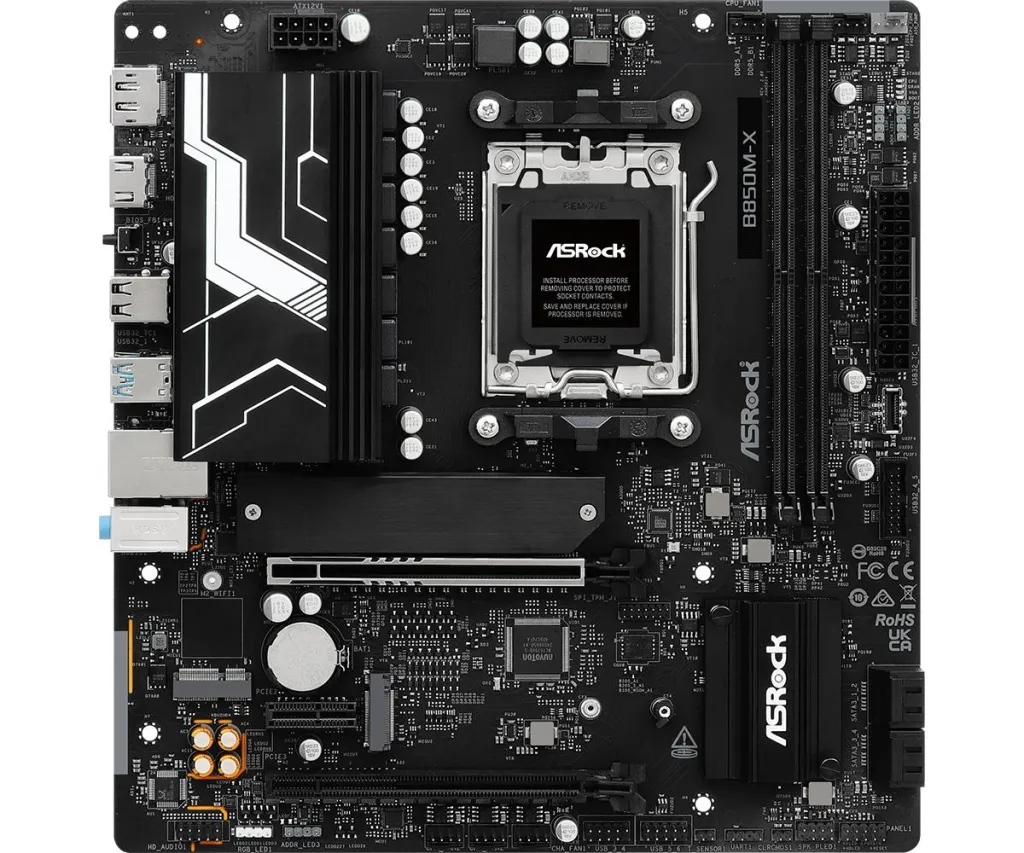

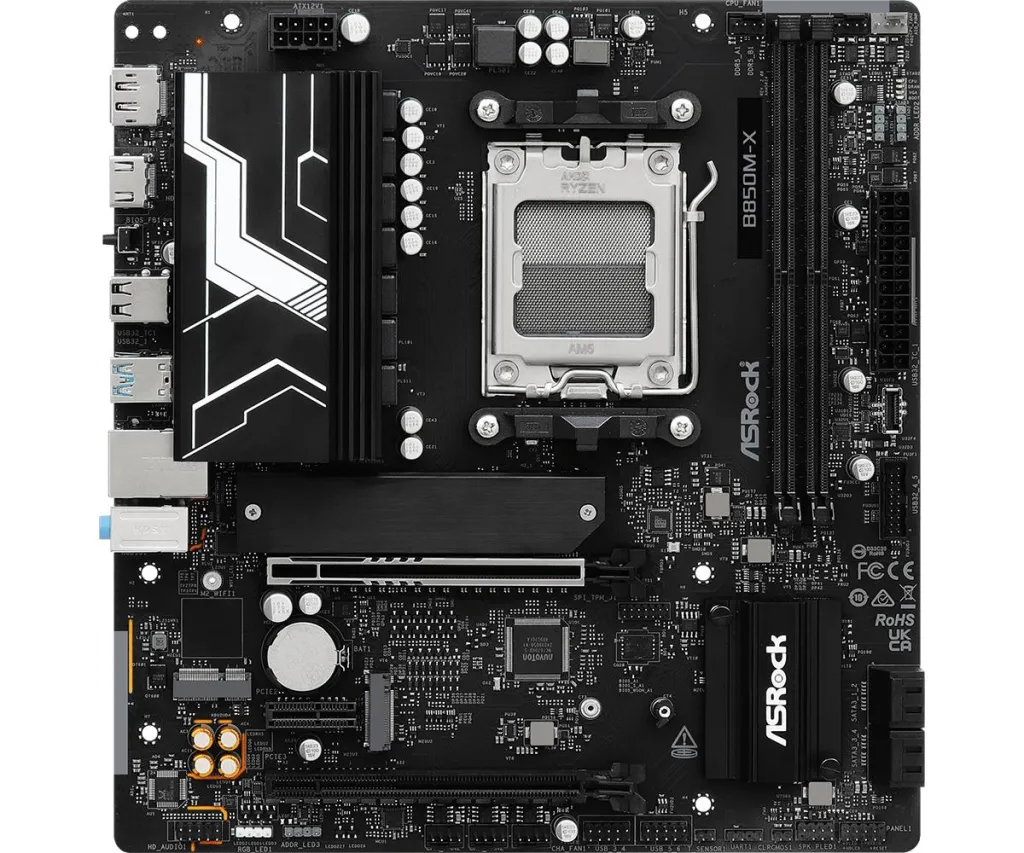

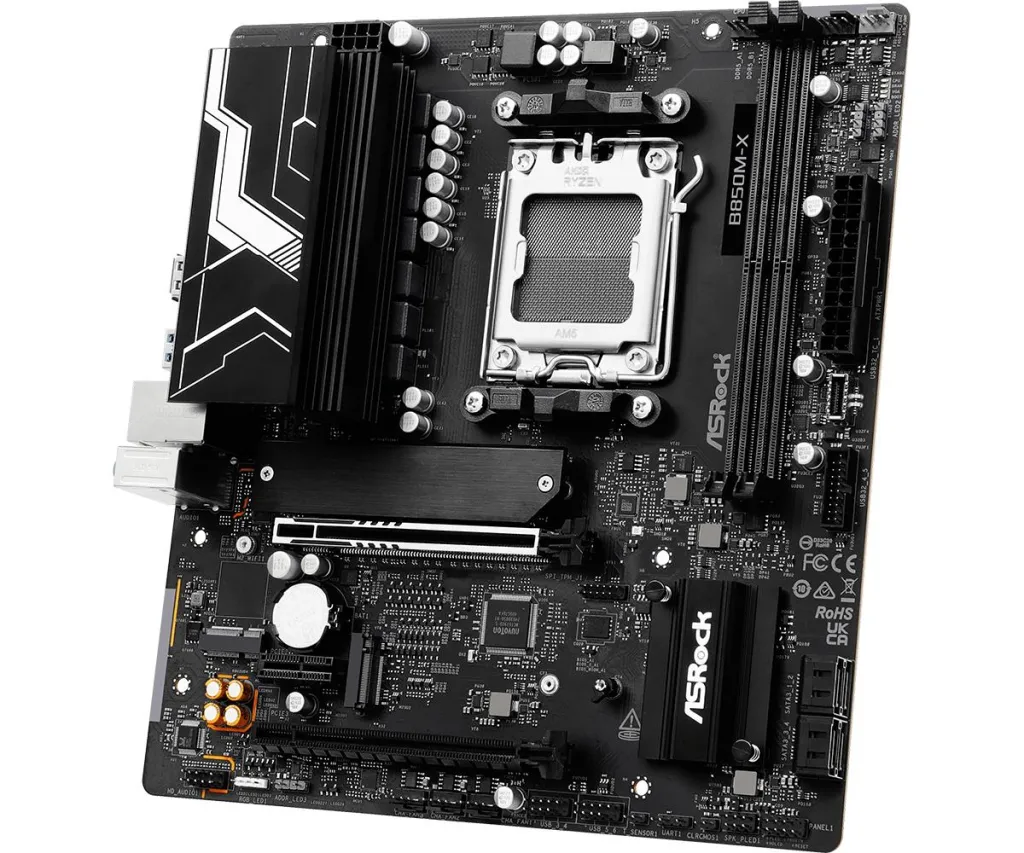

The ASRock X-Series motherboard provides a high-value solution, balancing performance and versatility within a compact form factor. It’s highly capable in handling a wide range of tasks, from professional productivity to everyday usage, striking an excellent balance between affordability, reliability, and efficiency.
Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.
Dr. MOS
Dr.MOS is an integrated power stage optimized for synchronous buck-set down voltage applications, delivering higher current and better thermal efficiency than traditional MOSFETs, ensuring enhanced stability.
6 Layer PCB
The 6 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus, it's able to support the latest memory modules with most extreme memory performance!
DDR5 XMP & EXPO Support
Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. This motherboard is built with high quality materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel® XMP/AMD EXPO™ capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.
CIe Gen5 Blazing M.2
The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128Gb/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs.
Aluminum Heatsink
The first thing that catches the eye is the optimized Aluminum Heatsink Design. Heatsinks are crucial for efficient heat dissipation, especially during heavy workloads like gaming or productivity tasks. Motherboard that built with heatsinks can effectively manage thermal performance, hence ensure system stability and durability effortlessly.
Dragon 2.5 Gb/s LAN
The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.
Front USB 3.2 Gen1 Type-C
Front USB 3.2 Gen1 Type-C header delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.
POLYCHROME RGB
This motherboard features onboard RGB headers and addressable RGB headers that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
SignalRGB
SignalRGB unifies your RGB devices, offering seamless customization, game-reactive effects, macro automation, and system monitoring. The official partnership empowers ASRock motherboards with advanced lighting control, enhances compatibility with a diverse range of RGB devices, and provides greater customization flexibility.
Reinforced Steel Slot
[PCIe 5.0 Version]
The reinforced steel slot is capable of supporting PCI Express 5.0 standard. The various benefits include:
✔ Extra anchor points
✔ Stronger latch
✔ Ensure signal stability
✔ Make sure heavy graphics cards to be well-installed.

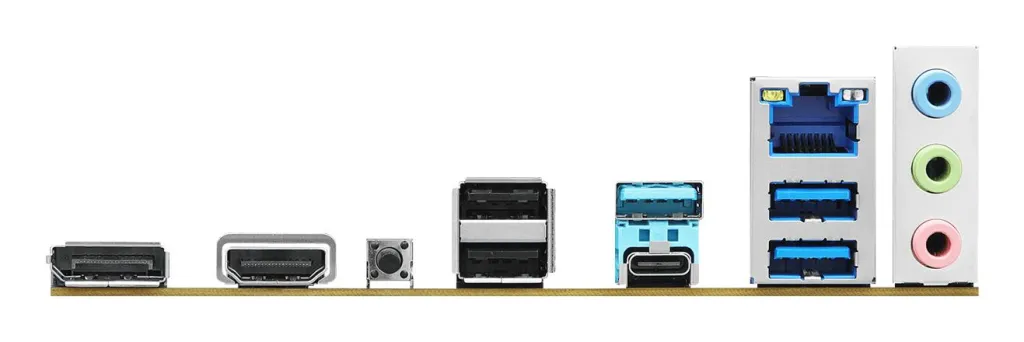

Dual Graphics Outputs
Complete with two types of most used connectors! Packed with a HDMI + DisplayPort combo, you have more graphics output options now.
| Tootja | ASROCK |
| Tootekood | B850M-X R2.0 |
| EAN | 4711581490758 |
| Google link | lisainfo |
| Garantiiaeg | 36 kuud |
| .: Disain :. | |
| Emaplaadi kujutegur | micro ATX |
| Kujutegur | Micro-ATX |
| Laius | 244 mm |
| Sügavus | 226 mm |
| .: Protsessor :. | |
| Protsessori pesa | SAM5 |
| .: Kiibistik ( Chipset ) :. | |
| Kiibistik ( Chipset) | AMD B850 |
| .: Mälu :. | |
| Sisemälu tüüp | DDR5 |
| Taktsagedus | 8200 MHz |
| Mälupesad | 2 |
| Maksimaalne sisemälu | 128 GB |
| Graafikakaart | |
| Integreeritud graafikaadapter | Depending on CPU |
| .: Audio :. | |
| Intregeeritud helikaart | Realtek ALC897 |
| Audioväljundi kanalid | 7.1 channels |
| Sisseehitatud mikrofon | 1 |
| .: Võrgustumine :. | |
| Ethernet LAN | 2.5 Gigabit |
| WiFi | Ei |
| Kõvaketta tugi | |
| SATA | Jah |
| SATA 3.0 | Jah |
| M.2 (M) siinide arv | 1 |
| RAID | SATA 0, 1, 10 |
| Sisemine I/O moodul | |
| TPM-ühenduspesa | Header |
| Tagapaneeli I/O pesad | |
| HDMI-portide arv | 1 |
| Audioväljund | 1 |
| Audio sisend | 1 |
| USB 2.0 portide arv | 2 |
| USB 2.0 | Jah |
| Ethernet LAN (RJ-45) pordid | 1 |
| Muud näitajad | |
| Number of SATA III connectors | 4 |
| Unit Box Length | 0.3 |
| PCI-Express 5.0 16x | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| PCI-Express 4.0 1x | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI-Express 4.0 16x | 1 |
| USB 3.2 | Jah |
| RGB LED pin header | Jah |
| Processor manufacturer | AMD |
| Supported storage drive interfaces | M.2,SATA III |
| Number of M.2 (M) slots | 1 |
| Unit Box Height | 0.06 |
| CPU fan connector | Jah |
| Front panel audio connector | Jah |
| Memory channels | Dual-channel |
| Supported memory types | DDR5-SDRAM |
| Motherboard chipset family | AMD |
| Memory slots type | DIMM |
| DisplayPort version | 1.4 |
| Compatible processor series | AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series |
| BIOS type | UEFI AMI |
| ATX Power connector (24-pin) | Jah |
| EPS power connector (8-pin) | Jah |
| PCI Express x1 (Gen 4.x) slots | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Summary | Asrock B850M-X R2.0. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Dragon RTL8125BG. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: AMD |
| Unit Calculated Weight | 1.29 kg |
| Unit Box Width | 0.265 |
| Product Net Weight | 1.3 kg |
| Unit Calculated Volume | 0.00553 cubm |
| Units per Shipping Box | 10 |
| ECC сompatibility | ECC & Non-ECC |
| CnCode | 84733020 |
| Number of CPU fan connectors | 2 |
| Number of EPS power connectors (8-pin) | 1 |
| Component for | PC |
| Tootja koduleht | https://www.asrock.com/MB/AMD/B850M-X%20R2.0/index.asp#Overview |
| DisplayPorts quantity | 1 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN (RJ-45) ports | 1 |
| Motherboard chipset | AMD B850 |
| Unbuffered memory | Jah |
| Windows operating systems supported | Windows 10 x64/Windows 11 x64 |
| BIOS memory size | 256 Mbit |
| DisplayPort | 1 |
| LAN controller | Dragon RTL8125BG |
| Mudel | B850M-X R2.0 |
| Number of memory slots | 2 |
| Processor Socket | Socket AM5 |
| USB 2.0 connectors | 2 |
| USB-C | Jah |
