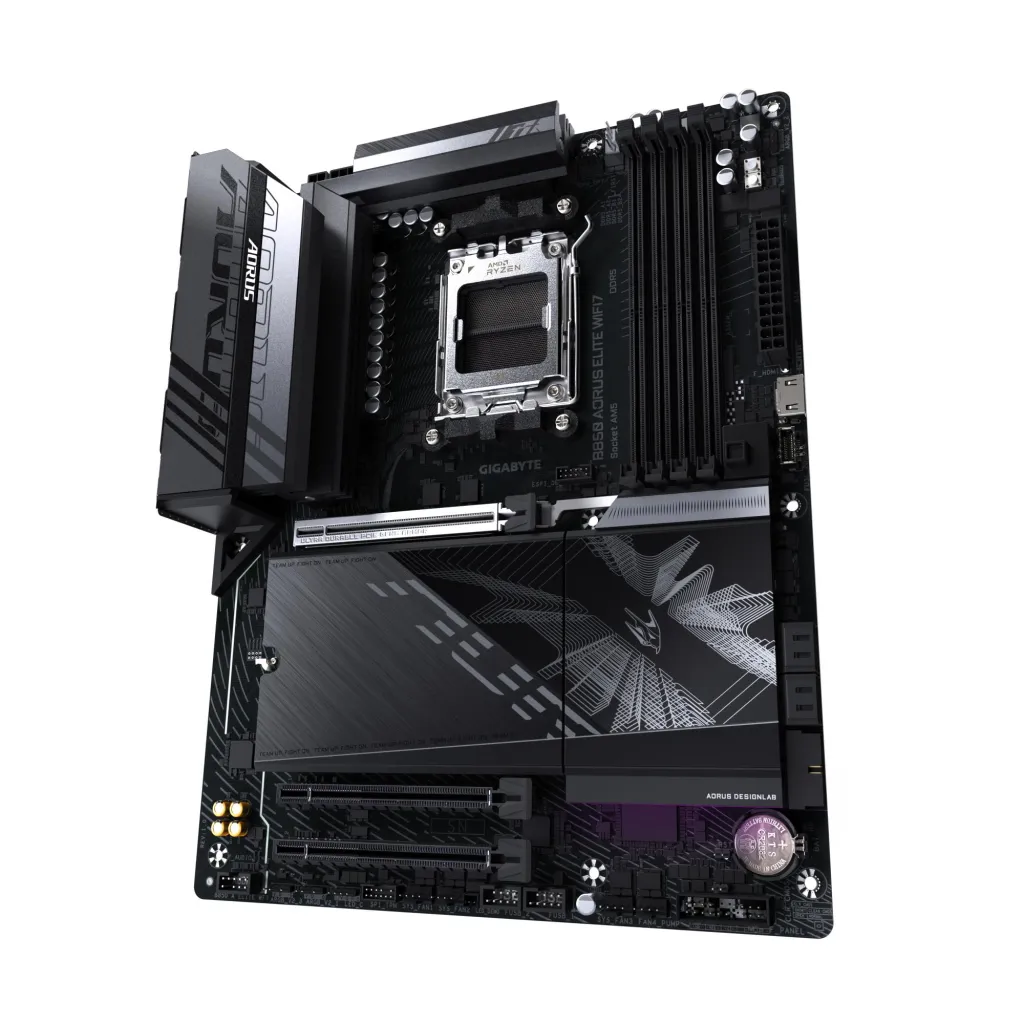

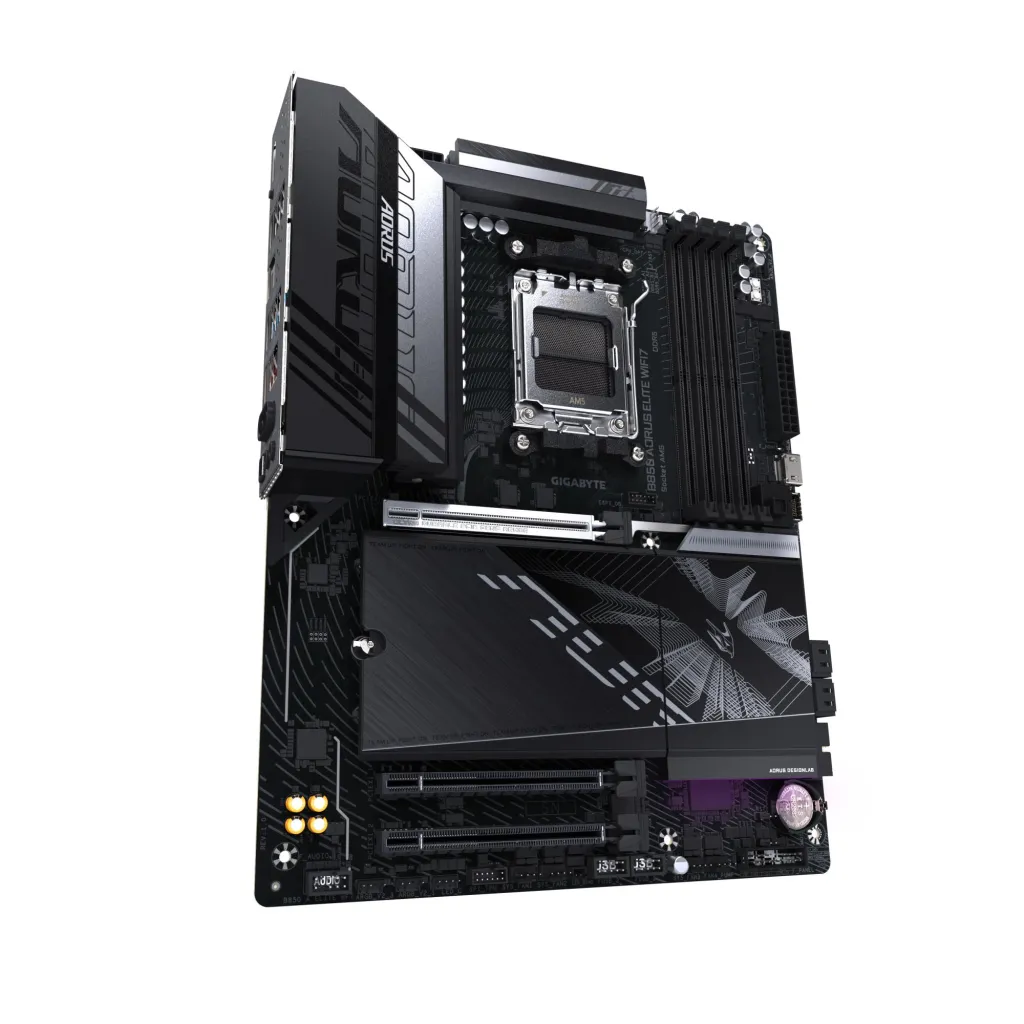

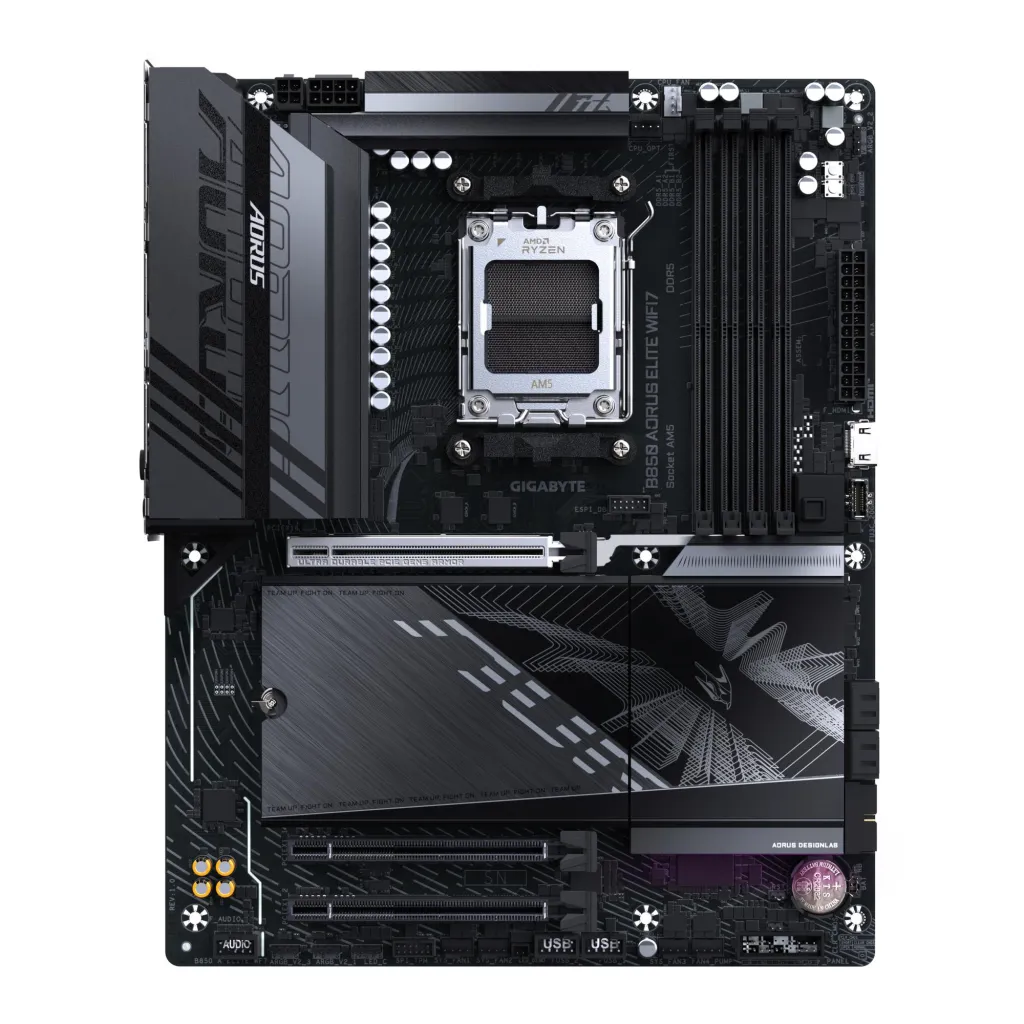

Mainboard|GIGABYTE|AMD B850|SAM5|ATX|Memory DDR5|Memory slots 4|B850AELITEWF71.1

Muud n?itajad

Compatible processor series

AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series

Supported processor sockets

Socket AM5

BIOS type

UEFI AMI

ATX Power connector (24-pin)

Jah

EPS power connector (8-pin)

Jah

Memory slots type

DIMM

Motherboard chipset family

AMD

Number of chassis fan connectors

3

Supported memory types

DDR5-SDRAM

Memory channels

Dual-channel

Front panel audio connector

Jah

CPU fan connector

Jah

Number of SATA III connectors

4

Parallel processing technology support

Not supported

Clear CMOS jumper

Jah

Clear CMOS button

Jah

ACPI version

5.0

Number of M.2 (M) slots

3

Number of storage drives supported

7

Supported storage drive types

HDD & SSD

WiFi-AP antenna jack

2

Supported storage drive interfaces

M.2,SATA III

Screws included

Jah

Processor manufacturer

AMD

Serial port headers

1

Antenna included

Jah

System management BIOS (SMBIOS) version

2.7

RGB LED pin header

Jah

USB 3.2

Jah

PCI Express x16 (Gen 4.x) slots

2

PCI-Express 5.0 16x

1

Supported memory clock speed (max)

8200 MHz

Unit Box Height

0.084

Unit Box Length

0.338

Unit Box Width

0.272

CnCode

84733020

Warranty period

3 year(s)

ECC сompatibility

Non-ECC

Maximum internal memory per slot

64 GB

Unit Calculated Volume

0.01047 cubm

Product Net Weight

1.5 kg

Unit Calculated Weight

2.53 kg

Summary

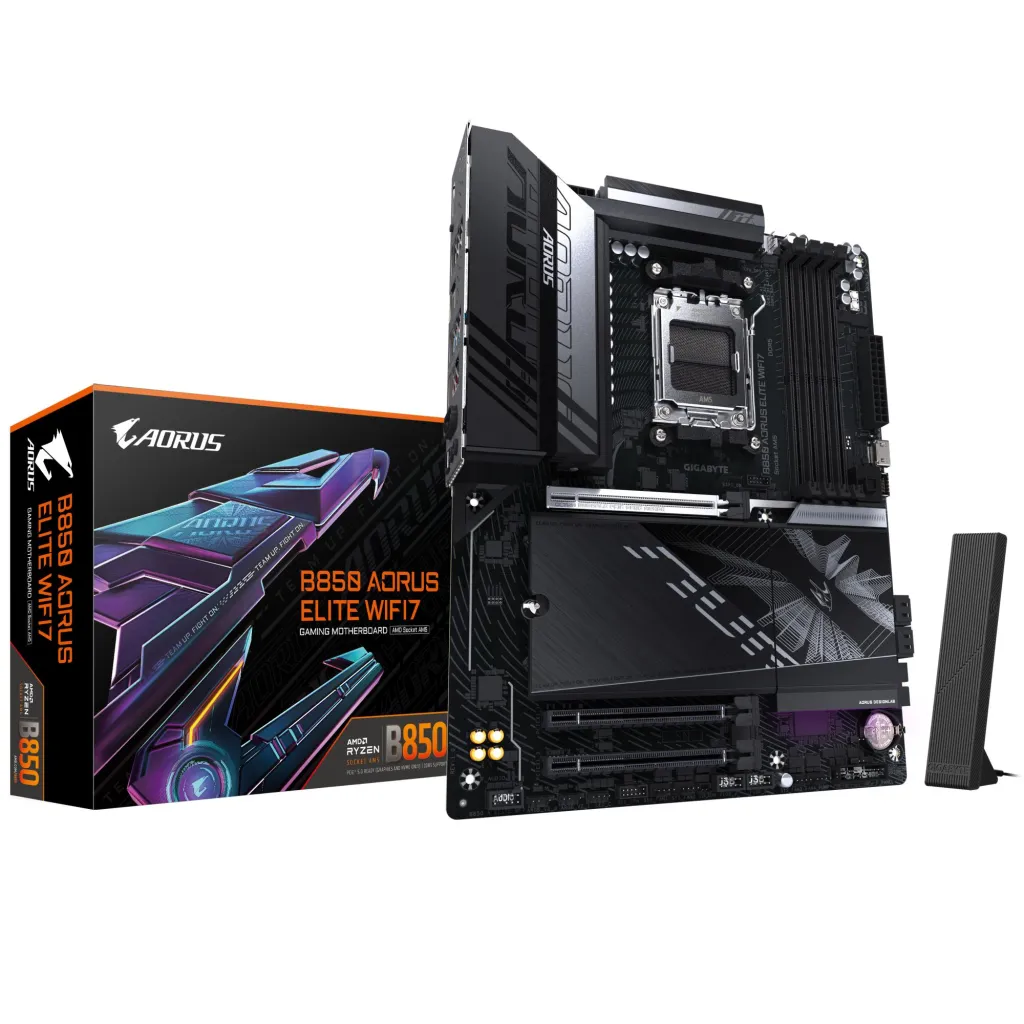

GIGABYTE B850 AORUS ELITE WIFI7 Motherboard - AMD Ryzen 9000 Series CPUs, 14+2+2 Phases Digital VRM, up to 8200MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0 M.2, 2.5 LAN, WIFI 7, USB 3.2 Gen 2x2. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E...

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

5

Products per shipping (inner) case

1 pc(s)

On-board graphics card

Ei

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

WLAN controller model

Realtek RTL8922AE

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

Audio chip

Realtek ALC897

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

Total number of SATA connectors

4

Number of HDDs supported

4

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

PC health monitoring

Fan/Temperature/Voltage/Water cooling

Desktop Management Interface (DMI) version

2.7

12V power connector

Jah

Front panel connector

Jah

Lithium weight per battery

0.07 g

USB 3.2 Gen 2x2 connectors

1

DisplayPort versioon

1.4

Kogus transpordikasti kohta

6

Toote värv

Black/Brown

Number of CPU fan connectors

2

Kaasas tarkvara

Norton Internet Security (OEM version) LAN bandwidth management software

Number of EPS power connectors (8-pin)

1

Number of water pump connectors

2

Number of RGB LED pin headers

4

1st M.2 largest key size

25110

1st M.2 highest PCI Express generation

5.0

2nd M.2 largest key size

22110

Component for

PC

2nd M.2 highest PCI Express generation

4.0

3rd M.2 largest key size

22110

3rd M.2 highest PCI Express generation

4.0

Akuelementide arv

1

Akutehnoloogia

Lithium-Manganese Dioxide (LiMnO2)

Maksimaalne resolutsioon

4096 x 2160 pixels

HDCP

Jah

Tootja koduleht

https://www.gigabyte.com/

Kõrgus

35 mm

Toote kaal

2130 g

Country of origin

China

DirectX version

12.0

DisplayPorts quantity

1

Ethernet interface type

2.5 Gigabit Ethernet

Ethernet LAN (RJ-45) ports

1

HDMI versioon

1.4

Headphone outputs

1

Microphone in

Jah

Motherboard chipset

AMD B850

Peripheral (Molex) power connectors (4-pin)

1

RAID support

Jah

Unbuffered memory

Jah

Windows operating systems supported

Windows 10 x64/Windows 11 x64

Batteries Included

Jah

Battery type

CR2032

Battery weight

3 g

BIOS memory size

256 Mbit

DisplayPort

1

Mudel

B850 A ELITE WF7

Number of memory slots

4

Optical S/PDIF

1

Package depth

270 mm

Package height

80 mm

Package weight

2455 g

Package width

335 mm

Processor Socket

Socket AM5

Raid Levels

0/1/10

Supported memory clock speeds

4400/4800/5200/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600/7800/7900/7950/8000/8200 MHz

USB 2.0 connectors

2

USB-C

Jah
