B760M-A-CSM

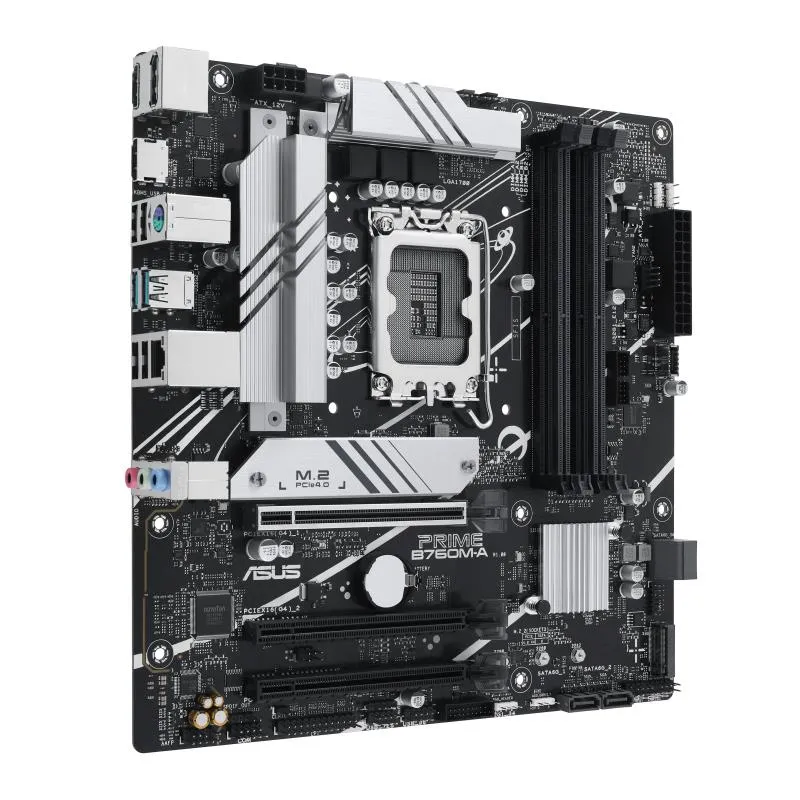

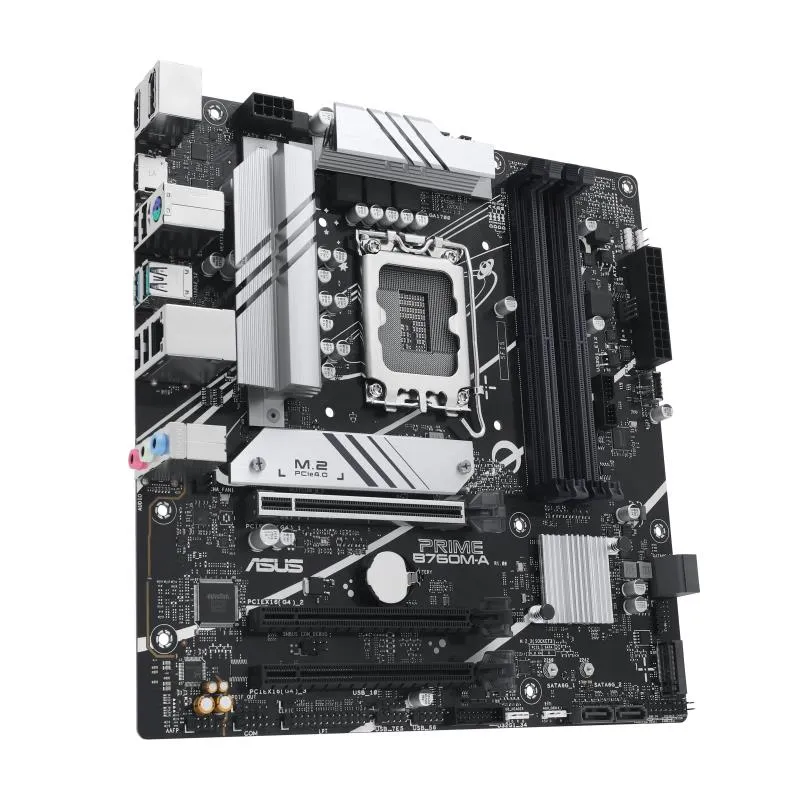

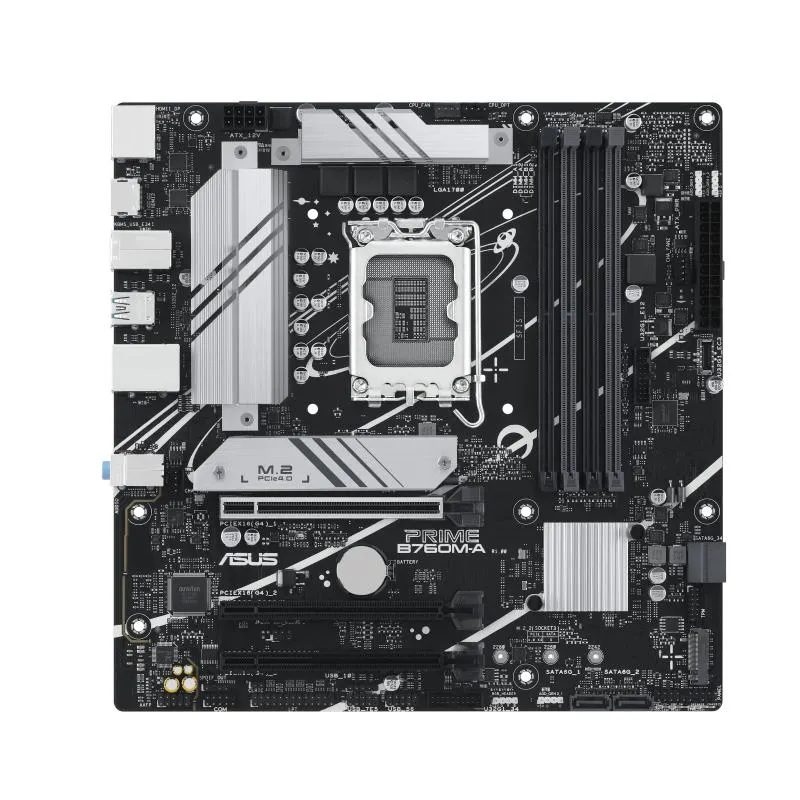

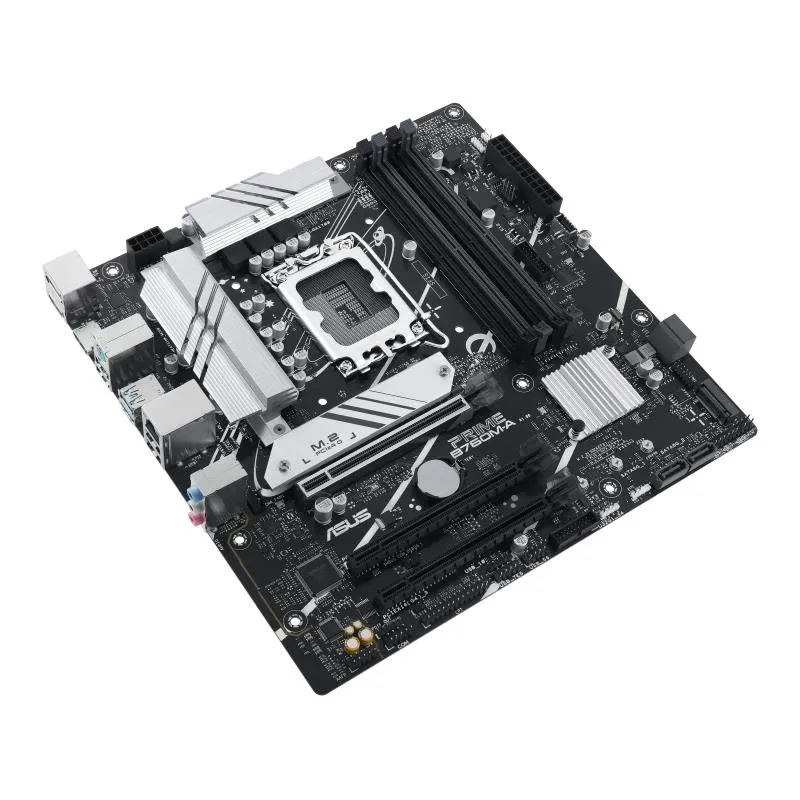

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B760M-A-CSM provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.
ASUS Corporate Stable Model
ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express - server-grade IT management software.
* Lifecycle support, program offering and supply status may vary by region. Please consult your local sales representative for more information.
ASUS Control Center Express
ASUS Control Center Express is an integrated IT monitoring and management software designed to deploy faster, simplify IT operations and improve productivity with comprehensive control and user-friendly functions. ASUS Control Center Express is compatible with over 100 ASUS motherboards to provide a high-quality, TCO-optimized solution for your business needs.
| Tootja | ASUS |
| Tootekood | PRIME B760M-A-CSM |
| EAN | 4711387140710 |
| Google link | lisainfo |
| Garantiiaeg | 36 kuud |
| .: Disain :. | |
| Emaplaadi kujutegur | micro ATX |
| Kujutegur | Micro-ATX |
| Laius | 244 mm |
| Sügavus | 244 mm |
| .: Protsessor :. | |
| Protsessori pesa | LGA1700 |
| .: Kiibistik ( Chipset ) :. | |
| Kiibistik ( Chipset) | Intel B760 Express |
| .: Mälu :. | |
| Sisemälu tüüp | DDR5 |
| Taktsagedus | 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000 MHz |
| Mälupesad | 4 |
| Maksimaalne sisemälu | 128 GB |
| Graafikakaart | |
| Integreeritud graafikaadapter | Depending on CPU |
| .: Audio :. | |
| Intregeeritud helikaart | Jah |
| Audioväljundi kanalid | 3 |
| .: Võrgustumine :. | |
| Ethernet LAN | 2.5 Gigabit |
| WiFi | Jah |
| Kõvaketta tugi | |
| SATA | Jah |
| M.2 (M) siinide arv | 2 |
| RAID | SATA 0, 1, 5, 10 |
| Sisemine I/O moodul | |
| TPM-ühenduspesa | Jah |

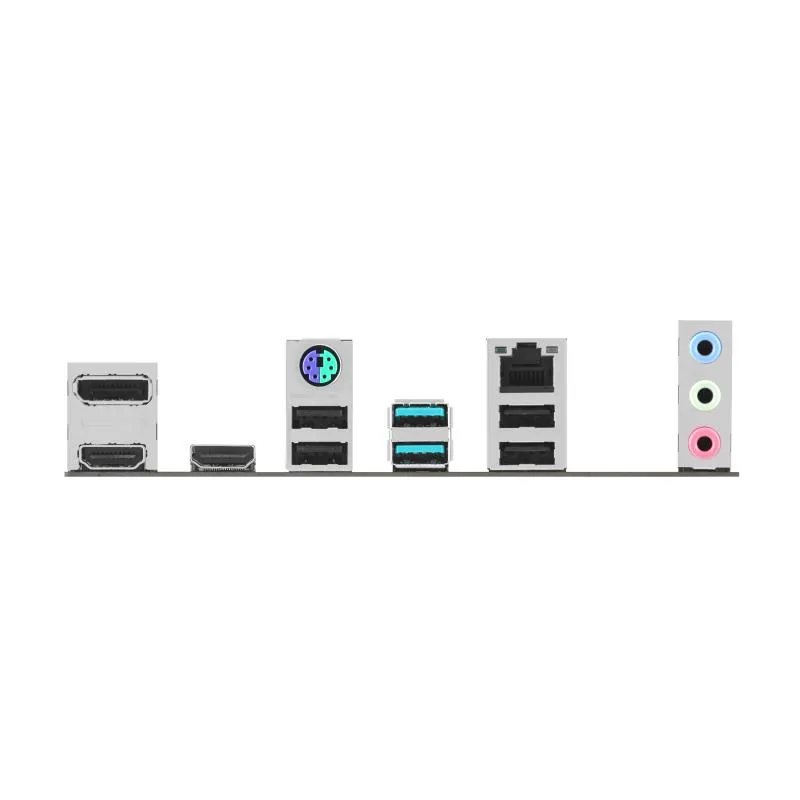

| Tagapaneeli I/O pesad | |
| PS/2-portide kogus | 1 |
| HDMI-portide arv | 2 |
| USB 2.0 portide arv | 4 |
| USB 2.0 | Jah |
| Ethernet LAN (RJ-45) pordid | 1 |
| Lisad | |
| Kaablid kaasa arvatud | SATA |
| Muud näitajad | |
| CPU fan connector | Jah |
| PCI Express x16 (Gen 4.x) slots | 3 |
| PCI-Express 4.0 16x | 2 |
| USB 3.2 | Jah |
| RGB LED pin header | Jah |
| Processor manufacturer | Intel |
| Supported storage drive interfaces | M.2,SATA III |
| WiFi-AP antenna jack | 1 |
| Supported storage drive types | HDD & SSD |
| Number of storage drives supported | 6 |
| Line-in | Jah |
| Number of M.2 (M) slots | 2 |
| Clear CMOS button | Jah |
| Parallel processing technology support | Not supported |
| Number of SATA III connectors | 4 |
| Front panel connector | Jah |
| S/PDIF out connector | Jah |
| Front panel audio connector | Jah |
| Memory channels | Dual-channel |
| Supported memory types | DDR5-SDRAM |
| Number of COM connectors | 1 |
| Compatible processor series | Intel® Celeron®/Intel® Core™ i3/Intel® Core™ i5/Intel® Core™ i7/Intel® Core™ i9/Intel® Pentium® Gold |
| Supported processor sockets | LGA 1700 |
| BIOS type | UEFI AMI |
| ATX Power connector (24-pin) | Jah |
| EPS power connector (8-pin) | Jah |
| Memory slots type | DIMM |
| Motherboard chipset family | Intel |
| Number of chassis fan connectors | 2 |
| Supported memory clock speed (max) | 7200 MHz |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 3 |
| Number of HDDs supported | 4 |
| 12V power connector | Jah |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Summary | ASUS PRIME B760M-A-CSM. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD. Ethernet interface type: 2.5 Gigabit Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel |
| Unit Calculated Weight | 1.18 kg |
| Product Net Weight | 0.8 kg |
| Unit Calculated Volume | 0.004548 cubm |
| Units per Shipping Box | 10 |
| ECC сompatibility | Non-ECC |
| CnCode | 84733020 |
| Unit Box Width | 0.264 |
| Unit Box Length | 0.273 |
| Unit Box Height | 0.053 |
| Component for | PC |
| Tootja koduleht | https://www.asus.com/motherboards-components/motherboards/prime/prime-b760m-a-csm/ |
| Kõrgus | 40 mm |

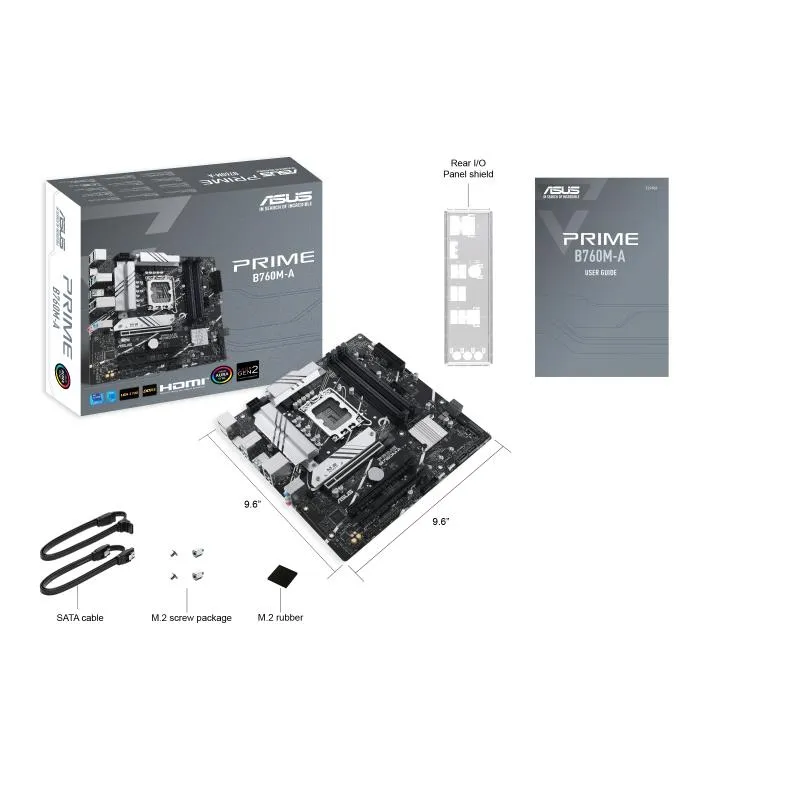

| Tarvikud kaasa arvatud | Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x M.2 Rubber Package 1 x Screw package for M.2 SSD Documentation 1 x ACC Express Activation Key Card 1 x User guide |
| DisplayPorts quantity | 1 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Jah |
| Motherboard chipset | Intel B760 |
| Unbuffered memory | Jah |
| Windows operating systems supported | Windows 10 x64/Windows 11 |
| BIOS memory size | 128 Mbit |
| DisplayPort | 2 |
| Mudel | PRIME B760M-A-CSM |
| Number of memory slots | 4 |
| Package depth | 263 mm |
| Package height | 52 mm |
| Package weight | 1140 g |
| Package width | 270 mm |
| Processor Socket | LGA 1700 |
| Supported memory clock speeds | 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200 MHz |
| USB 2.0 connectors | 3 |
