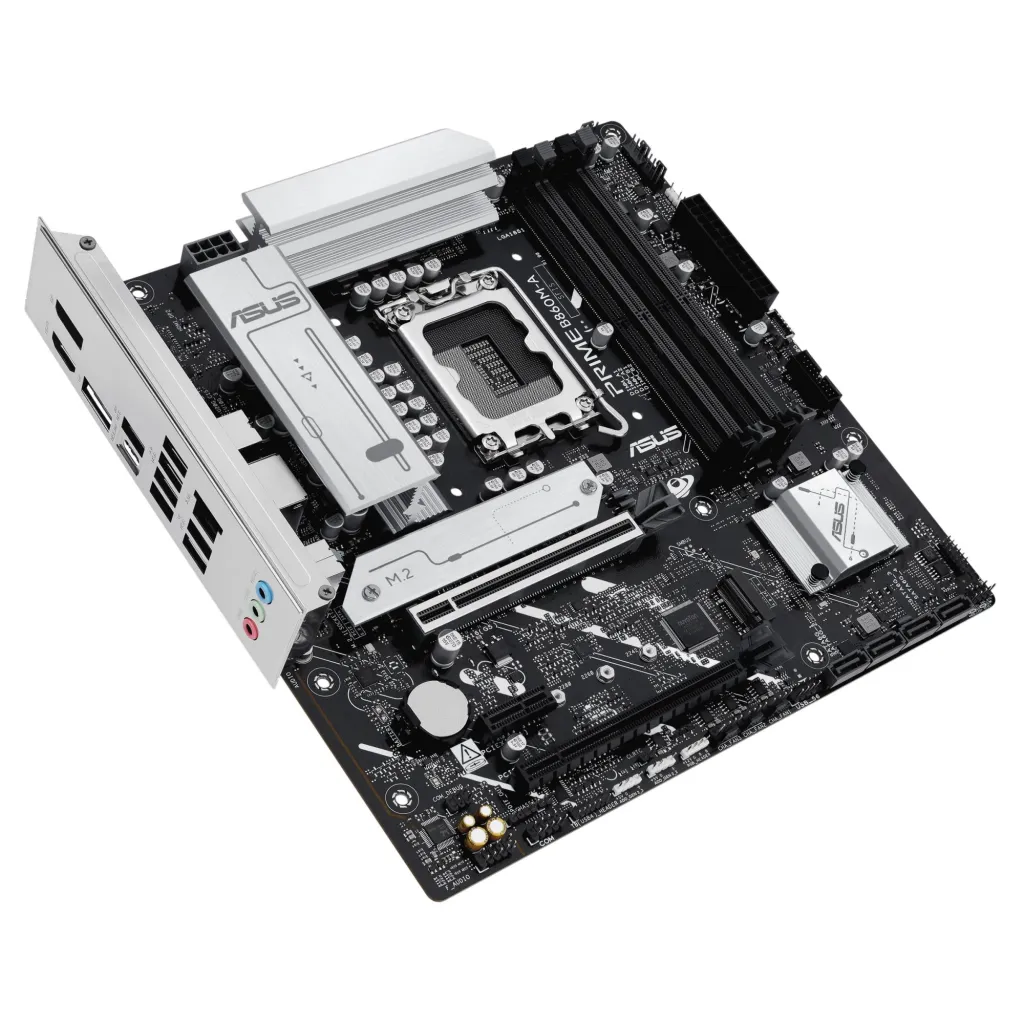

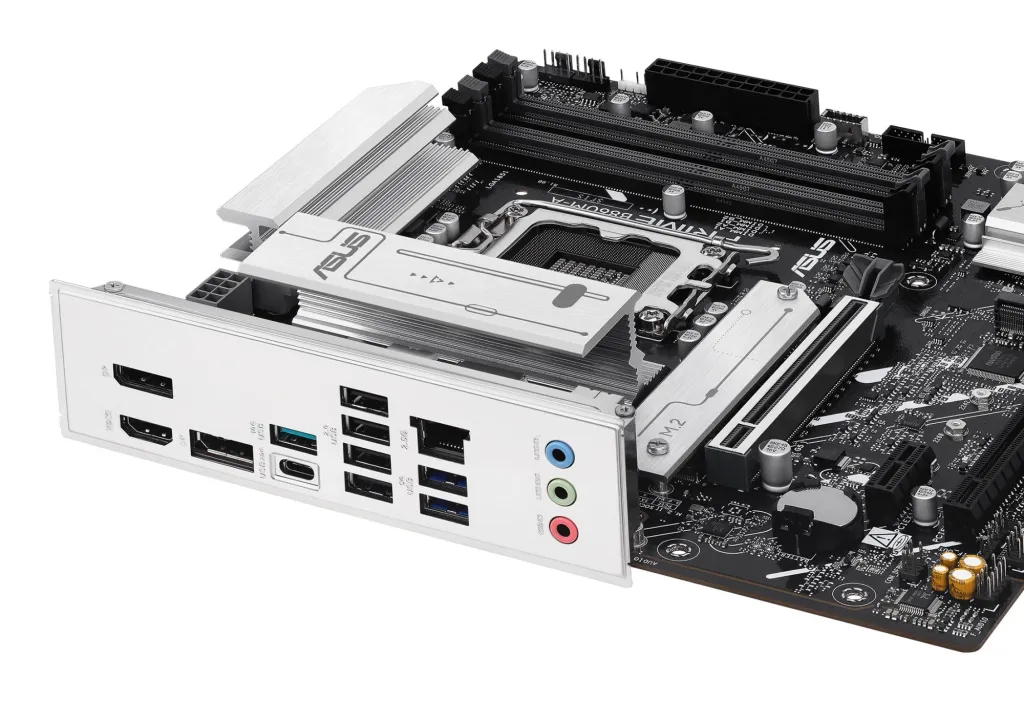

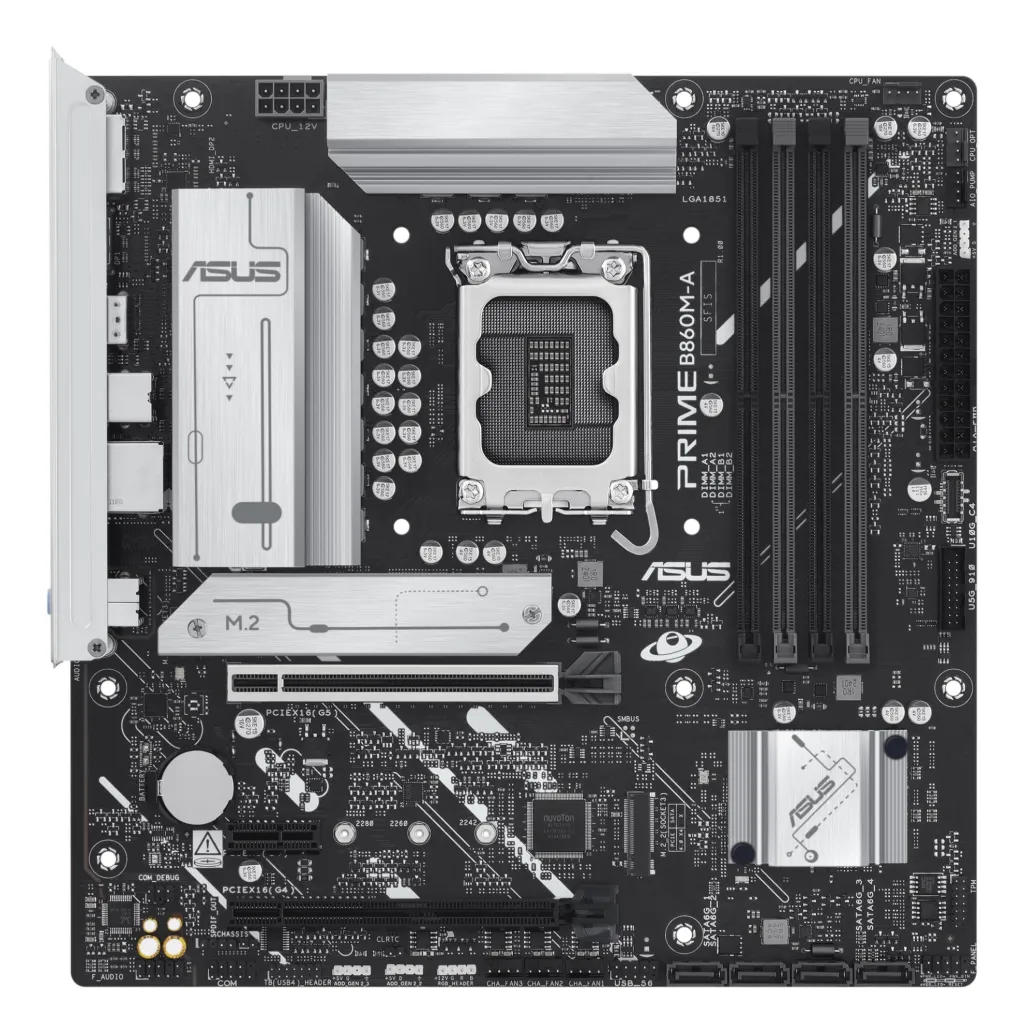

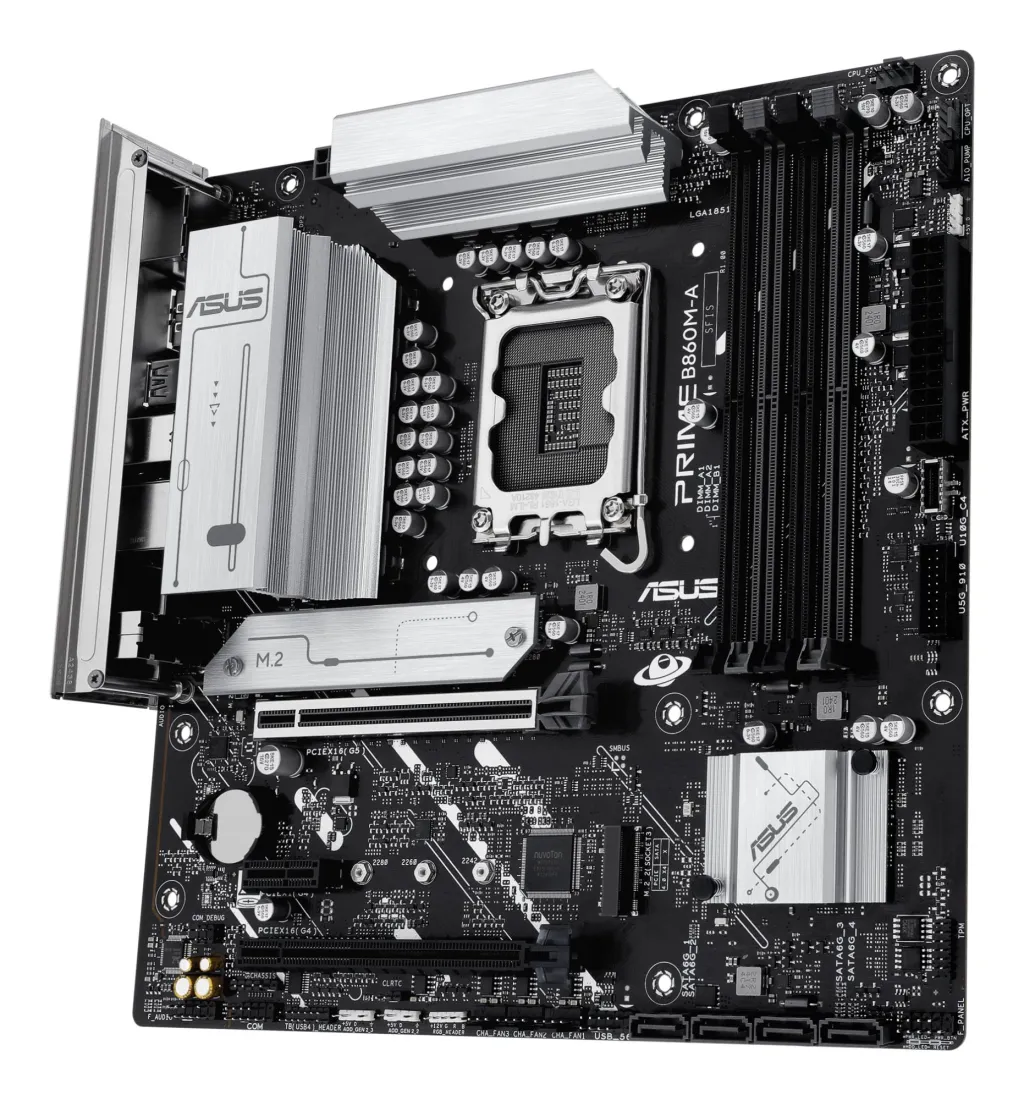

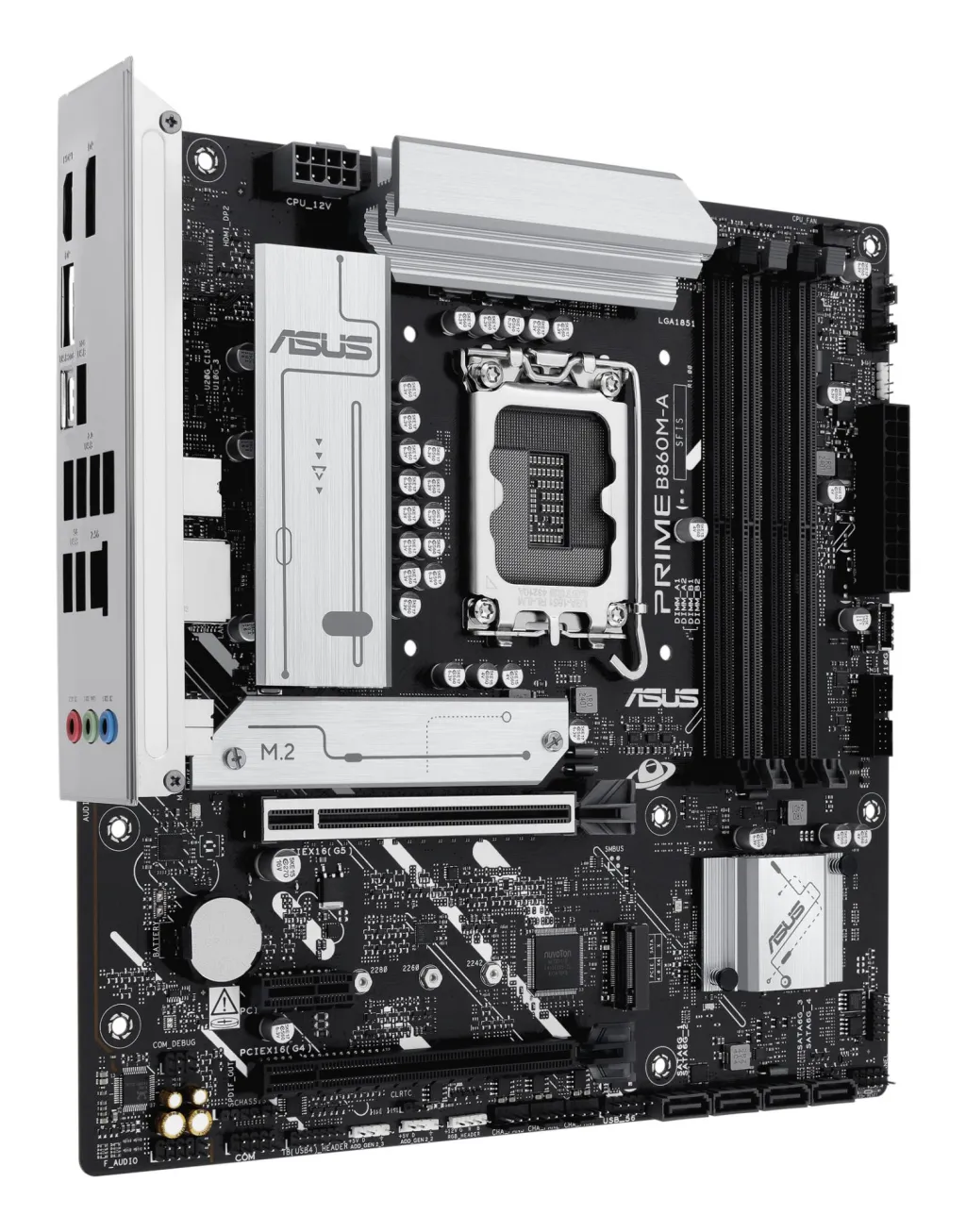

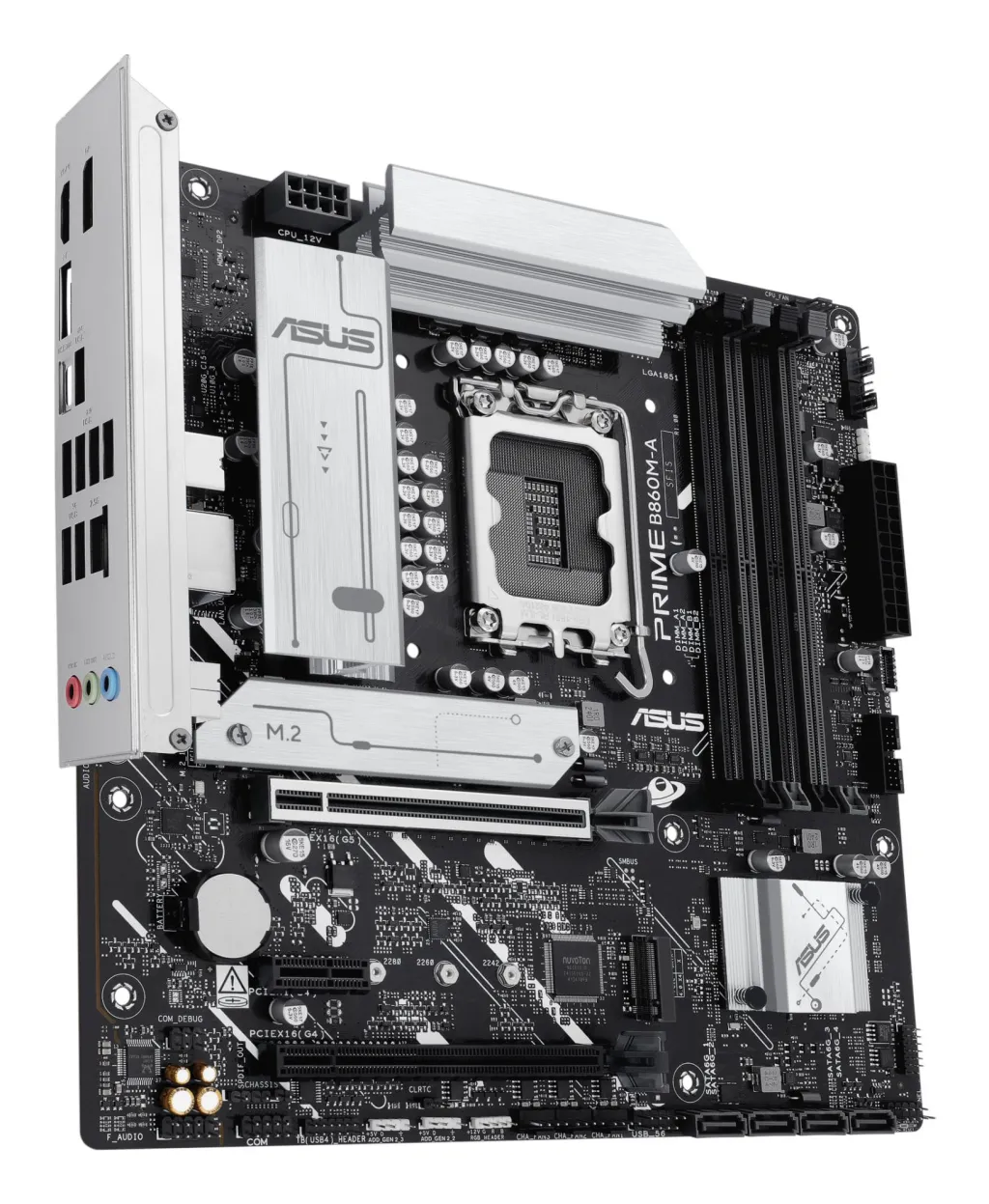

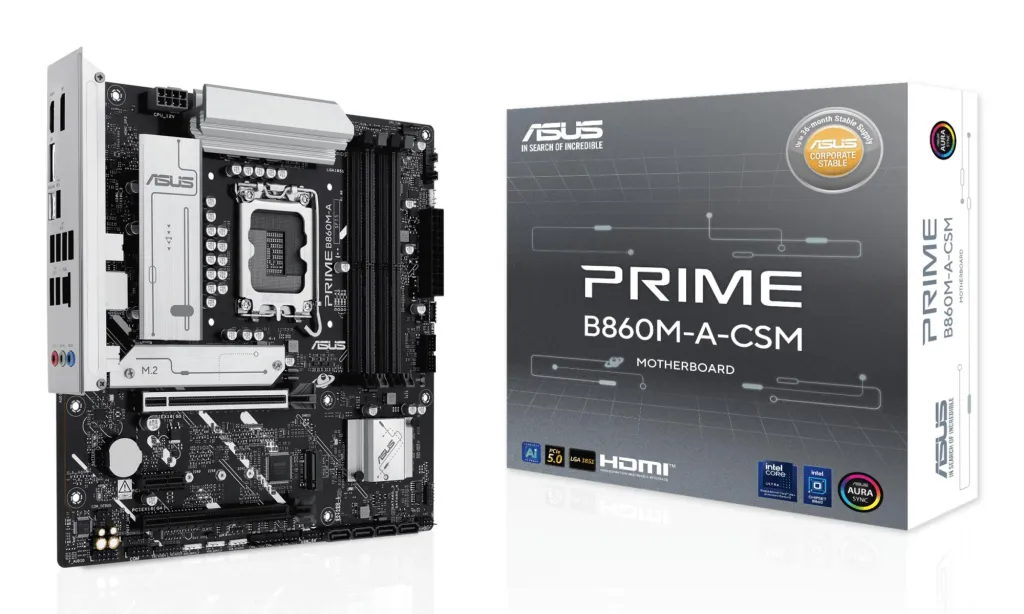

PRIME B860M-A-CSM
ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME B860M-A-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
| Tootja | ASUS |
| Tootekood | PRIME B860M-A-CSM |
| EAN | 4711387819869 |
| Google link | lisainfo |
| Garantiiaeg | 36 kuud |
| .: Disain :. | |
| Emaplaadi kujutegur | micro ATX |
| Kujutegur | Micro-ATX |
| Laius | 244 mm |
| Sügavus | 244 mm |
| .: Protsessor :. | |
| Protsessori pesa | LGA1851 |
| .: Kiibistik ( Chipset ) :. | |
| Kiibistik ( Chipset) | Intel B860 Express |
| .: Mälu :. | |
| Sisemälu tüüp | DDR5 |
| Taktsagedus | 8666 MHz |
| Mälupesad | 4 |
| Maksimaalne sisemälu | 256 GB |
| Graafikakaart | |
| Integreeritud graafikaadapter | Depending on CPU |
| .: Audio :. | |
| Intregeeritud helikaart | Jah |
| Audioväljundi kanalid | 3 |
| .: Võrgustumine :. | |
| Ethernet LAN | 2.5 Gigabit |
| WiFi | Ei |
| Kõvaketta tugi | |
| M.2 (M) siinide arv | 2 |
| RAID | SATA 0, 1, 5, 10 |
| Sisemine I/O moodul | |
| TPM-ühenduspesa | Jah |

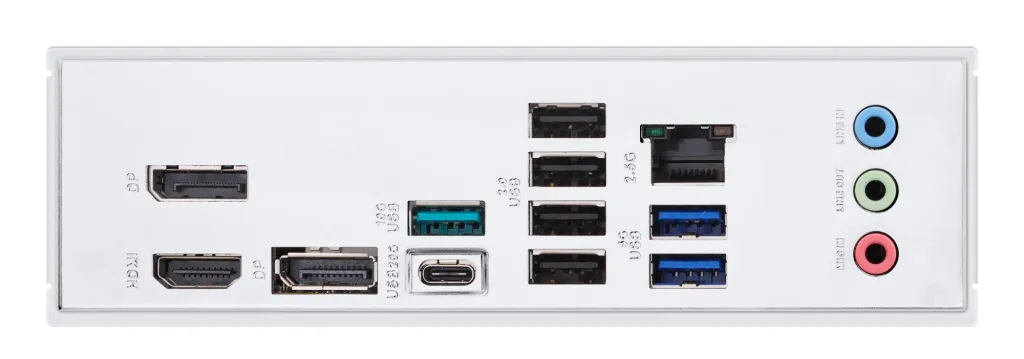

| Tagapaneeli I/O pesad | |
| HDMI-portide arv | 1 |
| USB 2.0 portide arv | 4 |
| USB 2.0 | Jah |
| Ethernet LAN (RJ-45) pordid | 1 |
| Muud näitajad | |
| Number of SATA III connectors | 4 |
| Unit Box Length | 0.28 |
| Supported memory clock speed (max) | 8666 MHz |
| PCI-Express 5.0 16x | 1 |
| PCI-Express 4.0 1x | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI-Express 4.0 16x | 1 |
| USB-C w/Thunderbolt | 1 |
| Processor manufacturer | Intel |
| Supported storage drive interfaces | M.2,SATA III |
| Thunderbolt headers | 1 |
| Supported storage drive types | HDD & SSD |
| Number of storage drives supported | 6 |
| Line-in | Jah |
| Parallel processing technology support | Not supported |
| Unit Box Height | 0.07 |
| CPU fan connector | Jah |
| S/PDIF out connector | Jah |
| Front panel audio connector | Jah |
| Compatible processor series | Intel Core Ultra (Series 2) |
| BIOS type | UEFI AMI |
| ATX Power connector (24-pin) | Jah |
| EPS power connector (8-pin) | Jah |
| Memory slots type | DIMM |
| Motherboard chipset family | Intel |
| Number of chassis fan connectors | 3 |
| Number of COM connectors | 1 |
| Chassis intrusion connector | Jah |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| PCI Express x1 (Gen 4.x) slots | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| 12V power connector | Jah |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of HDDs supported | 4 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| Unit Box Width | 0.275 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Product colour | Multicolour |
| Summary | ASUS PRIME B860M-A-CSM. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel |
| Unit Calculated Weight | 1.42 kg |
| Unit Calculated Volume | 0.006102 cubm |
| Units per Shipping Box | 10 |
| ECC сompatibility | Non-ECC |
| CnCode | 84733020 |
| Product Net Weight | 1 kg |
| Number of CPU fan connectors | 1 |
| Component for | PC |
| Tootja koduleht | https://www.asus.com/motherboards-components/motherboards/csm/prime-b860m-a-csm/ |
| Kõrgus | 50 mm |
| Toote kaal | 815 g |
| DisplayPorts quantity | 2 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN (RJ-45) ports | 1 |
| Microphone in | Jah |
| Motherboard chipset | Intel B860 |
| RAID support | Jah |
| Unbuffered memory | Jah |
| Windows operating systems supported | Windows 10 x64/Windows 11 |
| BIOS memory size | 256 Mbit |
| DisplayPort | 2 |
| Mudel | PRIME B860M-A-CSM |
| Number of memory slots | 4 |
| Optical S/PDIF | 1 |
| Package depth | 275 mm |
| Package height | 67.5 mm |
| Package weight | 1360 g |
| Package width | 275 mm |
| Processor Socket | LGA 1851 (Socket V1) |
| Raid Levels | 0/1/10/5 |
| Thunderbolt | Jah |
| USB 2.0 connectors | 1 |
| USB-C | Jah |
