Power Supply|MONTECH|APX 550W|550 W|APX550
E1
Vajad toodet suuremas koguses või püsitellimust?
Võta ühendust meie klienditoega info[at]digipood.eu

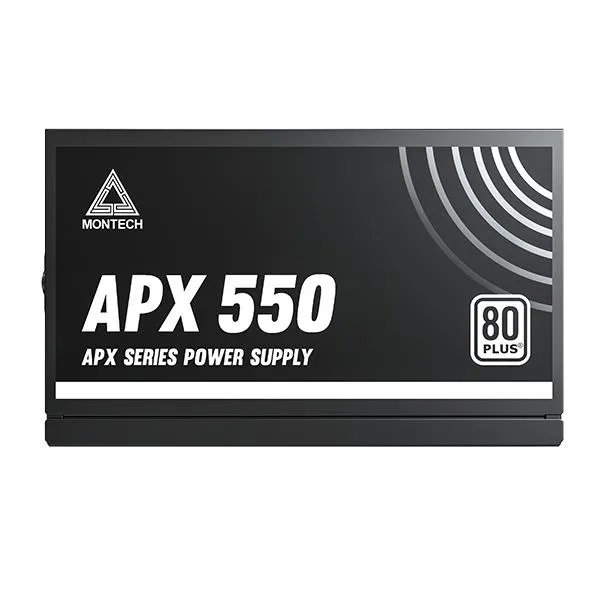

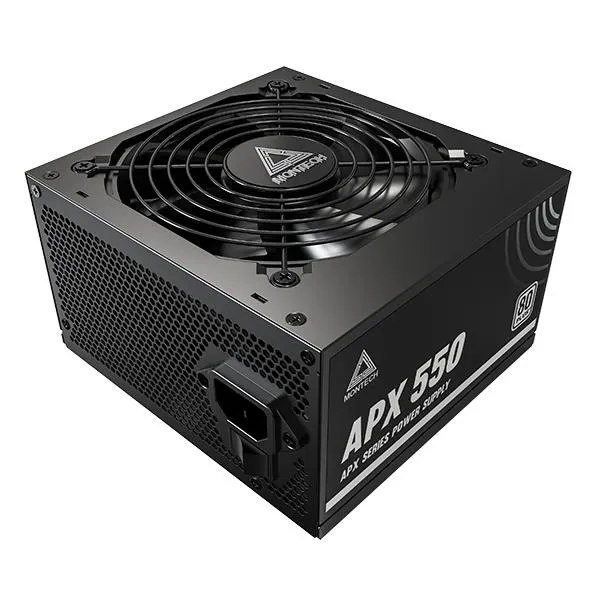

APX 550W
Discover the MONTECH APX white-label series: your ultimate gaming companion. Engineered with high-end components and whisper-quiet fan performance, APX redefines excellence in the white-label market. Featuring a cutting-edge DC-to-DC design, it eradicates compatibility worries, setting a new standard for white-label power. Elevate your gaming prowess with APX. Experience cool performance and silent operation with APX, featuring a whisper-quiet 120mm Hydraulic Bearing Fan. Keep your system running smoothly without the noise.
APX's robust +12V rails, deliver superior power under any system load. With advanced DC-to-DC converters, APX ensures efficient and precise voltage regulation, providing optimal power supply for all electronic devices across diverse applications. Power up with APX for reliability and performance like never before.
APX power supply is engineered to deliver consistent power across diverse electrical systems.
Elevate your chassis thermal efficiency with the APX series, boasting flat cables designed to enhance airflow and optimize heat dissipation. Experience improved performance and effortless cable routing for a streamlined setup.
Experience industrial-grade power protection with APX, featuring all six essential mechanisms to ensure stable and safe system operation. Backed by a 5-year warranty, APX guarantees long-term reliability for worry-free usage. Power up with confidence with APX.
.: Üldised andmed :.
- Tootja koduleht
- https://www.montechpc.com/apx-550w
.: Disain :.
- Toote värv
- Black
- Jahutuse tüüp
- Active
.: Toimimine :.
- Power supply unit (PSU) form factor
- ATX
Võimsus ja energiatarve
- Sisendvool
- 12 A
- Sisendsagedus
- 50/60 Hz
Jahutus
- Ventilaatorite arv
- 1 fan(s)
.: Tehnilised andmed :.
- Compliance certificates
- CB/CE/cTUVus/EAC/Federal Communications Commission (FCC)/RCM/RoHS/UKCA
Ergonoomika
- On/off nupp
- Jah
Funktsioonid
- Vahelduvvoolu pinge
- 100 - 240 V
- Mudeli originaalnimi
- APX 550W
Logistika andmed
- Kogus transpordikasti kohta
- 8
Töötingimused
- Kasutamistemperatuur (T-T)
- 0 - 40 °C
Tehnilised andmed
- Summary
- Montech APX550. Total power: 550 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS White. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Compliance certificates: CB, CE, EAC, Federal Communications Commission (FCC), RCM, RoHS, UKCA, cTUVus
- Unit Calculated Weight
- 1.82 kg
- Unit Calculated Volume
- 0.006136 cubm
- CnCode
- 85044095
- Unit Box Width
- 0.2
- Unit Box Length
- 0.25
- Unit Box Height
- 0.095
- Bearing technology
- HDB
- CPU power connector (4+4 pin)
- Jah
- Motherboard power connector
- 20+4 pin ATX
- Number of SATA power connectors
- 6
- PCI Express power connectors (6+2 pin)
- 2
- Peripheral (Molex) power connectors (4-pin)
- 3
- Power protection features
- Over current/Over power/Over voltage/Overheating/Short circuit/Under voltage
- Purpose
- PC
- 80 PLUS Certification
- 80 PLUS White

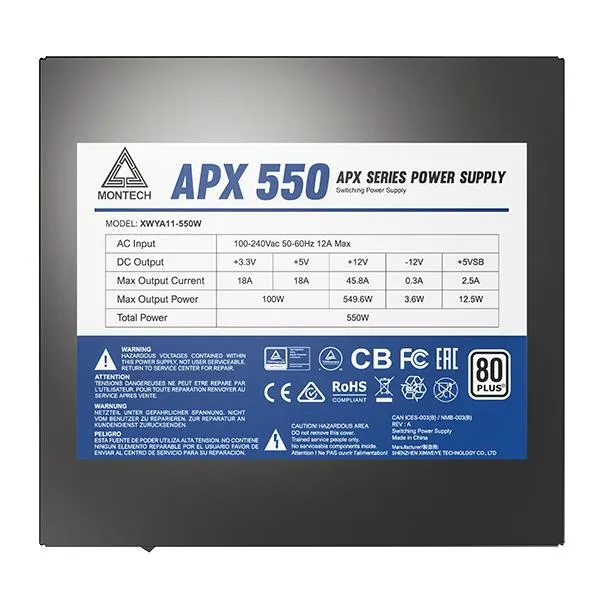

- Combined power (+12V)
- 549.6 W
- Combined power (+3.3V)
- 100 W
- Combined power (+5V)
- 100 W
- Combined power (+5Vsb)
- 12.5 W
- Combined power (-12V)
- 3.6 W

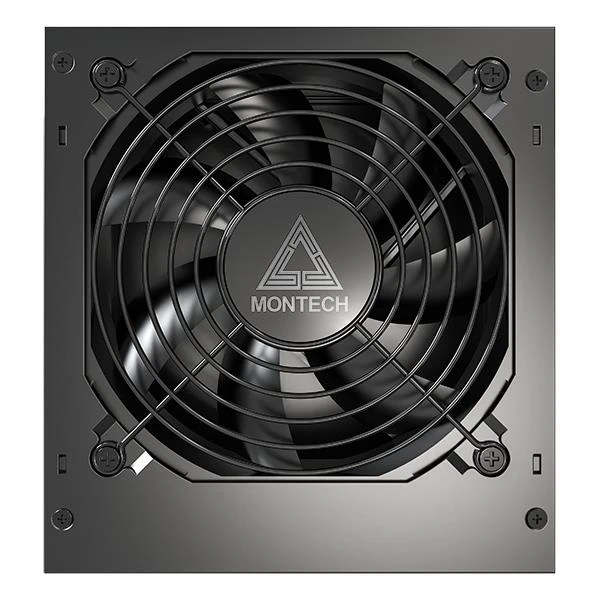

- Fan Diameter
- 120 mm
- Max output current (+12V)
- 45.8 A
- Max output current (+3.3V)
- 18 A
- Max output current (+5V)
- 18 A
- Max output current (+5Vsb)
- 2.5 A
- Max output current (-12V)
- 0.3 A
- Total power
- 550 W
Tehnilised andmed
- Laius
- 150 mm
- Sügavus
- 140 mm
- Kõrgus
- 86 mm
