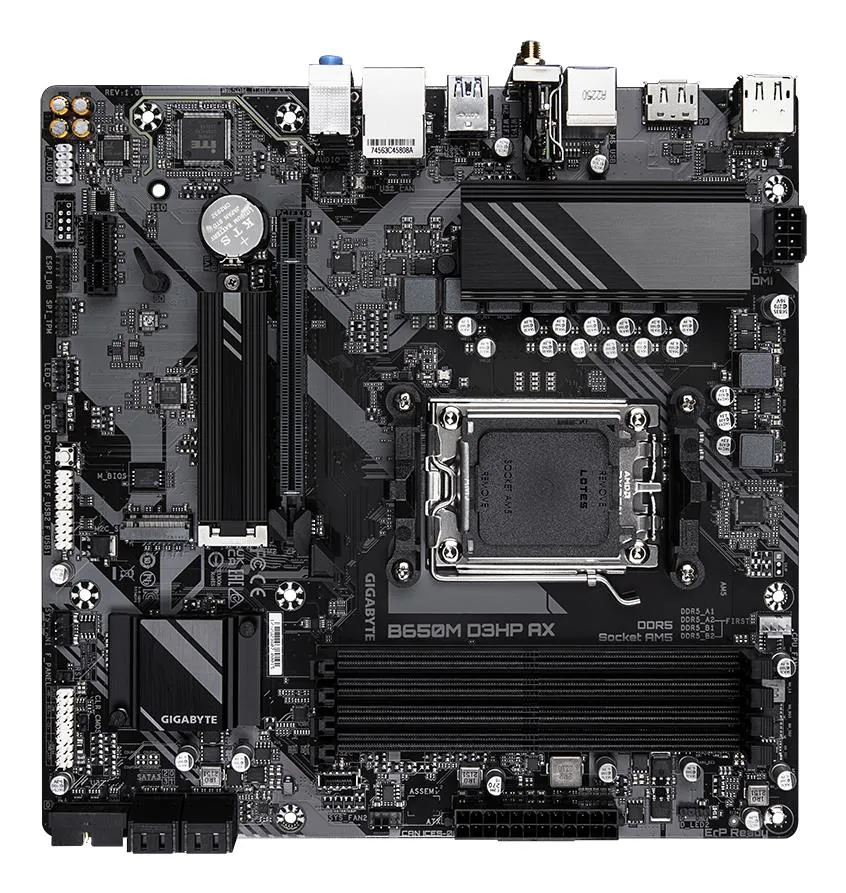

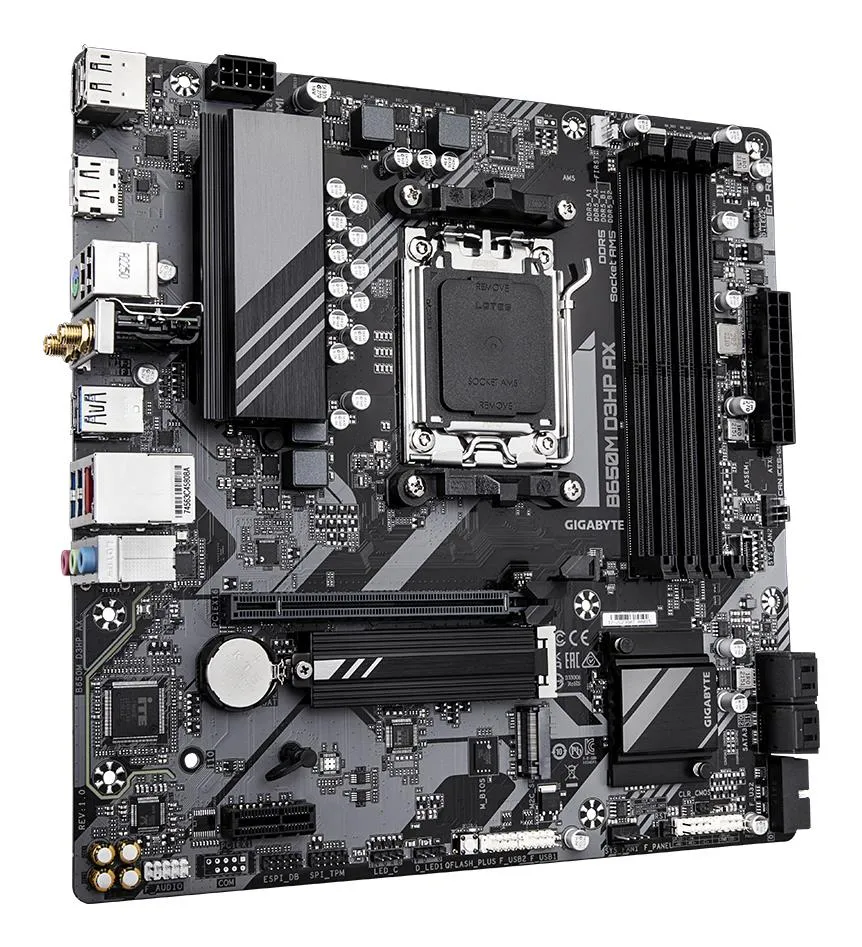

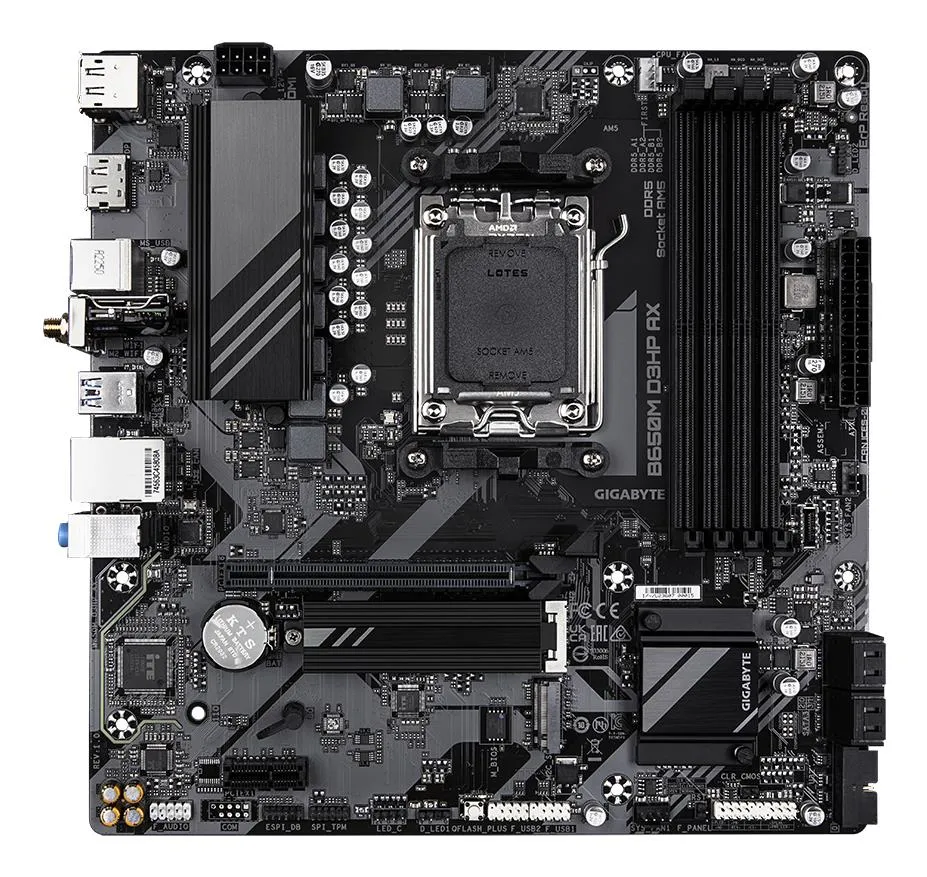

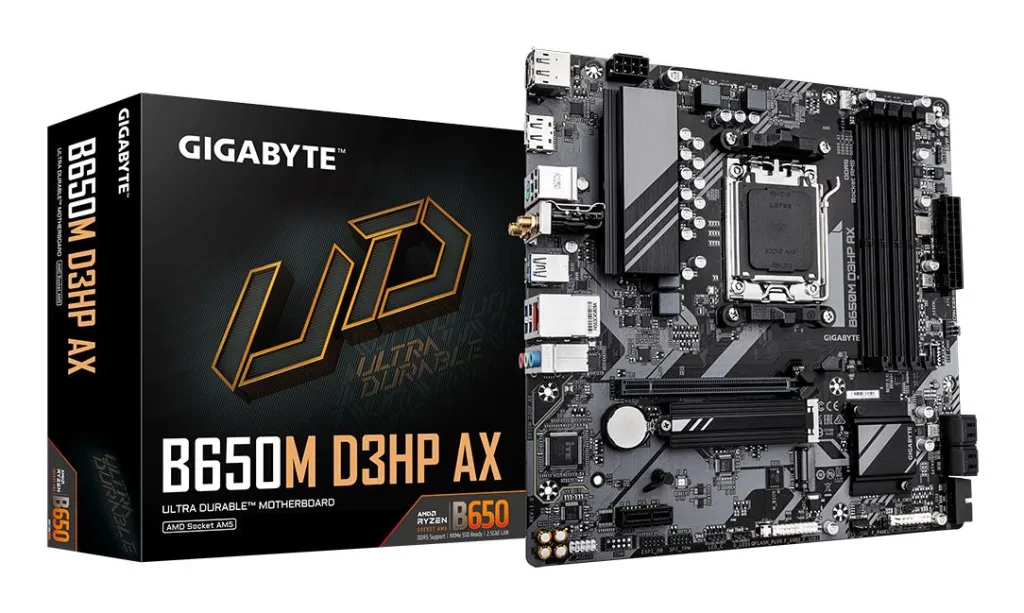

Mainboard|GIGABYTE|AMD B650|SAM5|Micro-ATX|Memory DDR5|Memory slots 4|B650MD3HPAX1.3
128.01€
E1
E1
Vajad toodet suuremas koguses või püsitellimust?
Võta ühendust meie klienditoega info[at]digipood.eu
Kuumakse al. 7.91 €. Taotle järelmaksu ostukorvis.
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
- AMD Socket AM5：Supports AMD Ryzen 7000/ Ryzen 8000/ Ryzen 9000 Series Processors
- Unparalleled Performance：5+2+2 Phases Digital VRM Solution
- Dual Channel DDR5：4*SMD DIMMs with AMD EXPO & Intel XMP Memory Module Support
- SuperSpeed Storage：PCIe 4.0 x4 M.2 Connector
- EZ-Latch：PCIe x16 Slot with Quick Release Design
- Fast Networks：Wi-Fi 6E 802.11ax & 2.5GbE LAN
- Extended Connectivity：2*DP, HDMI
- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
Tootja
GIGABYTE
Tootekood
B650M D3HP AX 1.3
EAN
4719331859510
Google link
lisainfo
Garantiiaeg
36 kuud
.: Disain :.
- Emaplaadi kujutegur
- micro ATX
- Kujutegur
- Micro-ATX
- Toiteallika tüüp
- ATX
- Laius
- 244 mm
- Sügavus
- 244 mm
.: Protsessor :.
- Protsessori pesa
- SAM5
.: Kiibistik ( Chipset ) :.
- Kiibistik ( Chipset)
- AMD B650
.: Mälu :.
- Sisemälu tüüp
- DDR5
- Taktsagedus
- 4800/5200/5600/6000/6200/6400/6600/6800/7000/7200/7600/7800/8000 MHz
- Mälupesad
- 4
- Maksimaalne sisemälu
- 256 GB
Graafikakaart
- Integreeritud graafikaadapter
- Depending on CPU
.: Audio :.
- Intregeeritud helikaart
- Jah
- Audioväljundi kanalid
- 3
.: Võrgustumine :.
- Ethernet LAN
- 2.5 Gigabit
- WiFi
- Jah
- WiFi-standardid
- 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)
- Bluetooth
- Jah
- Bluetoothi versioon
- 5.3
Laienduspesad
- PCI Expressi x1 (Gen 3.x) pesad
- 1
Kõvaketta tugi
- M.2 (M) siinide arv
- 2
- RAID
- SATA 0, 1, 10; NVMe 0, 1, 10
Sisemine I/O moodul
- TPM-ühenduspesa
- Header

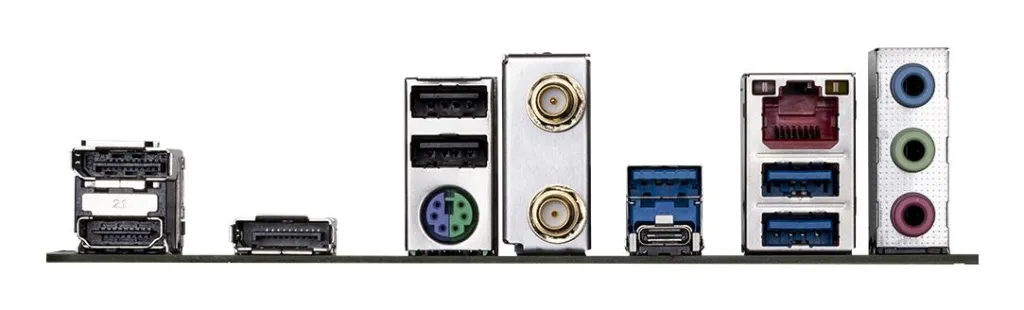

Tagapaneeli I/O pesad
- PS/2-portide kogus
- 1
- HDMI-portide arv
- 1
- USB 2.0 portide arv
- 2
- USB 2.0
- 2
- Ethernet LAN (RJ-45) pordid
- 1
.: Kaal ja mõõtmed :.
- Netokaal
- 1 kg
Muud näitajad
- Compatible processor series
- AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
- Supported processor sockets
- Socket AM5
- BIOS type
- UEFI AMI
- ATX Power connector (24-pin)
- Jah
- EPS power connector (8-pin)
- Jah
- Memory slots type
- DIMM
- Motherboard chipset family
- AMD
- Number of chassis fan connectors
- 2
- Supported memory types
- DDR5-SDRAM
- Memory channels
- Dual-channel
- Front panel audio connector
- Jah
- CPU fan connector
- Jah
- Number of SATA III connectors
- 4
- Parallel processing technology support
- Not supported
- Clear CMOS jumper
- Jah
- ACPI version
- 5.0
- Number of M.2 (M) slots
- 2
- Line-in
- Jah
- Number of storage drives supported
- 6
- Supported storage drive types
- HDD & SSD
- Discrete graphics support
- Jah
- PCI Express x1 (Gen 3.x) slots
- 1
- Supported storage drive interfaces
- M.2,SATA III
- Screws included
- Jah
- Processor manufacturer
- AMD
- Antenna included
- Jah
- System management BIOS (SMBIOS) version
- 2.7
- RGB LED pin header
- Jah
- USB 3.2
- 3
- PCI-Express 4.0 16x
- 1
- PCI Express x16 (Gen 4.x) slots
- 1
- PCI-Express 4.0 4x
- 1
- PCI-Express 4.0 8x
- 1
- Supported memory clock speed (max)
- 8000 MHz
- Unit Box Height
- 0.07
- Unit Box Length
- 0.27
- Unit Box Width
- 0.27
- CnCode
- 84733020
- ECC сompatibility
- Non-ECC
- Maximum internal memory per slot
- 64 GB
- Unit Calculated Volume
- 0.006058 cubm
- Unit Calculated Weight
- 1.19 kg
- Summary
- GIGABYTE B650M D3HP AX Motherboard - AMD Ryzen 9000 Series CPUs, 5+2+2 Phases VRM, up to 8000MHz DDR5 (OC), 2xPCIe 4.0 M.2, WIFI 6E, 2.5GbE LAN, USB 3.2 Gen 1. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125, Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 3
- Products per shipping (inner) case
- 1 pc(s)
- Top Wi-Fi standard
- Wi-Fi 6E (802.11ax)
- WLAN controller model
- Realtek RTL8852CE
- Audio chip
- Realtek ALC897
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
- 1
- Number of HDDs supported
- 4
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 2
- PC health monitoring
- Fan/Temperature/Voltage
- Desktop Management Interface (DMI) version
- 2.7
- 12V power connector
- Jah
- Front panel connector
- Jah
- Lithium weight per battery
- 0.07 g
- DisplayPort versioon
- 1.4
- Garantiiaeg
- 3 year(s)
- Kogus transpordikasti kohta
- 10
- Toote värv
- Brown
- Number of CPU fan connectors
- 1
- Kaasas tarkvara
- Norton® Internet Security (OEM version) LAN bandwidth management software
- Number of EPS power connectors (8-pin)
- 1
- Number of RGB LED pin headers
- 3
- 1st M.2 largest key size
- 2580
- 1st M.2 highest PCI Express generation
- 4.0
- 2nd M.2 largest key size
- 22110
- Component for
- PC
- 2nd M.2 highest PCI Express generation
- 4.0
- Akuelementide arv
- 1
- Akutehnoloogia
- Lithium-Manganese Dioxide (LiMnO2)
- Maksimaalne resolutsioon
- 4096 x 2160 pixels
- HDCP
- Jah
- Tootja koduleht
- https://www.gigabyte.com/
- Kõrgus
- 35 mm
- Jahutuse tüüp
- Passive
- Päritoluriik
- China
- DirectX version
- 12.0
- DisplayPorts quantity
- 2
- Ethernet interface type
- 2.5 Gigabit Ethernet
- Ethernet LAN (RJ-45) ports
- 1
- HDMI versioon
- 2.1
- Headphone outputs
- 1
- Microphone in
- Jah
- Motherboard chipset
- AMD B650
- RAID support
- Jah
- Unbuffered memory
- Jah
- Windows operating systems supported
- Windows 10 x64/Windows 11 x64
- Batteries Included
- Jah
- Battery type
- CR2032
- Battery weight
- 3 g
- BIOS memory size
- 256 Mbit
- DisplayPort
- 2
- LAN controller
- Realtek RTL8125
- Mudel
- B650M D3HP AX 1.3
- Number of memory slots
- 4
- Pakendi sügavus
- 268 mm
- Pakendi kõrgus
- 68 mm
- Pakendi kaal
- 1203 g
- Pakendi laius
- 270 mm
- Processor Socket
- Socket AM5
- Raid Levels
- 0/1/10
- Supported memory clock speeds
- 4800/5200/5600/6000/6200/6400/6600/6800/7000/7200/7600/7800/8000 MHz
- USB 2.0 connectors
- 2
- USB-C
- 1
