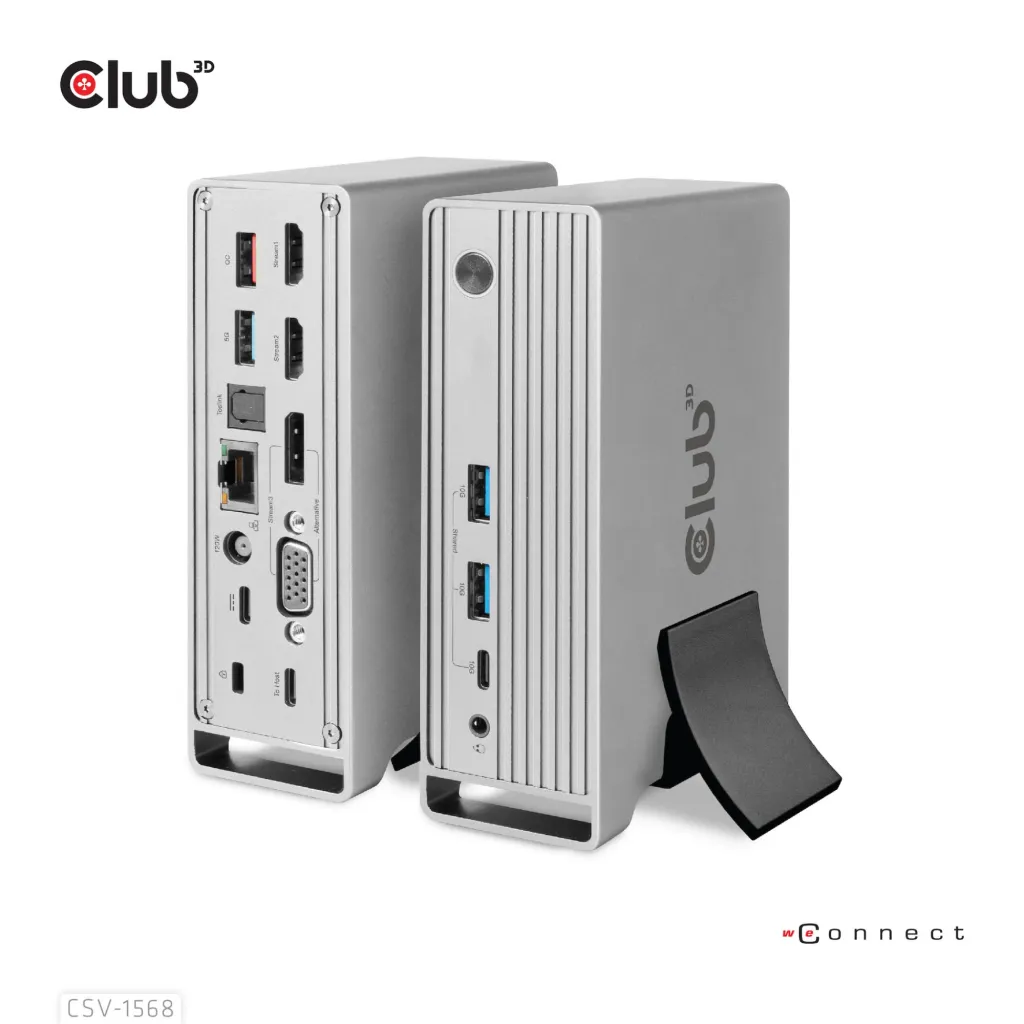

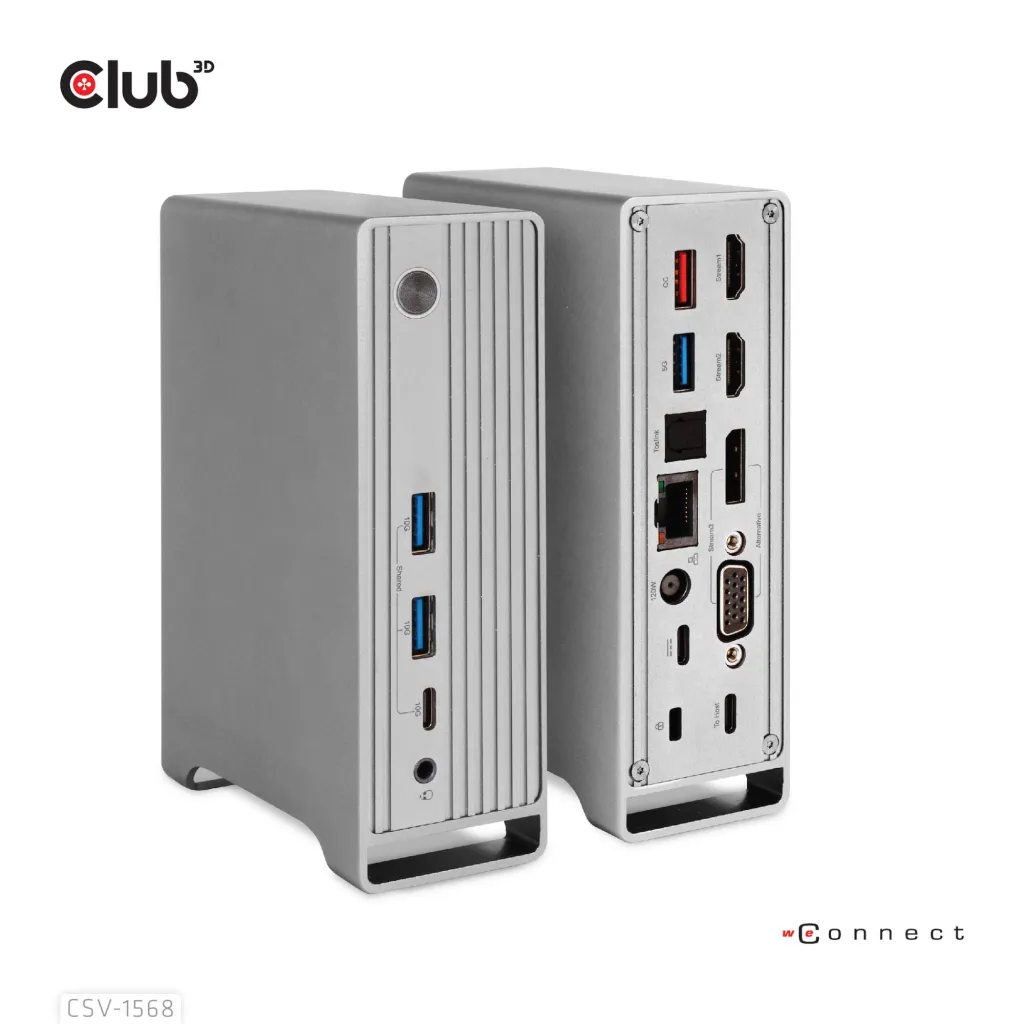

The Club 3D CSV-1568 USB Gen2 Type-C Triple Display DP™ Alt mode + Smart PD Charging Dock with 120 Watt PSU, is an integrated solution combining Video, Data, Power, Ethernet and Audio. It has 4 videos (output 3 videos simultaneously under MST mode) for video transmission, 4 USB data ports (2 USB-A 10G, 1 Type-C 10G, 1 USB-A 5G) for data transmission, 1 USB-A smart charging port for quick charging, 1 Gigabit Ethernet for super fast Ethernet, 2 audio ports (3.5mm audio, Toslink) for enjoying music. Besides, this dock is equipped with dual power jack (Type-C PD Charging or 120W DC power supply).
It supports all DP Alt mode1.4/1.2 supported Type-C and Thunderbolt™ 3 host (PC, laptop, mobile phone, etc.) under Windows and under MacOS X based on Intel you will only get limited SST Function or Single display Only.

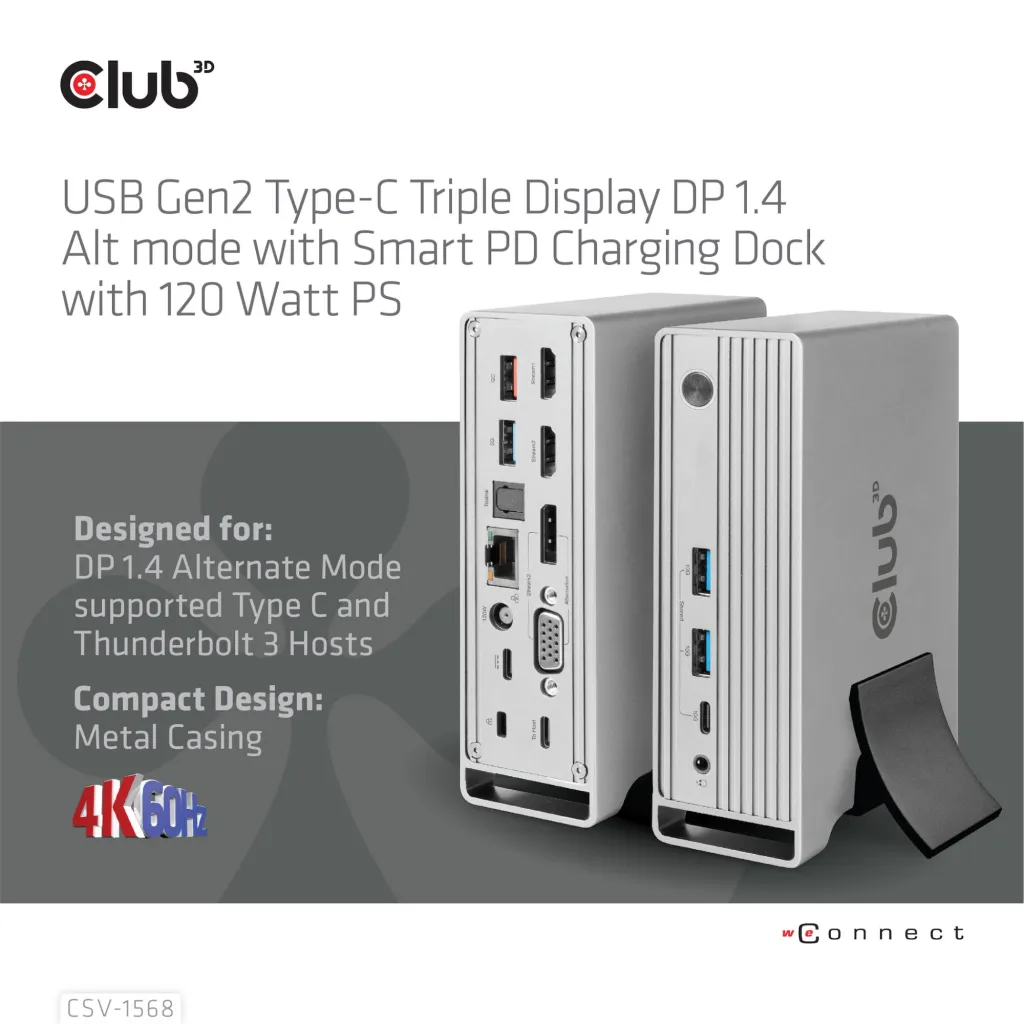

- Designed for DP 1.4 Alternate Mode supported Type C and Thunderbolt 3 Hosts (PC, Laptop, Mobile Phones etc.)

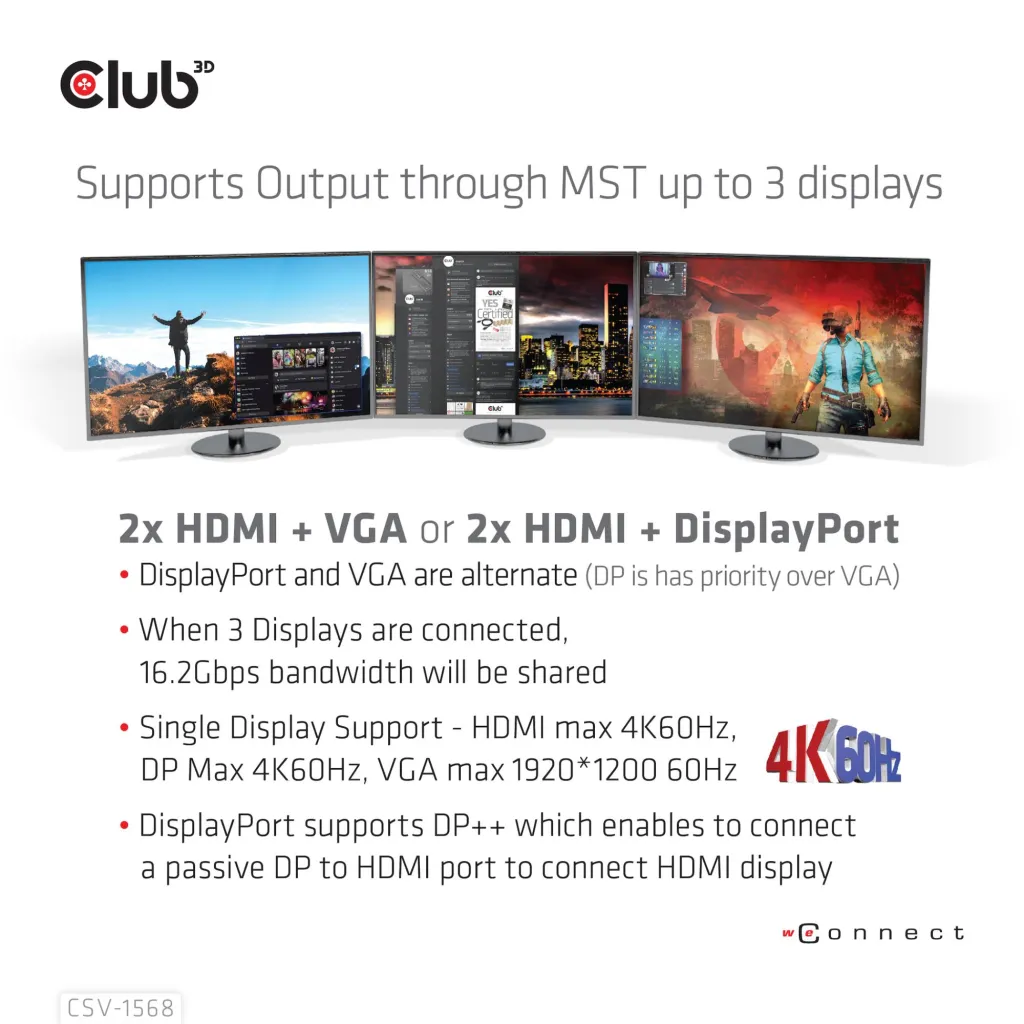

- Supports Output through MST up to 3 displays (2 HDMI + VGA or 2 HDMI + DP). DP and VGA are alternate (DP has priority over VGA)
- When 3 Displays are connected - 16.2Gbps bandwidth will be shared
- Single Display Support - HDMI max 4K60Hz, DP Max 4K60Hz, VGA max 1920*1200 60Hz
- DP and HDMI support RGB 4:4:4/ YCbCr 4:4:4/ YCbCr 4:2:2
- DP and HDMI support deep color 8/10 bit
- DP and HDMI support HDR
- DP and HDMI support HDCP2.2 & 1.4
- DisplayPort supports DP++ which enables to connect a passive DP to HDMI port to connect HDMI display
- Support Gigabit Ethernet 10/100/1000M
- Support USB3.2 Gen2 with max 10Gbps data transfer
- Support smart charging
- Support Digital audio with max 96KHz/24bit sampling rate

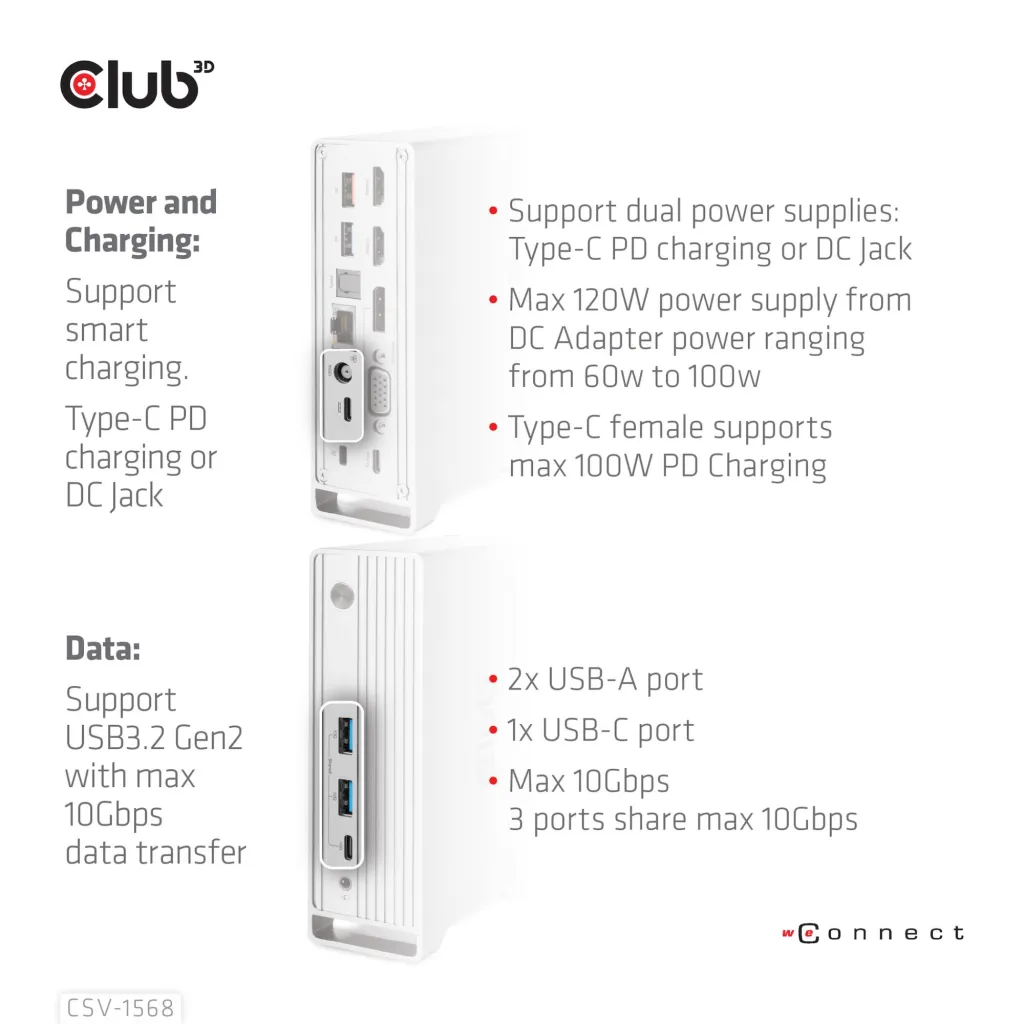

- Support dual power supplies: Type-C PD charging or DC Jack
- Type-C female supports max 100W PD Charging with fast role swap of PD3.0, support smart power which allows to distribute power according to actual consumption of the connected devices
- Max 120W power supply from DC Adapter, support smart power according to actual consumption of the connected devices, the host can get power ranging from 60W to 100W
.: Disain :.
- Toote värv
- Silver
Ühilduvus tootega
- Sisendi tüüp
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C
.: Kaal ja mõõtmed :.
- Kõrgus
- 44 mm
- Sügavus
- 90 mm
- Laius
- 139 mm
- Toote kaal
- 563 g
Võimsus ja energiatarve
- Energiatarbimine (max)
- 120 W
Muud n?itajad
- Key lock
- Jah
- Stand included
- Jah
- Quantity per pack
- 1 pc(s)
- VGA
- 1
- USB Power Delivery revision
- 3.0
- USB 3.2
- 2
- USB Power Delivery up to
- 100 W
- Unit Box Height
- 0.095
- Unit Box Length
- 0.225
- Unit Box Width
- 0.16
- Unit Calculated Volume
- 0.00342 cubm
- Product Net Weight
- 0.563 kg
- Unit Calculated Weight
- 1.39 kg
- Summary

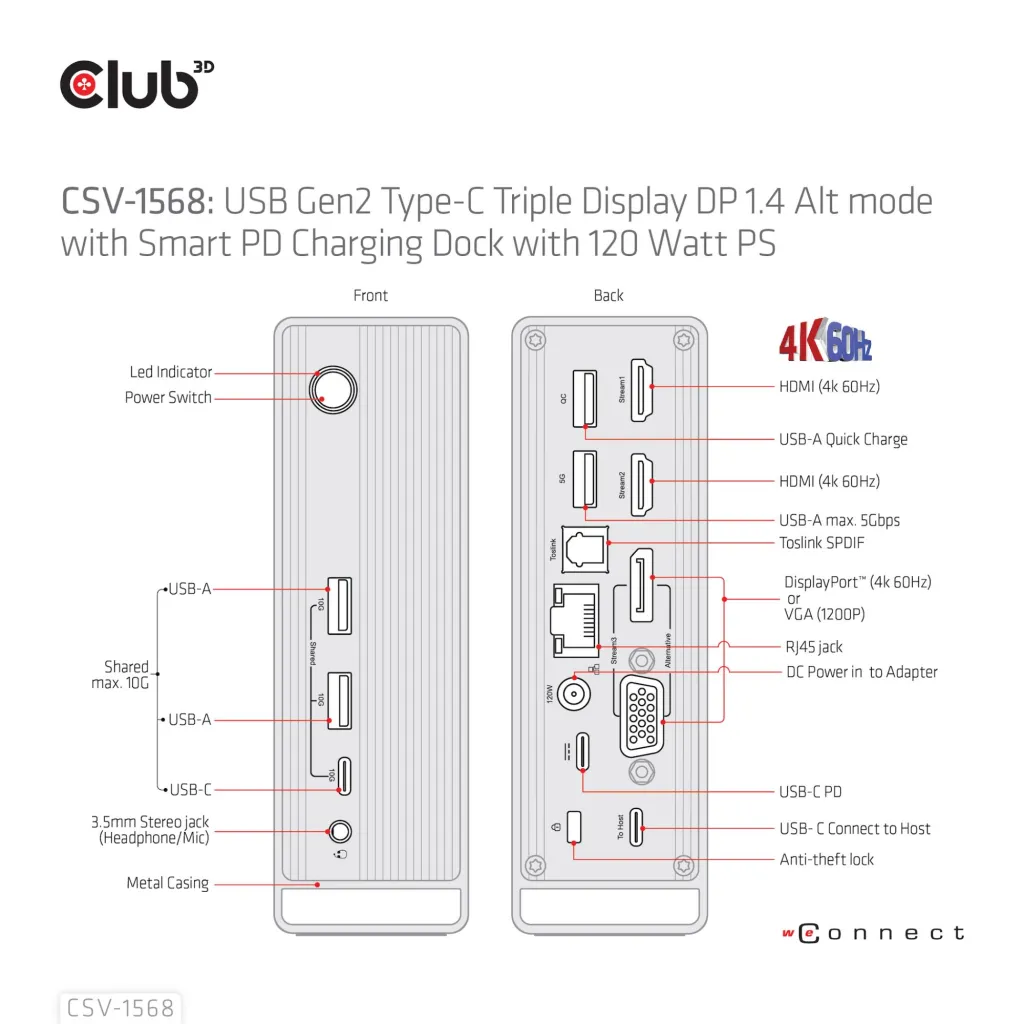

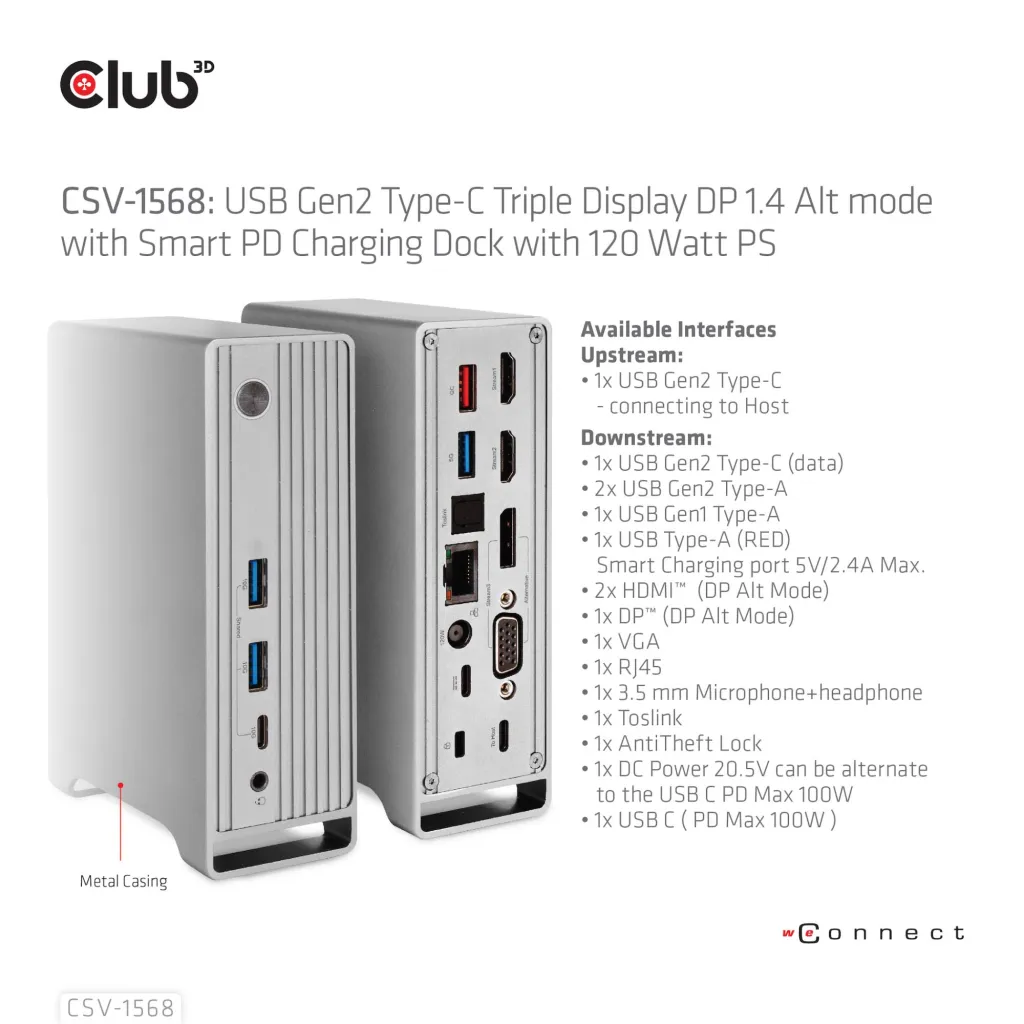

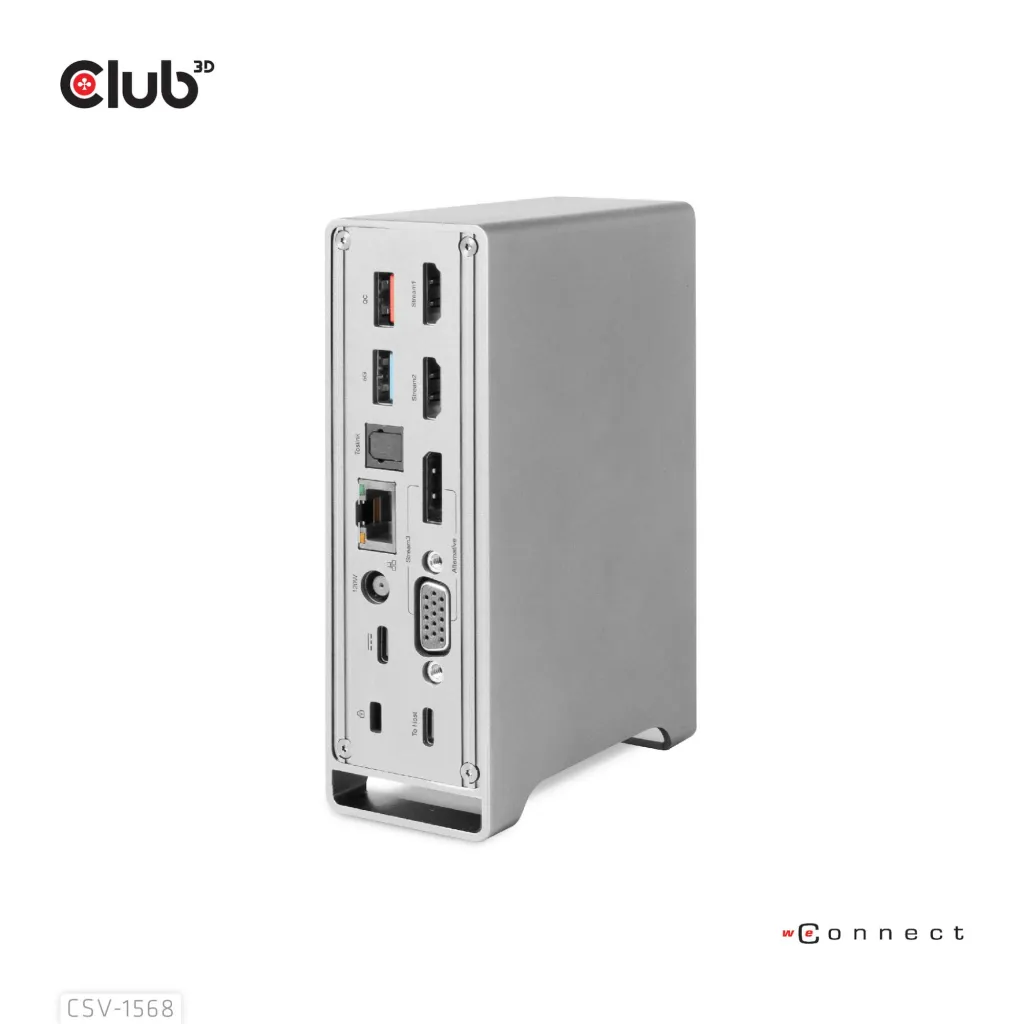

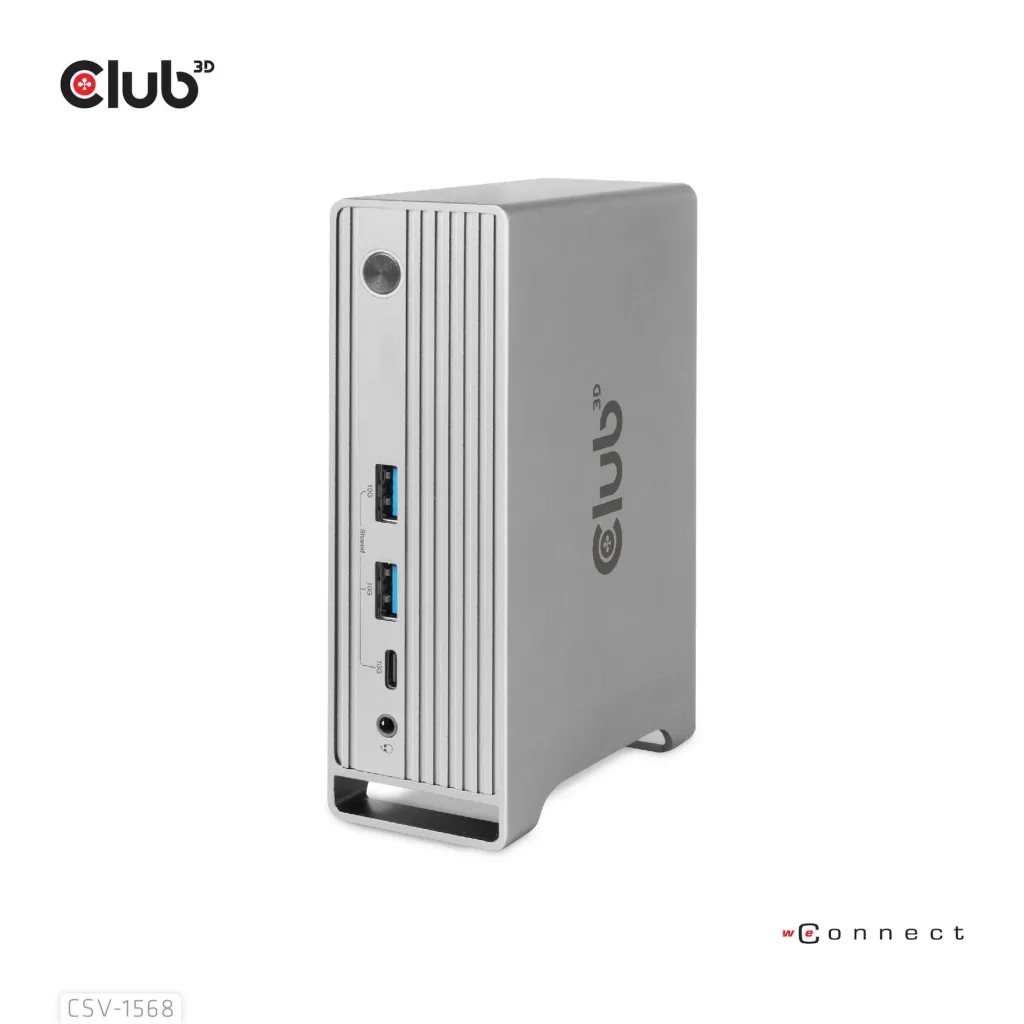

- CLUB3D Docking station(Metal casing)1x USB Gen2 Type-C Female (data) 2x USB Gen2 Type-A Female 1x USB Gen1 Type-A Female 1x USB Type-A (RED) Smart Charging port 5V/2.4A Max. • 2x HDMI™ (DP Alt Mode) 1x DP™ (DP Alt Mode) hdr 1x VGA 1x RJ45 1 + 120 Watt. Connectivity technology: Docking, Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C, USB Power Delivery up to: 100 W. Product colour: Metallic, Data transfer rate: 16.2 Gbit/s, Maximum refresh rate: 60 Hz. Power source type: DC, Power connector: USB Type-C, AC input voltage: 100 - 240 V. Width: 139 mm, Depth: 90 mm, Height: 44 mm. Quantity per pack: 1 pc(s), Package width: 225 mm, Package depth: 155 mm
- Harmonized System (HS) code
- 8473 3020
- HDCP version
- 1.4/2.2
- Thunderbolt 3 Power Delivery
- Jah
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 2
- High Dynamic Range (HDR) supported
- Jah
- USB Power Delivery (USB PD)
- Jah
- USB Type-C DisplayPort Alternate Mode
- Jah
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 1
- Paper/cardboard packaging weight
- 168 g
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 1
- DisplayPort versioon
- 1.4
- Kogus transpordikasti kohta
- 1
- Vahelduvvoolu pinge
- 100 - 240 V
- Plastic packaging weight
- 5 g
- Ethernet LAN
- Jah
- Integreeritud kaardilugeja
- Jah
- HDCP
- Jah
- AC-adapter kaasa arvatud
- Jah
- Tootja koduleht
- https://www.club-3d.com/en/detail/2580/usb_gen2_type_c_triple_display_dp_1.4_alt_mode_smart_pd_charging_dock_with_120_watt_psu/
- Toiteallikas
- 120 W
- Mõõtmed (l x s x k)
- 13.9 x 9 x 4.4 cm
- Tarvikud kaasa arvatud

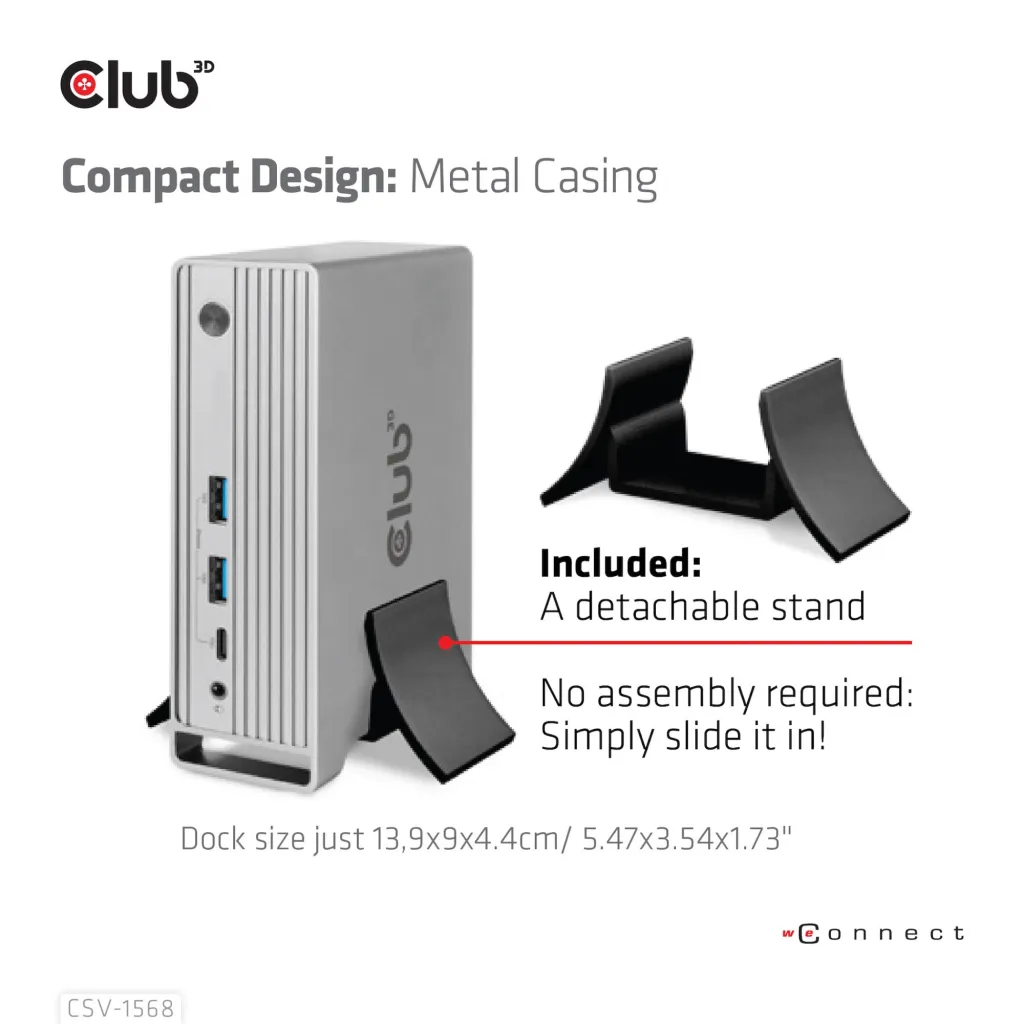

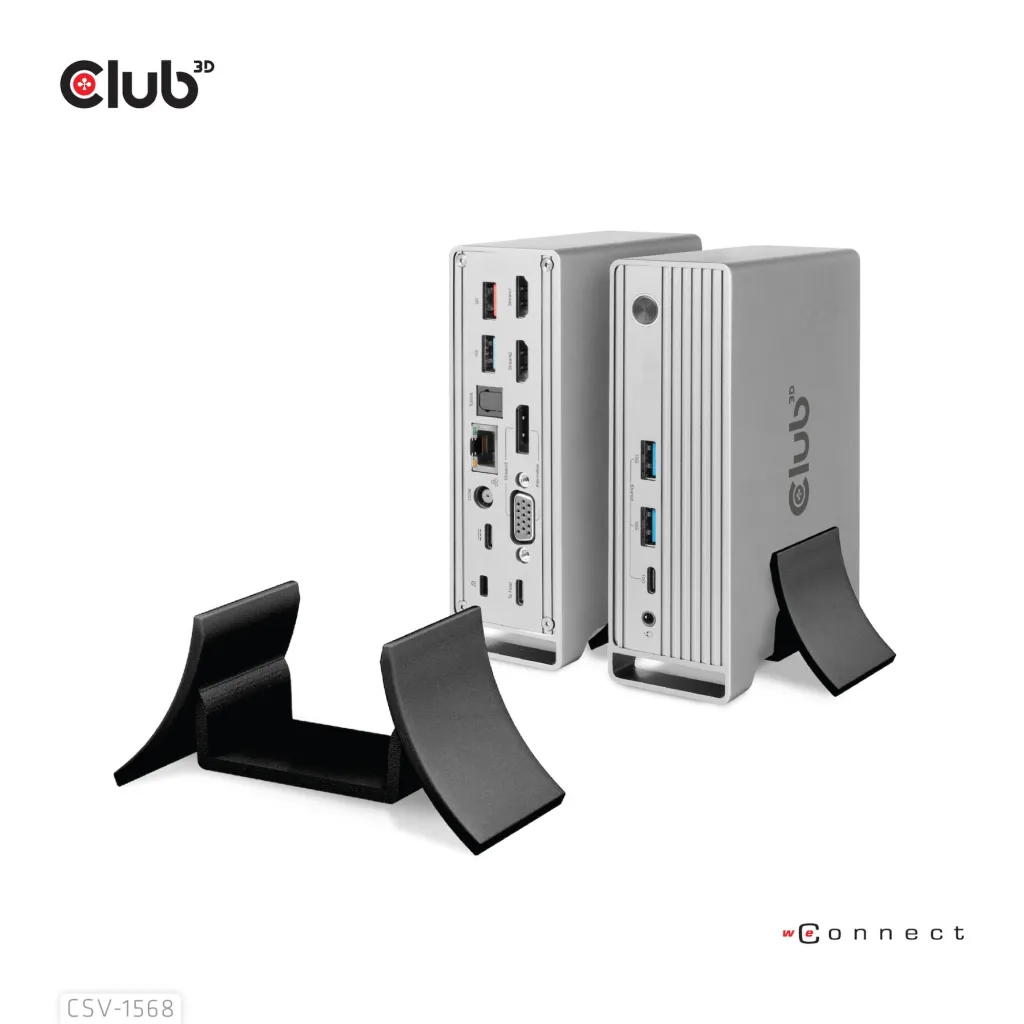

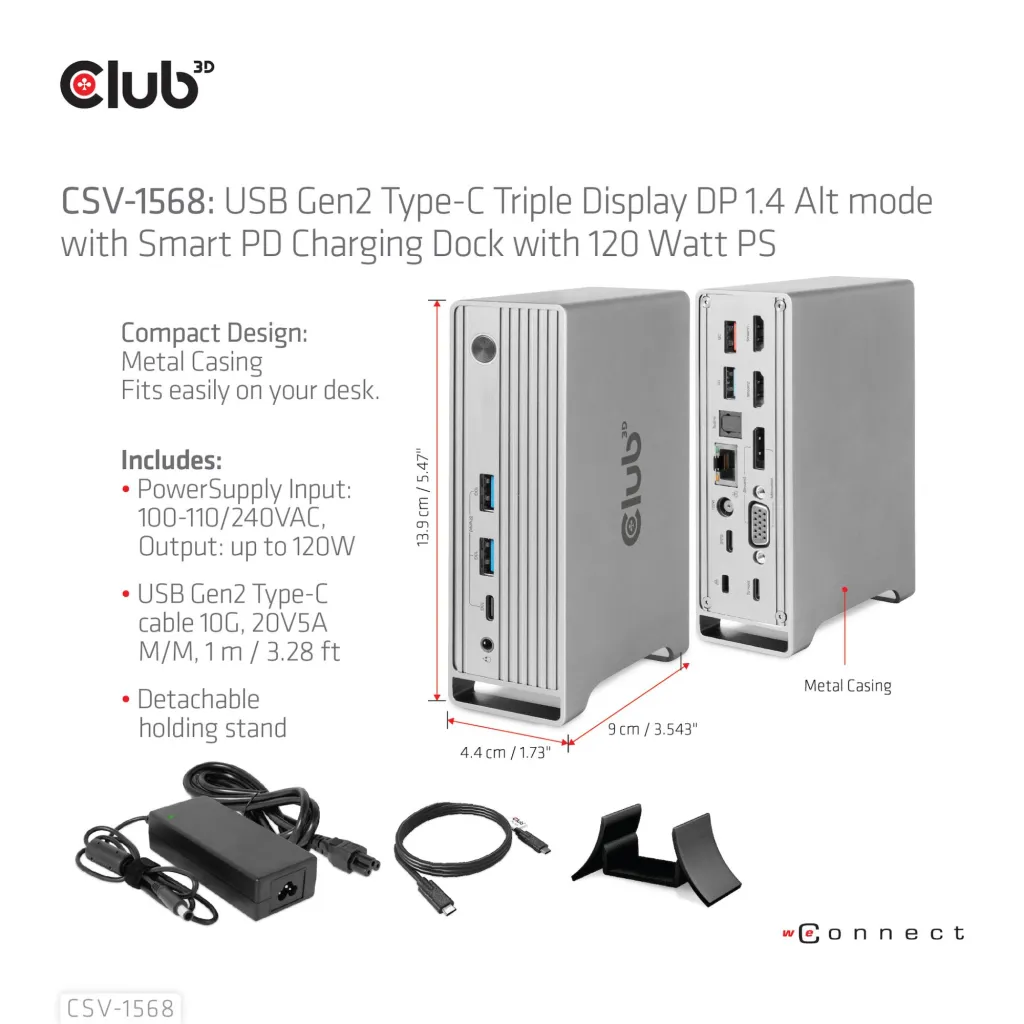

- • CSV-1568 Docking Station • PowerSupply Input:100-110/240VAC, Output: up to 120W • USB Gen2 Type-C cable 20G, 20V5A M/M, 1 m / 3.28 ft • Detachable stand • Quick Install Guide
- Combo headphone/mic port
- Jah
- HDMI-portide arv
- 2
- HDMI-portide arv
- 2
- Country of origin
- China
- DC-pistik
- Jah
- DisplayPorts quantity
- 1
- Ethernet LAN (RJ-45) ports
- 1
- Brändiühilduvus
- Apple
- Headphone connectivity
- 3.5 mm
- Mac operating systems supported
- Jah
- Maksimaalne värskendussagedus
- 60 Hz
- Ühilduvus
- Lenovo Dell Acer Asus MSI Toshiba Apple HP Razer
- Plug and Play
- Jah
- Toiteallika tüüp
- DC
- Kiirpaigaldusjuhend
- Jah
- VGA (D-Sub) ports quantity
- 1
- Windows operating systems supported
- Jah
- Certification
- Meets ROHS, FCC, and CE EMI requirements
- Connectivity Technology
- Docking
- Andmeedastuskiirus
- 16.2 Gbit/s
- DisplayPort
- 1
- Headphones jack
- 1
- Mudel
- CSV-1568
- Package depth
- 155 mm
- Package height
- 97 mm
- Package weight
- 1359 g
- Package width
- 225 mm
- Power cable length
- 1 m
- Power Connector
- USB Type-C
- Ethernet LAN (RJ-45) pordid
- 1
- Special features
- In the box: CSV-1568 Docking Station PowerSupply Input:100-110/240VAC, Output: up to 120W USB Gen2 Type-C cable 10G, 20V5A M/M, 1 m / 3.28 ft Detachable stand Quick Install Guide
- USB 2.0
- 2
- USB-C
- 2
- Voltage
- 20.5 V
