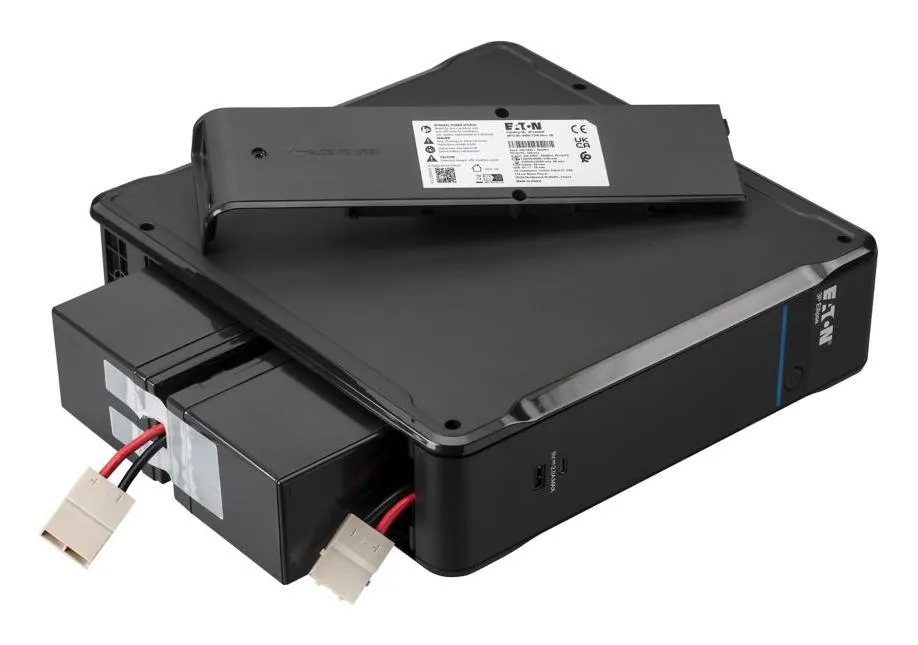

UPS|EATON|840 Watts|1300 VA|Offline|Phase 1phase|3P1300UD

.: Üldised andmed :.

Tootja koduleht

https://www.eaton.com/il/en-gb/skuPage.3P1300UD.html

.: Üldised omadused :.

Müratase

25 dB

.: Disain :.

Toote värv

Black

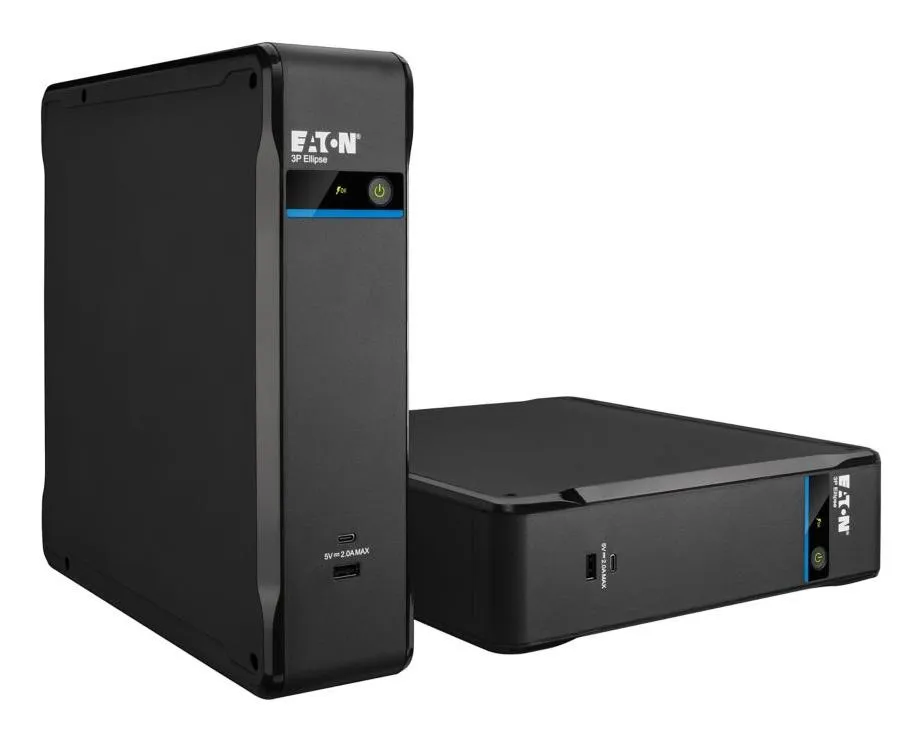

Kujutegur

Tower

Toote värv

Black

.: Pesad & liidesed :.

USB 2.0 portide arv

2

USB port

Jah

.: Aku & Toiteallikas :.

Aku mahutavus

7 Ah

Võimsus ja energiatarve

Output frequency

50/60 Hz

Väljundvõimsus

840 W

.: Tehnilised andmed :.

Compliance certificates

CB/CE/RoHS/WEEE

Logistika andmed

Kogus transpordikasti kohta

1

Töötingimused

Kasutamistemperatuur (T-T)

0 - 40 °C

.: Pakendi sisu :.

Kiirpaigaldusjuhend

Jah

Tarvikud kaasa arvatud

Input cable USB cable Quick start Safety instructions

.: Pakendi andmed :.

Pakendi tüüp

Box

Kaablid kaasa arvatud

USB cable

Tehnilised andmed

Unit Calculated Weight

8.05 kg

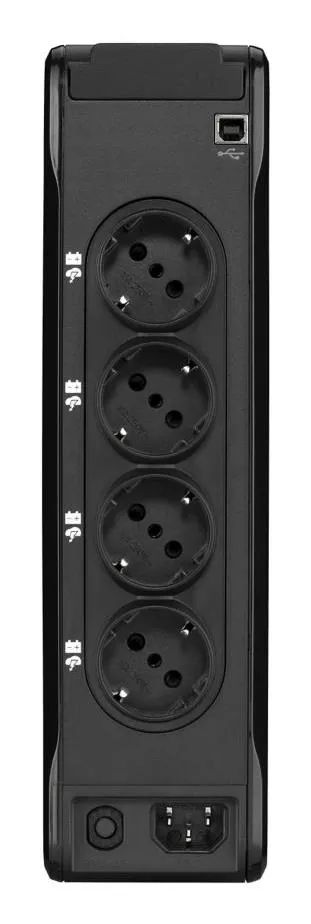

AC outlet types

C13 coupler

AC outlets quantity

8 AC outlet(s)

Waveform

Stepwise

Input connection type

C14

Unit Box Height

0.38

Unit Box Length

0.36

Unit Box Width

0.14

Unit Calculated Volume

0.01915 cubm

Product Net Weight

7 kg

Summary

Eaton 3P Ellipse UPS. UPS topology: Standby (Offline), Output power capacity: 1.3 kVA, Output power: 840 W. AC outlet types: C13 coupler, AC outlets quantity: 8 AC outlet(s). Battery capacity: 7 Ah, Battery voltage: 12 V. Form factor: Tower, Product colour: Black, Control type: Buttons. Compliance certificates: CB, CE, RoHS, WEEE, Certification: IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 CE UKCA Ukr Cm

Waste Electrical and Electronic Equipment (WEEE) compliance

Jah

Auto shut-off

Jah

Number of input phases

1

Number of output phases

1

Efficiency (ECO mode)

97 %

Output power factor

0.6

Input operation voltage (min)

161 V

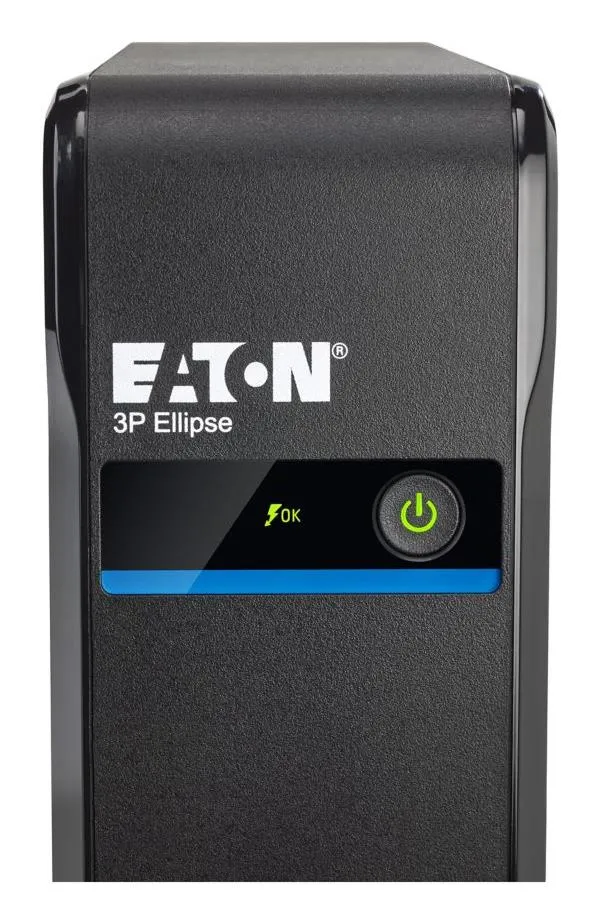

Control type

Buttons

Ethernet LAN (RJ-45) ports

1

UPS topology

Standby (Offline)

Battery charge/Line voltage

Jah

Battery voltage

12 V

Certification

IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 CE UKCA Ukr Cm

Efficiency

97 %

Input frequency

46/70 Hz

Input operation voltage (max)

284 V

Load

Jah

Nominal input voltage

220-240 V

Output operation voltage (max)

284 V

Output operation voltage (min)

161 V

Output power capacity

1.3 kVA

Output power capacity, VA

1300 VA

Output power capacity, W

840 Watts

Output power connector type

Schuko CEE 7

Phase

1phase

Power consumption (average operating)

26 W

Relative humidity

0 - 95 %

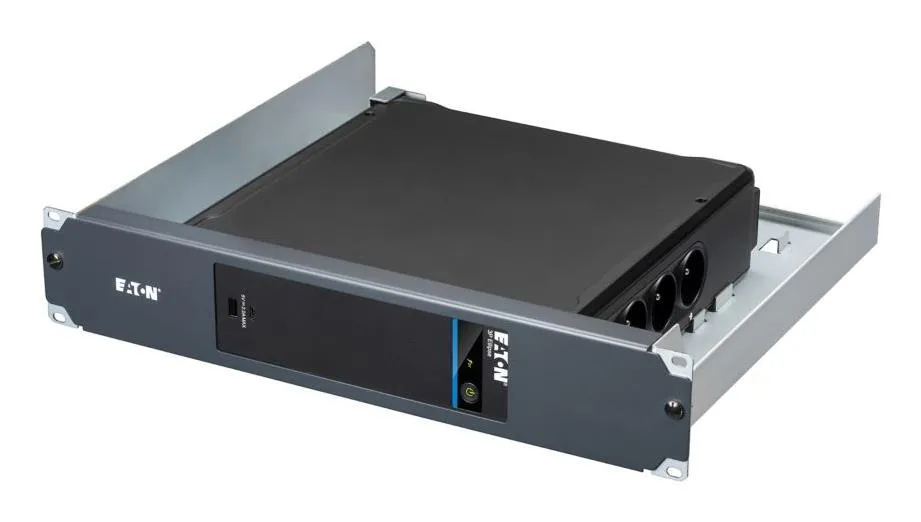

Stand-alone rack

Jah

Surge protection

Jah

Topology

Offline

Typical runtime at full load

1.25 min

Typical runtime at half load

8.5 min

Tehnilised andmed

Laius

81 mm

Sügavus

312 mm

Kõrgus

305 mm

Mõõtmed (l x s x k)

312 x 305 x 81 mm

Toote kaal

7000 g
