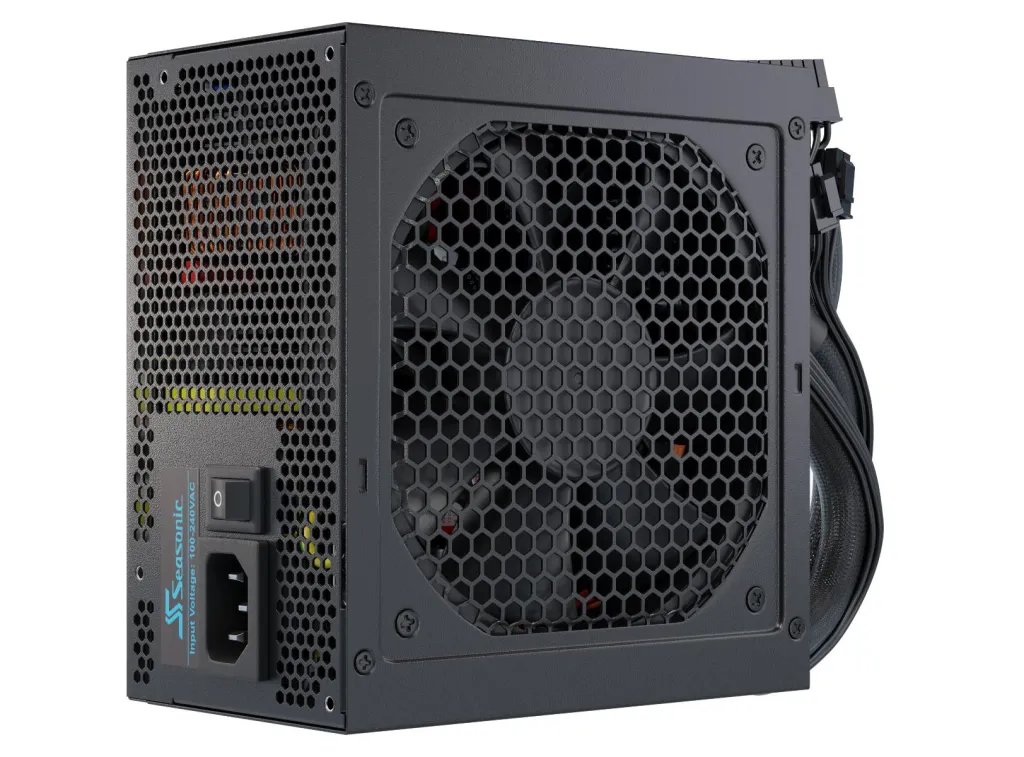

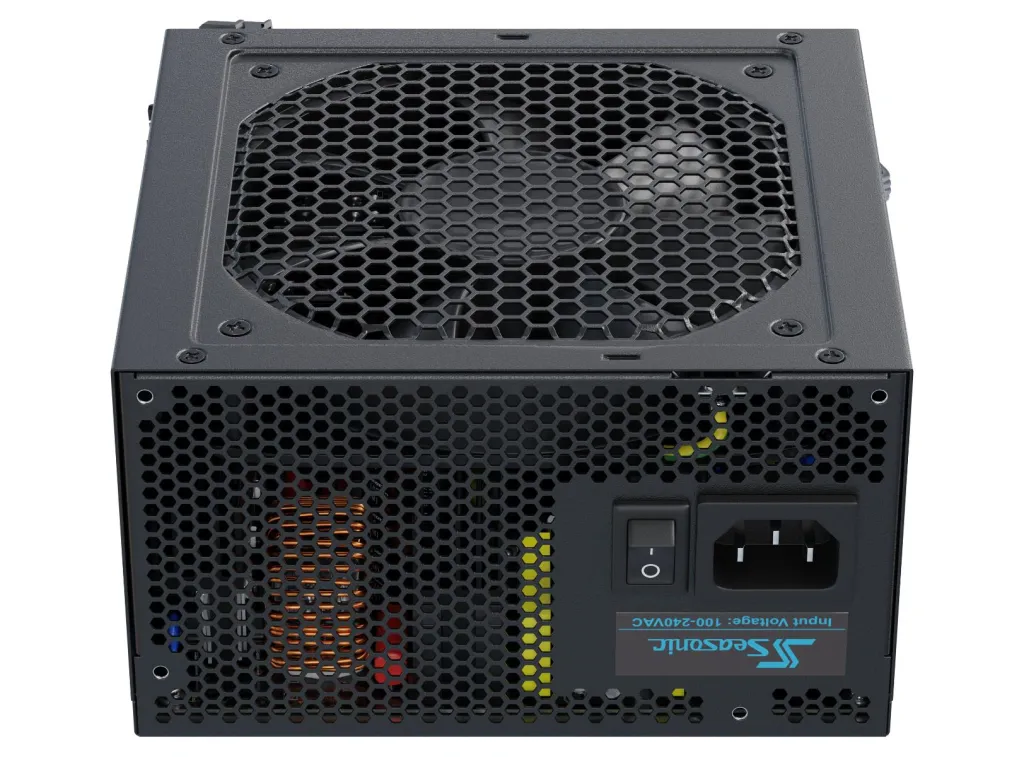

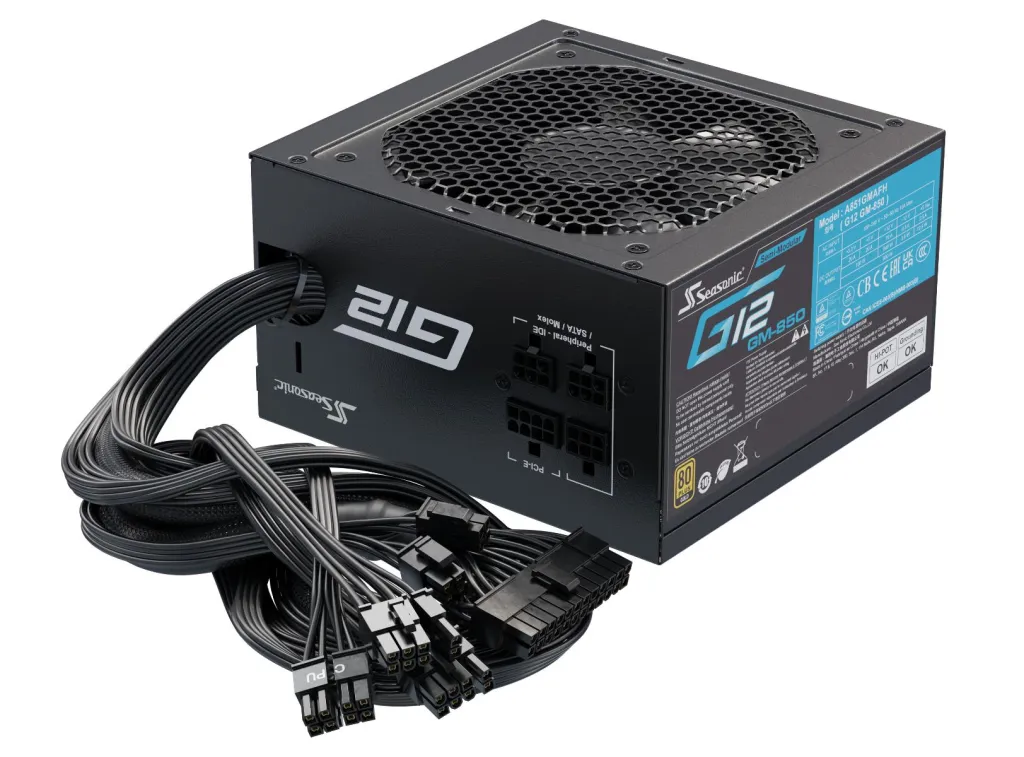

The G12 GM Series is available in the standard ATX Form Factor and in wattages that are most common for a PC system. The Seasonic G12 GM-Series achieves 80 PLUS® Gold standard of providing at least 87 %, 90 % and 87 % power usage efficiency at 20 %, 50 % and 100 % operating loads, respectively. This efficiency, combined with Active Power Factor Correction, enables the G12 GM series power supplies to lessen energy waste, which translates into savings on the costs of energy costs for its users. In addition to being greatly efficient, the G12 GM units utilize the LLC resonant converter design, and the industry’s leading Smart and Silent Fan Control (S2FC).
80 PLUS GOLD
The G12 GC achieves 80 PLUS Gold certification with its 90 % efficiency at 50 % system load.
S2FC - SMART AND SILENT FAN CONTROL
The intelligent thermal circuit feature is designed to find the optimal balance between the necessity to cool the components and the need to run the power supply in the most silent manner possible.
| Tootja | Seasonic |
| Tootekood | G12 GM-850 |
| EAN | 4711173878513 |
| Google link | lisainfo |
| Garantiiaeg | 36 kuud |
| .: Üldised andmed :. | |
| Tootja koduleht | https://seasonic.com/g12-gm#gallery |
| .: Toimimine :. | |
| Power supply unit (PSU) form factor | ATX |
| .: Pesad & liidesed :. | |
| CPU power cable length | 600 mm |
| Võimsus ja energiatarve | |
| Sisendvool | 10 A |
| Jahutus | |
| Ventilaatorite arv | 1 fan(s) |
| Ergonoomika | |
| On/off nupp | Jah |
| Funktsioonid | |
| Vahelduvvoolu pinge | 100 - 240 V |
| Mudeli originaalnimi | G12 GM |
| Töötingimused | |
| Kasutamistemperatuur (T-T) | 0 - 50 °C |
| .: Kaal ja mõõtmed :. | |
| Laius | 150 mm |
| Sügavus | 140 mm |
| Kõrgus | 86 mm |
| .: Pakendi andmed :. | |
| Pakendi tüüp | Box |
| Kaablid kaasa arvatud | AC,PCIe,Peripheral (Molex),SATA |
| Muud andmed | |
| Bearing technology | Sleeve |
| Cable tie(s) included | Jah |
| PCI Express power cable length | 700 mm |
| Peripheral (Molex) power cable length | 690 mm |
| Motherboard power cable length | 550 mm |
| Product colour | Black |
| Summary | Seasonic Focus G12 GM. Total power: 850 W, AC input voltage: 100 - 240 V, Input current: 10 A. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 55 cm, Peripheral (Molex) power cable length: 690 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: AC, PCIe, Peripheral (Molex), SATA |
| Unit Calculated Weight | 2.8 kg |
| Unit Calculated Volume | 0.00775 cubm |
| Units per Shipping Box | 5 |
| Unit Box Width | 0.195 |
| Unit Box Height | 0.12 |
| Unit Box Length | 0.275 |
| Cooling type | Active |
| CPU power connector (4+4 pin) | Jah |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 6 |
| PCI Express power connectors (6+2 pin) | 2 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| Power protection features | Over current/Over voltage/Short circuit |
| Purpose | PC |
| 80 PLUS Certification | 80 PLUS Gold |
| Cabling Type | Semi-Modular |
| Certification | cTUVus, TUV, CB, CCC, BSMI, CE, FCC, RoHS, WEEE, ErP Lot 6, REACH |
| Combined power (+12V) | 840 W |
| Combined power (+3.3V) | 100 W |
| Combined power (+5V) | 100 W |
| Combined power (+5Vsb) | 12.5 W |
| Combined power (-12V) | 3.6 W |
| Fan Diameter | 120 mm |
| Max output current (+12V) | 70 A |
| Max output current (+3.3V) | 20 A |
| Max output current (+5V) | 20 A |
| Max output current (+5Vsb) | 2.5 A |
| Max output current (-12V) | 0.3 A |
| Mean time between failures (MTBF) | 100000 h |
| Total power | 850 W |
