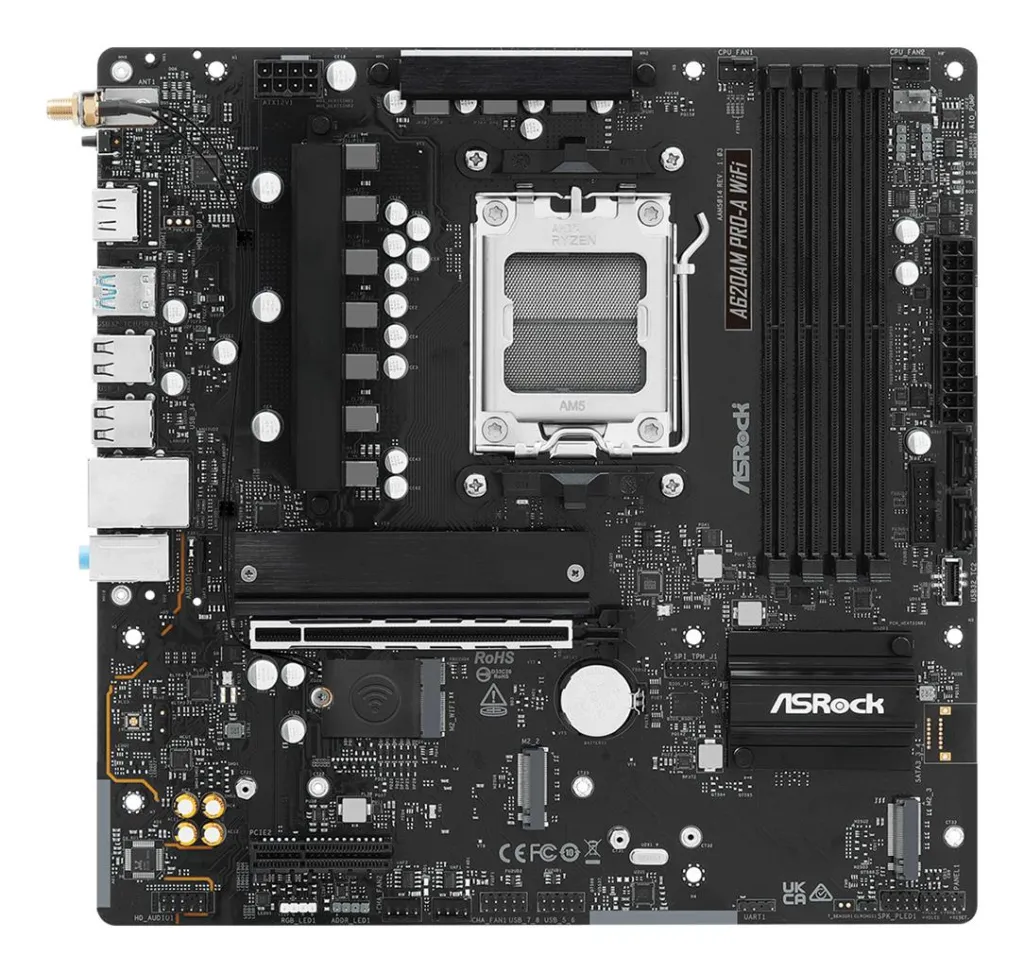

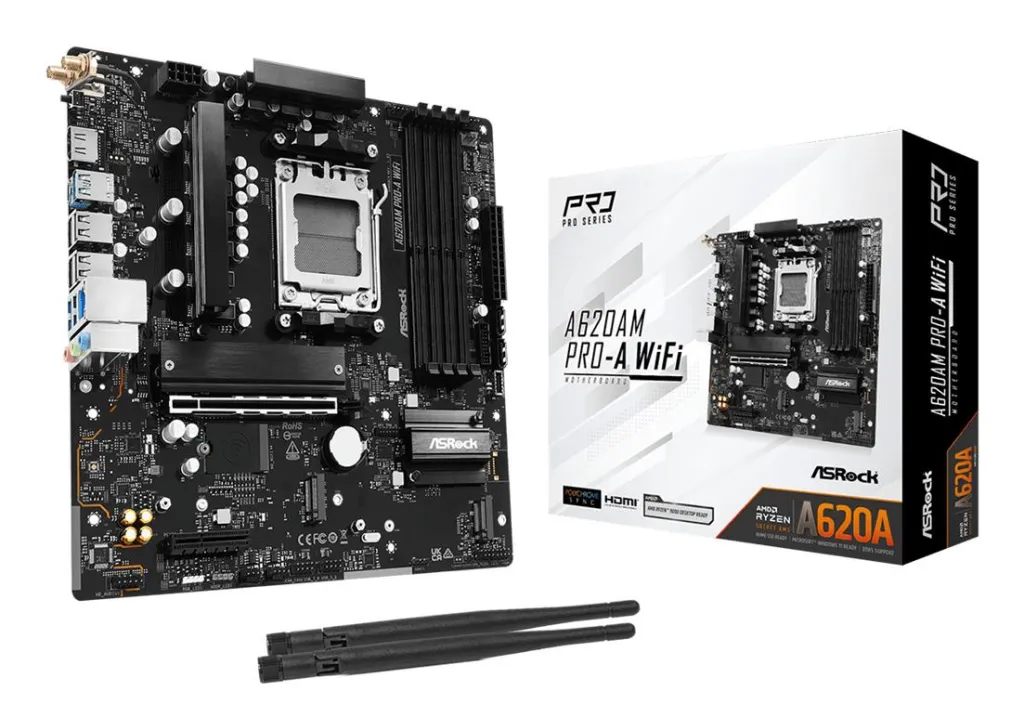

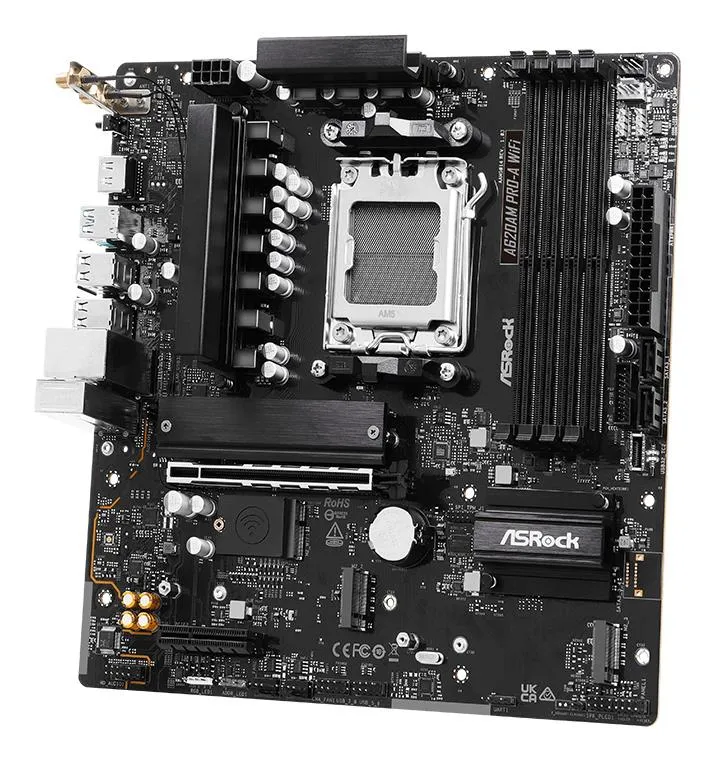

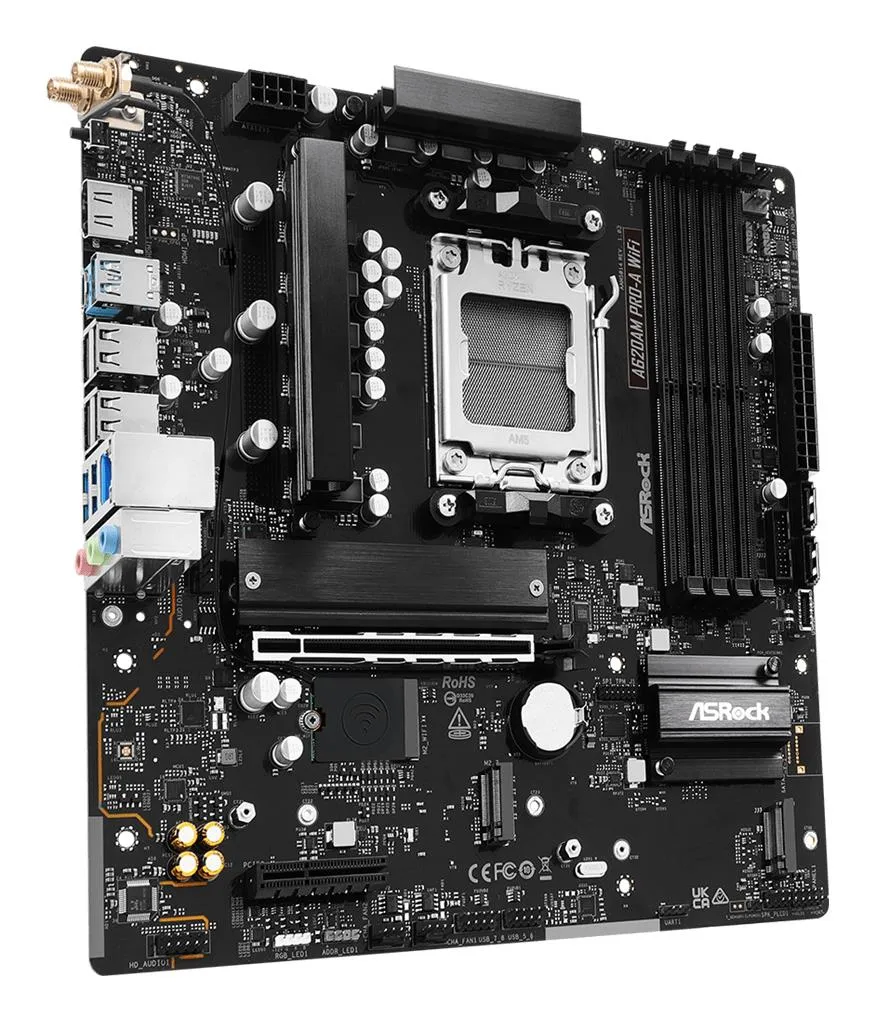

A620AM Pro-A WiFi
Pro-A series is designed for enhanced stability, durability, and efficiency, it offers reliable performance, user-friendly features and a streamlined aesthetic, making it ideal for daily computing needs.
Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.
Dr. MOS
Dr.MOS is an integrated power stage optimized for synchronous buck-set down voltage applications, delivering higher current and better thermal efficiency than traditional MOSFETs, ensuring enhanced stability.
Hi-Density Power Connector
CPU overclocking requires higher current. ASRock Hi-Density Power Connectors are designed to withstand higher currents compared to traditional CPU and ATX power connectors, providing a more stable system and reducing the risk of fire during heavy overclocking.
6 Layer PCB
The 6 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus, it's able to support the latest memory modules with most extreme memory performance!
DDR5 XMP & EXPO Support
Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. This motherboard is built with high quality materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel XMP/AMD EXPO capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.
Hyper M.2 Gen4 x4
Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.
Aluminum Heatsink
The first thing that catches the eye is the optimized Aluminum Heatsink Design. Heatsinks are crucial for efficient heat dissipation, especially during heavy workloads like gaming or productivity tasks. Motherboard that built with heatsinks can effectively manage thermal performance, hence ensure system stability and durability effortlessly.
Wi-Fi 6E 802.11axe
WiFi 6E technology has extended to the whole new 6GHz spectrum band, providing more WiFi capability and giving an even better and faster internet traffic. In addition to deliver higher speeds, the WiFi 6E also enhances the lower latency and supports service levels that are equivalent to 5G networks.
Dragon 2.5 Gb/s LAN
The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.
Front USB 3.2 Gen1 Type-C
Front USB 3.2 Gen1 Type-C header delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.
POLYCHROME RGB
This motherboard features onboard RGB headers and addressable RGB headers that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
SignalRGB
SignalRGB unifies your RGB devices, offering seamless customization, game-reactive effects, macro automation, and system monitoring. The official partnership empowers ASRock motherboards with advanced lighting control, enhances compatibility with a diverse range of RGB devices, and provides greater customization flexibility.
Auto Driver Installer
No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
step1 : Install Auto Driver Installer
step2 : Update drivers needed
step3 : Done!
BIOS Flashback
Get the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and a power supply. No CPU, RAM or other components are required.
Post Status Checker
Displays the real-time status of CPU, DRAM, VGA, and BOOT device with colored LEDs during startup. A simple and efficient way to check system operation at a glance.
| Tootja | ASROCK |
| Tootekood | A620AM PRO-A WIFI |
| EAN | 4711581490970 |
| Google link | lisainfo |
| Garantiiaeg | 36 kuud |
| .: Disain :. | |
| Emaplaadi kujutegur | micro ATX |
| Laius | 244 mm |
| Sügavus | 244 mm |
| .: Mälu :. | |
| Maksimaalne sisemälu | 256 GB |
| .: Audio :. | |
| Audioväljundi kanalid | 7.1 channels |
| .: Võrgustumine :. | |
| Ethernet LAN | Jah |
| WiFi | Jah |
| WiFi-standardid | 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax) |
| Bluetooth | Jah |
| Bluetoothi versioon | 5.2 |
| Sisemine I/O moodul | |
| TPM-ühenduspesa | Jah |

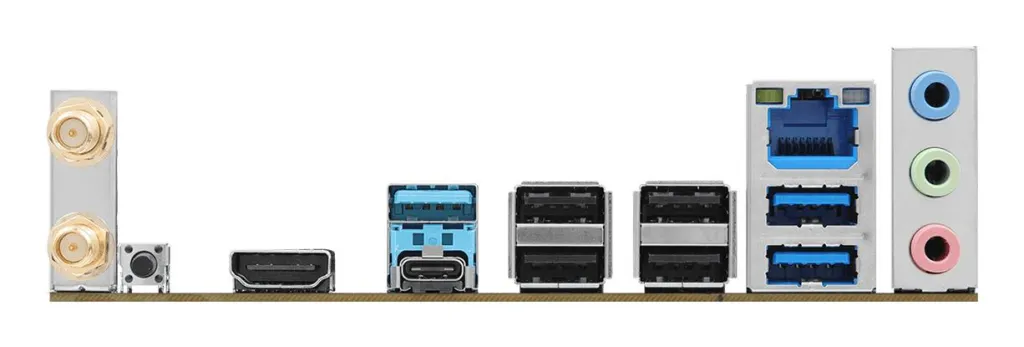

| Tagapaneeli I/O pesad | |
| HDMI-portide arv | 1 |
| USB 2.0 portide arv | 4 |
| Lisad | |
| Kaablid kaasa arvatud | SATA |
| Muud näitajad | |
| Antenna included | Jah |
| Unit Calculated Volume | 0.005632 cubm |
| Units per Shipping Box | 10 |
| ECC сompatibility | ECC & Non-ECC |
| Compliance certificates | CE/Federal Communications Commission (FCC) |
| CnCode | 84733020 |
| Unit Box Width | 0.26 |
| Unit Box Length | 0.295 |
| Unit Box Height | 0.06 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| RGB LED pin header | Jah |
| Unit Calculated Weight | 1.251 kg |
| Processor manufacturer | AMD |
| Screws included | Jah |
| Supported storage drive interfaces | M.2,NVMe,SATA III |
| Supported storage drive types | HDD & SSD |
| Line-in | Jah |
| Number of M.2 (M) slots | 3 |
| Parallel processing technology support | Not supported |
| Number of SATA III connectors | 2 |
| CPU fan connector | Jah |
| Memory channels | Dual-channel |
| PCI Express x4 (Gen 3.x) slots | 1 |
| M.2 standoff included | Jah |
| AMD Extended Profiles for Overclocking (EXPO) | Jah |
| BIOS flashback button | Jah |
| Rear speaker out | Jah |
| Audio connector | Jah |
| 12V power connector | Jah |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of HDDs supported | 2 |
| Graphics card family | AMD |
| Graphics card | AMD RDNA 2 |
| Front panel audio connector | Jah |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Audio chip | Realtek ALC897 |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| On-board graphics card | Jah |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| High Dynamic Range (HDR) supported | Jah |
| HDCP version | 2.3 |
| Product colour | Black |
| Summary | Asrock A620AM PRO-A WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, NVMe, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Graphics card family: AMD, Graphics card: AMD RDNA 2, Maximum resolution: 3840 x 2160 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet, LAN controller: Dragon RTL8125BG, Top Wi-Fi standard: Wi-Fi 6E (802.11ax) |
| Supported memory types | DDR5-SDRAM |
| Number of chassis fan connectors | 3 |
| Motherboard chipset family | AMD |
| Memory slots type | DIMM |
| ATX Power connector (24-pin) | Jah |
| BIOS type | UEFI AMI |
| Compatible processor series | AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series |
| Number of CPU fan connectors | 2 |
| Number of water pump connectors | 1 |
| Number of RGB LED pin headers | 1 |
| Component for | PC |
| Intel Extreme Memory Profile (XMP) | Jah |
| Maksimaalne resolutsioon | 3840 x 2160 pixels |
| HDCP | Jah |
| Tootja koduleht | https://www.asrock.com/mb/AMD/A620AM%20Pro-A%20WiFi/index.asp#Overview |
| Cooling type | Passive |
| Ethernet interface type | 2.5 Gigabit Ethernet/Fast Ethernet/Gigabit Ethernet |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI version | 2.1 |
| Microphone in | Jah |
| Motherboard chipset | AMD A620 |
| RAID support | Jah |
| Unbuffered memory | Jah |
| Windows operating systems supported | Windows 10 x64/Windows 11 x64 |
| BIOS memory size | 256 Mbit |
| LAN controller | Dragon RTL8125BG |
| Mudel | A620AM PRO-A WIFI |
| Number of memory slots | 4 |
| Processor Socket | Socket AM5 |
| Raid Levels | 0/1/10 |
| Supported memory clock speeds | 8000 MHz |
| USB 2.0 connectors | 2 |
