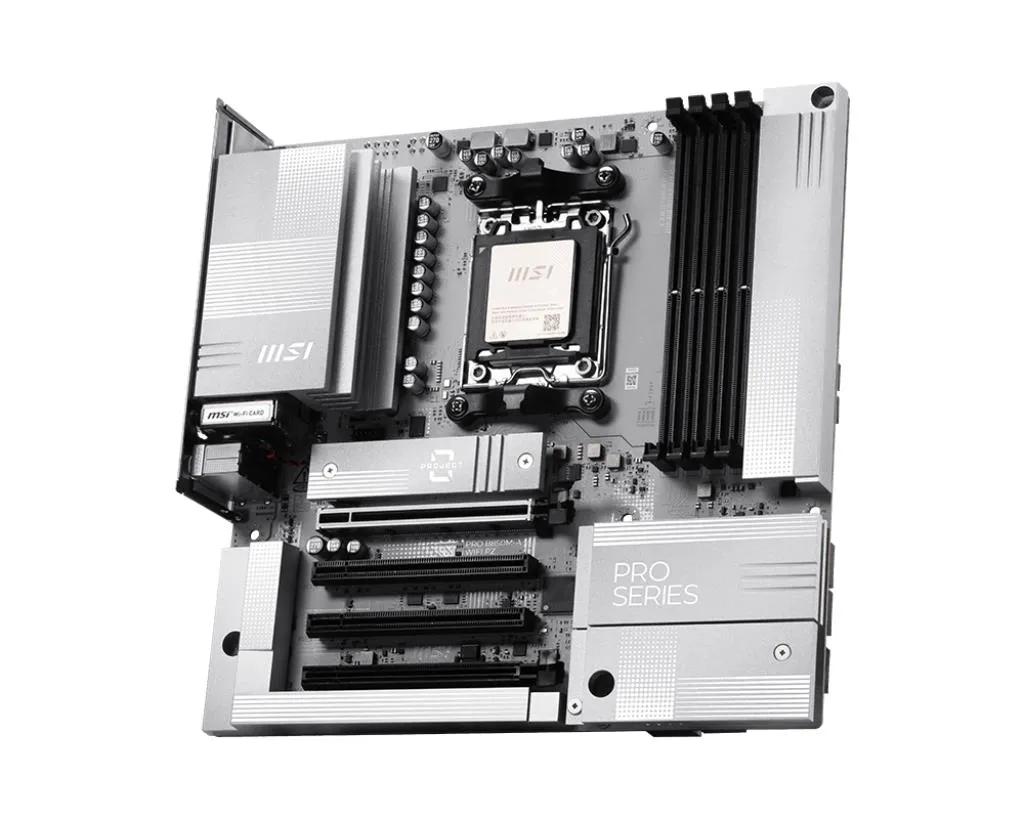

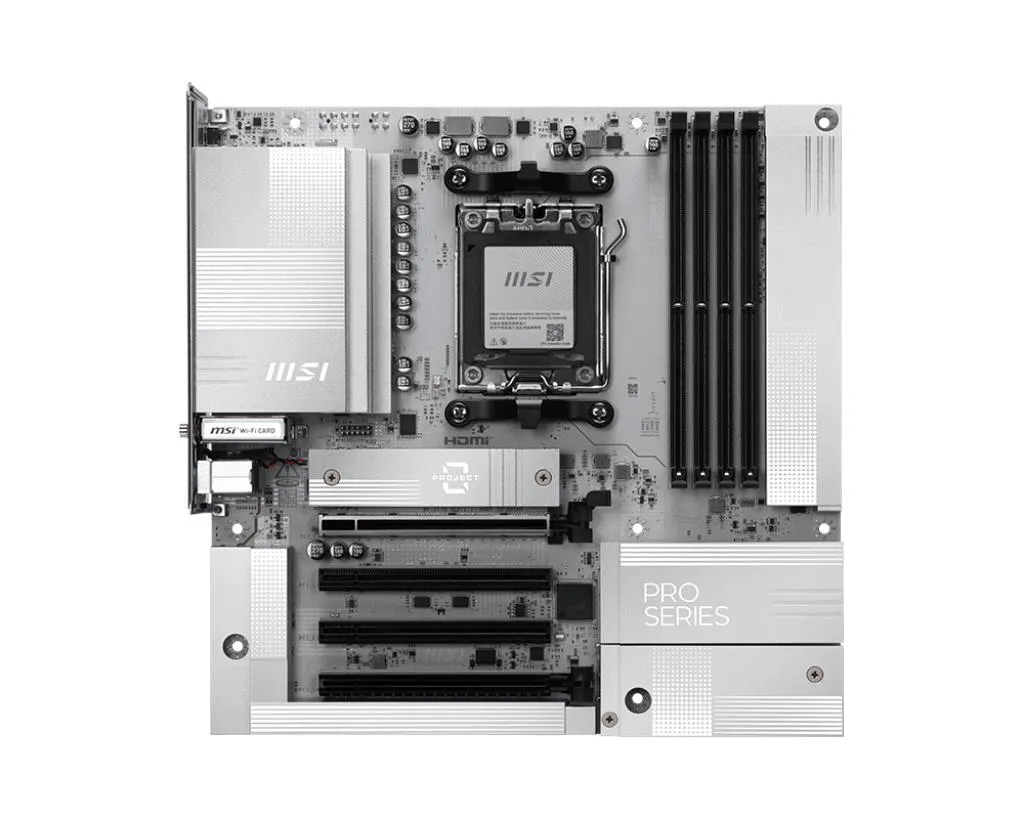

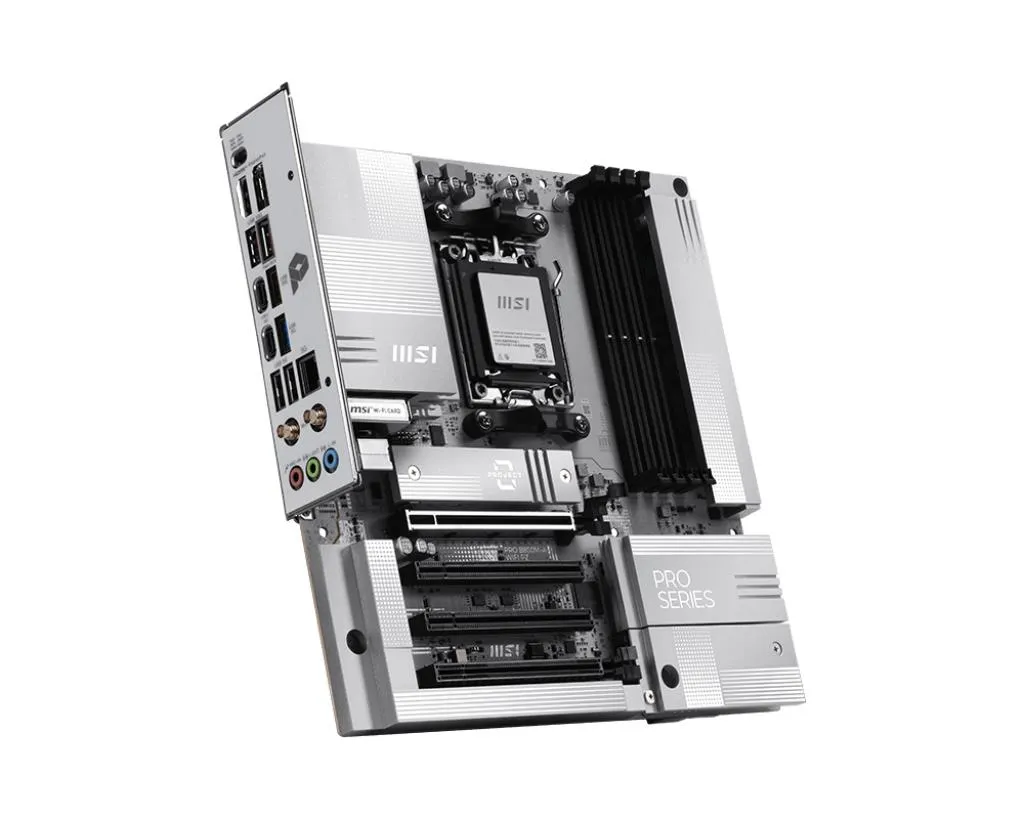

PRO B850M-A WIFI PZ offers a sleek design with a harmonious silver-white color scheme that perfectly matches white PC builds. Its innovative back-connect design reduces the complexity of cable management, resulting in an aesthetically pleasing appearance for the system. It is engineered with many exclusive features of MSI, Wi-Fi 7 with EZ Antenna, 5G LAN, PCIe 5.0 M.2, and Supplemental PCIe Power, ready for the AMD Ryzen™ 9000 series processors.
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.
MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.
Back-Connect Design
The PRO B850M-A WIFI PZ features a back-connect design, which relocates the motherboard power, CPU power, fan pins, SATA, and other interfaces to the back of the motherboard. This allows for simpler cable management, while also providing a cleaner and more aesthetically pleasing appearance for the system.
One Finger for EZ GPU Installation
The new EZ PCIe Clip II, located on the first slot, features the rebounding force mechanism that allows for easy removal of the graphics card by pressing the tail-like lock with one finger. Due to this exquisite design, users can uninstall the graphics cards effortlessly, even in the cramped case spaces.

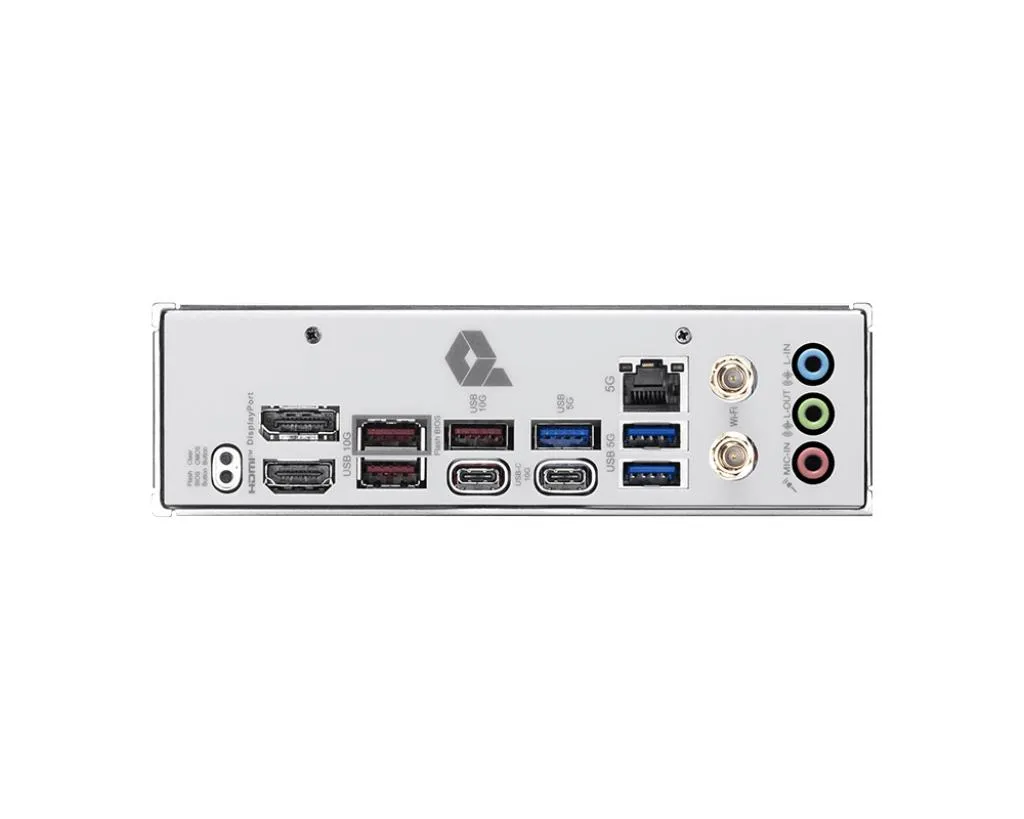

The Pre-Installed I/O Shield offers a streamlined and hassle-free installation experience by eliminating the need to manually fit the I/O shield during motherboard setup. With its built-in design, it ensures proper alignment and a secure fit, providing both protection and convenience while enhancing the overall durability of your build.
MSI EZ Antenna makes the process effortless by simply attaching fasteners to the motherboard without rotation.
Onboard LEDs will indicate the source of the problem so you know exactly where to look to get up and running again.
This LED lights up when it detects faulty memory in slots, eliminating guesswork from troubleshooting.
DIRECT 8+2+1 POWER DESIGN
Unleash and sustain the maximum performance with a VRM design built with a total of 8+2+1 digital power phases. With 8+4-pin power connectors, PRO B850M-A WIFI PZ is ready for the challenge of heavy-loading tasks.
OPTIMIZED PCB SOLUTION
The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.
DDR5 MEMORY SUPPORT WITH HIGH PERFORMANCE
A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, PRO B850M-A WIFI PZ is ready to deliver the world class memory performance.
Transient Voltage Suppressors (TVS)
Transient Voltage Suppressors (TVS) are safety devices used to protect against excessive voltage. All motherboard models of MSI are equipped with TVS. When the voltage abnormally rises, the TVS switches from a high-resistance state to a low-resistance state, diverting the excessive voltage to ground. This helps prevent circuit damage caused by high voltage.
DIY 2.0 – INTEGRATING WITH THE SYSTEM ENVIRONMENT
Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.
Cooling Wizard serves as a comprehensive solution for managing fan settings across all MSI products. It ensures superior cooling performance and noise reduction for your gaming PC, offering compatibility with PWM/DC fans and pumps, customizable options, and intuitive temperature monitoring for optimal operation with one click.
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI's premium network solution provides incredible data transfer speed for demanding users.
THE NEXT GEN WI-FI SOLUTION – WI-FI 7
Wi-Fi 7 is the latest wireless solution that takes a huge leap forward with multiple improvements to meet the traffic demand brought and the growing number of wireless devices.
AI LAN Manager
MSI AI LAN Manager automatically classifies and prioritizes the latency-sensitive applications for online games, giving you the best online gaming experience with low latency.
FAST AND FUTURE-READY STORAGE
MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.
LIGHTNING GEN 5 PCI-E WITH STEEL ARMOR
SMT PCIE 5.0 SLOT
The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.
REINFORCED,
HEAVY SOLDERED CONNECTIONS
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.
| Tootja | MSI |
| Tootekood | PRO B850M-A WIFI PZ |
| EAN | 4711377384308 |
| Google link | lisainfo |
| Garantiiaeg | 36 kuud |
| .: Disain :. | |
| Emaplaadi kujutegur | micro ATX |
| Laius | 243.84 mm |
| Sügavus | 243.84 mm |
| .: Mälu :. | |
| Maksimaalne sisemälu | 256 GB |
| .: Audio :. | |
| Audioväljundi kanalid | 7.1 channels |
| .: Võrgustumine :. | |
| Ethernet LAN | Jah |
| WiFi | Jah |
| WiFi-standardid | 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be) |
| Bluetooth | Jah |
| Bluetoothi versioon | 5.4 |
| Sisemine I/O moodul | |
| TPM-ühenduspesa | Jah |
| Tagapaneeli I/O pesad | |
| HDMI-portide arv | 1 |
| Muud näitajad | |
| Supported storage drive interfaces | M.2 |
| Unit Box Width | 0.285 |
| Unit Box Length | 0.29 |
| Unit Box Height | 0.075 |
| Supported memory clock speed (max) | 8200 MHz |
| PCI Express x16 (Gen 5.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| RGB LED pin header | Jah |
| System management BIOS (SMBIOS) version | 3.7 |
| Processor manufacturer | AMD |
| CnCode | 84733020 |
| Supported storage drive types | HDD & SSD |
| Number of storage drives supported | 6 |
| Line-in | Jah |
| Number of M.2 (M) slots | 2 |
| ACPI version | 6.5 |
| Parallel processing technology support | Not supported |
| Number of SATA III connectors | 4 |
| CPU fan connector | Jah |
| Front panel audio connector | Jah |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| PCI Express x4 slots | 1 |
| Front panel connector | Jah |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of HDDs supported | 4 |
| Total number of SATA connectors | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| Audio chip | Realtek ALC897 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| On-board graphics card | Ei |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Product colour | Black |
| Summary | MSI AM5 PRO B850M-A WIFI PZ M-ATX. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Ethernet interface type: 5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E.... Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: AMD |
| Unit Calculated Weight | 1.78 kg |
| Unit Calculated Volume | 0.007378 cubm |
| Units per Shipping Box | 10 |
| ECC сompatibility | Non-ECC |
| Supported memory types | DDR5-SDRAM |
| Chassis intrusion connector | Jah |
| Number of COM connectors | 1 |
| Memory channels | Dual-channel |
| Motherboard chipset family | AMD |
| Memory slots type | DIMM |
| ATX Power connector (24-pin) | Jah |
| BIOS type | UEFI AMI |
| Supported processor sockets | Socket AM5 |
| Compatible processor series | AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series |
| PCI Express x16 slots | 1 |
| DisplayPort version | 1.4 |
| Number of CPU fan connectors | 2 |
| Number of water pump connectors | 1 |
| Number of RGB LED pin headers | 3 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 2280 |
| Component for | PC |
| 2nd M.2 highest PCI Express generation | 4.0 |
| Tootja koduleht | https://www.msi.com/Motherboard/PRO-B850M-A-WIFI-PZ/Overview |
| DisplayPorts quantity | 1 |
| Ethernet interface type | 5 Gigabit Ethernet |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI version | 2.1 |
| Microphone in | Jah |
| Motherboard chipset | AMD B850 |
| RAID support | Jah |
| Windows operating systems supported | Windows 11 x64 |
| BIOS memory size | 256 Mbit |
| Number of memory slots | 4 |
| Processor Socket | Socket AM5 |
| Raid Levels | 0/1/10 |
| Supported memory clock speeds | 6000/6400/8200 MHz |
| USB 2.0 connectors | 4 |
