Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
| Tootja | GIGABYTE |
| Tootekood | B760M H V2 1.0 |
| EAN | 4719331878054 |
| Google link | lisainfo |
| Garantiiaeg | 36 kuud |
| .: Disain :. | |
| Emaplaadi kujutegur | micro ATX |
| Laius | 244 mm |
| Sügavus | 220 mm |
| .: Mälu :. | |
| Maksimaalne sisemälu | 128 GB |
| .: Audio :. | |
| Audioväljundi kanalid | 7.1 channels |
| .: Võrgustumine :. | |
| Ethernet LAN | Jah |
| WiFi | Ei |
| Sisemine I/O moodul | |
| TPM-ühenduspesa | Jah |

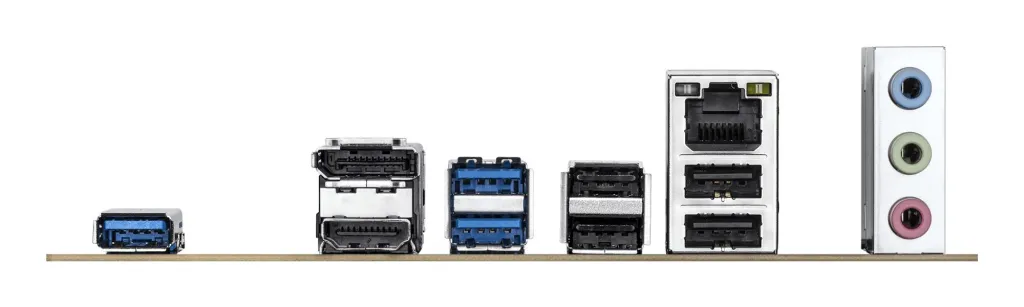

| Tagapaneeli I/O pesad | |
| HDMI-portide arv | 1 |
| USB 2.0 portide arv | 4 |
| Muud näitajad | |
| DisplayPort version | 1.2 |
| Compatible processor series | Intel Core/Intel Core i3 12th Gen/Intel Core i3 13th Gen/Intel Core i3 14th Gen/Intel Core i5 12th Gen/Intel Core i5 13th Gen/Intel Core i5 14th Gen/Intel Core i7 12th Gen/Intel Core i7 13th Gen/Intel Core i7 14th Gen/Intel Core i9 12th Gen/Intel® Celeron® |
| Supported processor sockets | LGA 1700 |
| BIOS type | UEFI AMI |
| ATX Power connector (24-pin) | Jah |
| EPS power connector (8-pin) | Jah |
| Memory slots type | DIMM |
| Motherboard chipset family | Intel |
| Number of chassis fan connectors | 2 |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Front panel audio connector | Jah |
| CPU fan connector | Jah |
| Number of SATA III connectors | 4 |
| Parallel processing technology support | Not supported |
| Clear CMOS jumper | Jah |
| ACPI version | 5.0 |
| Number of M.2 (M) slots | 1 |
| Line-in | Jah |
| Number of storage drives supported | 5 |
| Supported storage drive types | HDD & SSD |
| PCI Express x1 (Gen 3.x) slots | 1 |
| Supported storage drive interfaces | M.2,PCI Express 4.0,SATA III |
| Screws included | Jah |
| Processor manufacturer | Intel |
| Serial port headers | 1 |
| System management BIOS (SMBIOS) version | 2.7 |
| RGB LED pin header | Jah |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Supported memory clock speed (max) | 8000 MHz |
| Unit Box Height | 0.26 |
| Unit Box Length | 0.265 |
| Unit Box Width | 0.055 |
| CnCode | 84733020 |
| Warranty period | 3 year(s) |
| ECC сompatibility | ECC & Non-ECC |
| Maximum internal memory per slot | 64 GB |
| Units per Shipping Box | 10 |
| Unit Calculated Volume | 0.004669 cubm |
| Unit Calculated Weight | 0.85 kg |
| Summary | GIGABYTE B760M H V2 Motherboard - Supports Intel Core 14th Gen CPUs, 5+1+1 Phases Digital VRM, up to 8000MHz DDR5 (O.C.), 1xPCIe 4.0 M.2, 1GbE LAN, USB 3.2 Gen1. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2304 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H |
| Product colour | Dark brown |
| HDCP version | 2.3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Products per shipping (inner) case | 1 pc(s) |
| Audio chip | Realtek ALC897 |
| Number of HDDs supported | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| PC health monitoring | Fan/Temperature/Voltage/Water cooling |
| Desktop Management Interface (DMI) version | 2.7 |
| 12V power connector | Jah |
| Front panel connector | Jah |
| Lithium weight per battery | 0.07 g |
| Number of CPU fan connectors | 1 |
| Kaasas tarkvara | Norton® Internet Security (OEM version) |
| Number of EPS power connectors (8-pin) | 1 |
| Number of RGB LED pin headers | 2 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 4.0 |
| Component for | PC |
| Akuelementide arv | 1 |
| Akutehnoloogia | Lithium-Manganese Dioxide (LiMnO2) |
| Maksimaalne resolutsioon | 4096 x 2304 pixels |
| HDCP | Jah |
| Tootja koduleht | https://www.gigabyte.com/ |
| Kõrgus | 35 mm |
| Toote kaal | 770 g |
| Cooling type | Passive |
| Country of origin | China |
| DirectX version | 12.0 |
| DisplayPorts quantity | 1 |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI version | 2.1 |
| Headphone outputs | 1 |
| Microphone in | Jah |
| Motherboard chipset | Intel B760 Express |
| Power source type | ATX |
| RAID support | Jah |
| Unbuffered memory | Jah |
| Windows operating systems supported | Windows 10 x64/Windows 11 x64 |
| Batteries Included | Jah |
| Aku mahutavus | 220 mAh |
| Battery type | CR2032 |
| Battery weight | 3 g |
| BIOS memory size | 128 Mbit |
| LAN controller | Realtek RTL8111H |
| Mudel | B760M H V2 |
| Number of memory slots | 2 |
| Package depth | 265 mm |
| Package height | 54 mm |
| Package weight | 850 g |
| Package width | 265 mm |
| Processor Socket | LGA 1700 |
| Raid Levels | 0/1/10/5 |
| Supported memory clock speeds | 4000/4800/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600/7800/8000 MHz |
| USB 2.0 connectors | 1 |
